Kit 1S FPV with 1/4inch CMOS Sensor 800TVL Camera Optical Flow/Barometer/Laser Positioning System VR02 Goggles Racing RC Drone Quadcopter

Kit 1S FPV with 1/4inch CMOS Sensor 800TVL Camera Optical Flow/Barometer/Laser Positioning System VR02 Goggles Racing RC Drone Quadcopter
Kit 1S FPV with 1/4inch CMOS Sensor 800TVL Camera Optical Flow/Barometer/Laser Positioning System VR02 Goggles Racing RC Drone Quadcopter
Kit 1S FPV with 1/4inch CMOS Sensor 800TVL Camera Optical Flow/Barometer/Laser Positioning System VR02 Goggles Racing RC Drone Quadcopter
Kit 1S FPV with 1/4inch CMOS Sensor 800TVL Camera Optical Flow/Barometer/Laser Positioning System VR02 Goggles Racing RC Drone Quadcopter
Kit 1S FPV with 1/4inch CMOS Sensor 800TVL Camera Optical Flow/Barometer/Laser Positioning System VR02 Goggles Racing RC Drone Quadcopter
Kit 1S FPV with 1/4inch CMOS Sensor 800TVL Camera Optical Flow/Barometer/Laser Positioning System VR02 Goggles Racing RC Drone Quadcopter
Kit 1S FPV with 1/4inch CMOS Sensor 800TVL Camera Optical Flow/Barometer/Laser Positioning System VR02 Goggles Racing RC Drone Quadcopter
Kit 1S FPV with 1/4inch CMOS Sensor 800TVL Camera Optical Flow/Barometer/Laser Positioning System VR02 Goggles Racing RC Drone Quadcopter
Kit 1S FPV with 1/4inch CMOS Sensor 800TVL Camera Optical Flow/Barometer/Laser Positioning System VR02 Goggles Racing RC Drone Quadcopter
Kit 1S FPV with 1/4inch CMOS Sensor 800TVL Camera Optical Flow/Barometer/Laser Positioning System VR02 Goggles Racing RC Drone Quadcopter
Kit 1S FPV with 1/4inch CMOS Sensor 800TVL Camera Optical Flow/Barometer/Laser Positioning System VR02 Goggles Racing RC Drone Quadcopter
  • Stock: In Stock
  • Model: ST22001037
  • SKU: ST22001037
$190.29
Ex Tax: $190.29

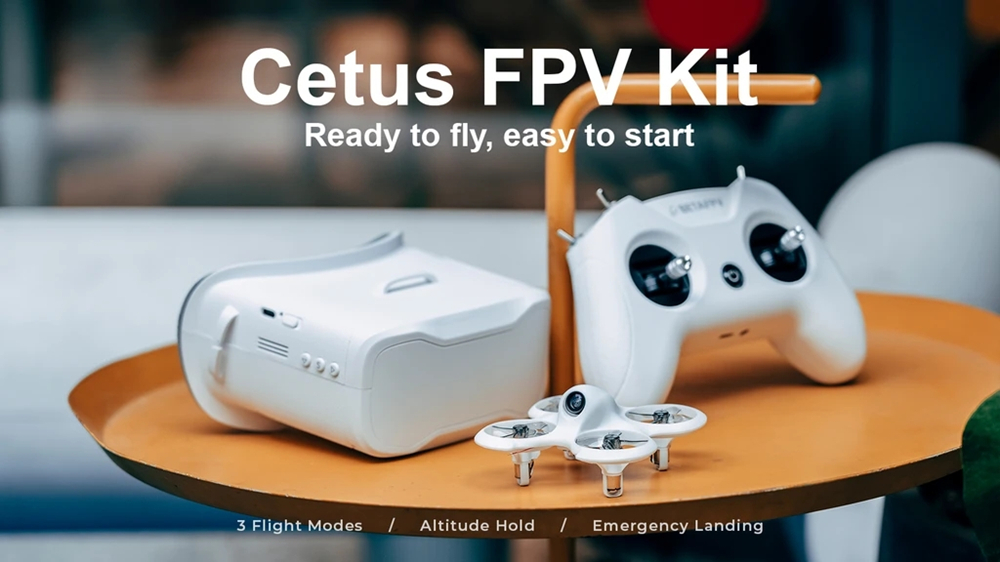

BETAFPV Cetus Kit 1S FPV with 1/4" CMOS Sensor 800TVL Camera Optical Flow/Barometer/Laser Positioning System VR02 Goggles Racing RC Drone Quadcopter


Description:

ItemSpecification
Cetus FPV KitPositioning SystemOptical flow / Barometer / Laser
Height PositioningLaser / Barometer
Angle LocatingOptical flow ( effective height 0.3-3m)
Accuracy of auto-hoverHorizontal ±0.2m
vertical ±0.3m
Receiver protocol Frsky D8

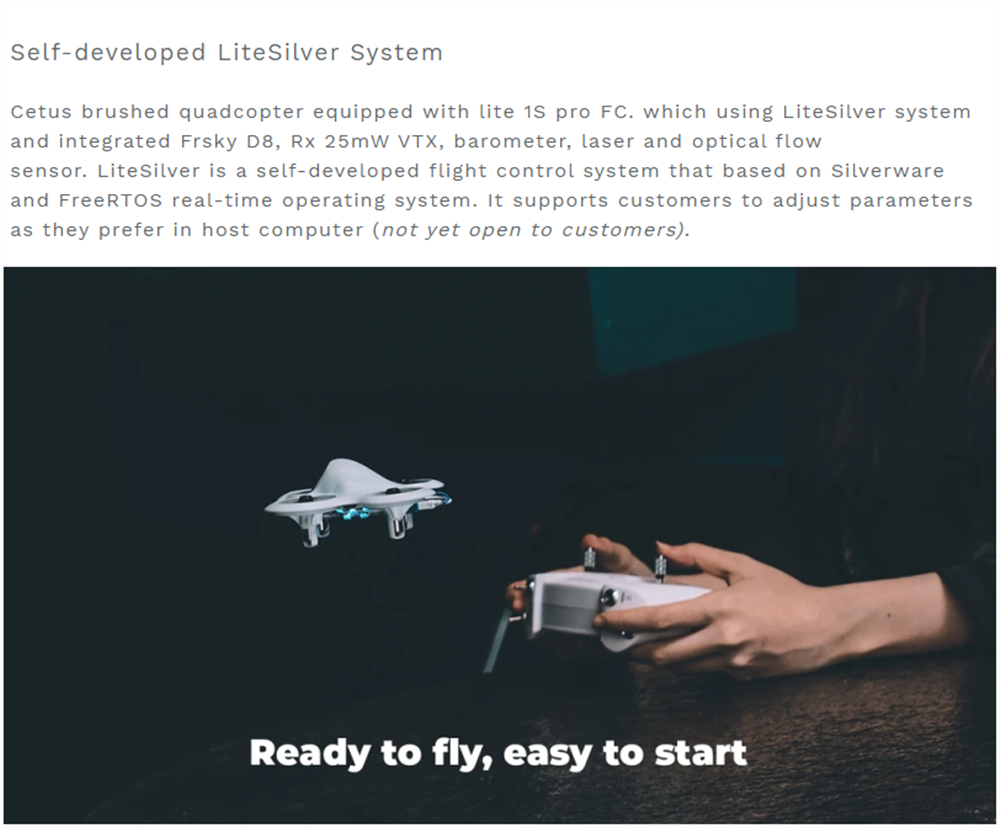

Flight controllerLite 1S Pro brushed FC
VTX 25mW
Camera Tilt Degree25°
CameraC01 FPV Camera
TransmitterLiteraio2 SE Transmitter
TX modeMode 2 (Left stick throttle)
GogglesVR02 Goggles
Motor 716-19000KV Brushed motor
Propeller31mm 4-blade 0.8mm shaft hole
Takeoff weight35g(with battery)
Power system1S
BatteryBT2.0 300mah 1S Battery (external)
Flight time 4-5min
Flight distance 80m (in wide & undisturbed environment)
C01 FPV CameraImage Sensor1/4" CMOS Sensor
Horizontal 800TVL with Global WDR
Signal SystemNTSC
Lens2.1mm(M8) FOV 160°
S/N Ratio>50db
Electronic Shutter SpeedAuto
Auto Gain Control (AGC)Auto
Min. Illumination[email protected]
D-WDRAuto
PowerDC 3-5.5V
Current[email protected] / [email protected]
Housing MaterialABS
Dimension11*11mm
Net weight1.4g

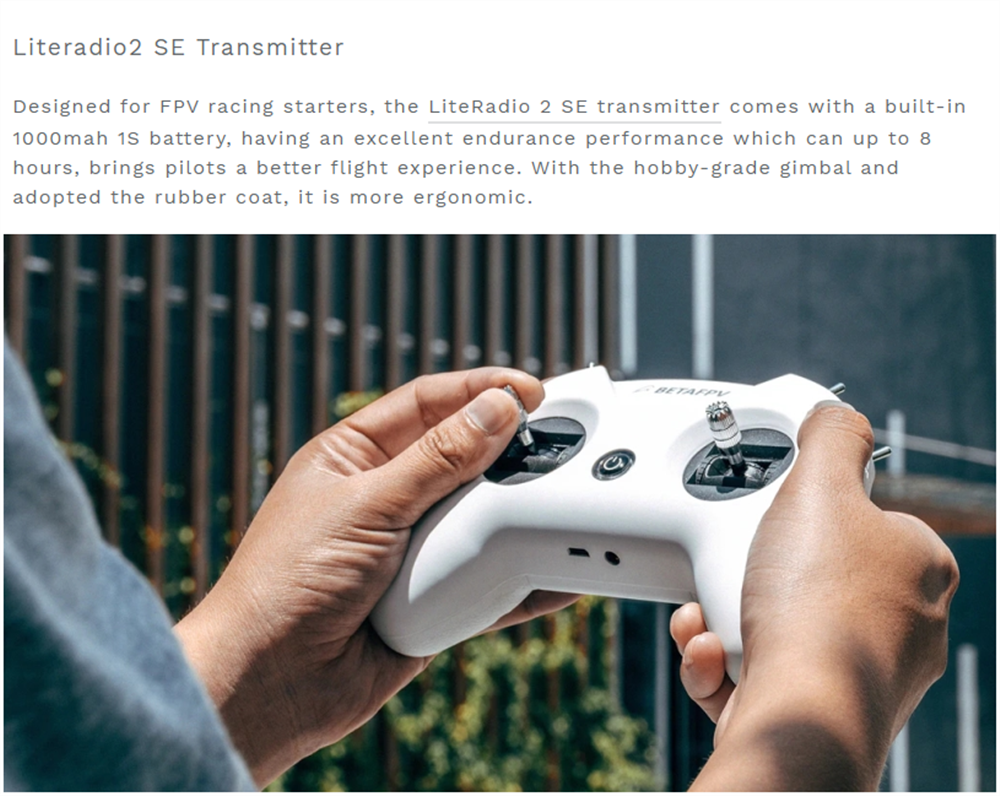

LiteRadio 2 SE Radio TransmitterColorWhite
Frequency Range2.4G (2403MHz-2447MHz)
2.4G SystemNRF24L01 or CC2500
Channel8
Support ProtocolBayang
Futabas S-FHSS
Frsky FCC D16
Frsky LBT D16
Frsky D8
Power≤100mw
Adapted Drone TypeMultirotor
LED LightGreen-Power On
Red-Warning if the voltage is lower than 3.5V
Blue-Normal
BatteryBuilt-in 1000mAh 1S Battery
Charging ConnectorUSB 3.0 Type-C

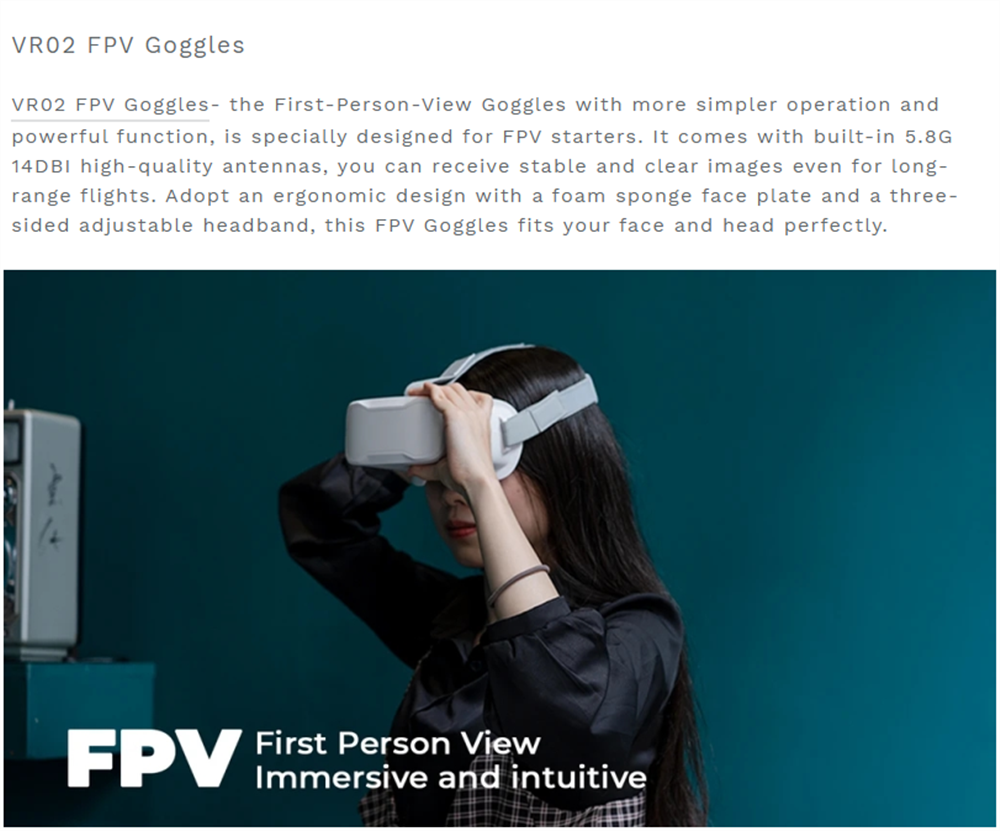

VR02 FPV GogglesDimension126x143x86.3mm
Weight300g with 2hr 2000mAh battery
BeltThree-Ways adjustable belt
screen size4.3 inch
Screen resolution 800*480 px
Screen brightness300cd/m2
View Angle 55°
ChargingType-C Charging
Voltage3.7V, the device operating current of [email protected]
Current500mA
BATTERY3.7V/2000mAh
working timeAround 2 hours
7x16mm Brushed MotorsSize7x16mm
Width7mm
Height16mm
Cable lengt50mm
Shaft Diameter0.8mm
Weight2.95g per motor
Speed 19000KV
Voltage3.7V
ConnectorJST 1.25mm 2P connector


Features:

- Auxiliary flight function is suitable for beginner, greatly reducing the threshold of operating. Now everyone can fly!

- Including N-Mode, S-Mode, M-Mode, which can satisfy different needs of pilots and adapt to various flight environments.

- Cetus brushed quadcopter, LiteRadio2 SE transmitter , VR02 FPV Goggles , batteries, charger etc., everything needed for flight is included.

- Equipped with Type-C port charging cable, unified charging port for all parts, more convenient for charging.

- All items are stored in a EVA portable storage bag, which provides better protection and easy to carry.

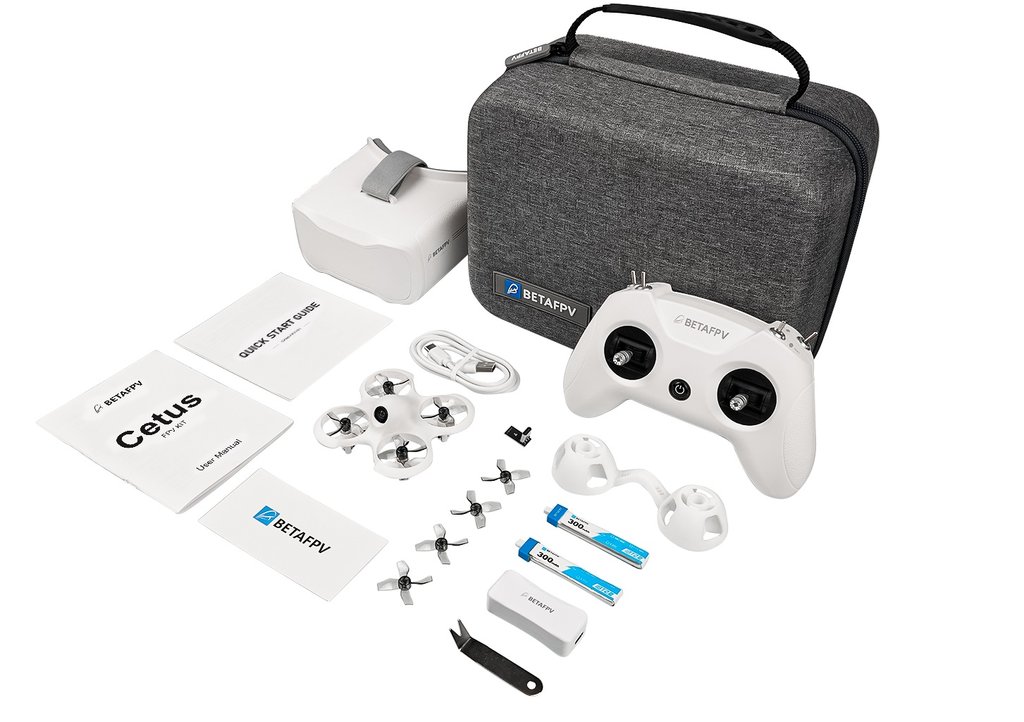

Package Included:

1 * Cetus Brushed Quadcopter

1 * LiteRadio2 SE Transmitter (Frsky D8 Protocol)

1 * VR02 FPV Goggles

2 * BT2.0 300mAh 1S Lipo Battery

1 * BT2.0 Battery Charger and Voltage Tester

1 * USB Charging Cable (Type-C)

1 * Type-C Adapter

1 * Prop Removal Tool

4 * 31mm 4-Blade Props

1 * Portable Storage Bag
