0.9 Degree 42mm Two Phase Hybrid Stepper Motor 1.33A 34mm For CNC
- Stock: In Stock
- Model: ST220013147
- SKU: ST220013147
$16.99
Ex Tax: $16.99
Description:

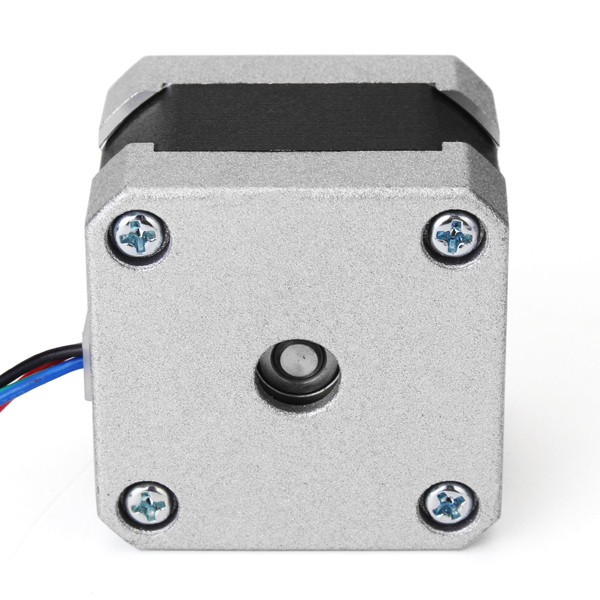

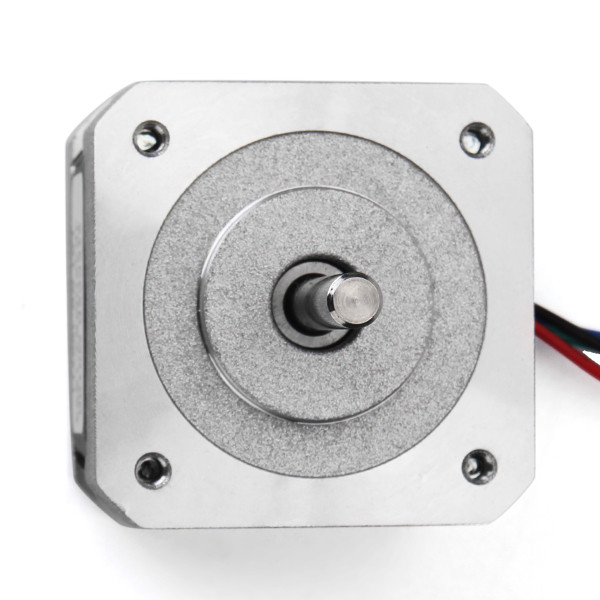

JKM NEMA17 0.9 Degree 42mm Two Phase Hybrid Stepper Motor 1.33A 34mm For CNC
Specification:
Brand: JKM
Model Number: JK42HM34-1334
Diameter of axle: 5mm
Motor length: 34mm

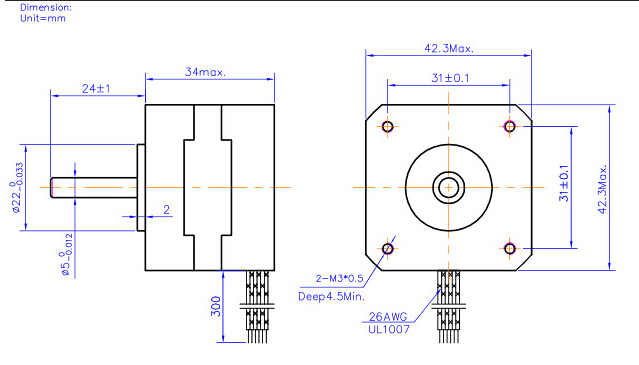

Boundary Dimension:42*42mm
Size: 42mm x 42mm x 34mm
Holding Torque:2.2Kg.cm
Holding Torque:2.2Kg.cm
Certification: CE
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.
Genaral Specification:
Electrical Specification:
| Item | Specifications |
| Step Angle | 0.9° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
Electrical Specification:
| Model No. | Step Angle | Motor Length |
Rate Voltage |
Current /Phase |
Resistance /Phase |
Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | V | A | Ω | mH | kg.cm | No. | g.cm | g.cm | Kg | |
| JK42HM34-1334 | 0.9 | 34 | 2.8 | 1.33 | 2.1 | 4.2 | 2.2 | 4 | 200 | 35 |
0.22 |
Package Included:
1x Stepper Motor
