2Pcs Electric Gearbox Motors T5x160mm DC 6V N20 Geared Motor 4mm Fast Screw Motor With Flange Screw Motor
- Stock: In Stock
- Model: ST220012823
- SKU: ST220012823
$14.99
Ex Tax: $14.99
Description:

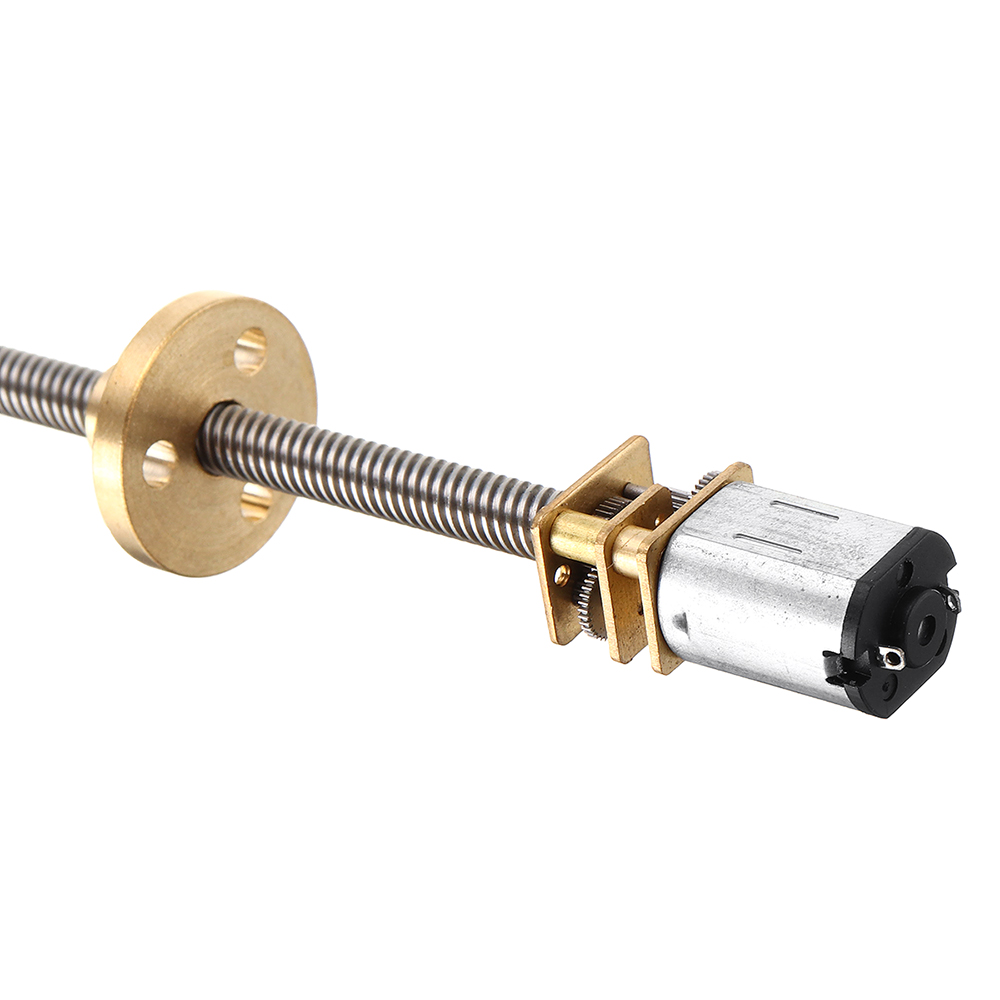

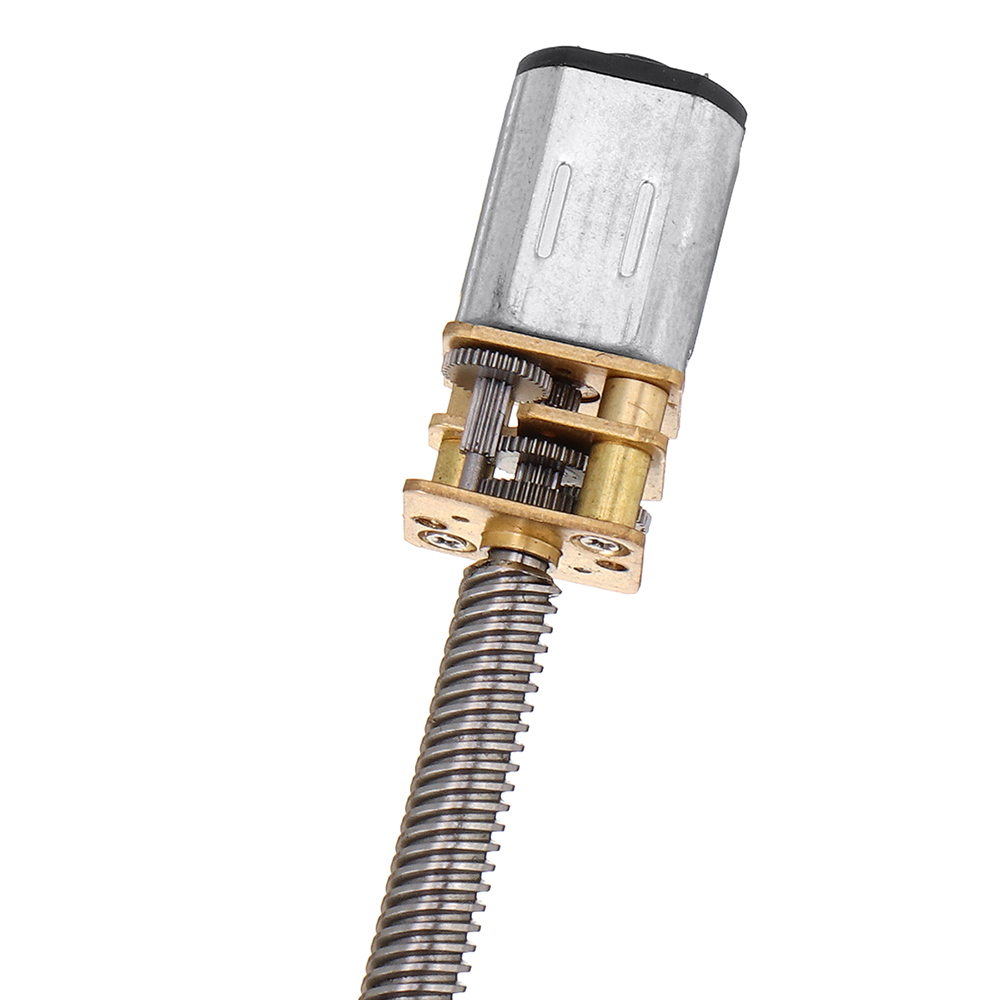

2Pcs Electric Gearbox Motors T5×160mm DC 6V N20 Geared Motor 4mm Fast Screw Motor With Flange Screw Motor
Specifications:
| Product Name | T5 Screw Geared Motor |
| Material | Motor: Electroplated stainless steel Output Shaft: 304 stainless steel |
| Color | Motor: Gold and silver Flange: Gold Screw: Silver |
| Output Shaft Type | T type quick thread |

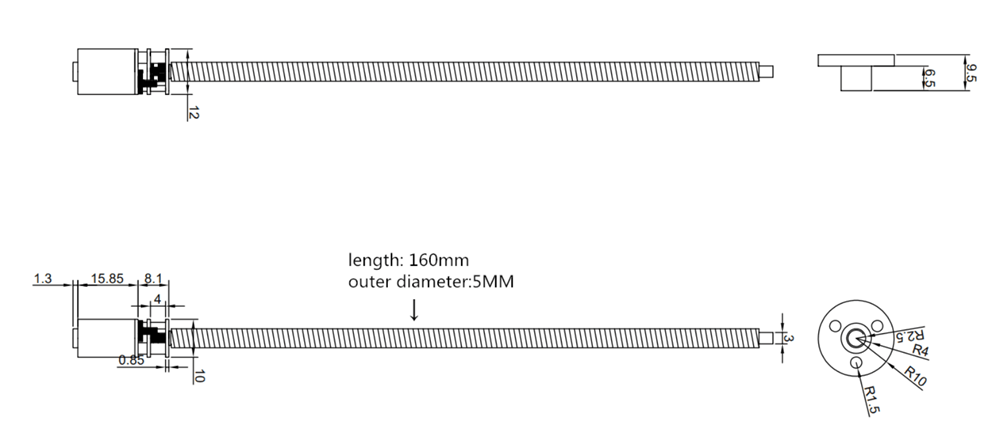

| Output Shaft Diameter | 5mm |
| Output Shaft Length | 160mm |
| Output Shaft Pitch | 4mm (Faster than nomal 0.7mm) |
| Quantity | 2 Pcs x T5 Screw Geared Motor 2 Pcs x Flange |
| VOLTAGE | GEAR RATIO | NO LOAD | LOAD TORQUE | STALL | ||||
| SPEED | CURRENT | SPEED | CURRENT | TORQUE | CURRENT | TORQUE | ||
| 6V | 1:298 | 60rpm | ≤40MA | 50rpm | ≤40MA | 560g.cm | ≤1.1A | 3.6KG.CM |
| 6V | 1:100 | 100rpm | ≤50MA | 83rpm | ≤45MA | 320g.cm | 2.25KG.CM | |
| 6V | 150rpm | 130rpm | 260g.cm | 2.5KG.CM | ||||
| 6V | 1:50 | 200rpm | 180rpm | 160g.cm | 1.6KG.CM | |||
| 12v | 1:298 | 60rpm | ≤60MA | 45rpm | ≤50MA | 750g.cm | 5.2KG.CM | |
| 12v | 120rpm | 100rpm | ≤60MA | 880g.cm | 4.8KG.CM | |||
| 12v | 1:100 | 200rpm | ≤50MA | 160rpm | 450g.cm | 3.2KG.CM | ||
| 12v | 300rpm | 240rpm | 550g.cm | 3.6KG.CM | ||||
| 12v | 1:50 | 400rpm | 310rpm | ≤45MA | 280g.cm | 2.4KG.CM | ||

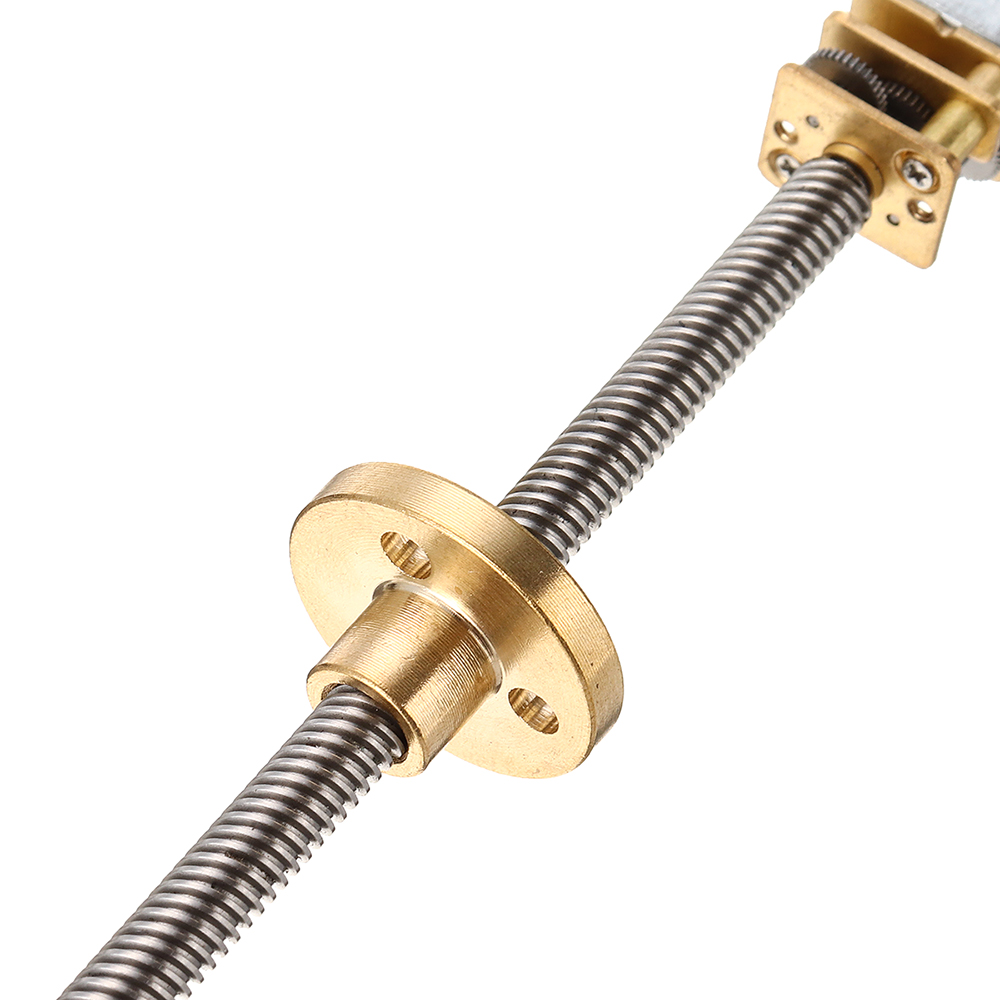

- 4mm T-shaft quick screw, with flange.

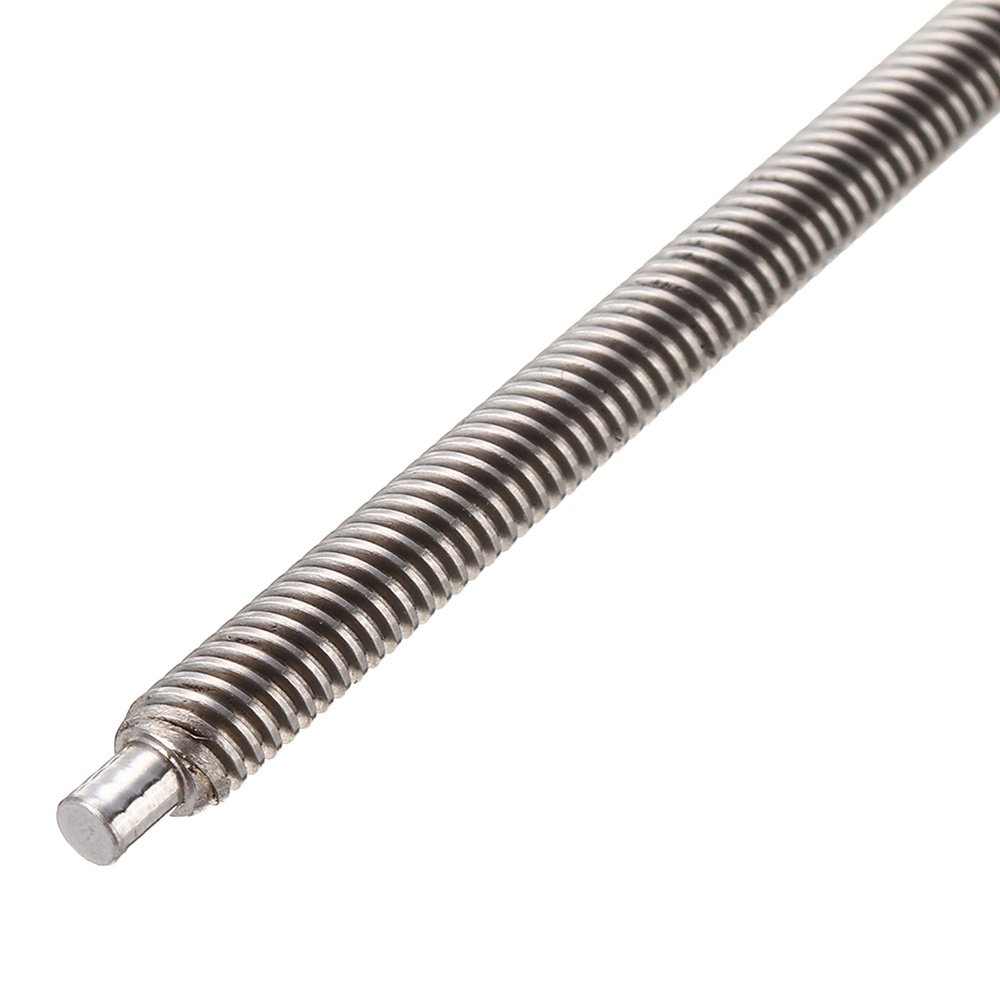

- The output shaft is made of 304 stainless steel.
- It can be used as a conveyor belt, a lifting home, a lifting platform.
Package Included:

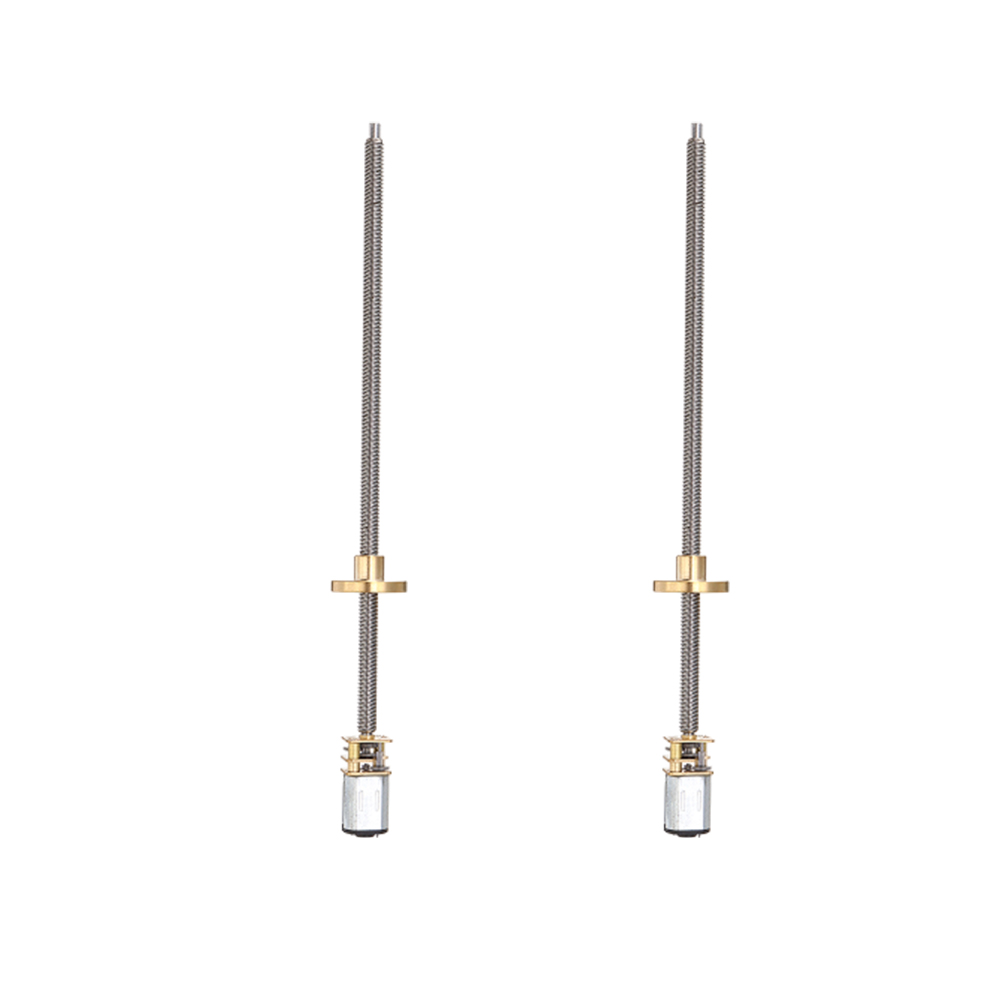

| 2 Pcs × | T5 Screw Geared Motor |
| 2 Pcs x | T5 Flange |
