30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment

30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
30mW 515nm Fixed Focus Green Line Laser Module Industrial Positioning Marking Alignment
  • Stock: In Stock
  • Model: ST220016848
  • SKU: ST220016848
$69.99
Ex Tax: $69.99
Specification:
 Brand  MTOLASER
 Laser Power  30mW
 Luminous Color  Green
 Wavelength  515nm
 Beam Shape  LINE

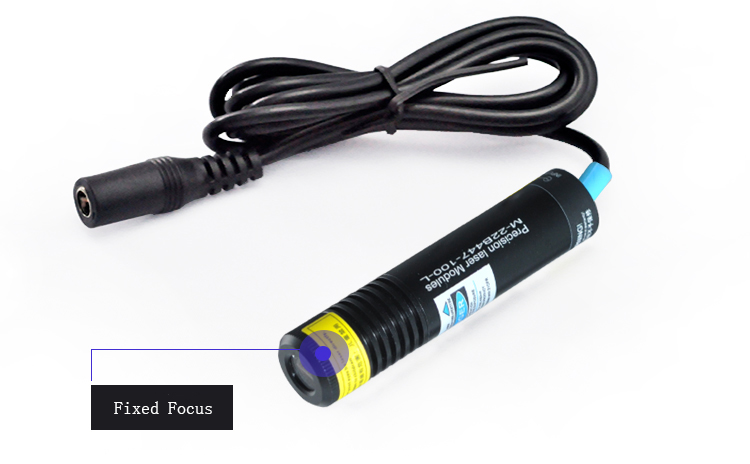

 Focusable  No, Fixed Focus
 Output Light  Visible Light
 Power Supply  DC 9~12V
 Working Current  88mA
 Optics  K9 Glass
 Shell Material  Aircraft Aluminum
 Operation Temperature  ±50℃
 Dimension (D*L)  22mm x 100mm
 Recommended Working Distance  2~10m

Features:
- 30mW stable output power, fixed focus (non-adjustable) 515nm green line laser module.
- Good heat dissipation ensures its long service life.

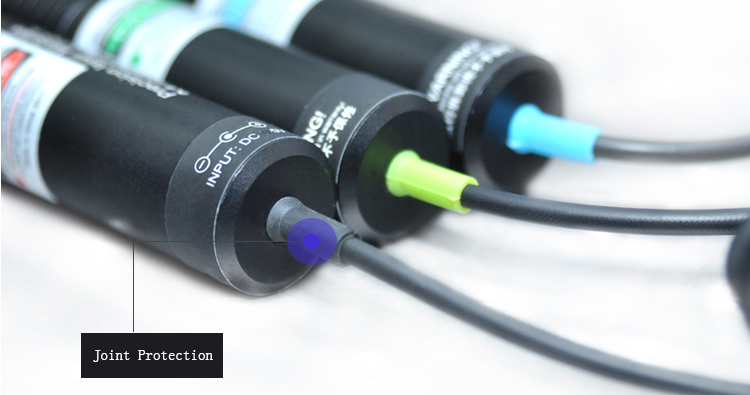

- Designed with locking ring, ensure its anti-interference performance, high stability under vibration condition.

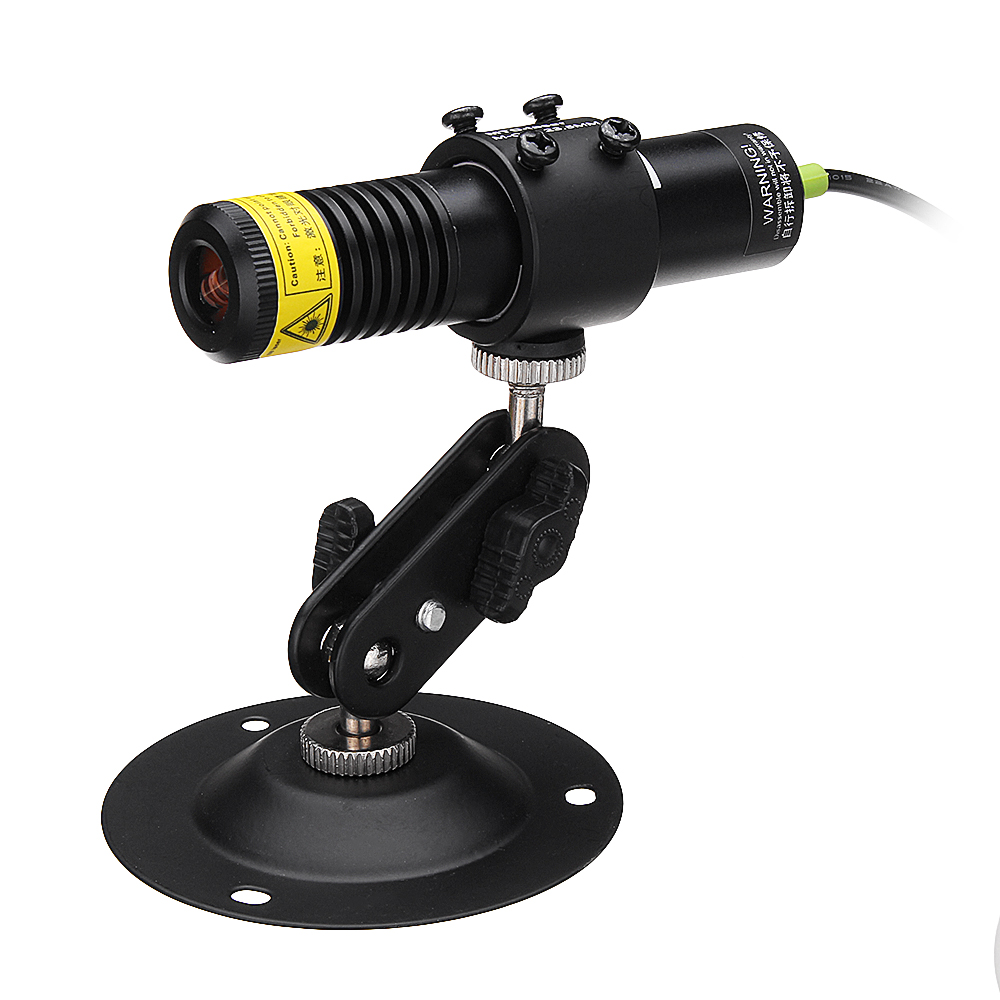

- Come with mount holder, rotate the adjust the angle for easy placement and installation.
- Application: stone cutting machine positioning, positioning of woodworking machinery, sewing machine, garment cutting orientation, machine tool location, etc.

How to Choose A Right Laser Marking Module?
MTOLASER suplies a variety of laser marking modules: dot, line, cross in beam shape and red, green, blue in laser color. For a same color of laser, the power is stronger then the laser is brighter. However, stronger doesn't mean the better. It's important to choose the right power according to your working environment.

- High power laser, can work under strong light envrioment, but has a less performance in precision.
- Low power laser, can work under ordinary light envrioment, but performs better in precision.

Package Included:
1 x Green Line Laser Module (Fixed Focus)
1 x Powder Adapter
1 x Mount Holder

More Details:

MTOLASER-30mW-515nm-Fixed-Focus-Green-Line-Laser-Module-Industrial-Positioning-Marking-Alignment-1293249-1






MTOLASER-30mW-515nm-Fixed-Focus-Green-Line-Laser-Module-Industrial-Positioning-Marking-Alignment-1293249-2MTOLASER-30mW-515nm-Fixed-Focus-Green-Line-Laser-Module-Industrial-Positioning-Marking-Alignment-1293249-3,MTOLASER-30mW-515nm-Fixed-Focus-Green-Line-Laser-Module-Industrial-Positioning-Marking-Alignment-1293249-4,MTOLASER-30mW-515nm-Fixed-Focus-Green-Line-Laser-Module-Industrial-Positioning-Marking-Alignment-1293249-5,MTOLASER-30mW-515nm-Fixed-Focus-Green-Line-Laser-Module-Industrial-Positioning-Marking-Alignment-1293249-6,MTOLASER-30mW-515nm-Fixed-Focus-Green-Line-Laser-Module-Industrial-Positioning-Marking-Alignment-1293249-7,MTOLASER-30mW-515nm-Fixed-Focus-Green-Line-Laser-Module-Industrial-Positioning-Marking-Alignment-1293249-8,MTOLASER-30mW-515nm-Fixed-Focus-Green-Line-Laser-Module-Industrial-Positioning-Marking-Alignment-1293249-9,MTOLASER-30mW-515nm-Fixed-Focus-Green-Line-Laser-Module-Industrial-Positioning-Marking-Alignment-1293249-10
