  • Stock: In Stock
  • Model: ST220013267
  • SKU: ST220013267
$199.99
Ex Tax: $199.99

Main Feature:


1. Widely compatible design: The SCULPFUN laser module has a clever and widely compatible structural connection device, which can be well adapted to different laser engraving machines, laser cutting machines, 3D printers, CNC milling machines, etc. It can be installed on a variety of brand machines, such as SCULPFUN, ATOMSTACK, ORTUR laser engraving machine, or other DIY type machines.


2. Powerful 60W effect spot compressed laser : S6 pro uses the latest 5.5W diode spot compression laser. It has an ultra-thin square laser focus, and its cutting penetration and accuracy are twice of ordinary lasers. Even in the field of spot compression lasers, S6 pro has finer engraving marks and stronger cutting and penetration capabilities. It can cut 10mm thick wood boards and engrave ceramics and metals, which is almost beyond the effect of 60W CO2 laser.


3. Fast fixed focus design: The S6 Pro laser module has the fastest focusing design on the market. It combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete focusing. This makes the use of the laser very simple. Using it on different machines does not affect its sliding fixed focusing function.

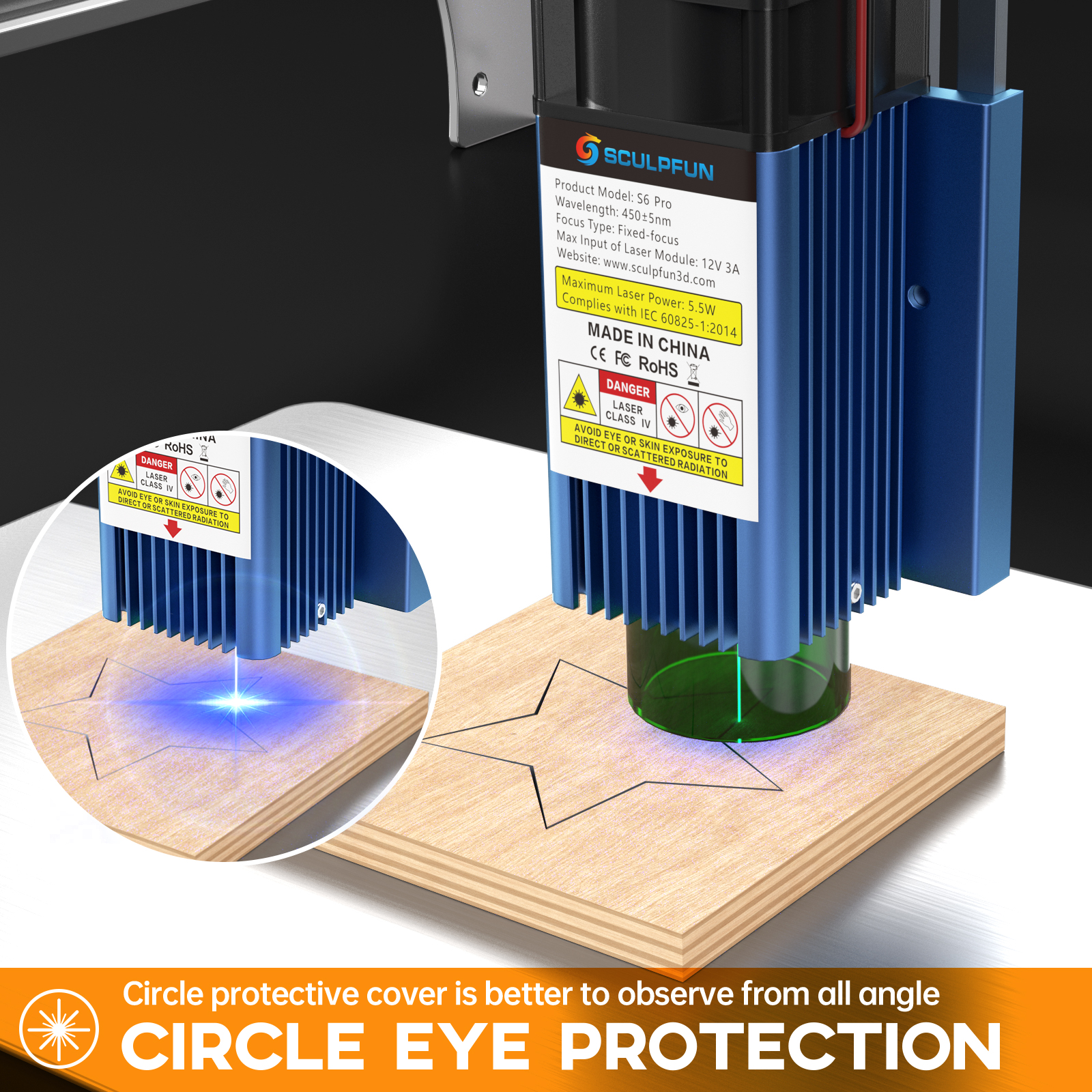

4. Circle eye protection cover design: The laser filter cover filters 98% of the ultraviolet light to the eyes. You and the people around you can watch laser engraving from all angles without wearing goggles. At the same time, it can prevent animals from catching the laser spot.


5. General 12V/PWM modulation board: It uses a common 12V/PWM modulation board, which can be adapted to common GRBL or CNC motherboards. You can view product pictures for details.


Product information:

Product model: SCULPFUN S6 Pro Laser

Applicable machines: laser engraving machines such as SCULPFUN, ATOMSTACK, ORTUR, ELEKSMAKER, or DIY 3D printers, CNC machine tools.

Engraving materials: paper, paper, cardboard, plastic, white, PCB board, alumina, stainless steel, black metal, ceramic

Cutting material: thin board, acrylic board, cardboard, non-woven fabric, bamboo, some plastic board;

Laser effect power: 60W (cutting effect similar to 60W CO2 laser)

Laser output power: 5.5-6W (light energy)

Laser wave length 455±5nm

Laser type and fixed focus method: fixed focus laser, fixed focus through 20mm measuring column

Laser protective cover: the ring-shaped violet filter cover protects the user's eyes and prevents animals, etc. from contacting the laser spot.

Laser shell material: aluminum alloy


Laser circuit board parameters:

Circuit Board Size: 40*40mm

Circuit Board:12V/PWM modulation board

Input voltage: 12V

Max Input of laser module:12V 3A

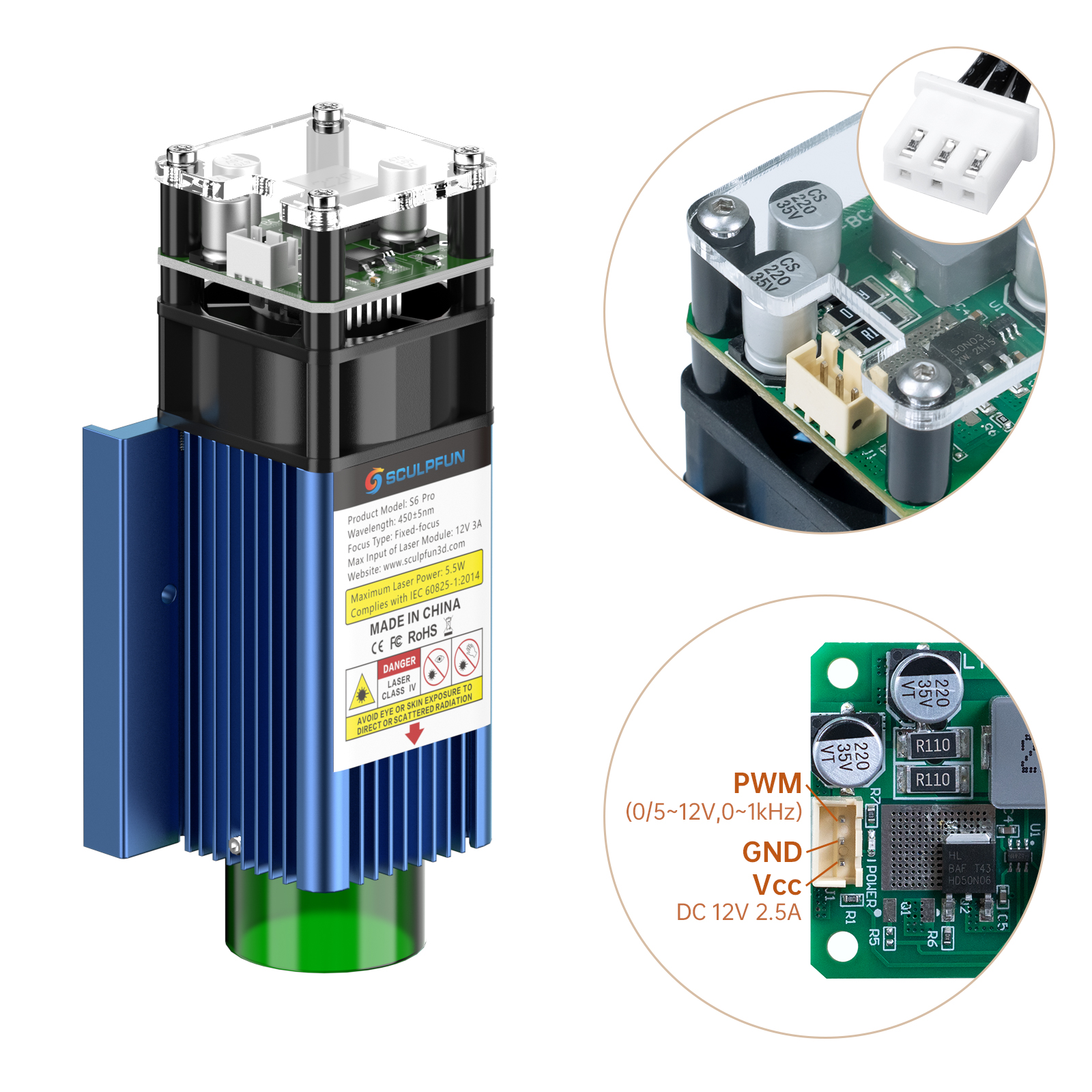

Wire Rod:HY2.0, 3Pin terminal (3-core cable, A: PWM +, B: GND, C: VCC ).

Fan:12V 0.15A 4020 fan

Fan speed: 10000 rpm

Operating temperature: -20 ℃ to 70 ℃

Package weight: 0.5kg

Packing size: 11*12*18cm


S6 Pro Laser Module packing list:

Laser head*1

Multi-function structural connection device *1

20mm measuring column*1

Screws and tool kit*1


Precautions:

●For detailed machine instructions, please refer to the manual for parameter settings.

●Before installing and using the laser, you should understand the adaptability and the maximum input voltage and current to avoid damage to the laser.

●Do not touch the laser with your hands, otherwise you may burn your hands.

●Please avoid strong impact on the machine.

●It is forbidden for children under 14 years old to use this product. Children over 14 years old need adult supervision.

●Do not apply the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.
