- Stock: In Stock
- Model: ST220013280
- SKU: ST220013280
Description:

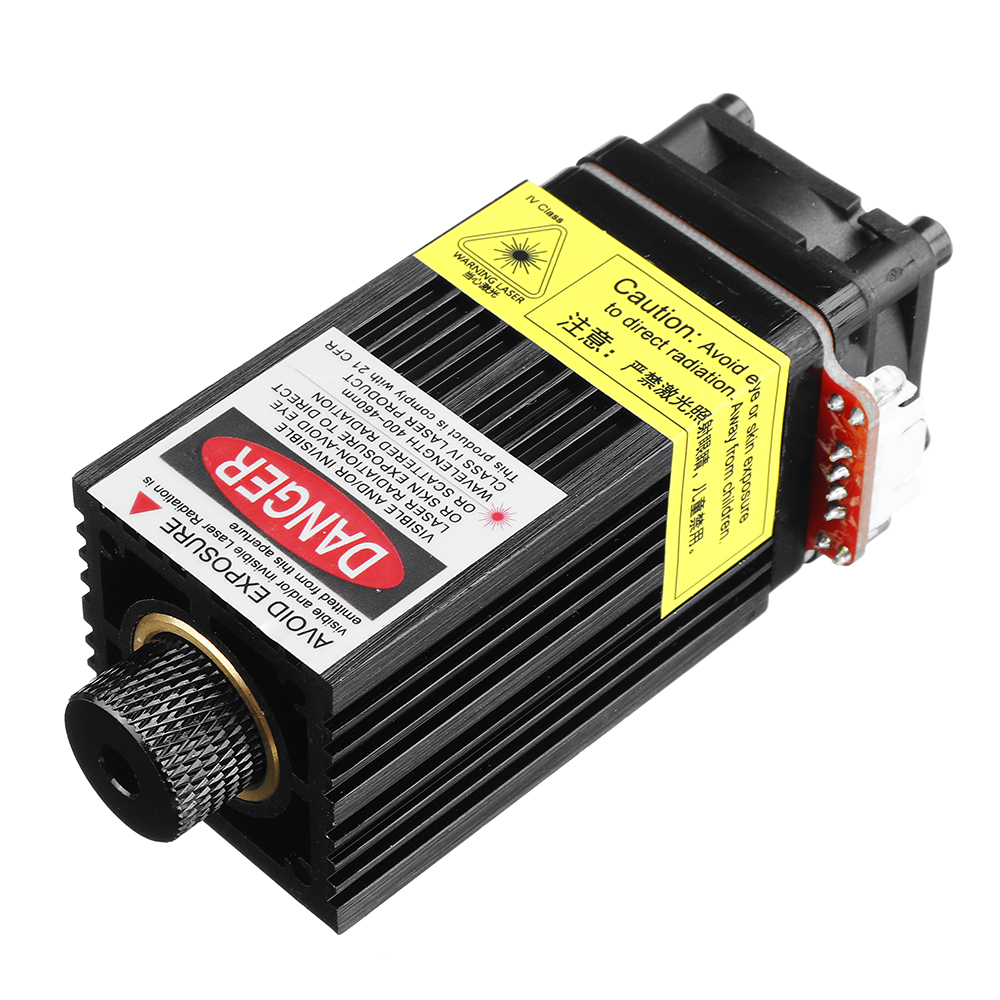

VIGO 20W 450nm Blue Light Laser Module Head TTL PMW Controller Board DIY Carving Engraving Cutting Machine Engraver Accessory DIY Tools Laser Module Head
Feature:
1. Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.
2. Original laser diodes, high-quality LD capping technology, ensure service life.
3. Built-in driver board, 40mm threaded copper core with thermal grease compound, temperature sensor
4. New lens, clear focus, not stray light, adjustable focal length.
5. Can carving / cutting MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal)
Specification:
Brand | VIGO |
Luminous Color | Blue |
Section Size | 30 * 30mm / 1.18 * 1.18in |
Cooling Mode | 40mm copper core + heat sink grooves + thermal silicone grease + 15000 rpm cooling fan |
Adapter Input Voltage | AC100~240V UL certification high quality |
Adapter Output Voltage | DC 12V |
Can Engrave | MDF/balsa/paper/wood/fabric/plastic/leather/plywood/foam paper/anodized aluminum |
Can NOT Engrave | Metal/glass/stone/ceramics/PCB/stainless steel/reflective material/ transparent material |
Rated power | 22W |
Working current | 2A Max |
Output optical power | >5000mW |
Electro optic conversion rate | >22.7% |
Laser wavelength | 450nm (Blue light) |
Facula type | Dot (Adjustable focus) |
Driving mode | Built in ACC constant current drive |
Laser output control | PWM/TTL |
Power supply and control interface | 2.54 4PIN |
Sensor | Module core temperature sensor |
Shell material | Aluminum surface anode black |
Module material | Brass |
Collimating lens | Optical glass & High antireflection coating |
Heat dissipation mode | Aluminum alloy shell forced air cooling |
Note:
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. Do not engrave mirror objects, pay attention to fire, pay attention to pets when working!
3. Smoke will be generated when burned, please pay attention to smoke exhaust indoors.
4. This laser module is compatible with our NEJE machine.
Package Included:
1 X | 20W Laser Engraving Module |
1 X | Goggles |
1 X | Panel |
1 X | Cable |
