LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker

LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
LA03-500 405nm 500mW Blue Laser Module DC 12V Heat Sink Cooling Fan DIY Laser Engraver for EleksMaker
  • Stock: In Stock
  • Model: ST220016850
  • SKU: ST220016850
$49.99
Ex Tax: $49.99
What are the advantages of this module (designed with DC female plug)?
Just plug in power adapter, then the laser emits immediatelyEsay and quick for various laser usages.

Description: This 500mW focusable violet laser module is suitable for mini engraving machine equipment usage with stable output power and long lifetime.

Specification:
General Specification
Model LA03-500
Heatsink Material Aircraft Aluminum
Luminous Color Blue Violet
Section Size 33mm x 33mm
Cooling Mode Heat Sink Groove, Cooling Fan
Dimension 67 * 33 * 33mm
Adapter Plug US Plug
Adapter Input Voltage AC 100-240V
Technical Parameters
Laser Power 500mW
Wavelength 405nm
Working Voltage DC 12V
Working Current 700mA
Beam Shape Dot (Focusable)
TTL/PWM Modulation NO
Power Port DC 5.5*2.1
Working Temperature -40 ~ 75℃
Life Time 6000 hours

Features: 1. 500mW constant laser power, focusable blue violet laser module.
2. Aircraft aluminum heatsink with cooling fan ensure long working time continuously.
3. Equipped with constant-current driver board ensure stable output optical power, suitable for industrial engraving machine equipment usage.

Note
 (Please pay attention):
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. The warranty period of laser module is one month. If you have any quality problem (Except individual situation like using the laser module more than 30 minutes per time and casue the damage), please feel free to ask our customer service for help.
3. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
4. Any quality problem about the module, please feel free to contact us. Many operative problem can be solved according to your video and problem description. Thanks for your understanding.
5. This laser module is compatible with our EleksMaker machine. You can use a DC TO 2 PIN connector to do it. (Can not adjust laser intention)

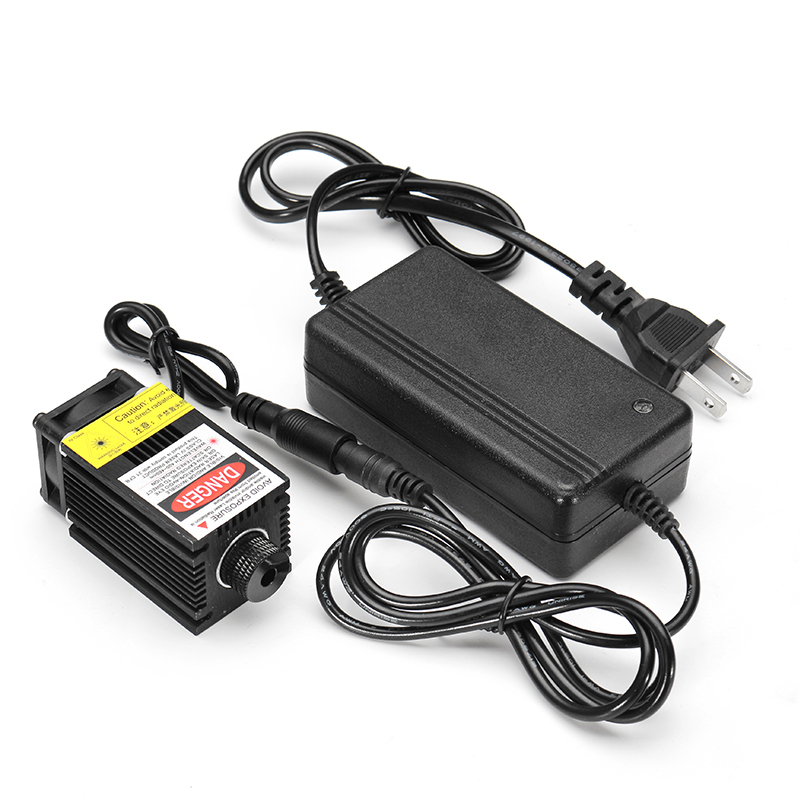

Package included: 1 x 500mW Blue Violet Laser Module

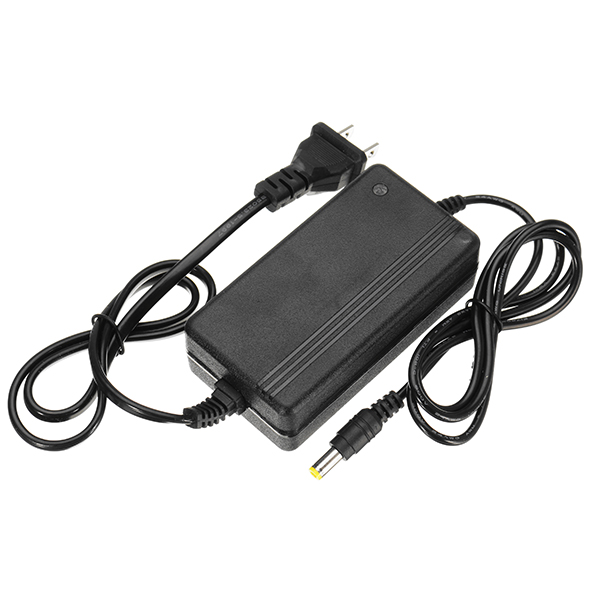

1 x Power Adapter
