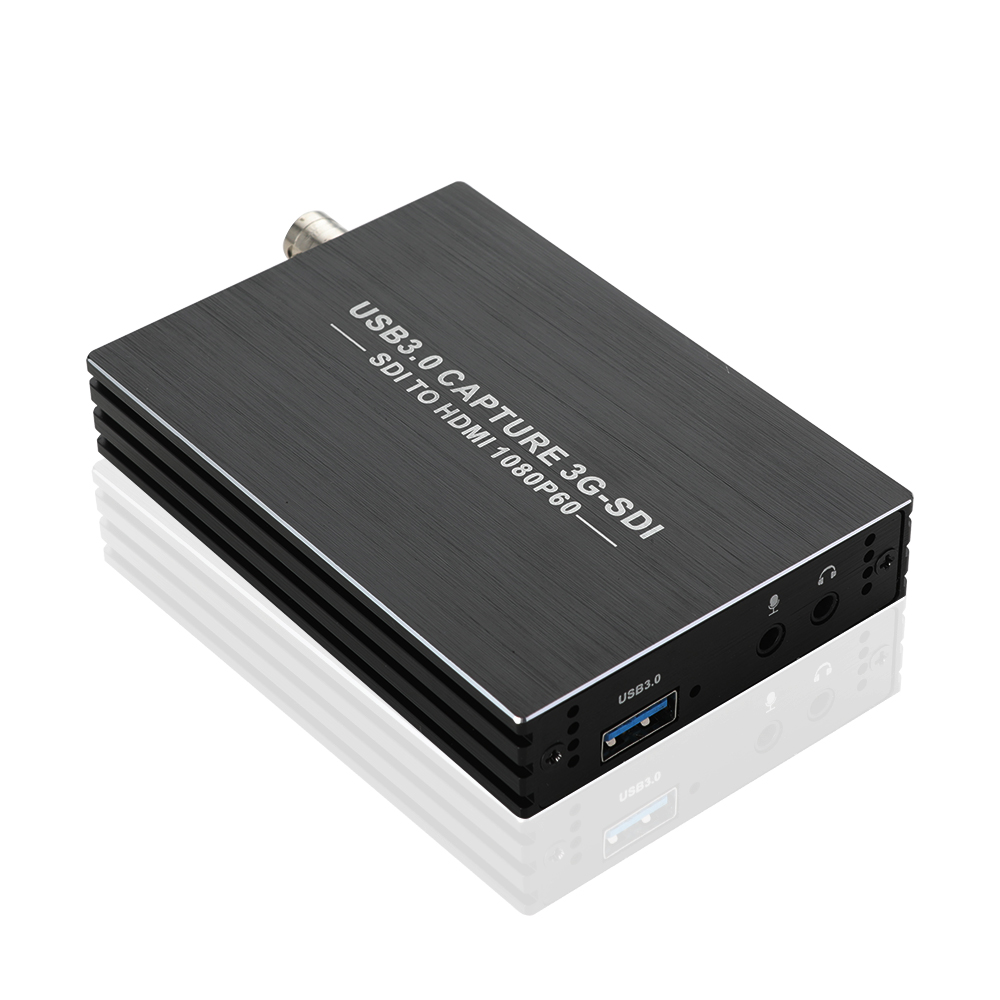

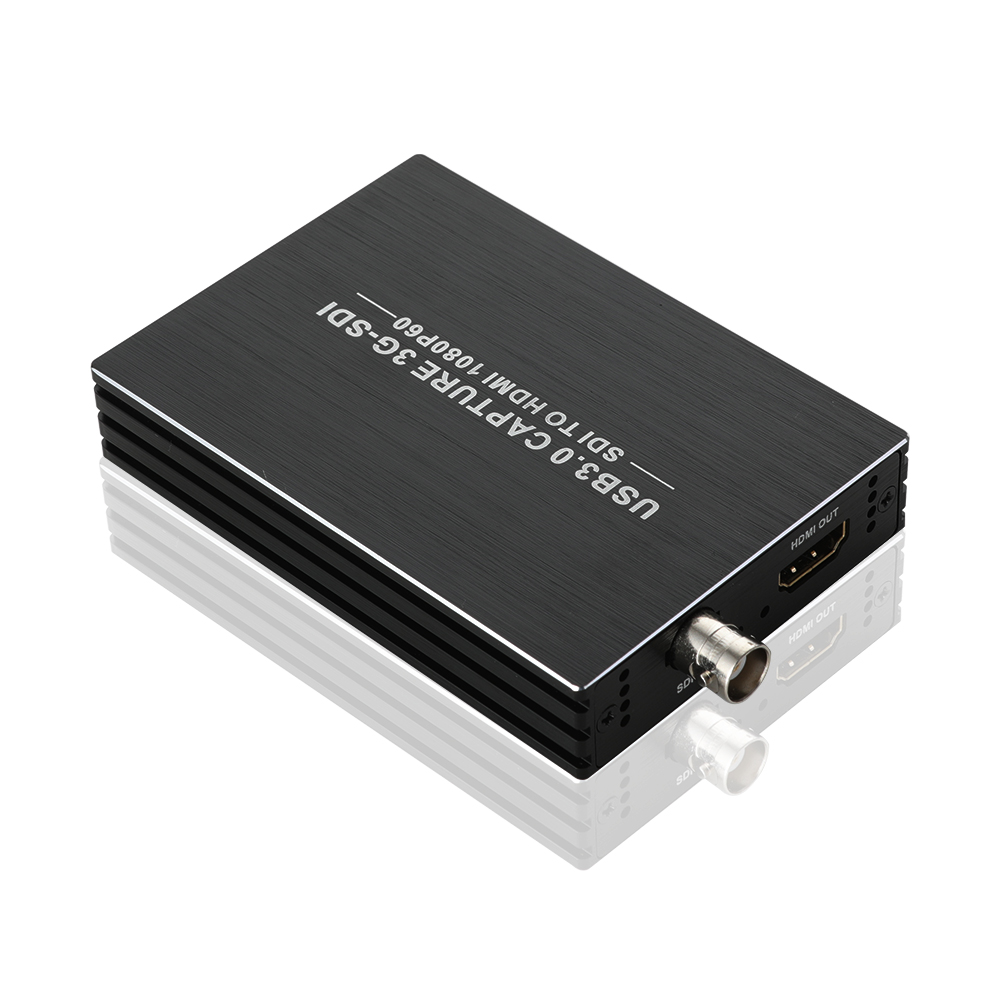

3G-SDI USB3.0 Capture Card Game Live Recording 4K HD Display Switch 4K 1080P Audio Video Capture Card

1. It doesn't need to install a driver, and it is truly PnP.

2.It is compatible with Windows, Linux, OS X operating systems

3.USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0

4.The process of video and audio is done by the dongle and will not occupy the CPU.

5.It can capture one single channel SDI video signals.

6.It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.

7.Support SD-SDI/HD-SDI/3G-SDI input.

8.Support SDI TO HDMI-compatible 1080p60(HDMI-compatible loop output 1080p60).

9.Support MIC input and audio output.

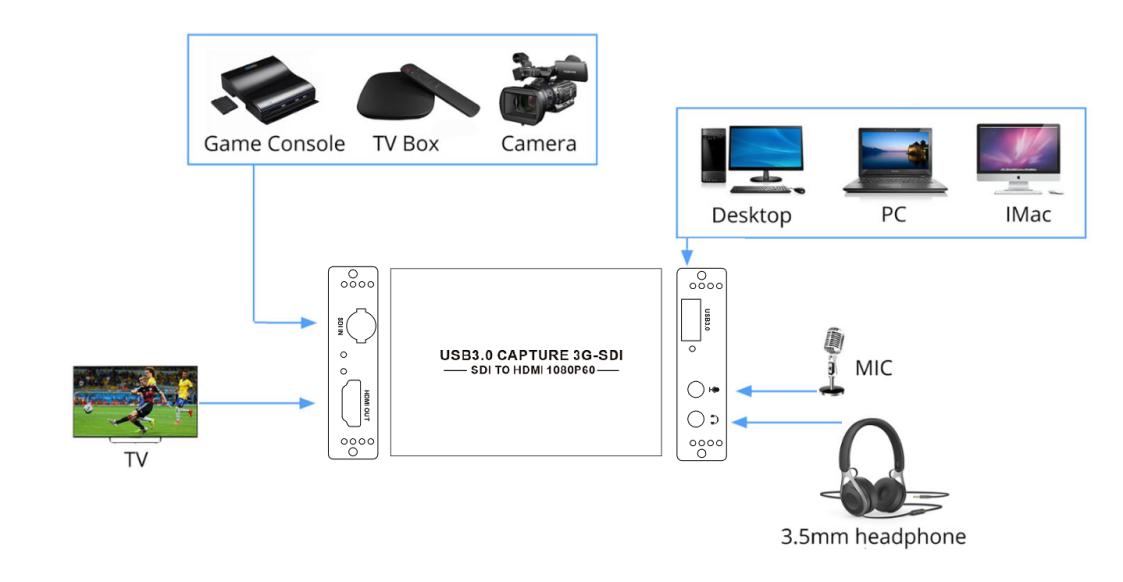

10.Suitable for devices with SDI output such as SDI Dome Camera,HD Medical endoscope, Medical imaging,SDI Optical Transceiver,SDI DVR,Radio Station solution

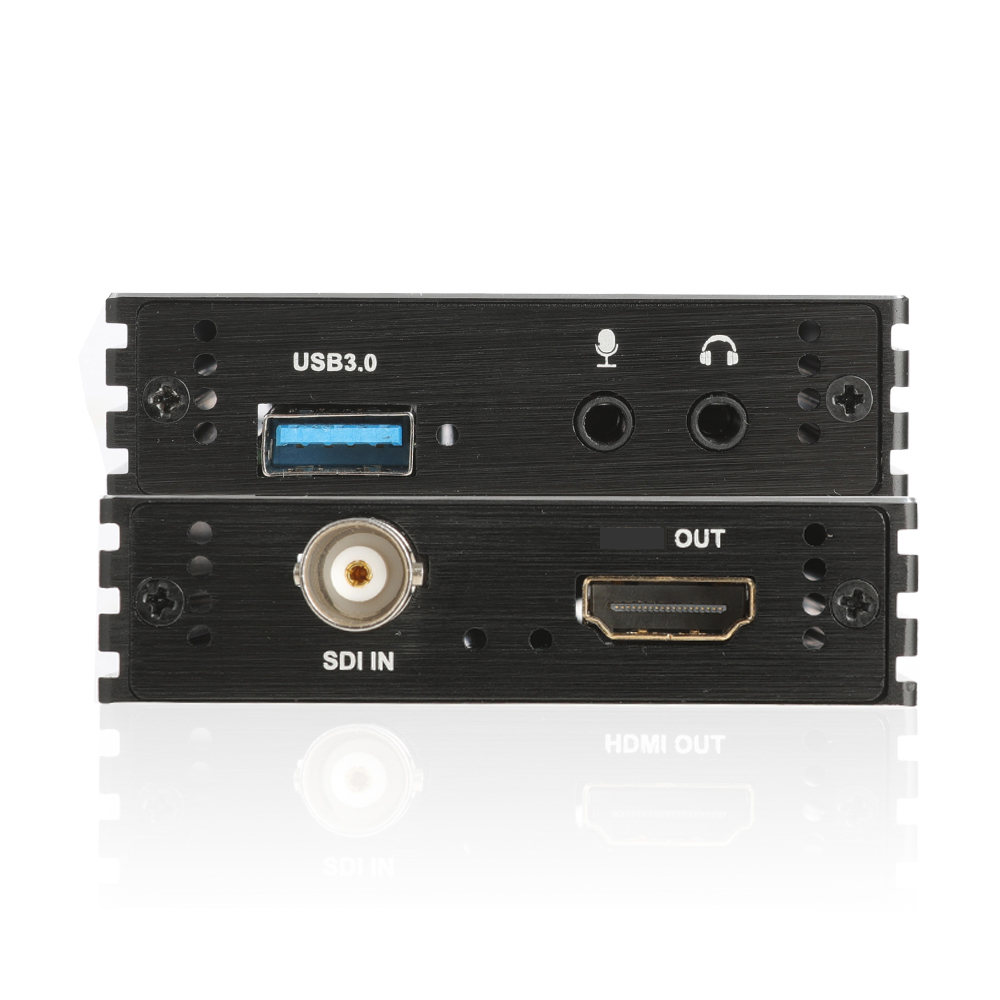

-Host Interface:USB3.0, *300-350MB/s,USB2.0, *40MB/s

Input Interface:SDI interface

-SDI Input Formats:SD-SDI,HD-SDI,3G-SDI

-HDMI-compatible Output Formats:480i,480p,576i,576p,720p,1080i,1080P

-USB3.0 Output Formats Resolutions:640x360/800x450/1280x720/960x540/1920x1080

-Frame Rate:30/40/48/50/59.94/60 fps

-Size:112x72x19 (L/W/H, mm)

-Weight:130g

-Power consumption<= 2.5W

-Working Temperature0-50 ℃

-Storage Temperature-20-70 ℃

-Storage Humidity5%-90%

Step1:Clik:+Choose:Video Capture Device

Step2:Device:Choose “USB3.0 HD Video Capture”

Step3:Resolution/FPS Type:Choose “Custom”Choose “1920x1080

Step4:Audio Output Mode:Choose “Output desktop audio(DirectSound)” √ Usb custom audio device

Step5:Audio Device :Choose “USB3.0 HD Audio Capture

1 X SDI to USB Capture

1 X USB 3.0 Cable

1 X HDMI-compatible Cable

1 X English User manual
