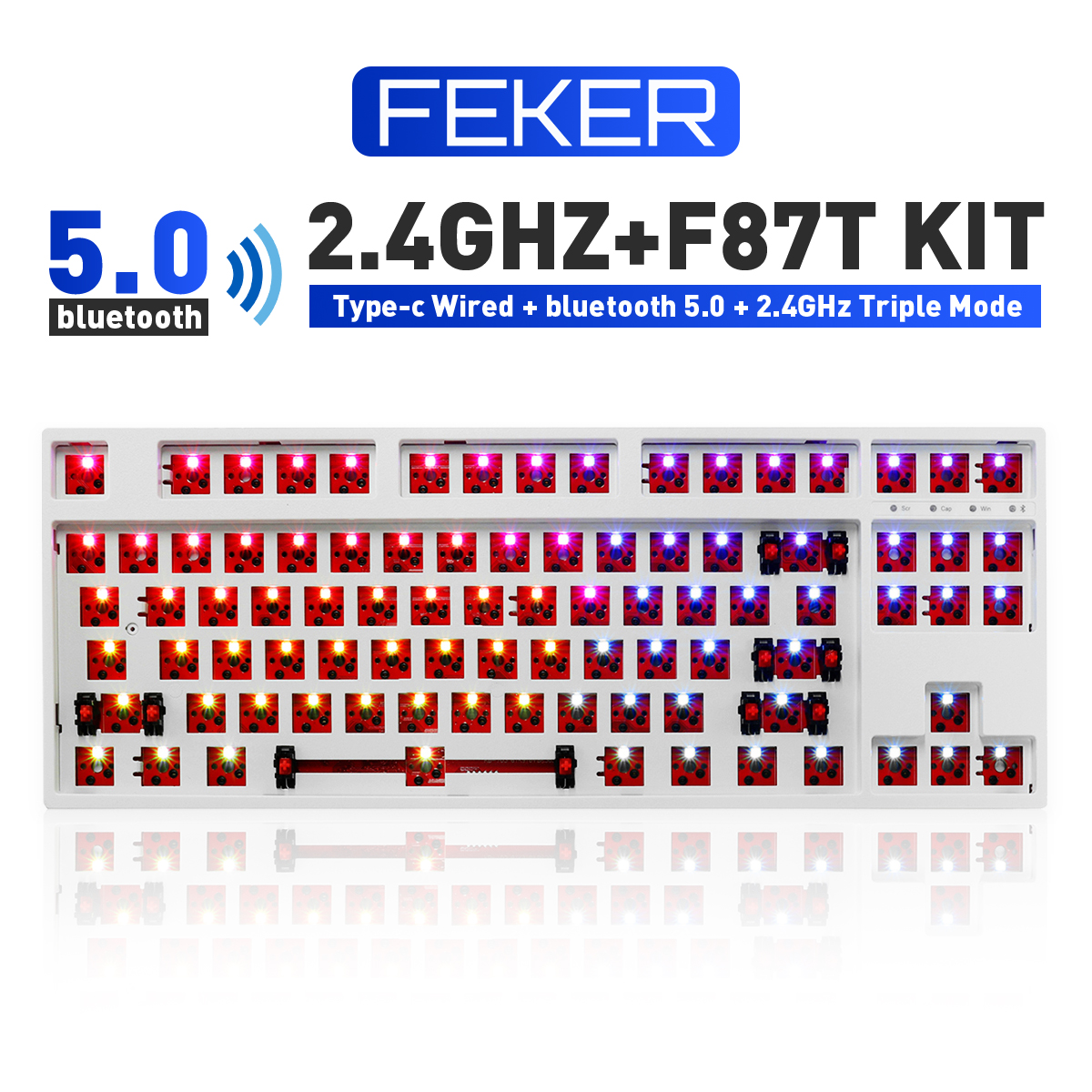

87 Keys Customized Keyboard Kit Hotswappable 2.4G bluetooth RGB Backlight ABS Case DIY Mechanical Keyboard Kit

Specification:

Brand: FEKER

Layout:80% ANSI

Keys Amount : 87 Keys

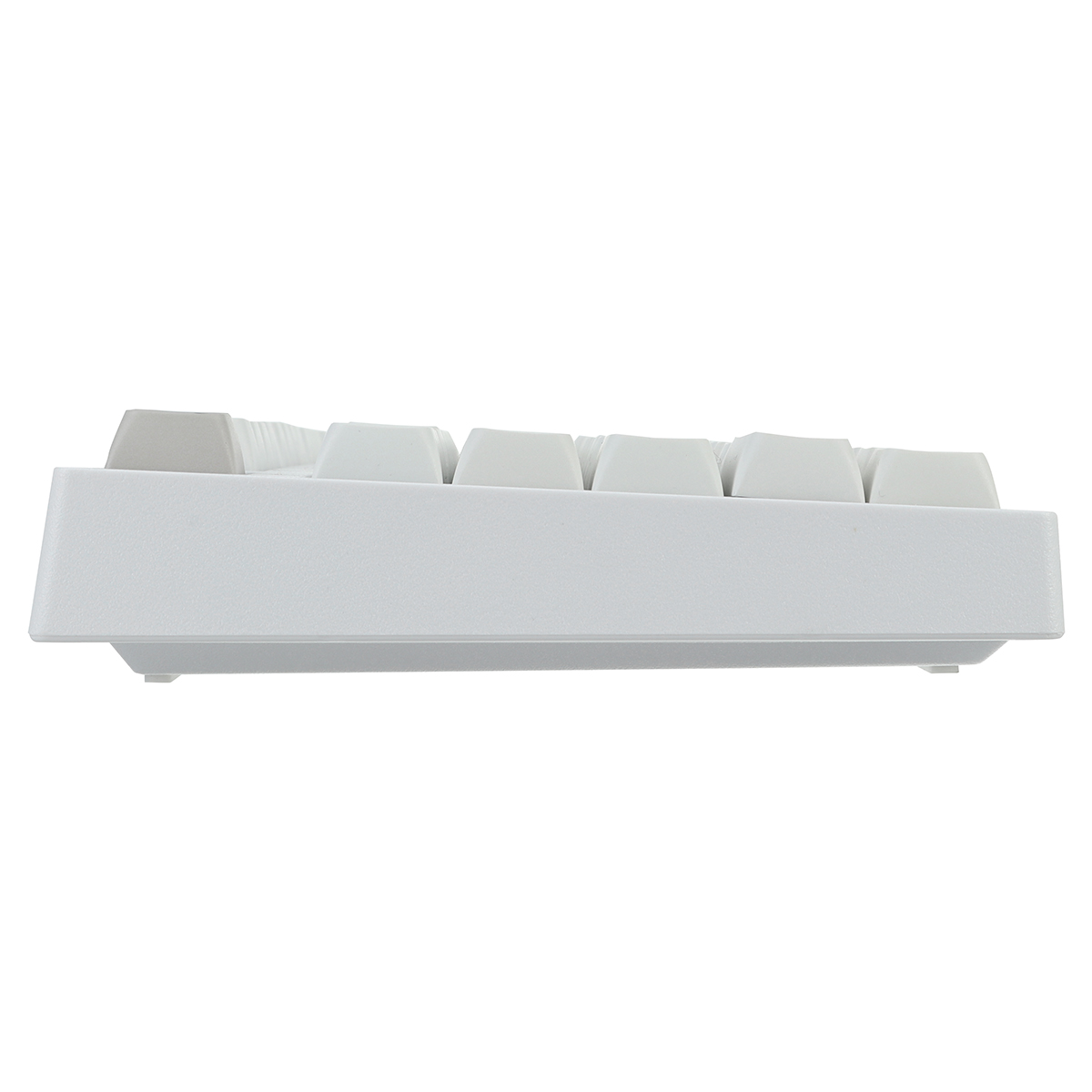

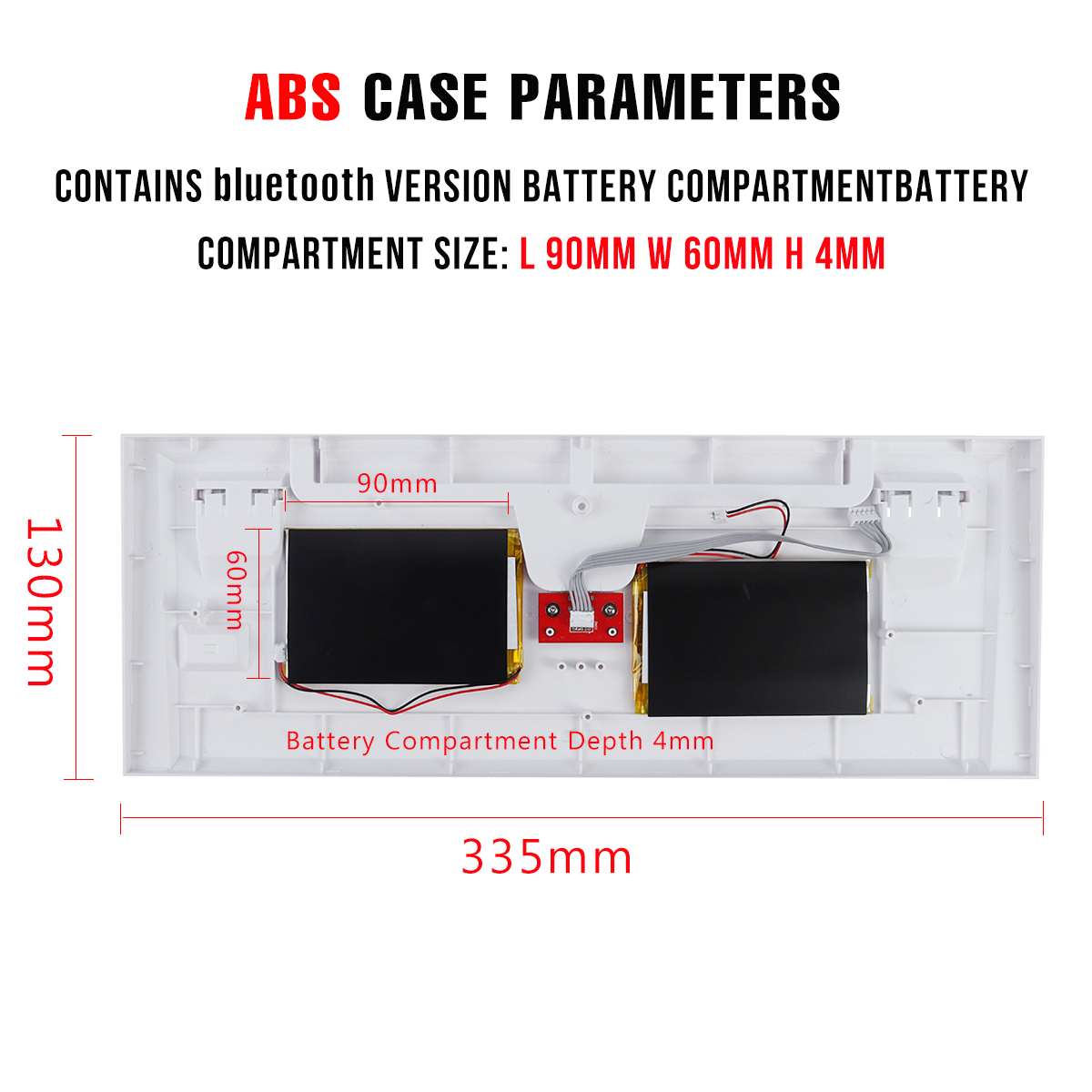

Case : Frosted ABS Case

Switch : 3/5pin are adjustable,Hotswap terminal

Connection : Triple Mode, USB Wired&bluetooth LE 5.0&2.4Ghz(Windows 7/8/10, for Mac, Linux)

Backlit : 16.8 Million RGB Backlit

RGB effects:18 kinds

Light Source :SMD Lamp Beads

Anti-Ghost Key : NKRO

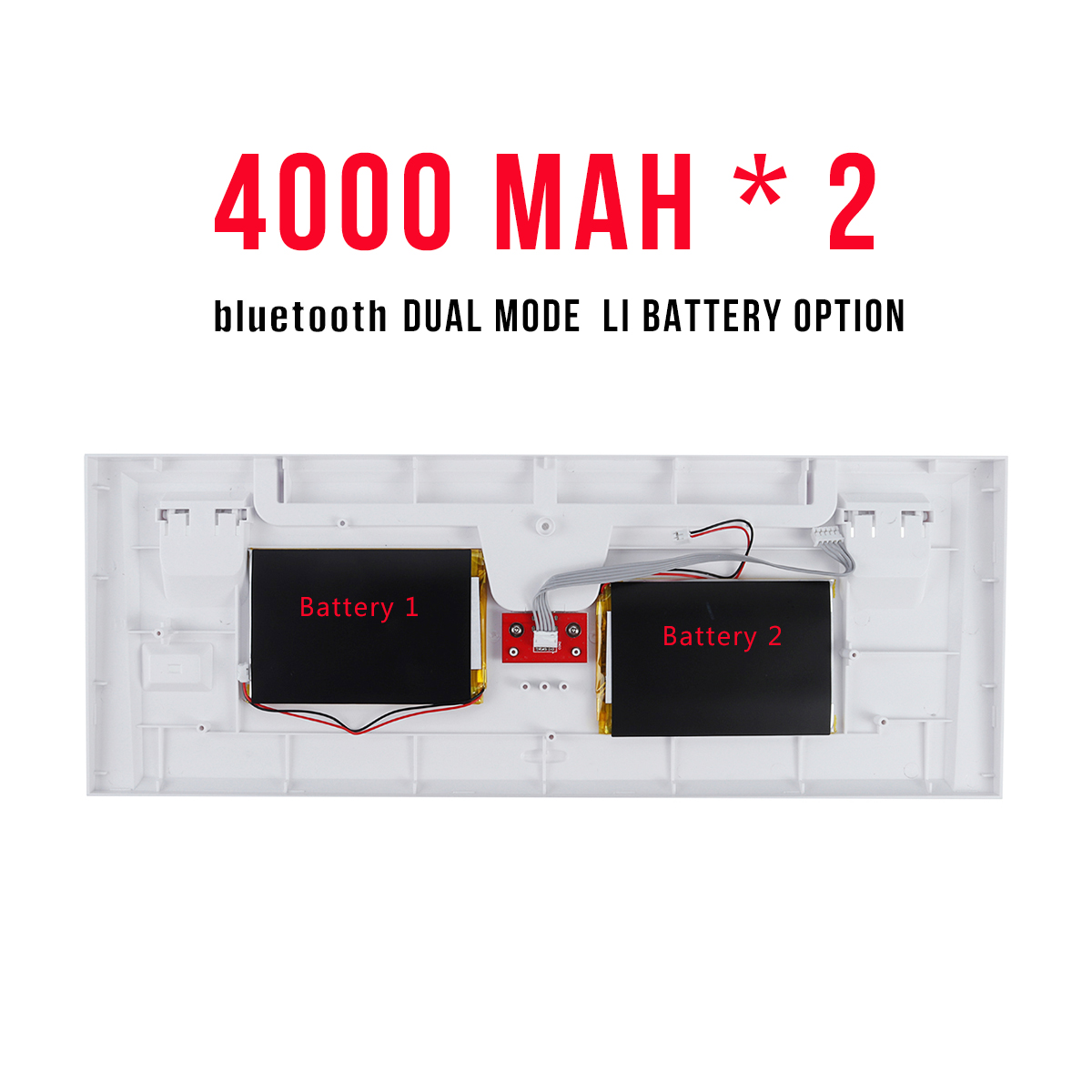

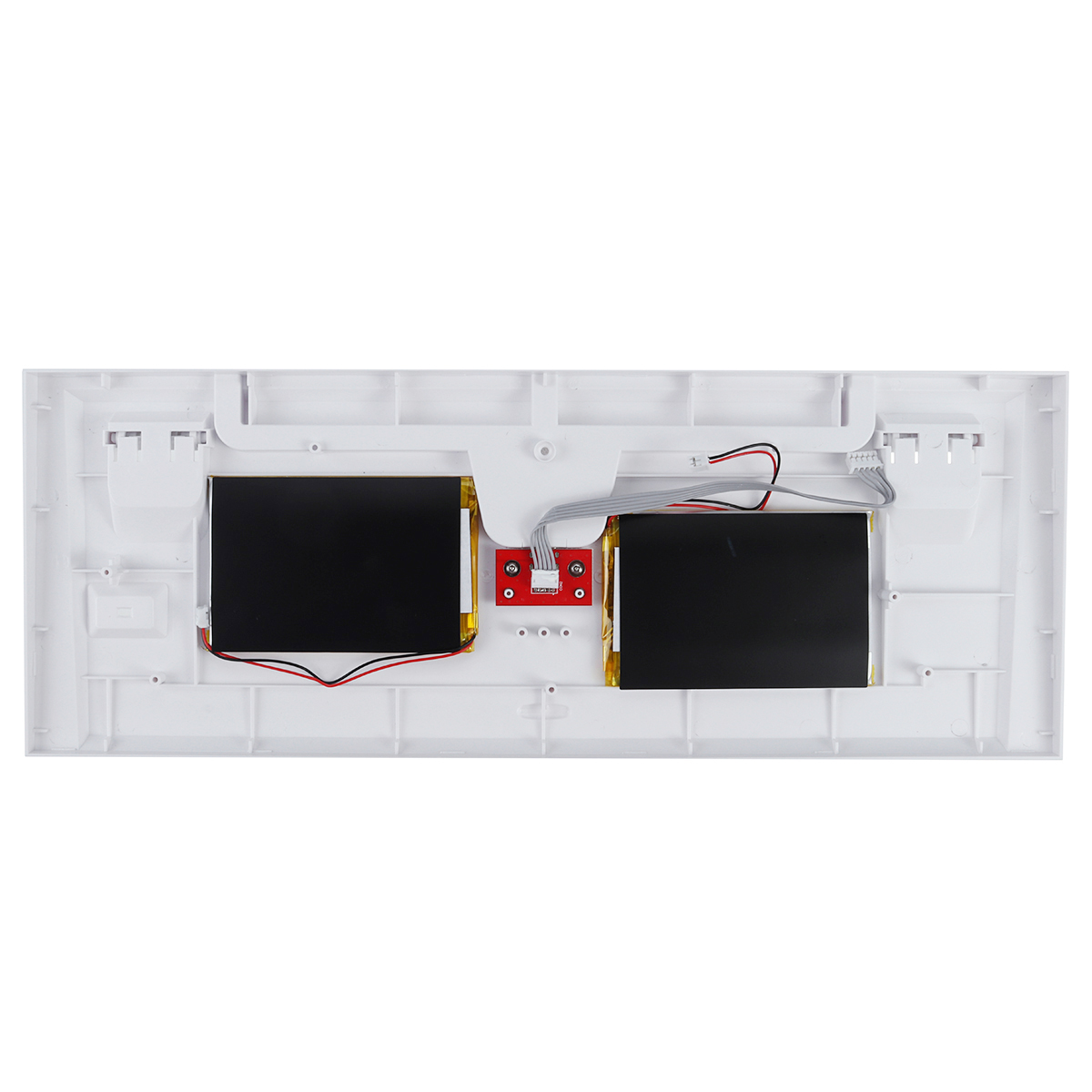

Battery: Built in 8000mAh(4000mah+4000mah) Rechargeable Li-ion Battery

USB Operating Current:DC 5V, 500mA Max

Cable :Detachable 1.8m Type-C USB coiled Cable

Features:

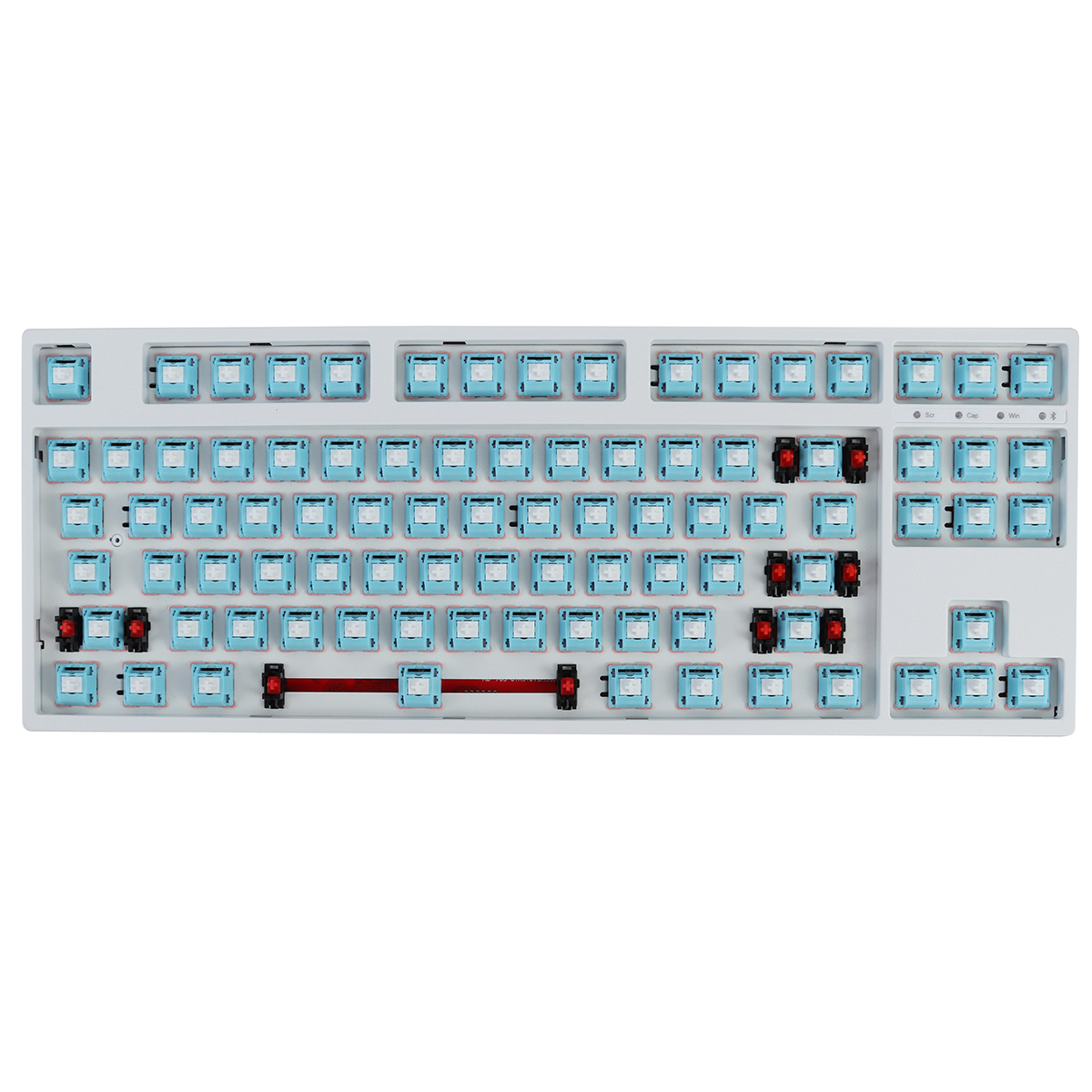

-Hotswap Keyboard DIY Kit. The custom kit is equipped with hot swappable terminals, with which you could install the switches directly without soldering. It’s compatible with Cherry MX switches, Kailh switches and Gateron switches and other 3 pin or 5 pin switches. You can easily build up your own mechanical keyboard with this kit

-16.8 Million RGB Backlight. RGB is such a cool element while playing games. This custom kit fully know your needs and thus this model is equipped with RGB SMD light. More than 16.8 million lights are available. It’s more than a keyboard but also a fun toy

-Working with driver program to Re-assgn for all of keys, and Recording Macro.

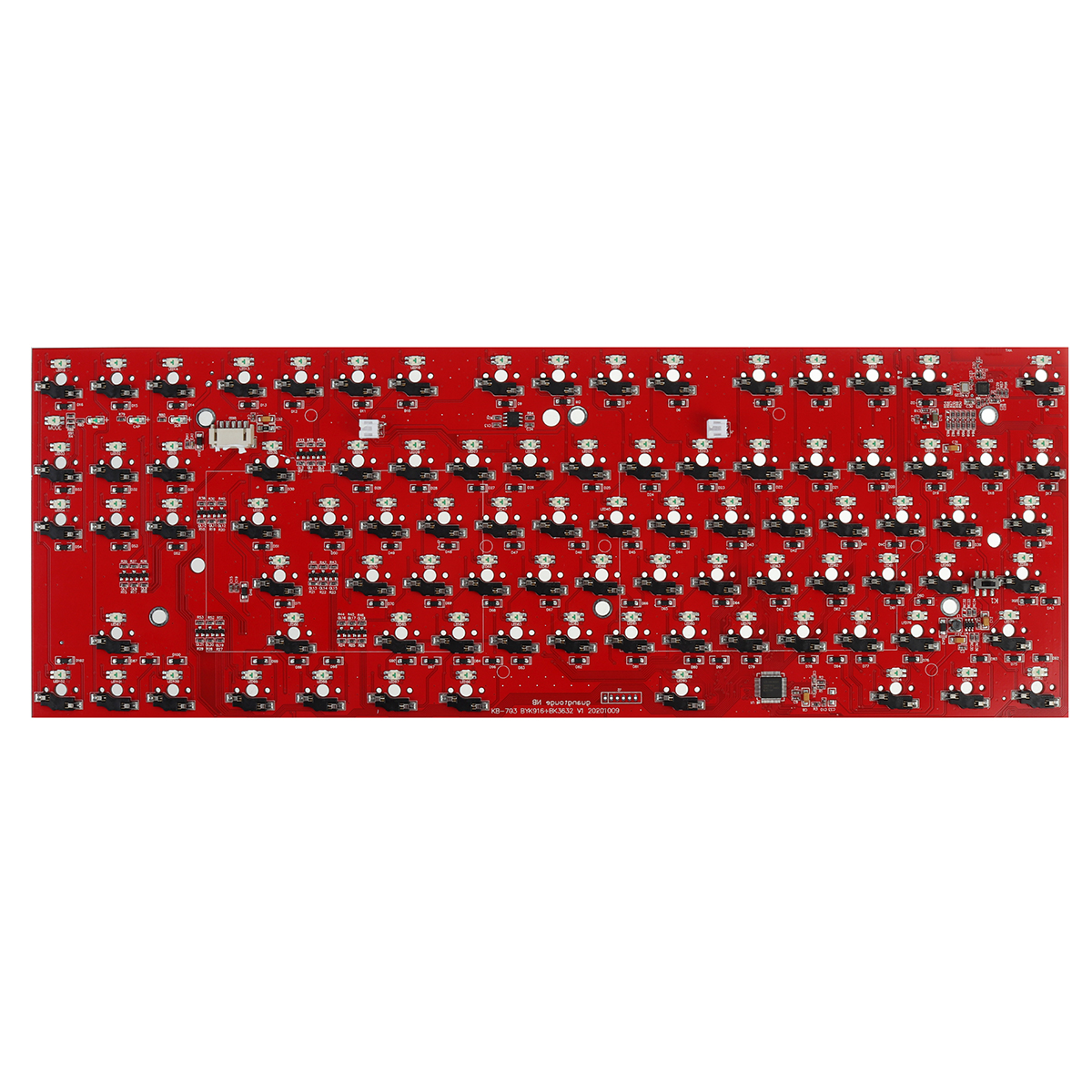

-Professional 87key Keyboard. This is 80% layout PCB, widely compatible with most of 87key keyboard case, you could change the case as you wish . The chipset is 32 Bit MCU + 8M Flash on-board memory, and 3 pieces independent 256*256*256 RGB color management chip

-Triple Mode Connection.bluetooth 5.0,Type-C USB-C,2.4Ghz triple mode connection, makes it possible when using the keyboard for the Desktop computer in wireless.Widely compatible with multiple systems, for Mac, iOS, Windows, Linux, and Android.

-Three position foot support.Folding foot support design,you can easily adjust their desired comfortable angel.

Combination Keys:

Fn+1:bluetooth No.1(Blue light flashing)

Fn+2:bluetooth No.2(Cyan light flashing)

Fn+3:bluetooth No.3(Purple light flashing)

Fn+4:2.4Ghz(Green light flashing)

Fn+5:Wired(White light flashing)

Fn+esc:Restore factory settings

Fn+L WIN:win key locking

Fn+↑/↓:increase/decrease brightness

Fn+←:decrease the speed of Backlight

Fn+→:increase the speed of Backlight

Fn+Space:turn off the backlight

Fn+Tab:LED Testing(white light)

Fn+INS:RGB effect changing(18 kinds of RGB effect)

Fn+DEL:changing the backlight color

Fn+ +/-:change the speed of Backlight(4 levels adjustable)

Fn+ WIN:lock the WIN&APP key(click again to unlock)

Fn+ F1:My computer

Fn+ F2:Home page

Fn+ F3:Calculator

Fn+ F4:Player

Fn+ F5:Previous track

Fn+ F6:next Track

Fn+ F7:Play/Pause

Fn+ F8:Stop

Fn+ F9:Mute

Fn+ F10:Volume-

Fn+ F11:Volume+

Fn+ F12:E-mail

Package Included:

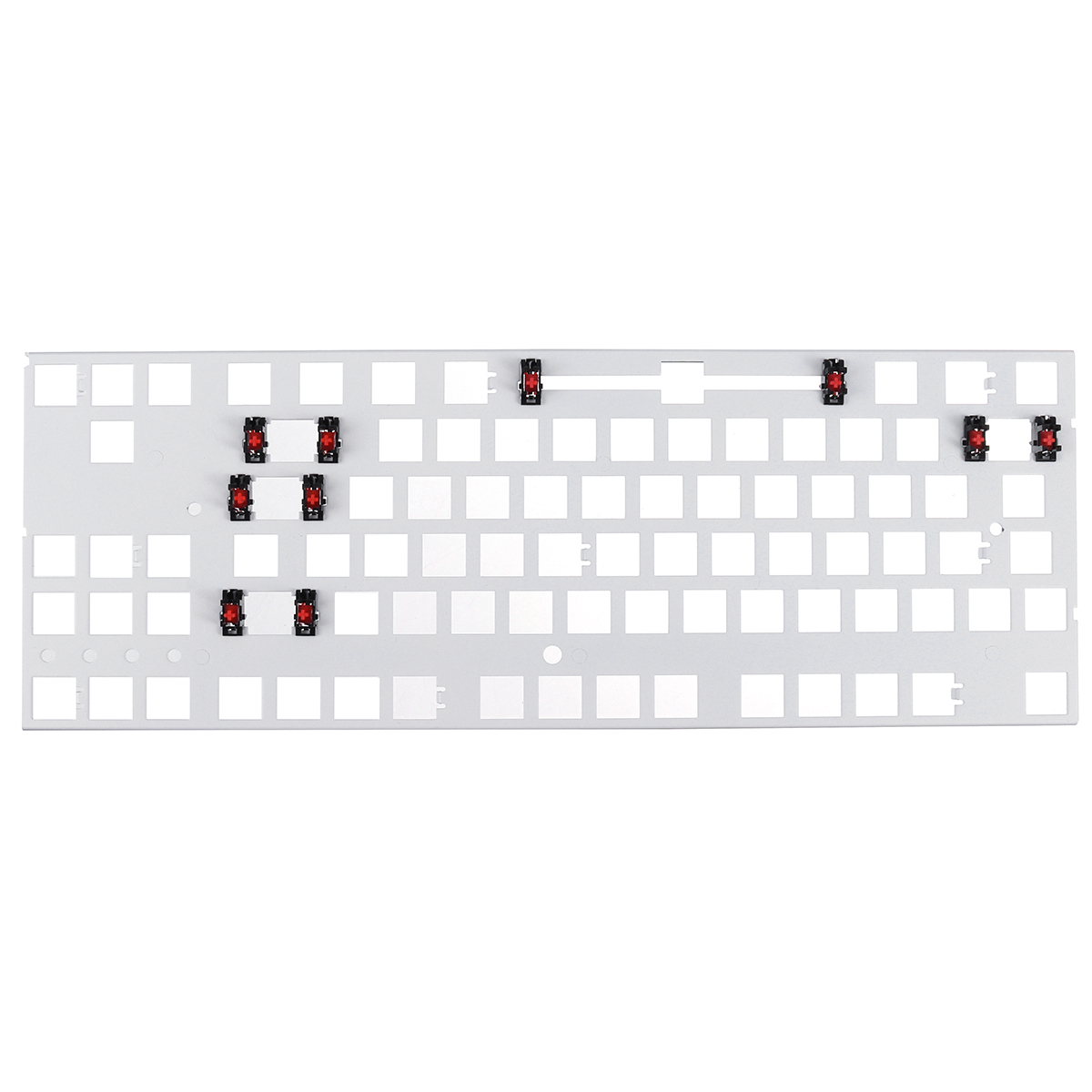

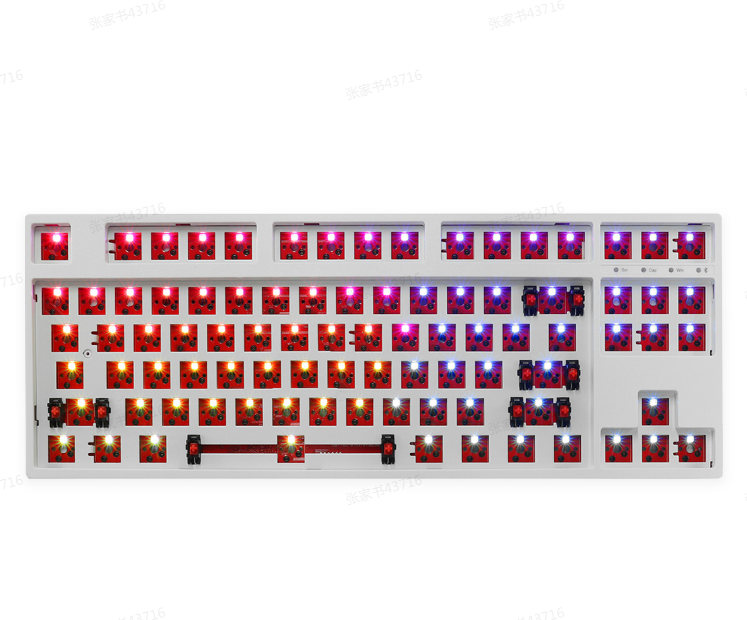

1 * Keyboard Customized Kit(case+pcb+Stabilizer+Steel Positioning Board+battery)

1 * Type-c cable

1 * 2.4G receiver

1 * manual
