- Stock: In Stock
- Model: ST22001744
- SKU: ST22001744
Description:
Brand Name: SUNTHEN

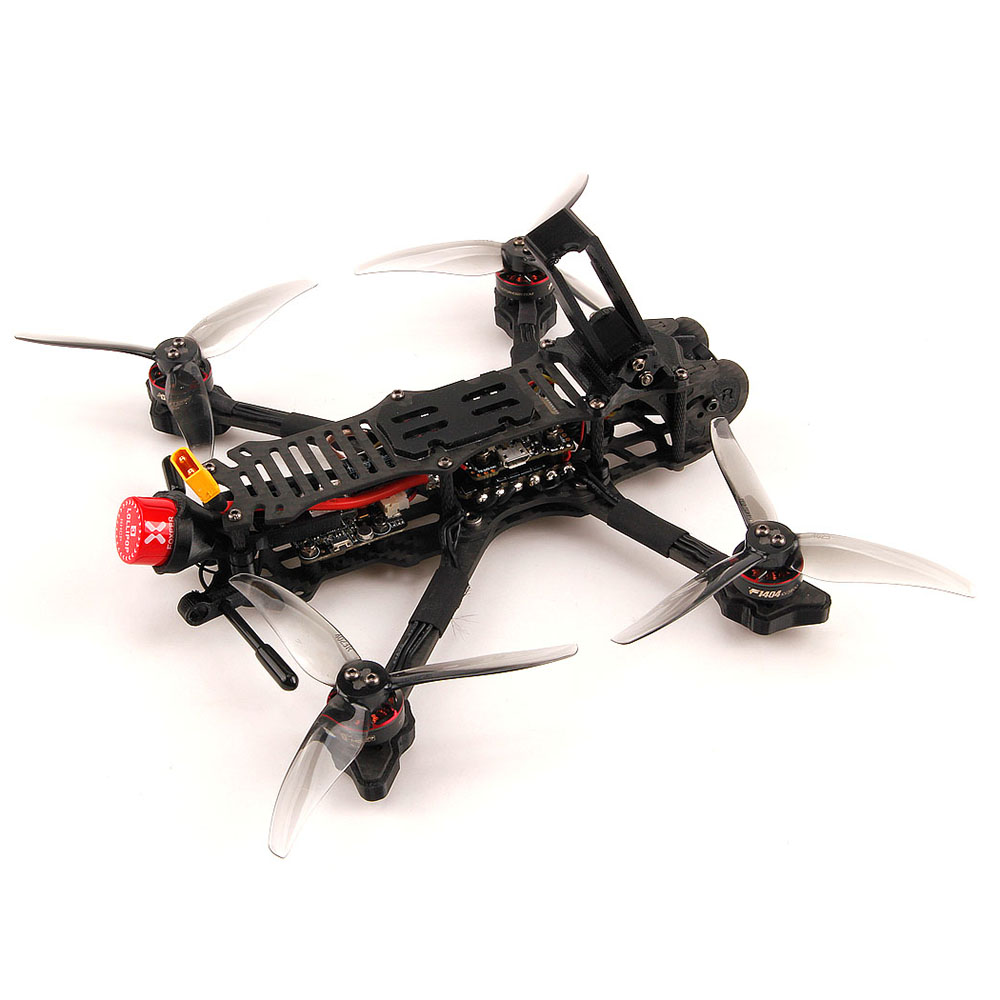

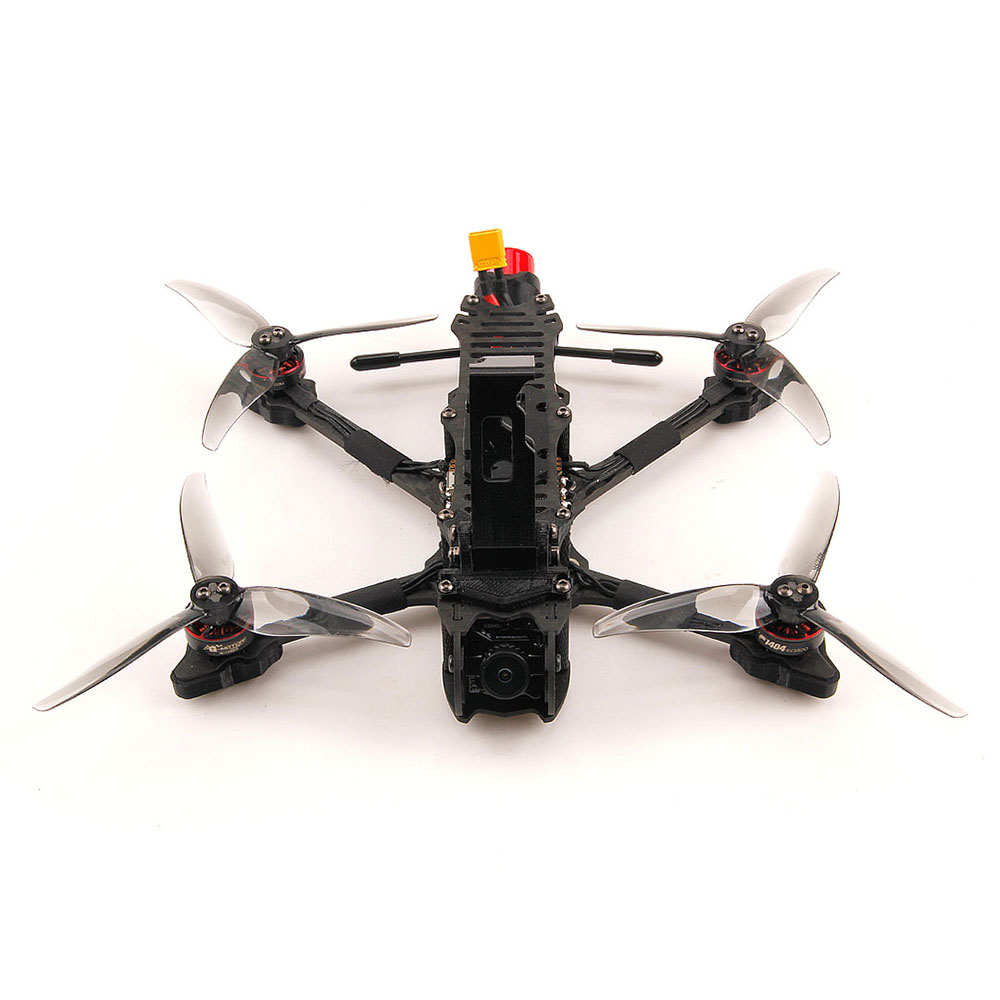

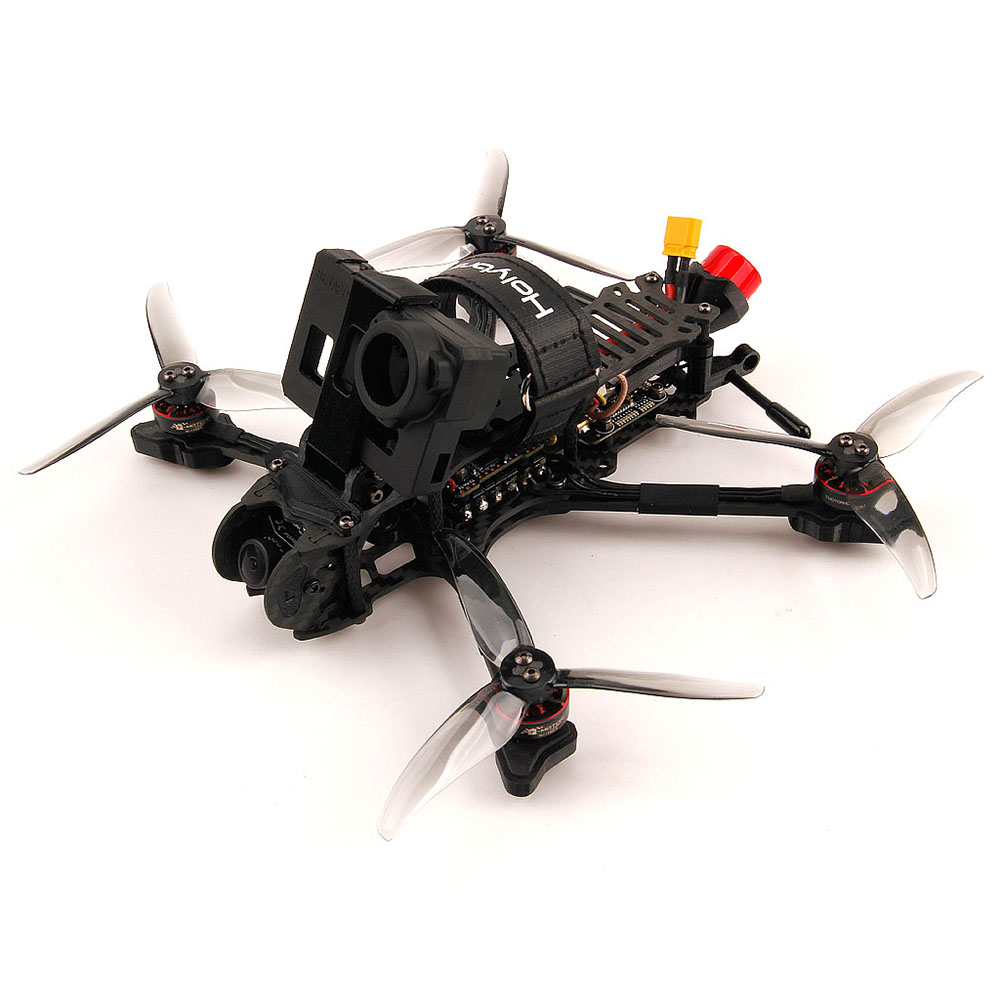

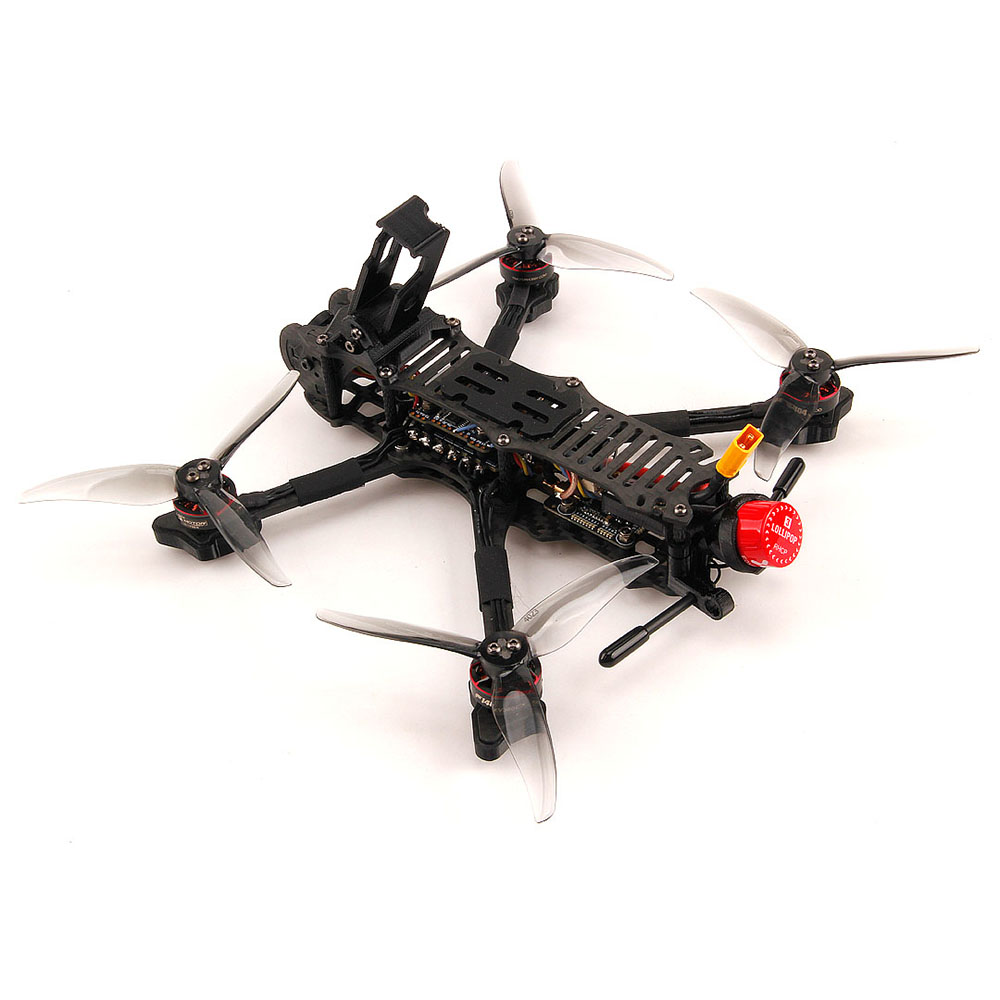

Item Name: Kopis Freestyle 4 Inch Analog FPV Racing Drone
Frame Wheelbase: 180mm
Frame Bottom Plate: 2mm
Frame Arm: 3mm
Flight Controller: Kakute F7 mini V3
ESC: Tekko32 F4 4in1 mini 45A ESC
Motor: F1404 KV3800
Propeller: Gemfan Hurricane 4023-3
VTX: 5.8G Atlatl HV Micro

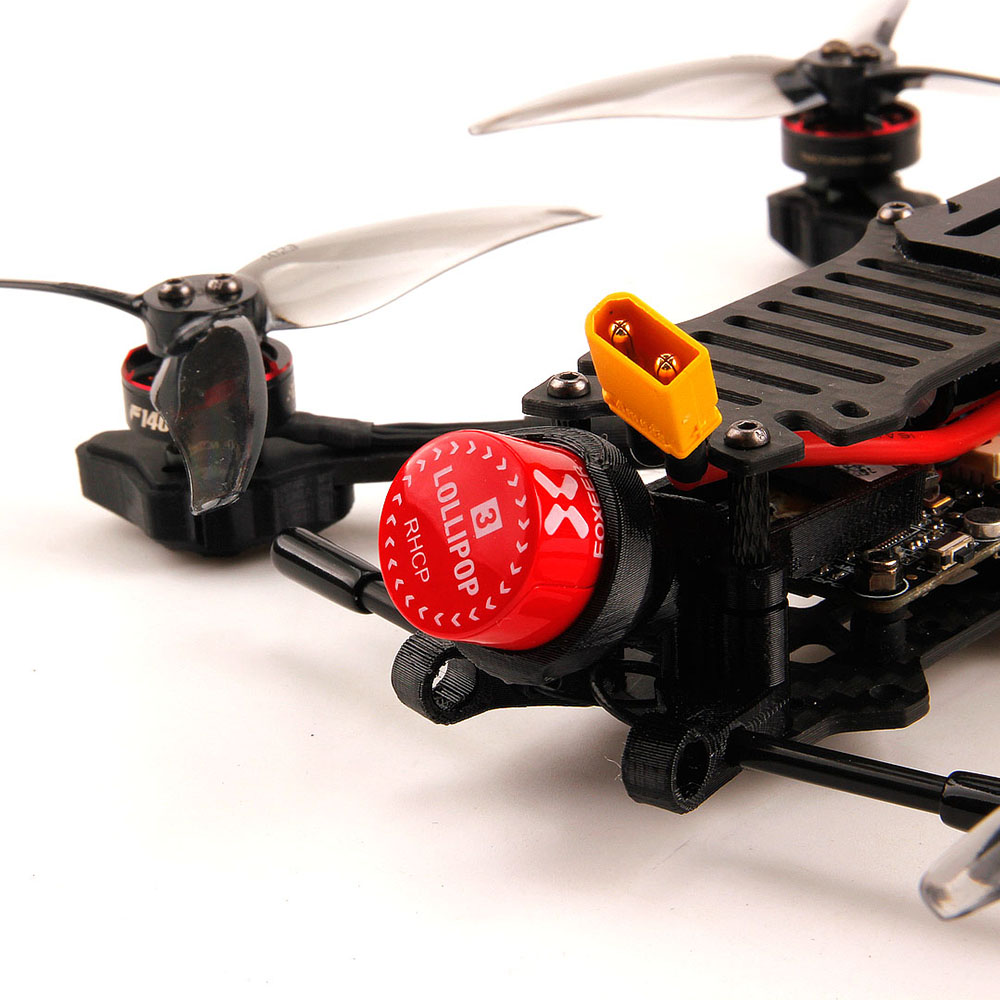

Antenna: Foxeer Lollipop 3 2.5Dbi Stubby Omni
FPV camera: 1200TVL Foxeer Micro Razer FPV Camera
Buzzer included
Weight:166g(without battery)
Battery plug: XT30
Recommend Battery(Not Included): 650~850mAh 4S
| Flight Controller: Kakute F7 mini V3 | MCU: STM32F722RET6 32-bit processor,216MHz, 256Kbytes RAM, 512Kbytes Flash IMU: MPU6000 (SPI) Barometer: BMP280 USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART) 5hardware UARTS (UART1,2,3,4,6) Supports serial receivers (SBUS, iBus, Spektrum, Cr0ssfire) only. PPM and PWM receivers are not supported. Onbord 16Mbytes for Blackbox logging 5V Power Out: 1.0A max 3.3V Power Out: 0.2A max Dimensions: 30x30mm Mounting Holes: Standard 20mm square to center of holes Weight: 4g |
| ESC:Tekko32 F4 4in1 mini 45A | F4 MCU, double the speed of F051, the MCU works at 108Mhz 32bit ESC with BLHELI32 firmware Supports 3-6S lipo input Default PWM output 96K Amperage meter scale ratio has been adjusted to 168. PWM input, TLM supported Voltage output (VBAT) NO output BEC Supports oneshot / Multishot / Dshot PWM Supports damped light Ext. cap needed for 6s (1000uf 35v for 6s usage.) Mounting holes: 20x20mm(M3) Size:30 x 39 mm Weight: 7.2g |
| Analog version： 5.8G VTx: Atlatl HV Micor | Output Power: 0.5mW (pit mode), 25mW, 200mW, 500mW, 800mW Audio: 6.5 MHz Mono Protocol: smart audio2.0 Antenna Connector: MMCX Input Voltage: 7 to 28 volts (2-6S LiPo) Dimensions: 30x26mm Mounting Holes: 20x20mm (M3) Weight: 3.6g |
Package Included:
Without Receiver Version
1x Kopis Freestyle 4 Inch Analog FPV Racing Drone
8x 4023-3 Propeller
1x Battery Strap(installed)
1x Camera Mount for Naked Gopro
TBS Cr0ssfire Receiver Version
1x Kopis Freestyle 4 Inch Analog FPV Racing Drone
8x 4023-3 Propeller
1x Battery Strap(installed)
1x Camera Mount Naked Gopro
1 x TBS Receiver
Manual:
SUNTHEN_Kopis Freestyle 4" _Manual
Tekko32 F4 4in1 Mini 45A ESC SPEC
