- Stock: In Stock
- Model: ST22001738
- SKU: ST22001738
Orders placed after April 20 will be shipped with Caddx Nebula Nano Camera. Caddx Nebula Pro version has sold out on April 19.

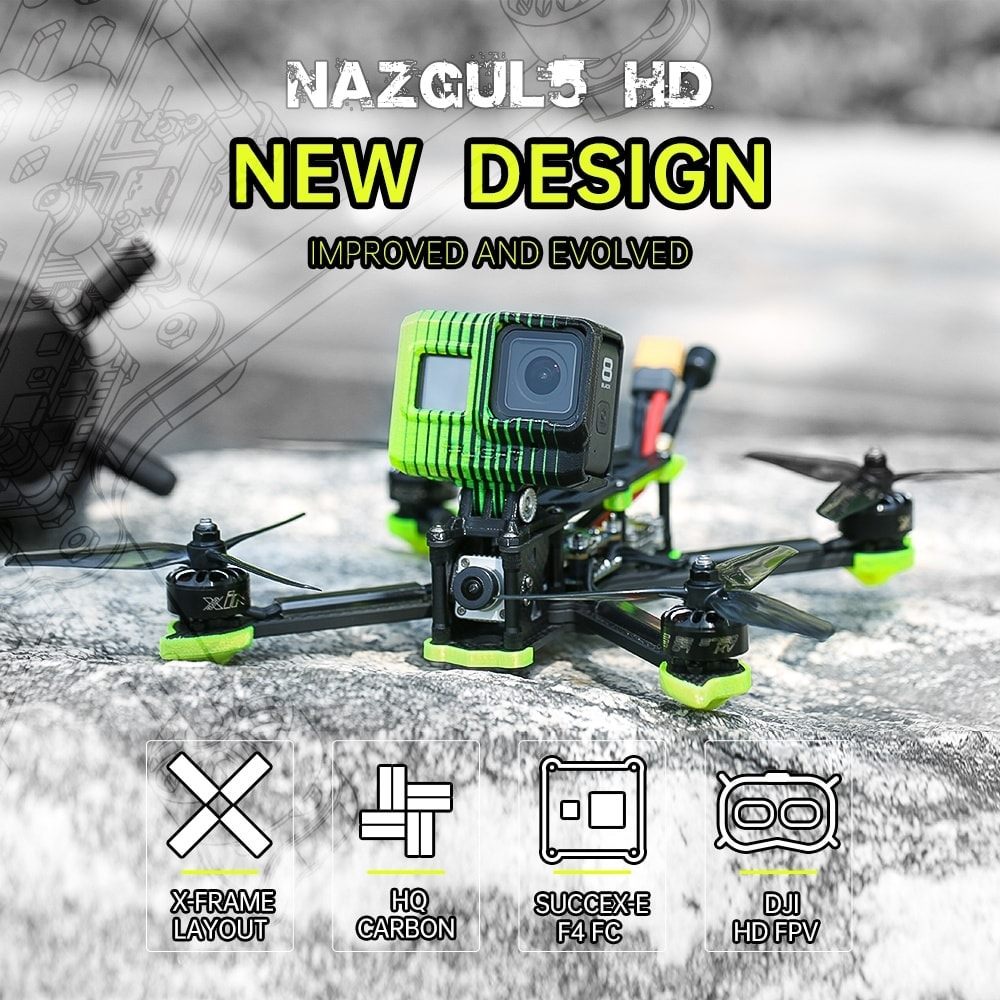

Nazgul5 HD is a 5" size BNF (Bind-and Fly) quadcopter with the DJI Digital FPV system on it. We sticked the lighter Caddx Vista on one of our new updated XL5 V5 FPV frames. Pre-tuned and setup, everything you need is just bind-and-fly! Loads of power and smooth flights guaranteed using our popular XING-E motors with long-lasting NSK bearings. Got a hard hit and snapped an arm? Don't worry, get some spares with your order and easy-swap out in field. Wanna strap your for GoPro on that beast as well? Checkout our
collection of high quality TPU prints for your cam!
Specification:
Brand name: iFlight
Item name: Nazgul5 HD 4S 5 Inch FPV Racing Drone
SucceX-E F4 45A Flight Stack
XING-E 2207 FPV Motor ( 4S 2750KV )
Wheelbase: 240mm
Body Size: 170*170mm
Propeller Size: 5 inch /5.1 inch
FC Mounting Hole: 30.5*30.5/20*20 mm
FPV Cam Spacing: 19mm
Weight: 400.8g (without battery)
FC // SucceX-E F4 Flight controller
- MCU：STM32F405
- Gyro：MPU6000
- Betaflight OSD：YES
- Blackbox：8MB
- 4X Uarts（1 2 3 6 )
- 8 x Dshot/Proshot/Oneshot output
- 8 x individual ESC power/ signal pads
- 1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX
- VTX telemetry: YES
- WS2812 led Strip：YES
- Baro：No
- Beeper：YES
- Input：2-6S（Max 8S）
- BEC：5V/2.5A cont
- Firmware target : BETAFLIGHTF4
- Mounting：30.5*30.5mm，φ4mm with Grommets φ3mm
- Dimensions：36*36mm
- Weight：7.6g
ESC // SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC
- Dimension: 40*43mm
- Mounting Holes: 30.5*30.5mm/Φ3mm
- Weight: 14.4g
- Supports 2-6S Lipo input
- STM32F051 MCU, 48Mhz Runs BLHELI 16.X Firmware
- Current sensor: YES
- BEC: NO
- Supports: DShot150/300/600/1200/MultiShot/OneShot etc.
- Target: G-H-30 BLS 16.7
Feature:

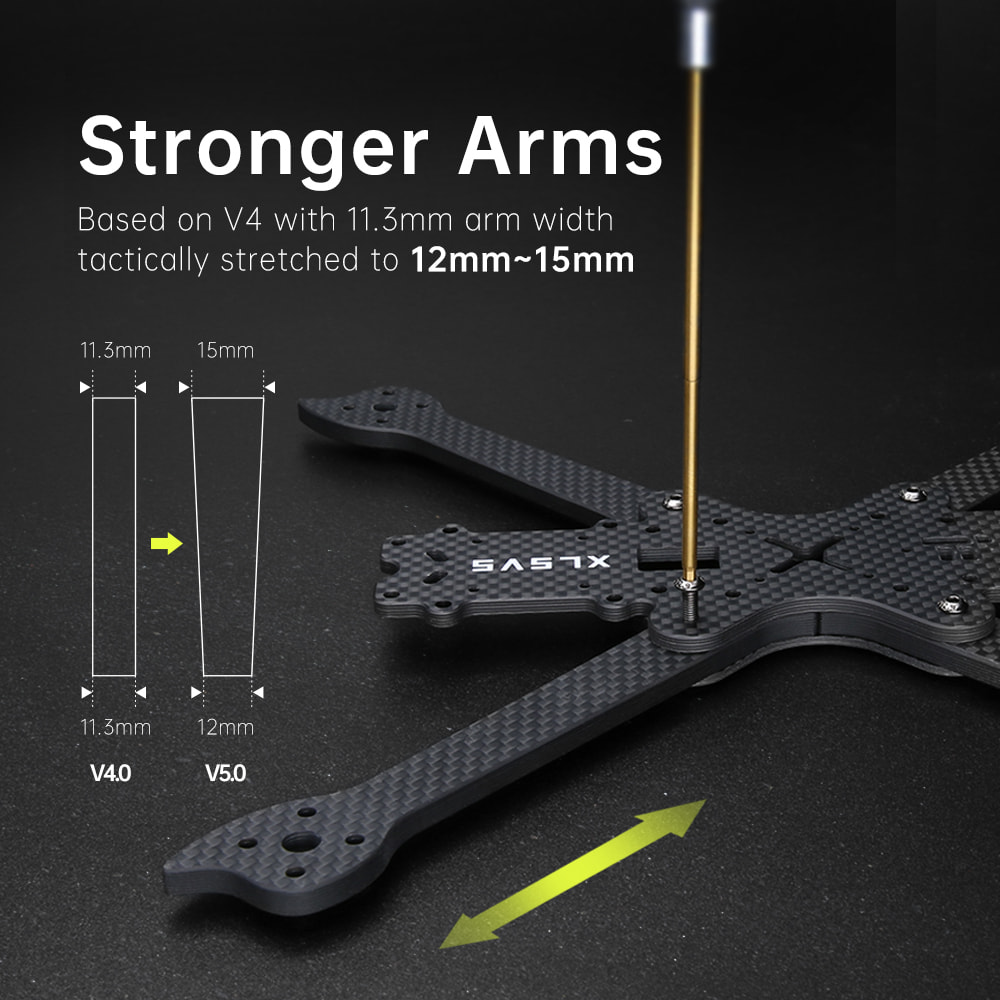

- 5mm arm design for more durability
- Easy-Swap arms

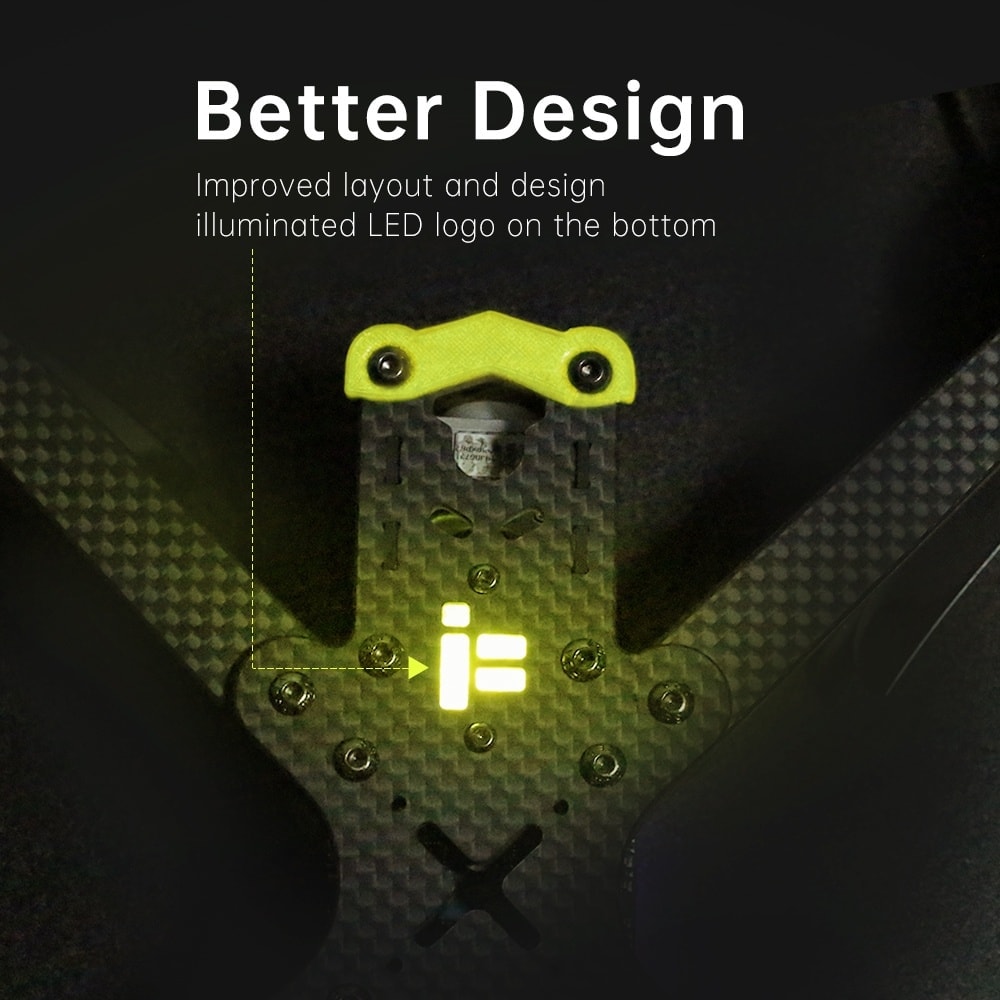

- LED illuminated Logo
- XING-E 2207 motors and NAZGUL 5140 props
- 5" version also fits 5.1" style propellers
- Popular True-X configuration
- TPU crash-guards

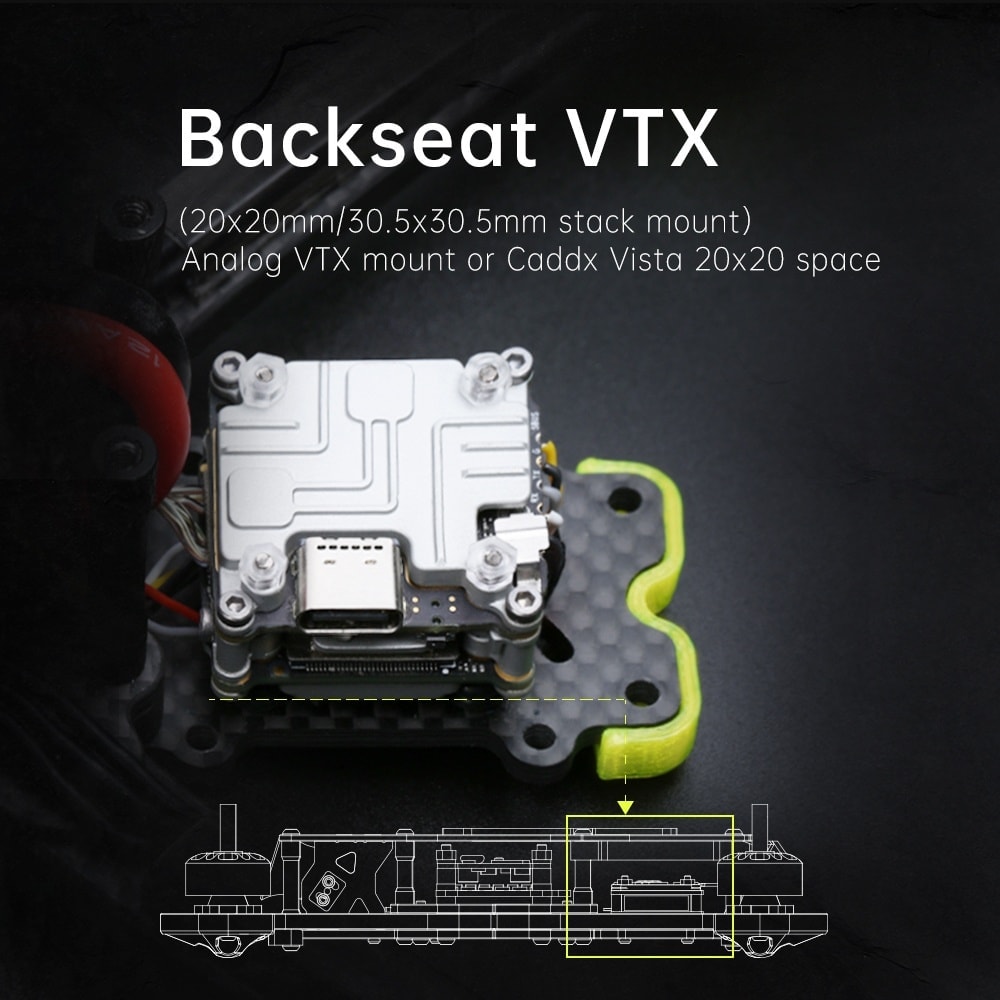

- Fits both 30.5x and 20x stacks
Package Included:
1 x XL5 V5 Frame
1 x Caddx Vista VTX
1 x Nebula NANO Camera
1 x SucceX-E F4 45A Flight Stack
4 x XING-E 2207 FPV Motor ( 4S 2750KV )
1 x Albatross LHCP RP-SMA 5.8g antenna
2sets x Nazgul 5 inch 3-blades (Set of 4 - Color may vary)
1 x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
1 x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)
Note: Camera mount for Gopro is not Included.
Important
The DJI Remote Controller is recommended for beginners since you won't need to set up another receiver, but it is also optional in this BNF drone because it is NOT required in order to use the FPV system. If you don't choose to use the DJI Remote Controller, you can choose a receiver option for your transmitter. and then bind to your own radio as usual. Link
FACTORY SETUP and WIRING DIAGRAM:
This BNF comes pre-built and setup with all necessary parameters to bind-and-fly. We also added a basic filter and PID tuning as well as some more software tweaks enhance the flight experience.
Reflashed your drone but didn't backup the setup? Messed up the whole tune and want our factory tune back?
No need to worry! All Factory Dumps and Wiring Diagrams can be found on our Google Drive: LINK
