AC 220V DC 24V 3500W/48V 5500W Solar Inverter MPPT 100A Solar Controller PV Input DC 500V Pure Sine Wave Inverter

AC 220V DC 24V 3500W/48V 5500W Solar Inverter MPPT 100A Solar Controller PV Input DC 500V Pure Sine Wave Inverter
AC 220V DC 24V 3500W/48V 5500W Solar Inverter MPPT 100A Solar Controller PV Input DC 500V Pure Sine Wave Inverter
AC 220V DC 24V 3500W/48V 5500W Solar Inverter MPPT 100A Solar Controller PV Input DC 500V Pure Sine Wave Inverter
AC 220V DC 24V 3500W/48V 5500W Solar Inverter MPPT 100A Solar Controller PV Input DC 500V Pure Sine Wave Inverter
AC 220V DC 24V 3500W/48V 5500W Solar Inverter MPPT 100A Solar Controller PV Input DC 500V Pure Sine Wave Inverter
AC 220V DC 24V 3500W/48V 5500W Solar Inverter MPPT 100A Solar Controller PV Input DC 500V Pure Sine Wave Inverter
AC 220V DC 24V 3500W/48V 5500W Solar Inverter MPPT 100A Solar Controller PV Input DC 500V Pure Sine Wave Inverter
AC 220V DC 24V 3500W/48V 5500W Solar Inverter MPPT 100A Solar Controller PV Input DC 500V Pure Sine Wave Inverter
AC 220V DC 24V 3500W/48V 5500W Solar Inverter MPPT 100A Solar Controller PV Input DC 500V Pure Sine Wave Inverter
AC 220V DC 24V 3500W/48V 5500W Solar Inverter MPPT 100A Solar Controller PV Input DC 500V Pure Sine Wave Inverter
AC 220V DC 24V 3500W/48V 5500W Solar Inverter MPPT 100A Solar Controller PV Input DC 500V Pure Sine Wave Inverter
  • Stock: In Stock
  • Model: ST230048322
  • SKU: ST230048322
$627.99
Ex Tax: $627.99

Available Options

>>>Manual: Contact Us<<<

Features:

1. Pure sine wave inverter
2.Configurable input voltage range for home appliances and personal
3.Computers via LCD setting
4.Configurable battery charging current based on applications via LCD setting
5.Configurable AC/Solar Charger priority via LCD setting
6. Compatible to mains voltage or generator power
7.Auto restart while AC is recovering
8. Overload/ Over temperature/ short circuit protection
9. Smart battery charger design for optimized battery performance
10.Cold start function

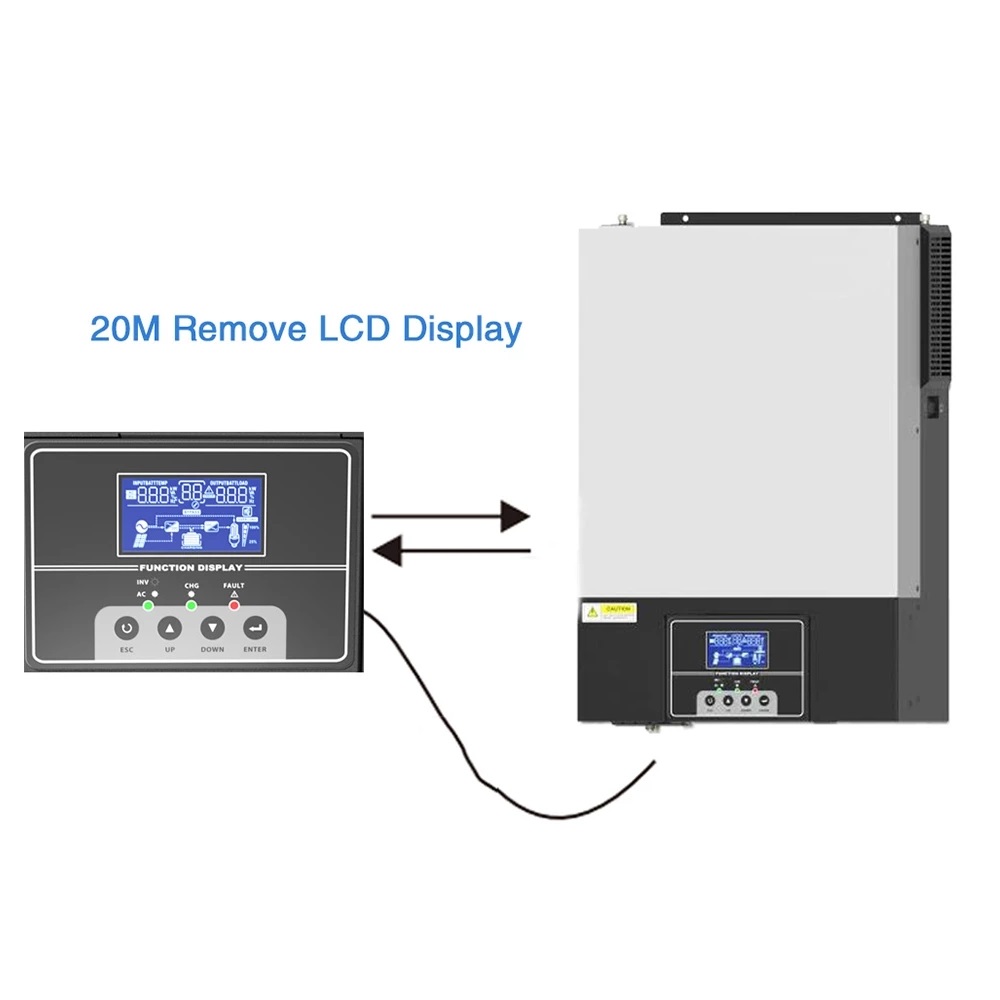

11.Removable LCD control module
12.Communicate with RS-232(GPRS) without WIFI
13.Configurable AC/PV Output usage timer and prioritization

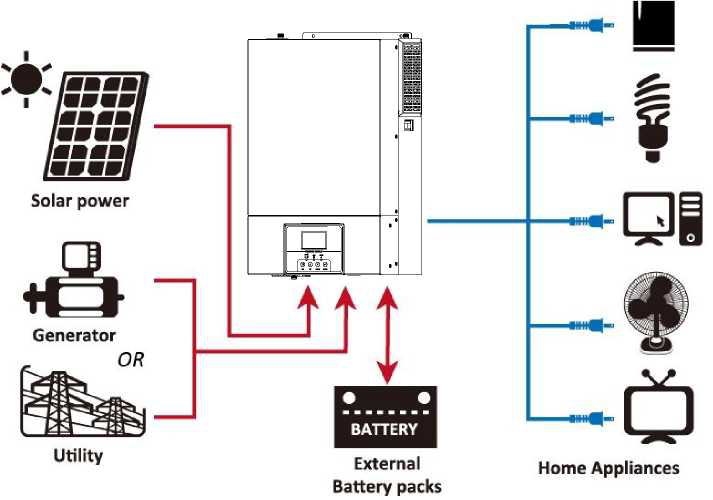

Basic System Architecture:
PowMr-AC-220V-DC-24V-3500W48V-5500W-Solar-Inverter-MPPT-100A-Solar-Controller-PV-Input-DC-500V-Pure--1942299-1
The following illustration shows basic application for this inverter/charger. It also includes the following devices to have a complete running system:
Generator or Utility.
PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor-type appliances, such as tube light fan, refrigerator and air conditioner.
PowMr-AC-220V-DC-24V-3500W48V-5500W-Solar-Inverter-MPPT-100A-Solar-Controller-PV-Input-DC-500V-Pure--1942299-2

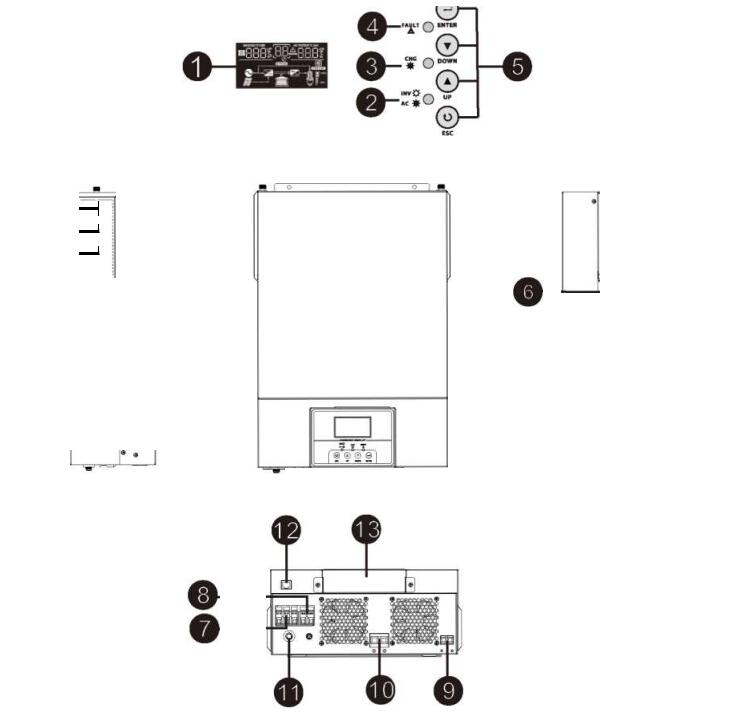

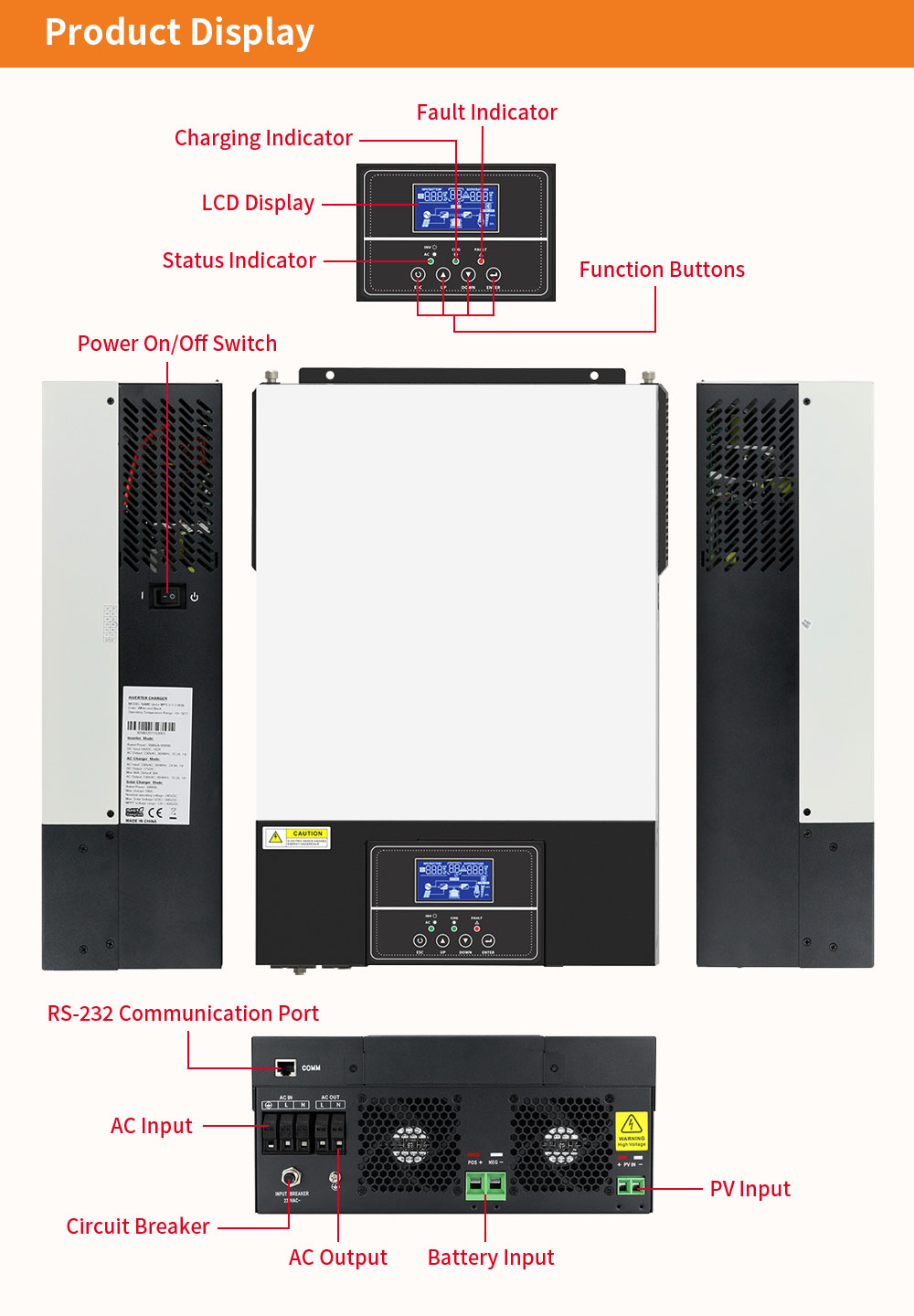

1. LCD display
2. Status indicator
3. Charging indicator
4. Fault indicator
5. Function buttons
6. Power on/off switch
7. AC input
8. AC output
9. PV input
10. Battery input
11. Circuit breaker
12. RS-232 communication port (GPRS/ Removable box) without WIFI
13. Removable box

Specification:

Model

MPS-VII-3500W-24V
MPS-VII-5500W-48V

Rated Power

3500VA/3500W

5500VA/5500W

Input

Voltage

AC 230V

AC 230V

Frequency Range

50Hz/60Hz(Auto sensing)

Output

AC Voltage Regulation(Batt. Mode)

AC 230V±5%

Output Voltage Waveform

Pure Sine Wave

Transfer Time

10ms(For Personal Computers);  20ms(For Home Appliances

Battery & AC Charger

Battery Voltage

DC24V

DC48V

Floating Charge Voltage

DC27V

DC54V

Overcharge Protection

DC33V

DC63V

Maximum Charge Current

100A

100A

Solar Charger

Maximum PV Array Power

5000W

6000W

MPPT Range @ Operating Voltage

DC 120~450V

Maximum PV Array Open Circuit Voltage

DC 500V

Maximum Charging Current

100A

100A

Maximum Efficiency

98%

Physical

Dimension

138 x 302 x 440 D x W x H (mm)

Net Weight

11.5kg

12.5kg

Communication Interface

USB/RS232/GPRS without WIFI

Operating Environment

Humidity

5% to 95% Relative Humidity(Non~condensing)

Operating Temperature

-10℃~50℃

Storage Temperature

-15℃~60℃


Package included:

1 x Solar Inverter

Note:

The Battery Capacity OF The Correct Matching System Is Determined According To The Specific Usage Requirements OF The Load And Application Scenarios, Otherwise It will Easily Lead To Insufficient Battery Capacity Or Excessive Waste OF Power Generation.
This is a wide voltage inverter. The Minimum Of MPPT Operating Voltage Should Be 150V To Make Sure That The Device Start Working,And 360V Is The Best.

PowMr-AC-220V-DC-24V-3500W48V-5500W-Solar-Inverter-MPPT-100A-Solar-Controller-PV-Input-DC-500V-Pure--1942299-3

PowMr-AC-220V-DC-24V-3500W48V-5500W-Solar-Inverter-MPPT-100A-Solar-Controller-PV-Input-DC-500V-Pure--1942299-4

PowMr-AC-220V-DC-24V-3500W48V-5500W-Solar-Inverter-MPPT-100A-Solar-Controller-PV-Input-DC-500V-Pure--1942299-5

PowMr-AC-220V-DC-24V-3500W48V-5500W-Solar-Inverter-MPPT-100A-Solar-Controller-PV-Input-DC-500V-Pure--1942299-6

PowMr-AC-220V-DC-24V-3500W48V-5500W-Solar-Inverter-MPPT-100A-Solar-Controller-PV-Input-DC-500V-Pure--1942299-7

PowMr-AC-220V-DC-24V-3500W48V-5500W-Solar-Inverter-MPPT-100A-Solar-Controller-PV-Input-DC-500V-Pure--1942299-8

PowMr-AC-220V-DC-24V-3500W48V-5500W-Solar-Inverter-MPPT-100A-Solar-Controller-PV-Input-DC-500V-Pure--1942299-9

PowMr-AC-220V-DC-24V-3500W48V-5500W-Solar-Inverter-MPPT-100A-Solar-Controller-PV-Input-DC-500V-Pure--1942299-10
