  • Stock: In Stock
  • Model: ST230046273
  • SKU: ST230046273
$13.99
Ex Tax: $13.99

Available Options

Feature:

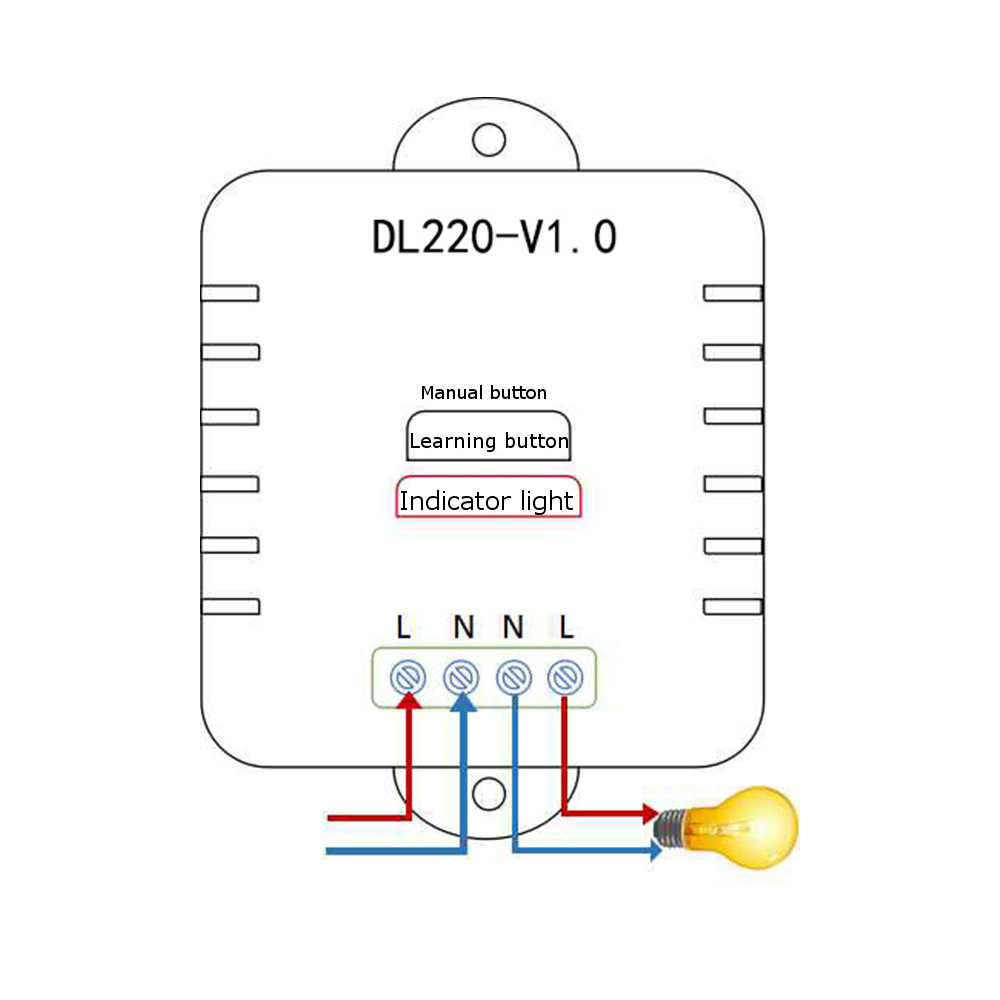

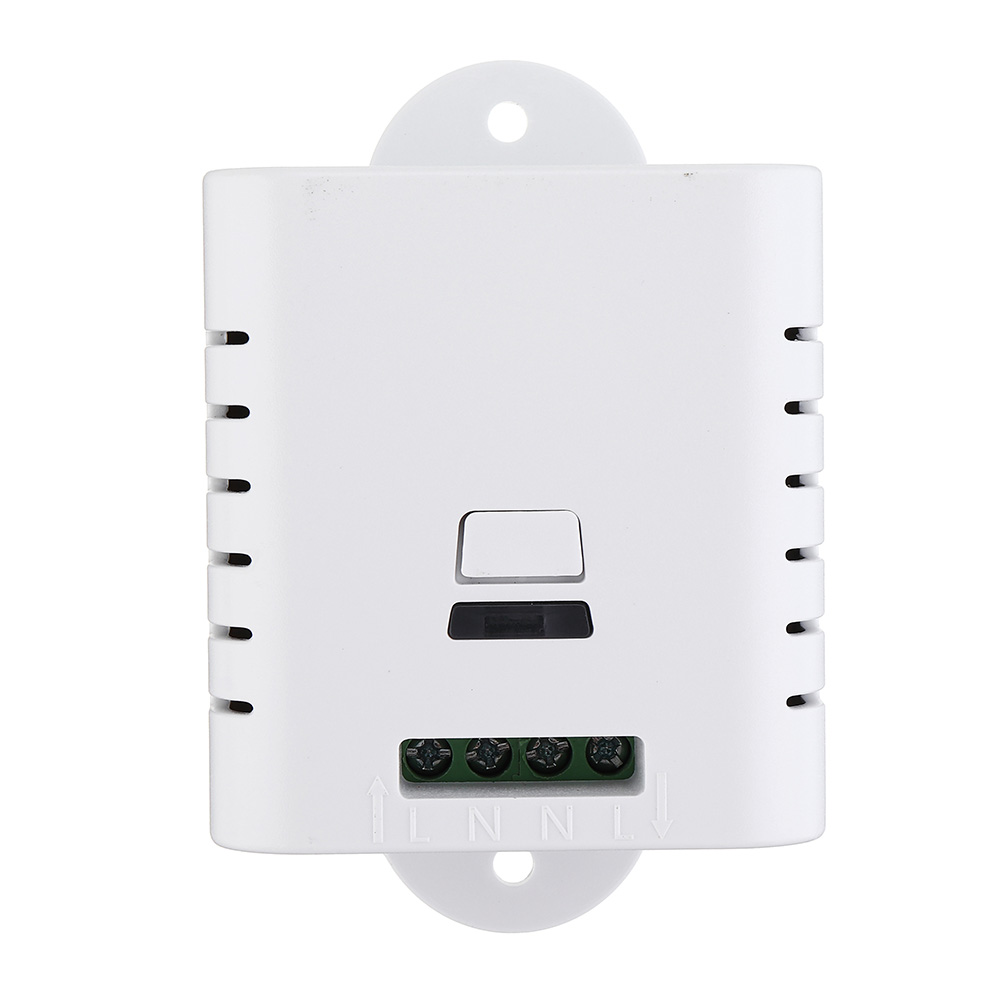

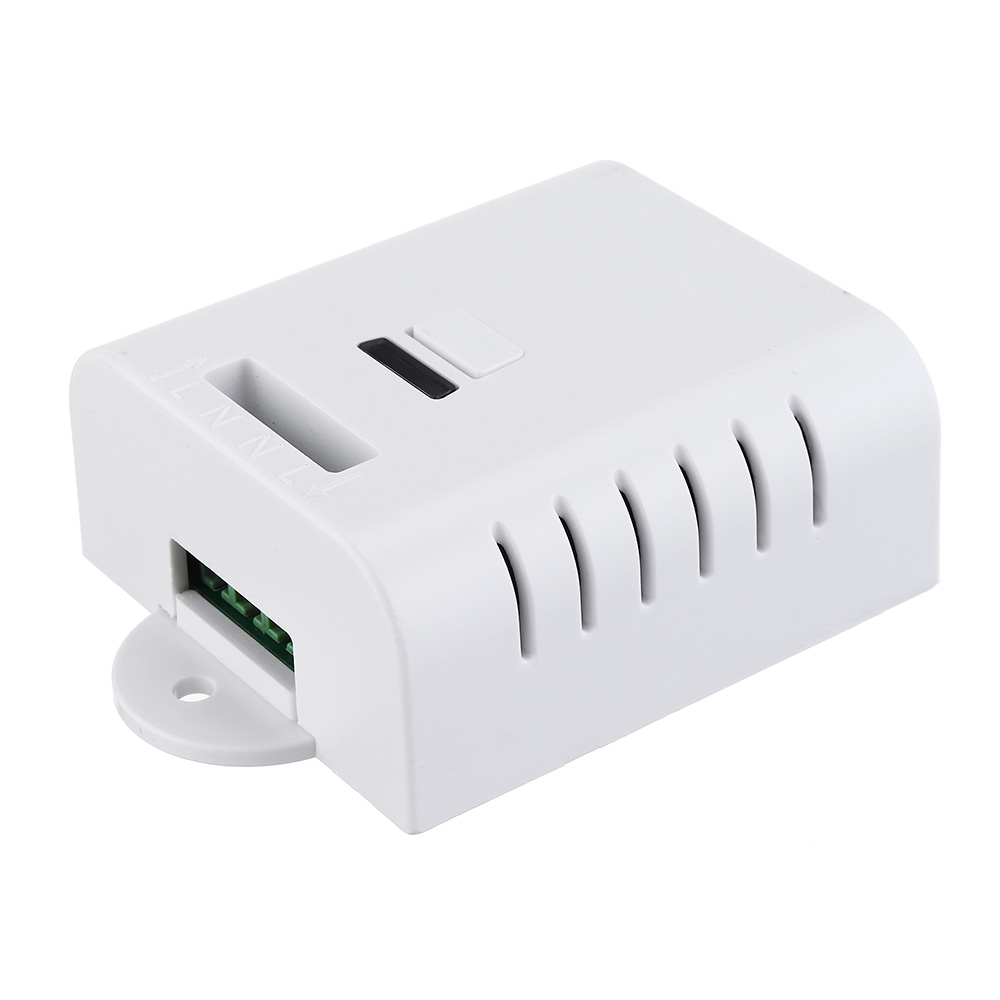

The wireless remote control switch is designed with two working modes: manual and remote control. The buttons on the interface are the manual key and the learning button of the remote control. In the remote working mode, there are two working modes that can be adjusted (self-locking and interlocking), which can be switched through the learning button on the interface, and can be combined with any of the more than 10 wireless remote controllers.
Self-locking working mode: that is, the same key on the remote control to learn the code, the same button is pressed to open, and then press to close;
In the interlock working mode: the two different keys on the remote control are used to learn the code, press one button to open, press another button to turn off;

Technical parameter:

Press the manual button: Switch the power supply (long press for 3 seconds, learn the remote control code: long press for 10 seconds, clear the code to restore the factory)
Support multiple remote control: up to 10 groups of codes
The power supply is normally closed: the power is off after the power is turned off.
Weight: 0.05KG
Working voltage: AC85-250V
Maximum current: AC10A
Load: ≦ 2000W
Specification: 55*51*25mm (including housing)
Operating frequency: 315MHz / 433MHz (optional)
Working mode: self-locking, interlocking (switching by learning method)

Self-locking learning code method:

First, after the wireless remote control switch is powered on, connect an electric appliance to manually test whether the remote control switch is working normally. Then press and hold the learning button for about 3 seconds, the learning indicator light on the remote control switch interface is on, release the hand, immediately press any button on the remote control twice, the learning indicator flashes three times and then gray out, indicating that the learning is successful.

Clearing method: (Please clear the code and then correct the code when you need to change the working mode)

Press and hold the remote control switch interface learning button for about 15 seconds. The learning indicator light from on to off indicates that the clear code is successful.

Interlock learning pair code method:

First, after the wireless remote control switch is powered on, connect an electric appliance to manually test whether the remote control switch is working normally. Then press and hold the learning button on the remote control switch for about 3 seconds, the learning indicator on the interface lights up, release the hand, immediately press any button on the remote control (or unlock button), and then press another button (or lock button) on the remote control. After the learning indicator flashes three times, it will be grayed out, indicating that the learning is successful.

The meaning of self-locking/interlocking/jogging:

Interlock: Press the corresponding button of the remote control, the corresponding relay is turned on, and then press another remote control button; the relay is disconnected.
Non-lock, jog: press the remote control button, the corresponding relay is turned on, release the remote control button; the corresponding relay is disconnected.
Self-locking: Press the remote control button once, the relay is turned on, press the remote control button again, the relay is disconnected.

Package includes:

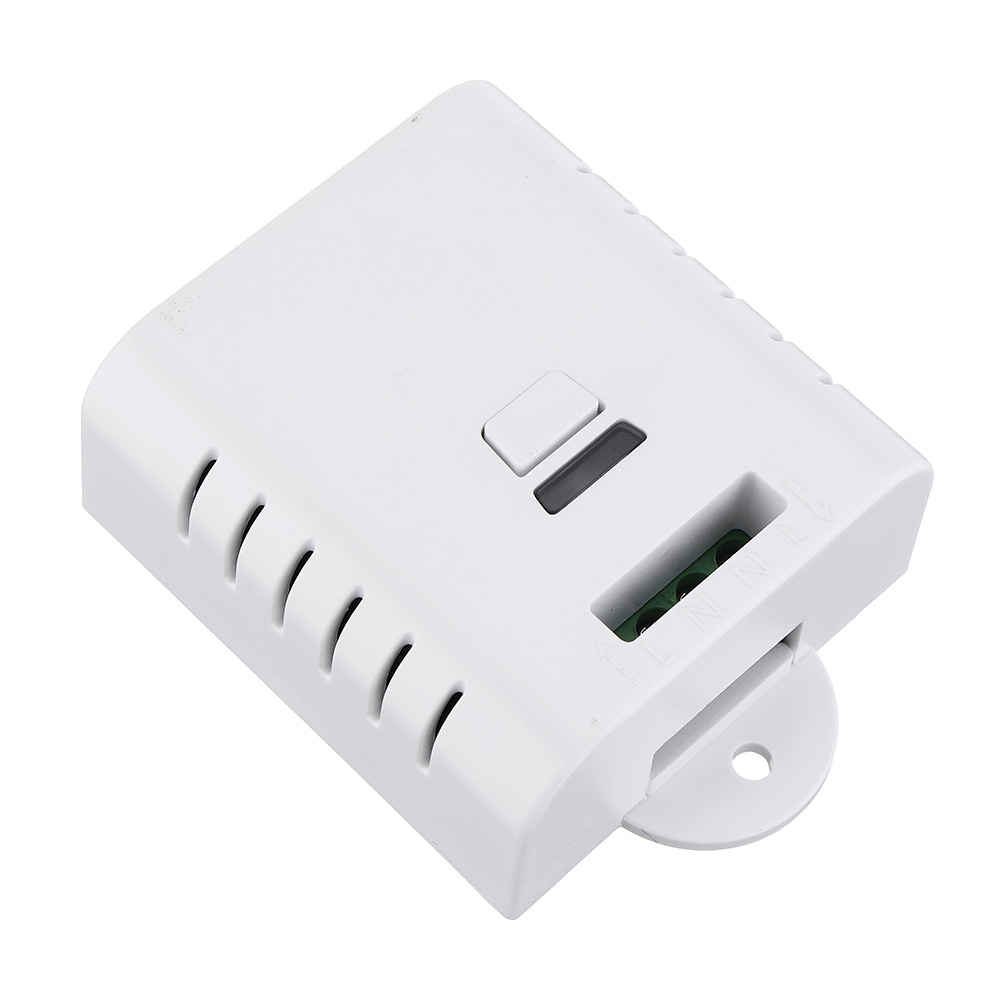

1 x Remote control switch

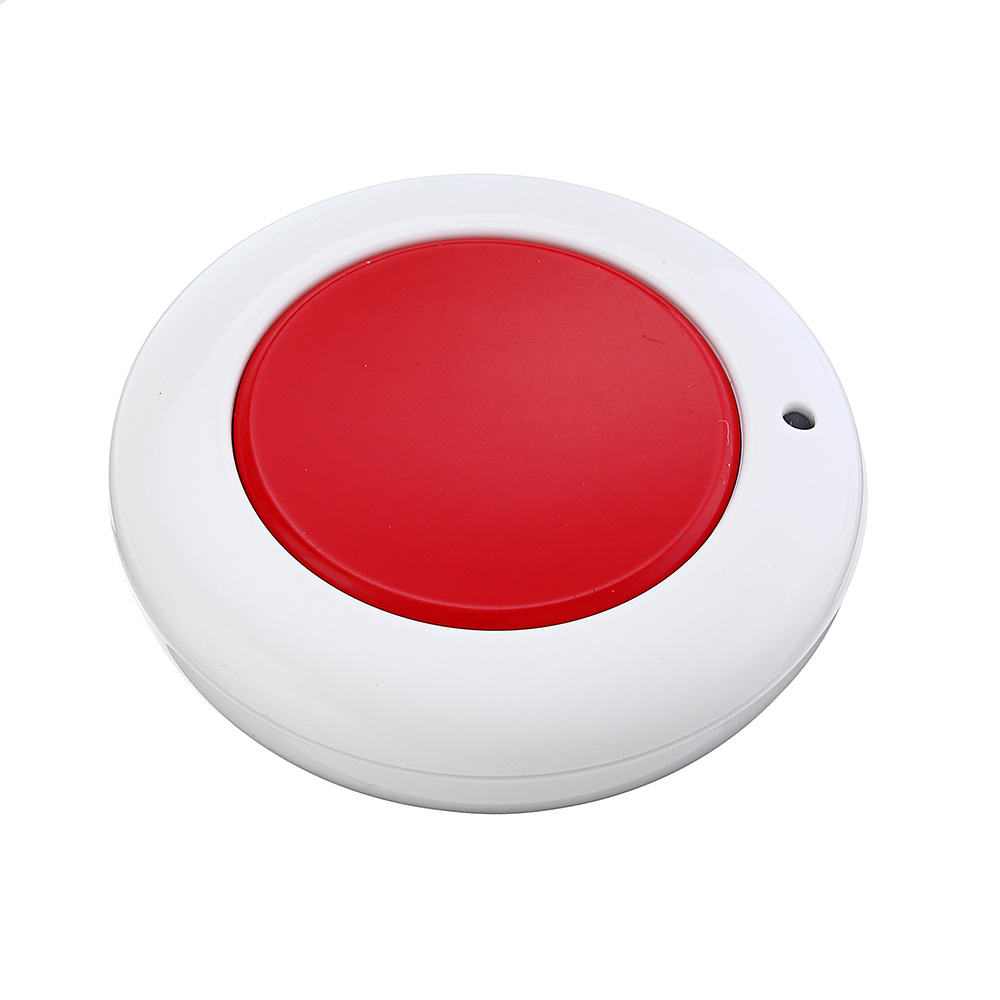

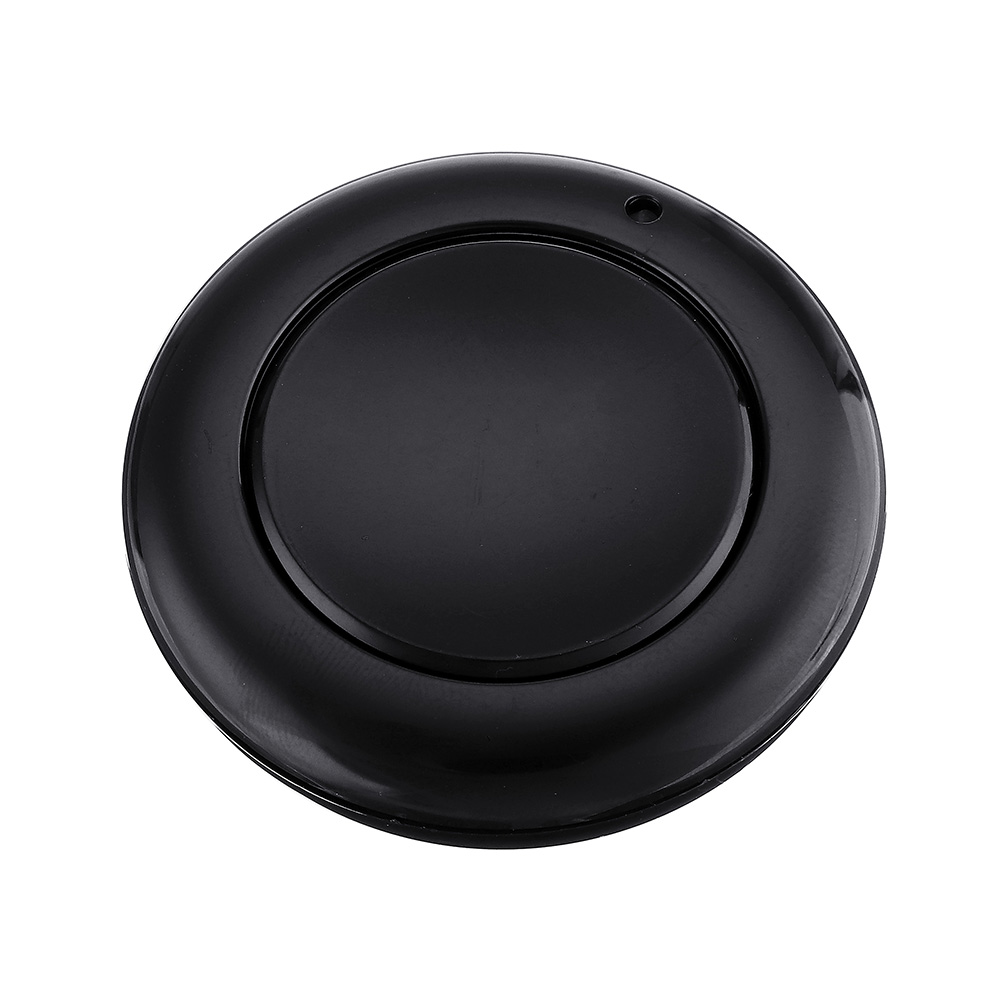

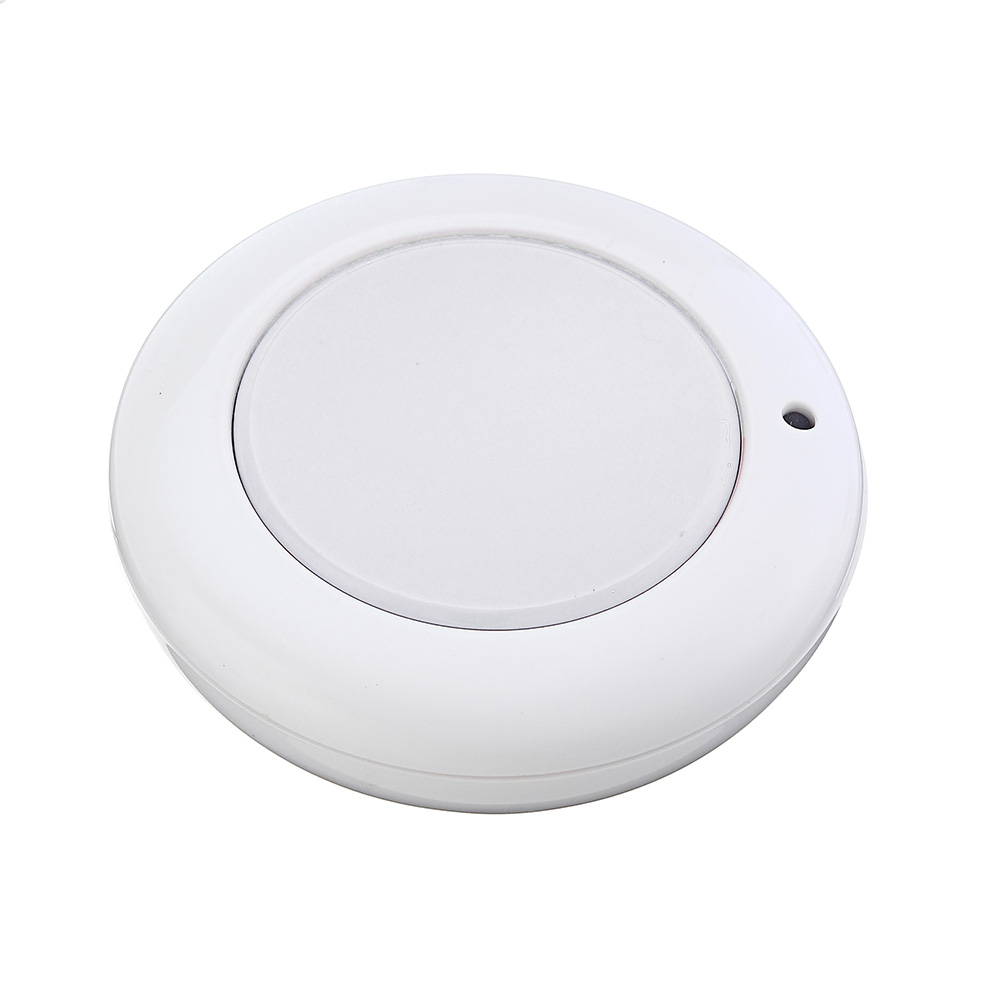

1 x Transmitter (color optional)
