Waveshare Universal e-Paper Panel Driver HAT SPI Surface for Raspberry Pi 4

Overview

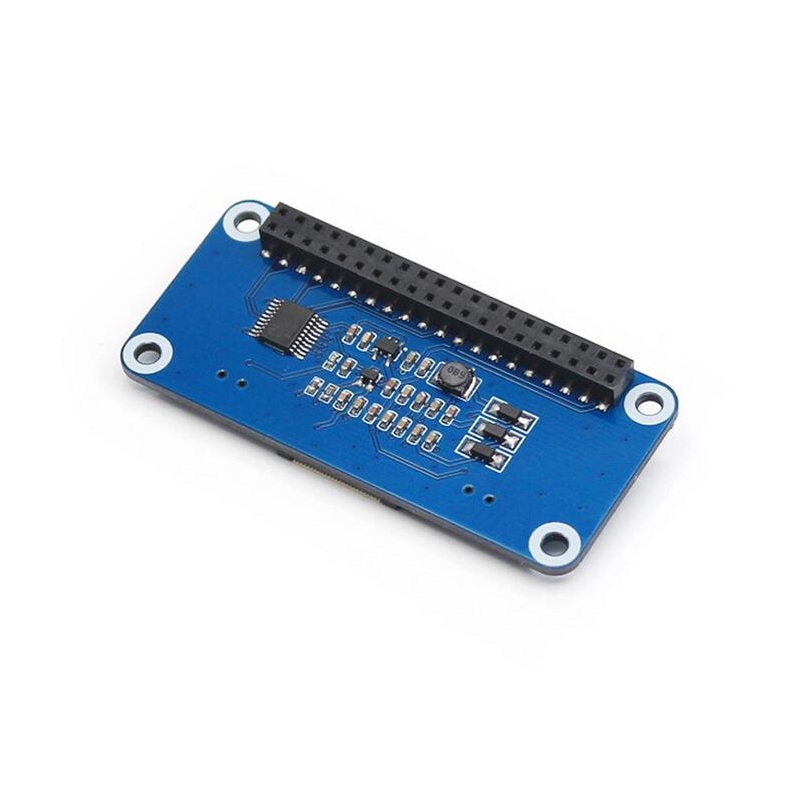

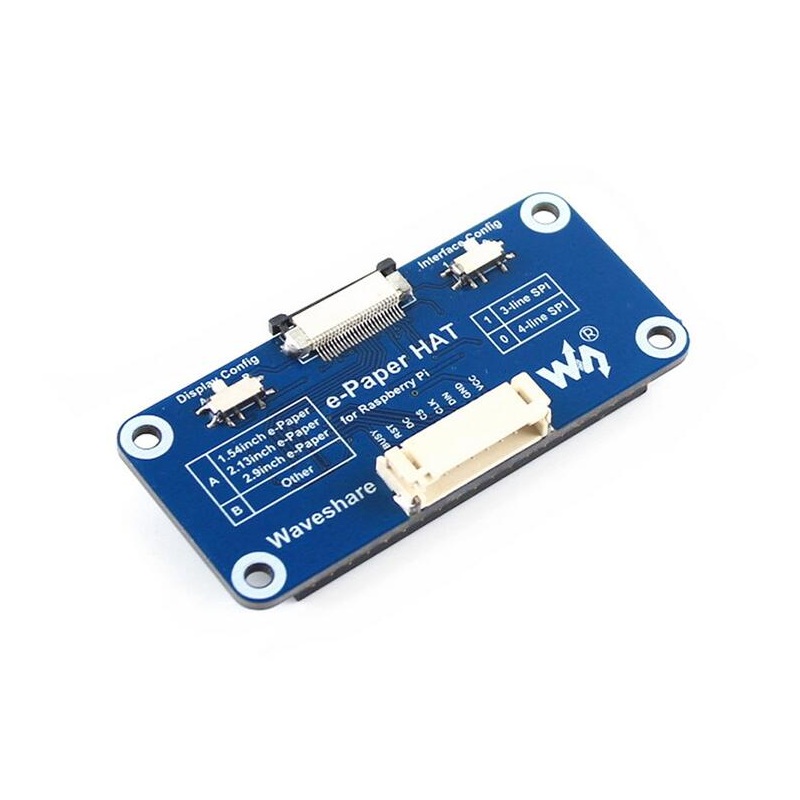

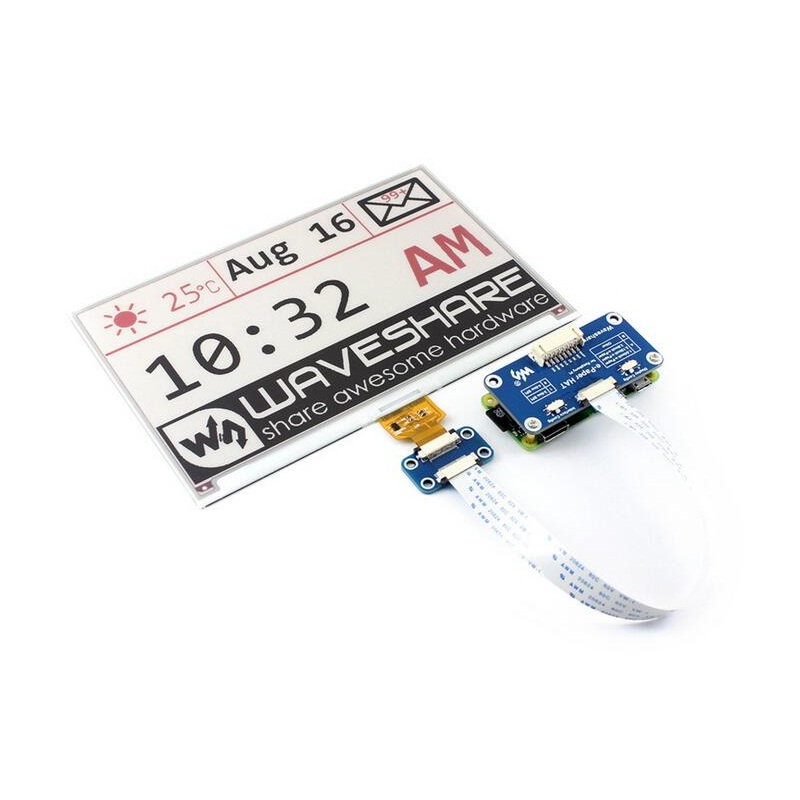

This is a universal driver board for e-Paper panels, can be used to drive various SPI interface e-Paper from Waveshare.

Features

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

Operating voltage: 3.3V~5V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 65mm × 30.2mm
Mounting hole size: 3.0mm

Interface
SYMBOL DESCRIPTION
VCC 3.3V~5V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output

Wiki: http://www.waveshare.com/wiki/e-Paper_Driver_HAT

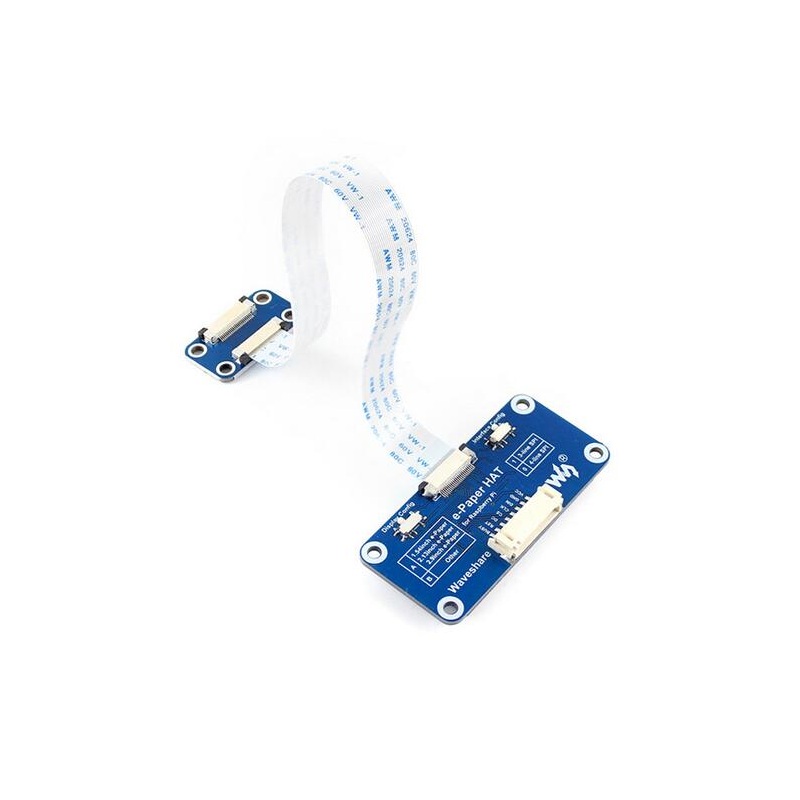

Package Included:

1* E-Paper Driver HAT

1* Cable
