US-52 AC220V 50Hz 15W Digital Adjustable Stepless Motor Speed Controller Tool Part Accessory 90-1400rpm
- Stock: In Stock
- Model: ST230042217
- SKU: ST230042217
$8.81
Ex Tax: $8.81
>>>Instruction: Click here to open<<<
Features:
Features:

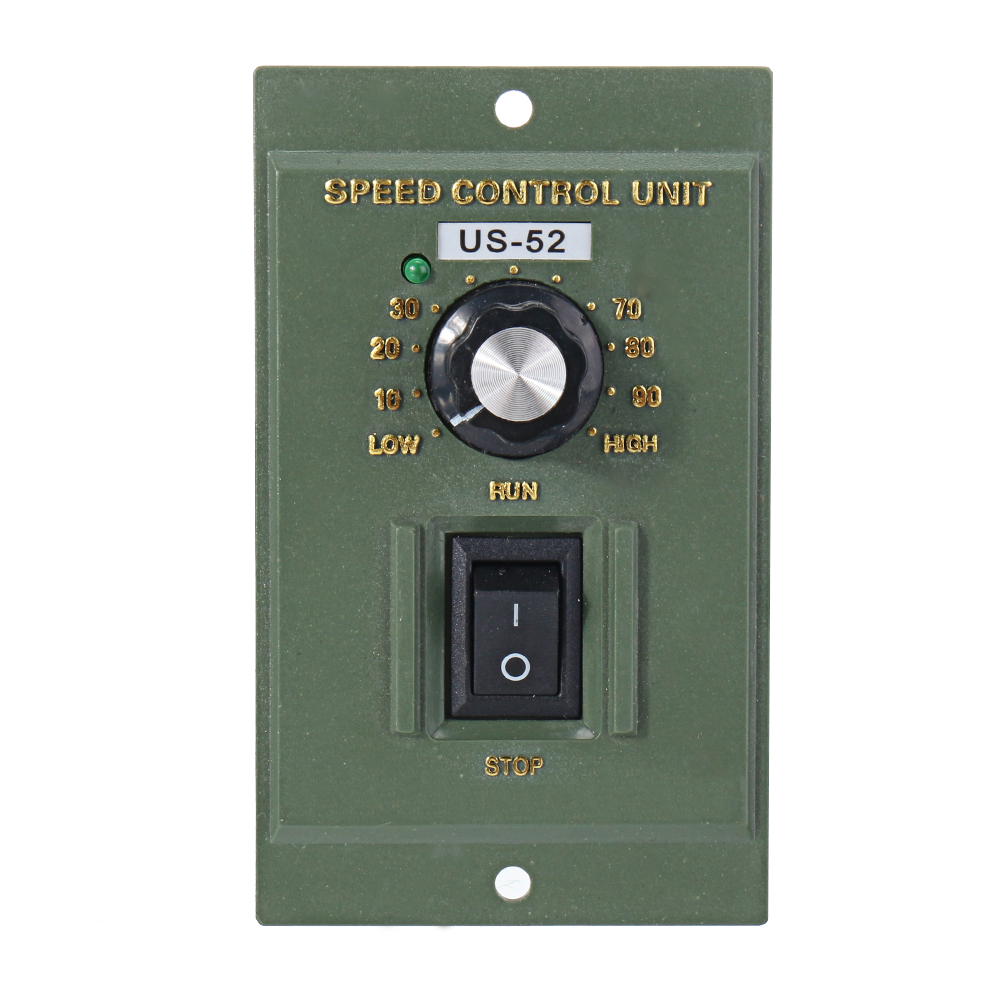

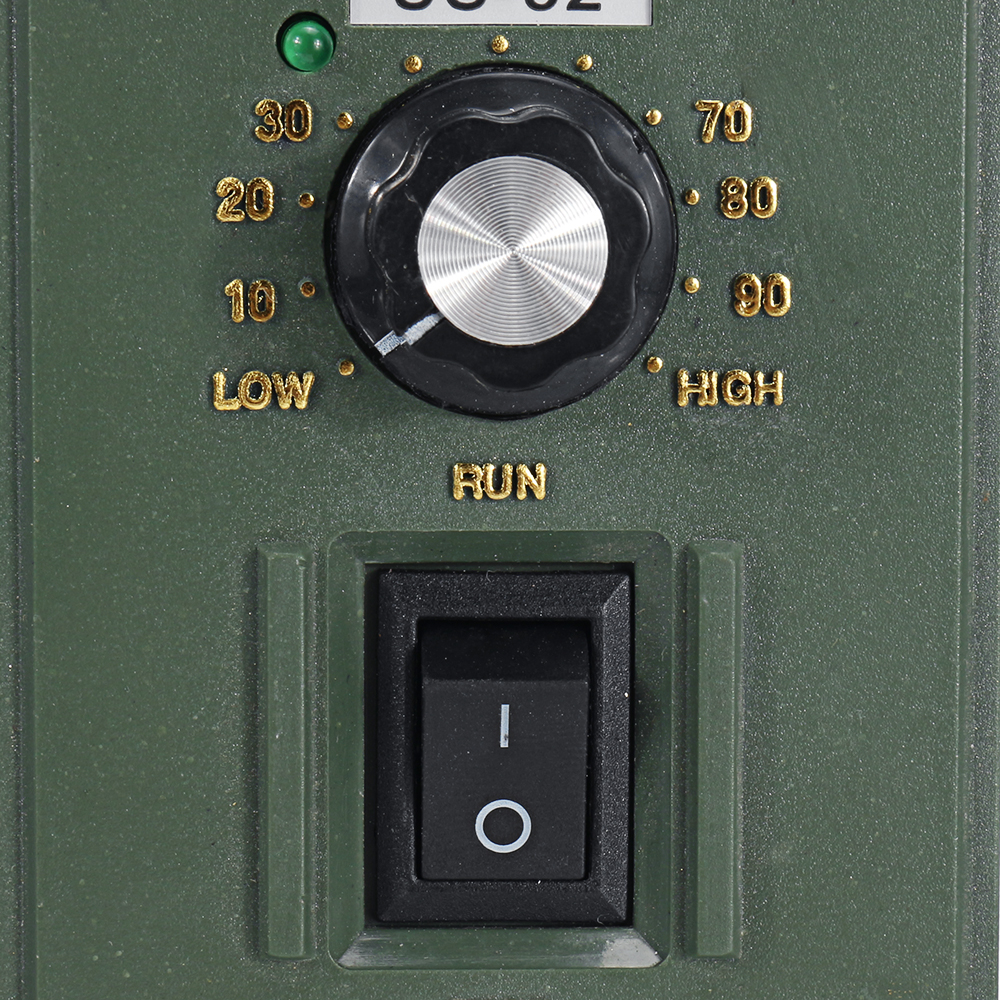

Speed Control Knob: This knob can adjust motor speed and display in real time.
There are 5 controllers in different power and you can choose the one you need.
It has a compact size, high accuracy, wide speed controlling range, and long service life.
Built-in capacitor, supporting CW/CCW rotation.
Widely used in packaging, printing, food, electronics, instruments, medical equipment, clothing industry production line for speed drive device.

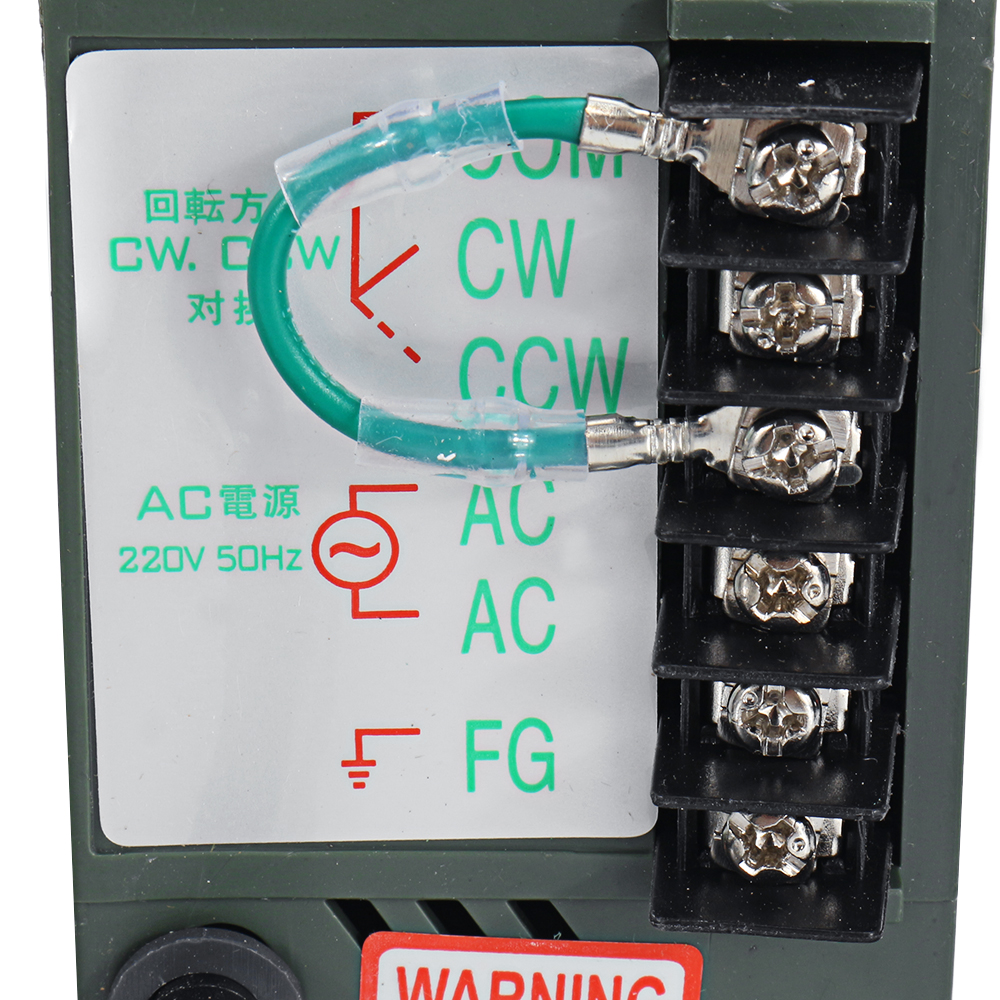

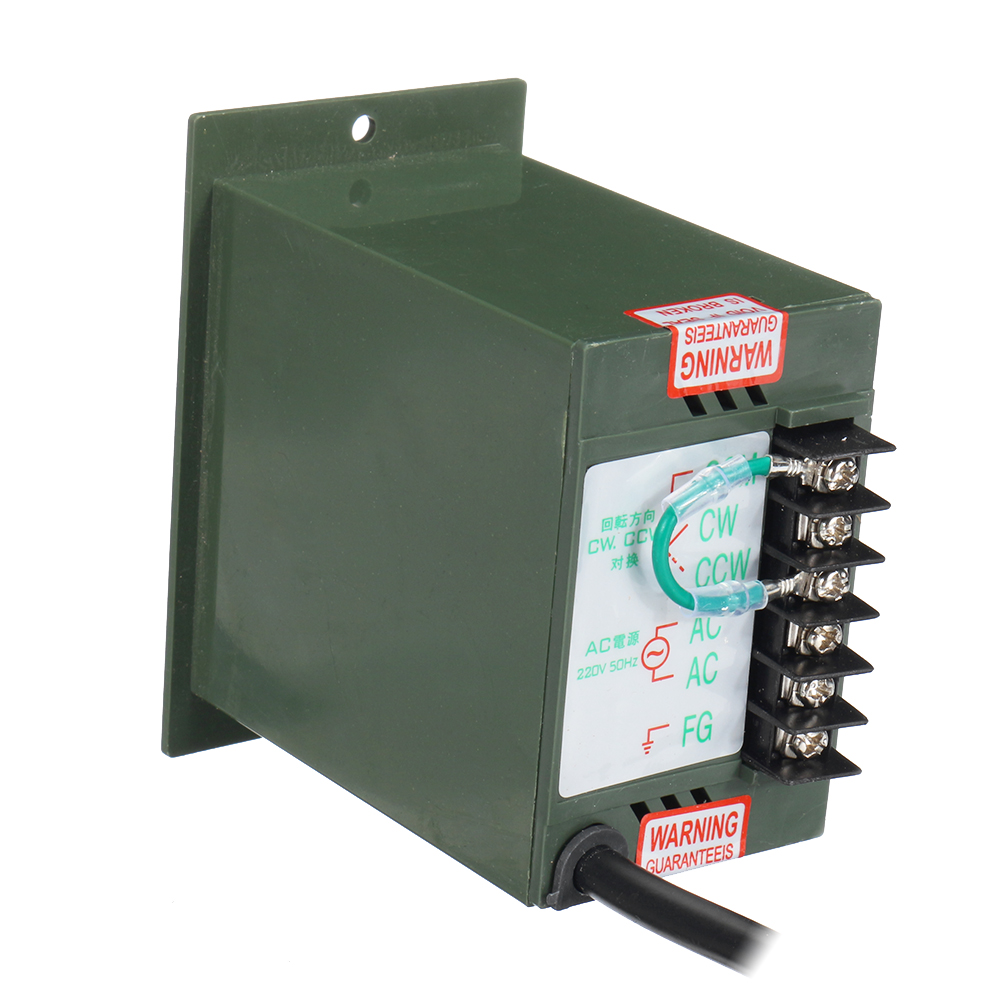

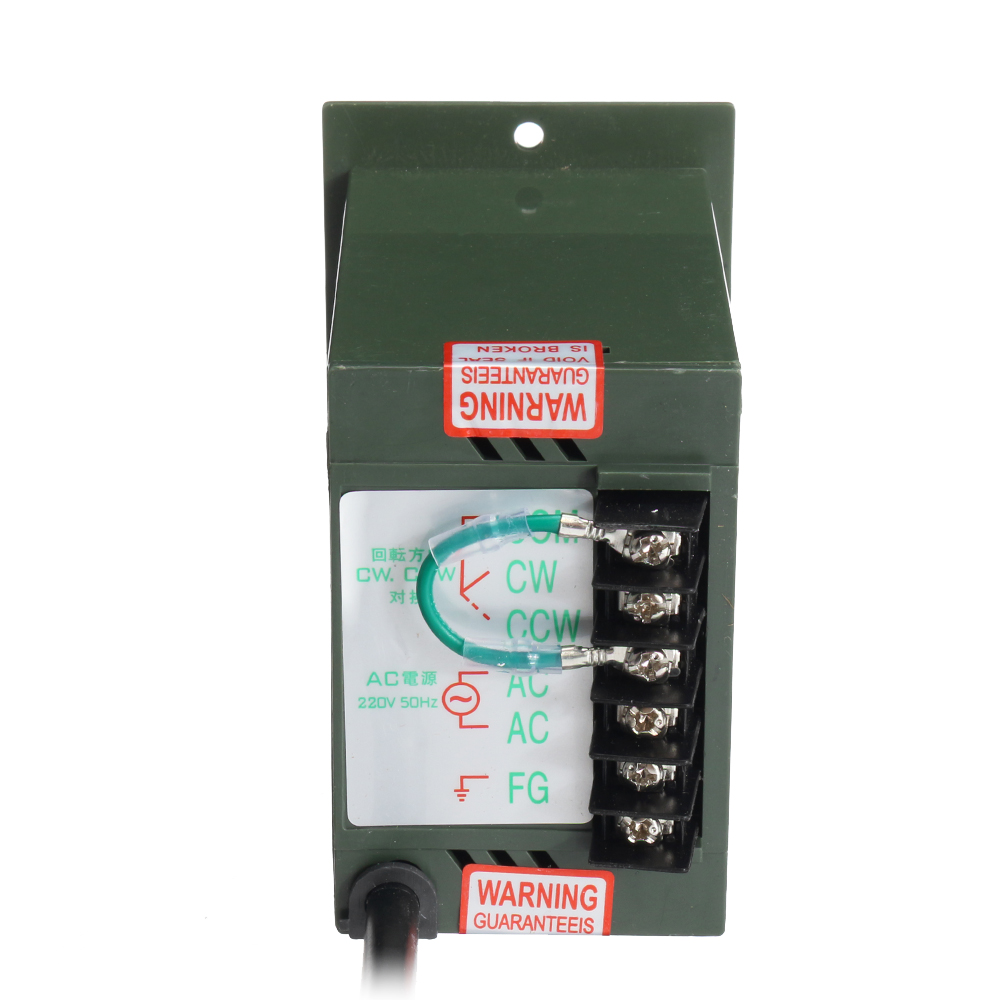

Connect COM and CW, the motor rotates in forward direction; connect COM and CCW, the motor rotates in reverse direction.
Specification:
Model: US-52
Input Voltage: AC 220V 50Hz
Output Voltage: AC 220V 50Hz
Output Voltage: AC 220V 50Hz
Optional Power: 15W
Input speed: 90-1400 (rpm)
Output speed range: 90-1400rpm/90-1700rpm
Speed range: 0-1400 (rpm)
Rated power: 0.06-0.25 (KW)
Rated capacity: 0.9
Rated capacity: 0.9
Adapted motor power: 0.06-0.25(kw)
Scope of application: 15W speed motor
Speed measuring generator: 60W
Speed measuring generator: 60W
Operation Mode: Manual accuracy
Speed Change Rate: ≤2%
Steady Speed accuracy: 1%
Port: Pin
Size: Approx. 100*60*87(mm)
Weight: Approx. 400g
Package includes:
1 x Motor Speed Controller
