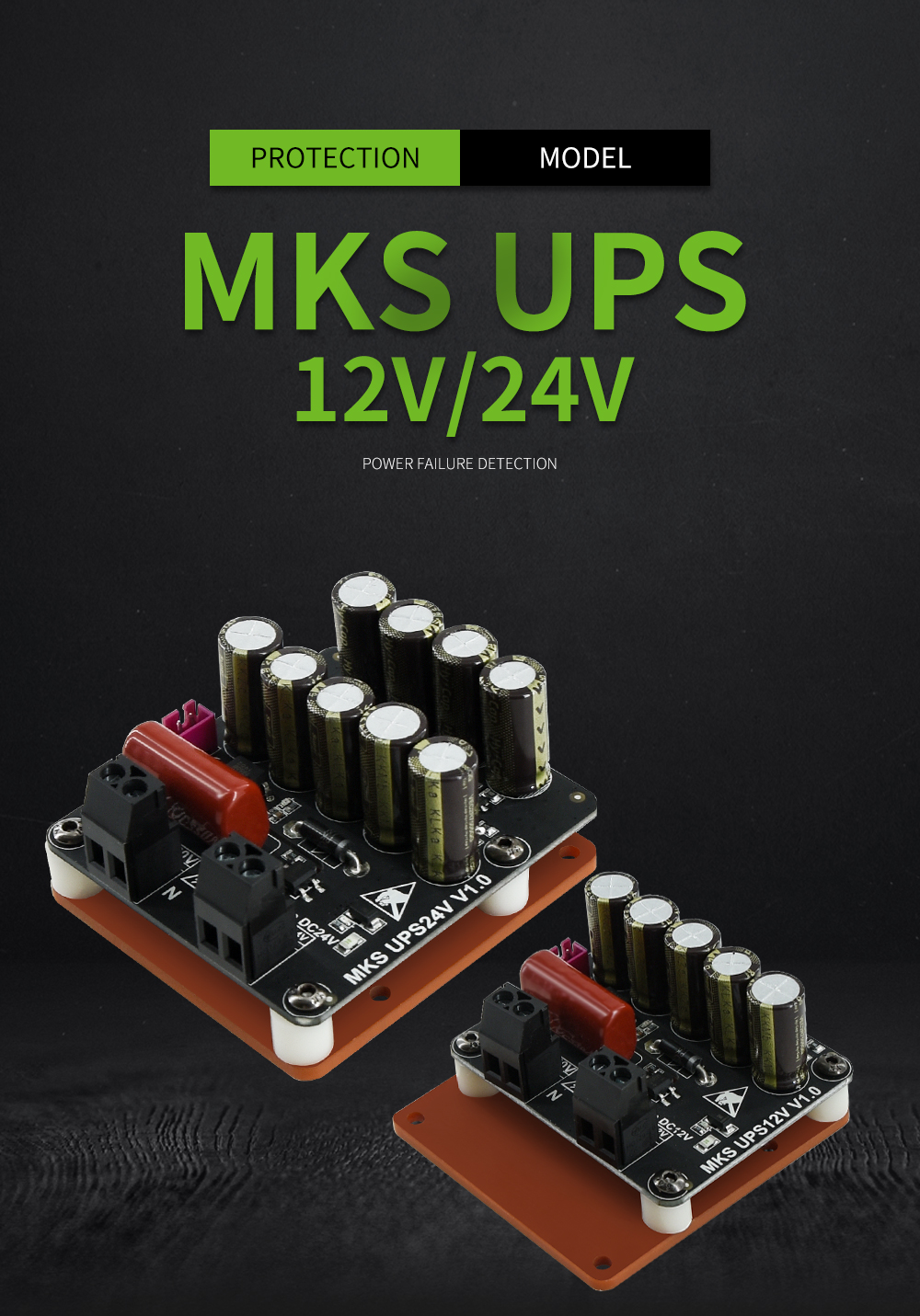

UPS 12V 24V Module Power Outage Detection and Lift Z Axis Power-off Resuming Module for 3D Printer
- Stock: In Stock
- Model: ST230048985
- SKU: ST230048985
$15.99
Ex Tax: $15.99
Description:
Notice:
UPS 12V can only be used for DC12V power supply.
UPS 24V can only be used for DC24V power supply.
The motherboard must use Marlin2.0 firmware with 12864/2004 LCD display.
Temporarily not support Robin series (except Robin E3 / E3D) and TFT displays.
The UPS 12V and UPS 24V modules detect the external mains supply.
Work process:
When the utility power is cut off, the inverter detects it and sends a signal to the motherboard;
The power stored in the UPS and PSU continues to supply the motherboard;
Motherboard detects power off signal, stop printing, turn off hotbed and hotend, lift z axis;
The power stored in inverters is usually raise the z axis from 20mm to 200mm;
When power is restored, resume printing through the 12864/2004 LCD screen.
Wiring:
Take SGEN_L as an example
Specification:
Brand Name: TWO TREES
Item Type: Module
Model Number: UPS
Voltage: 12V/24V
For: 3D Printer Parts
Package includes:
1* UPS 12V/24V
2* Power cable
1* Cable car is very hot 3 items
Details picture:
