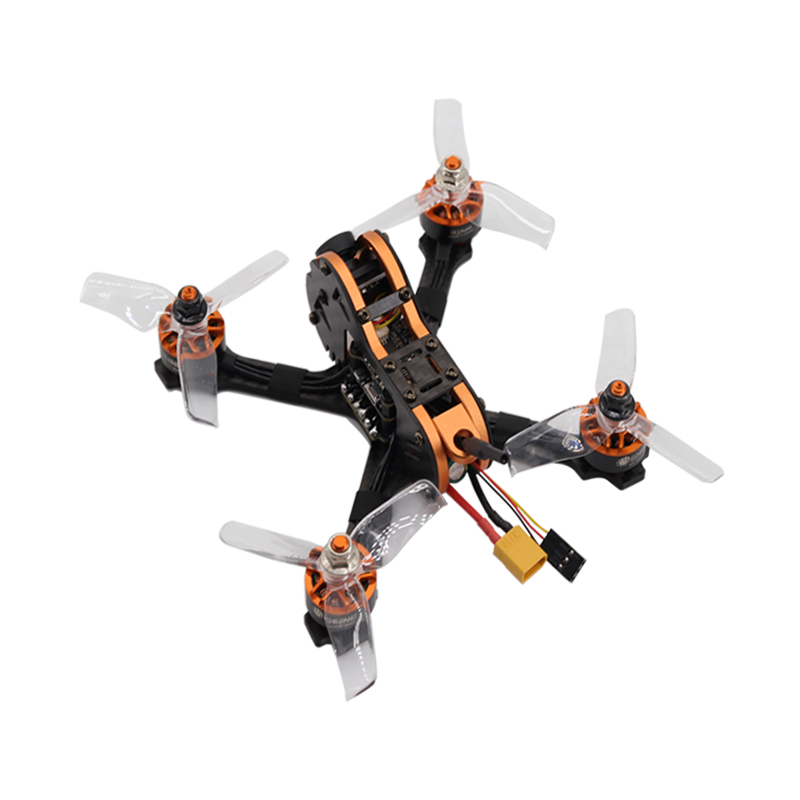

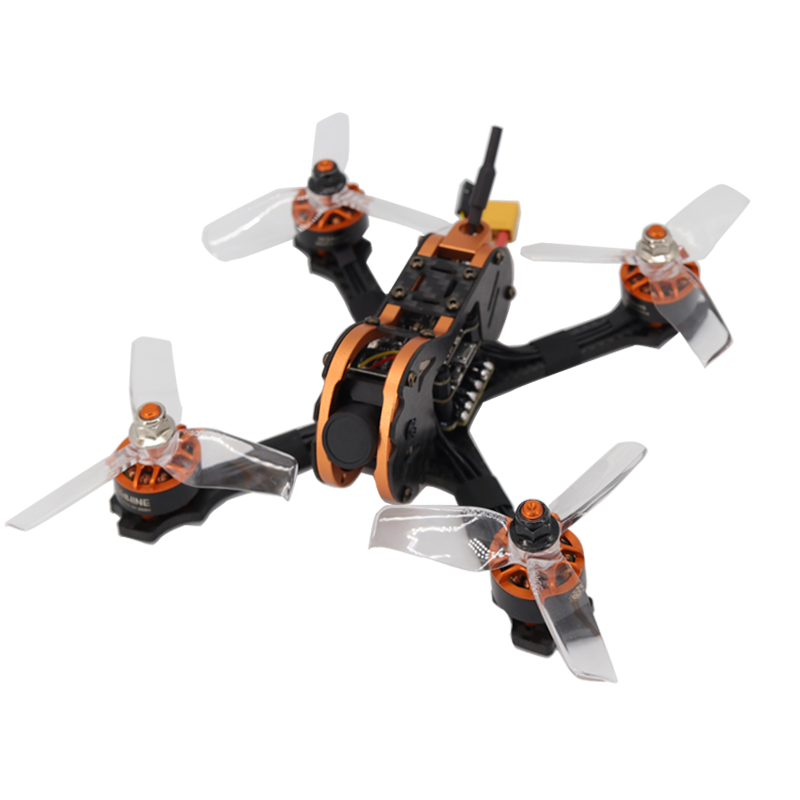

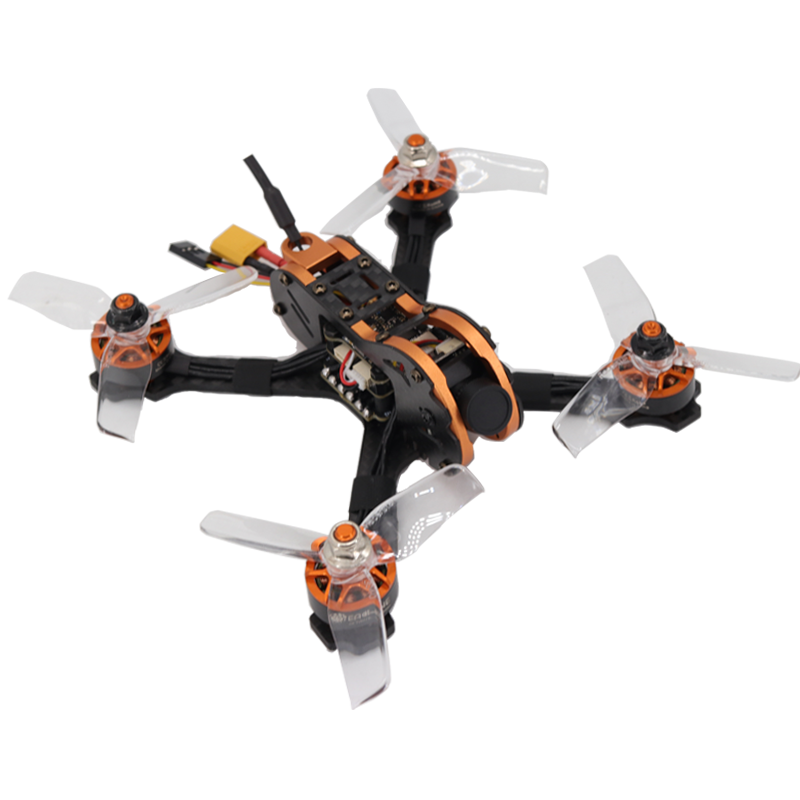

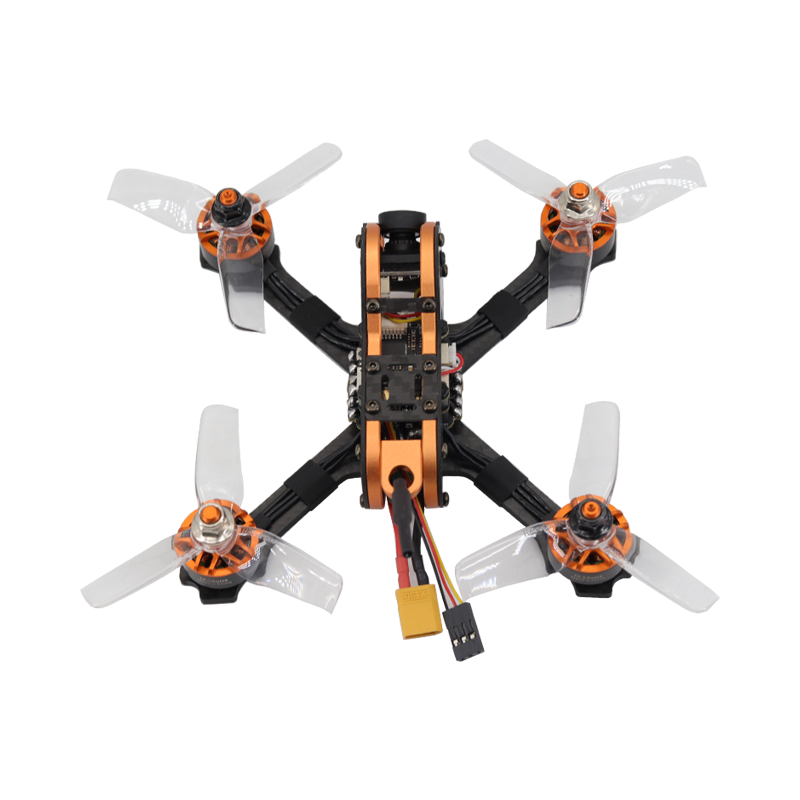

Tyro79 140mm 3 Inch DIY Version FPV Racing RC Drone F4 OSD 20A BLHeli_S 40CH 200mW 700TVL FPV Camera
- Stock: In Stock
- Model: ST22001272
- SKU: ST22001272
$125.39
Ex Tax: $125.39
Note:
1. This is the DIY version that comes unassembled.
2. Comes without battery, charger, receiver or remote control.
| Item | Specification |
| 140mm Racing Frame Kit | Wheel base: 140mm
Frame arm thickness: 3mm
Upper plate thickness: 1mm
Side plate thickness: 1mm
Frame kit material: 3K carbon fiber & CNC 6065 aluminium |
| 1607 2800KV 2-4S Brushless Motor | KV: 2800KV
Lipo cell: 2-4S
Weight: 17.8g (includes wires)
Output shaft length: 14mm
Maximum pull: signal 630g (4S 3030 4-blade propeller)
Maximum power: 350W
Configu-ration: 9N/12P
Mounting holes distance: 12*12mm
Mounting holes: φM2
Bearing: NSK
N52 Strong NdFeB Magnet
Recommend propeller: 3 inch |
| 4 IN 1 20A BLHeli_S ESC | Continuous current: 20A
Peak current: 25A (10S)
BEC output: no
Input voltage: 2-4S
Main control chip: 48mhz EFM8BB2
Firmware upgrade: Supports Dshot600/BLHeli_S/Oneshot125 with 25V 150uf Capacitor ( Solder Well on ESC Board)
MOS: 3*3
MOS type: vs3610ae 30v64a |
| F4 Flight Controller ( FC Product Link ) | Brand Name: Eachine Item name: F4 Flight Controller Main control chip: STM32F405 Gyro: MPU6000 Input Voltage: 2-4S Lipo Black Box: NO Barometer: NO Firmware: VGRC/VGOODRC F4 Buzzer Interface: YES Betaflight OSD: AT7456E UART6: RC UART5: DJI UART2: VTX Weight: 3.6g PCB Size: 24.6x24.6mm Mounting Hole: 20x20mm - Support PPM, IBUS, SBUS, DSMX Receiver |
| 700TVL CMOS Camera | Case size: 19mm*19mm
Weight: 9.5g
Total pixels: PAL: 1020H×596V (0.61MP); NTSC: 1020H×508V (0.52MP)
Effective pixels: PAL: 976H×582V (0.57MP); NTSC: 976H×494V (0.48MP)
Signal system: PAL/NTSC switchable
Resolution ratio(horizontal center): 700TVL
Video output: 1.0Vp-p/75Ω
Automatic gain control: 0.25/0.50/0.75/1.00, up to 55dB
White balance: off
Exposure mode: electron exposure
Electronic shutter: 1/50(1/60) - 1/100000 S
Gamma correction: 0.45/1.0
Synchronization method: inter-sync
Camera lens: standard 2.1mm
Lens operating voltage: DC 5-12V
Working current: 70mA (low power consumption)
Working temperature: -20℃~-60℃
Humidity: 0%~98% |
| XF5805 40CH 0/25/100/200mW VTX ( VTX Product Link) | Brand name: Eachine Item name: 5.8G 40CH 25/100/200/300mw VTX Supports TBS SmartAudio Transmitting power: 25/100/200/300mw switchable Channel: 40CH Full video format: NTSC/PAL Input voltage: 7V~24V Power dissipation: +12V/600MW Size: 25×20×6mm Weight: ≤3.2g (except antenna) With copper pipe mini antenna (ipex antenna) Make sure the antenna is installed at the output end before powering up to avoid damaging internal components. Usage: for tyro79 140mm 3 inch DIY version RC drone |
| New 3040 3-blade propeller | Material: PC
Mounting hole: 5mm
Center thickness: 6mm
Quantity: 2 CW & 2 CCW
Color: ( Delivery color randomly)
Weight: 5g a pair |
| Lipo Battery |
Not included Recommend 2-3S 450-650mah |
Eachine Tyro79 English Manual
New Vtx Setting:
1. Long Press Button 2S, entering into CH Setting Mode.
2. Red Light flash 1 time, Green Light flash 1-8 time ( CH1-CH8).
At this time , a short press of the key CH plus 1 will flash corresponding number of times. CH1-8 cycle.
3. Then, Long Press 2S again, entering into Band Setting Mode.
Red Light flash 2 times, Green Light flash 1-5 time ( A-B-E-FS-Race Band).
4. Long Press 2S once again, entering into Power Setting Mode.
Red Light flash 3 times, Green Light flash 1-4 times ( Power 25mW- 100mW-200mW-300mW)
5. Finally, Long Press 2S, Logout setting mode. Or it will logout automatically while no operation after 30S.

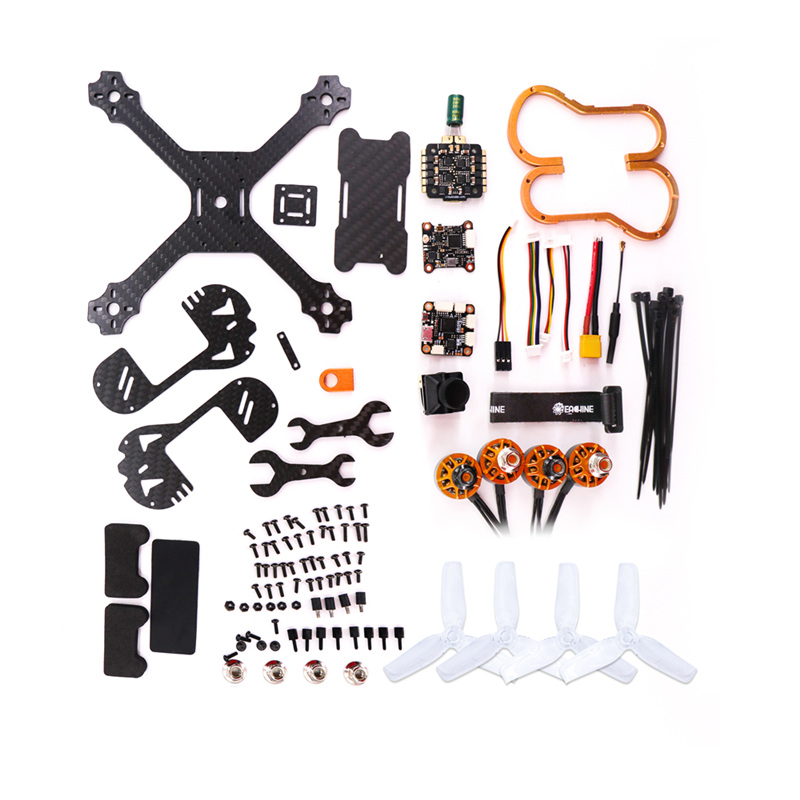

Package included:
1 x 140mm racing frame kit
2 x 1607 2800KV brushless motor CW
2 x 1607 2800KV brushless motor CCW
1 x 4 IN 1 20A BLHeli_S ESC
1 x F4 flight controller
1 x 700TVL CMOS camera
1 x 5.8G 40CH 0mw/25mw/200mw switchable VTX
2 x 3040 3-blade propeller CW
2 x 3040 3-blade propeller CCW
