- Stock: In Stock
- Model: ST22001324
- Dimensions: 17.40cm x 8.40cm x 7.00cm
- SKU: ST22001324

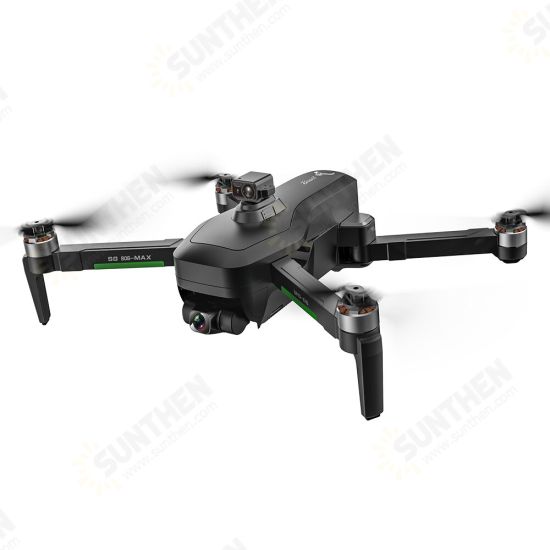

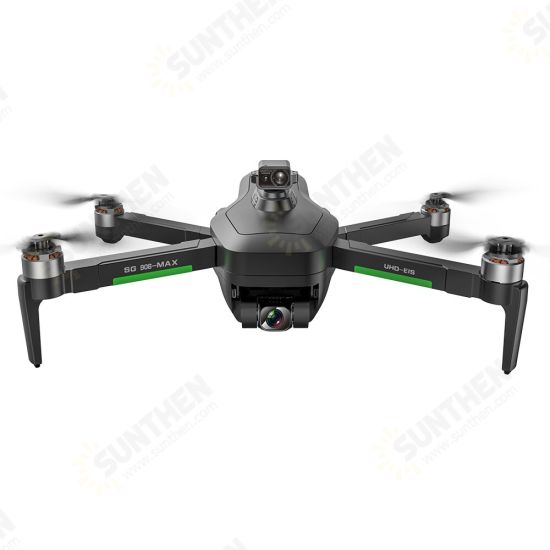

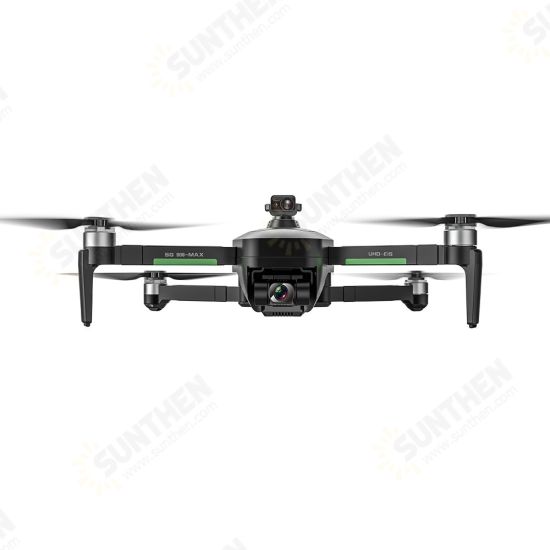

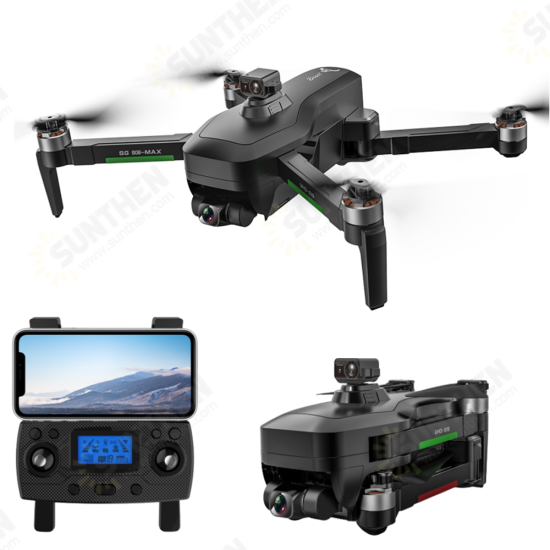

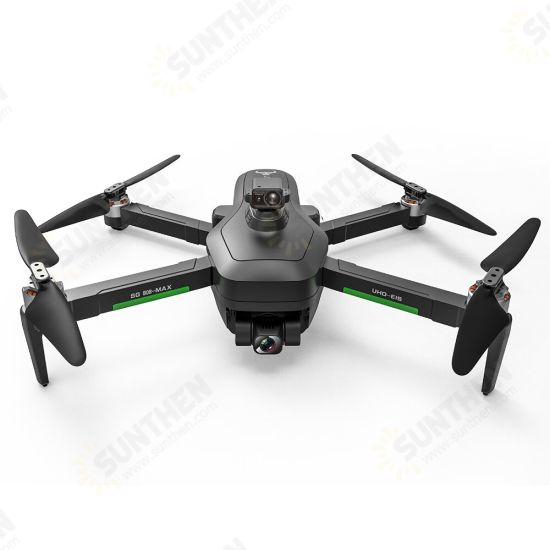

ZLL SG906 MAX1 5G WIFI 3KM FPV with 4K HD Camera 3-Axis Anti-shake Gimbal Obstacle Avoidance Brushless RC Drone Quadcopter RTF
Description:

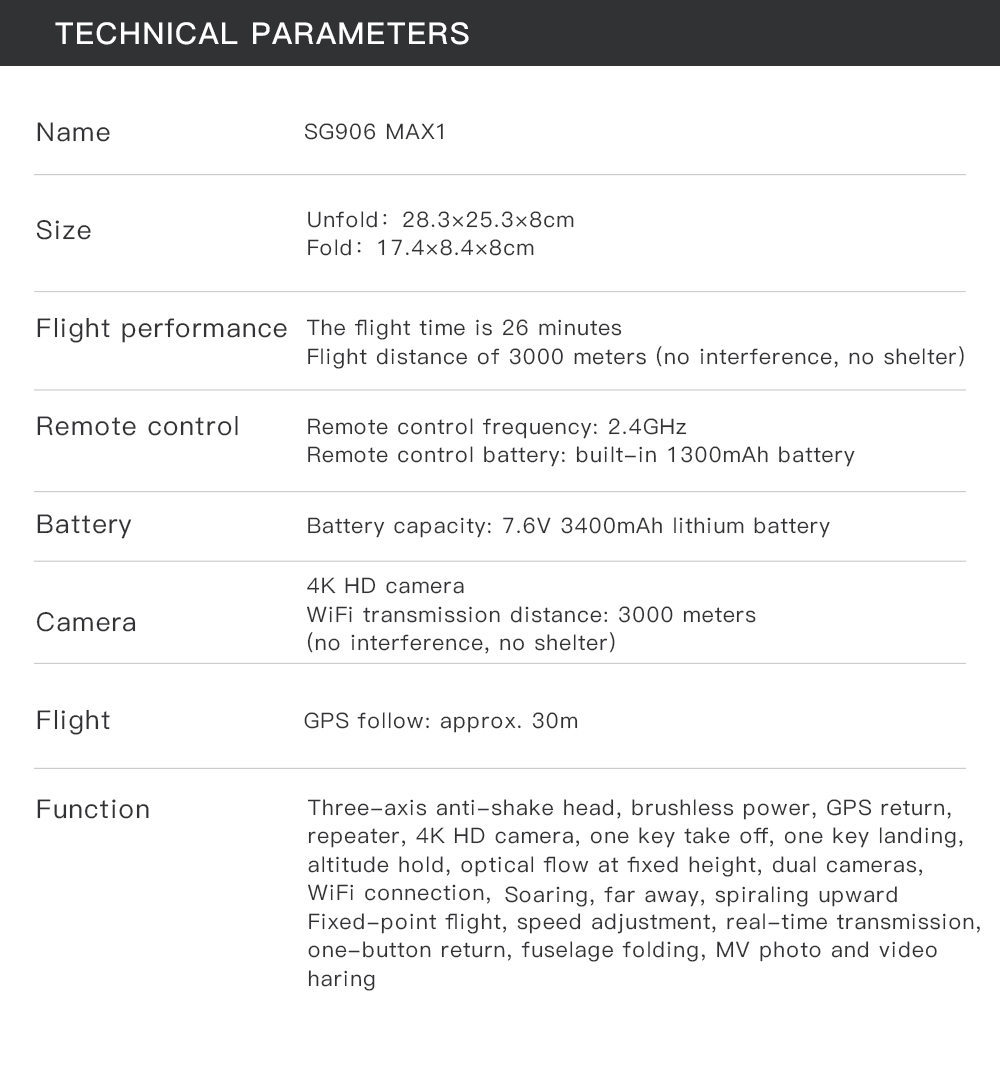

| Item | Specification | |
| SG906 MAX1 | Pressure sensor | Height setting |
| Motor | 1806 brushless motor | |
| Motor power | 1700KV | |
| Wheelbase | 36cm | |
| Electric speed controller | 30A | |

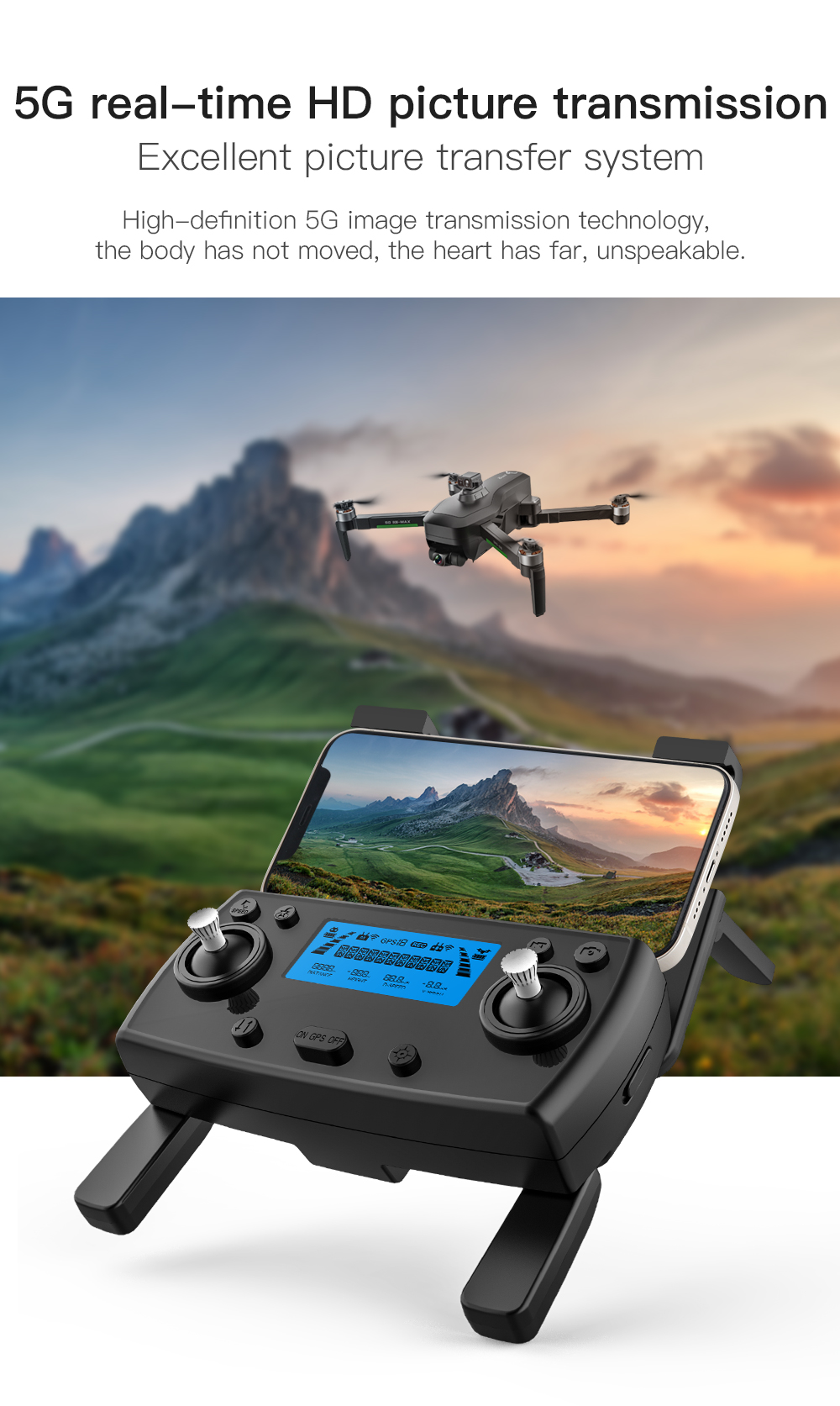

| Image transmission receiving method | 5G WIFI + repeater strong signal | |
| Gimbal | Three-Axis Anti-shake Gimbal | |
| Lens | Self-stabilizing electronic anti-shake Lens | |
| Obstacle avoidance detection range | 360 ° | |
| Obstacle avoidance effective distance | ≤20M | |
| Max remote control phone clip size | 7 inch | |
| Remote control battery | 500mAh Lipo Battery | |

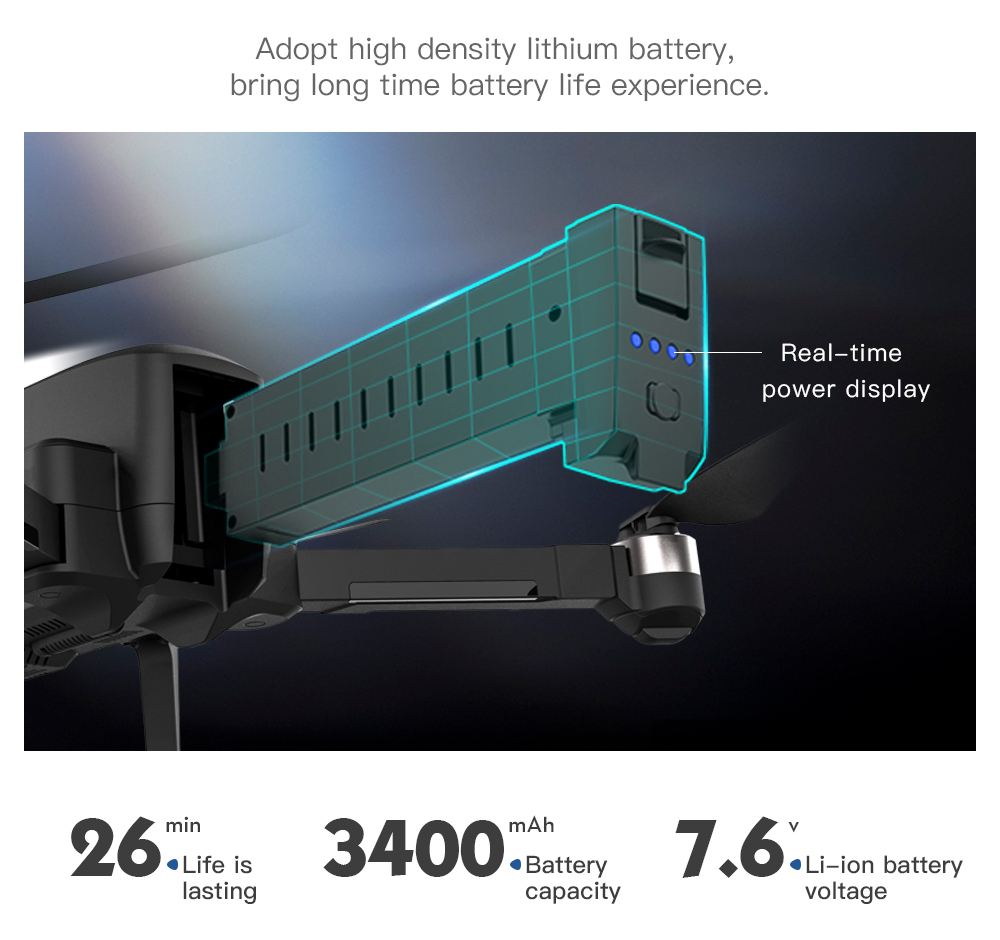

| Smart lithium battery parameter | 7.6V 3400mAh | |
| Control distance (Interference-free & unobstructed environment) | 3000m | |
| Max cruising mileage | 8KM | |
| Max wind resistance level | Level 6 | |
| Max ascending speed | 4m/s | |
| Max descent speed | 3m/s | |
| Max take-off altitude | 4500m | |
| Max flying speed | 45km/h | |
| Flight time | About 23-26 min | |
| Charging time | About 6 hours | |
| USB Charging Voltage | 5V | |

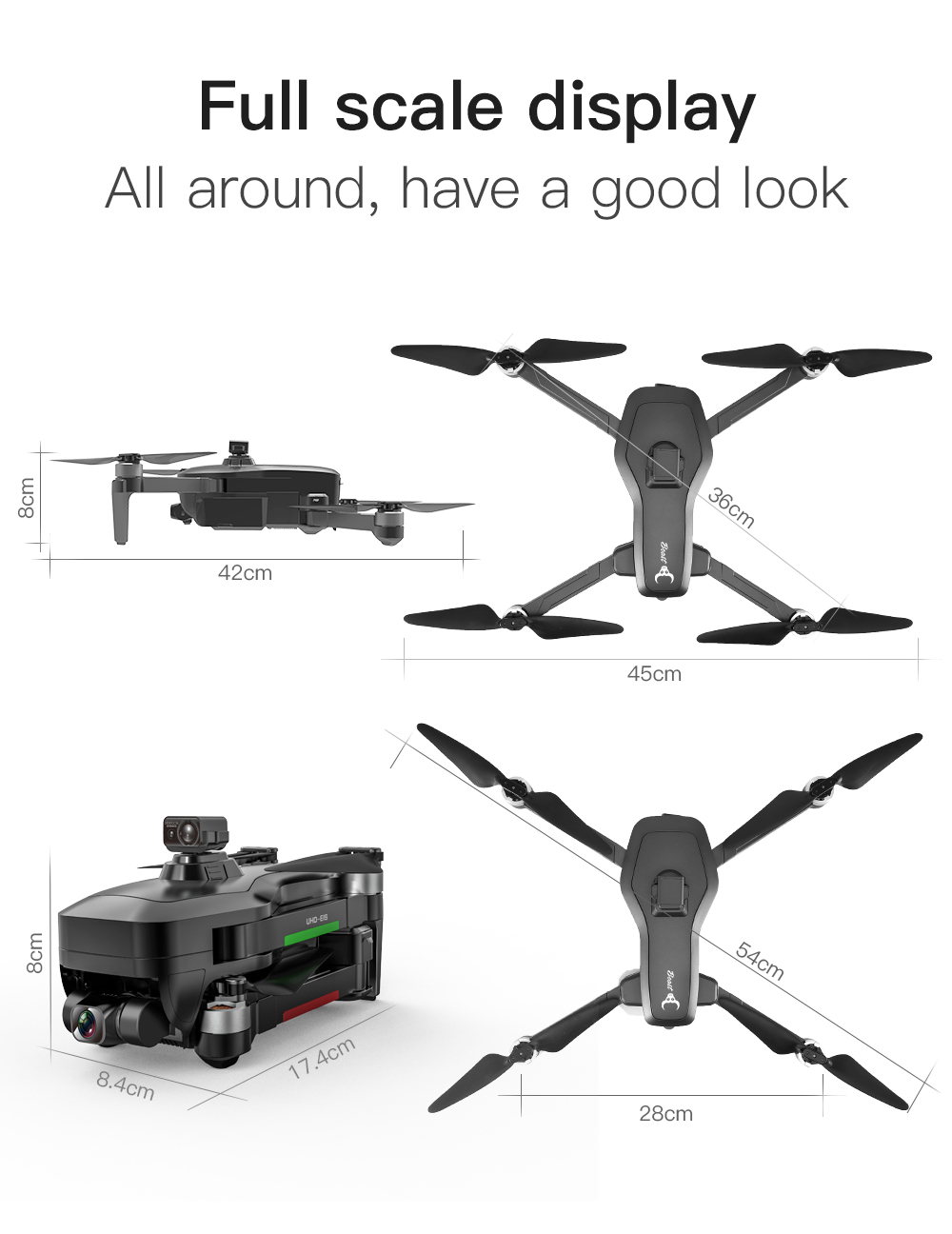

| Product size | 17.4×8.4×7cm(Folded) | |
| 28.3×25.3×7cm(Unfolded) | ||
| Product Weight | 585.6g (Included Obstacle Avoider) | |
| Battery Weight | 152g | |
| Storage Card Support | Max 32G High speed TF card | |
| Camera Gimbal parameters | Image sensor | 1/3.2 Inches |
| Pixel | 4K HD Camera | |
| APP Name | XIL MAX (IOS & Android) | |

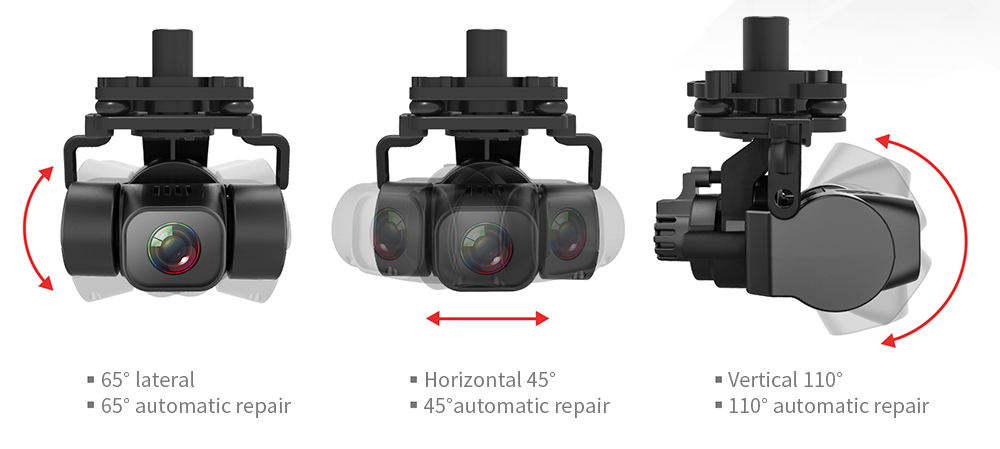

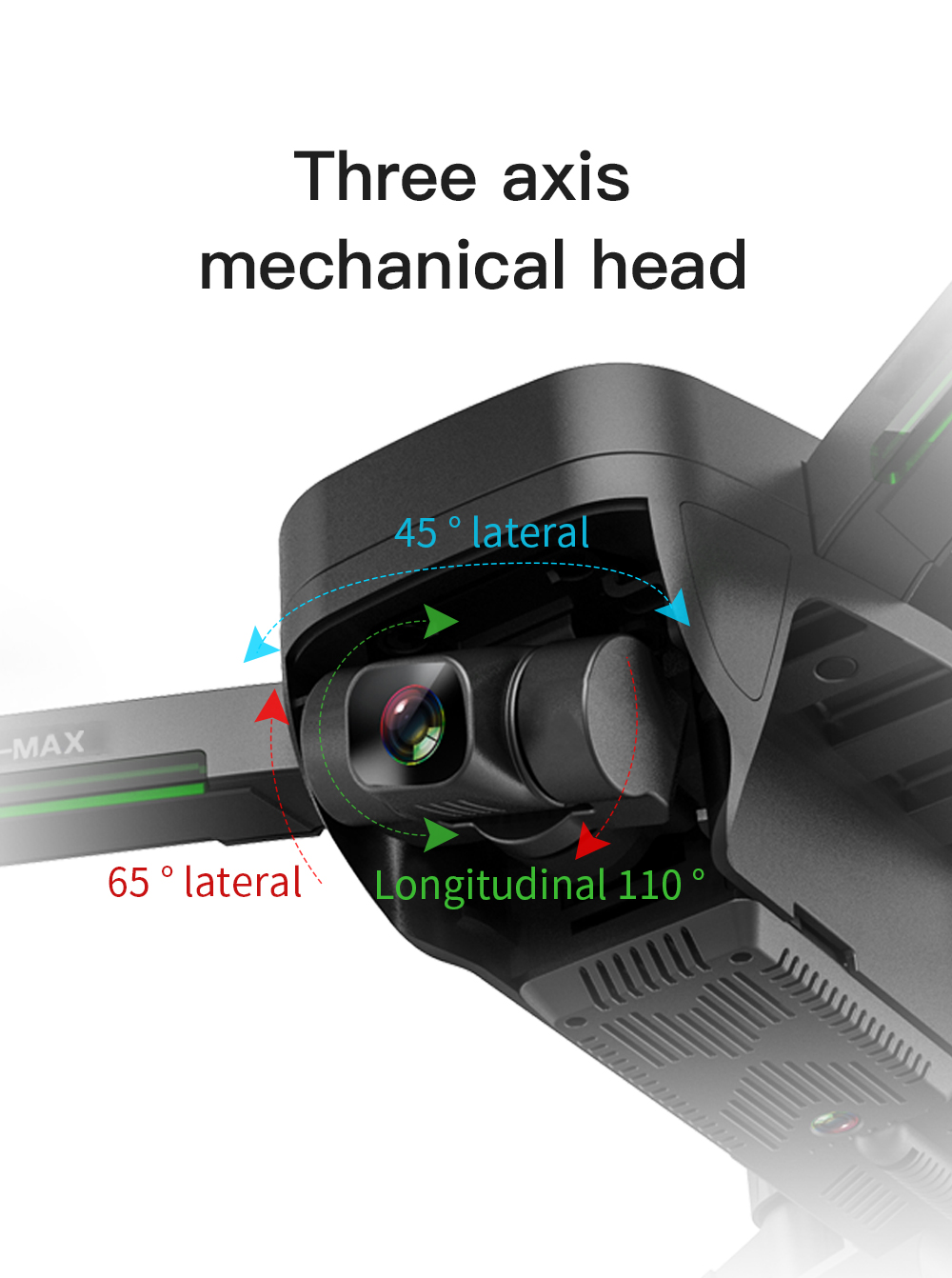

| Gimbal Adjustment Angle Range | Vertical: 110 ° automatic restore | |
| Sideways: 65° automatic restore | ||
| Horizontal: 45° automatic restore | ||
| Camera control | Adjustable camera via transmitter, 110° | |
| Wifi image transmission distance | About 3000m | |
| GPS Follow me distance | 30m | |
| Image Follow me distance | 1-5m | |
| Focal length | 50X | |
| Gesture shooting/video recognition distance | 1-5M | |
| Front camera Video resolution | 2048*1080 (TF Card) | |
| 1208*720 (APP) | ||
| Front camera Photo resolution | 4096*3072P (TF Card) | |
| 4096*3072P (APP) | ||
| Down-looking camera Video resolution | 1280*720p | |
| Down-looking camera Photo resolution | 1280*720p | |
| Frame rate | 25 fps | |
| Obstacle Avoider | Detection range | 0.05-20 meters |
| Measurement accuracy | 2% | |
| Detection frequency | 100HZ | |
| Resolution | 1cm | |
| Operating Voltage | 3.5-5.5VDC | |
| Power Consumption | 60uA@5V | |
| Communication Interface | I2C | |
| Communication Baud Rate | Up to 400k | |
| Communication Level | 3.3VDC TTL | |
Parameter comparison:
| Item | SG906 MAX1 | SG906 MAX |
| Image transmission receiving method | 5G WiFi+ repeater strong signal | 5G WiFi |
| Flight Time | 26mins | 26mins |
| Camera Gimbal | 3-Axis mechanical self-stabilizing | 3-Axis Anti-shake Gimbal |
| Obstacle Avoidance Function | 360° | 120 ° |
| Battery | 7.6V 3400mAh | 7.6V 3400mAh |
| Image Transmission Distance | 3000m | 800m |
| Remote Control Distance | 3000m | 1200m |
Features:
- Built-in repeater in the remote control

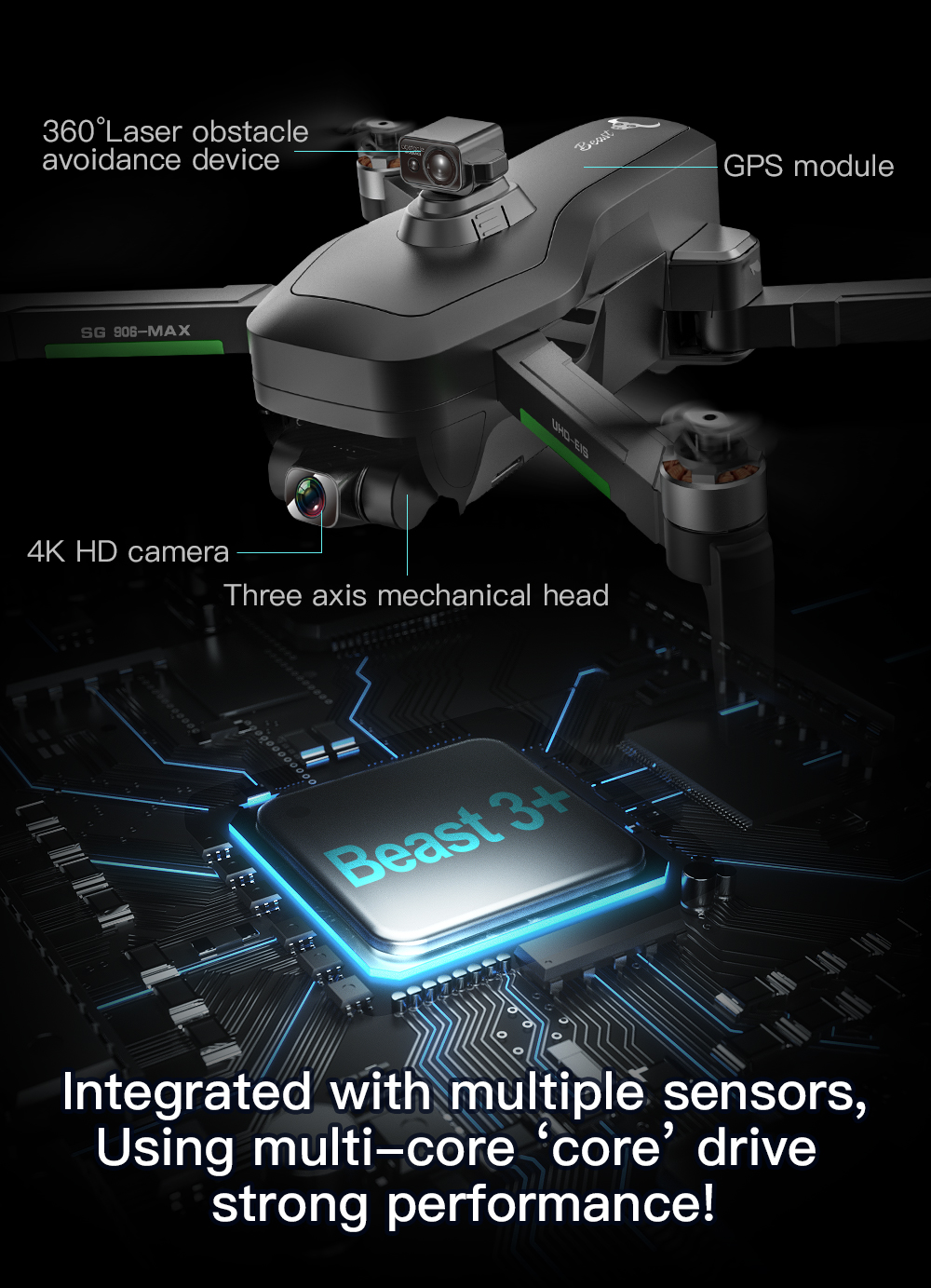

- 360° obstacle avoidance function
- GPS/GLONASS dual mode positioning
- 4K HD adjustable camera

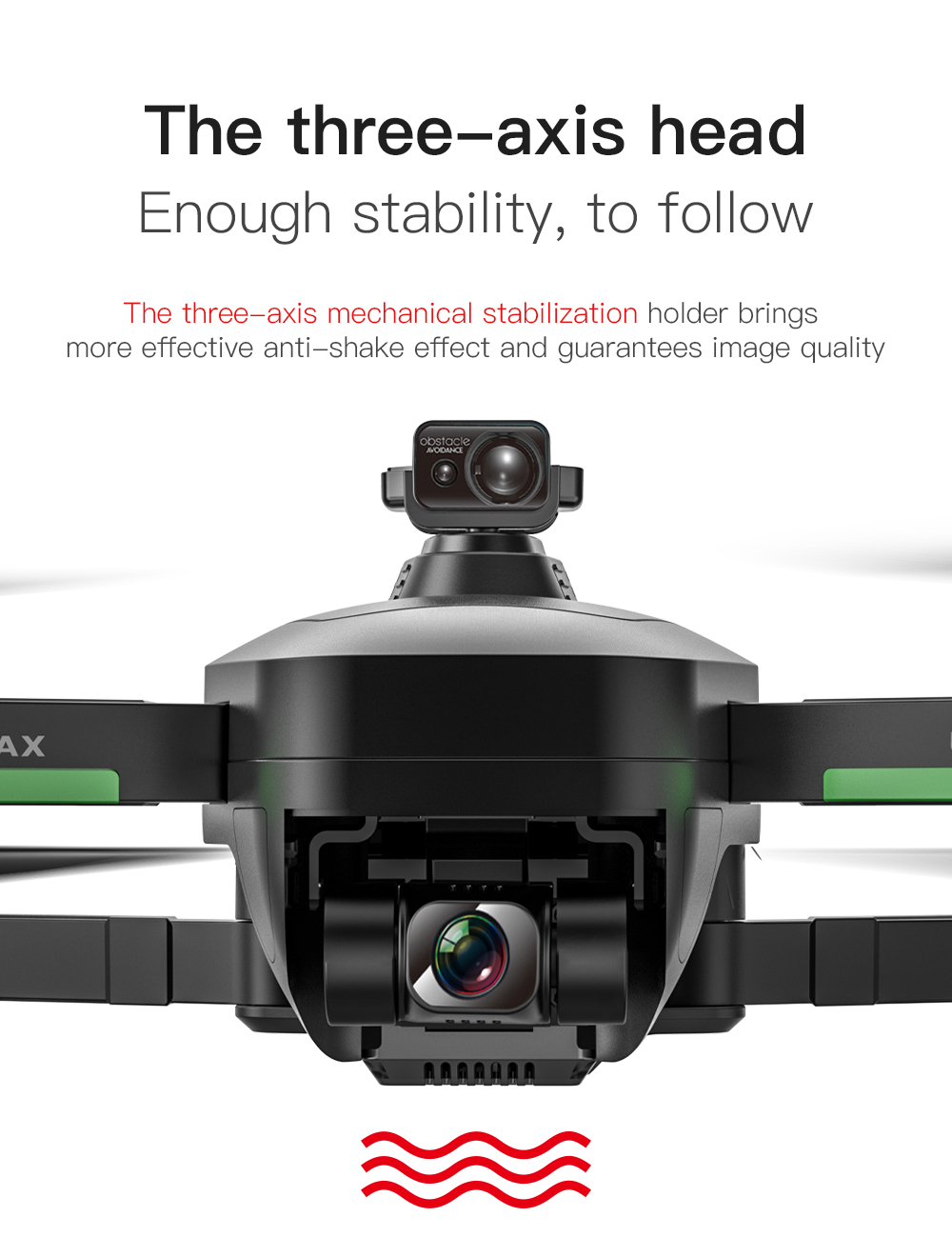

- Mechanical three axis anti-shake gimbal
- Optical flow positioning mode
- Real-time image transmission
- Intelligent follow
- Surround flight
- Waypoint flight
- Trajectory pointing flight

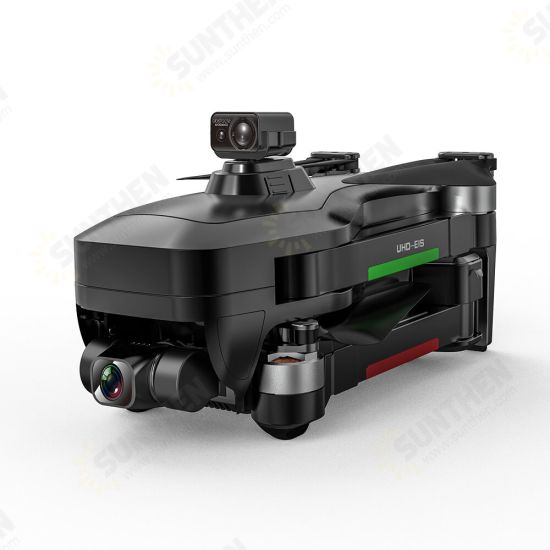

- Folding portable fuselage
- One key course reversal
- Creative video
- Brushless motor
- 50X Focal length
- Aircraft retrieval function
- MV functions: filters, video effects, add background music, picture / video sharing

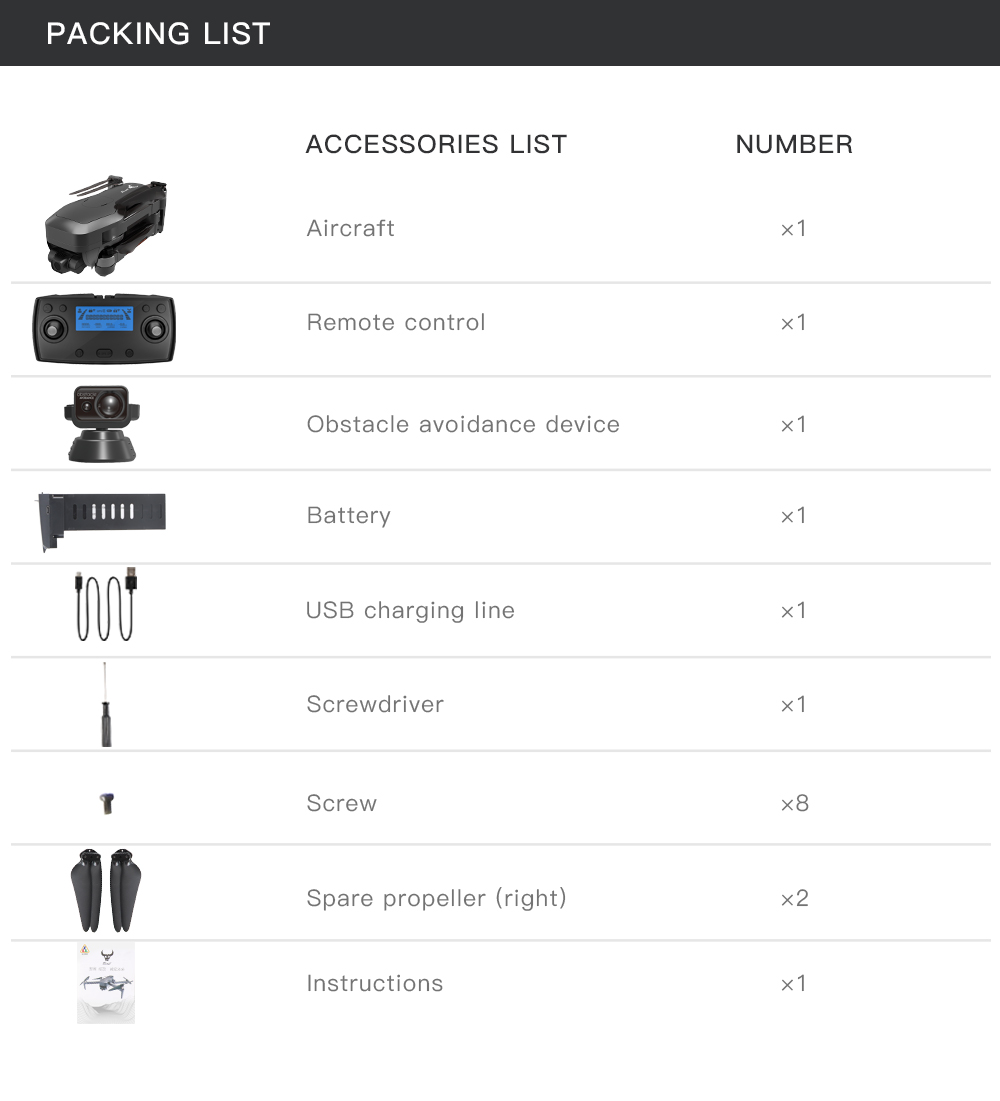

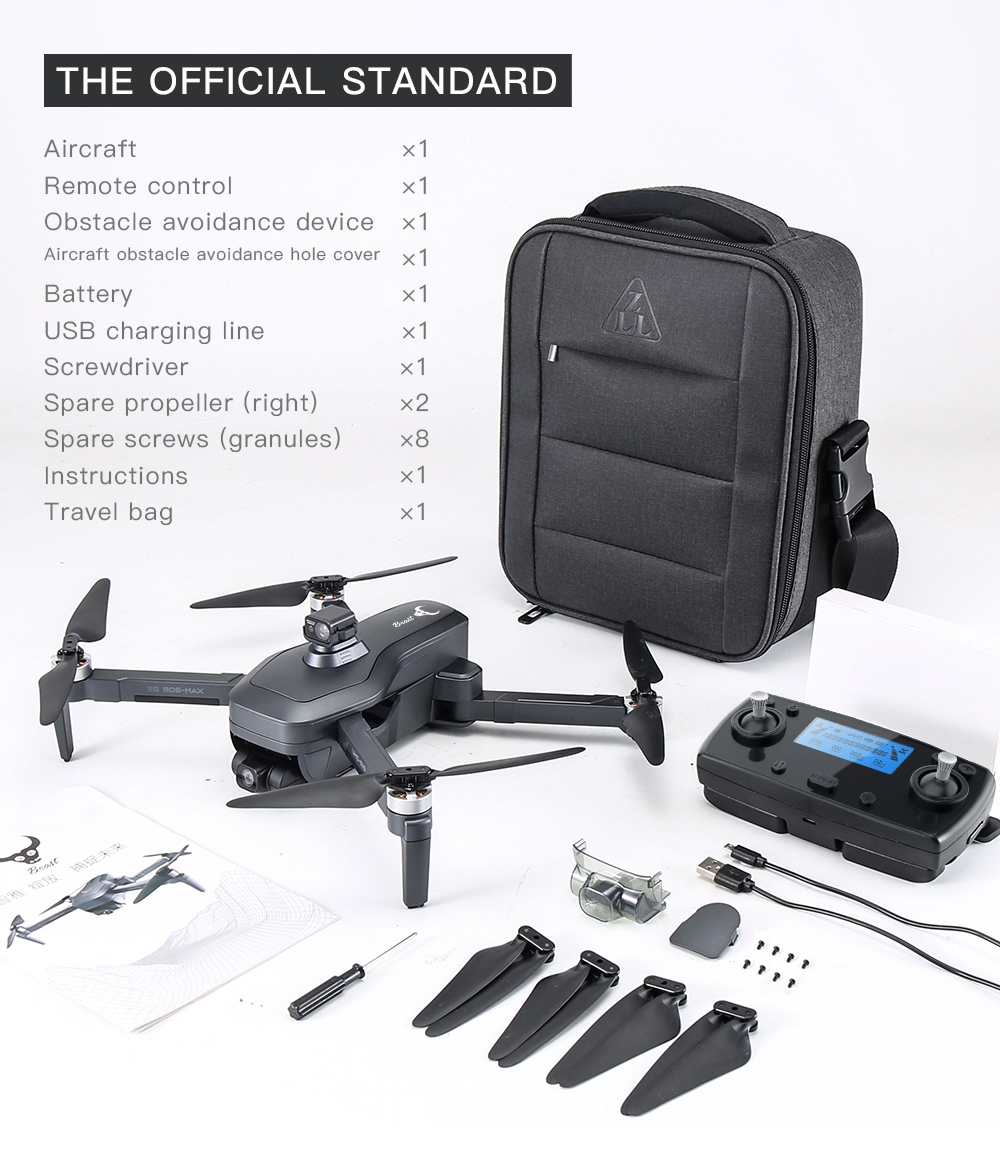

Package Included:
1 x SG906 MAX1 RC Quadcopter

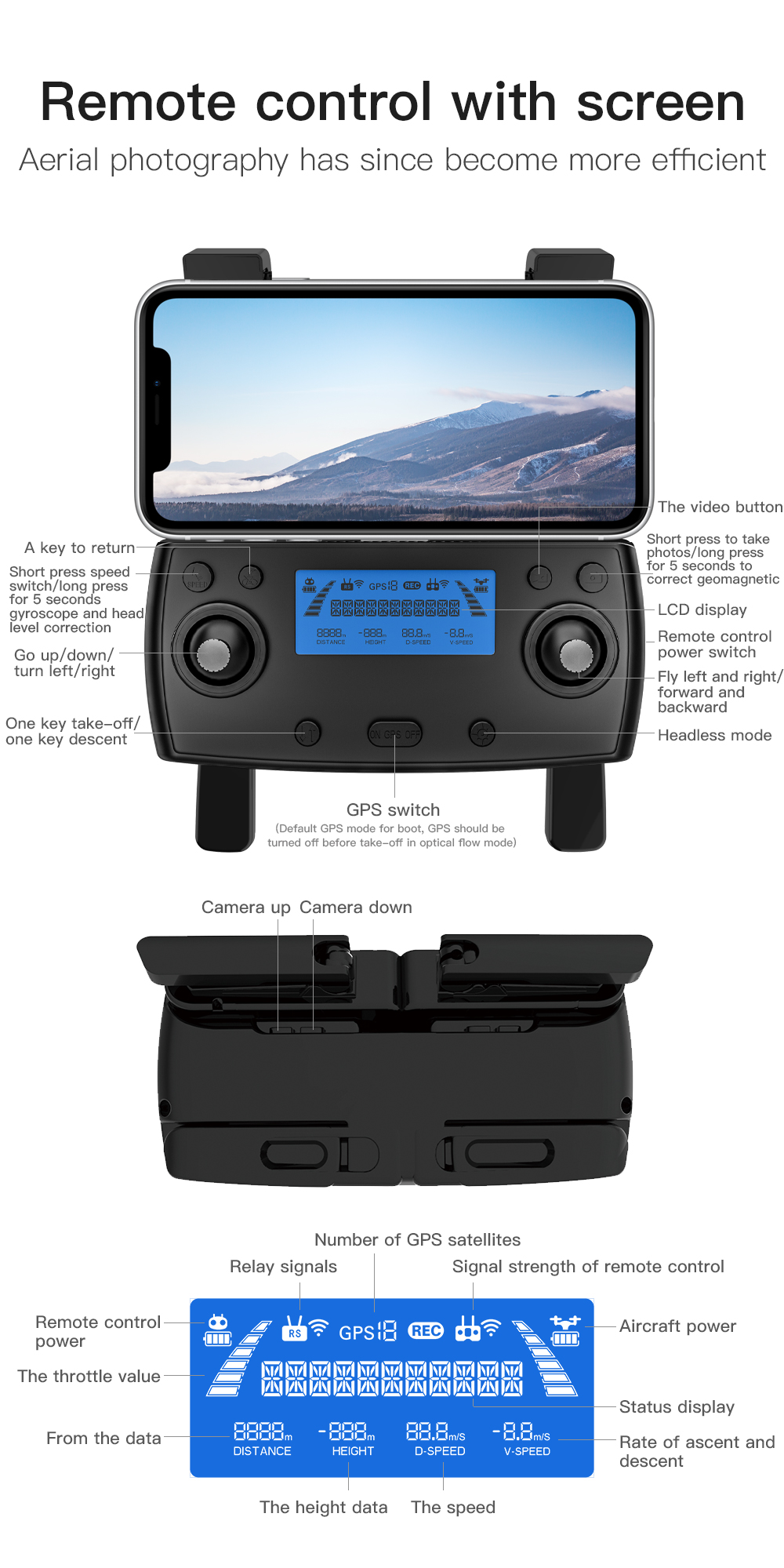

1 x Remote Controller
1 x 7.6V 3400mAh Lipo Battery
4 x Spare Propellers
1 x USB Charging Cable
1 x Screwdriver
2 x Remote Control Stick
8 x Spare Screw
1 x Obstacle Avoider(Optional)
1 x Obstacle Avoidance Hole Upper Cover
1 x User Manual
1 x Carrying Case
