Touch Automatic Leveling Sensor Hotbed Precision Printing Sensor For 3D Printers
- Stock: In Stock
- Model: ST230049277
- SKU: ST230049277
$11.51
Ex Tax: $11.51
Description:
The Touch automatic leveling sensor is a device that uses the Hall effect to achieve leveling. The position of the point can be obtained by touching the point on the hot bed, and then during printing, the z-axis height can be adjusted to compensate, and printing can be achieved even when the platform is not flat.
Features:
Intelligent leveling, intelligent compensation of Z-axis height, making printing easier
Accurate measurement, small error, extremely high leveling accuracy
Injection molding probe, light and flexible
Patch positioning sensor, higher consistency
Brand new translucent white PC case, more beautiful
Specifications:
Voltage: 5V
Current: 15mA
Max Current(Peak): 300mA
Shell Material: PC
Current: 15mA
Max Current(Peak): 300mA
Shell Material: PC
Shell Color: white translucent
Cable Length: short 200mm long 1000mm
Cable Length: short 200mm long 1000mm
Wiring:
3Pin:
Green: -, GND
Red: +5V
Orange: Signal Cable
2Pin:
Black: -, GND
White: Zmin
3Pin:
Green: -, GND
Red: +5V
Orange: Signal Cable
2Pin:
Black: -, GND
White: Zmin

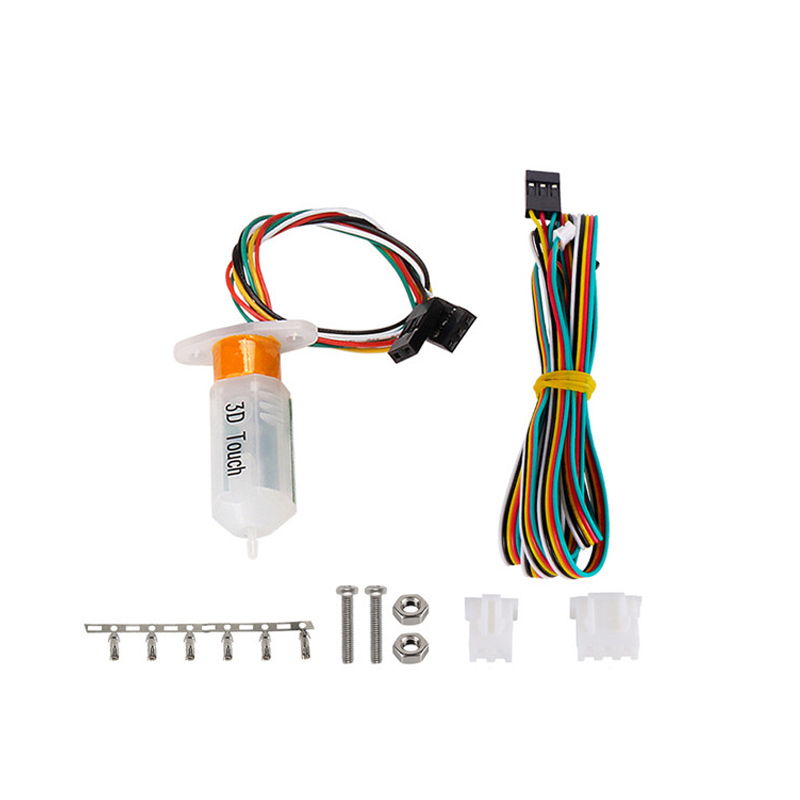

Package Included:
1* Leveling Sensor
1* 200mm Cable
1* 1000mm Cable
2* M3 nuts and screws
2* XH2.54mm Terminals
1* Coiling Terminal

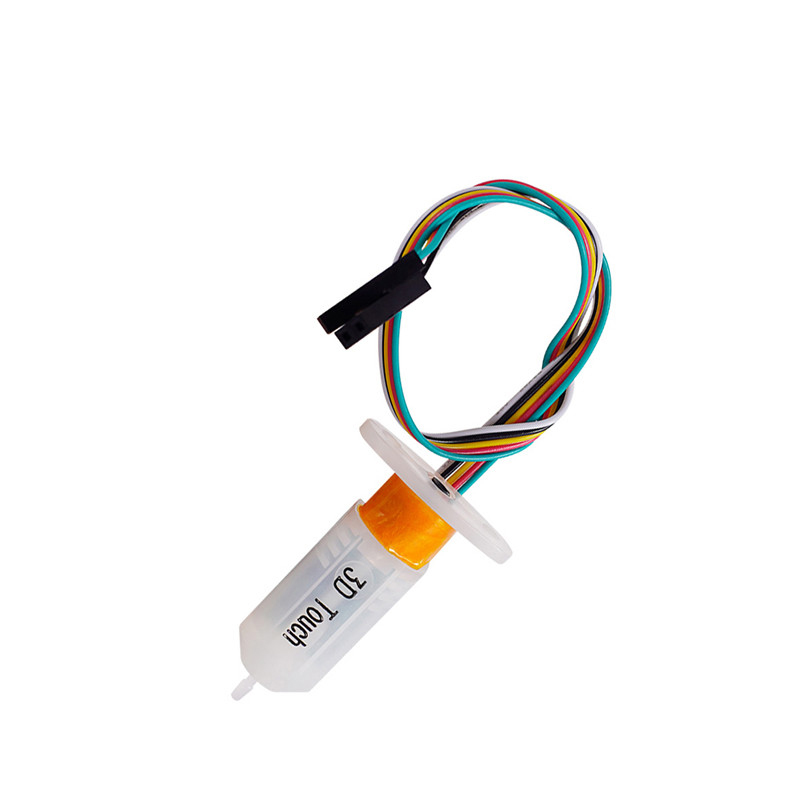

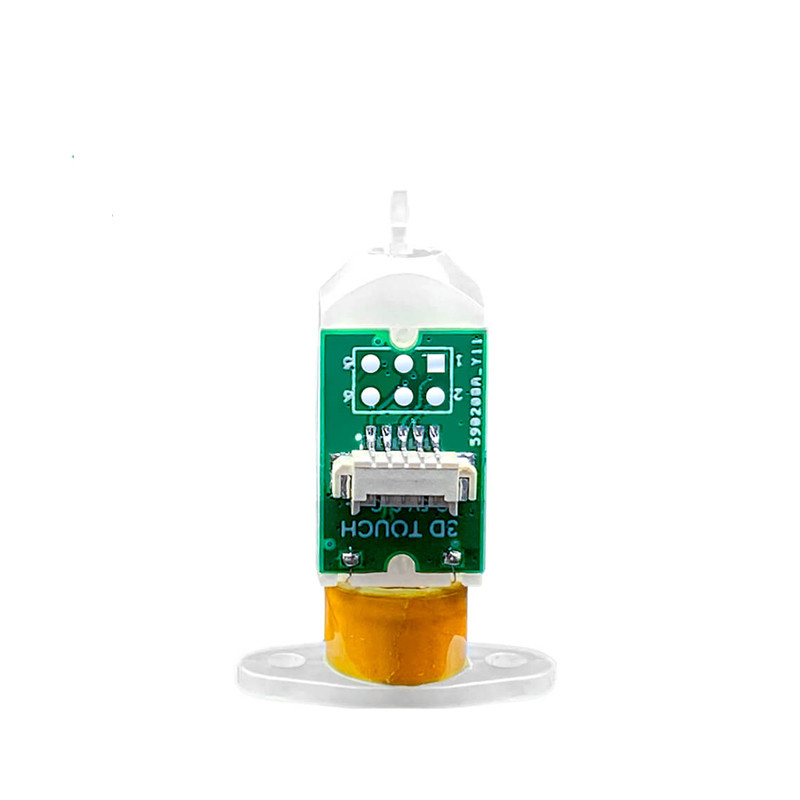

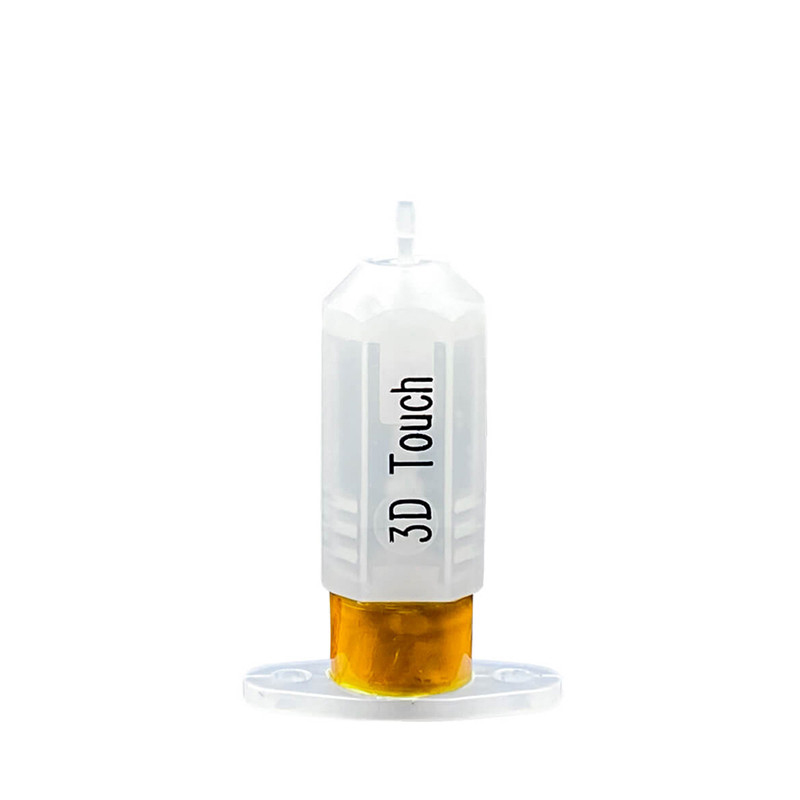

Details Picture:
