- Stock: In Stock
- Model: ST220012357
- SKU: ST220012357
Features:

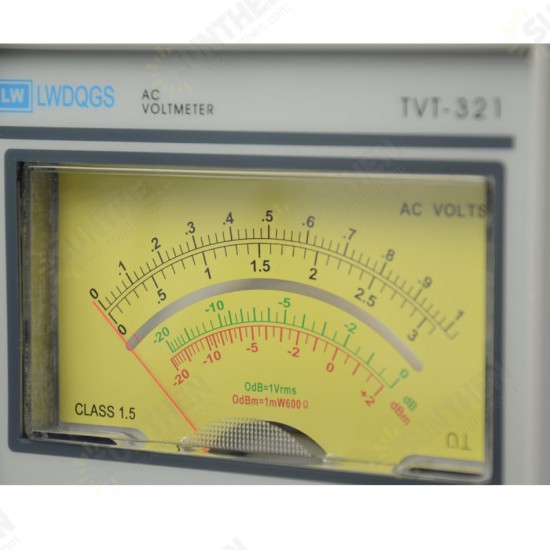

- Single needle, solely and tracing measurement.
- Frequency: 5Hz--1MHz.
- AC Voltage: 300uV--100V, Max. (DC+AC300V).
- dB measurement:-70dB--+40dB.

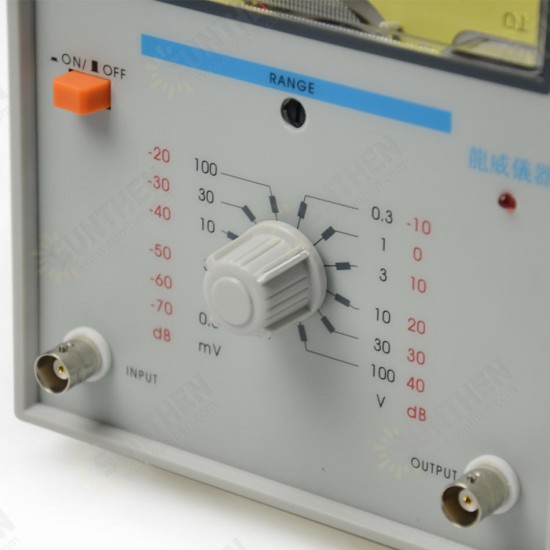

- 3600 revolving switch
- 10MΩ input impedance.
- Measuring with voltage adjustment
Specifications:
Measuring range | Voltage:300µV-100V in 12 steps dB:-70dB to +40dB dBm:-80 to +52dBm (0dB=1Vrms, 0dBm=0.755V) |
Measuring mode | Measuring with voltage adjustment |
Error | Within 3% at 1KHz, full scale |
Frequency response | 5Hz~1MHz:±10% 10Hz~500KHz::±5% 20Hz~200KHz::±3% 30Hz~100KHz::±2% Readout at 1KHz as a reference |
Input impedance | 10MOmega:±5%, 45pF |
Max input voltage | 500V(DC+AC peak) (within in 3V-100V) 300V(DC+AC peak)( within 300µV-1V) |
Stability | ±5% of full scale, at 10% variety of line voltage |
Survival voltage | Less than 200µV at 1mV range and short-circuit of input |
Cross-talk |
Independent 80dB connecting 600Omega Consistent:50dB connecting 600Omega load |
Gain | 60dB |
Output voltage | 0.1Vms±20% ai full scale without load |
Output resistance | 600Omega±20% at 1KHz |
Distortion | Less than 1% at full scale |
Signal to noise ratio | More than 30dB at 0.3mV range |
Frequency response | 5Hz~500KHz: within ±3% |
ambient | 10C~40C 85% RH |

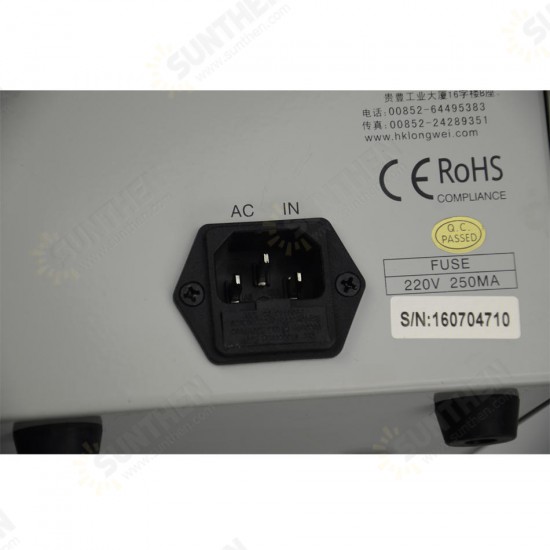

Power supply | 220V/110V±10% 50Hz/60Hz |
Dimension | 239*140*200mm |
weight | About 2.5Kg |
Package Includes:

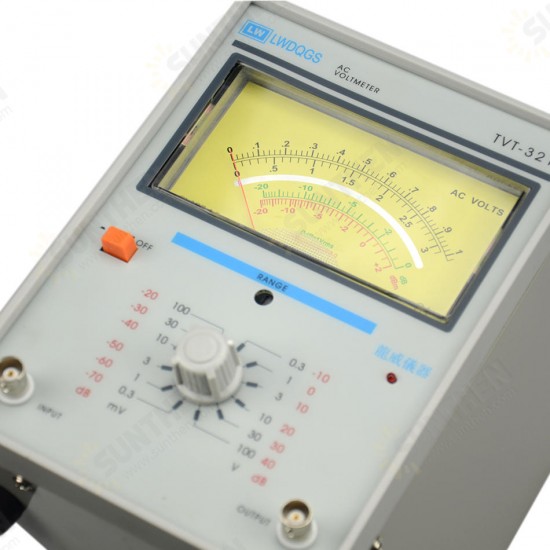

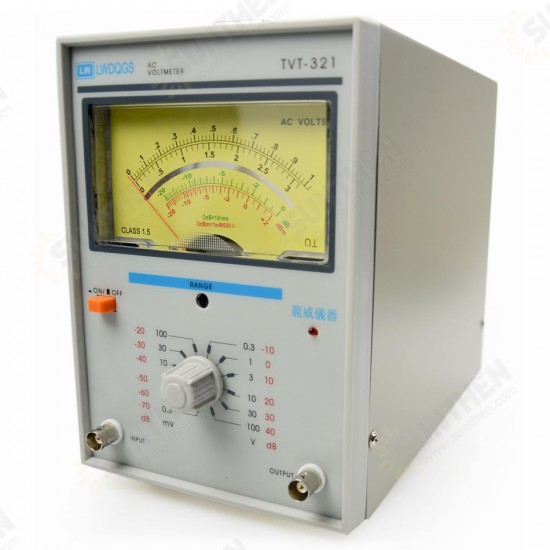

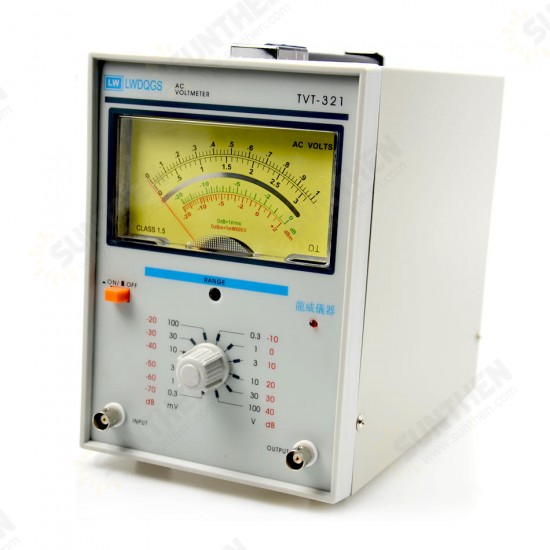

1 x TVT-321 Voltmeter
1 x Power Line
Details Pictures:
