- Stock: In Stock
- Model: ST22011036
- SKU: ST22011036
NOTE: Before installing any firmware, you must read the manual first, and operate according to the steps of the manual
>>Product manual and firmware upgrade download address<<
Descriptions:
It is an ultra-portable full-frequency full-mode SDR radio. Receive frequency coverage 300K~1.6GHZ. The built-in network port can realize remote operation and remote firmware upgrade. The HAM-BOX mobile app we developed allows the mobile phone to easily control and play radio stations(the app is still under development).
HS2 adopts a full keyboard design, built-in Bluetooth module, sound card module and serial communication port module. Full support for currently popular radio control software and logging software. We are working hard to give you more playable space.
Features:
1. Real-time spectrum.
2. Waterfall chart.
3. Doppler frequency tracking(under development).
4. Using software-defined radio technology (SDR), full-band support SSB, CW, RTTY, AM, FM.
5. Double frequency conversion circuit structure.
6. IF width and IF shift hardware and software can be modified to provide powerful IF interference suppression.
7. DSP digital noise reduction.
8. Built-in 160-6m high-speed automatic antenna tuner.
9. Built-in electronic key controller, all parameters can be set flexibly.
10. Built-in sound card with IQ and audio output.
11. Built-in FLASH memory(under development).
12. USB TYPEC3.1 interface for power supply and computer connection.
13. High accuracy TXCO ± 0.5ppm (-10-60 ℃).
14. Ultra-wide working voltage range: 5-32VDC.
15.Power Reversed Polarity Connection Protection
16. Built-in GPS / Beidou, GSM, electronic compass (acceleration, angle sensor) (requires electronic compass module)
17. GPS time (requires GPS module).
18. Built-in UTC clock.
19. Voltage display.
20. Unique LORA data transmission (requires LORA module).
21. Ultra-light weight: ≤1KG
22. Built-in network port, support remote firmware upgrade(under development).
Standard Configuration
FM module
Bluetooth module
Wired microphone
Built-in sound card
Transmitter Parameters:
Transmitter Architecture | SDR |
Transmission Mode | SSB, CW, RTTY, AM, FM |
Frequency Resolution | 1Hz |
Transmit Frequency Range | 1.800-2.000, 3.500-3.900, 5.351.5-5.366.5, 7.000-7.200, 10.100-10.150, 14.000-14.350, 18.068-18.168, 21-21.450, 24.890- 24.990, 28-29.7, 50-54, 144-146, 430-440MHz |
Output Power | HF+6m: SSB(1~20W), CW(0.1~20W), FM(0.1~20W), AM(1~5W), VHF: SSB/CW/FM(0.5~5W) UHF:SSB/CW/FM(0.5~5W) |
Power Consumption | TX:13.8V~5A RX:13.8V~0.2A(Normal),0.3A(Max brightness&Highest audio) |
Carrier Suppression | <50db |
Spurious Suppression | 1.8—54MHZ: ≥50db 144—146MHZ: ≥60db 430—440MHZ: ≥60db |
Memory Channel | 999 |
Receiver Parameters:
Receiver Architecture | SDR |
Receiver Mode | SSB, CW, RTTY, AM, FM |
Receive Frequency Range | 300KHz-1.6GHz*2 |
IF Bandwidth | 20KHz |
IF | 12KHz |
Sensitivity | SSB/CW:（BW: 2.4kHz @ 10dB S/N） 0.18uV（1.8—54MHZ）, 0.25uV（144—146MHZ）, 0.25uV（430—440MHZ） AM:（ BW: 6kHz @ 10dB S/N） 15uV（0.3—1.8MHZ）, 2uV（1.8—54MHZ）, 2uV（144—146MHZ）, 2uV（430—440MHZ） FM:（BW: 15kHz @ 12dB S/N） 0.5uV（28.0—29.7MHZ）, 0.25uV（50—54MHZ）, 0.3uV（144—500MHZ）, 0.5uV（430—440MHZ） |
If Suppression | ≥70db |
Image Suppression | ≥80db |
Audio Output Power | 2W (10% distortion rate, 8Ω load, 3KHZ) |
Antenna tuner parameters:
Tuning frequency range | 1.8-54MHZ |
Tuning impedance range | 16.7Ω--150Ω unbalanced (SWR is better than 1: 3) |
Tuning accuracy | VSWR: 1: 1.5 or less |
Tuning time | 2-5S (full segment 10S) |
Tuning method | Automatic / Manual |
Antenna tuner parameters:
Tuning frequency range | 1.8-54MHZ |
Tuning impedance range | 16.7Ω--150Ω unbalanced (SWR is better than 1: 3) |
Tuning accuracy | VSWR: 1: 1.5 or less |
Tuning time | 2-5S (full segment 10S) |
Tuning method | Automatic / Manual |
Spectrum parameters:
Spectrum bandwidth | 48K |
RF Spectrum | FFT |
Structural parameters:
Size | 170X120X45mm (excluding protrusions) |
Weight | ＜1KG |
Working voltage parameters:
Voltage range | 5—32V receiving range, 5-12V transmit power limit, 12-18V full power output, 18-32V transmit power limit. |
Antenna interface:
Antenna interface | TNC / BNT / M / N (optional) |
Working environment parameters:
Working temperature | -10 ℃ to 60 ℃ |
Working humidity | 10% -- 90% |
Note *1: Frequency range is different according to different countries or areas, the actual frequency by local legal provisions.
Package Includes:
1 x SDR

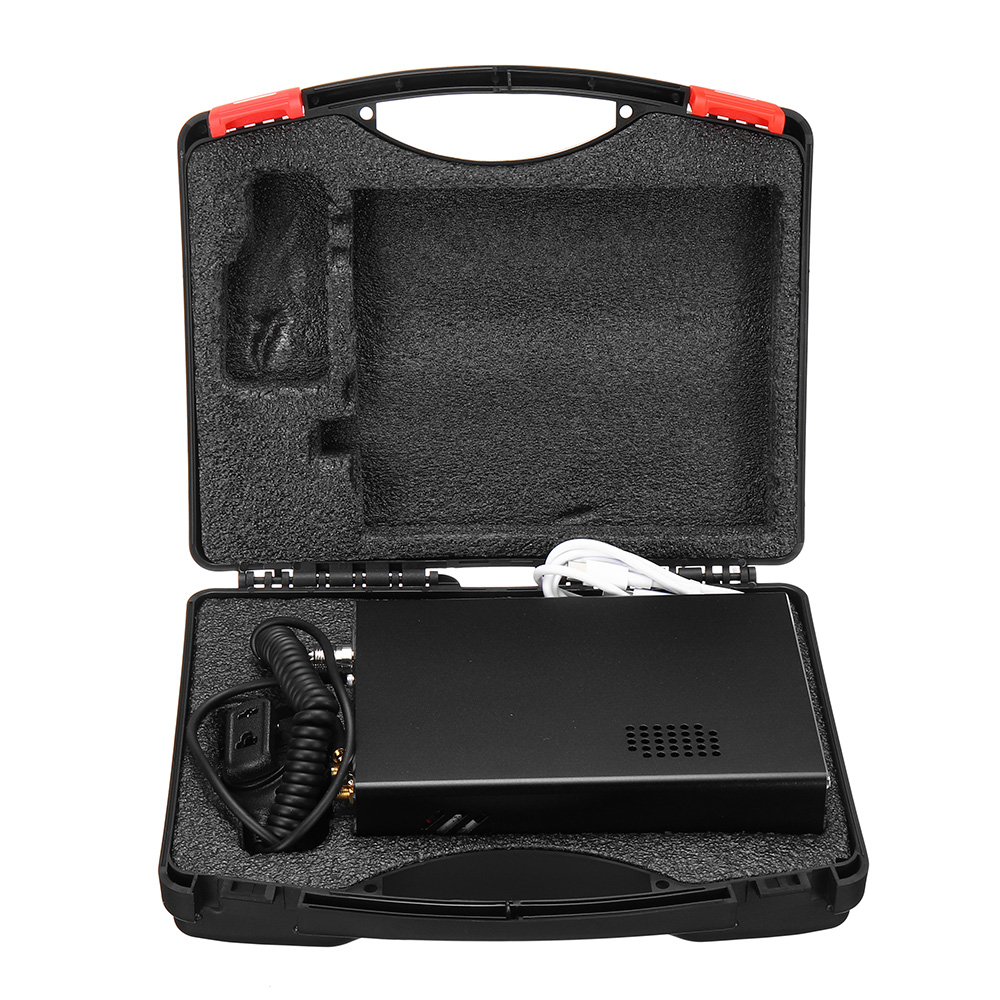

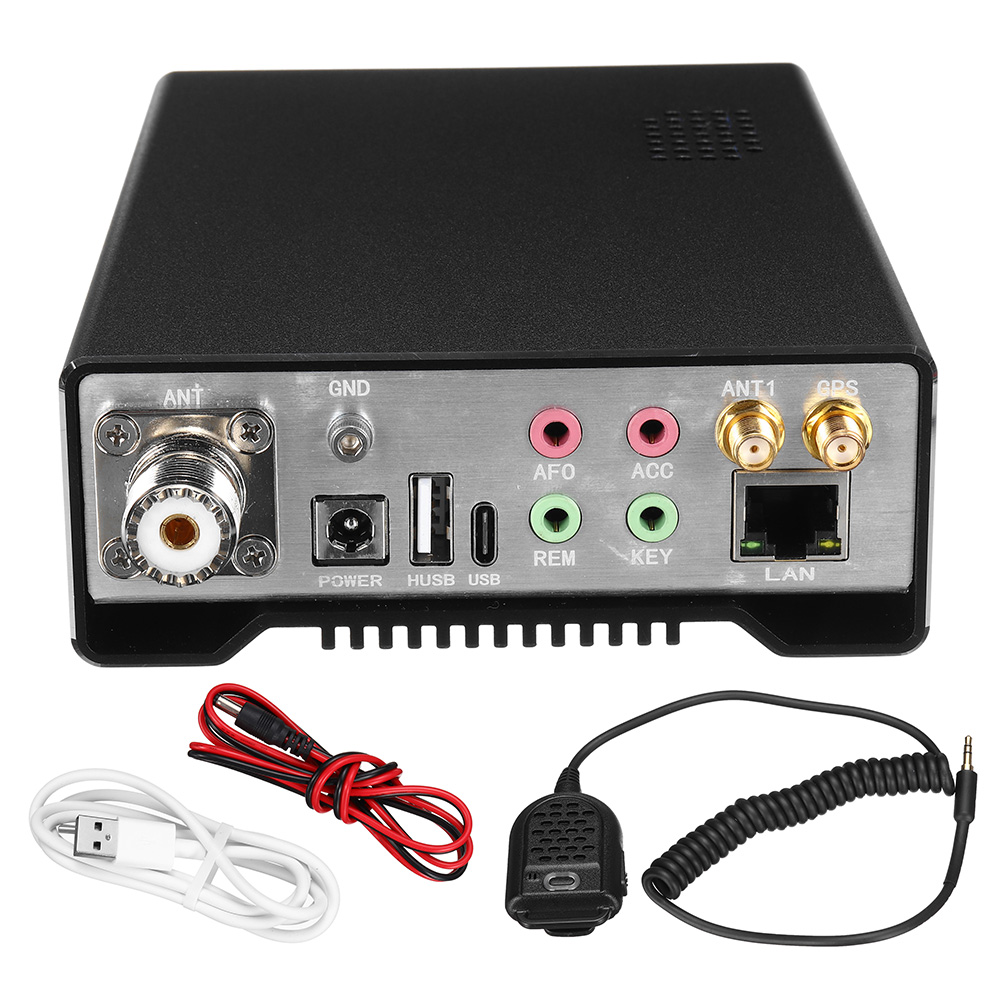

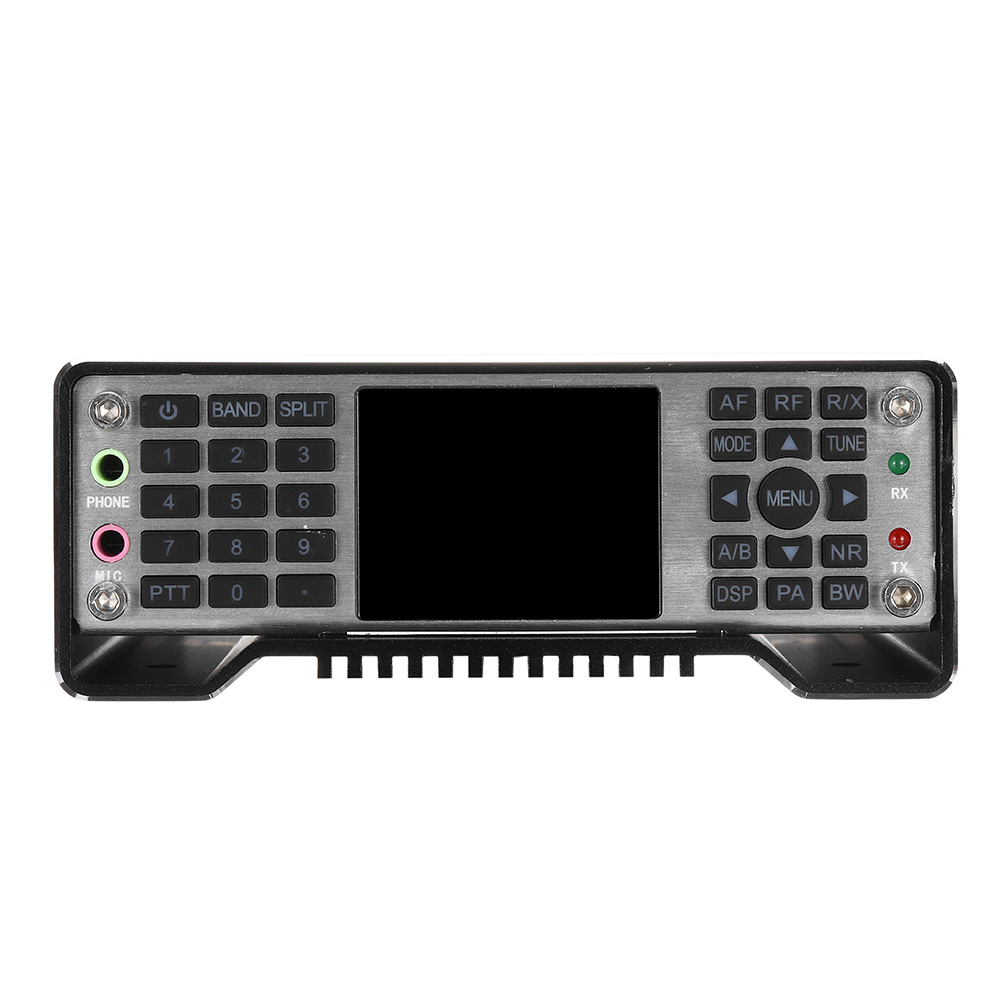

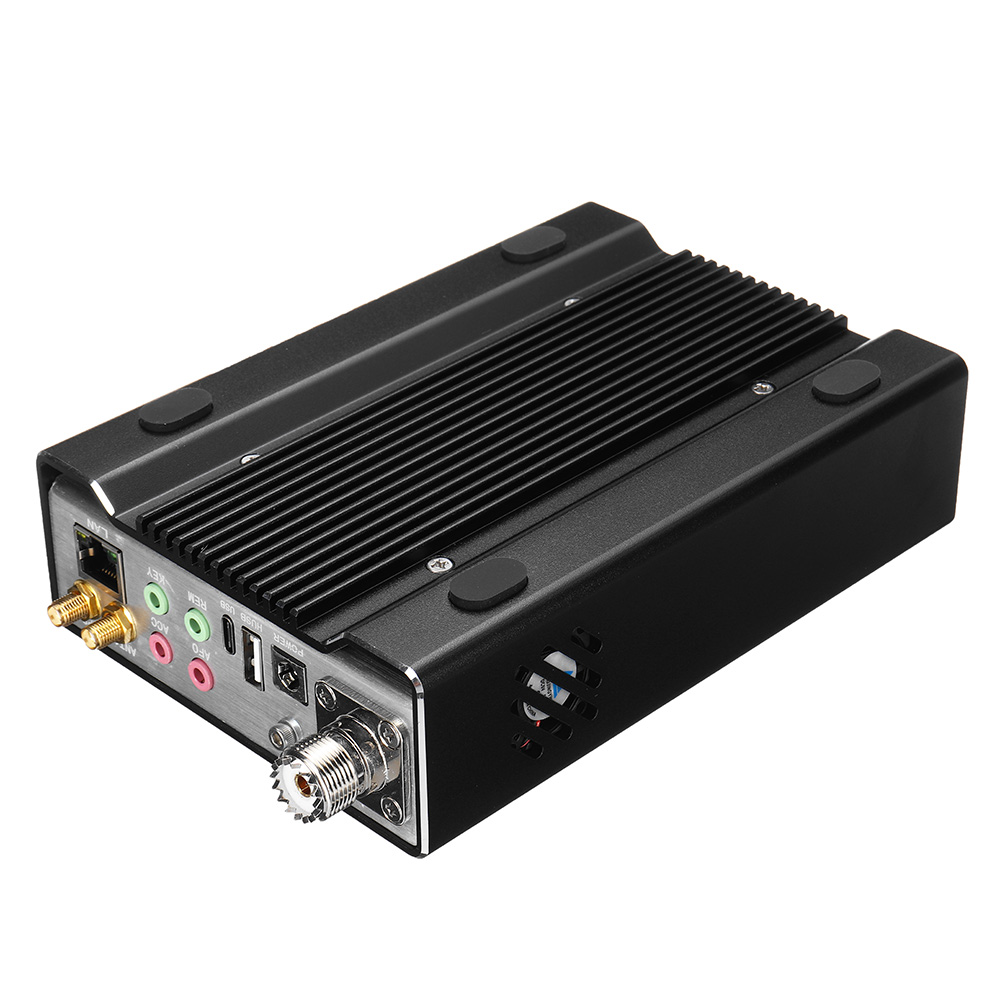

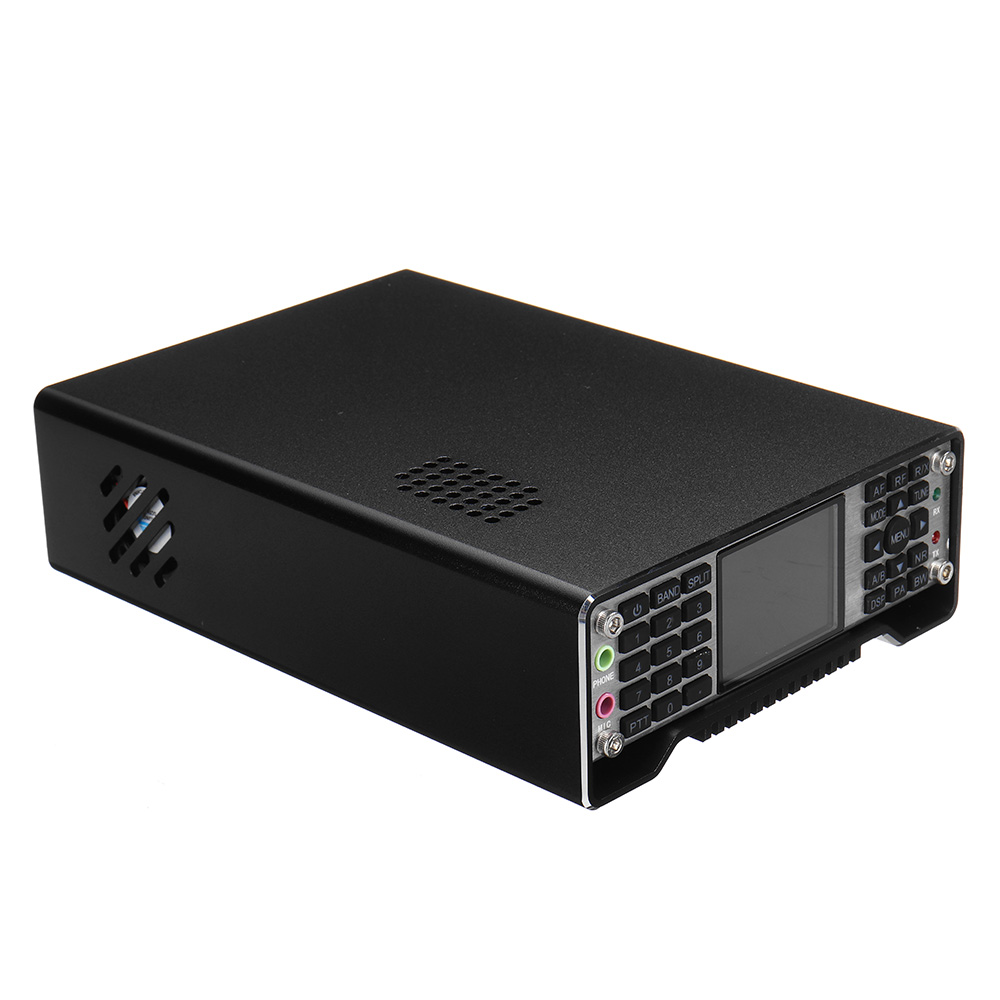

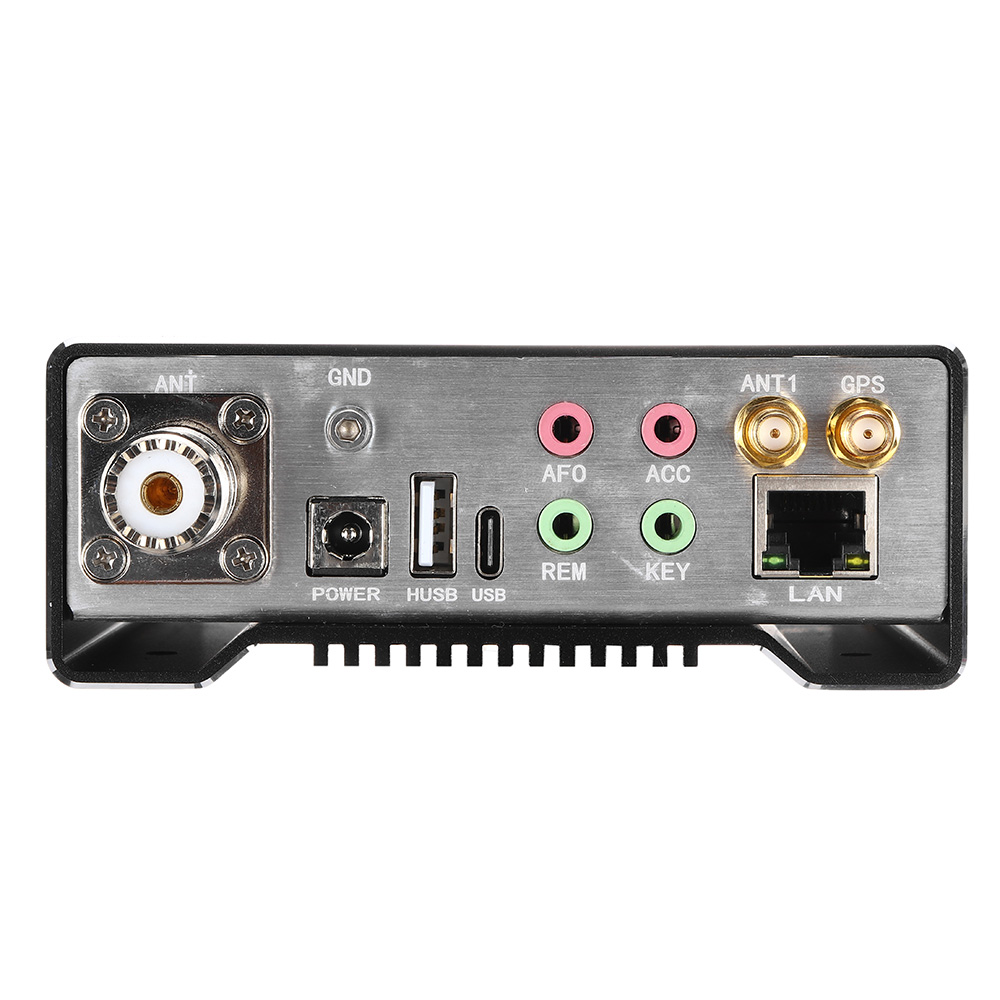

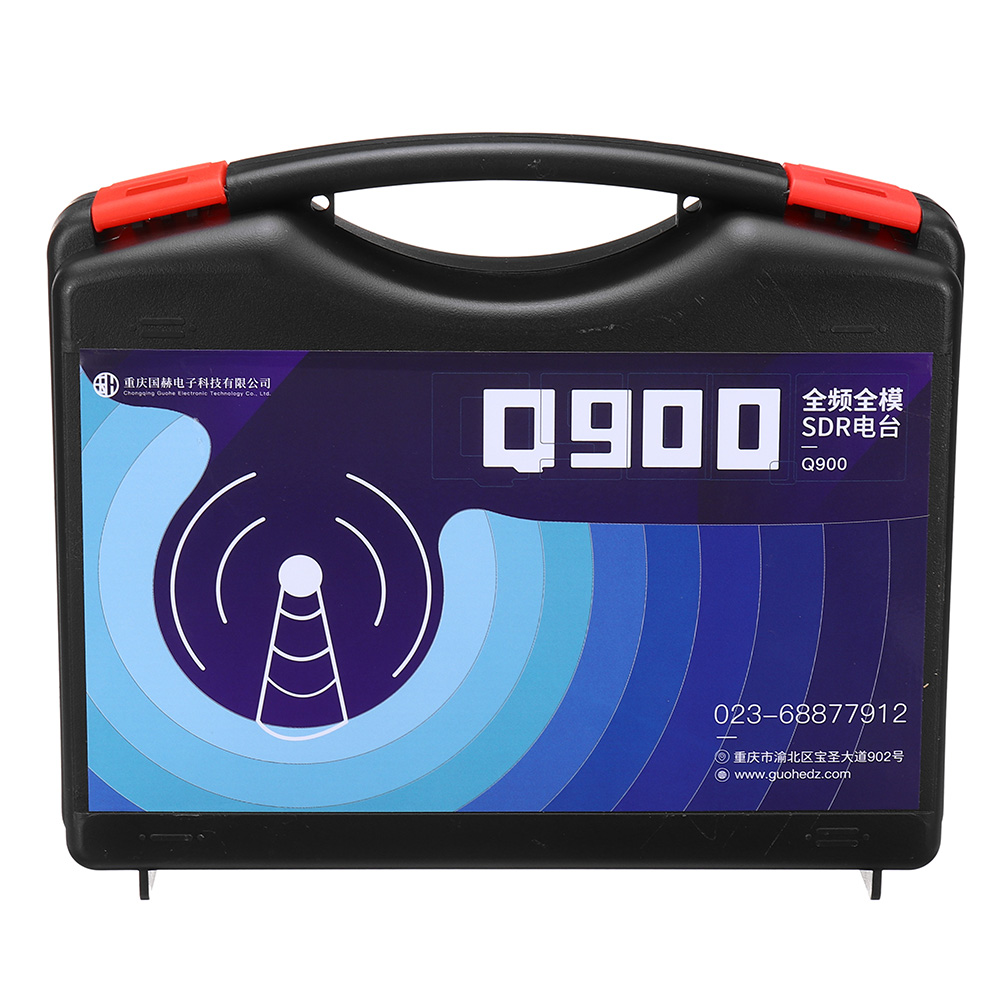

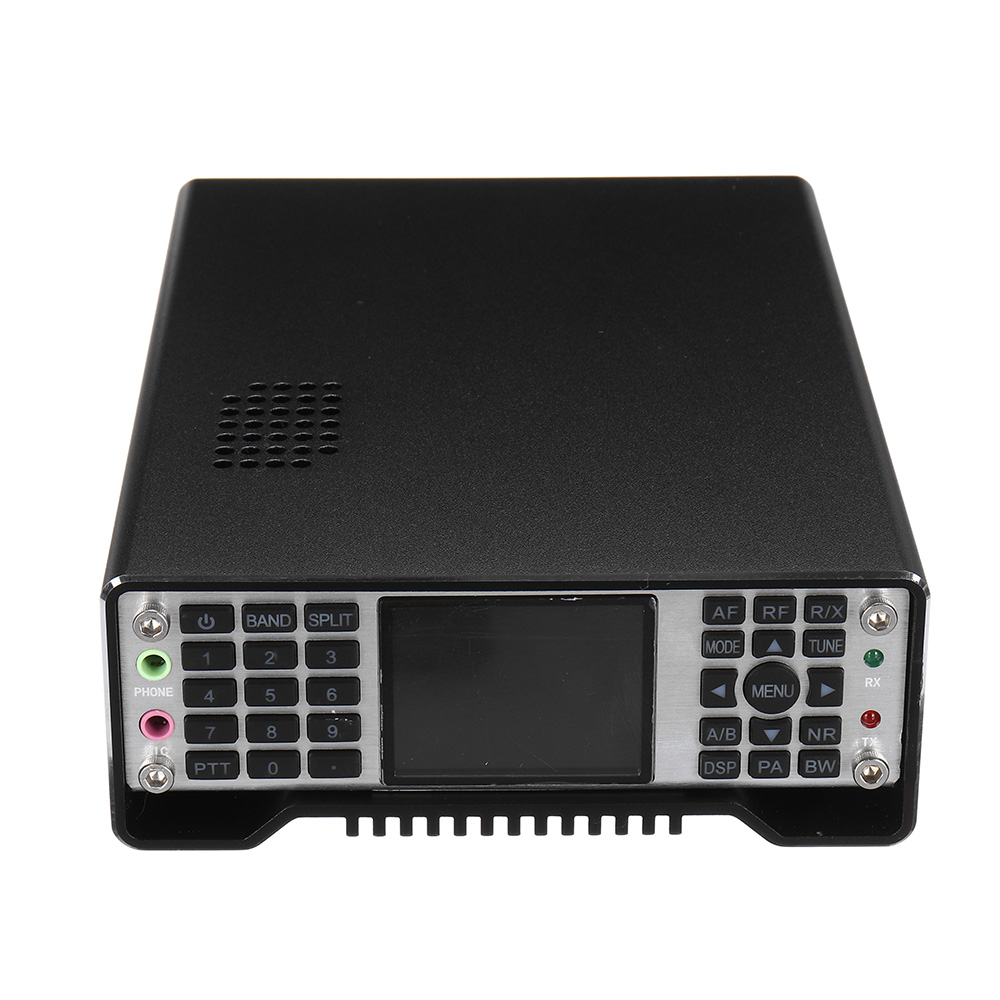

Details Pictures:
