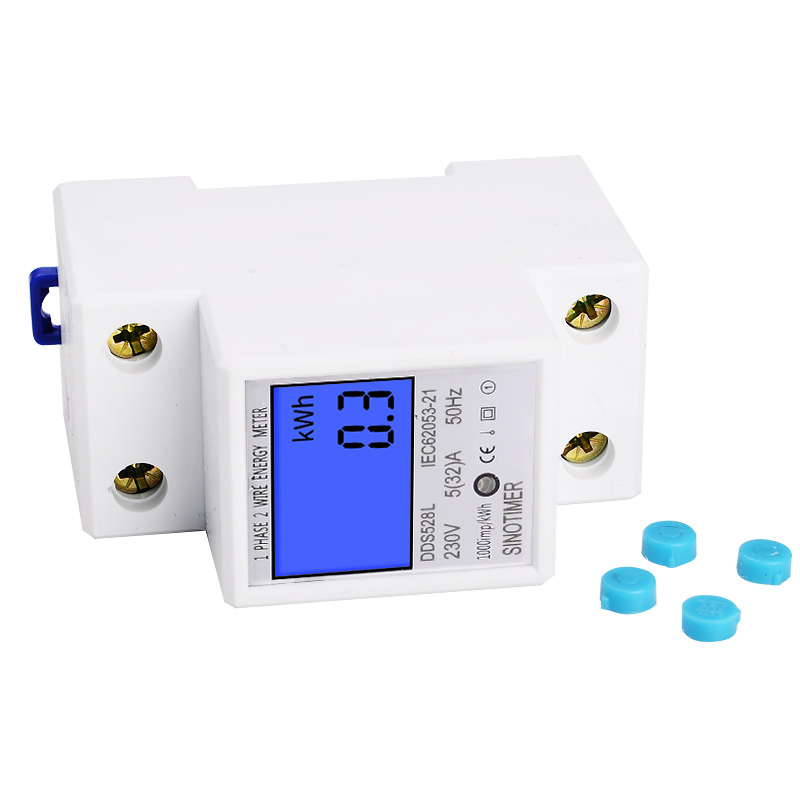

DDS528L LCD Digital Display Energy Meter 230V AC 50Hz Single Phase Backlit Display Wattmeter Power Consumption Energy kWh Electricity Meter
- Stock: In Stock
- Model: ST22010820
- SKU: ST22010820
$15.99
Ex Tax: $15.99
Description:
1. Compared with the traditional meter, this product looks small and beautiful, light weight, easy to install!
2. The traditional maximum current meter is 4 times the rated current, the product is smart meters, overload capacity
Up to 12 times the base reference current
3. This product is measured by LCD digital power, no reset button, to avoid human tampering with the data!
Features:
Features:
* Rated current: 5A
* Maximum current: 32A
* Pulse frequency: 500imp / kwh
* LCD display with backlight
* Pulse LED indicates working of meter. Pulse output with optical coupling isolation
* 35mm din rail installation
Specification:
Specification:
Voltage:230V
Supply:AC
Display Type:LCD
Output Voltage:230V
ACDIY Supplies:Electrical
Measuring Energy Range:99999.9
Phase:Single Phase
Accuracy Class:1
Max Operating Current:20A - 49A
OperatingTemperature:-10 to 50℃
Display:Voltage,Current,Frequency,Power,Energy
Package includes:
1 x Energy Meter
1 x User Manual
Detail pictures:
Package includes:
1 x Energy Meter
1 x User Manual
Detail pictures:
