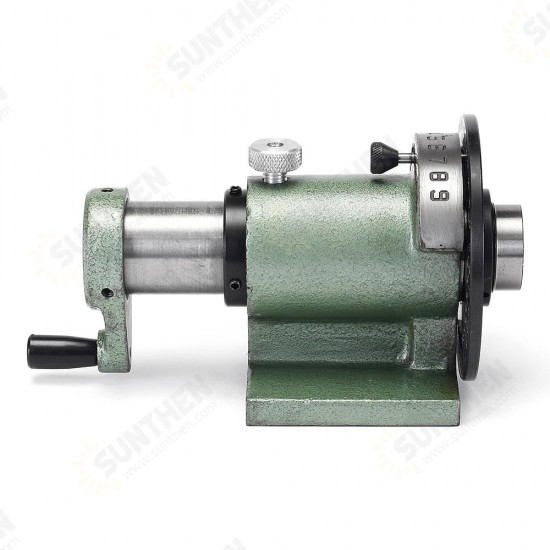

5C Precision Spin Index Fixture Collet For CNC Milling Tool
- Stock: In Stock
- Model: ST220013070
- SKU: ST220013070
$127.99
Ex Tax: $127.99
Description:

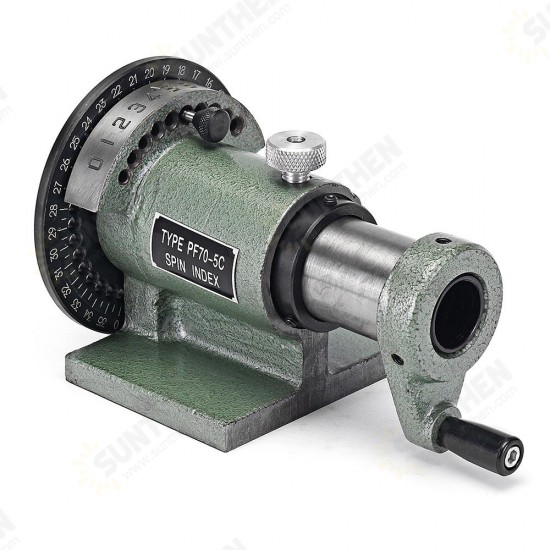

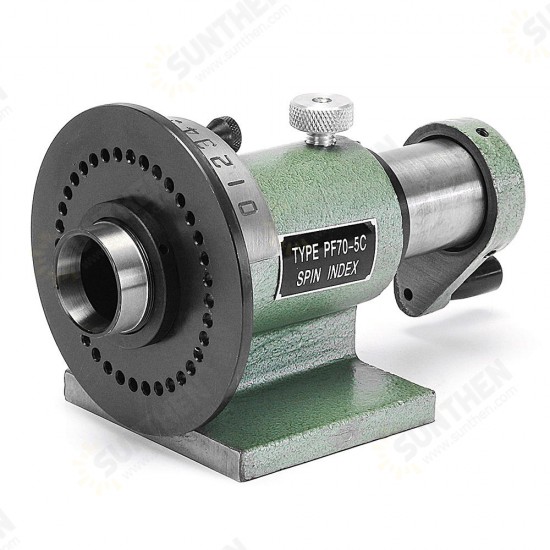

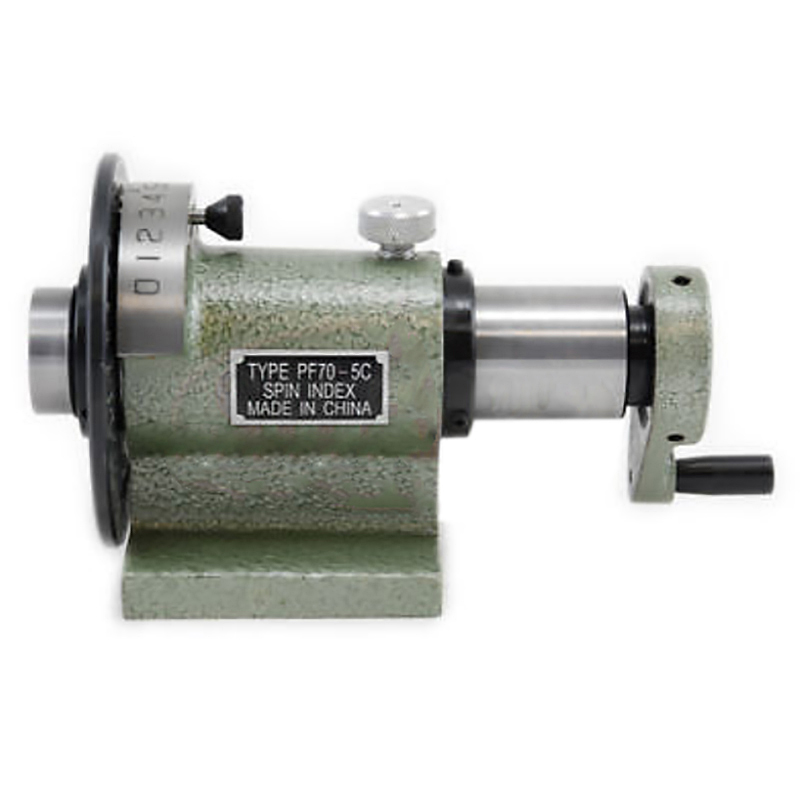

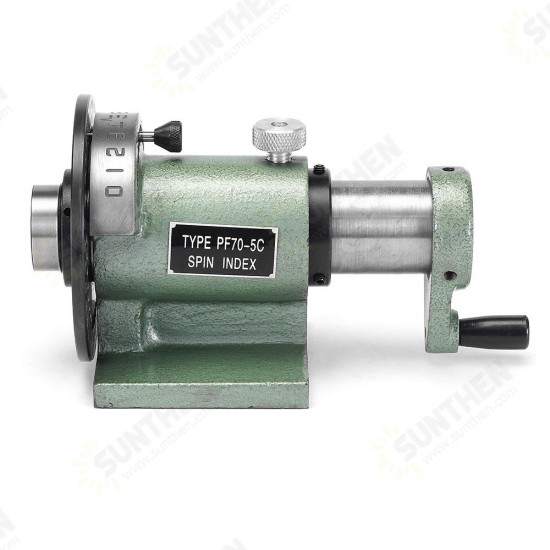

Machifit 5C Precision Spin Index Fixture Collet For CNC Milling Tool

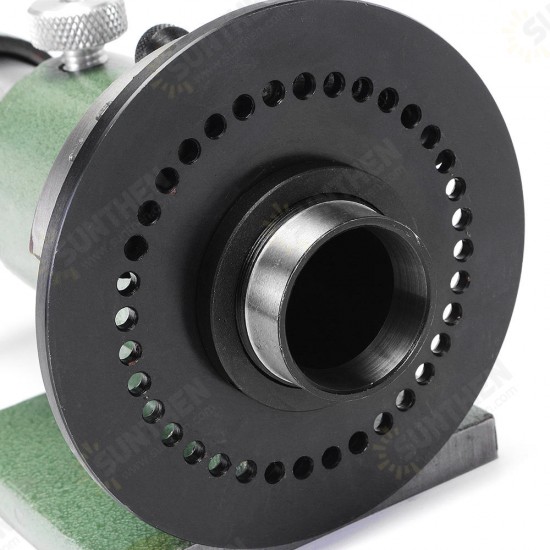

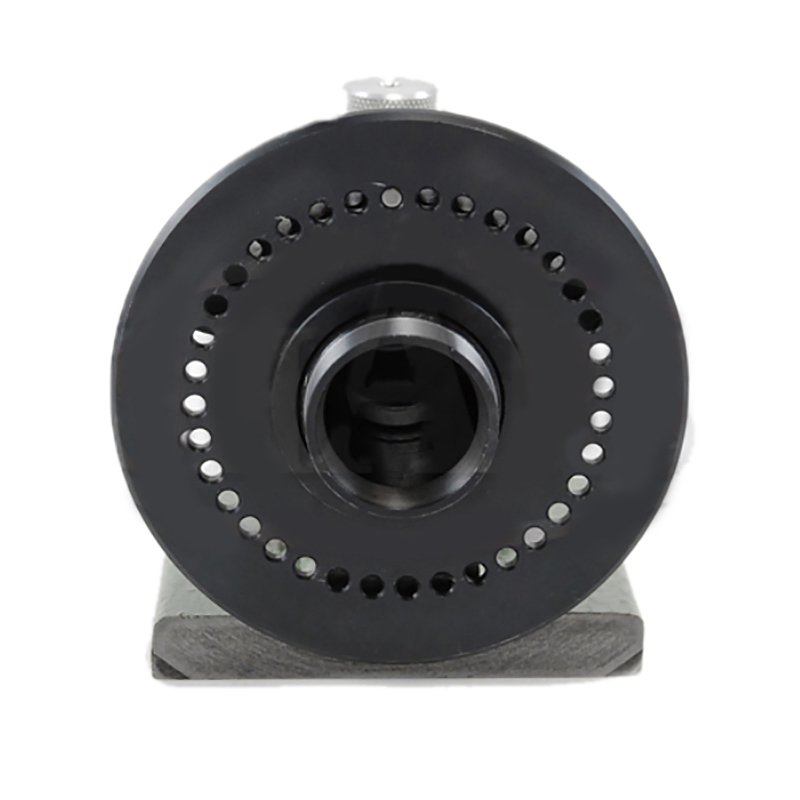

Specification: Indexing plate is designed with 36 holes in 10, indexing plate is around 5" diameter
Base is parallel within 0.0005" / 0.02mm

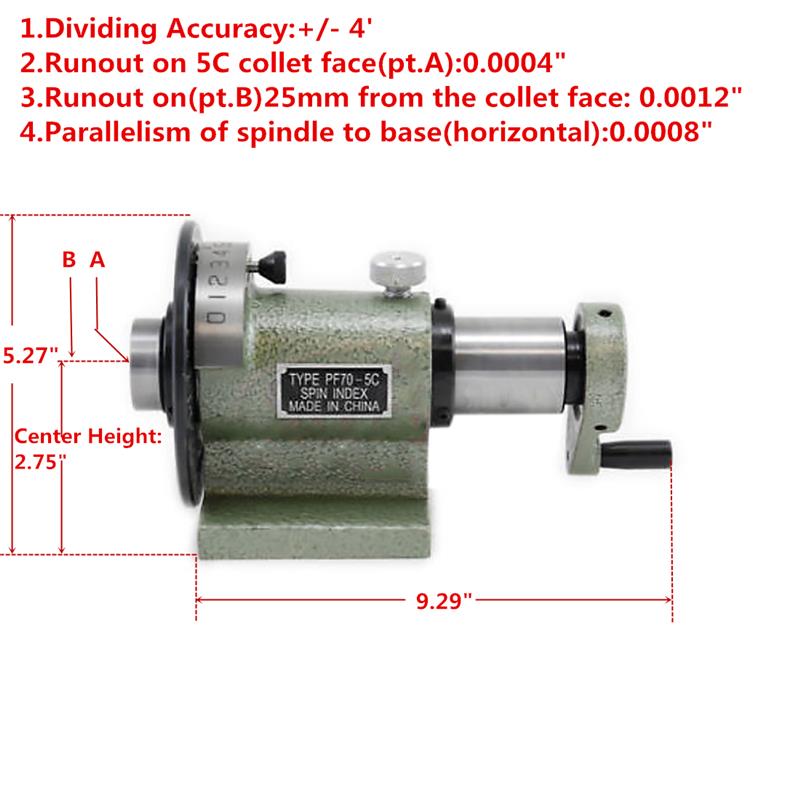

Centerline to base height: 70 mm/2.76"
Overall dimension LxWxH: 235 x 110 x 134 mm
Min Indexing Degree: 1 degree
Indexing Accuracy: +/- 4'
Used on milling machines, grinders and layout work
Features: 1. Base is ground.

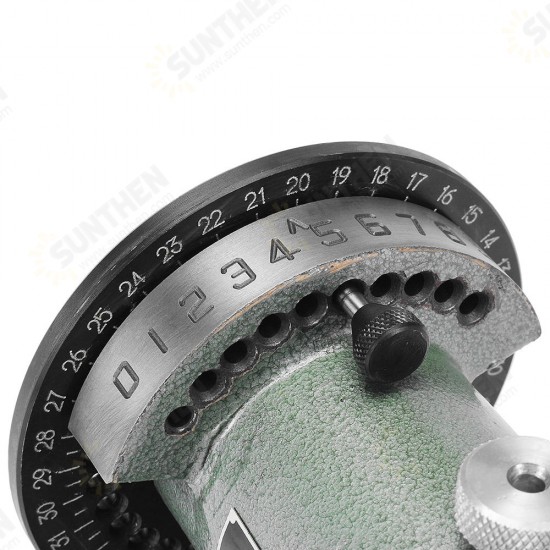

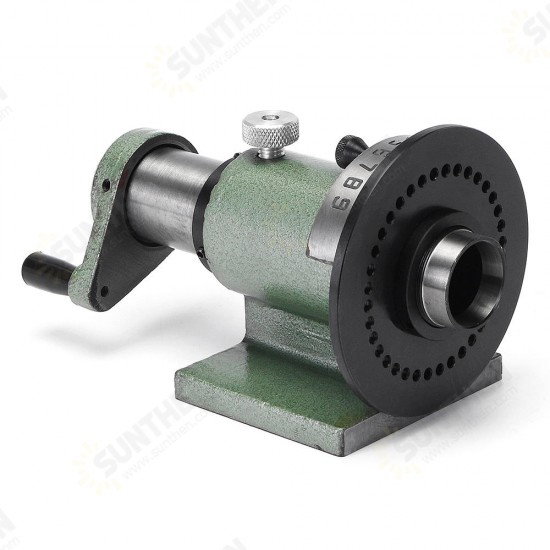

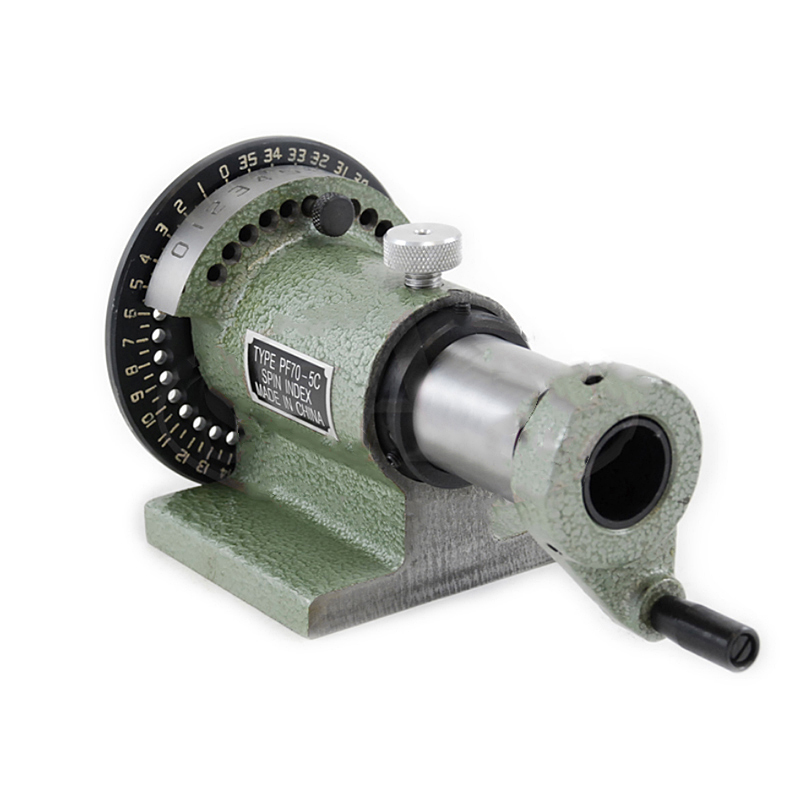

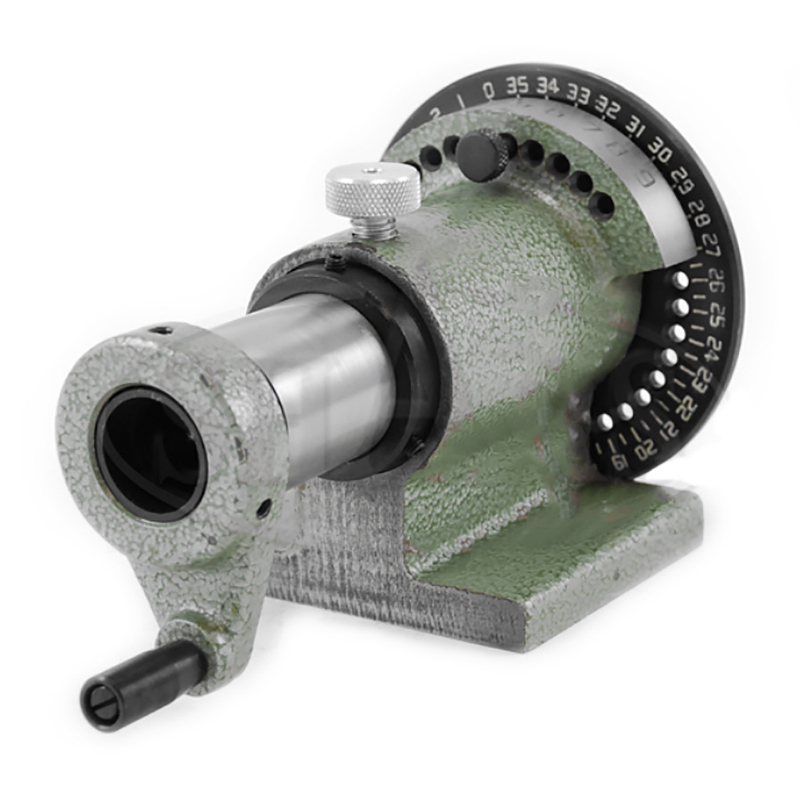

2. Indexing plate is designed with 36 holes in 10, indexing plate is around 5" diameter.

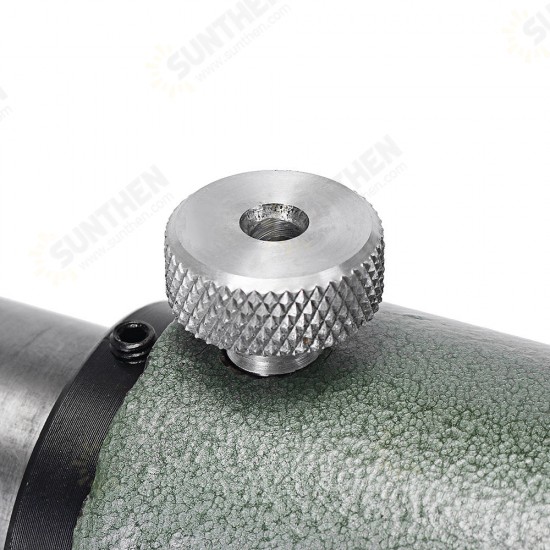

3. Collet locks in position for retaining accuracy under load.
Package Included: 1 x Machifit 5C Precision Spin Index Fixture Collet
More Details:
,
,
,
,
,
,
Machifit 5C Precision Spin Index Fixture Collet For CNC Milling Tool
Specification: Indexing plate is designed with 36 holes in 10, indexing plate is around 5" diameter
Base is parallel within 0.0005" / 0.02mm
Centerline to base height: 70 mm/2.76"
Overall dimension LxWxH: 235 x 110 x 134 mm
Min Indexing Degree: 1 degree
Indexing Accuracy: +/- 4'
Used on milling machines, grinders and layout work
Features: 1. Base is ground.
2. Indexing plate is designed with 36 holes in 10, indexing plate is around 5" diameter.
3. Collet locks in position for retaining accuracy under load.
Package Included: 1 x Machifit 5C Precision Spin Index Fixture Collet
