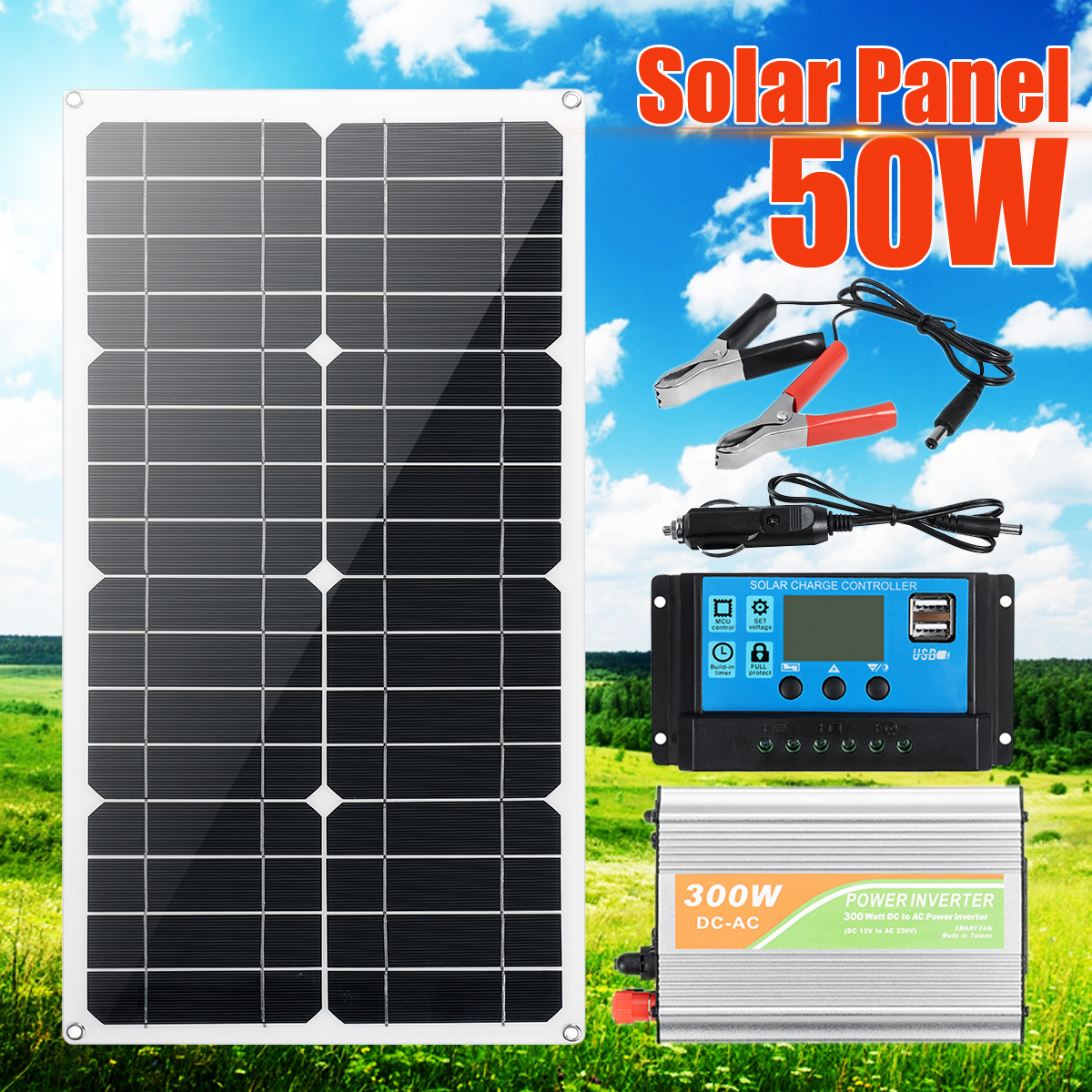

18V Solar Power System Solar Panel Battery Charger 300W Inverter 10A Controller Kit
- Stock: In Stock
- Model: ST220015942
- SKU: ST220015942
$45.99
Ex Tax: $45.99

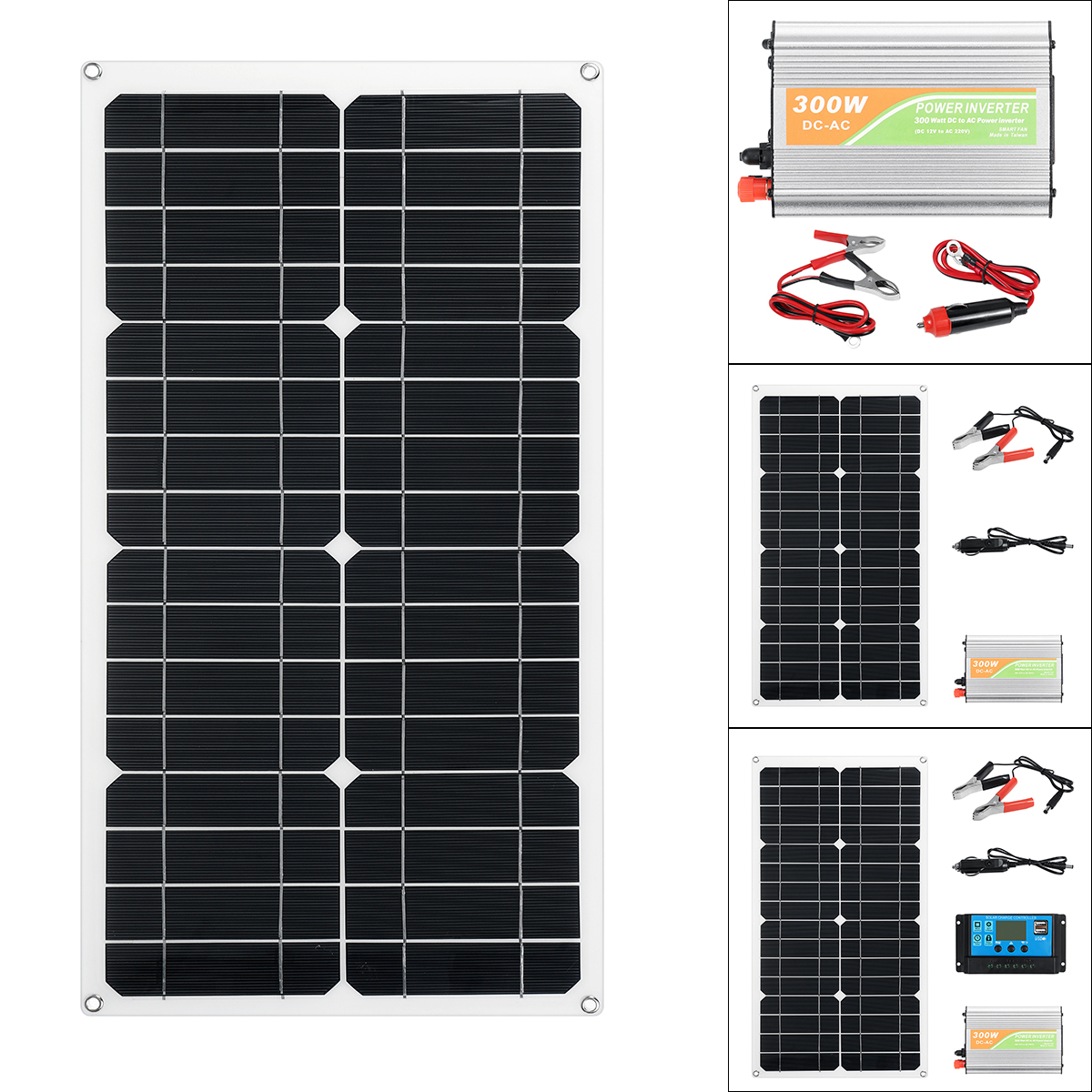

Package included:
Package A:
1 x 300W Inverter

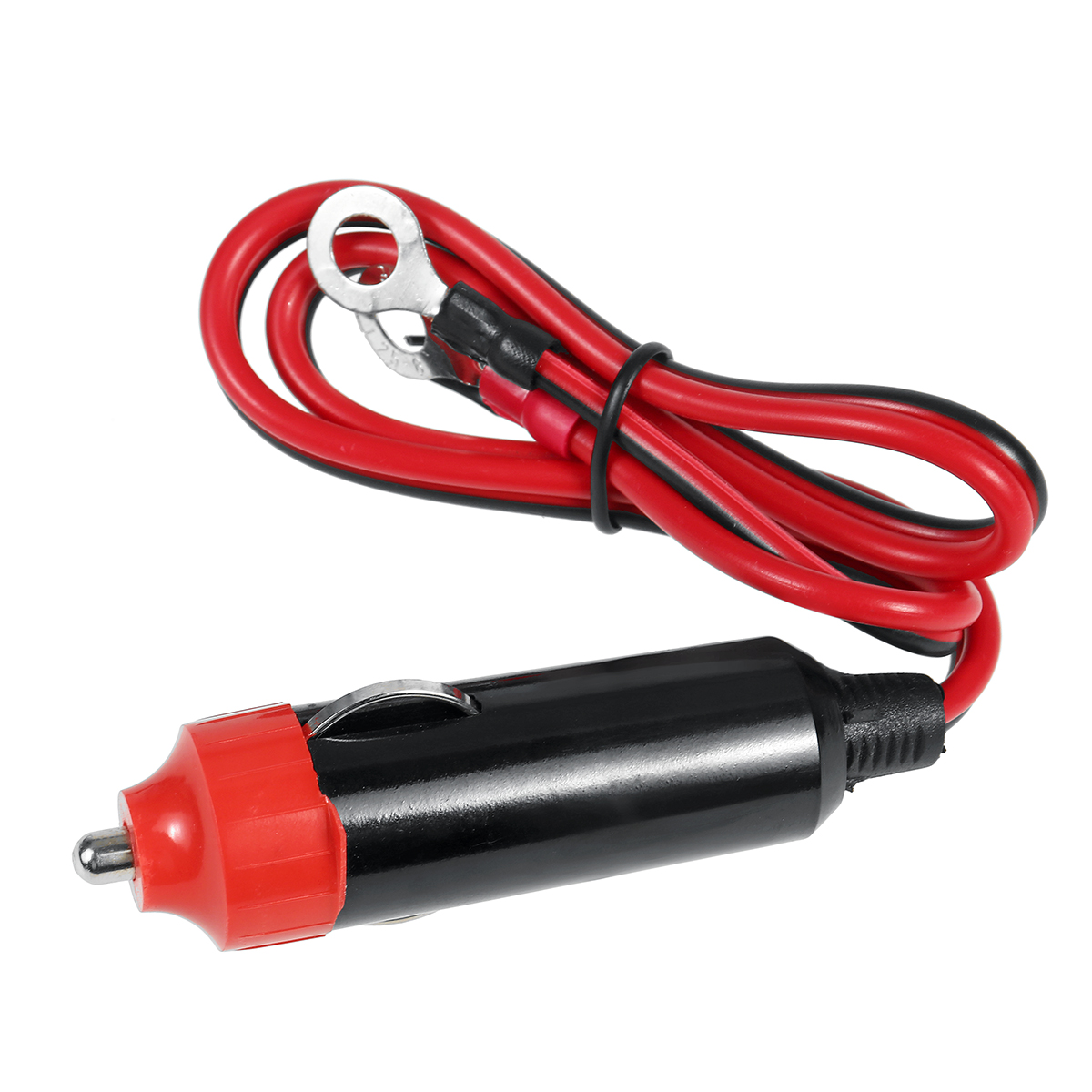

1 x Car charger

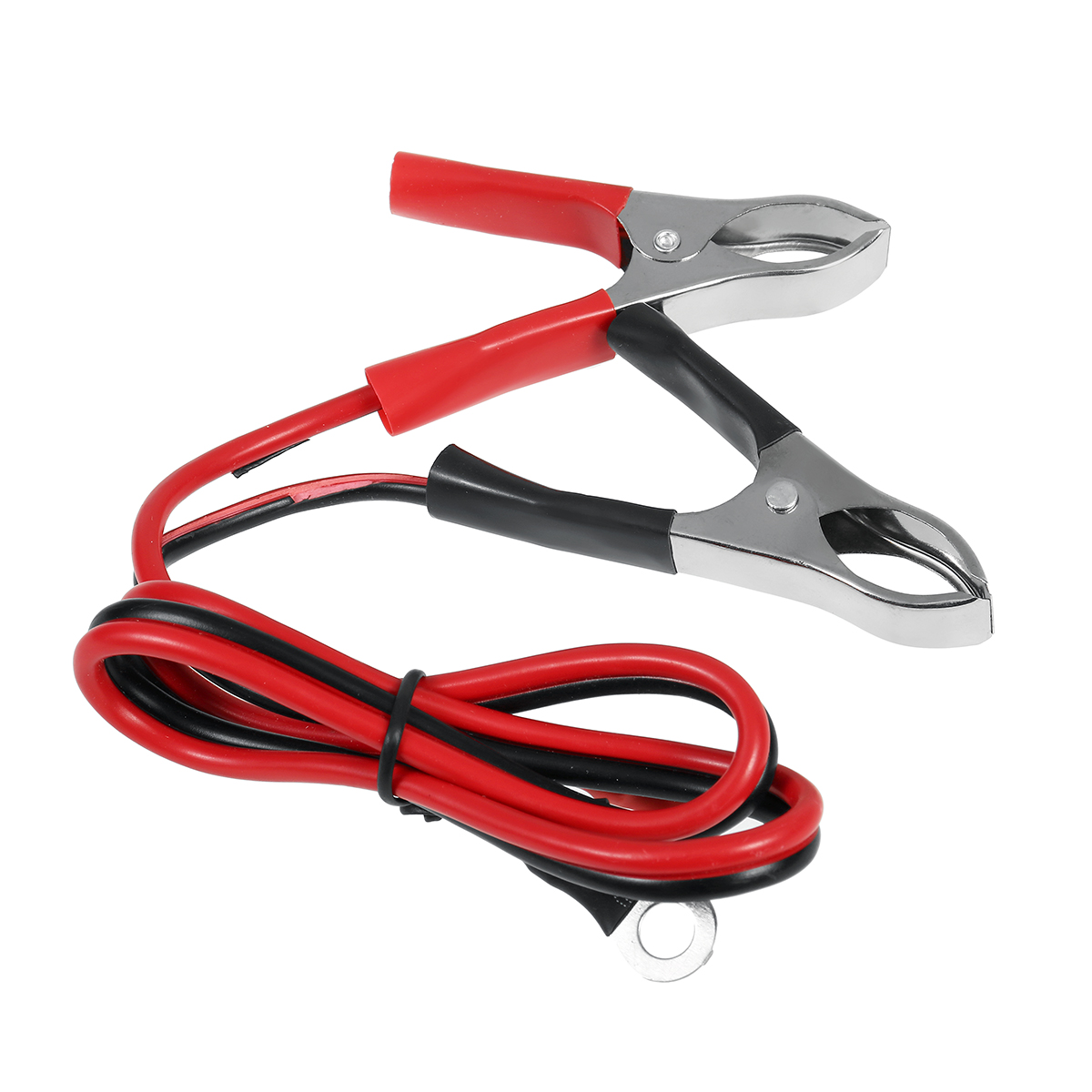

1 x Battery clip
Package B:
1 x Solar panel
1 x 300W Inverter
1 x Car charger
1 x Battery clip
Package C:
1 x Solar panel
1 x Inverter
1 x 10A Controller
1 x Car charger
1 x Battery clip
Specifications:

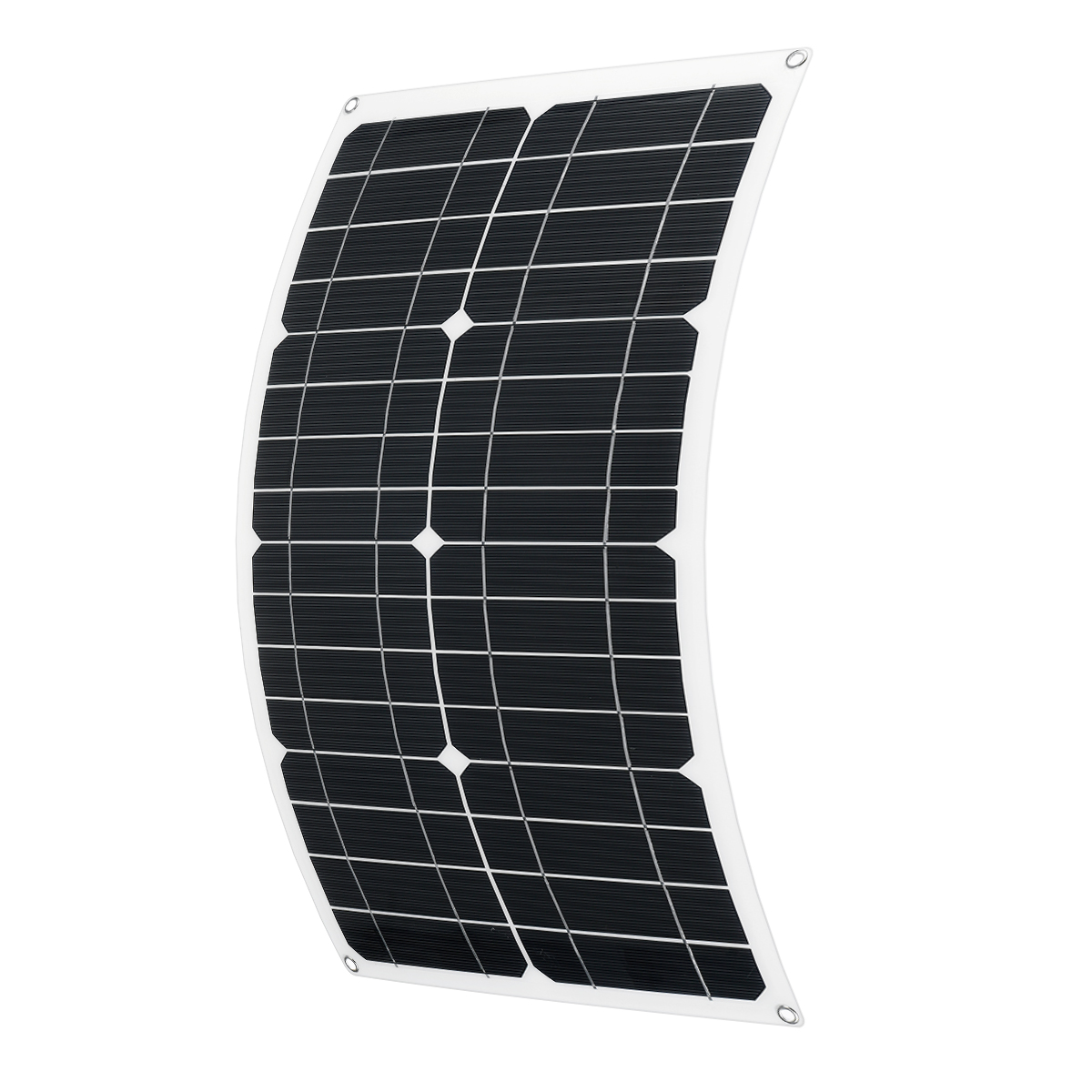

Solar panel:
ISC: 3.33
Voc: 20V
Vpmax:18V
Power: 100W
Ipmax: 2.77A
Output: 5V/18V
Waterproof rate: IP65
Conversion rate: 19.6-20%
USB port quantity: Double
Material: Monocrystalline silicon cell
Suitable for: Cycling, Climbing, Hiking, Camping, Traveling, etc.

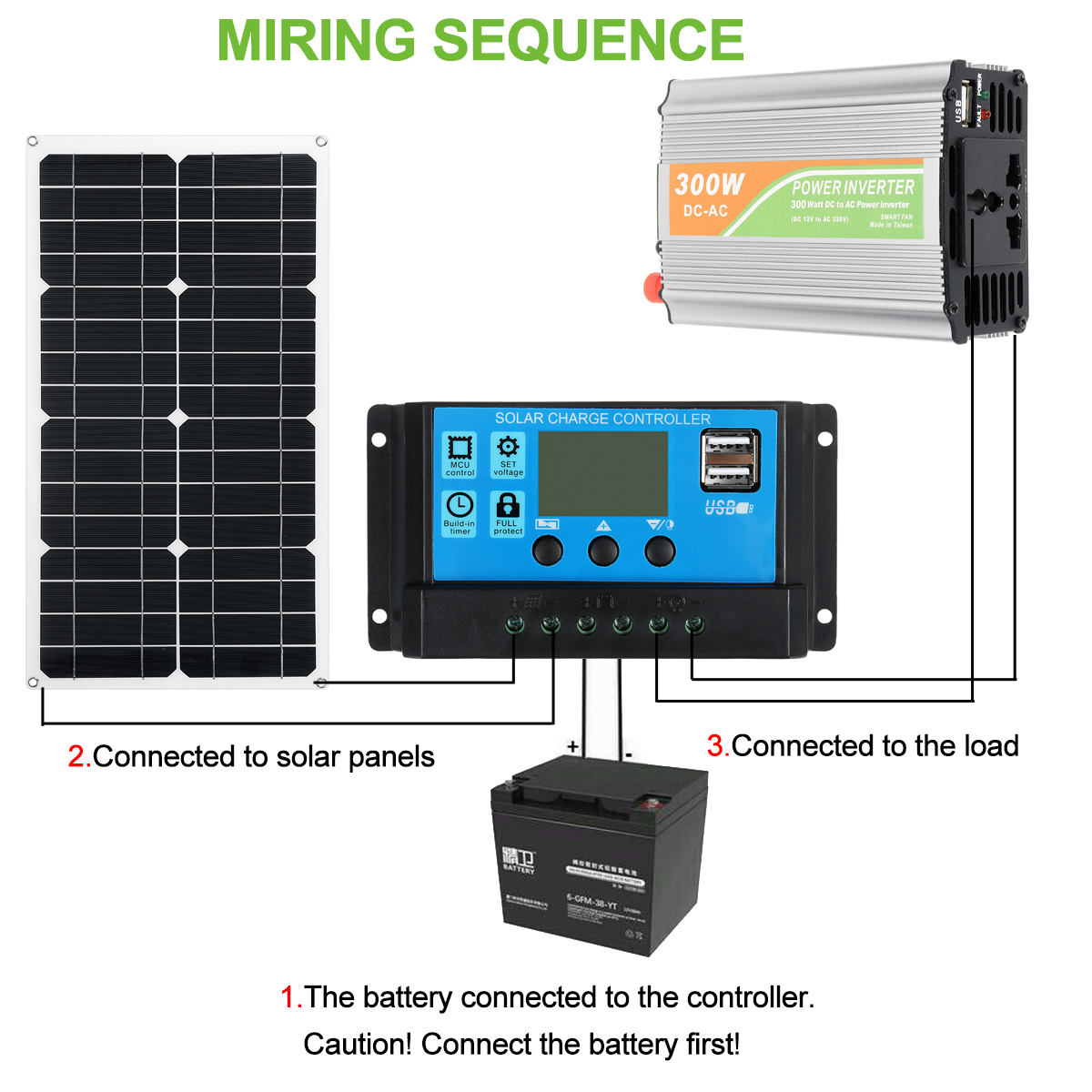

With Timer and light sensor, it could work for solar light system(Only For off-Grid PV Solar System):
For 10A 12V Pv System: 120W Solar Panel, 12V Lead-acid Battery, 21V for Max input Voltage.
For 10A 24V Pv System: 240W Solar Panel, 24V Lead-acid Battery, 42V for Max input Voltage.

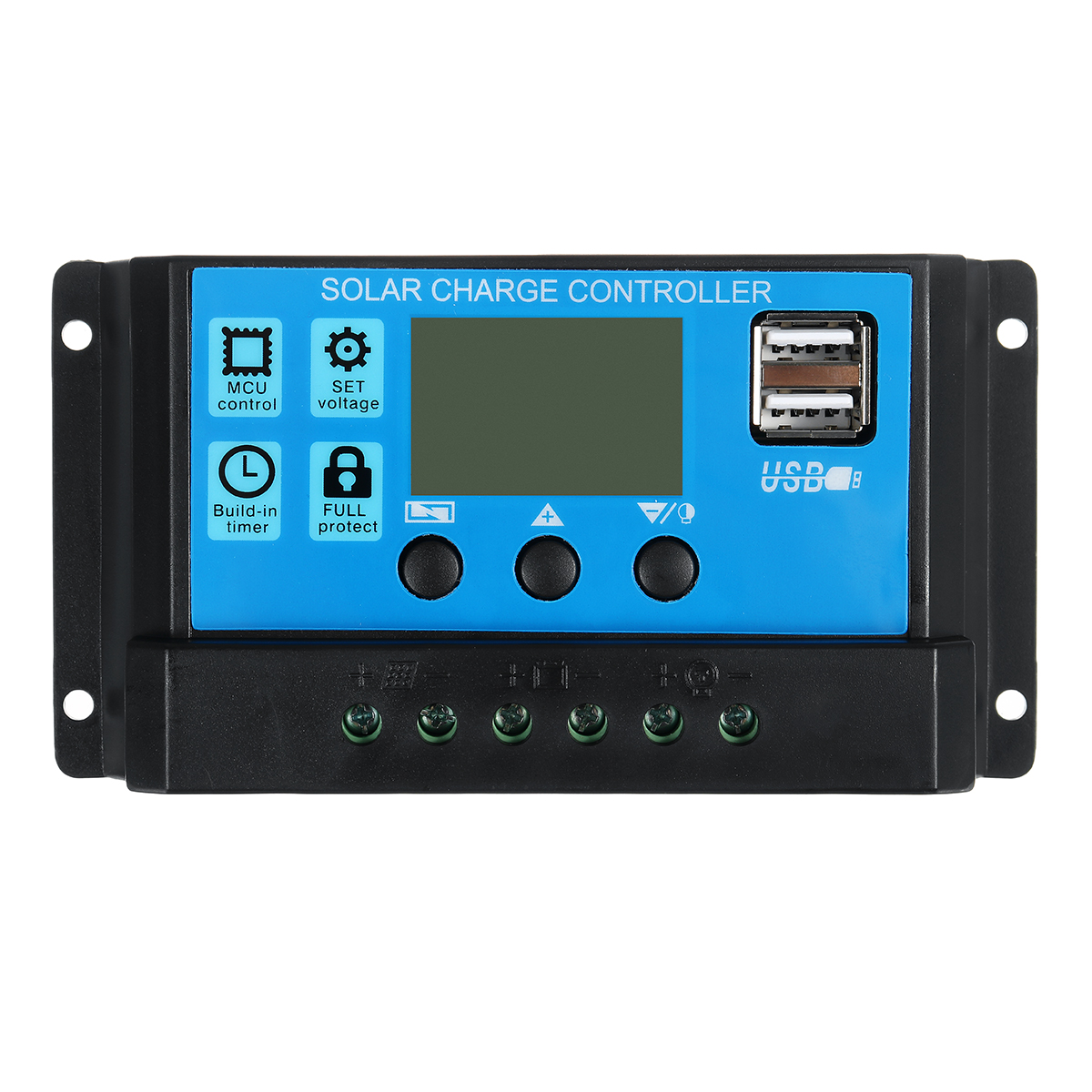

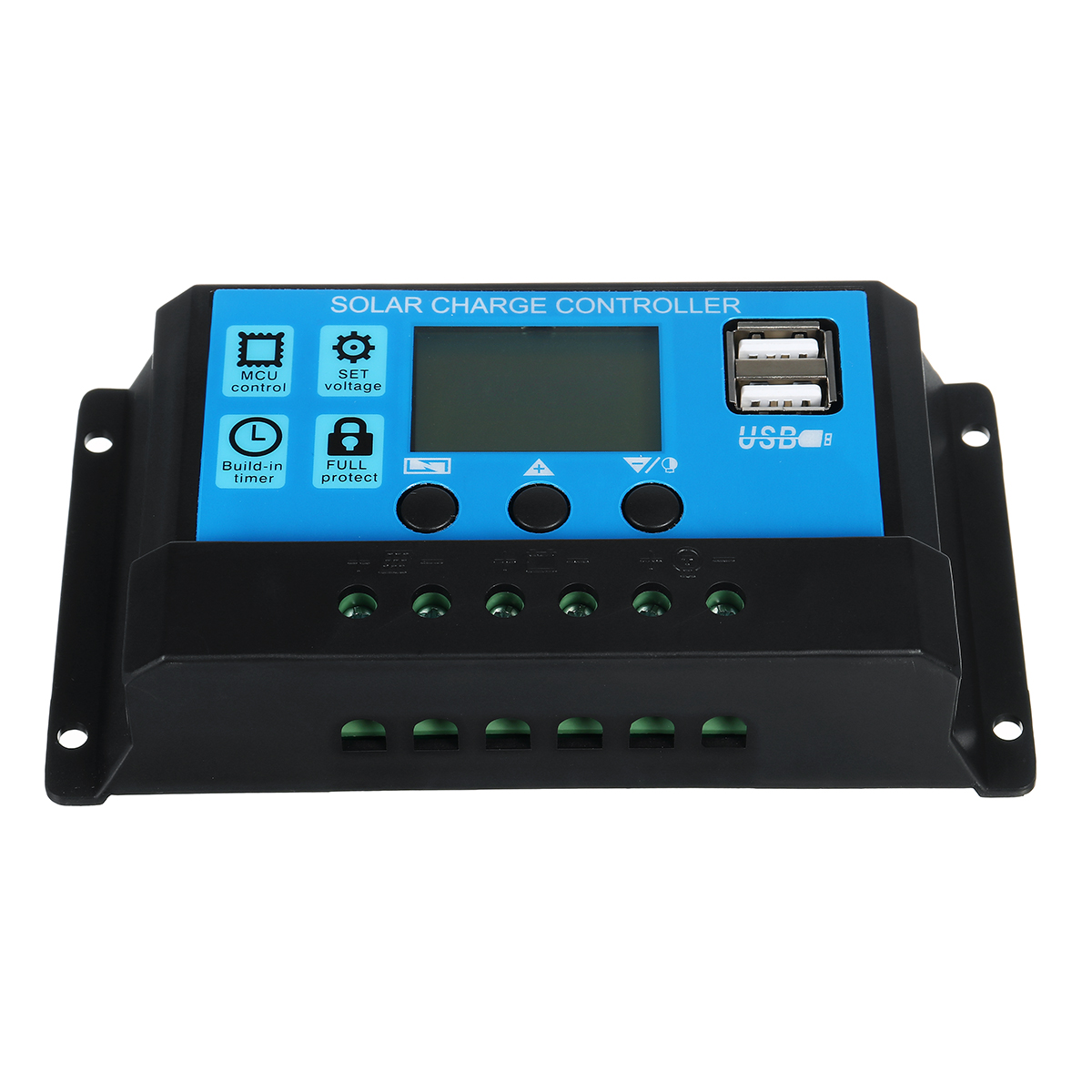

Controller:
System volt: 12V/24V auto adapt
Rated charging current: 10A
Rated discharging current: 10A
Max solar current: 12V max solar current 23V; 24V max solar current 46V
Charging completed volt: 14.4V
Floating charging volt: 13.7V(Adjustable:12.7V-15V)
LVD: 10.7V(adjustable:9V-11.3V)
LVR: 12.6V(adjustable: 11.5-13V)
Standby current: ＜10mA
USB output: 2 USB output; 5V/2A(MAX)
Operating: -35~60°C
Size: 133*70*35mm

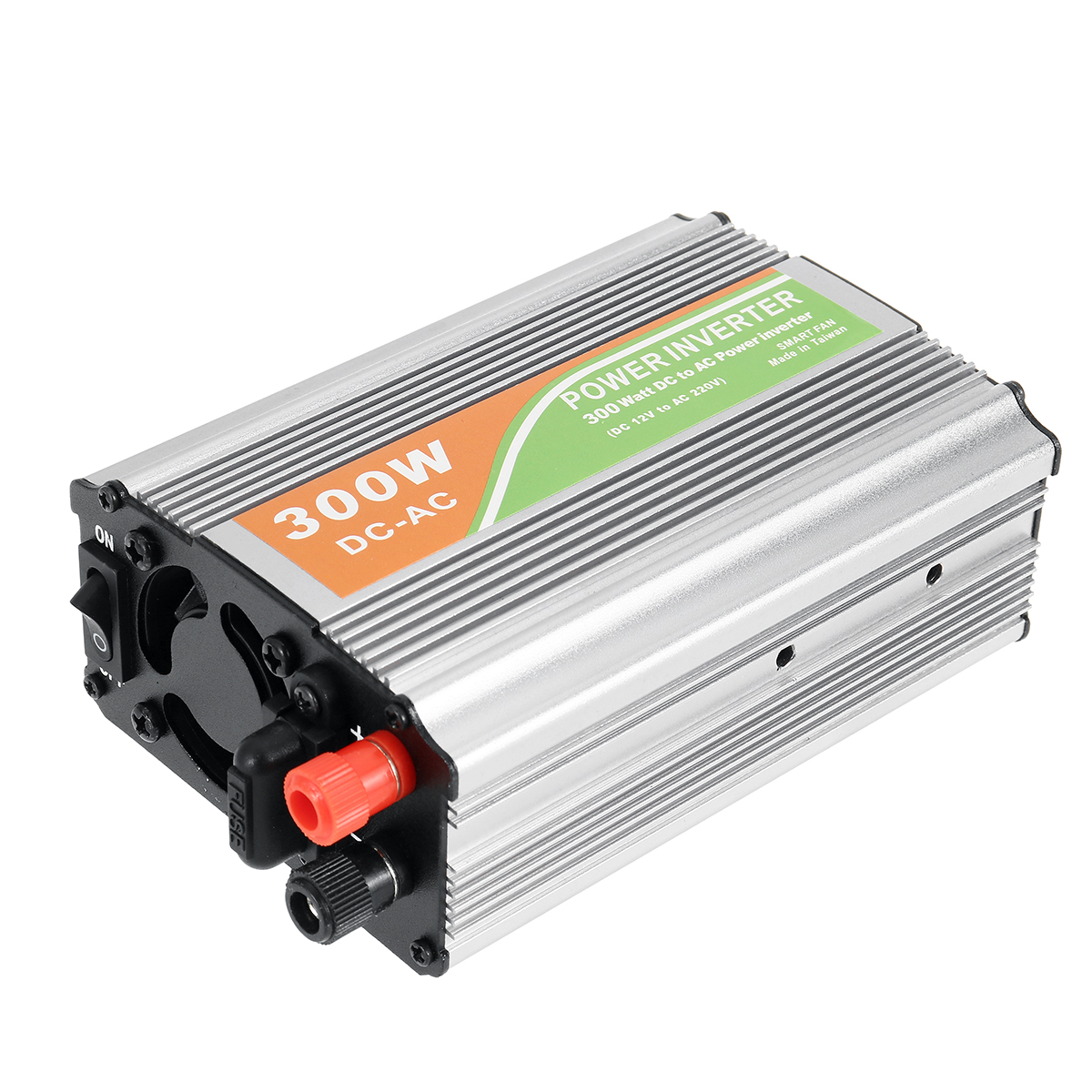

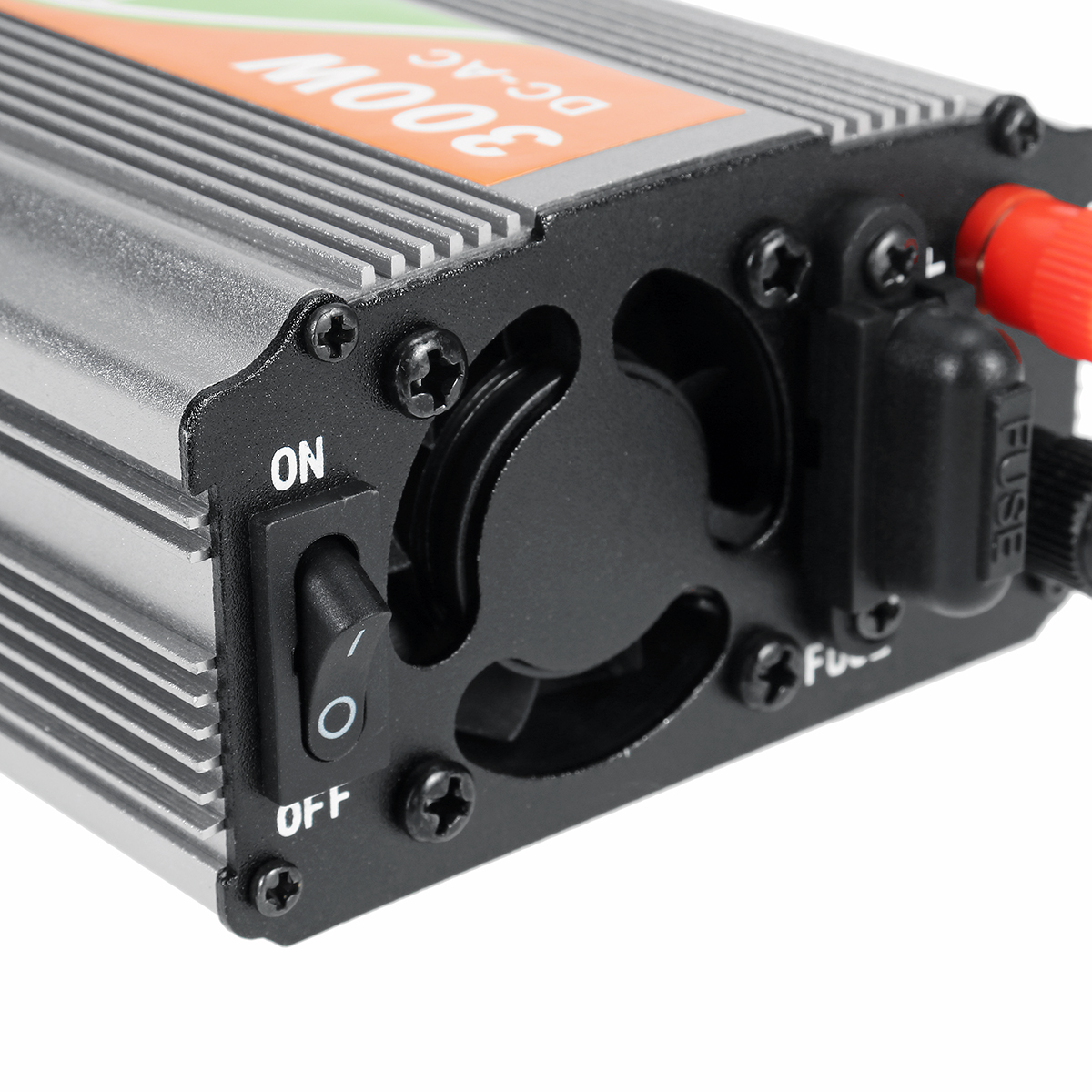

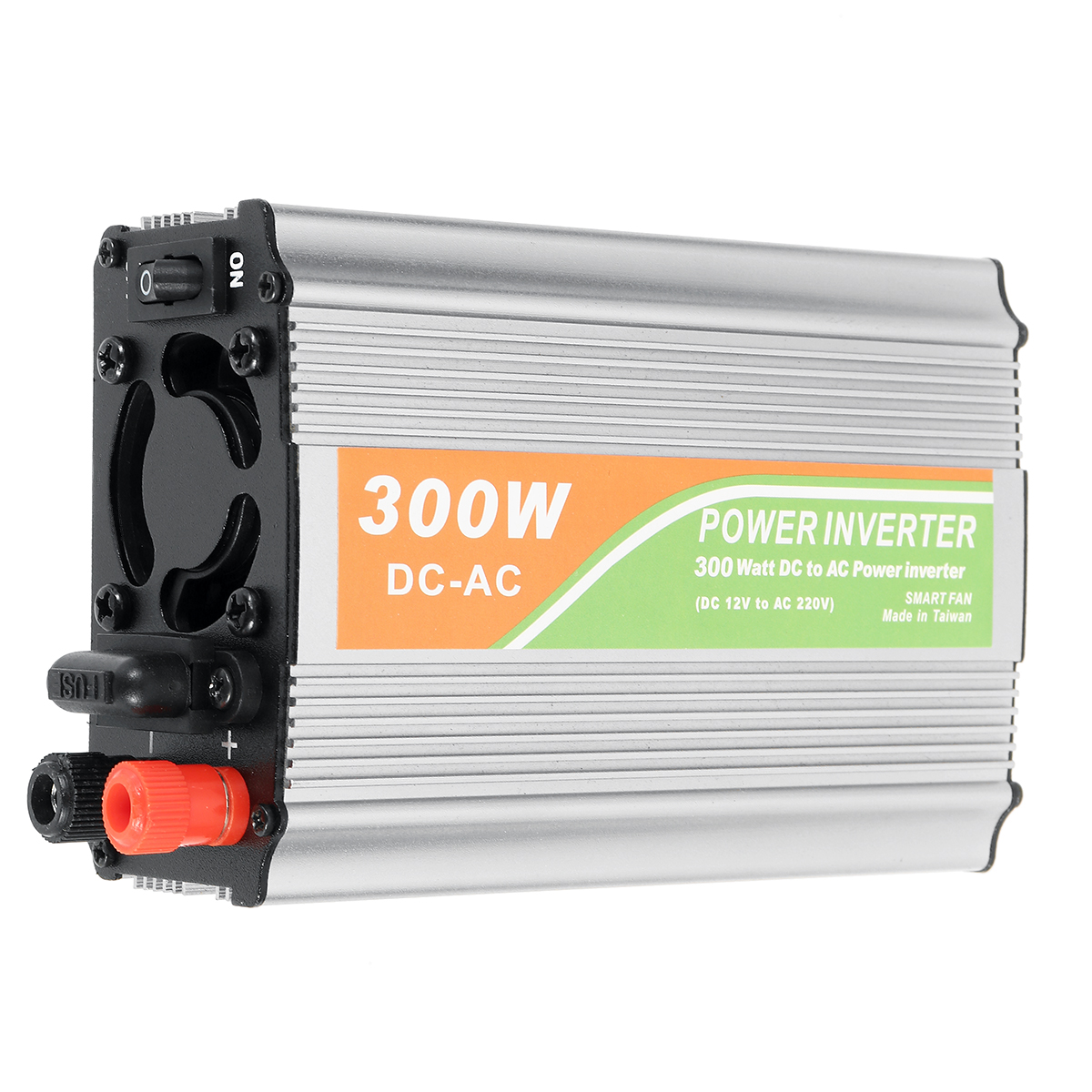

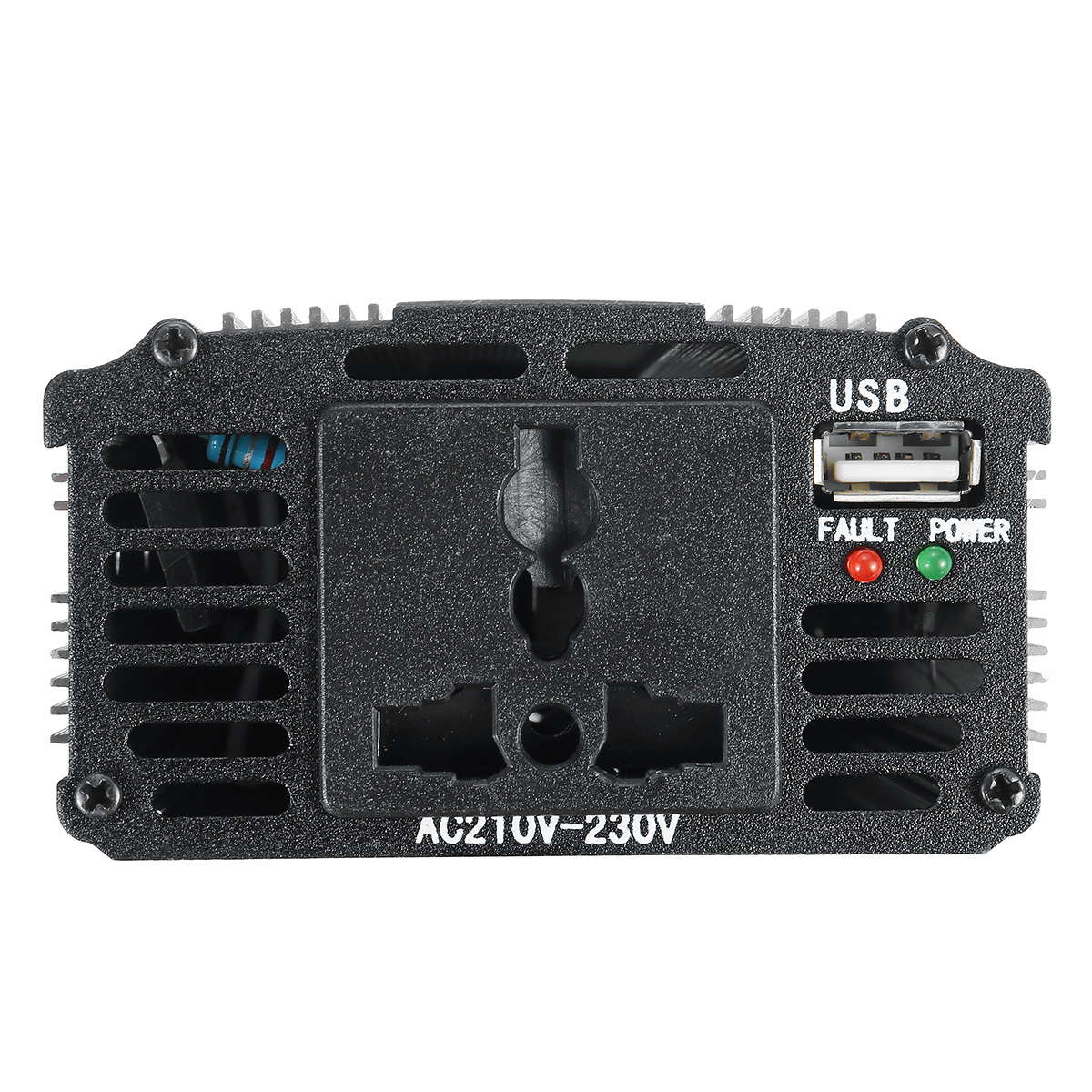

Inverter:
Continuous output power: 240W
30 minutes output power: 300W
Peak power: 600W
Rated output voltage: 220V±10% or 110V±10%
Input voltage: 12V or 24V
Output waveform: square wave
Undervoltage alarm: 12V is 10.4-11.0V; 24V is 21V±0.5V
Low voltage shutdown: 12V is 9.7-10.3V; 24V is 20V±0.5V
Overvoltage shutdown: 12V is 14.5-15.5V; 24V is 30V±0.5V
Built-in fuse: 15A/20A/40A/70A 8A/10A/20A/40A
Efficiency: >90%
Features:

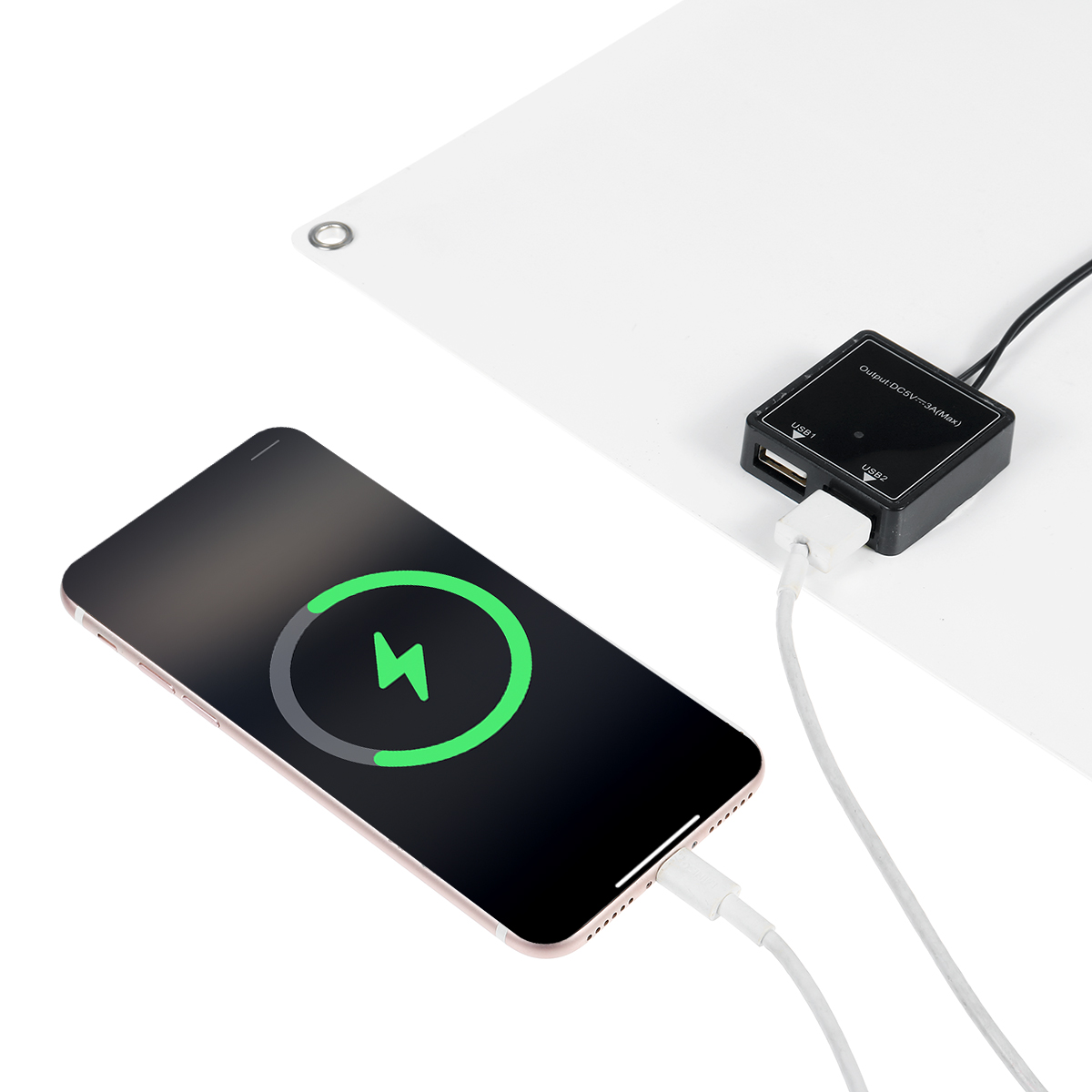

- Used to charge mobile phone, MP3, pad, or other USB-charged device.
- Double USB female port, easily charge device via USB charging cable.
- You can place the panel in the sun and use it to directly charge your device.
- Great for outdoor cycling, climbing, hiking, camping, traveling, etc.
