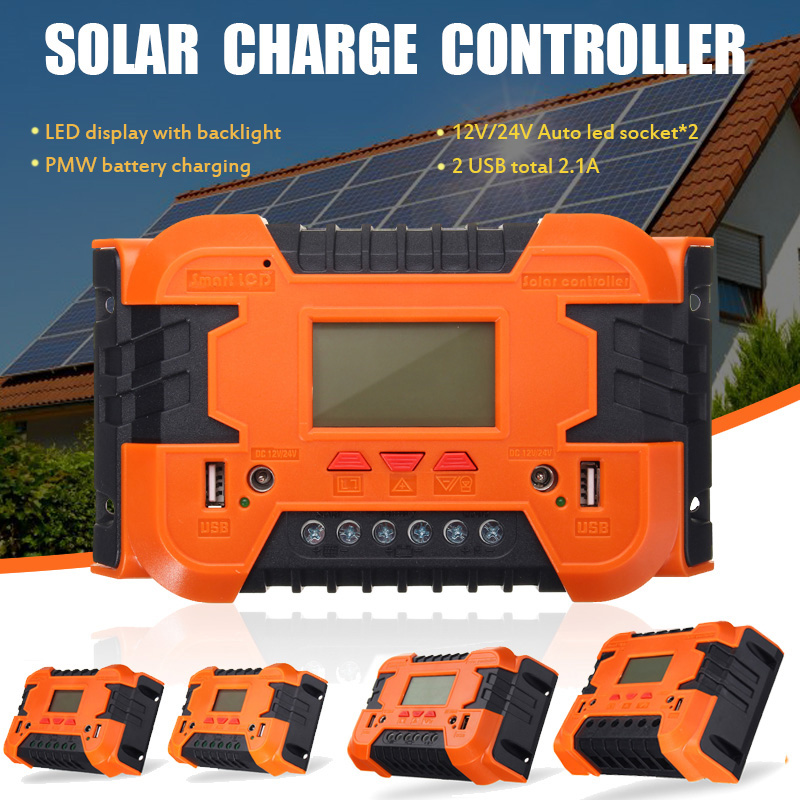

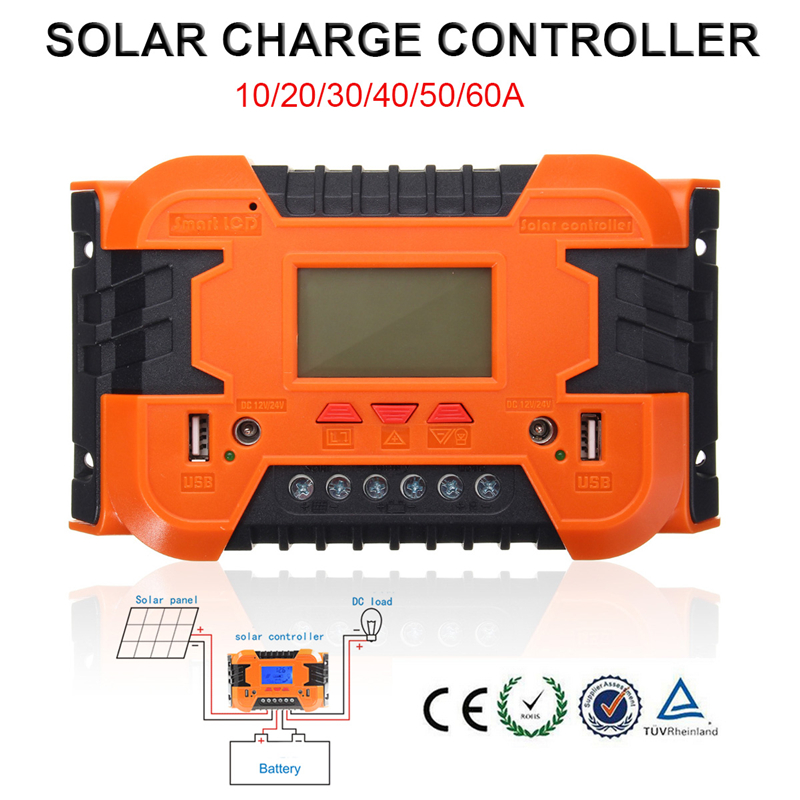

12V/24V Solar Charge Controller Battery Charging LCD Display Backlight 10A/20A/30A/40A/50A/60A
- Stock: In Stock
- Model: ST220017143
- SKU: ST220017143
$30.99
Ex Tax: $30.99
Description:
MS series controller is a kind of intelligent, multi-purpose solar charge and discharge controller. The family use the fixed LCD display, with a very friendly interface: various control parameters can be flexibly set, fully meet your various application requirements.
MS series controller is a kind of intelligent, multi-purpose solar charge and discharge controller. The family use the fixed LCD display, with a very friendly interface: various control parameters can be flexibly set, fully meet your various application requirements.
Features:
LCD display with backlight.
12V/24V DC port for LED light.
Image of LCD graphic symbol.
Automatic identification system voltage level.
Automatic temperature compensation.
Settable operation mode of load.
Remote monitoring and control funvtion(custom).
Battery low voltage disconnection(LVD).
Accumulated function of charge and discharge ampere hours.
5.0V USB X 2 Total 2.1A.
Simple button operation.
Overload,short circuit protection.
Battery reverse-discharge protection.
Battery reverse connection protection.
Specification:
Specification:

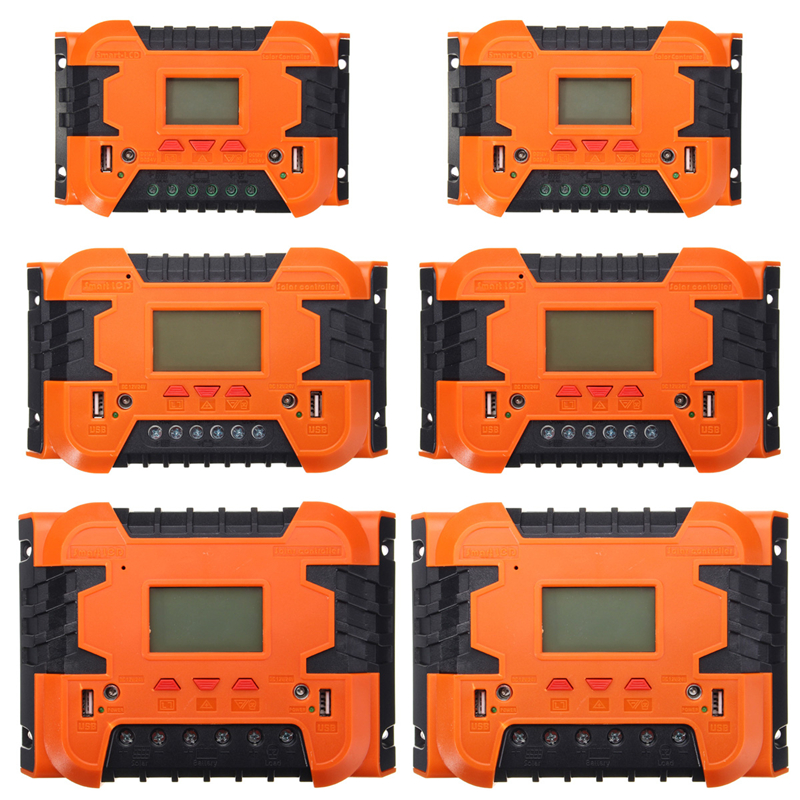

| Model | MS1024 | MS2024 | MS3024 | MS4024 | MS5024 | MS6024 | |
| Rated current | 10A | 20A | 30A | 40A | 50A | 60A | |
| Size | 150 x 98 x 39mm | 150 x 98 x 39mm | 188 x 110 x 47mm | 185 x 110 x 47mm | 188 x 135 x 57mm | 188 x 135 x 57mm | |
| Input Panels |
Max 180W(with battery 12V) Max 360W(with battery 24V) |
Max 360W(with battery 12V) Max 720W(with battery 24V) |
Max 540W(with battery 12V) Max 1080W(with battery 24V) |
Max 720W(with battery 12V) Max 1440W(with battery 24V) |
Max 900W(with battery 12V) Max 1800W(with battery 24V) |
Max 1080W(with battery 12V) Max 2160W(with battery 24V) | |
| Rated voltage | 12/24V | Installation cable area | ≥7 AWG(≤1 6㎜²) | ||||
| Open circuit voltage of solar panel | <17.4V(12V)/ <34.8V(24V) | Operating temperature | -20℃--60℃ | ||||
| Low voltage disconnection(LVD) | 10.7V/21.4V | Storage temperature | -30℃--70℃ | ||||
| Float voltage | 13.7V/27.4V | Humidity requirements | ≤90%, no condensation | ||||
| Low voltage reconnection(LVR) | 12.6V/25.2V | ||||||
| No load loss | ≤30mA | ||||||
| Load voltage drop | ≤170mA | Temperature compesation | -4mv/cell/℃ | ||||
| Charging mode | PWM mode | ||||||
| USB output | 5.0V 2 Pieces total 2.1A | Mounting hole spacing | 60mm x 178mm-φ5 | ||||
| DC port voltage | 12V 2 Pieces/24V 2 Pieces | ||||||
Package included:
1 x Solar Charge Controller
1 x User manual

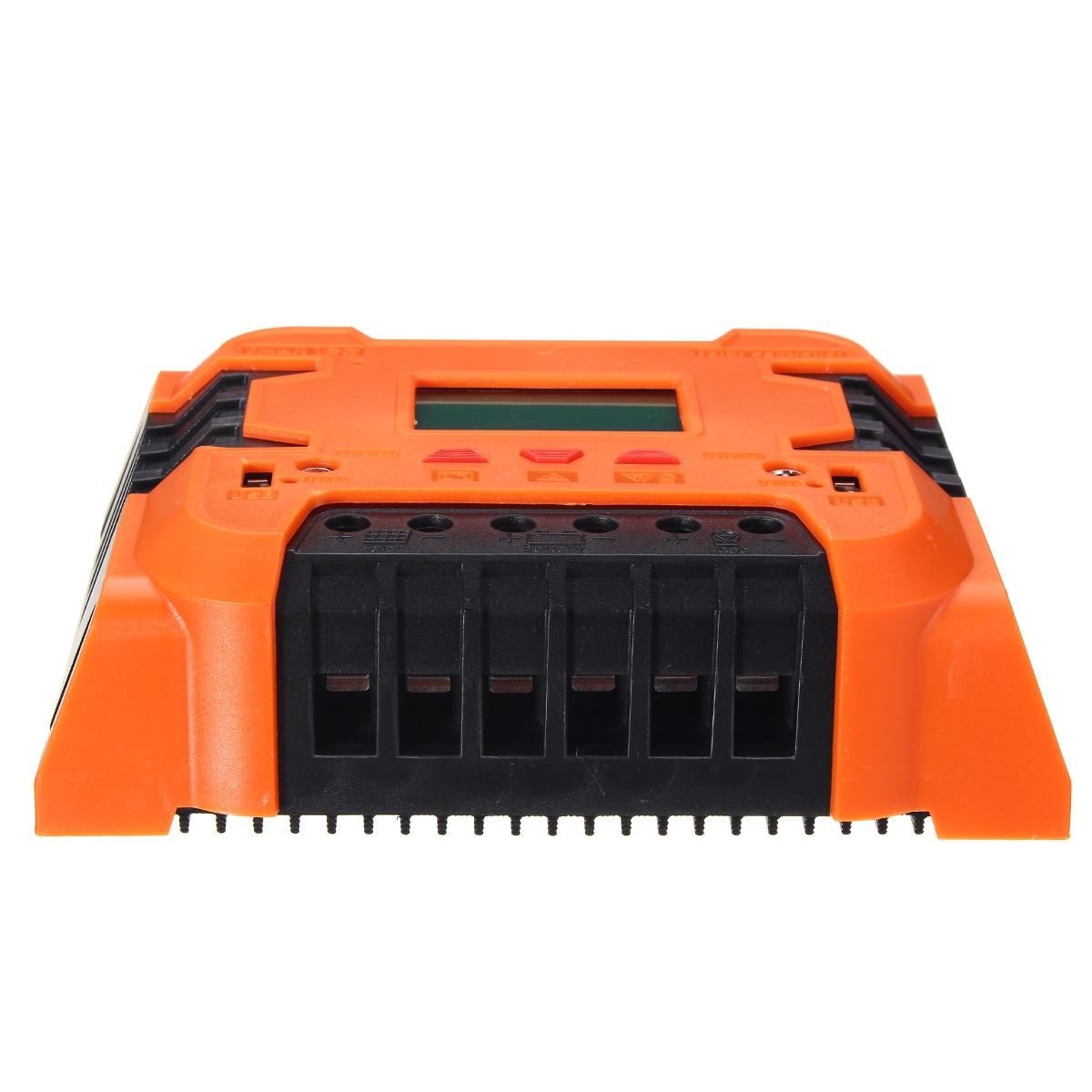

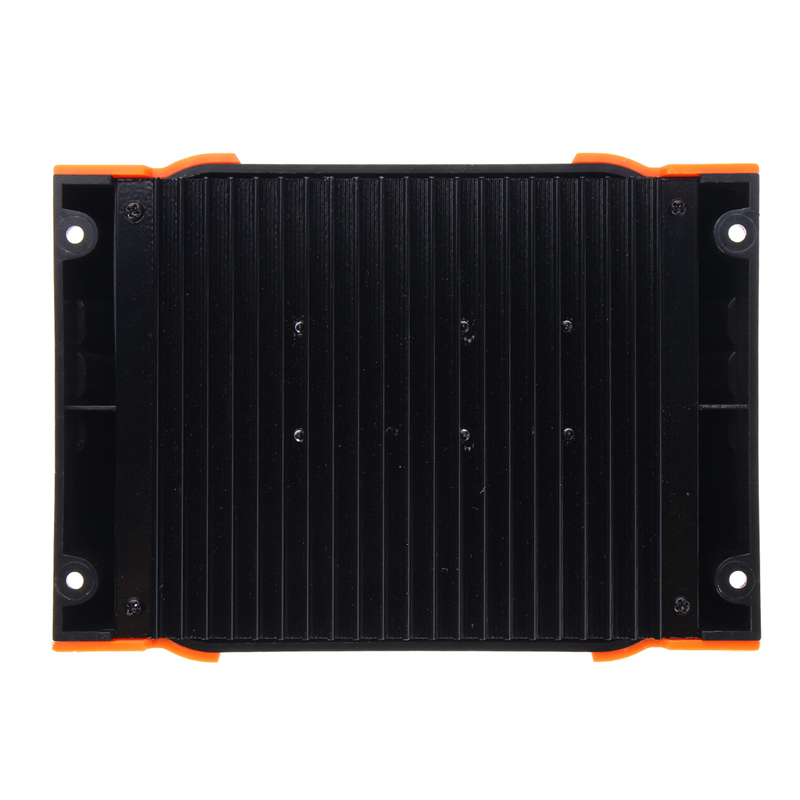

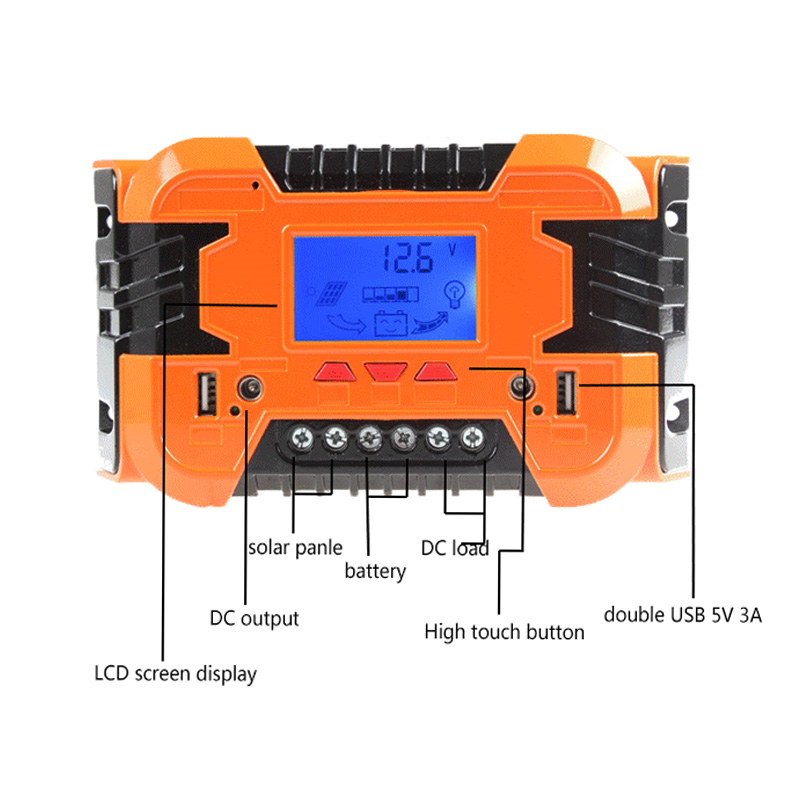

Detail Pictures:
