10/20A LED Auto PWM Solar Panel Battery Regulator Charge Controller DC12V Output

Description:

Features:

1.Build-in industrial micro controller.
2.Input and output LED display, battery capacity indicator.
3.Built-in 5V USB charger and 12V output connector
4.Build-in-short-circuit protection, open-circuit protection, reverse protection, over-load protection.
5.Current protection, low heat production.

Specification:

1. Batt voltage:12V
2. Charge current: 10A/20A
3. Discharge current: 10A/20A
4. Max Solar input: 42V
5. Charger drop:<0.2V
6. Discharge drop:<0.25V
7. Float:13.8V
8. Discharge stop:11.2V
9. Self-consume:<10mA
10. Temperature compensation:N/C
11. USB output:5V
12. Operation temperature:-35~60°C

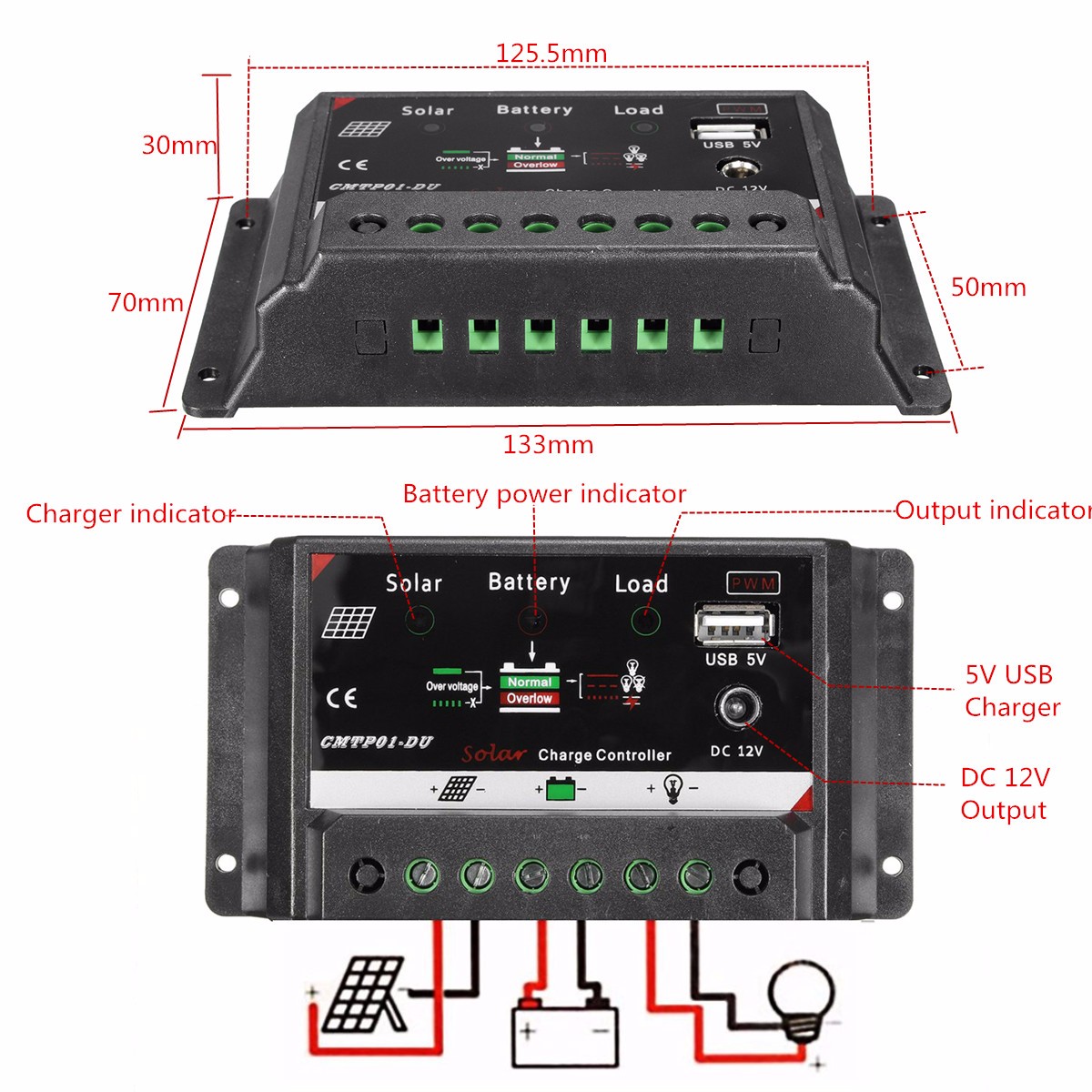

13. Size:133*70*30mm

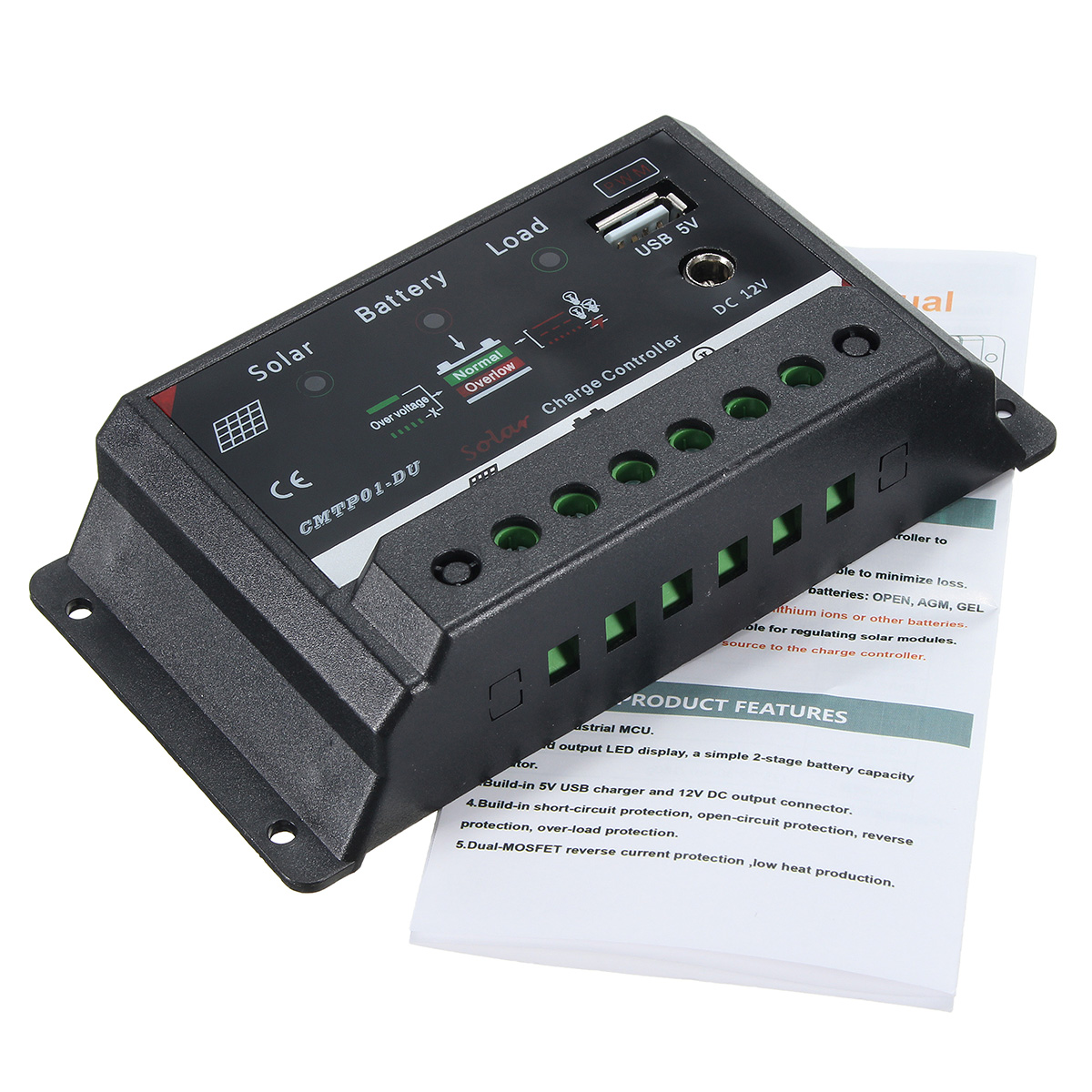

Package includes:

1 x PWM Solar Charge Controller
1 x User Manual

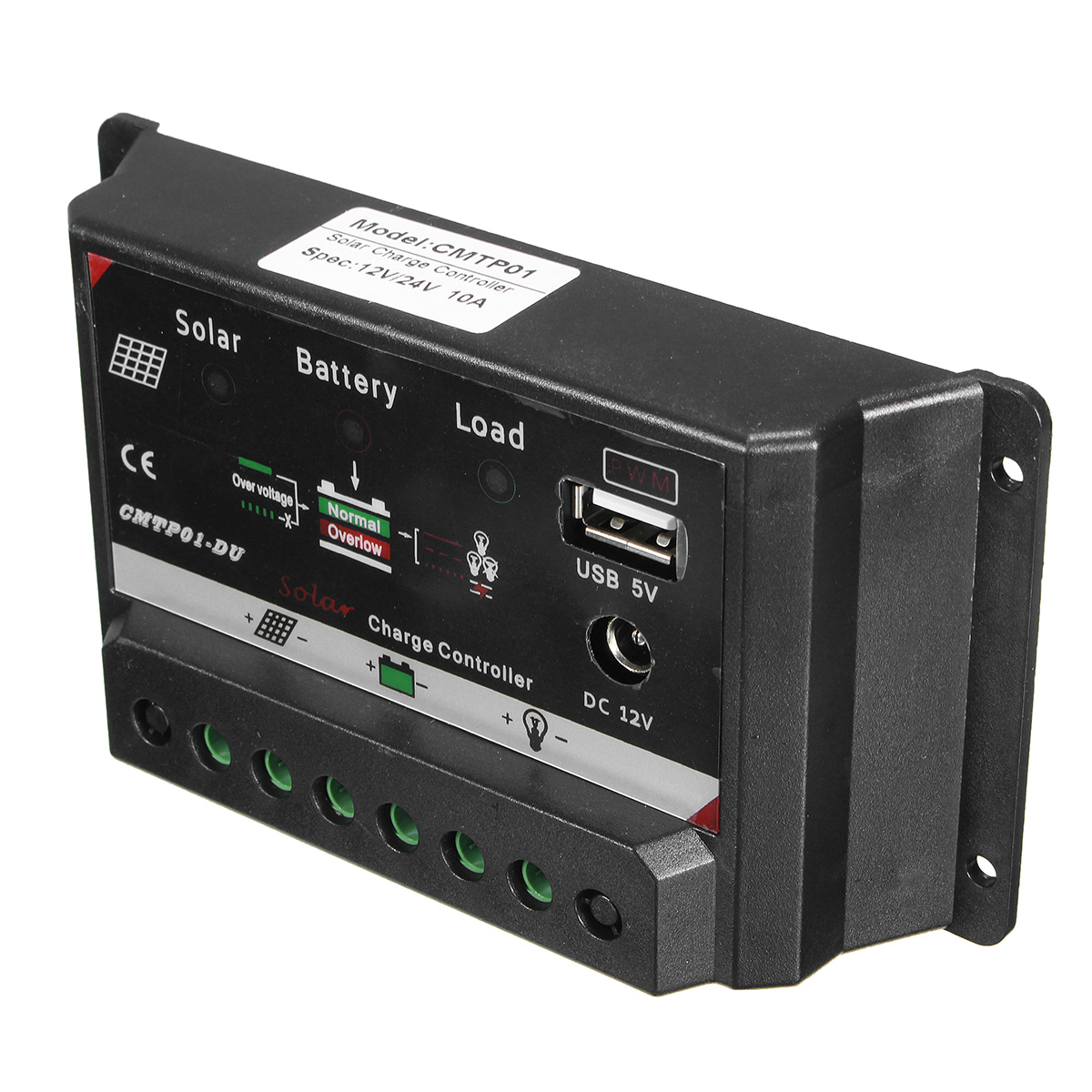

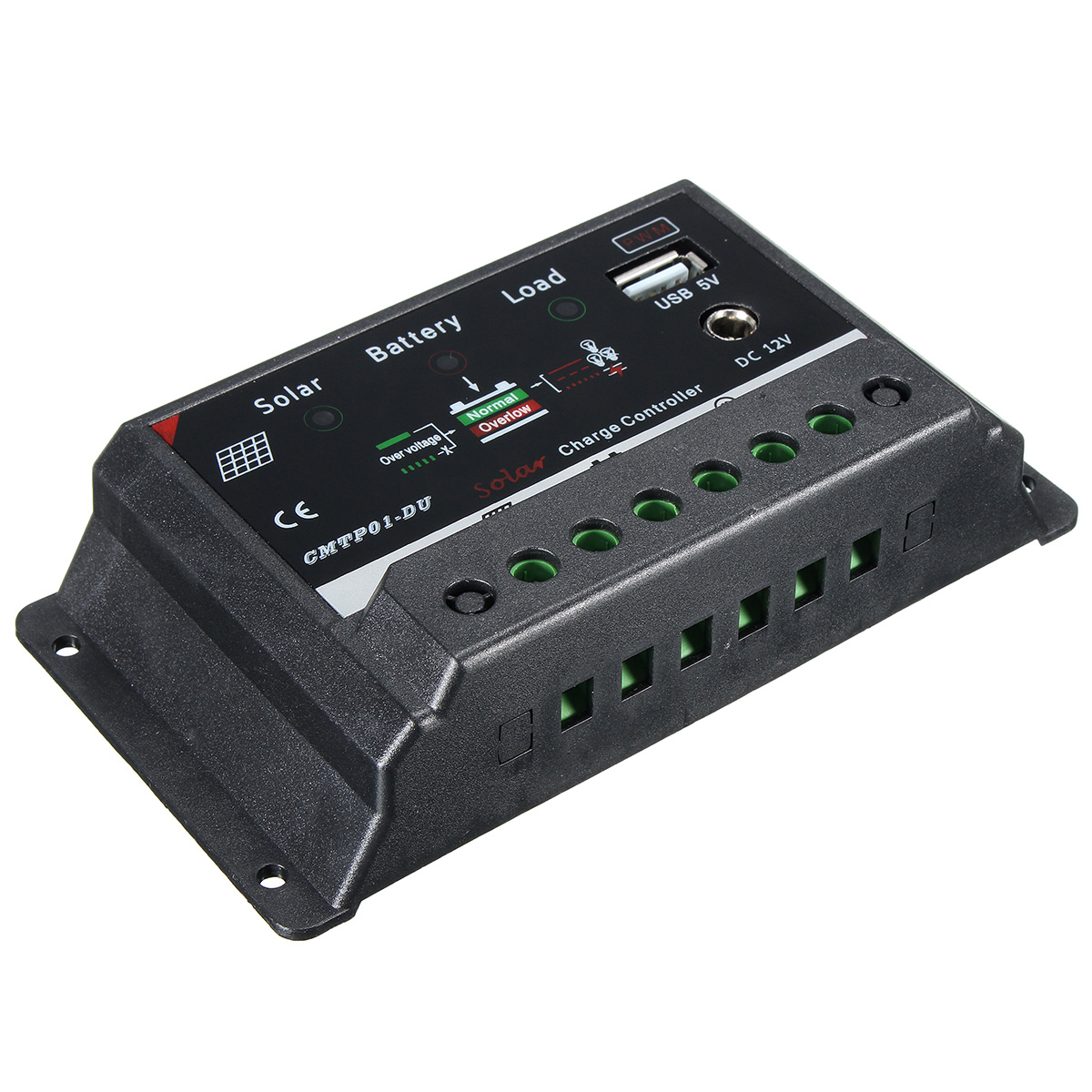

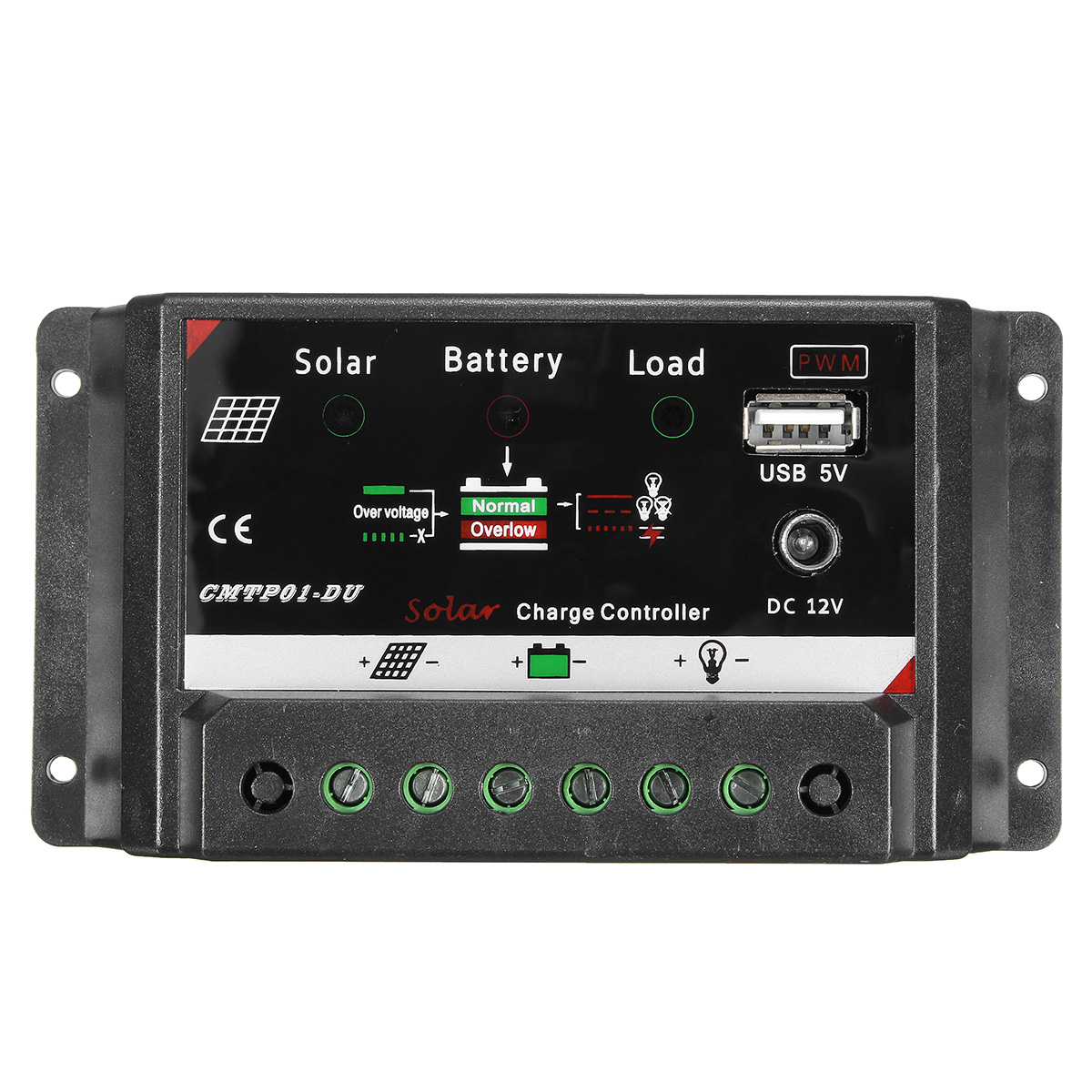

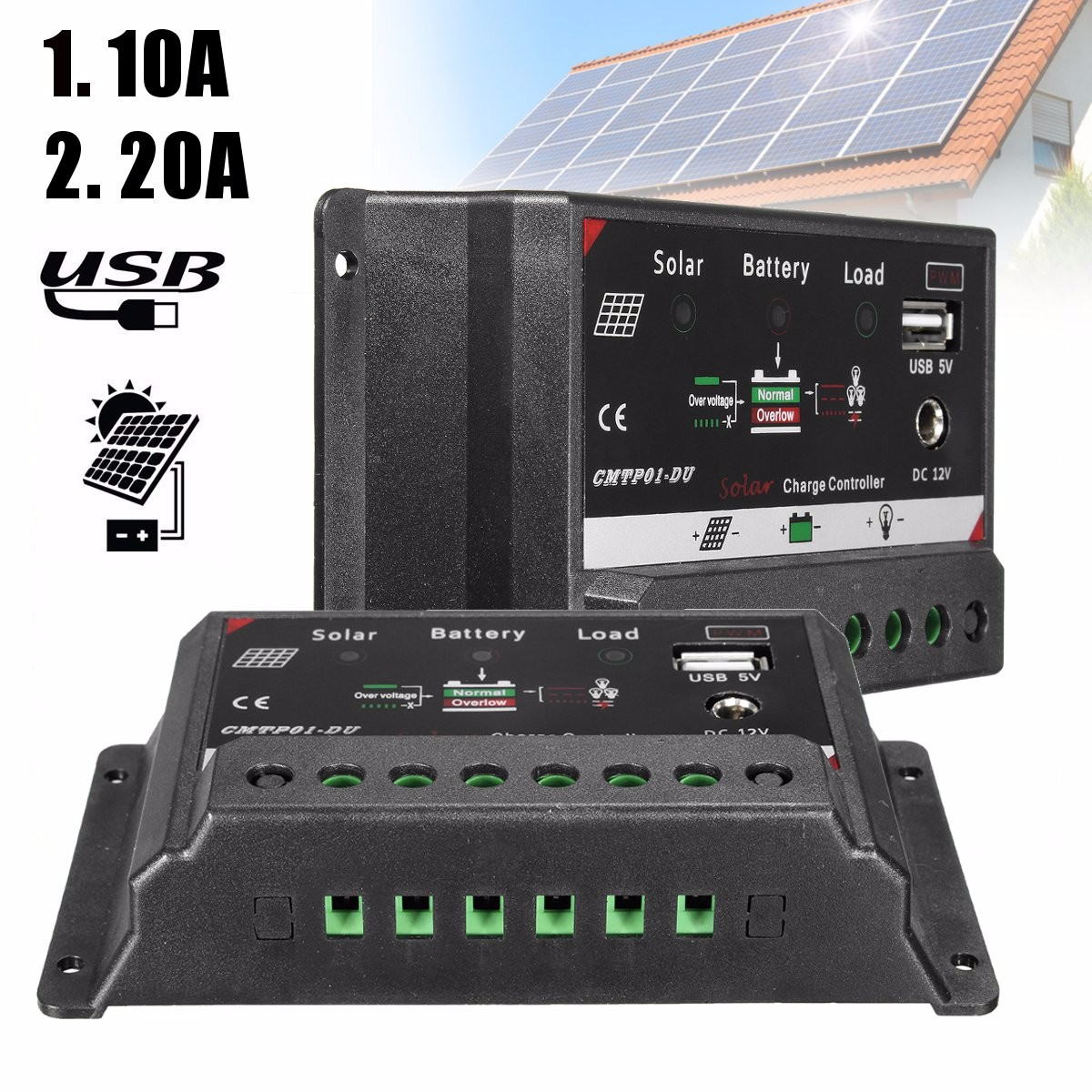

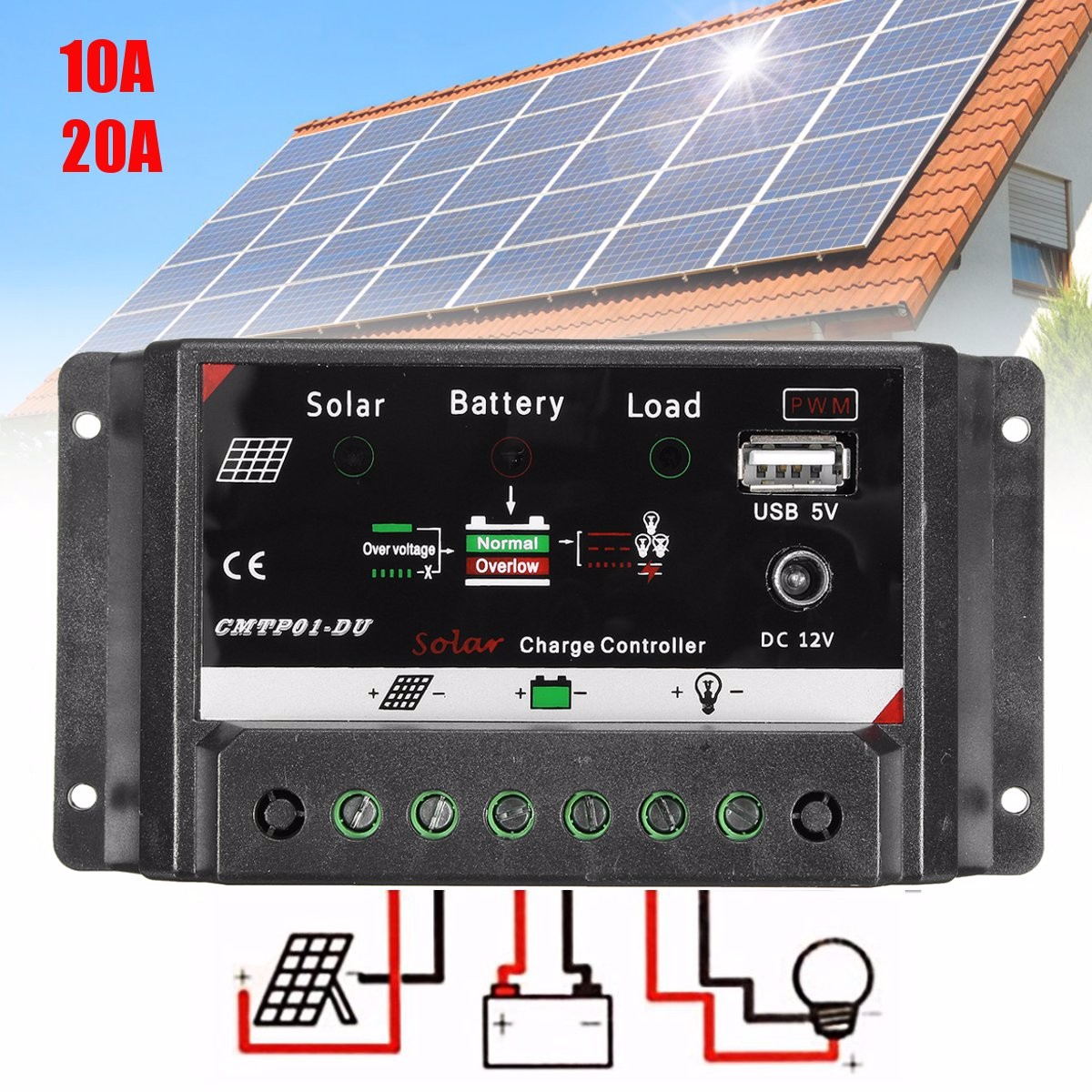

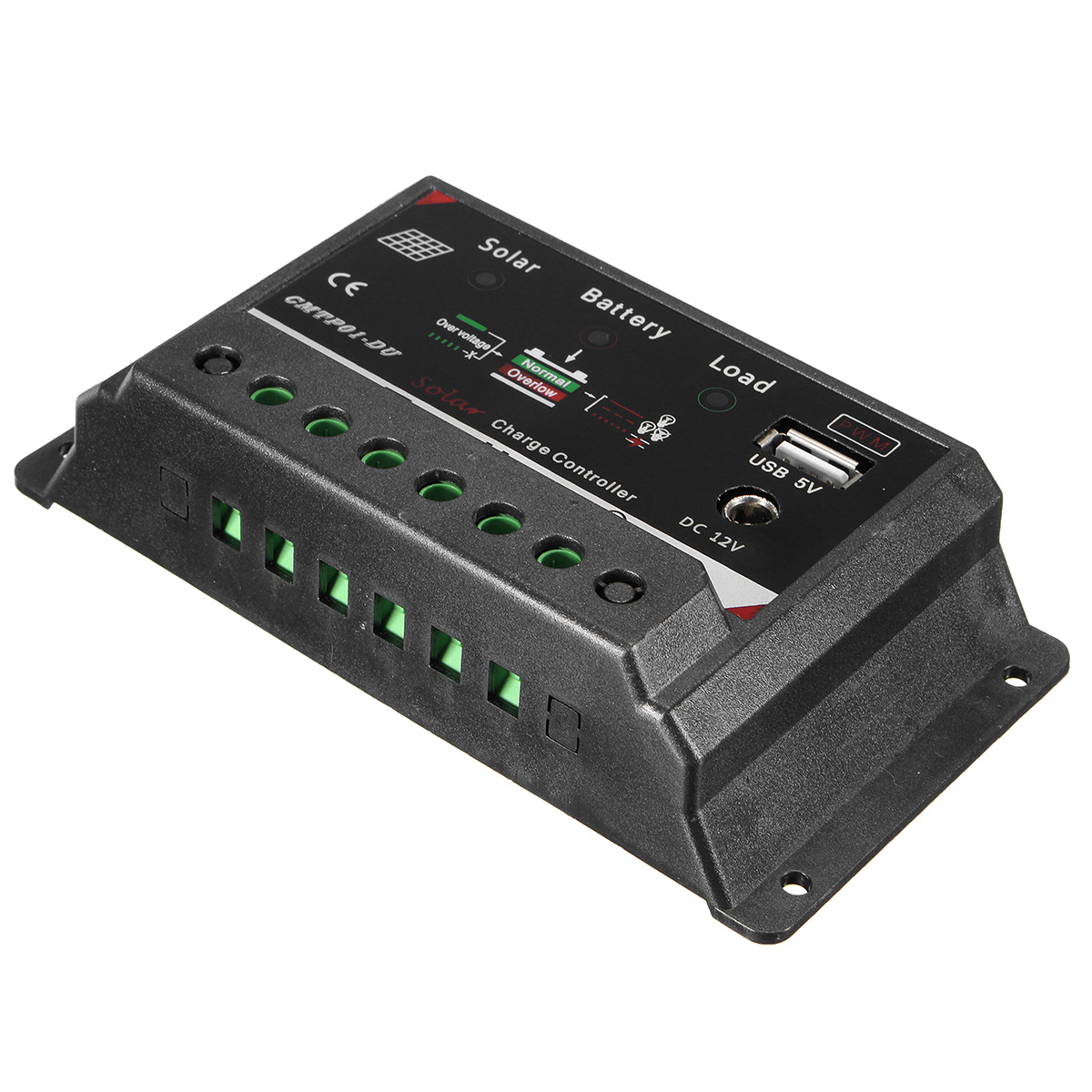

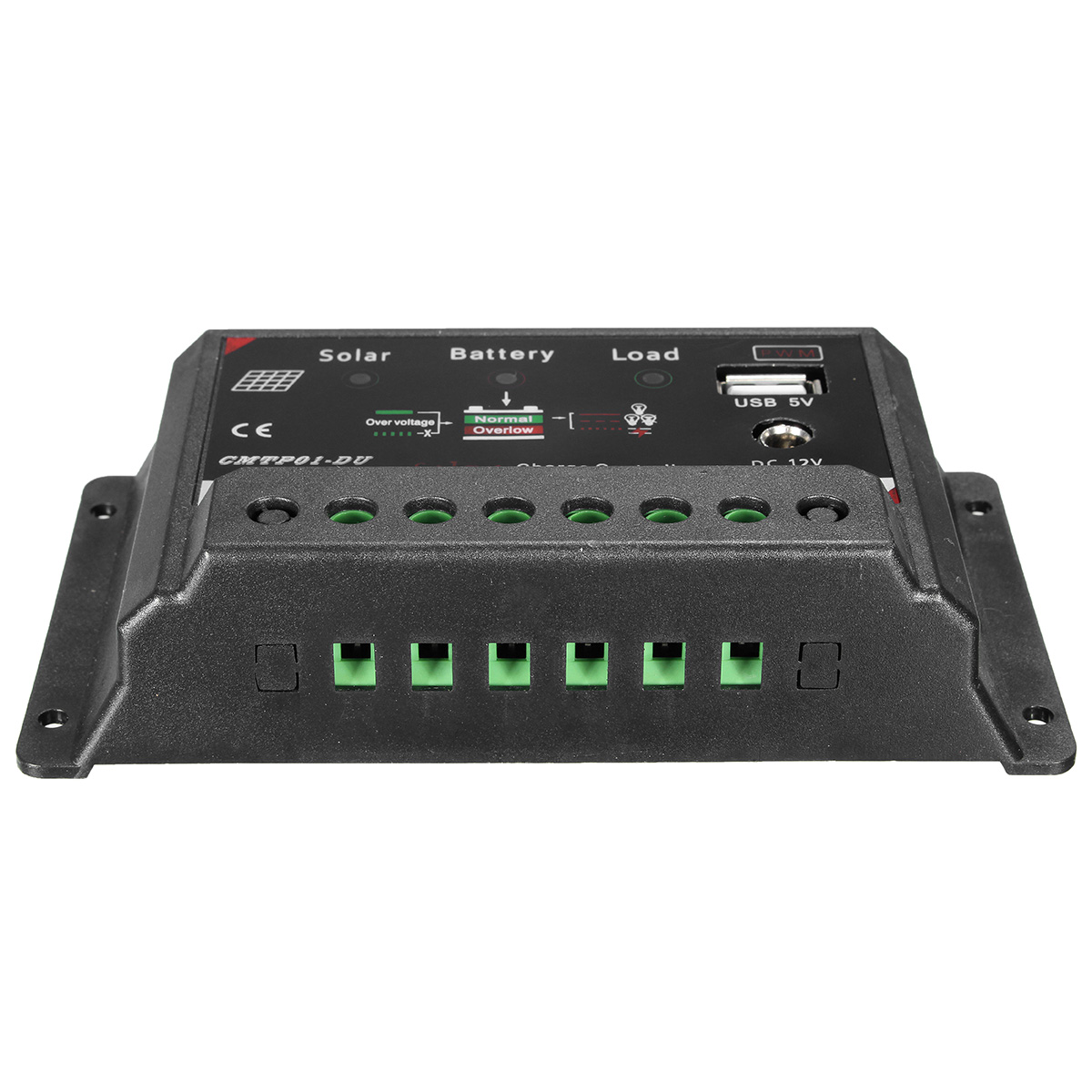

Details pictures:

,,,,,,,,,
