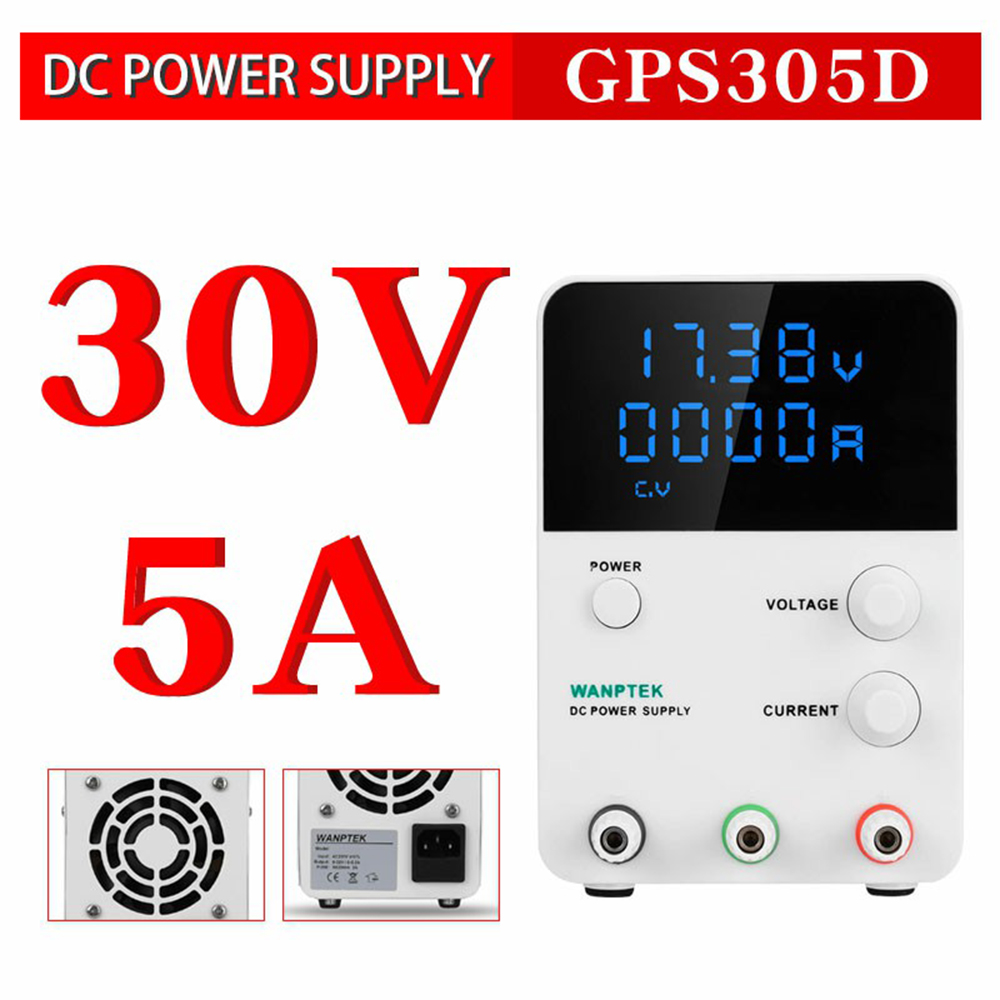

110V 30V/5A 30V/10A 60V/5A DC Power Supply 4 Digits LED Voltage Regulated Switching Power Source
- Stock: In Stock
- Model: ST220016525
- SKU: ST220016525
$100.04
Ex Tax: $100.04
Description :
Wanptek GPS series of switching power supplies for measuring instrument have ruled out the inconvenience of bigvolume and heavyweights of a traditional power supply possess.
The output voltage and current is controlled by two variable resistors with coarse and fine regulation for morehandy and precise adjustment.
Specification :
Operation Environment: Indoor use, Altitude up to 2000m, Installation Category II, Pollution degree 2.
Operation Temperature & Humidity: 0℃to 40℃, <80%. Storage Temperature & Humidity: -10℃ to 70℃, <70%.
Constant Voltage Operation
(1) Output Voltage ranges from 0 to rating voltage with continuous adjustment .
(2) Voltage regulation line regulation ≦5mV. Load regulation ≦5m V.
(3) Recovery time≦500μs(50 % Load change, minimum load 0.5A ). (4) Ripple & Noise≦5m Vrms, 100m Vp-p
(5) Temperature coefficient≦100ppm/℃.
Constant Current Operation
(1) Output current ranges from 0 to rating current with continuous adjustment.
(2) Current regulation line regulation ≦3mA. load regulation ≦3mA.
Indicator Meter
1)Voltage:
1)Voltage:
Display: 4 Digits 0.56” Blue LED display. Accuracy: ±(0.5% of rdg + 2 digits).
2)Current:
Display: 4 Digits 0.56” Blue LED display. Accuracy: ±(0.5% of rdg + 2 digits).
Insulation
Between Chassis and Output Terminal: ≧20MΩ (DC500V). Between Chassis and AC Cord: ≧30MΩ (DC500V).
Features :
With more extensive range of in put volt age at 230V±10% 50Hz
With high frequency operat ion can reduce the size of power transform er.
With small size, light weight and high density power.
Entire efficiency rate higher up to 70%.
Zero adjustment for the output of voltage and current.
Package includeds :
1 x Power Supply (30V 5A / 30V 10A / 60V 5A for Optional~)
1 x US Plug Power Cord (Also come with an adapter according to your country.)
1 x US Plug Power Cord (Also come with an adapter according to your country.)
1 x The Load Line
1 x User Manual
