T-Watch ESP32 WIFI bluetooth S78G GPS LORA Capacitive Touch Screen Programmable Watch Open Source Smart Watch
- Stock: In Stock
- Model: ST230044871
- SKU: ST230044871
$29.99
Ex Tax: $29.99
Hardware Specifications:
Power Supply Specifications:
Wi-Fi:
Software Specifications:
Appearance Specifications:

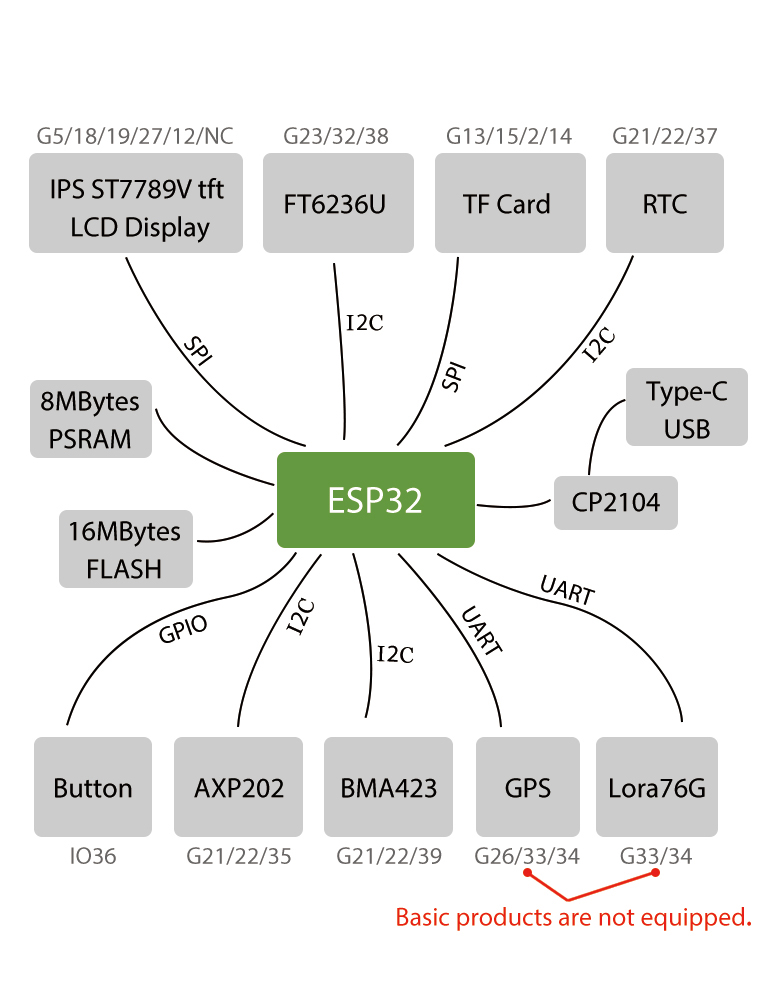

T-Watch onboard:
1.54 inch LCD capacitive touch screen: ST7789V
Touch screen chip: FT5206
Accelerometer: BMA423
PMU power management: AXP202
RTC clock module: PCF8563
Expand the interface:
Support microphone: MSM261S4030H0
Support SPI TF memory card
2 digital I/Os: GPIO25, GPIO26 (supports ADC, DAC)
Support I2C, UART, SPI communication protocol
Product Details:

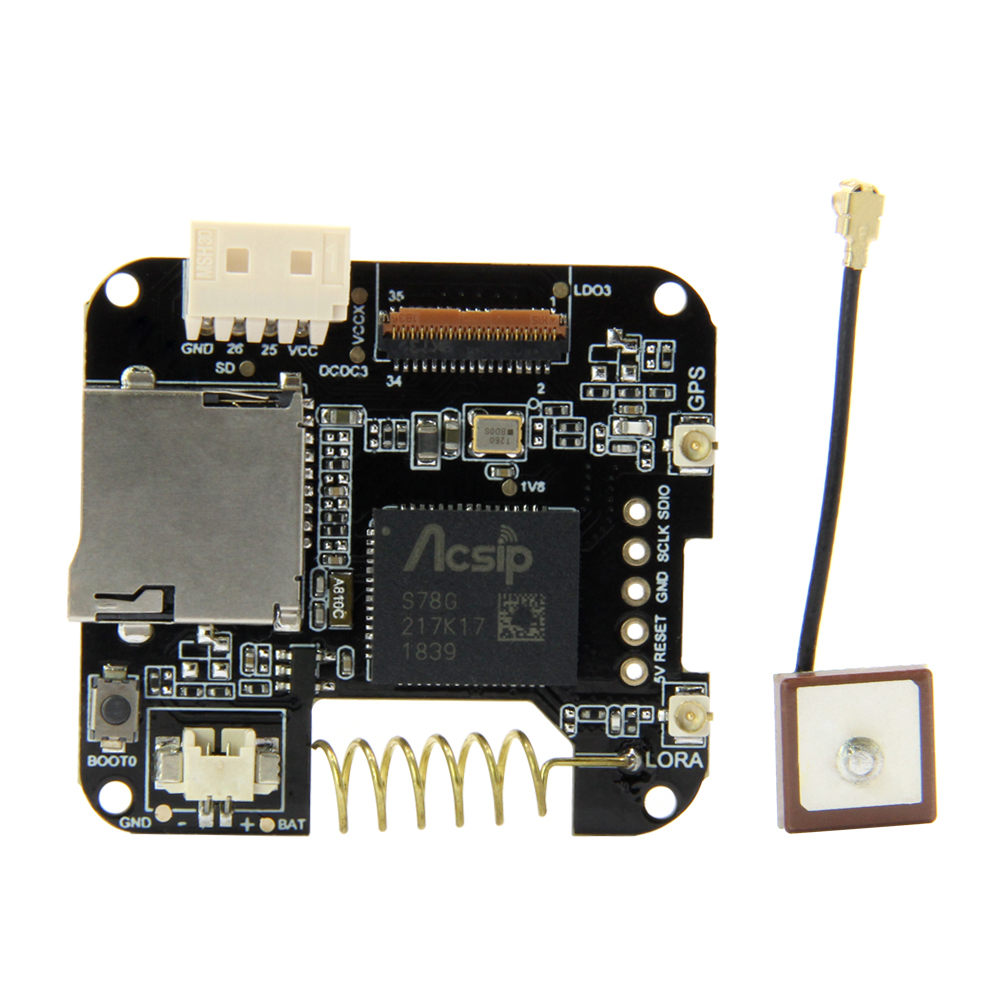

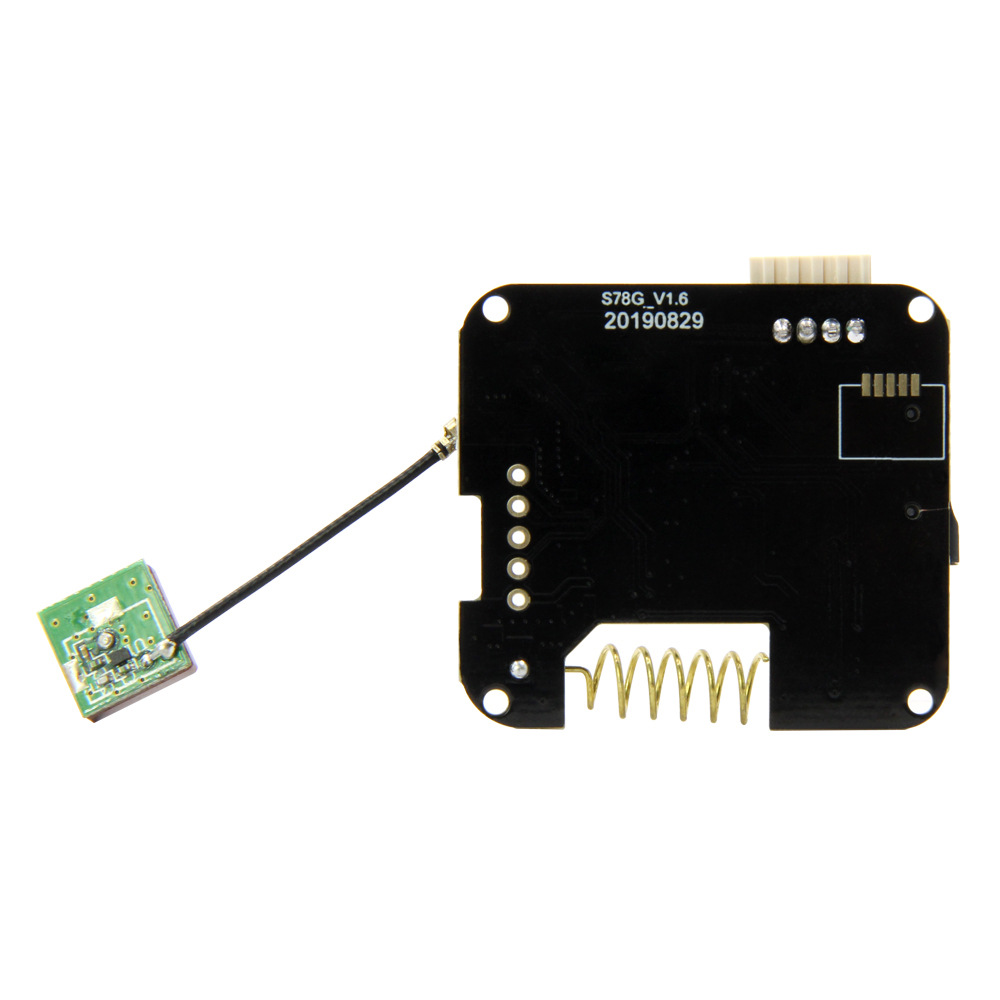

T-Watch S78G GPS LORA Optional:
| Chipset | ESP32, dual-core MCU, PMU power management |
| FLASH | QSPI flash 16MB |
| SRAM | 520 kB SRAM / PSRAM 8MB |
| Button | power key , IO36 |
| Extended function | |
| USB to TTL | CP2104 (update to CH9102F) |
| Modular interface | UART, SPI, SDIO, I2C, LED PWM , PWM, I2S, IRGPIO, capacitor touch sensor, ADC, DACLNA |
| On-board clock | 40MHz crystal oscillator |
| Working voltage | 2.7V-3.6V |
| Working current | about 70mA |
| Sleep current | about 3mA |
| Working temperature | -40℃ ~ +85℃ |
| Size & Weight | 46.47 x 43 x 20.4mm 43.19g |
| Display | 1.54 inch LCD capacitive touch screen |
| Sensor | BMA423 three accelerometer, built-in step counting algorithm, activity recognition / tracking, advanced gesture recognition. |
| RTC clock | PCF8563 |
Power Supply Specifications:
| Power Supply | USB 5V/1A |
| Charging current | 500mA |
| Battery | 3.7V lithium battery |
Wi-Fi:
| Standard | FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC |
| Protocol | 802.11 b/g/n(802.11n, speed up to150Mbps) A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval |
| Frequency | 2.4GHz~2.5GHz(2400M~2483.5M) |
| Transmit Power | 22dBm |
| Communication distance | 300m |
| Bluetooth | |
| Protocol | meet bluetooth V4.2 BR/EDR and BLE standard |
| Radio frequency | with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH |
| Audio frequency | CVSD&SBC audio frequency |
Software Specifications:
| Wi-Fi Mode | Station/SoftAP/SoftAP+Station/P2P |
| Security mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
| Encryption Type | AES/RSA/ECC/SHA |
| Firmware upgrade | UART download/OTA (Through network/host to download and write firmware) |
| Software Development | Support cloud server development /SDK for user firmware development |
| Networking protocol | IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT |
| User Configuration | AT + Instruction set, cloud server, android/iOSapp |
| OS | FreeRTOS |

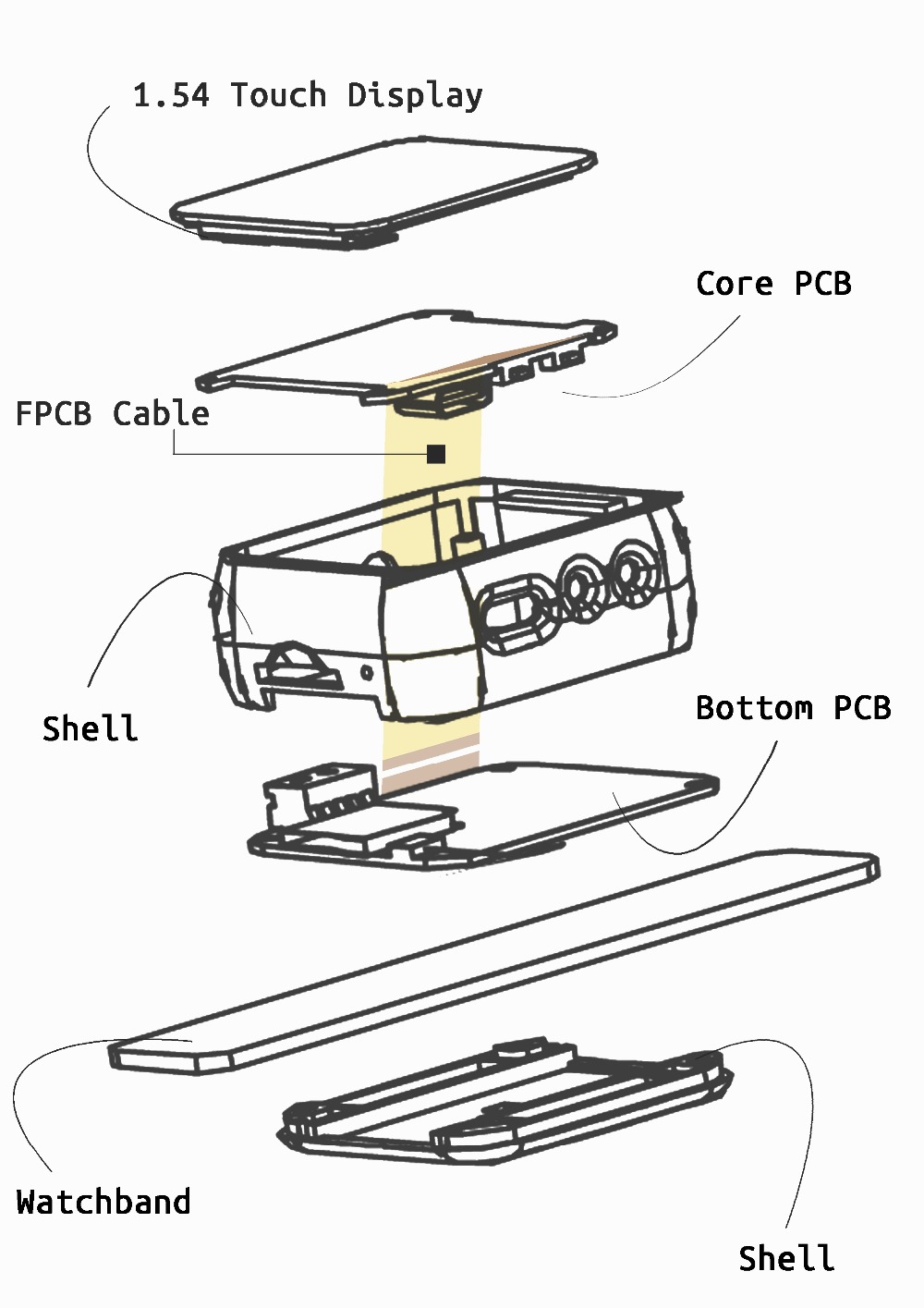

Appearance Specifications:
T-Watch onboard:
1.54 inch LCD capacitive touch screen: ST7789V
Touch screen chip: FT5206
Accelerometer: BMA423
PMU power management: AXP202
RTC clock module: PCF8563
Expand the interface:
Support microphone: MSM261S4030H0
Support SPI TF memory card
2 digital I/Os: GPIO25, GPIO26 (supports ADC, DAC)
Support I2C, UART, SPI communication protocol
Product Details:
Accelerometer:
• Chip: BMA423
• Latest generation triaxial, low-g acceleration sensor
• ultra-small
• digital interfaces
• 2-bit digital resolution and embedded intelligence
• allows low-noise measurement of accelerations in 3 perpendiculars and thus senses wrist tilt, tab/double tab and enables plug & play step counting especially in wearable devices.
Recommended for:
- Step-counting in wearable devices
- Wake up display on wrist tilt
- Low power user interaction by tab/double tab
- Advanced gesture recognition
- Activity recognition/tracking
- Advanced power management
- Tilt compensation for electronic compass
Package includes:
(the battery is not includes)

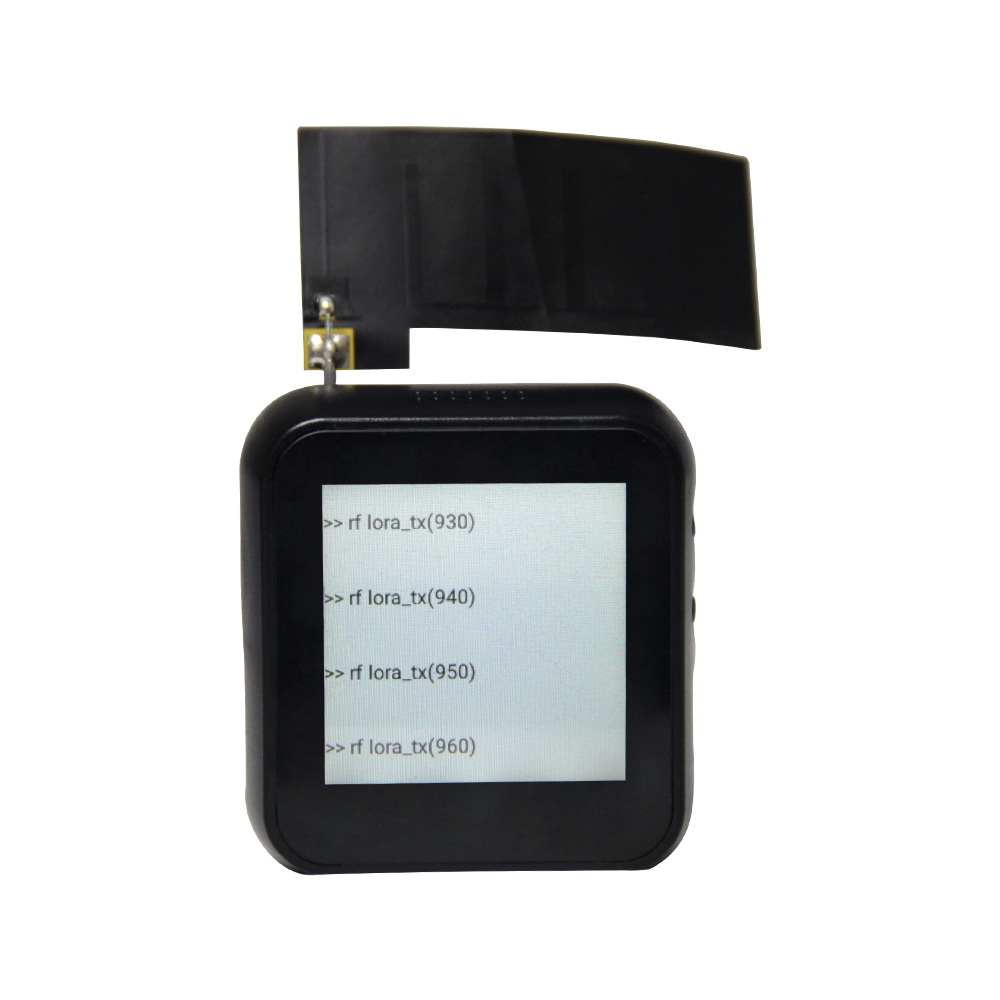

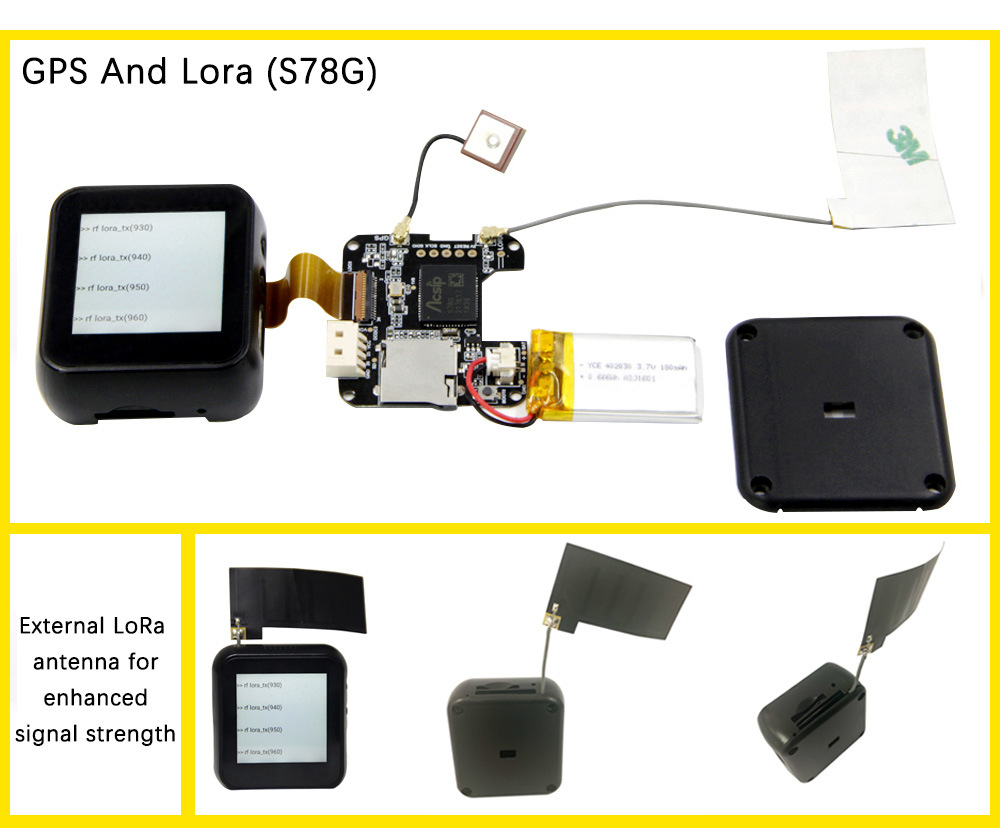

GPS and LORA (s78G) Black Optional:

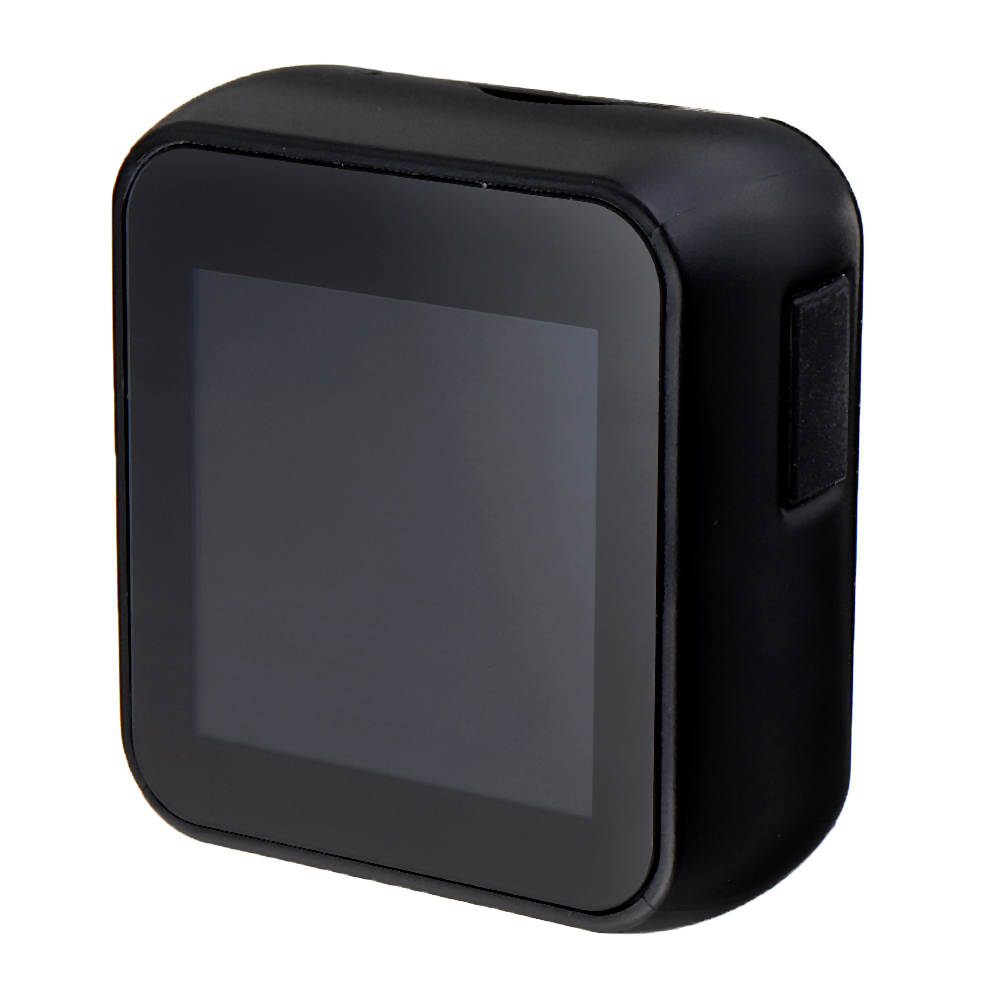

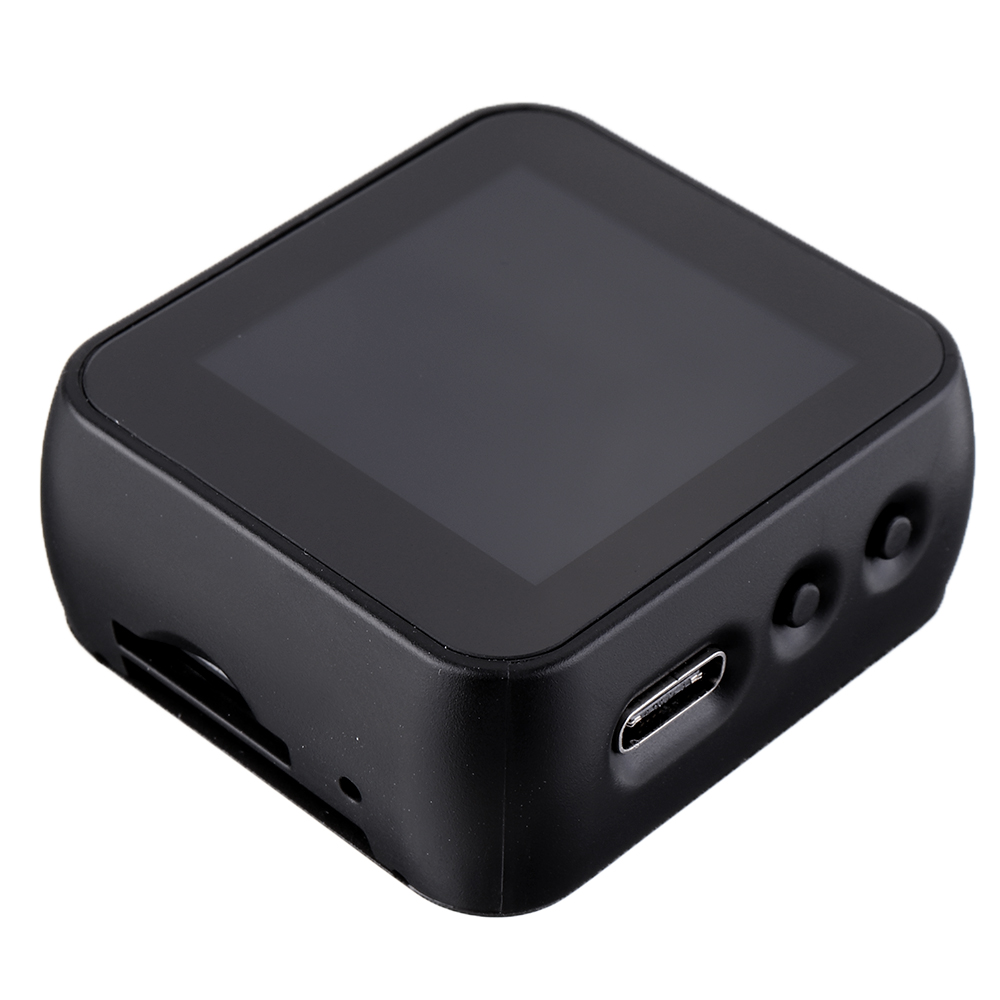

1 x GPS and LORA (s78G) Black version
GPS and LORA (s78G) Black Optional:

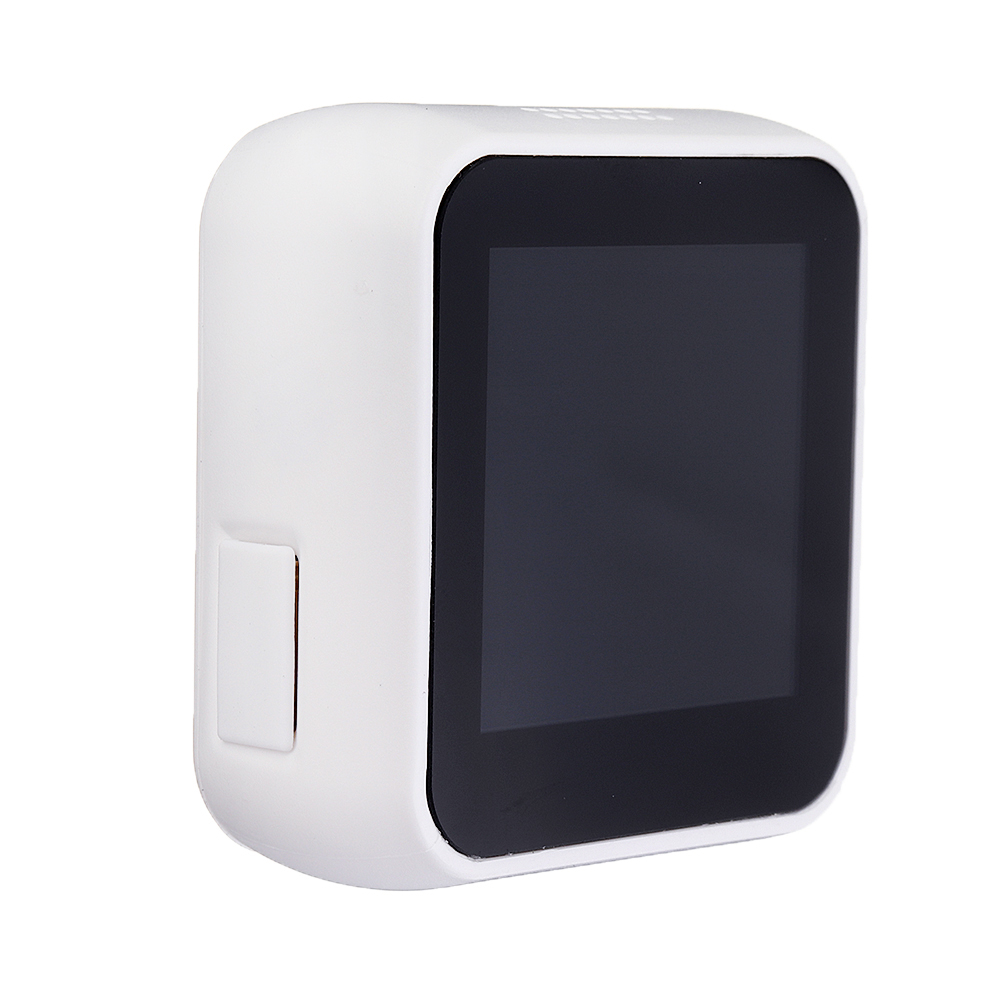

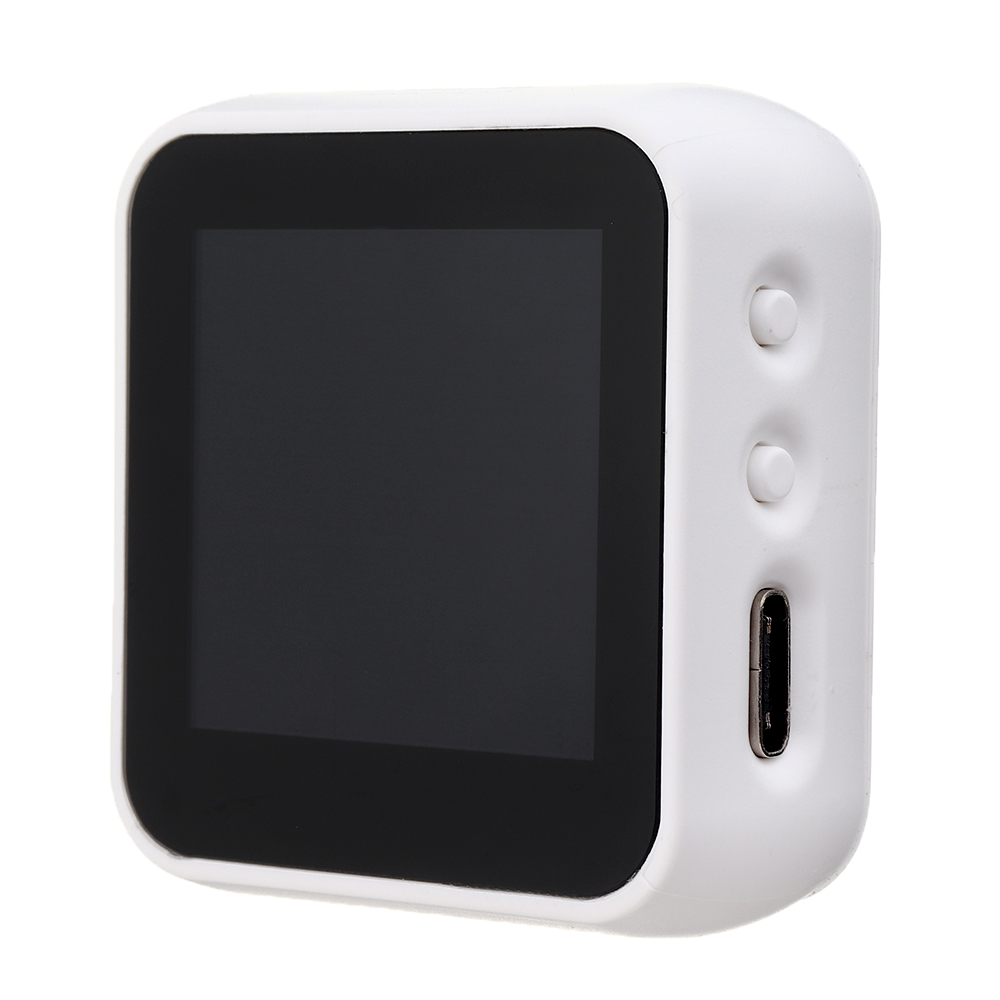

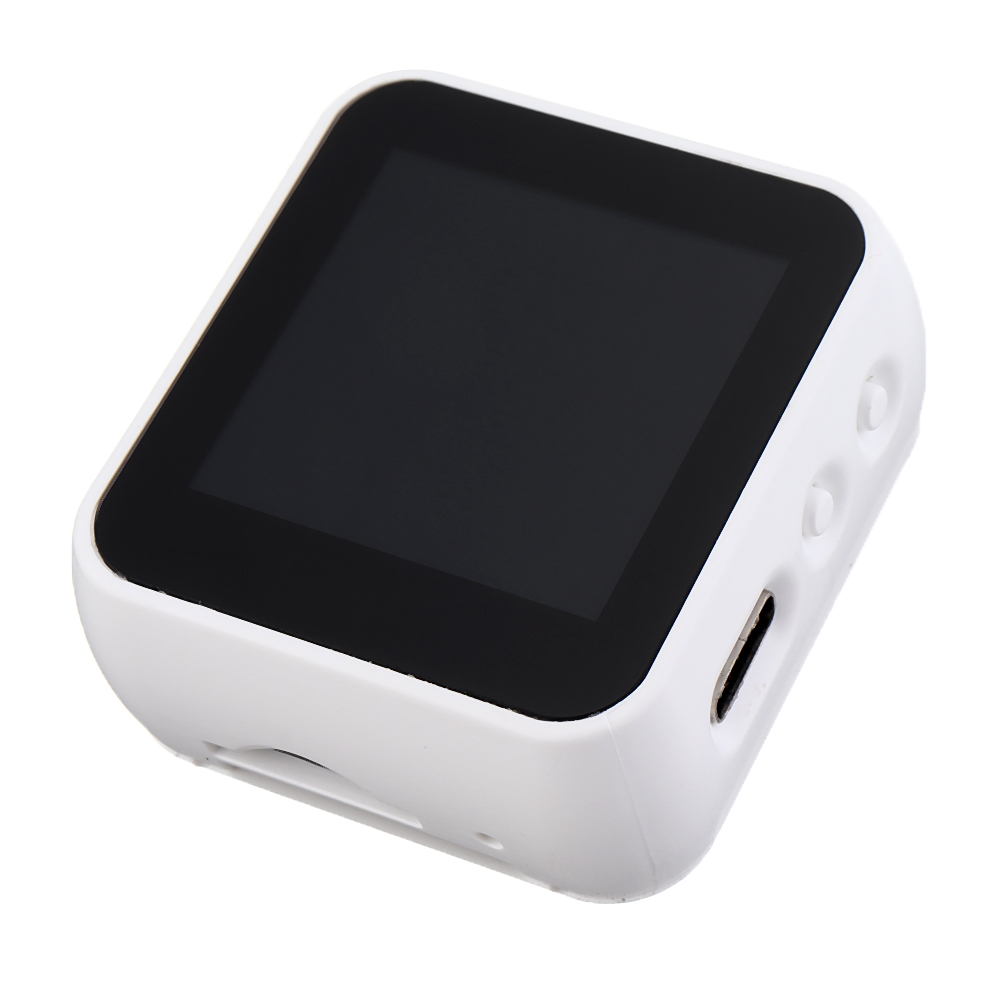

1 x GPS and LORA (s78G) White version
1 x GPS and LORA (s78G) White version
T-Watch S78G GPS LORA Optional:
1 X Expansion board
