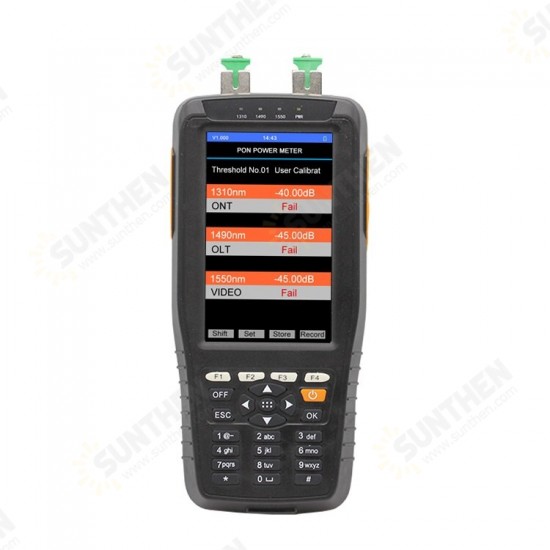

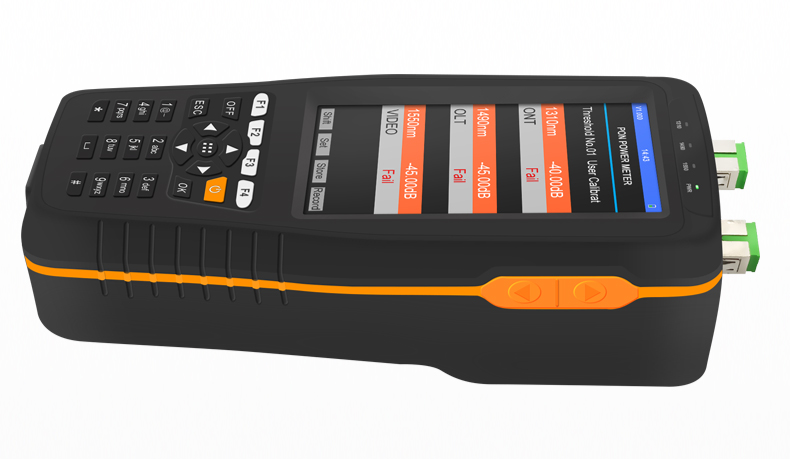

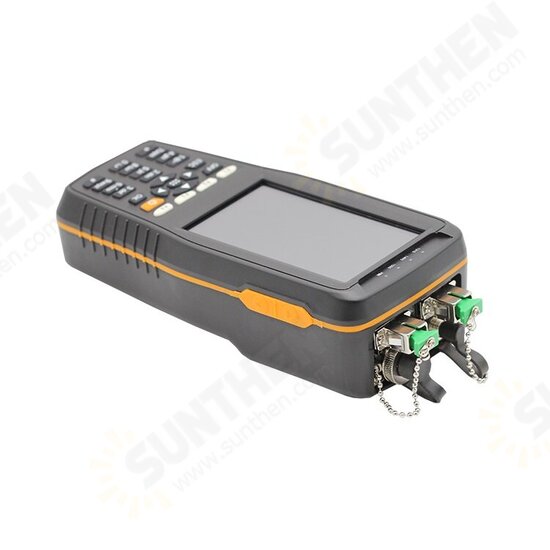

TM70B TM70B-OV1 High Precision PON Power Meter Tester Fiber Tester 1MW VFL Optical Network Tester Rechargeable
- Stock: In Stock
- Model: ST22012124
- SKU: ST22012124
$144.99
Ex Tax: $144.99
Optional:

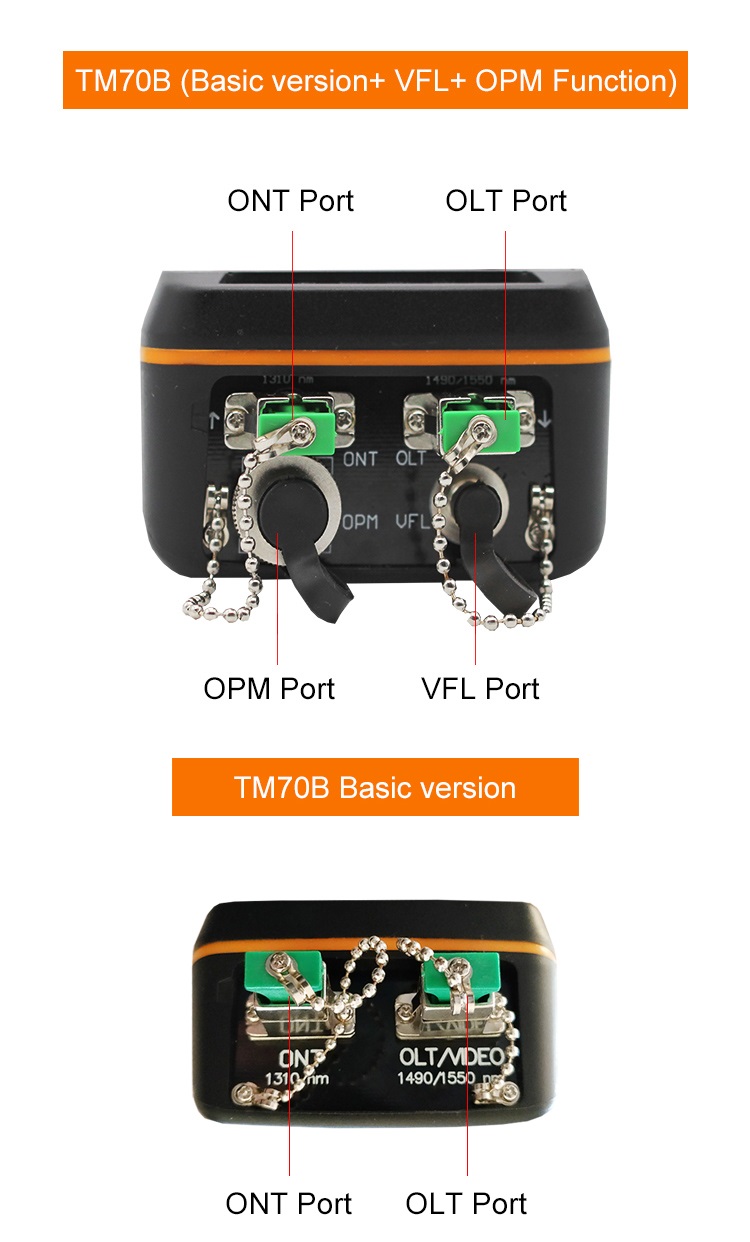

TM70B: Only PON Power Meter

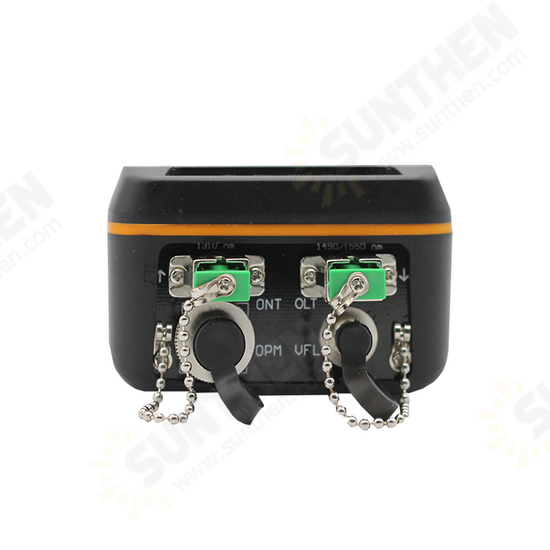

TM70B-OV1: PON Power Meter + 10MW VFL + Optical Power Meter (850/1300/1310/1490/1550/1625nm)
Description:

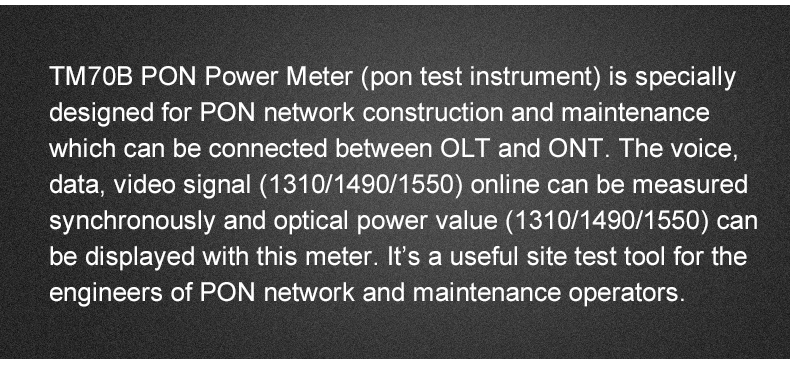

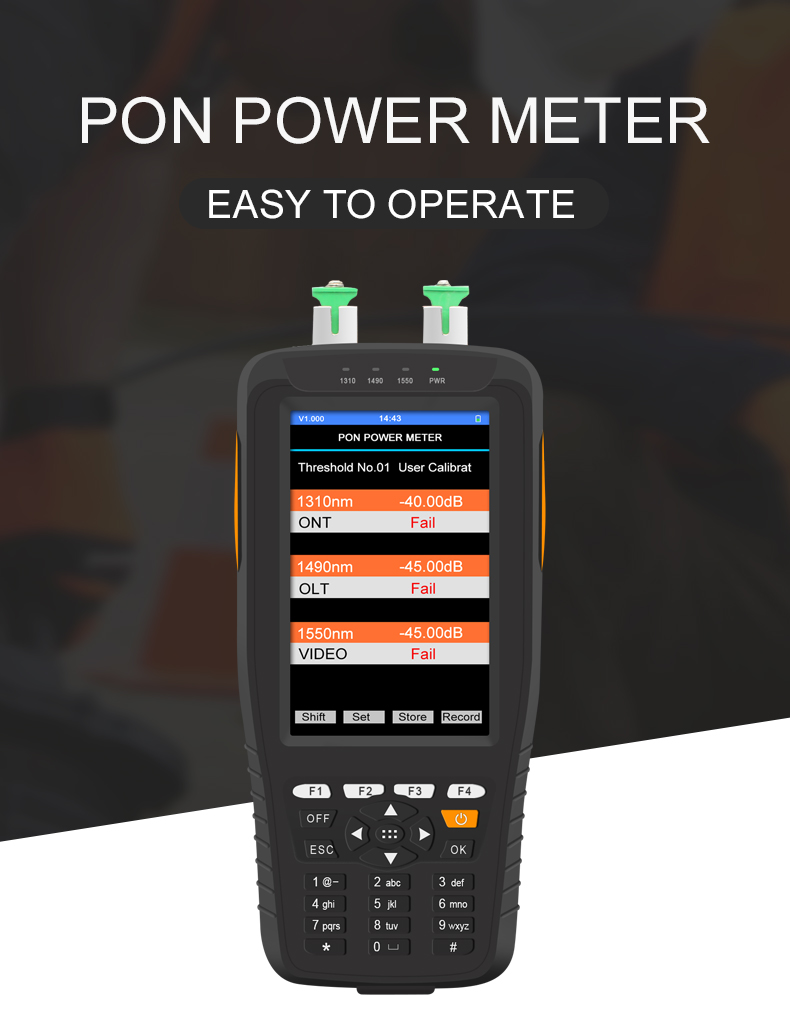

TM70B PON Power Meter (pon test instrument) is specially designed for PON network construction and maintenance which can be connected between OLT and ONT. The voice, data, video signal (1310/1490/1550) online can be measured synchronously and optical power value (1310/1490/1550) can be displayed with this meter. It's a useful site test tool for the engineers of PON network and maintenance operators.

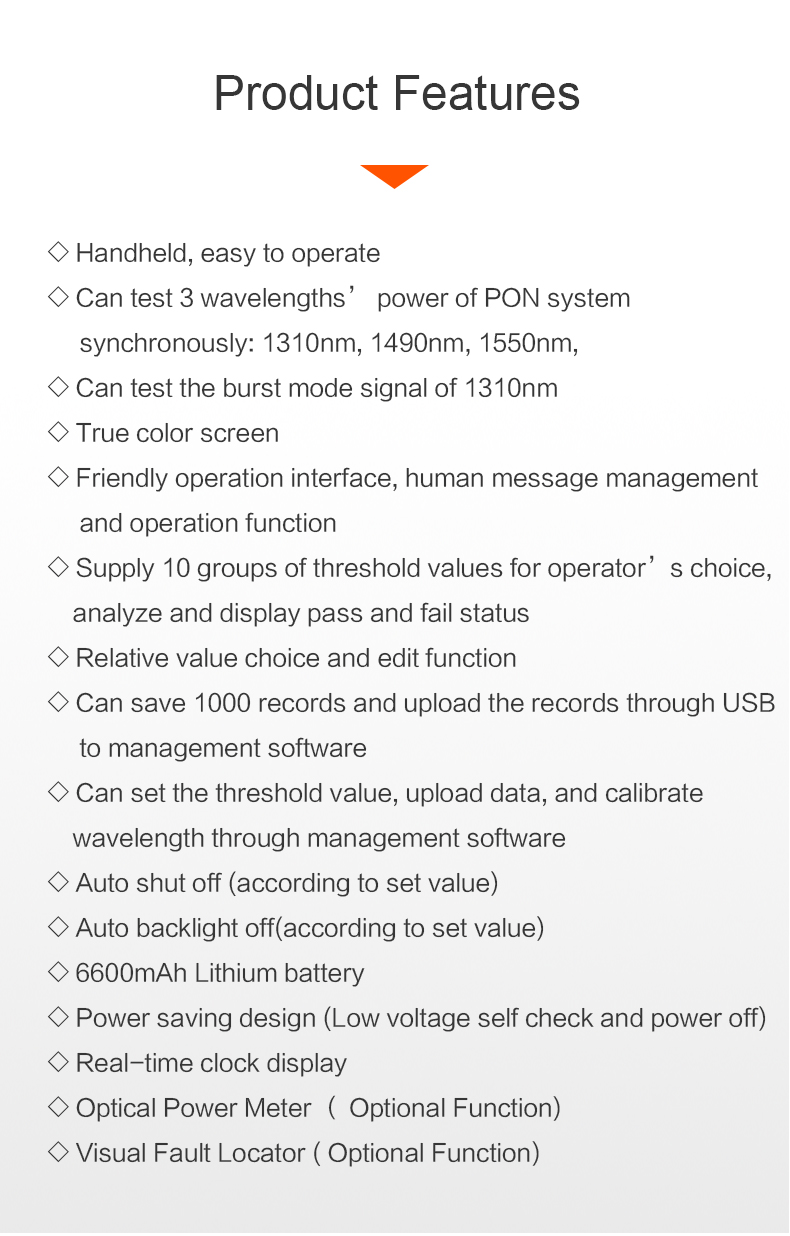

Main Features:
Handheld, easy to operate

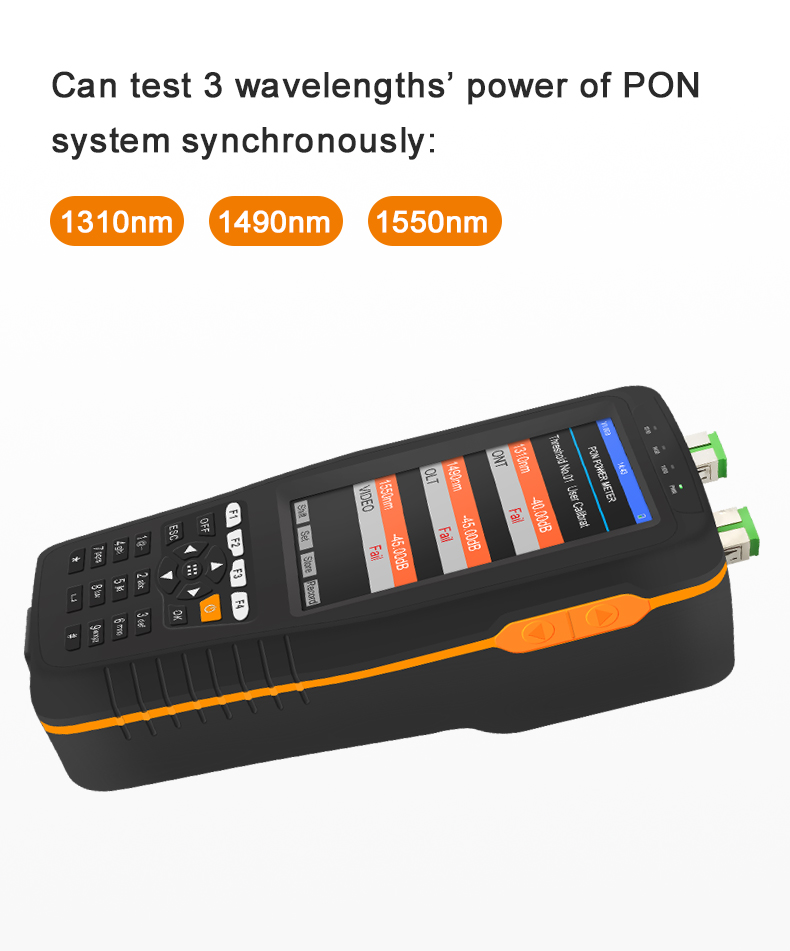

Can test 3 wavelengths' power of PON system synchronously: 1310nm, 1490nm, 1550nm,
Can test the burst mode signal of 1310nm

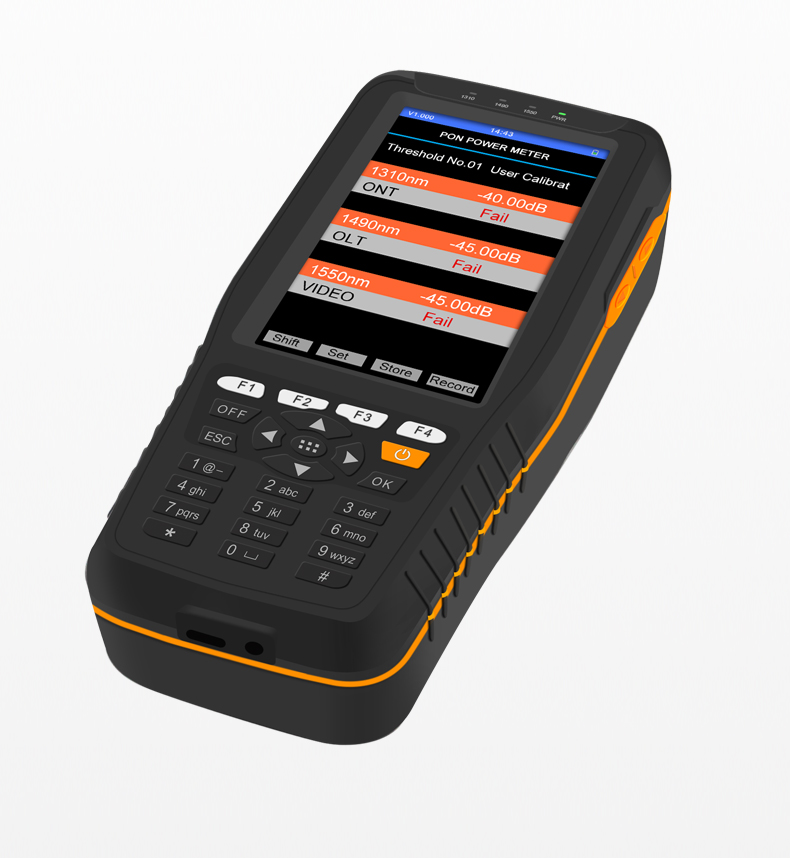

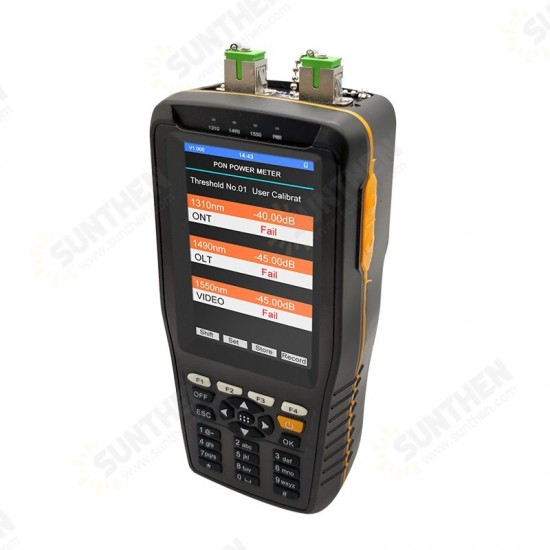

True color screen
Friendly operation interface, human message management and operation function

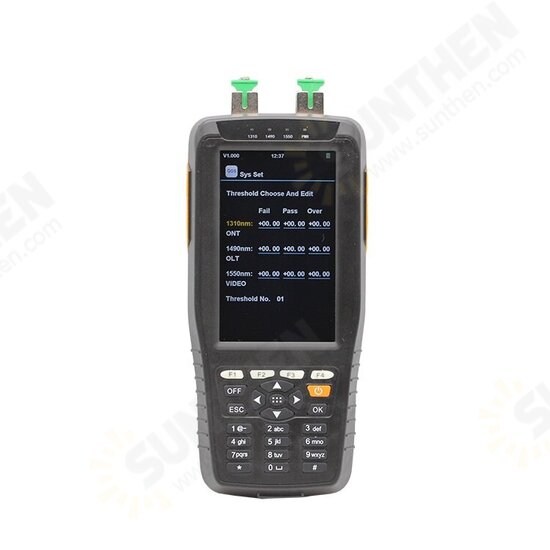

Supply 10 groups of threshold values for operator’s choice, analyze and display pass and fail status
Relative value choice and edit function

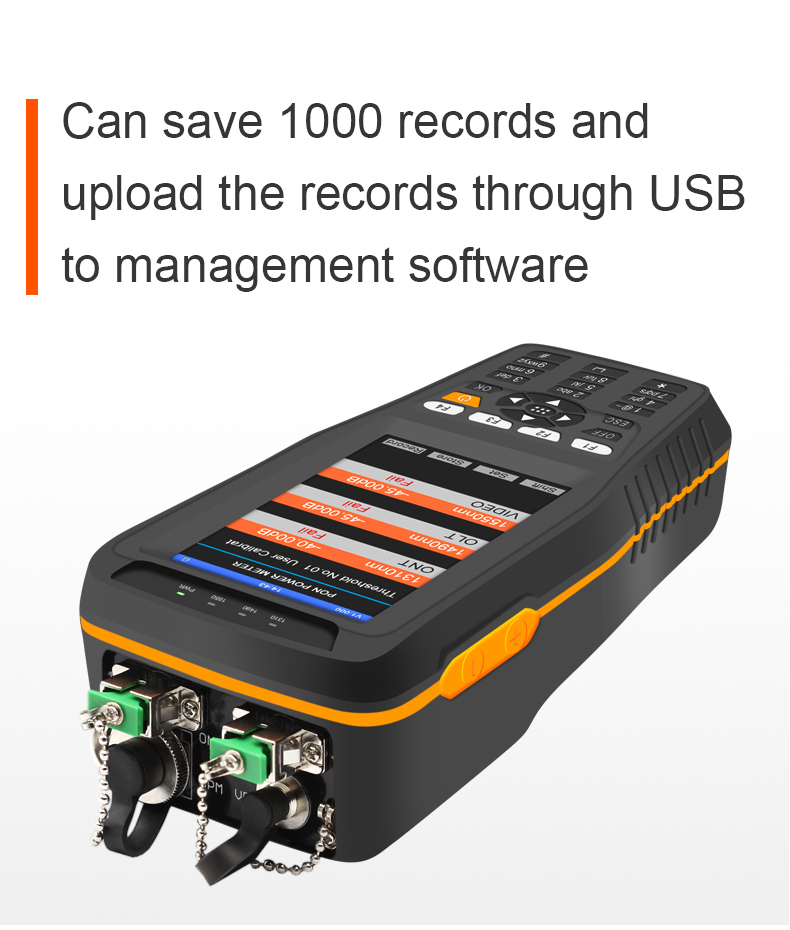

Can save 1000 records and upload the records through USB to management software
Can set the threshold value, upload data, and calibrate wavelength through management software
Auto shut off (according to set value)
Auto backlight off(according to set value)
4400mAh 18650 Lithium battery
Power saving design (Low voltage self check and power off)
Real-time clock display

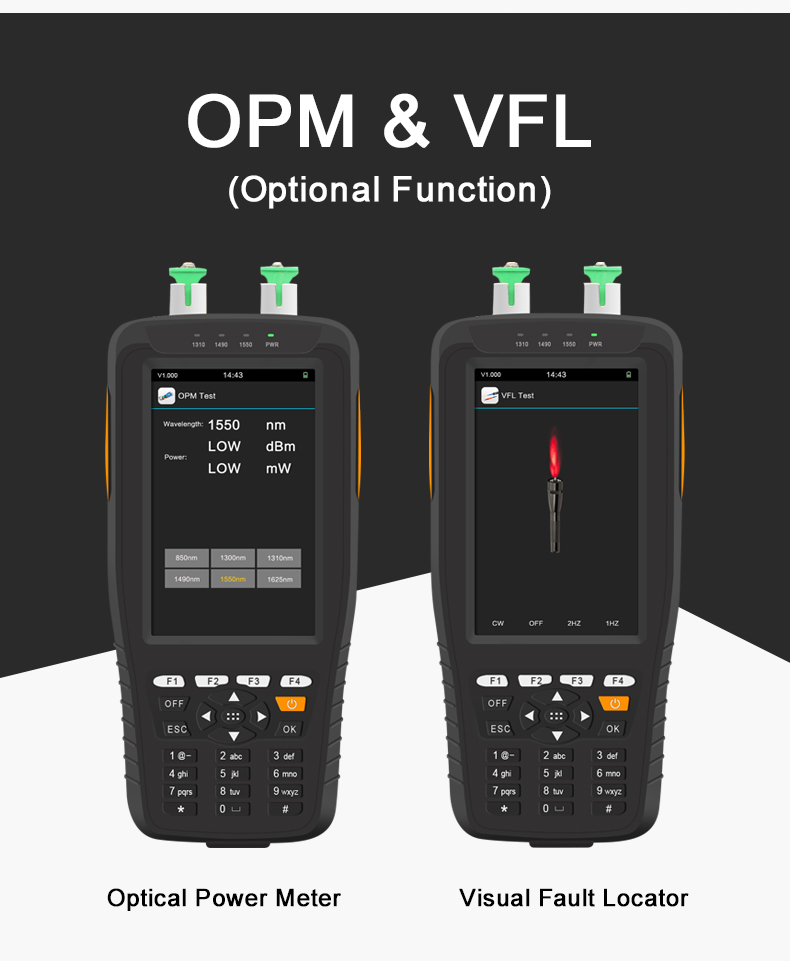

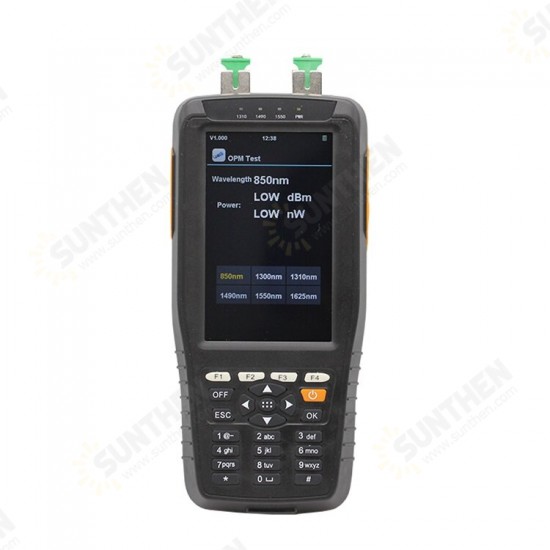

Optical Power Meter (TM70B-OV1 Only)
Visual Fault Locator (TM70B-OV1 Only)
Specification:
LCD: 480*800, True colors touch screen
Battery: 4400mAh 18650 rechargeable Lithium battery
Working temperature: -10~60°C
Storage Temperature: -25~70°C
Dimensions: 185 x 80 x 50mm
Weight: about 370g
Standard wavelengths | 1310 | 1490 | 1550 |
Pass zone(nm) | 1260~1360 | 1470~1505 | 1535~1570 |
Range(dBm) | -50~+10 | -50~+10 | -45~+23 |
Isolation @1310nm(dB) | | >40 | >40 |
Isolation @1490nm(dB) | >40 | | >40 |
Isolation @1550nm(dB) | >40 | >40 | |
Accuracy | |||
Uncertainty(dB) | ±0.5 | ||
Polarization Dependent Loss (dB) | <±0.25 | ||
Linearity(dB) | ±0.1 | ||
Through Insertion Loss(dB) | <1.5 | ||
Resolution | 0.01dB | ||
Unit | dBm/xW | ||

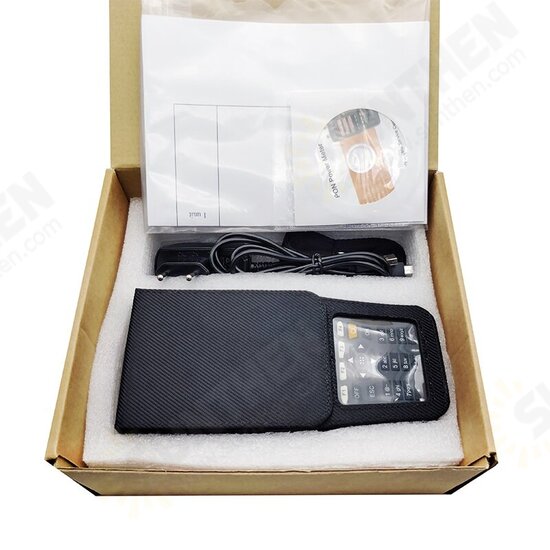

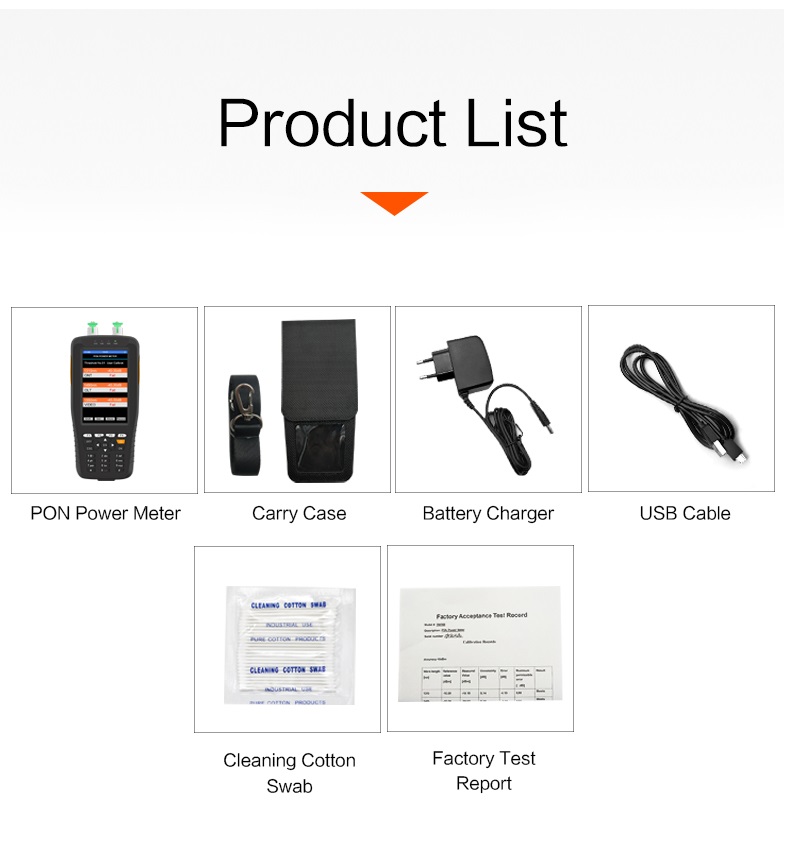

Package included:
1 x TM70B-OV1/TM70B Fiber Optical PON Power Meter

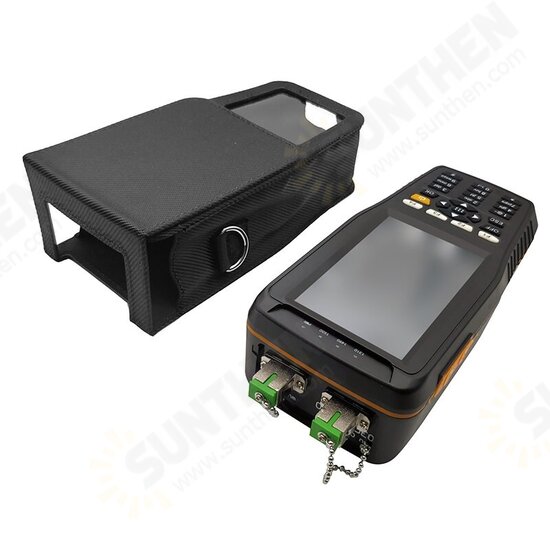

1 x Carry case
1 x Charger (US plug)
1 x USB cable
1 x Cleaning cotton swab
1 x Test report
