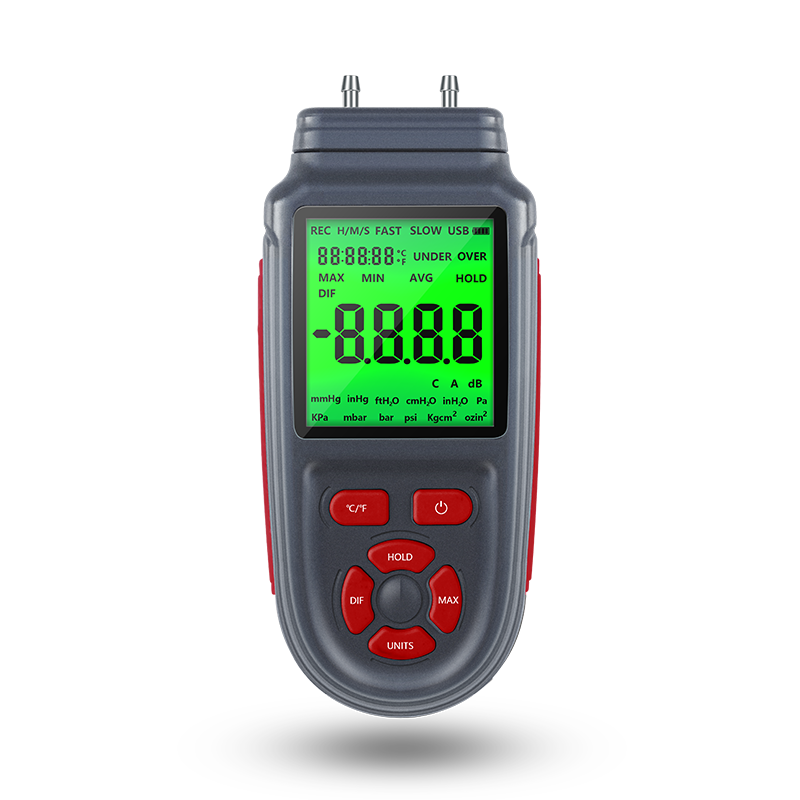

TC168A/TC169A LCD Backlight Display Digital Pressure Gauge Pressure Measuring Instruments USB DC Power Supply
- Stock: In Stock
- Model: ST220012374
- SKU: ST220012374
$48.99
Ex Tax: $48.99
Description:

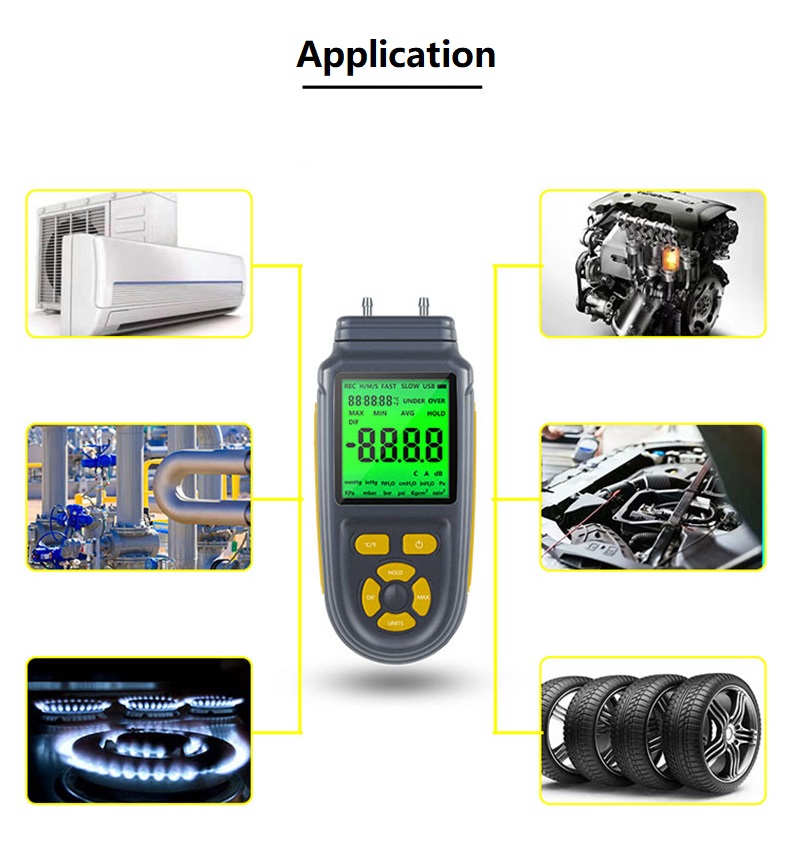

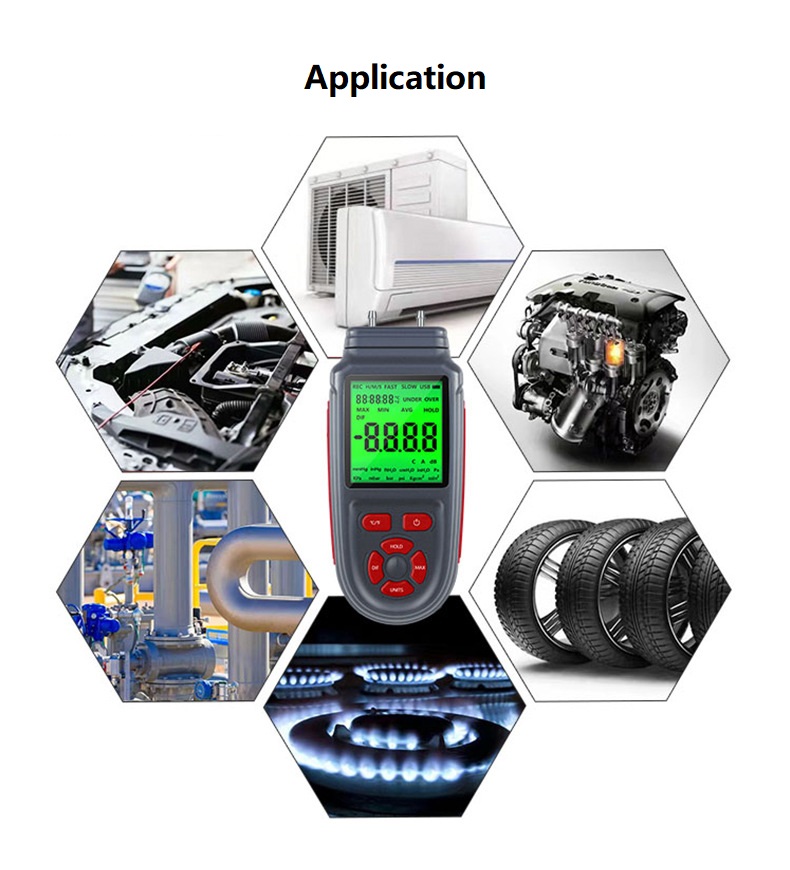

ZN-TC-168A/169A can measure differential pressure, total external static pressure, manifold pressure and pipeline speed, making it an ideal choice for HVAC/R field service technicians.
Accurate measurement: Thanks to the temperature and air density compensated pressure sensor, the barometer can provide accurate data for ten different measurement units.

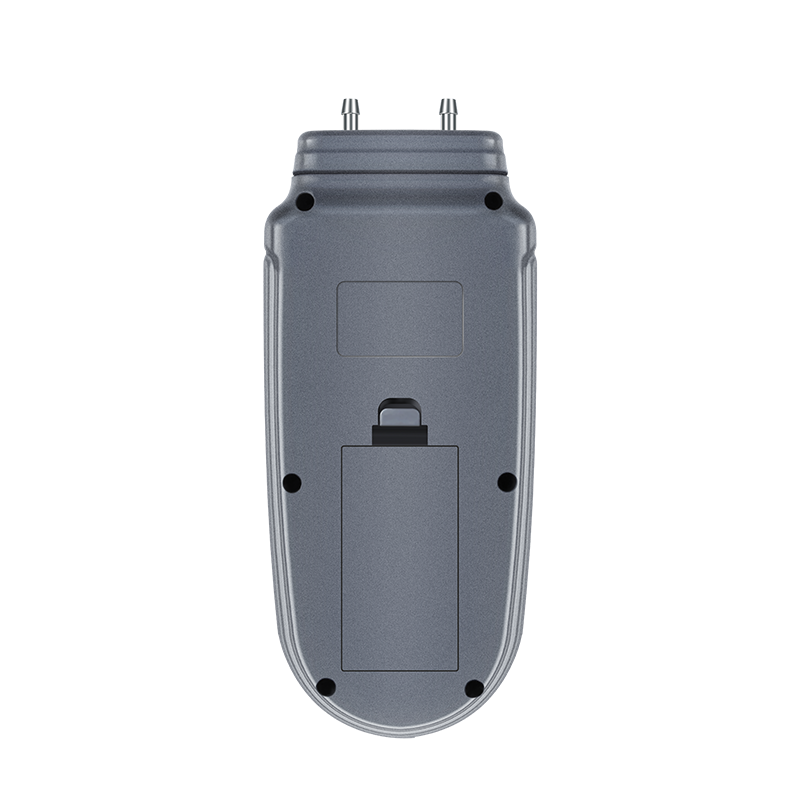

Ready at any time: the back panel display, combined with its intuitive design and the magnet on the back, can be easily applied to the compact digital pressure gauge.
Durable: Equipped with a particularly rugged housing, including a protective cover and 50 hours of battery life, the gas pressure gauge provides reliable performance.
Simple operation: The compact and lightweight pressure measuring device is equipped with a waist bag, two hoses and a wrist strap, so it can be easily taken to any work site.
Features:
It uses a professional high-precision pressure sensor for measurement, and is equipped with 2 flexible silicone tubes, which is easy to install on most gas valves.
Provides a large measurement range: ± 2.999 psi (TC-168A); ± 100 psi (TC-169A) (0.001 resolution), full scale accuracy ± 0.3%.
12 selectable measurement units-used to measure differential pressure, positive pressure and negative pressure.
The 12 optional units include InH2O, Psi, Mbar, kPa, inHg, mmHg, ozin2, FtH2O, cmH2O, KGCM2, Bar, Pa.
Date hold and maximum/minimum recording, momentarily press the hold button to freeze the displayed readings.
Press the MAX button to record the MIN/MAX/AVG value.

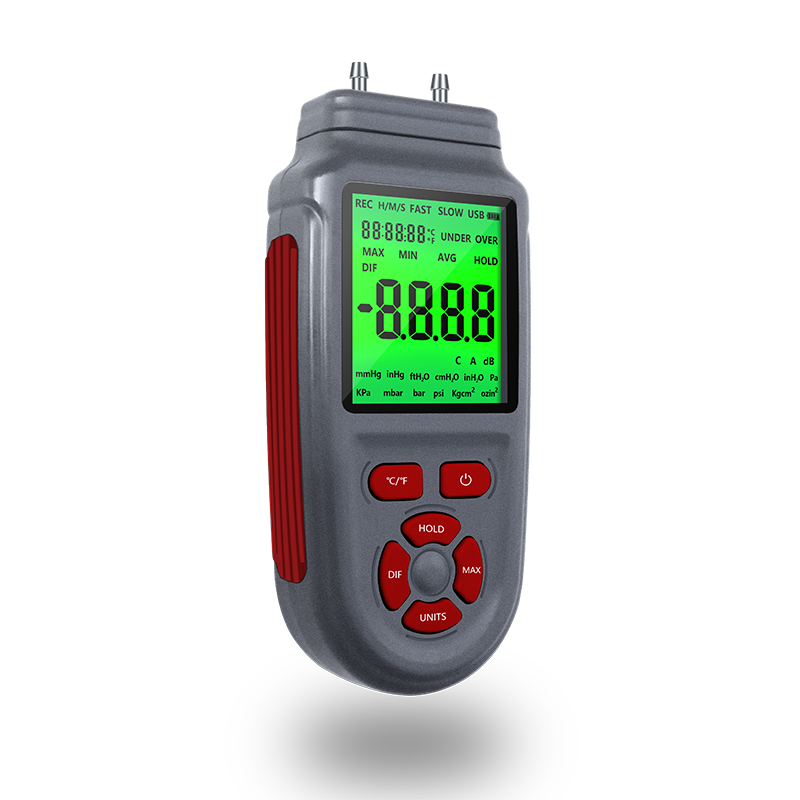

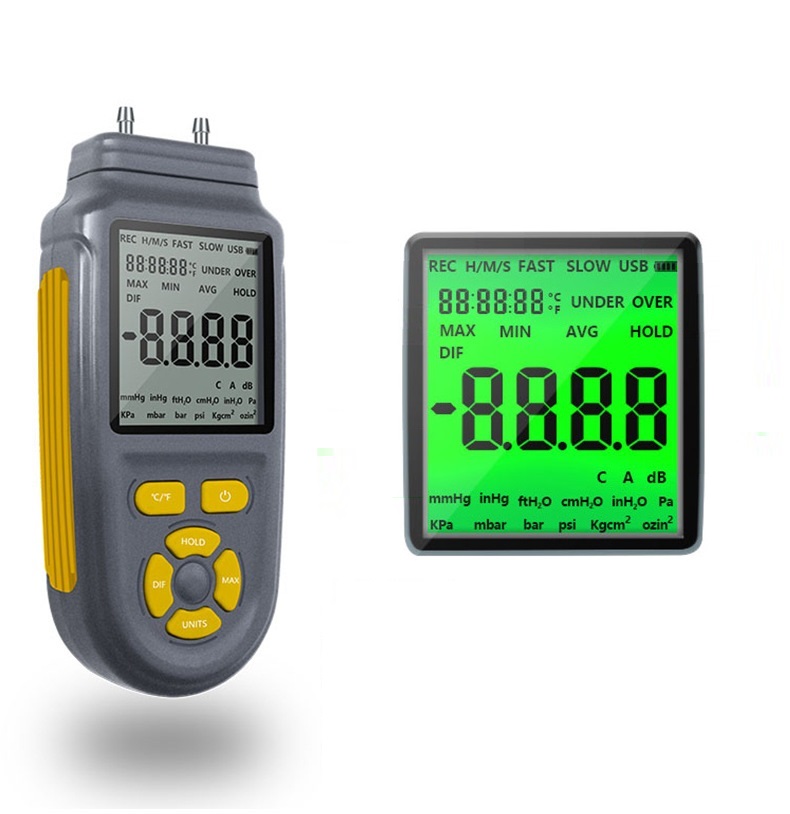

Large-size LCD backlight display and automatic power-off: Large-size LCD display can switch the backlight, so it can work normally even in poor light conditions. The automatic power-off function extends the battery life and power efficiency.
Features:
1. Large double LCD with backlight
2. Data retention
3. Maximum/ Minute / relative time average
4. Low battery indicator, automatic shutdown
5. Data logging
6. Error code 11 optional units
7. Resolution: 1 inH2O
Specification:
Measuring range: ± 2.999psi(TC-168A); ±100psi(TC-169A)(optional)
Accuracy: ±0.3% FSO (25 degrees Celsius)
Repeatability: ±0.2% (MAX +/-0.5%FSO)
Linearity/Hysteresis: ±0.29FSO
Low range indicator: Err.1
Over-range indicator: Err.2
Working temperature: 0 ~50℃
Response time: 0.5 seconds

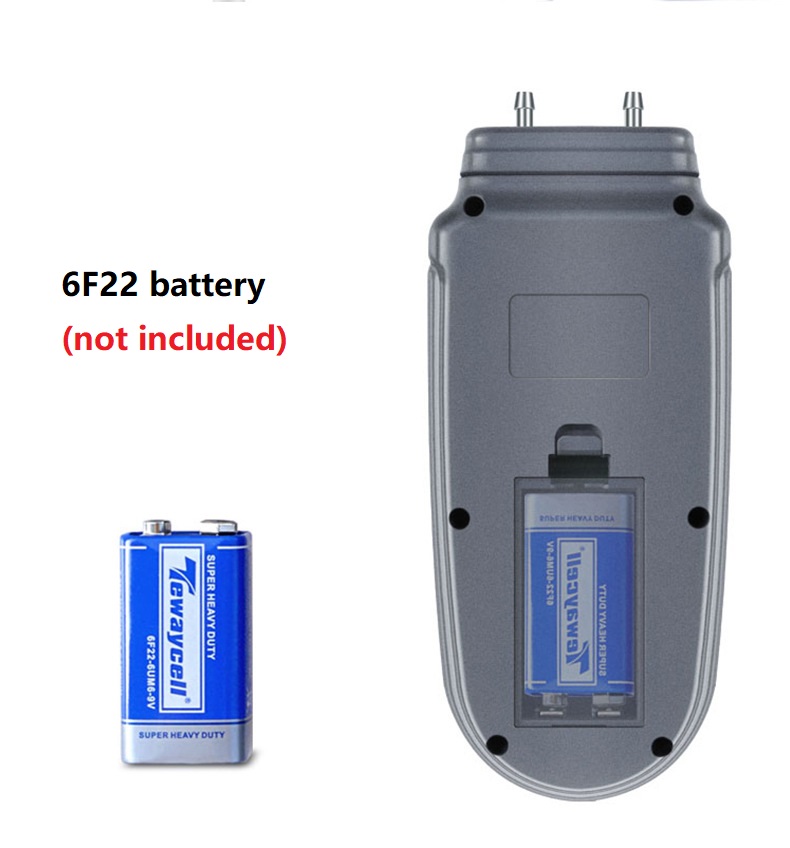

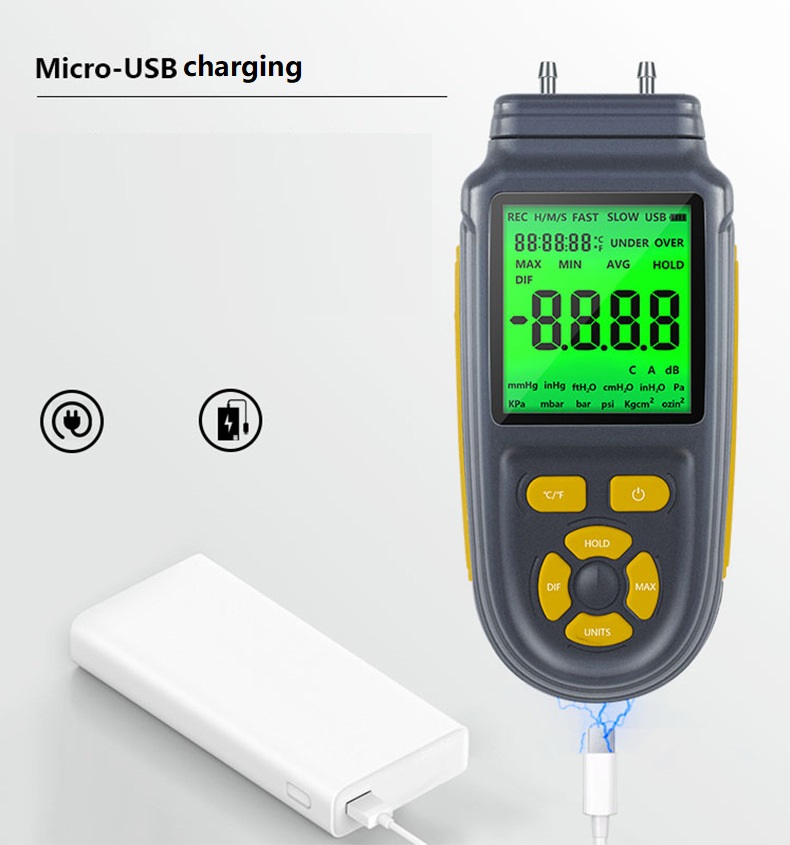

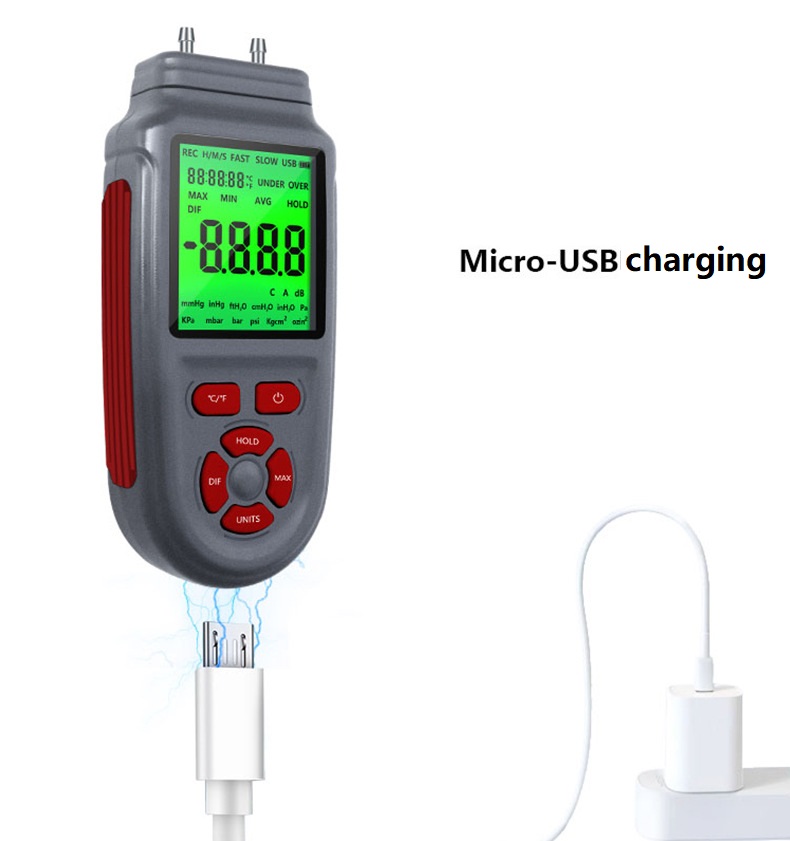

2 power supply modes: USB power supply/1 x 9V 6F22 (Not included battery)
Material: ABS
Product size: 164 x 70 x 32mm
Net weight: 200g
Packing size: 185 x 105 x 45mm
Gross weight: 300g
Package included:
1 x Digital pressure gauge(Not included battery)
1 x Leather tube
1 x Adapter
1 x USB
1 x English user manual
1 x Protective bag
