- Stock: In Stock
- Model: ST22003753
- SKU: ST22003753
Description:

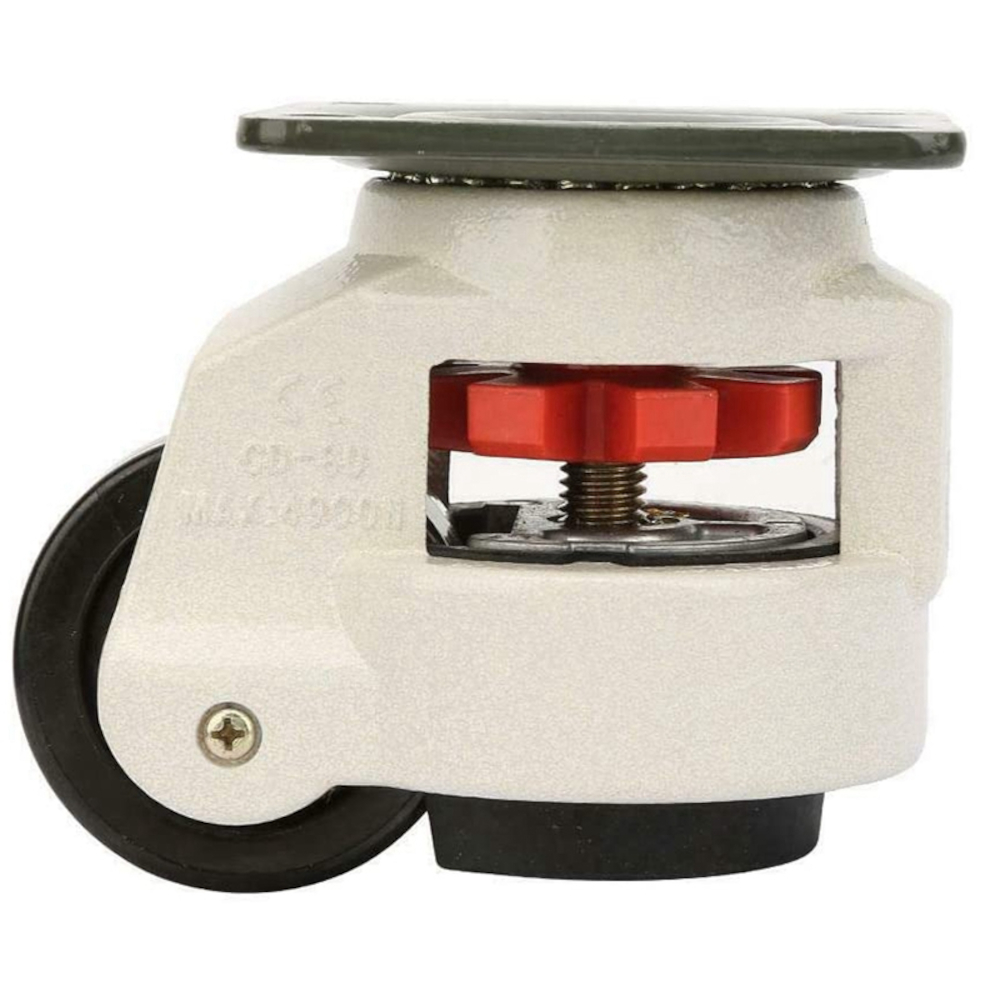

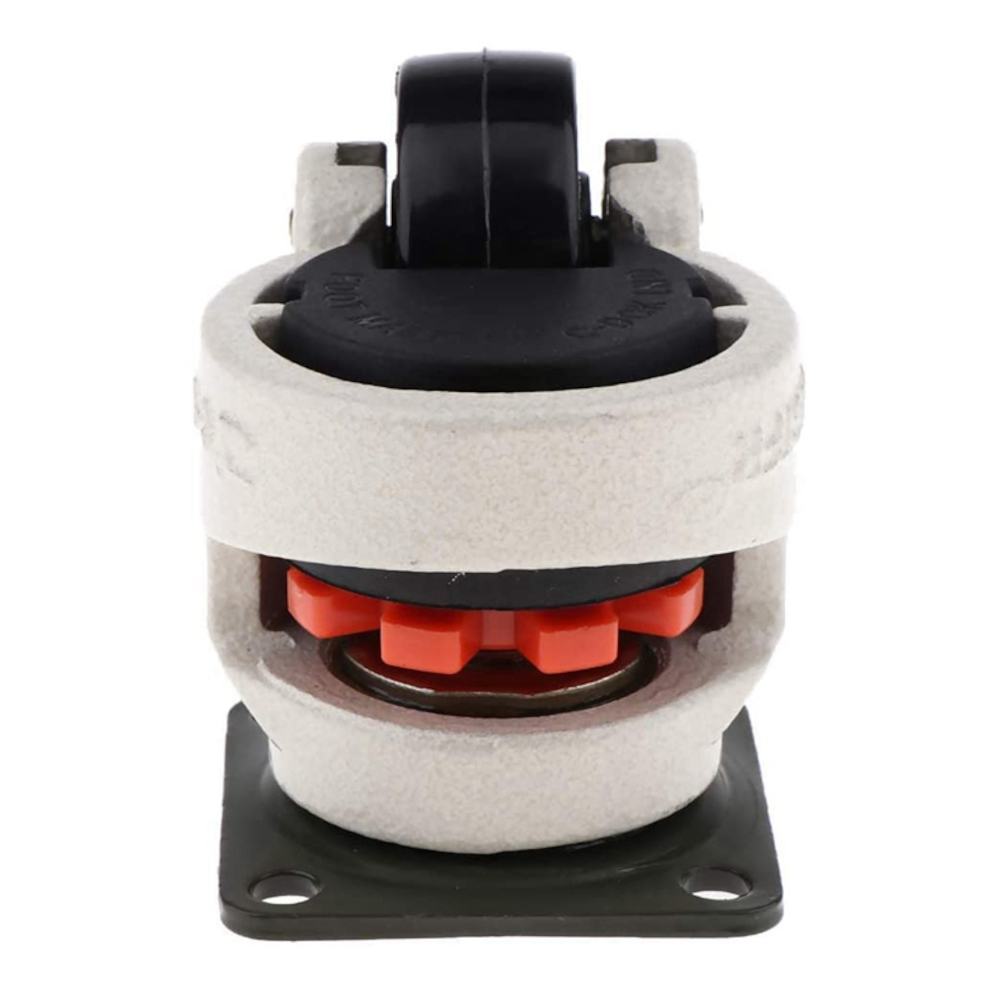

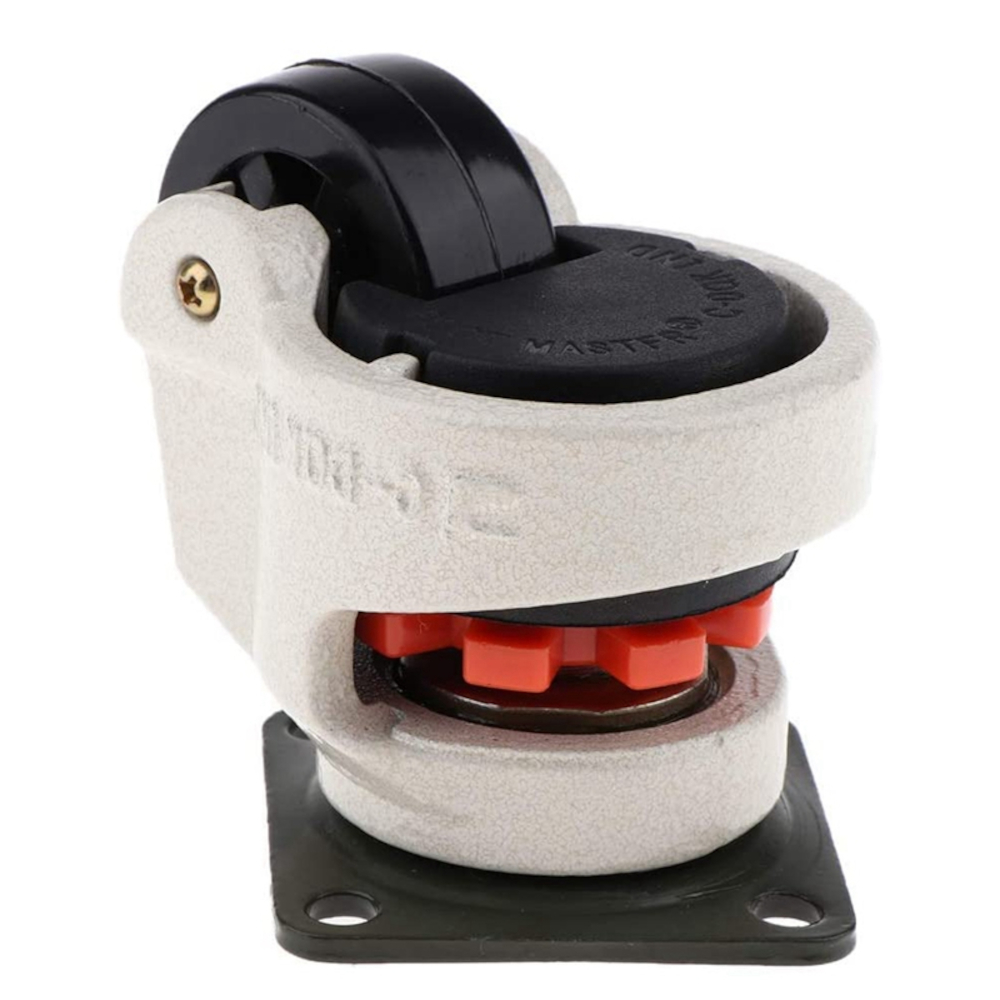

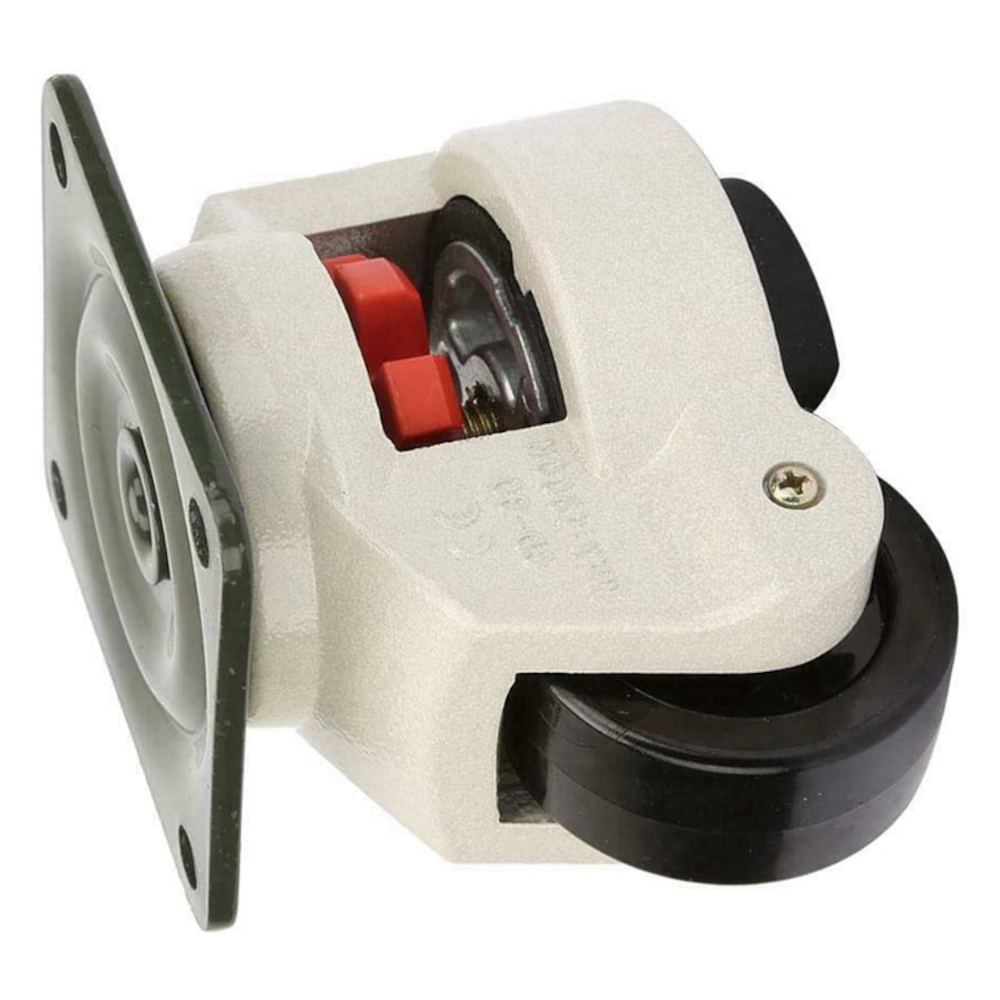

Swivel Heavy Duty Machine Levelling Workbench Caster Wheel Aluminum Wear-resistant Load-bearing Strong Horizontal Adjustment Wheel Mute Furniture Casters
Specifications:
| Product Name | Workbench Caster Wheel |
| Type | A: GD-40F B: GD-60F C: GD-80F D: GD-100F |
| Material | Aluminum Alloy, Nylon, Metal |
| Applicable | Shopping carts of various sizes |
| Features | Silent does not hurt the ground, wear-resistant and non-slip, strong carrying capacity |
| Quantity | 1 Pc × Wheel |
| Installation Method | Screw Type | Floor Type | |||||||||

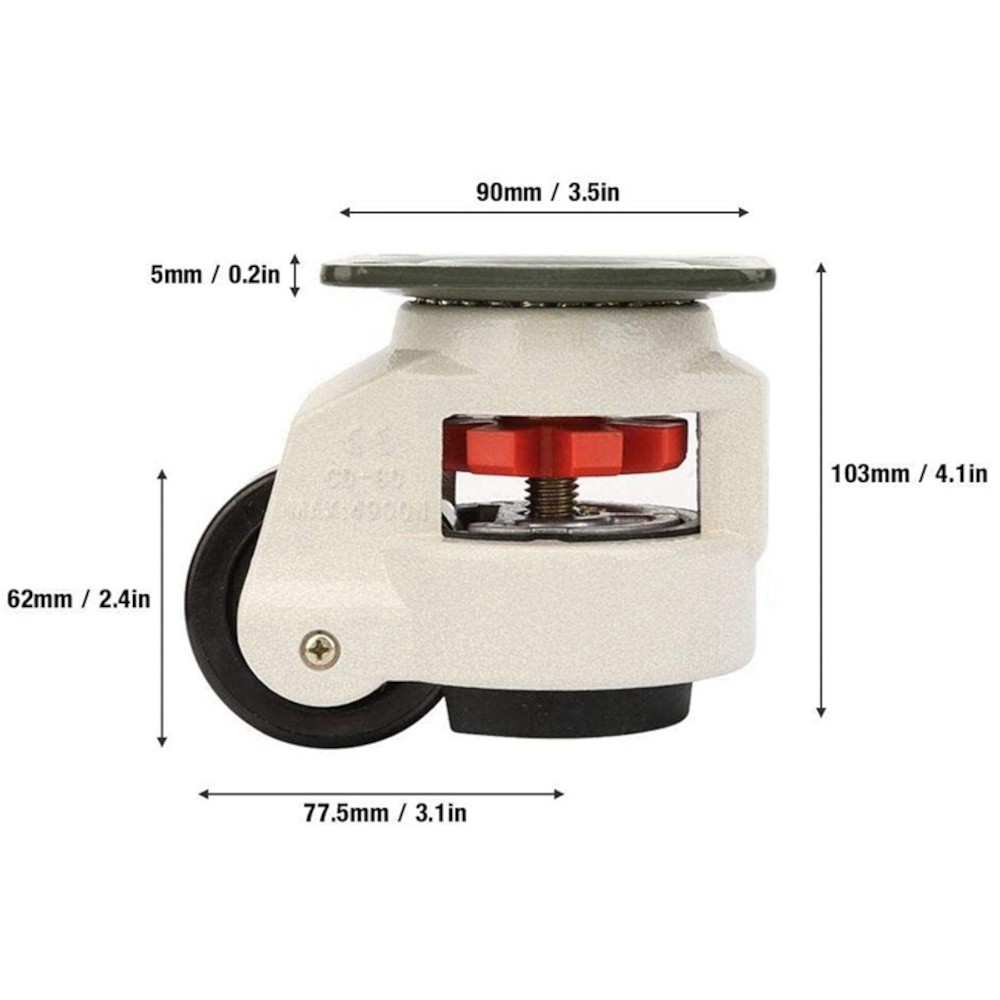

| Type | GD-40S | GD-60S | GD-80S | GD-100S | GD-120S | GD-40F | GD-60F | GD-80F | GD-100F | GD-120F | GD-150F |
| Wheel Diameter | 42MM | 50MM | 63MM | 75MM | 75MM | 40MM | 50MM | 63MM | 63MM | 75MM | 96MM |
| Wheel Width | 20MM | 25MM | 30MM | 30MM | 33MM | 20MM | 25MM | 30MM | 30MM | 33MM | 52MM |
| Load Bearing | 50KG | 250KG | 500KG | 750KG | 1000KG | 50KG | 250KG | 500KG | 750KG | 1000KG | 1500KG |
| Installation Height | 71MM | 82MM | 102MM | 120MM | 120MM | 71MM | 82MM | 102MM | 120MM | 120MM | 132MM |
| Turning Radiuss | 51MM | 61MM | 77.5MM | 90.5MM | 89.5MM | 51MM | 61MM | 77.5MM | 90.5MM | 89.5MM | 117MM |
| Floor Size | / | / | / | / | / | 55*55MM | 73*73MM | 90*90MM | 95*95MM | 95*95MM | 100*100MM |
| Installation Hole Distance | / | / | / | / | / | 42*42MM | 58*58MM | 70*70MM | 70*70MM | 70*70MM | 70*70MM |
| Aperture | / | / | / | / | / | 6.5MM | 7MM | 9MM | 11MM | 11MM | 13MM |
| Adjustable Height | 10MM | 10MM | 15MM | 12MM | 12MM | 10MM | 10MM | 15MM | 12MM | 12MM | 15MM |
| Mounting Screw Size | M8 | M12 | M12 | M16 | M12 | / | / | / | / | / | / |
Features:
- The leveling casters are equipped with NBR rubber pads, aluminum body, wear-resistant nylon wheels, non-slip wear-resistant, stable and easy to drive, the screw setting is easy to expand and contract, the height can be adjusted, and the non-slip support base is safe and stable.
- 360 degree casters: rotating top plate, double ball bearing design, flexible movement and rotation.
- Easily move heavy workbenches or furniture to the desired location.
- Wide range of uses: suitable for conveyor racks, equipment, copiers, printers, modular frame shells, electronic shells, manufacturing machinery and automation shells, store equipment, diagnostic equipment, etc.
Package Included:
| 1 Pc × | Wheel |
