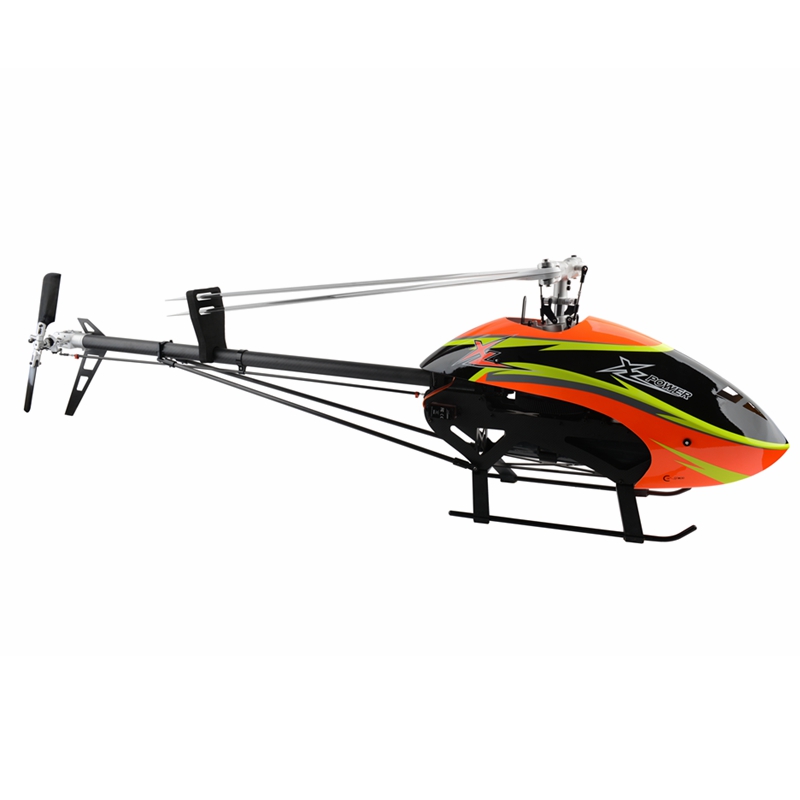

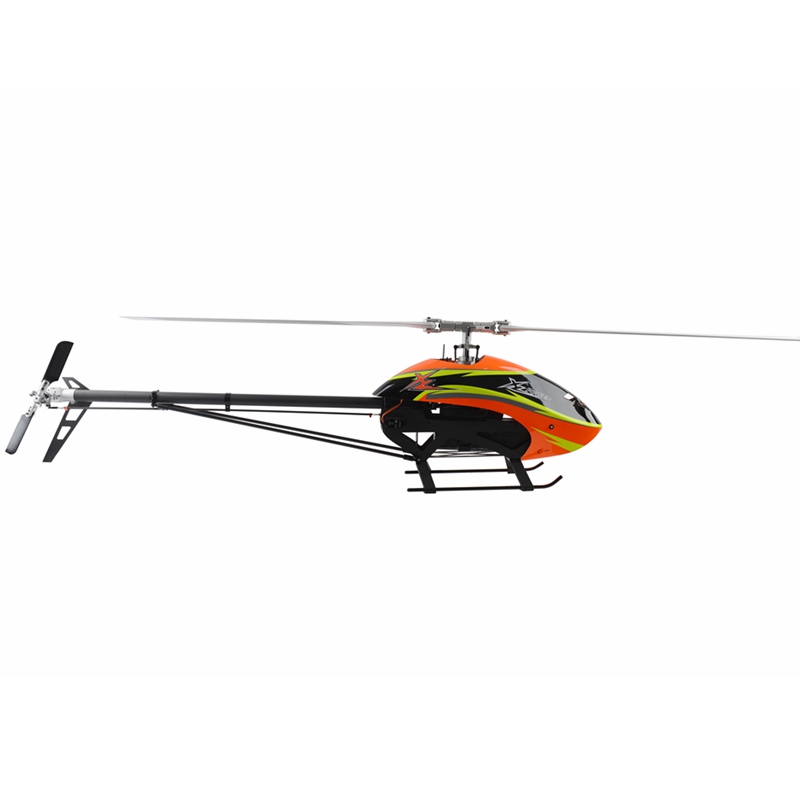

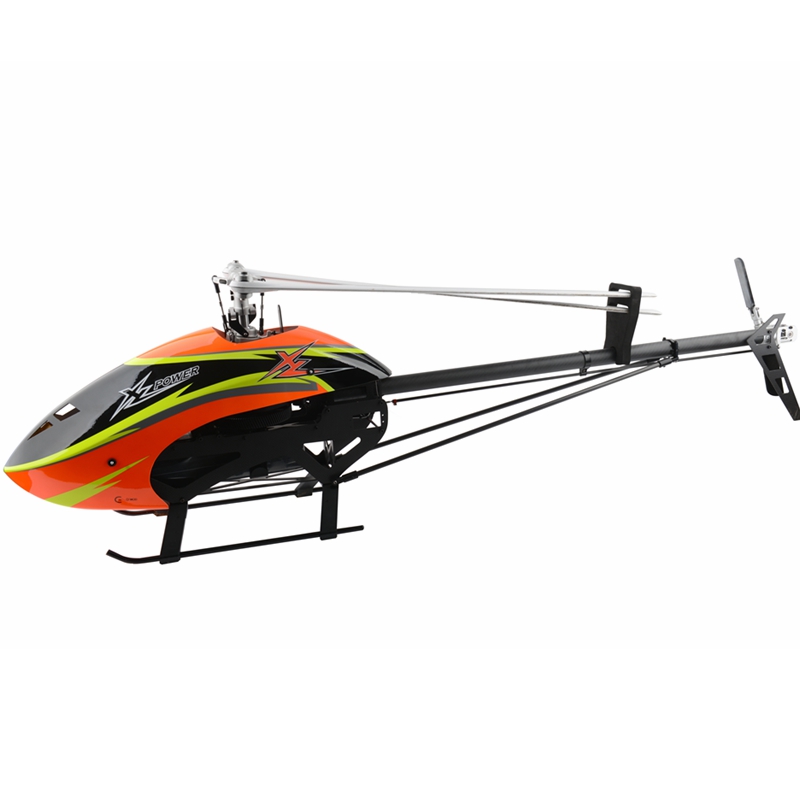

Specter 700 XL700 FBL 6CH 3D Flying RC Helicopter Kit With Brushless Motor/Main Blade/ Tail Blade
- Stock: In Stock
- Model: ST22001095
- SKU: ST22001095
$976.79
Ex Tax: $976.79
Description:
Brand: XLPower
Item:XLPower Specter700 XL700
SPECIFICATIONS:
Lenght: 1300mm
Height: 376mm
Width: 134mm
Main blade size: 685mm-716mm
Tail blade size: 105mm-115mm
Motor pinion: 11t included; 10t, 12t optional

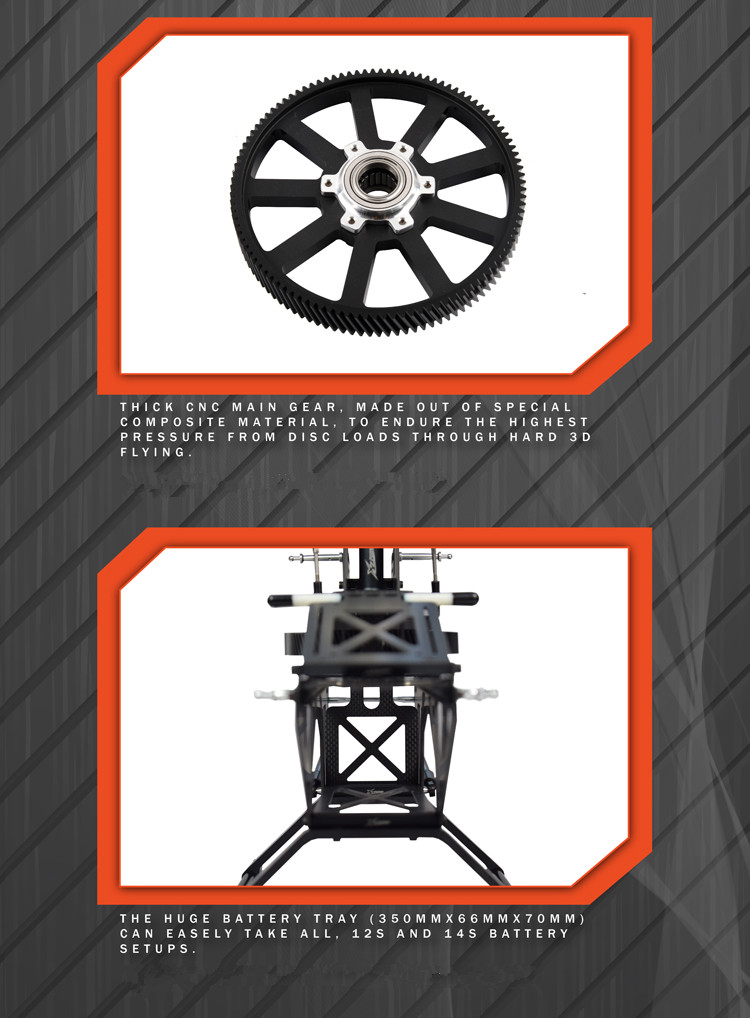

Main gear: 106t
Tail pinion:17t
Autorotation gear: 80t
Main to tail gear ratio: 4.7
RTF weight: 4900g-5300g
Main shaft diameter: 15mm
Feathering shaft diameter: 10mm
Tail boom diamater: 27mm

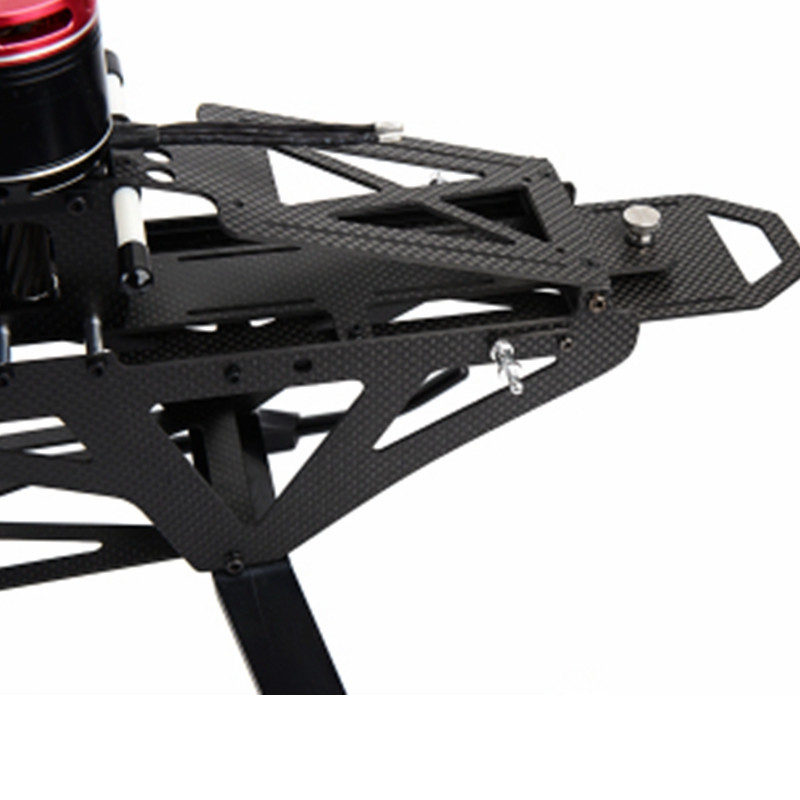

Battery tray size: 350mm*66mm*70mm(12s-14s)
Bring your own remote control and electronic equipment:
Transmitter (helicopter mode transmitter with more than 7 channels)
Receiver (over 7 channels)
Lithium battery 6S 4500-5200mAh
Digital pitch ruler
High-voltage brushless swashplate servo
High-pressure brushless tail servo
12s electronic governor (recommended minimum 130A)
XL700 body assembly articles（Chinese version, self translation）:
http://www.xlpower-rc.com/view_a.asp?id=25
Assemble the power transmission assembly of XL700 main shaft（Chinese version, self translation）:
Assemble the power transmission assembly of XL700 main shaft（Chinese version, self translation）:
http://www.xlpower-rc.com/view_a.asp?id=26
XL700 tail pipe assembly assembly（Chinese version, self translation）:
XL700 tail pipe assembly assembly（Chinese version, self translation）:
http://www.xlpower-rc.com/view_a.asp?id=27

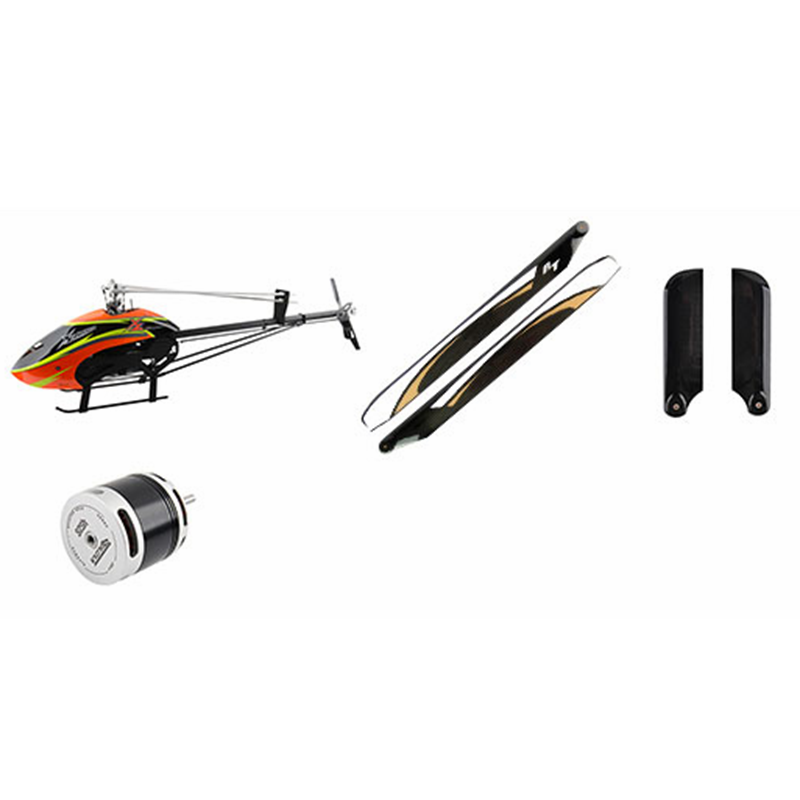

Package Includes:
XLPOWER 700 Helicopter Kit Set*1
FK Main Blades 690mm*1
XLPower Tail Blades 105mm*1
XL70M01 4525-500KV motor*1
