96W Solar Panel A-grade Electromagnetic Wafer Monocrystalline Silicon Solar Panel

96W Solar Panel A-grade Electromagnetic Wafer Monocrystalline Silicon Solar Panel
96W Solar Panel A-grade Electromagnetic Wafer Monocrystalline Silicon Solar Panel
96W Solar Panel A-grade Electromagnetic Wafer Monocrystalline Silicon Solar Panel
96W Solar Panel A-grade Electromagnetic Wafer Monocrystalline Silicon Solar Panel
96W Solar Panel A-grade Electromagnetic Wafer Monocrystalline Silicon Solar Panel
96W Solar Panel A-grade Electromagnetic Wafer Monocrystalline Silicon Solar Panel
96W Solar Panel A-grade Electromagnetic Wafer Monocrystalline Silicon Solar Panel
96W Solar Panel A-grade Electromagnetic Wafer Monocrystalline Silicon Solar Panel
96W Solar Panel A-grade Electromagnetic Wafer Monocrystalline Silicon Solar Panel
  • Stock: In Stock
  • Model: ST230038705
  • SKU: ST230038705
$71.99
Ex Tax: $71.99

Description:

1. Material: A-grade electromagnetic sheet monocrystalline silicon.

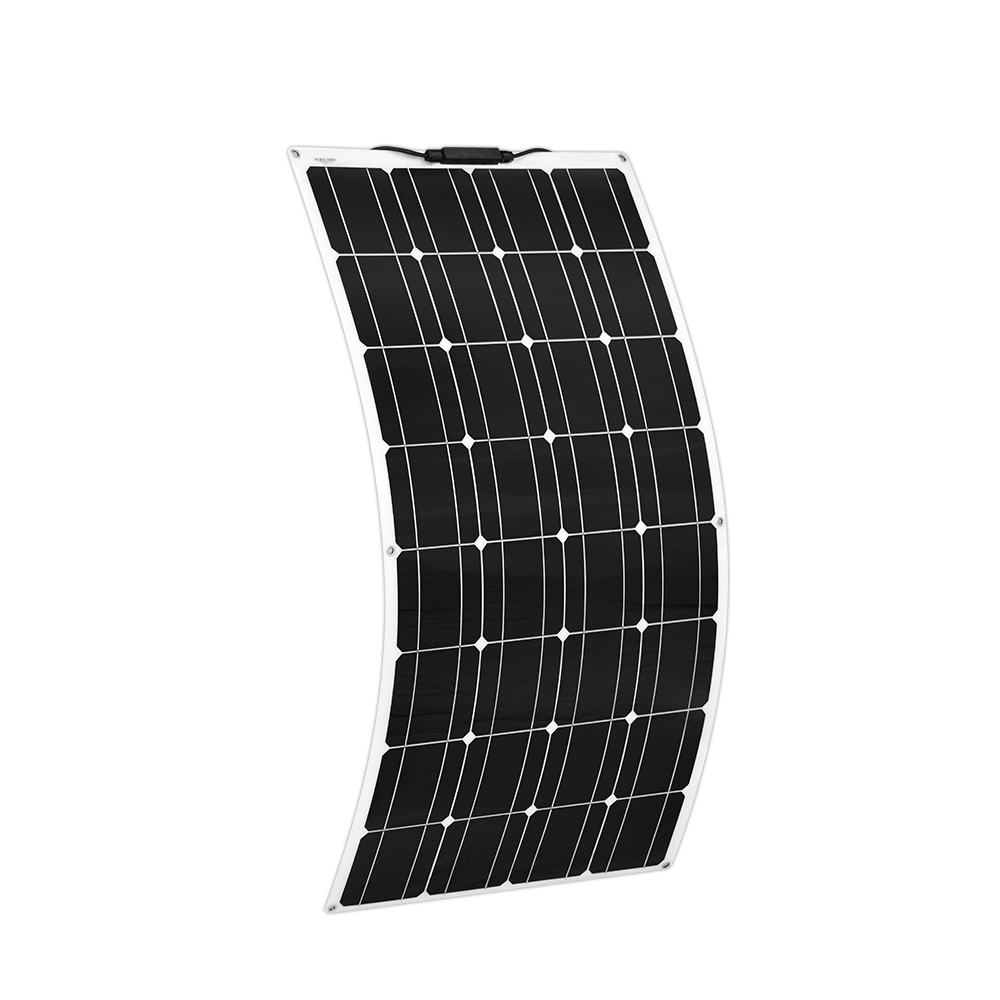

2. The semi-flexible solar panel is an alternative solar module-lighter. It can automatically and quietly charge the on-board 12V battery of an RV, motorhome, boat or other vehicle with no maintenance and is more flexible than comparable solar modules. Curved surfaces such as boat decks or RV niches are easily fitted with junction boxes for extra protection.
3. Can provide power for ships, sailboats, yachts, offshore operations, surveillance, electric lights, etc.
4. RV/caravan, adventure vehicle, commercial truck/trailer, RV/pop-up grid and remote communication sites
5. Can supply power for electric vehicles


Highlights:

*Advanced technology back contact battery allows flexibility and increased wattage per square foot.
*Unique frameless design includes six metal reinforced mounting holes for easy installation
*Strict quality control to meet the highest international standards CE, TUV
*High light transmission, flexible laminate is less prone to cracking than traditional glass
*Excellent electrical performance in high temperature and low light environment
*Equipped with pv connectors for positive and negative leads
*Two bypass diodes minimize performance degradation due to partial shading

Easy setup:

*Can be easily placed on a curved solid surface
*Built-in blocking diodes prevent the battery from discharging at night
*All weather protection, they are waterproof and UV resistant, sealed junction box

Product Specifications:
Maximum power (Pmax): 96W
Maximum system voltage: 700V
Open circuit voltage (Voc): 19.2V
Short-circuit current (Isc): 6.87A
Maximum supply voltage (Vmp): 16V
Maximum power current (Imp): 6.25A
Battery efficiency:19.5%
Operating temperature (NOCT):45±2℃
Temperature range:-20℃~+80℃
Number of batteries:32
Weight:2.0KG

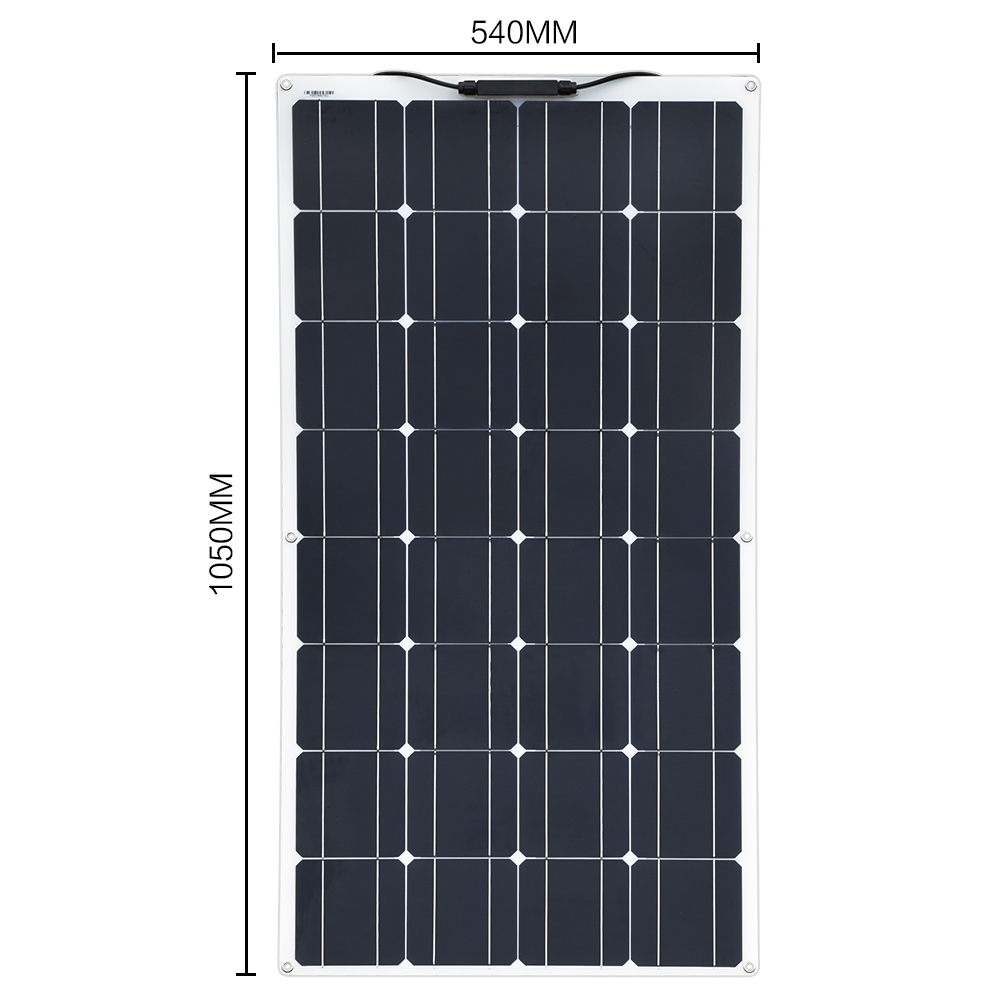

Solar panel size:1050*540*2.5 mm
Package size: 1080 * 560 * 35 mm (thickened and stiffened carton, front and back pearl cotton protection packaging)

Precautions.

1. Standard test conditions: radiation rate of 1000w/m2, temperature 25 ℃, AM = 1.5
2. Please do not place sharp objects and solar panels together, so as not to scratch the solar panels, affecting the current output


Package Included:

1 x solar panel


96W-Solar-Panel-A-grade-Electromagnetic-Wafer-Monocrystalline-Silicon-Solar-Panel-1863953-1

96W-Solar-Panel-A-grade-Electromagnetic-Wafer-Monocrystalline-Silicon-Solar-Panel-1863953-2

96W-Solar-Panel-A-grade-Electromagnetic-Wafer-Monocrystalline-Silicon-Solar-Panel-1863953-3

96W-Solar-Panel-A-grade-Electromagnetic-Wafer-Monocrystalline-Silicon-Solar-Panel-1863953-4
