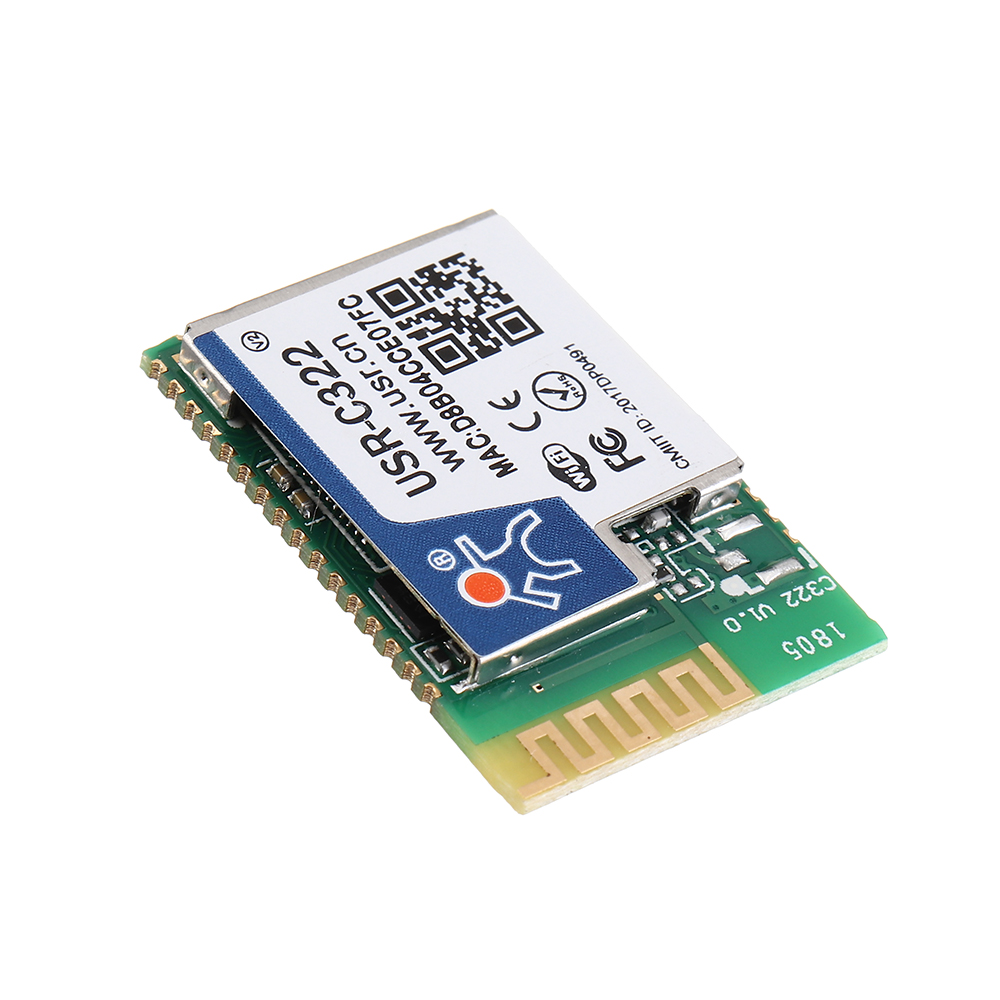

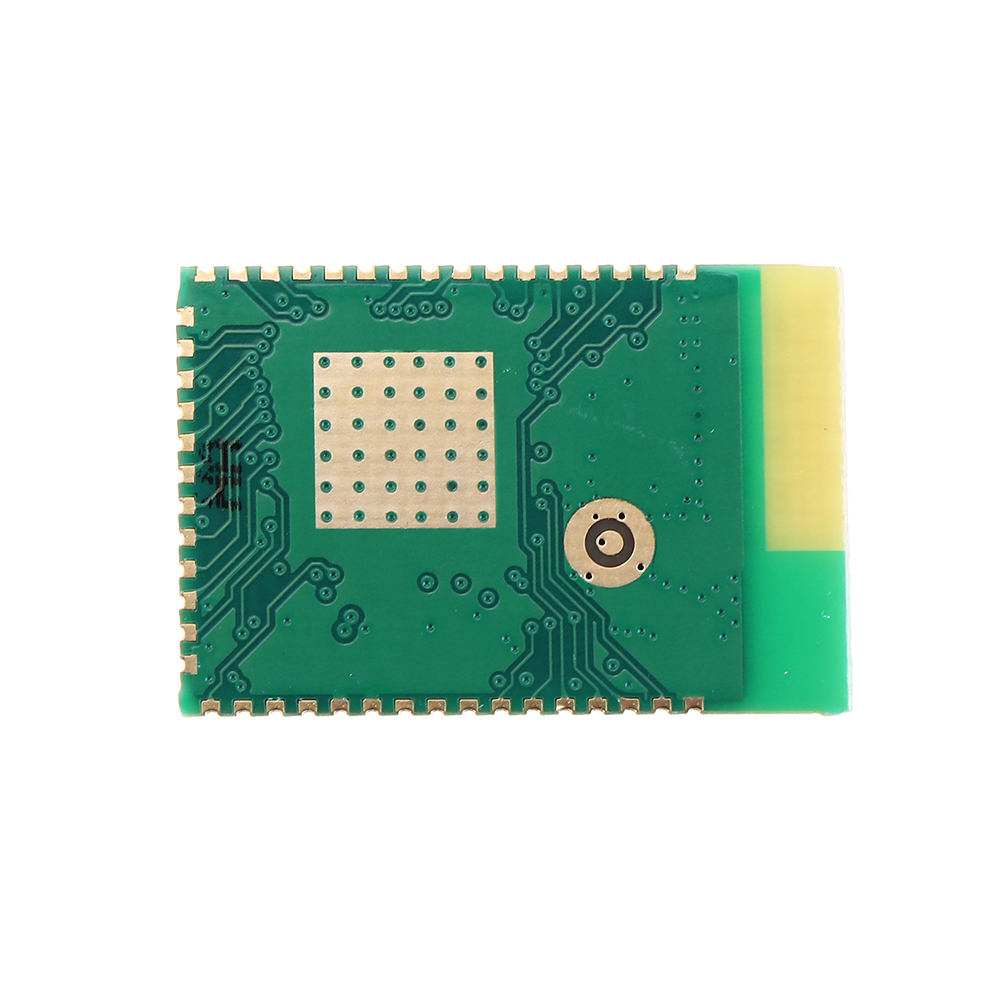

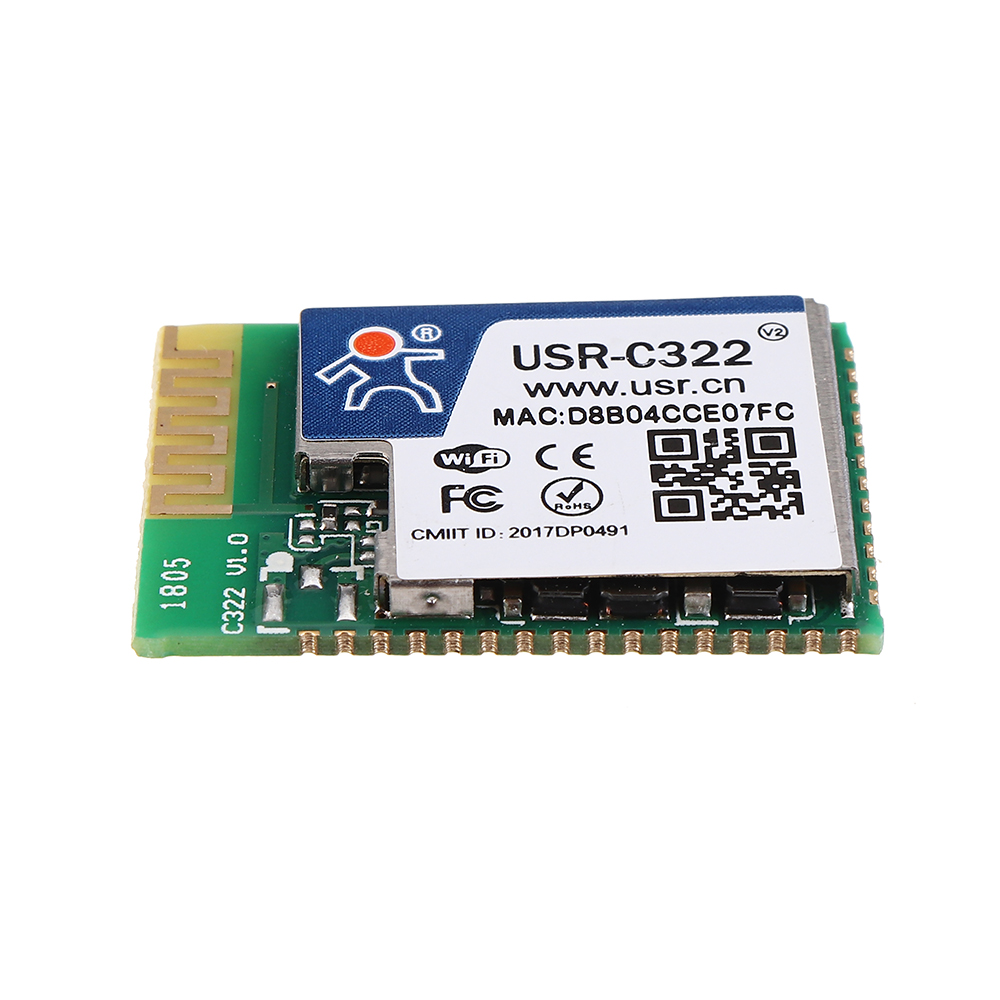

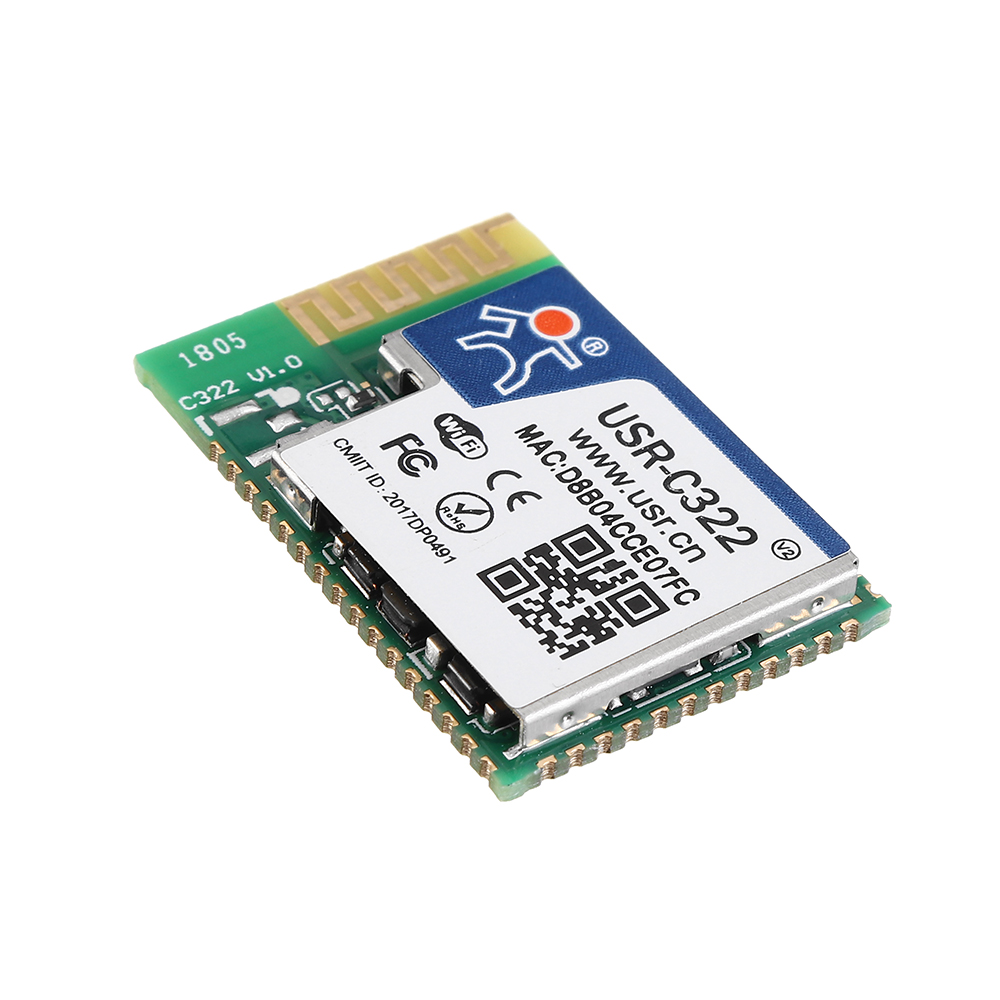

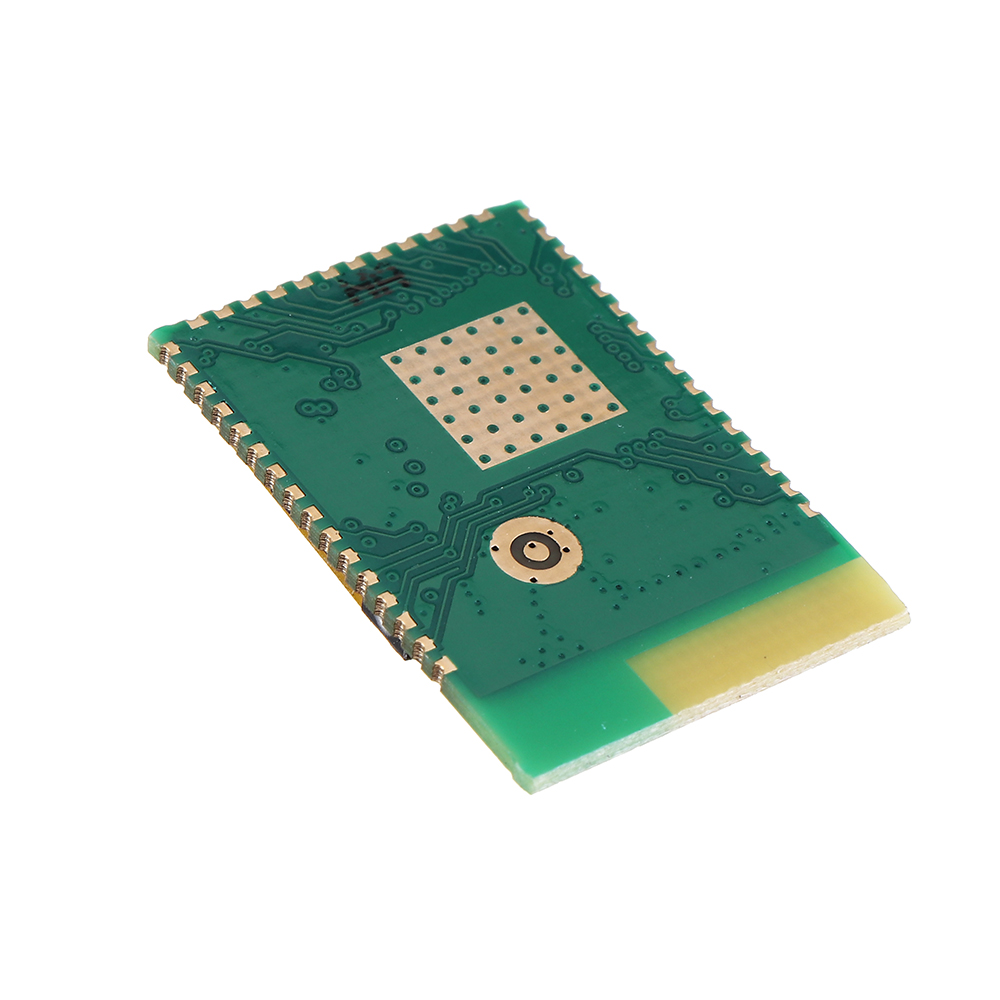

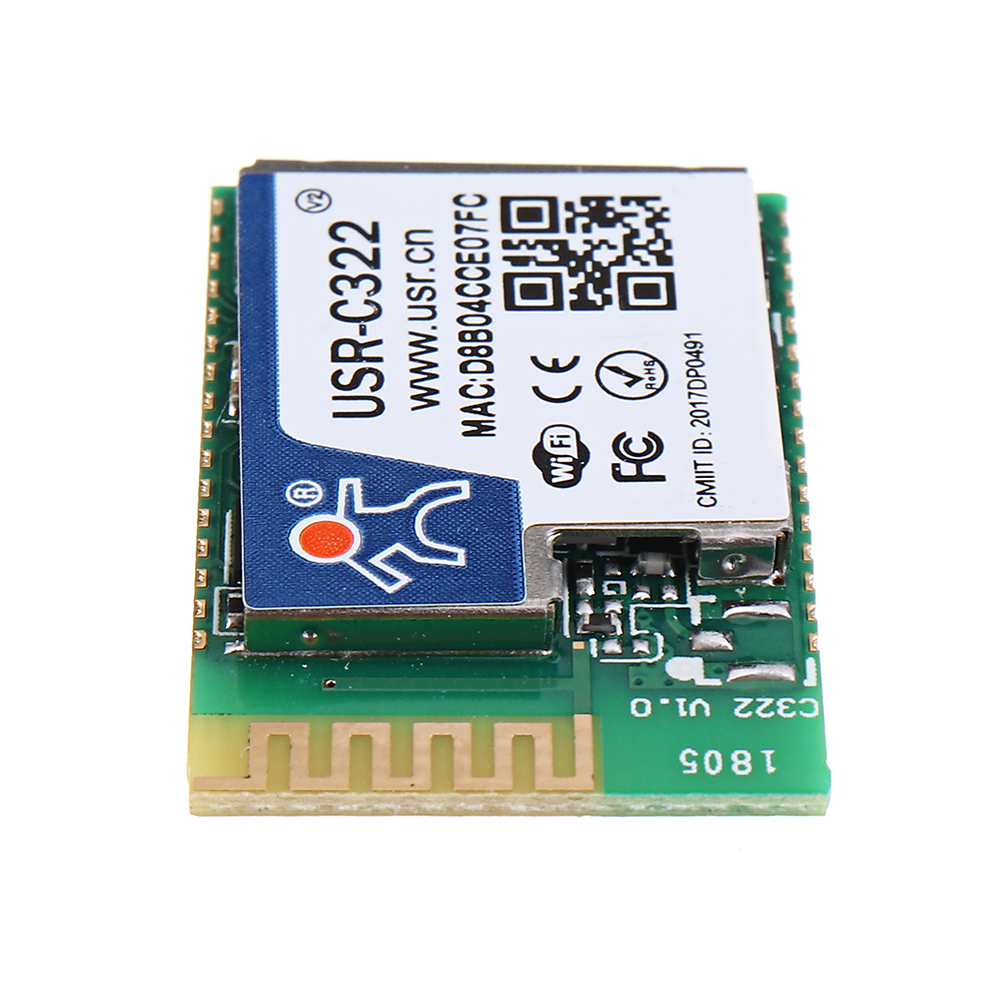

Serial to WiFi Module TICC3200 Wireless Transmission Industrial Grade Low Power Consumption C322
- Stock: In Stock
- Model: ST230045420
- SKU: ST230045420
$13.29
Ex Tax: $13.29
Feature:
Package includes:
1 x Module
| Processor | TI CC3200 (Cortex-M4 core) |
| Main frequency | 80MHz |
| Network parameters | |
| Network protocol | IPv4, TCP, UDP, DHCP, DNS, HTTP, ARP. ICMP |
| TCP Server maximum TCP number | 3 |
| Wi-Fi | |
| Standard | 802.11 b/g/n |
| Network mode | AP / Station |
| Number of AP mode access terminals | 1 |
| Frequency Range | 2.412 GHz-2.484 GHz |
| Transmit power |
17.0 dBm @1 DSSS 17.25 dBm®11 CCK 13.5 dBm @54 OFDM |
| Receiving sensitivity |
-94.7 dBm @1 DSSS -87.0 dBm @11 DSSS -73.0 dBm @54 OFDM |
| Transmission rate |
802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: 54 Mbps |
| Transmission distance |
Built-in maximum 180m (empty line of sight) External maximum 310m (empty line of sight, 3dbi antenna) |
| Security Mechanism |
Security mechanism: WEP-A/WPA-PSK/WPA2-PSK Encryption type: WEP64/WEP128/TKIP/AES |
| Antenna interface | Built-in: onboard antenna |
| Serial port | |
| Number of ports | 2 |
| Interface standard | TTL serial port : 3.3V |
| Data bit | 5, 6, 7, 8 |
| Stop bit | 1, 2 |
| Check Digit | None, Even, Odd, Space, Mark |
| Baud rate | 300 bps - 3M bps |
| Flow Control | RTS / CTS |
| Cache | Receive 1K bytes |
| Software | |
| Virtual serial port (USR-VCOM) | Windows 2000 or higher (32 bit / 64 bit) |
| Configuration method | Built-in web page, serial AT command, network AT command |
| Networking method |
UsrLink: "People" Customized Module Networking Mode SimpleLink: One-click networking capabilities provided by TI |
| Unique features | Registration package mechanism: with registration package when connecting or sending data (registration package can be set to MAC address or double-byte character) |
| Synchronous baud rate function: Network command to change the serial port baud rate | |
| Secure encryption: support PC1 transparent data encryption and SSL Client function | |
| Webpage: Support for custom webpage features | |
| Transfer: Support Httpd Client and Websocket (web to serial) | |
| Very specific parameter | |

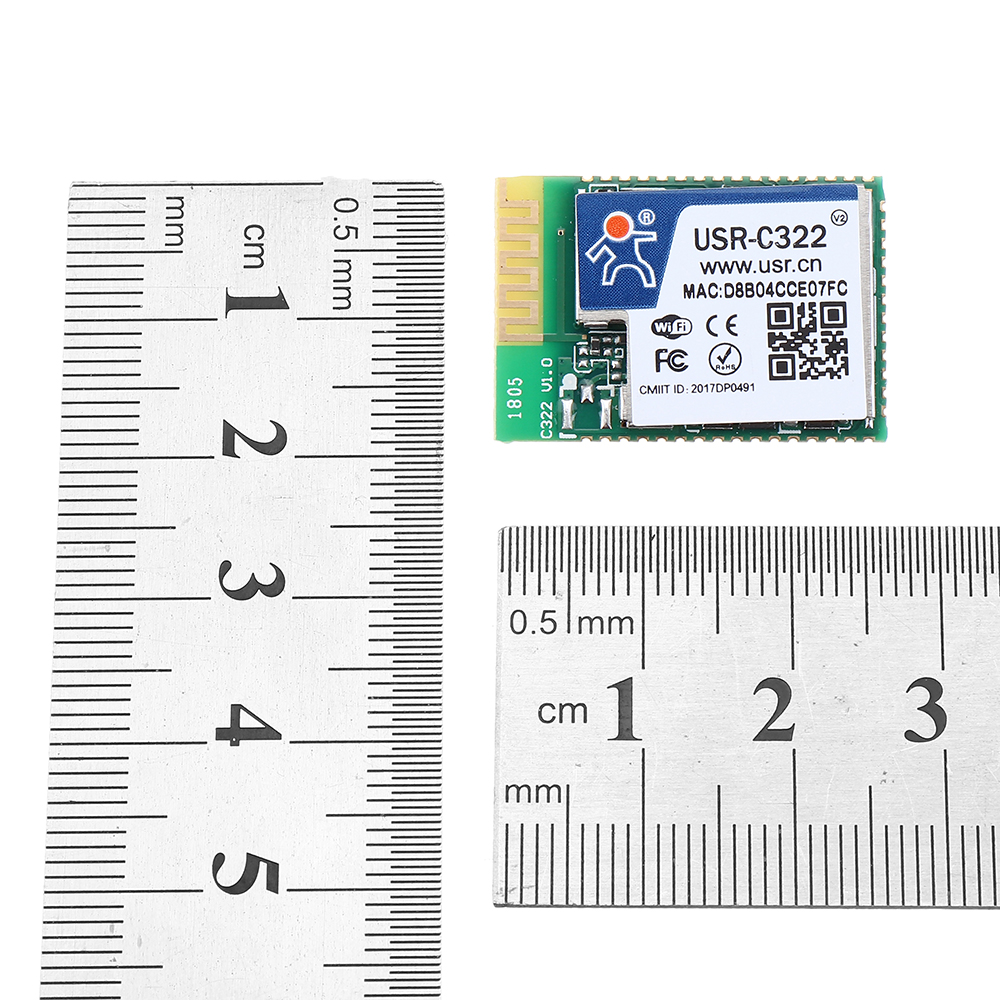

| Size | 26.6x18.2x2.8 (mm) |
| Operating temperature | -40 - 85°C (B38 Industrial Grade) |
| -40 - 125°C, 5 - 95% RH (no condensation) | |
| Operating Voltage | DC 3.0 ~ 3.6 V |
| Working current |
AP: 70mA @3.3V STA: 18mA @3.3V Bee value: 247mA @3.3V |
| More | |
| Certification | CE WEEE FCC ROHS |
