R0.4 2 Flutes Ball Nose Long Neck Milling Cutter HRC60 CNC Deep Notch Cutter End Mill
- Stock: In Stock
- Model: ST22006553
- SKU: ST22006553
$13.99
Ex Tax: $13.99
Description:

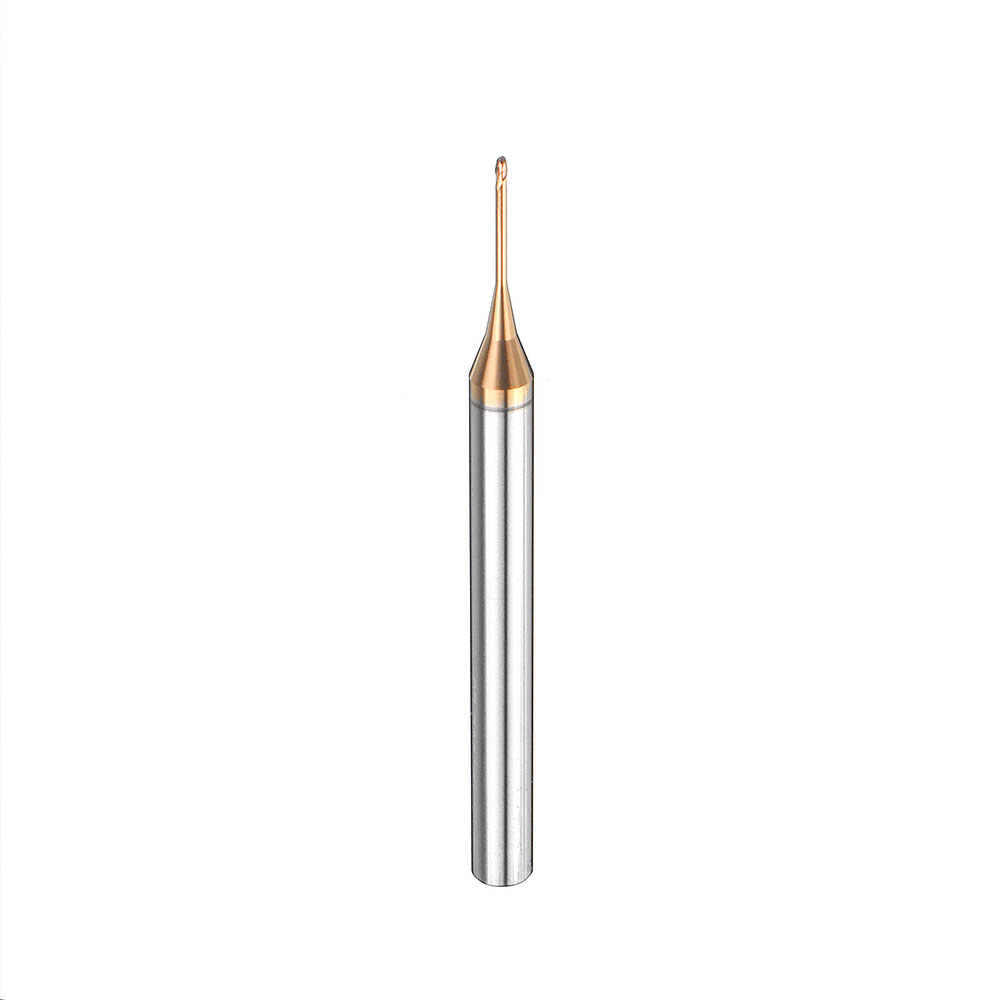

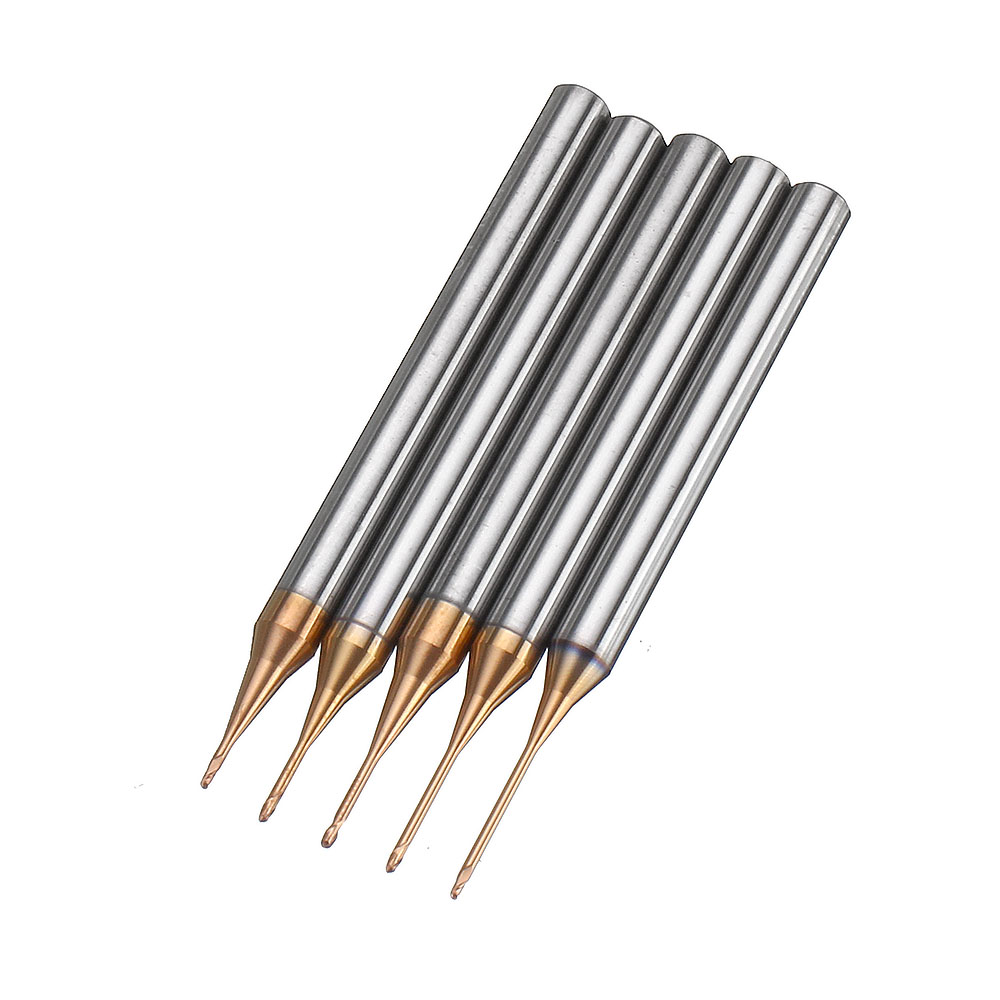

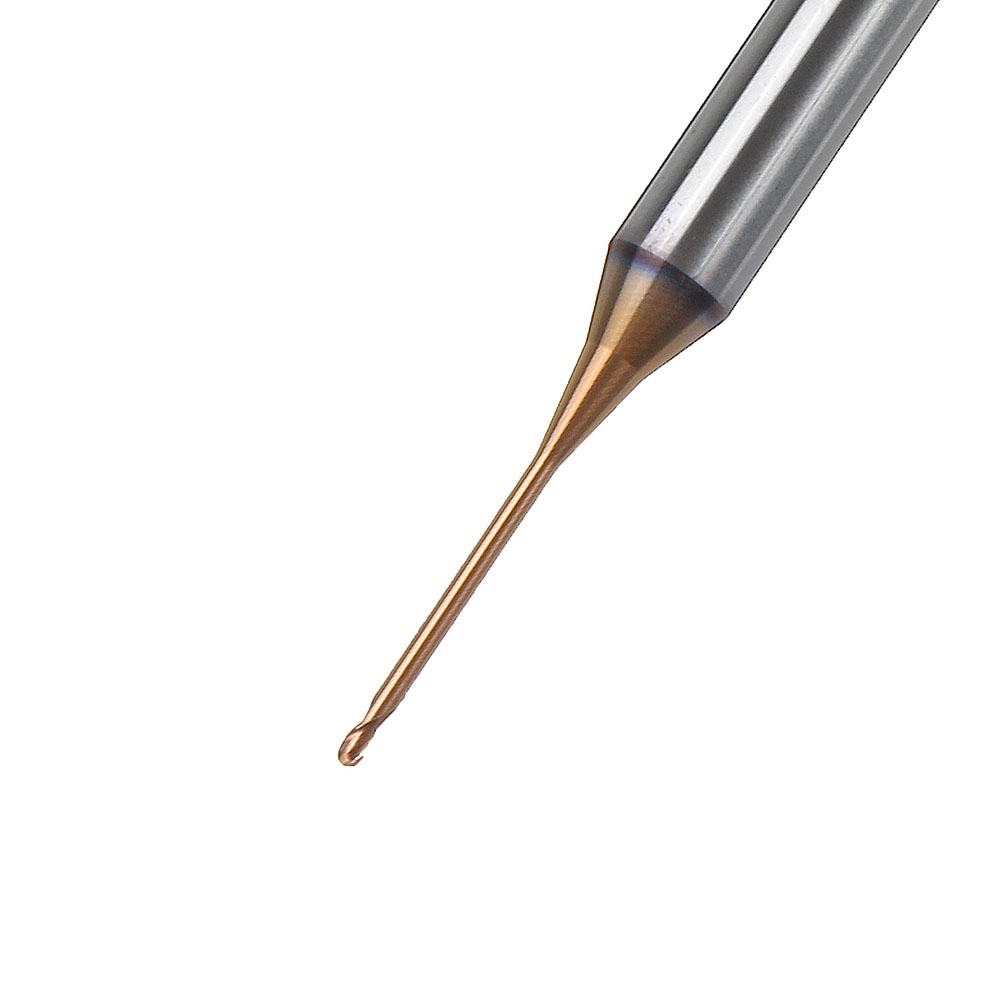

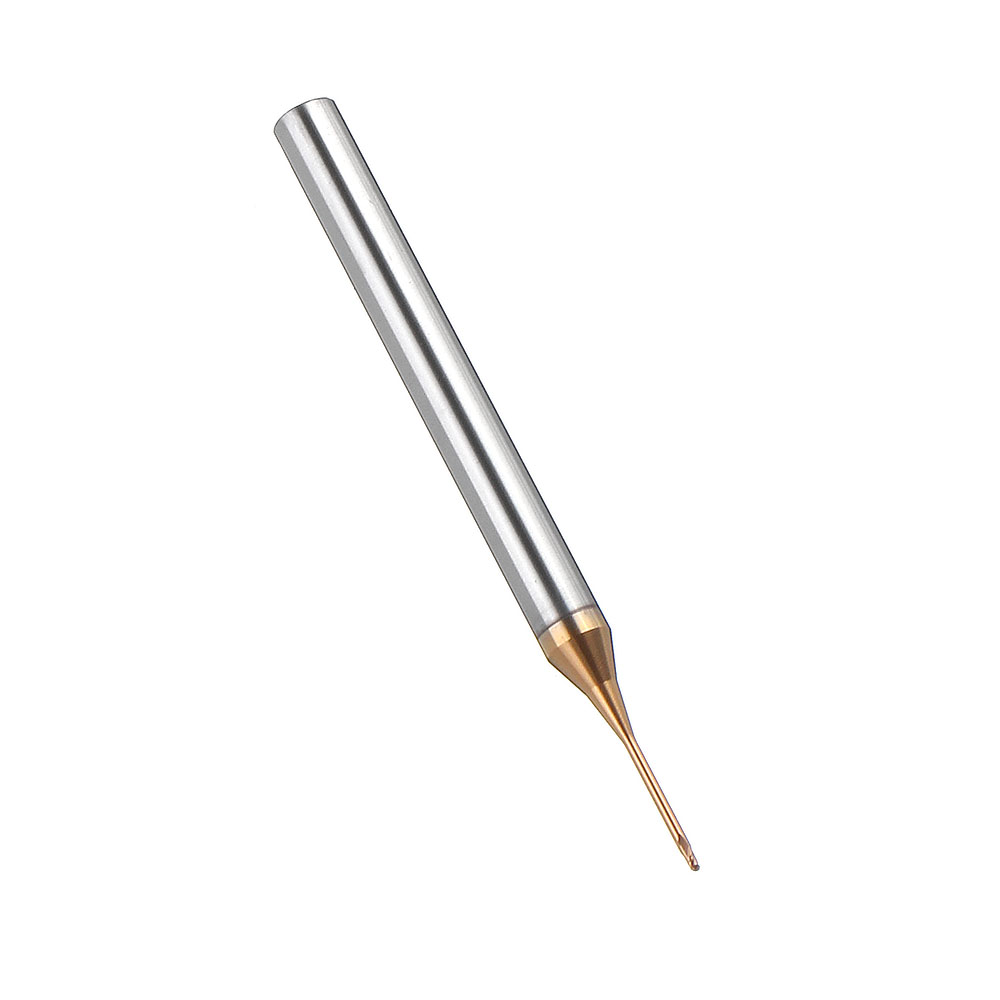

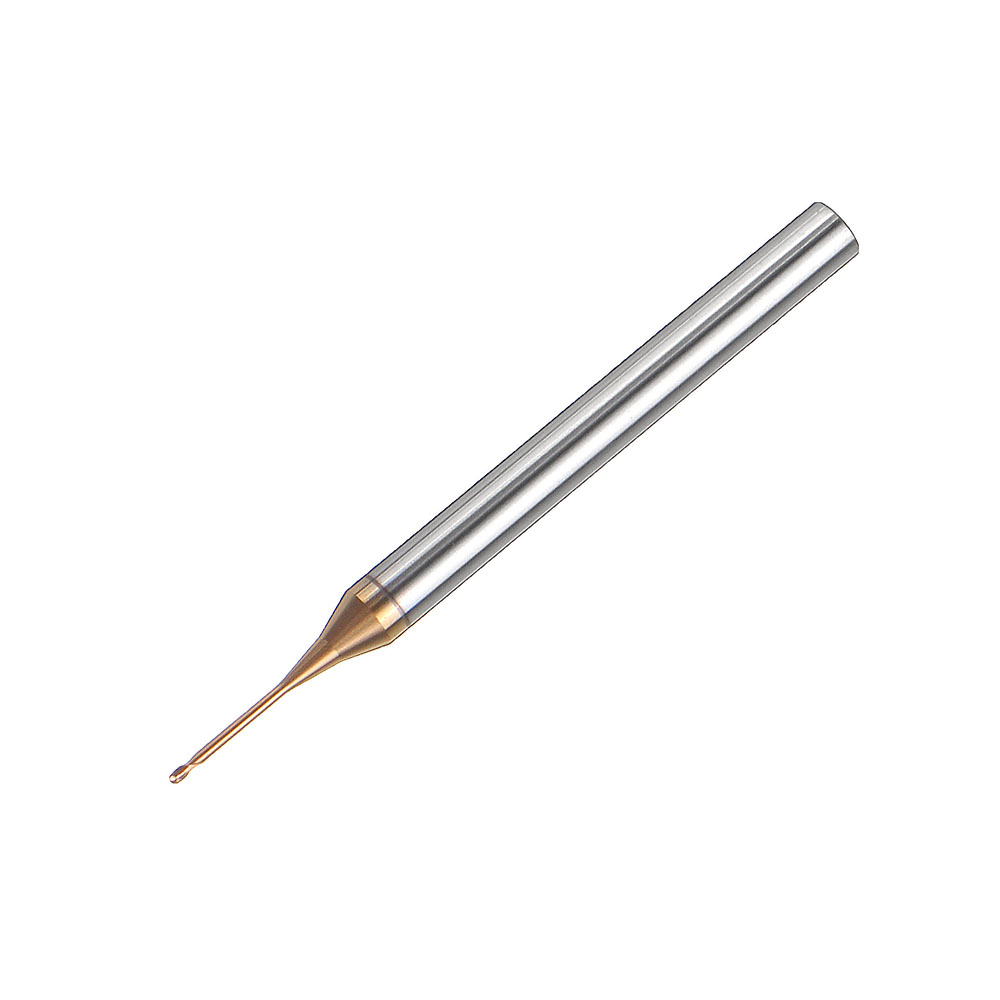

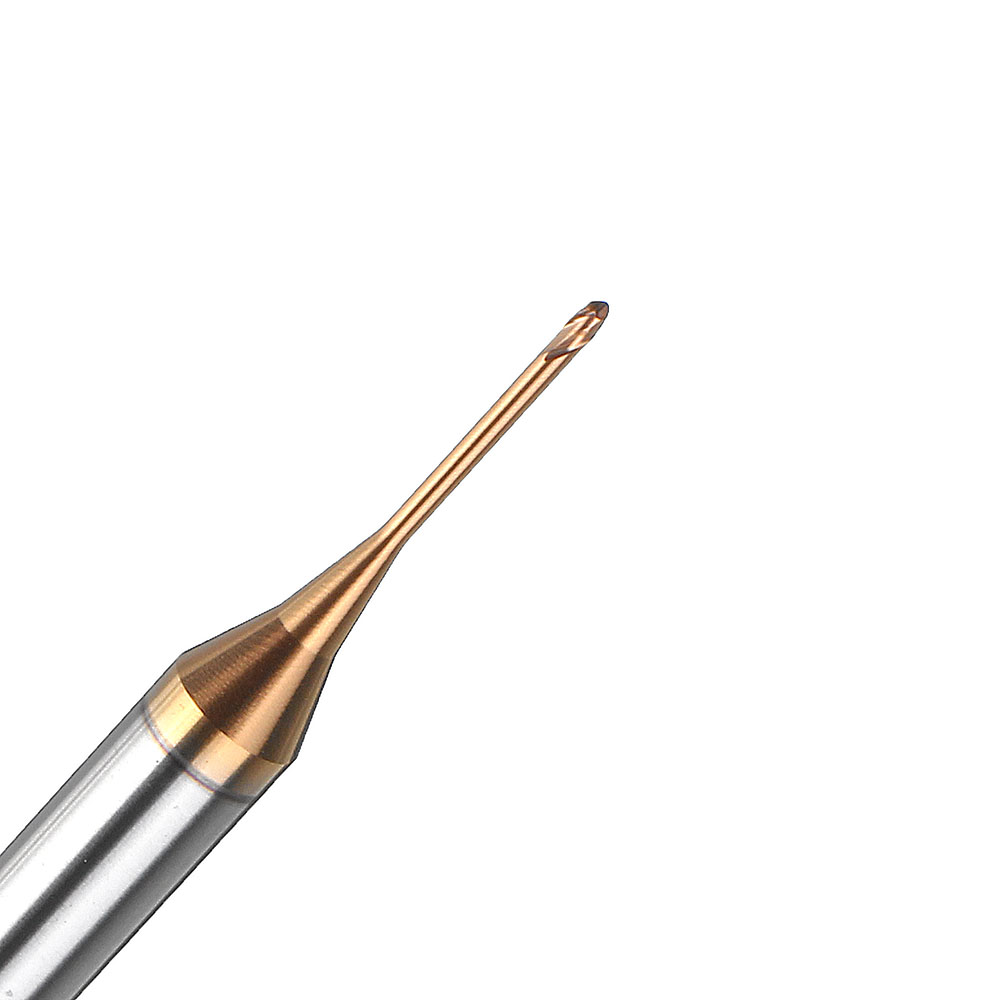

2 Flutes HRC60 solid carbide Long neck ball nose End Mills CNC deep notch cutter milling cutters Router bit knife
Specification:
Material: Tungsten Steel
Coating: AlTiN Coating
Shank diameter: 4mm
Blade: 2 flutes
Cutting edge diameter: R0.4
Total length: 50mm
Quantity: 1pc
Size: (optional)
3mm: R0.4*4D*50L-L3
5mm:R0.4*4D*50L-L5
6mm:R0.4*4D*50L-L6
8mm:R0.4*4D*50L-L8
10mm:R0.4*4D*50L-L10
| Size | Tip Diameter |
Flute Length (mm) |
Small Shank Dia. (mm) |
Small Shank Length (mm) |
Shank Diamater (mm) |
Overall Length (mm) |
| 3mm: R0.4*4D*50L-L3 | R0.4 | 1.2 | 0.75 | 3 | 4 | 50 |
| 5mm:R0.4*4D*50L-L5 | R0.4 | 1.2 | 0.75 | 5 | 4 | 50 |
| 6mm:R0.4*4D*50L-L6 | R0.4 | 1.2 | 0.75 | 6 | 4 | 50 |
| 8mm:R0.4*4D*50L-L8 | R0.4 | 1.2 | 0.75 | 8 | 4 | 50 |
| 10mm:R0.4*4D*50L-L10 | R0.4 | 1.2 | 0.75 | 10 | 4 | 50 |
Features:
- Quality materials, durable, precision processing, efficient work, humanized design.
- Spiral design, large capacity smooth chip removal, prevent sticking and reduce heat.
- AlTiN nano coating, hardness up to 60 HRC for general steel alloy steel mold steel.
- Cemented carbide has good pressure resistance, good toughness, high hardness and good wear resistance.
- Round smooth handles with precise chamfering are easier.
Package Included:
1pc x 2 flute milling cutter
