- Stock: In Stock
- Model: ST220013490
- SKU: ST220013490
Description:
This SPS series of regulated DC power supply has good stability and ripple factor. Can work at full load for a long time for its perfect protection circuit. Both output voltage and output current are continuously adjustable between 0 and nominal value. The power supply can be used as both a regulated power supply and a regulated current supply. Very suitable for laboratories, schools and production lines.
Feature:

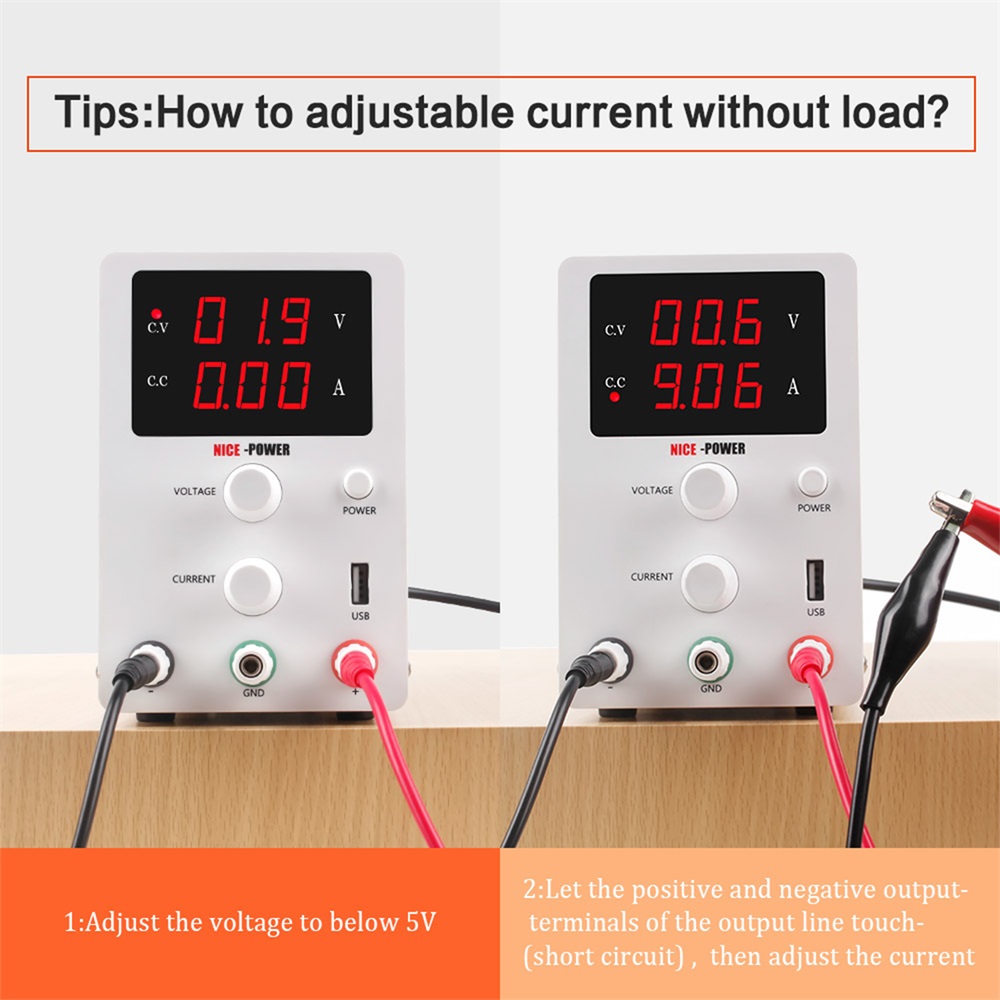

1.Dual Power Output Modes: including constant voltage output and constant current output(CC), determined by the voltage and current values set and the load connected by the user.
2.Adjustable Output Voltage & Current: output voltage and output current can be continuously adjusted between 0 and nominal value.

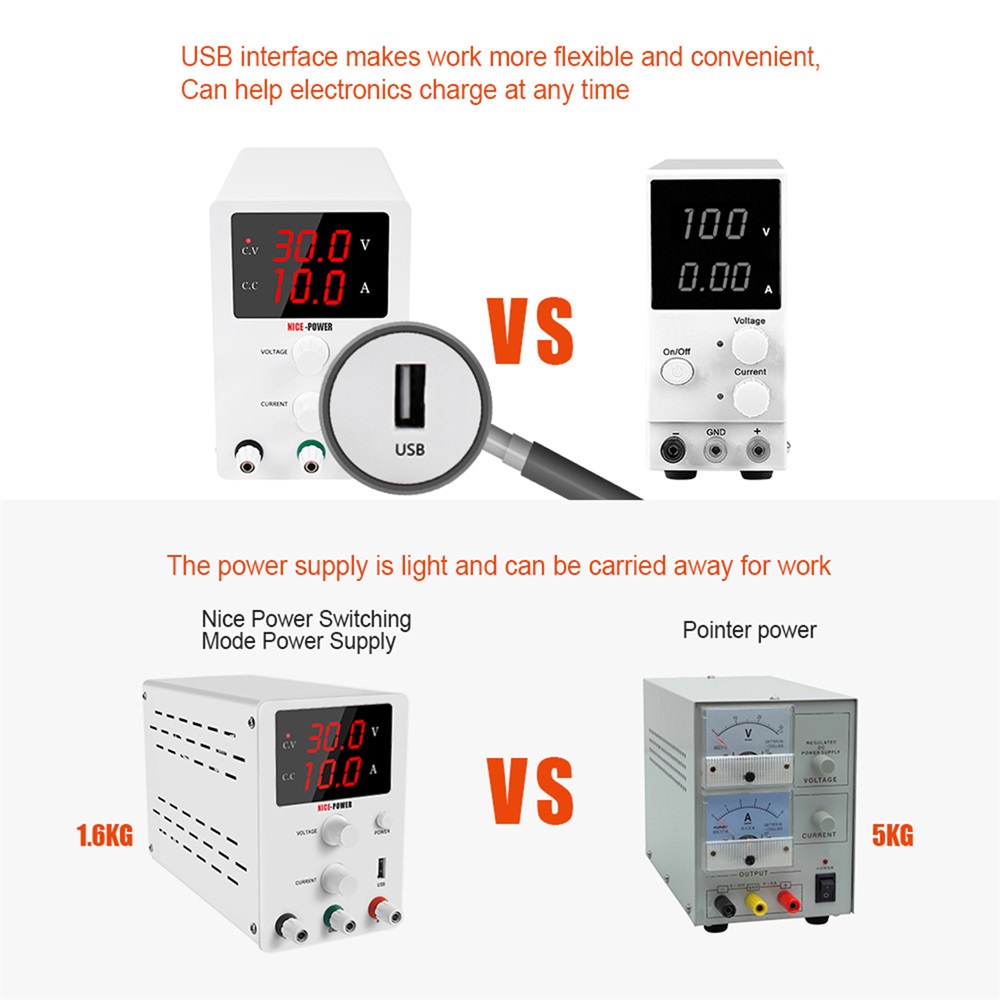

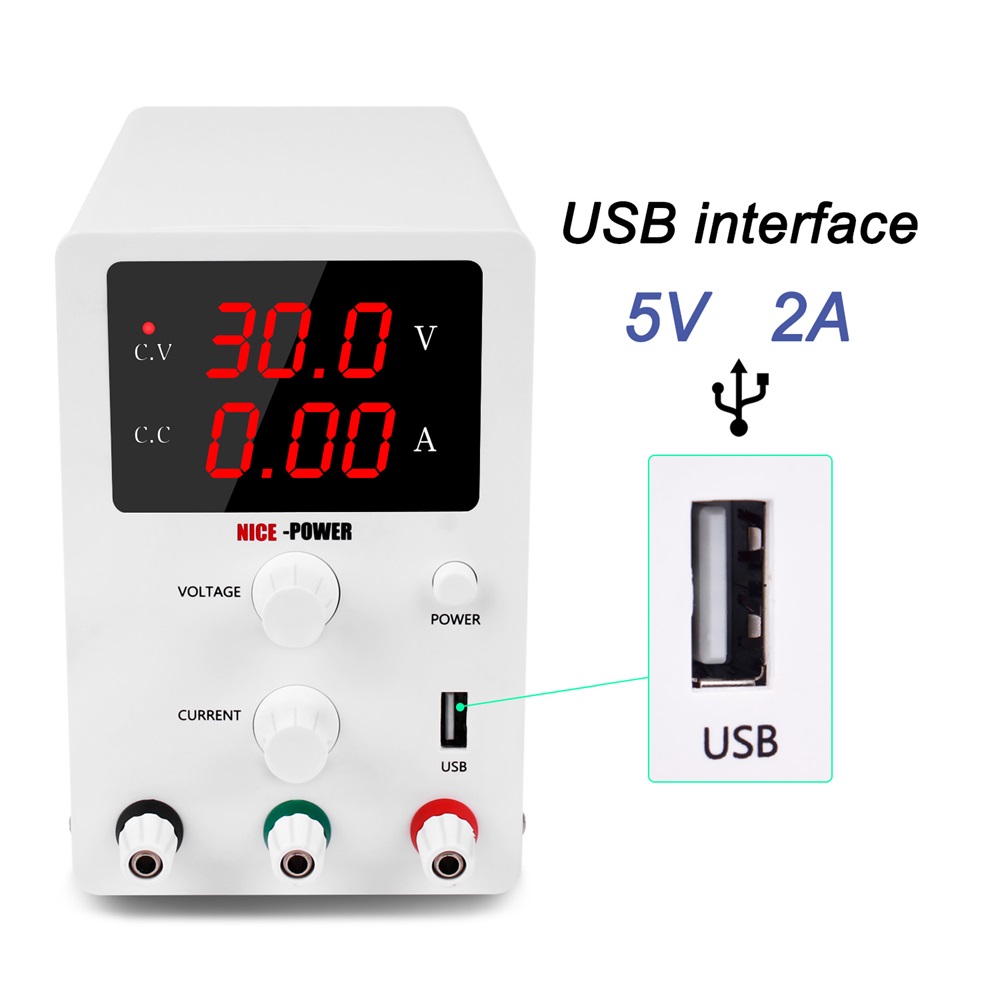

3.USB Quick Charging Function: the machine has built-in fast charging protocol identification chip that supports 5V2A USB fast charging function.

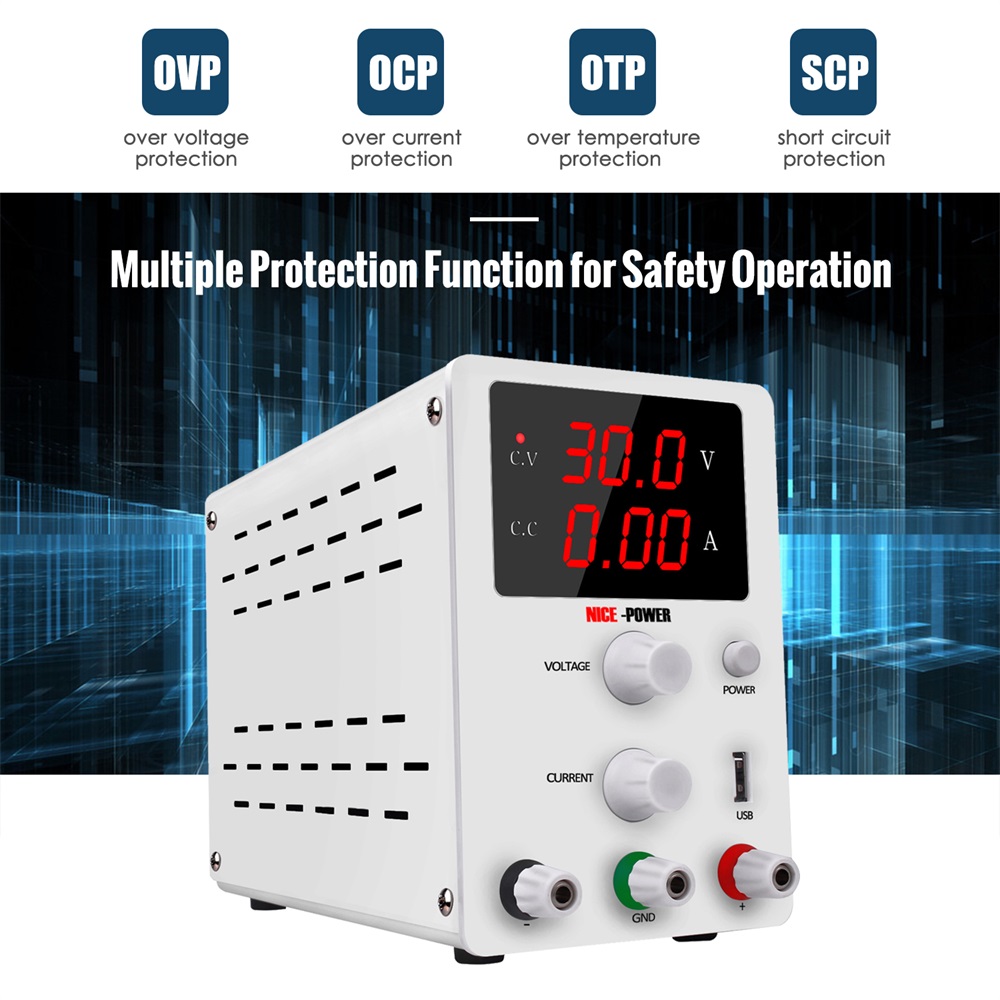

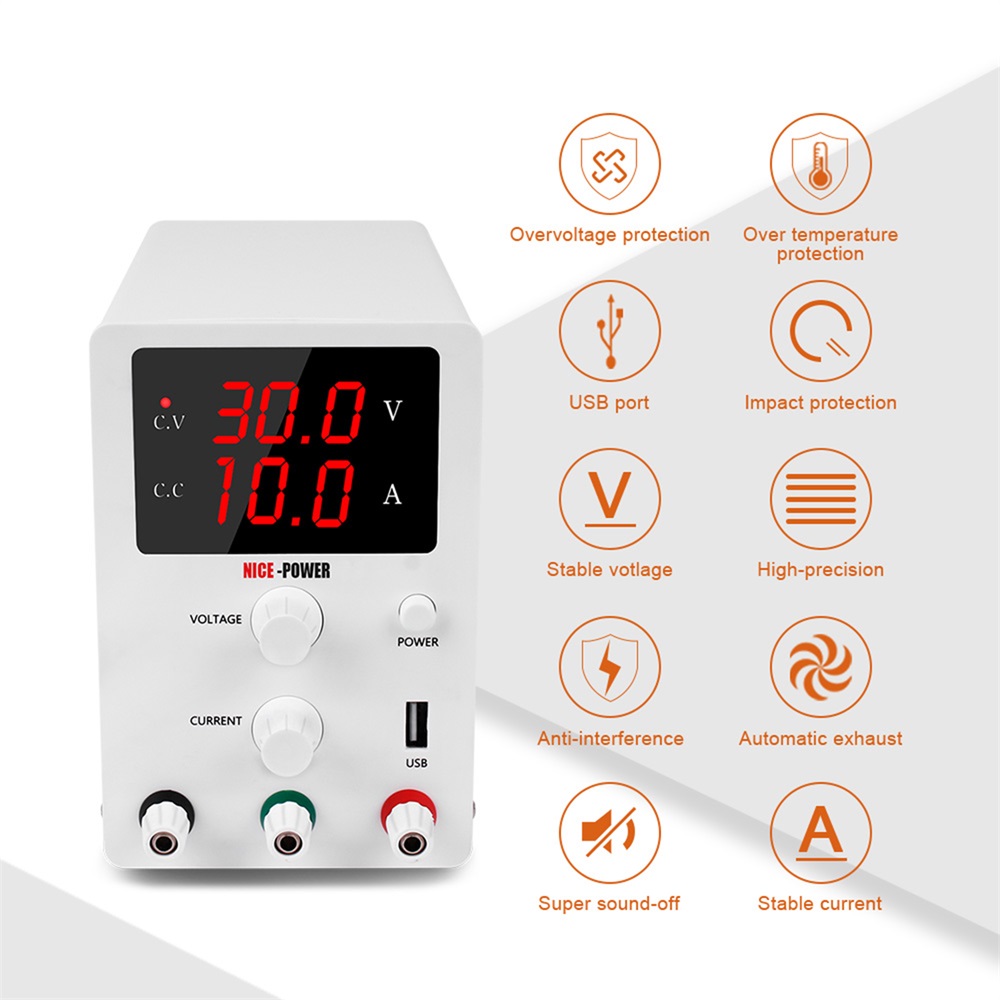

4.Reliable & Safety Operation: it has over voltage protection(OVP), over current protection(OCP), over temperature protection and short circuit protection function.

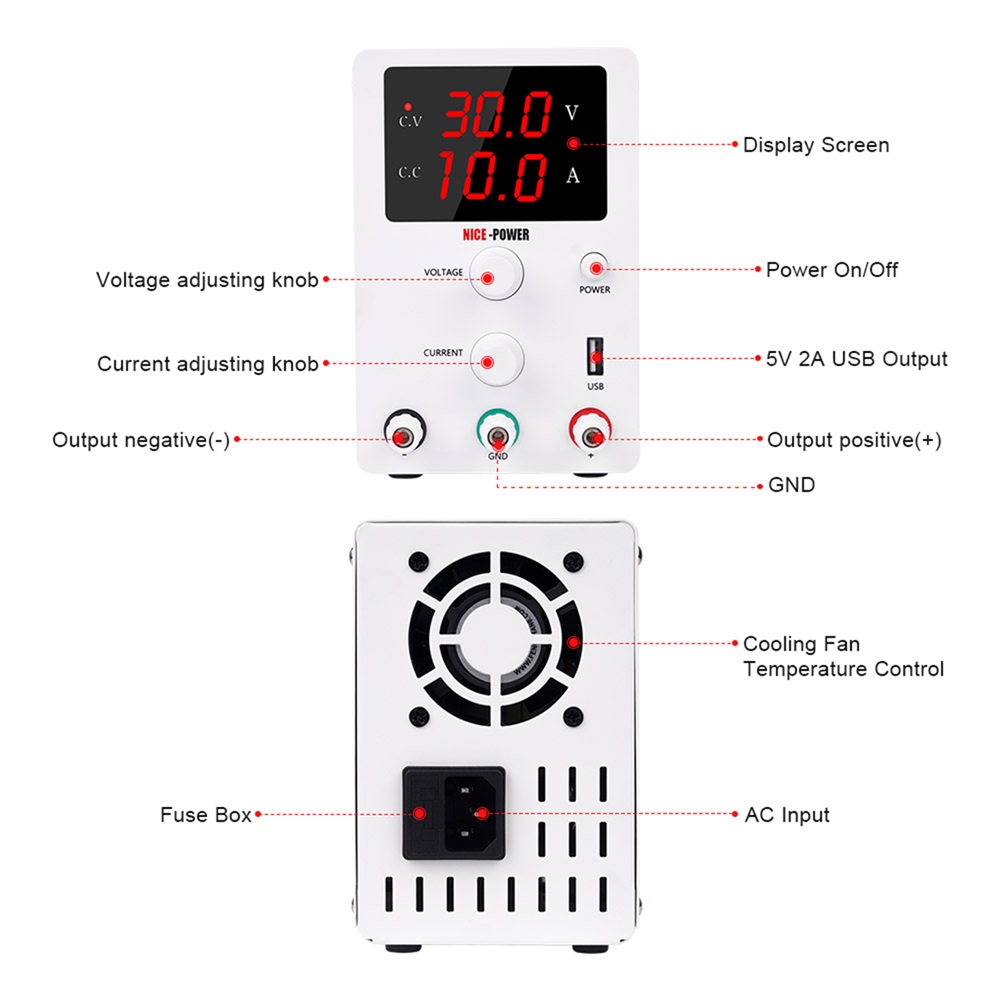

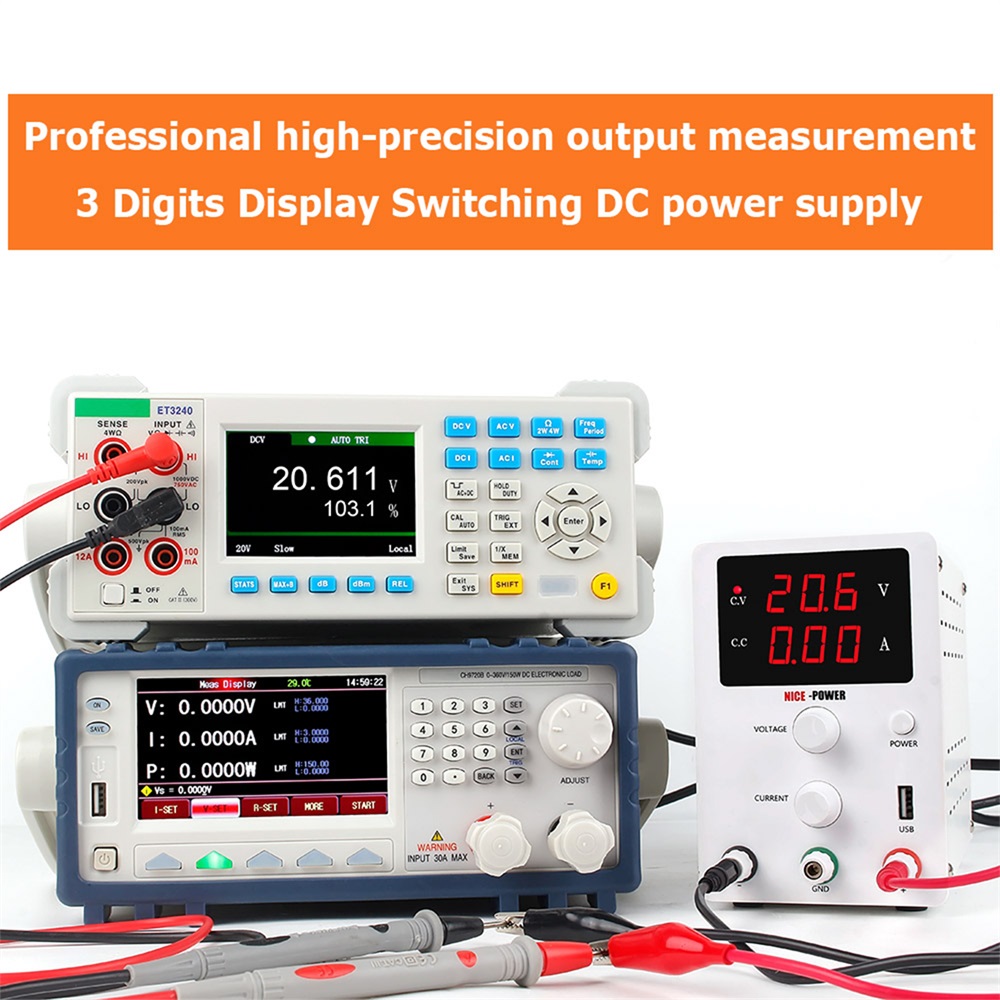

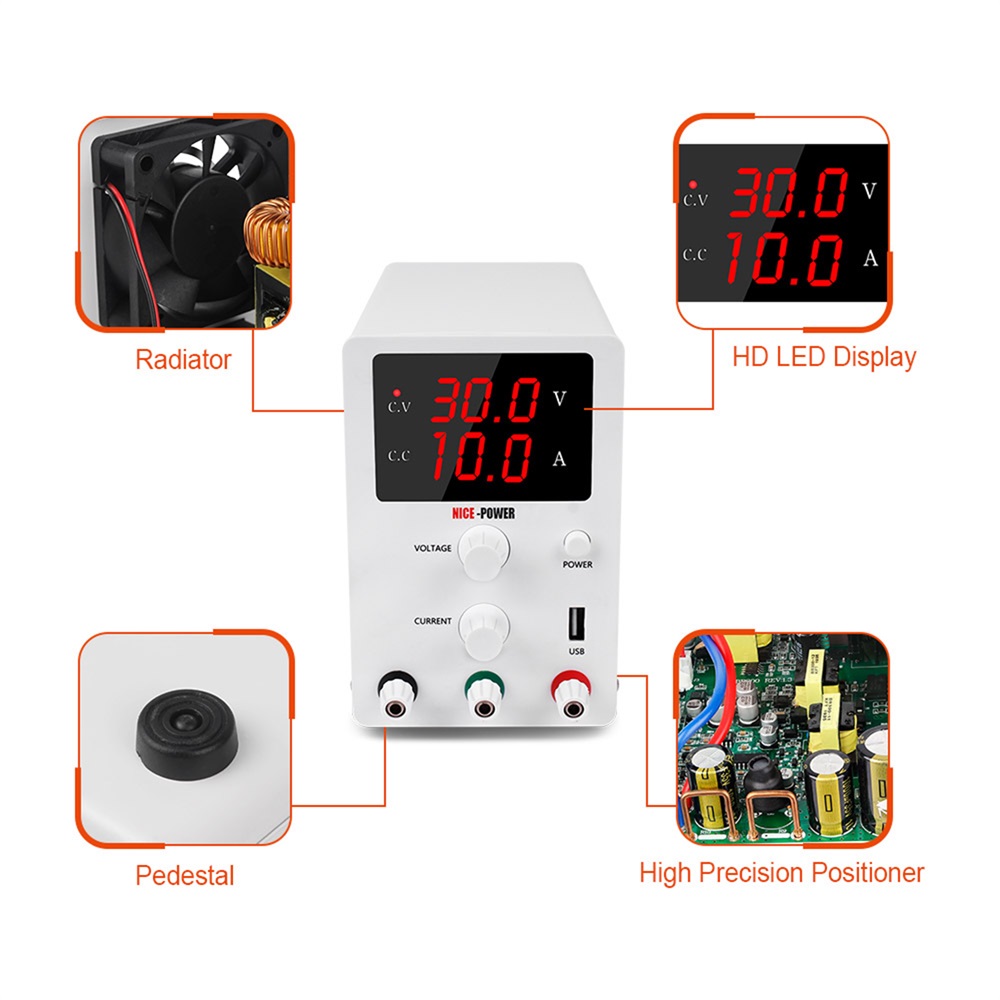

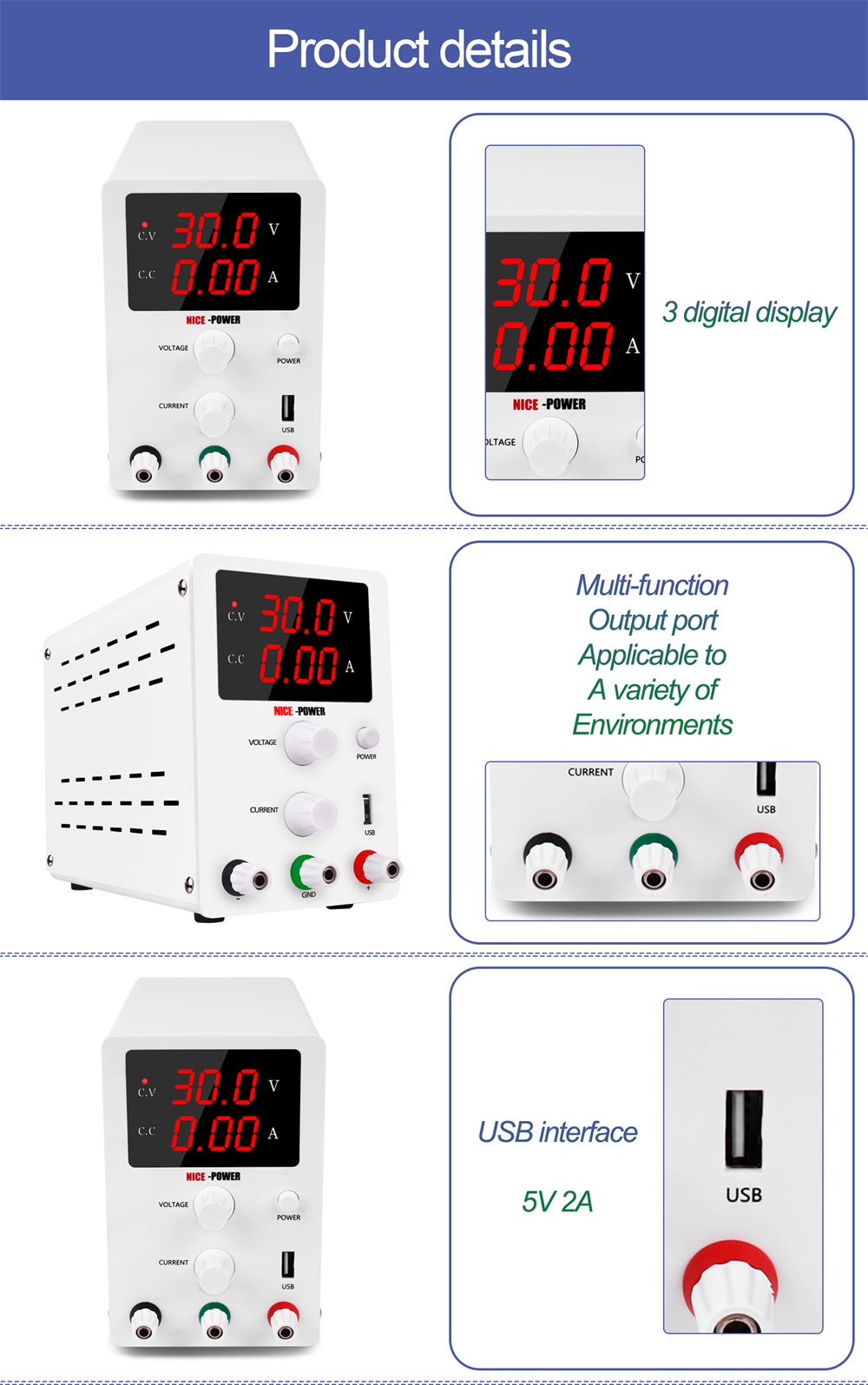

5.Clear LED Display: big red font LED 3 digits display of voltage and current, and features of voltage stabilization, current limiting, high precision and simple operation.
6.Wide Application: can be used in mobile phone maintenance, computer maintenance, electrical maintenance, school laboratories scientific research and production line use and all other need DC regulated power supply.
Specification:
Model | NICE-POWER R-SPS3010 |
Out voltage | 0～30V |
Output current | 0～10A |
Input voltage | 230V+10%; 50Hz (115V+10% 60Hz) |
Operating temperature | 0°C～40°C; （Relative humidity： <80%RH） |
storage temperature | －10°C～70°C; （relative humidity： <70%RH） |
Constant pressure state | Voltage stability ≤0.1%+3mV Load stability≤0.5%+3mV Ripple noise: ≤20mVrms |
Constant current state | Current stability≤0.1%+3mA Load stability≤0.2%+3mA Ripple noise: ≤20mAems (effective value) |
Display accuracy | 0.5%+2 words |
display resolution | Voltage: 0.1V Current: 0.01V |

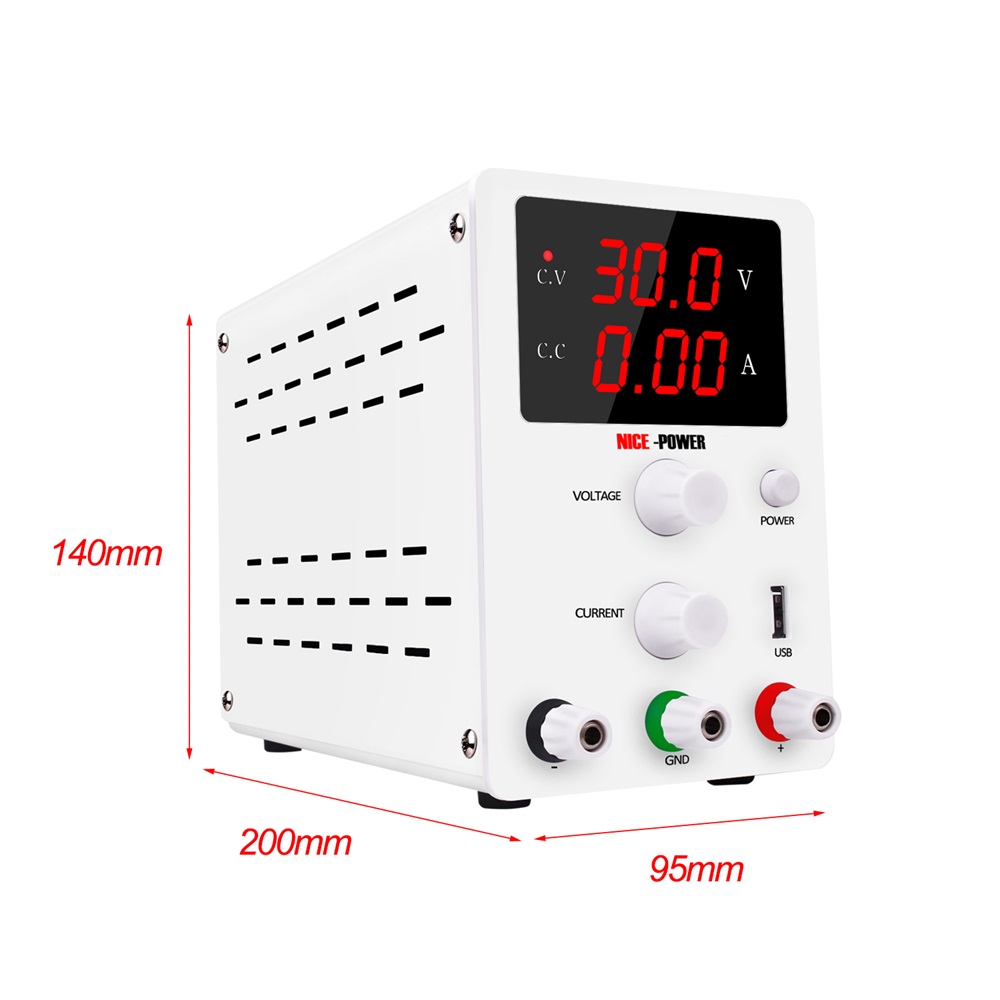

Product Size | 223*93*145mm |
Product weight | 1.6kg |
Fuse specifications | 3A (220V input) |

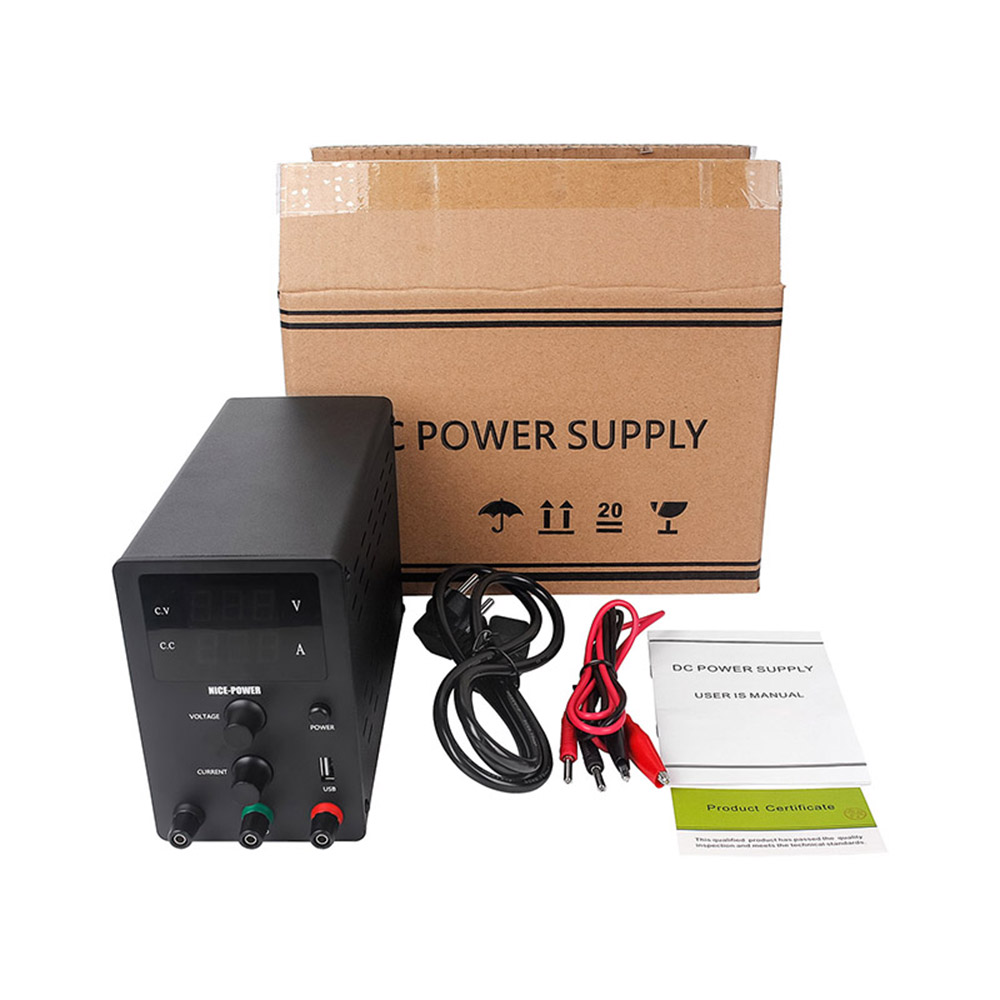

Package Included:
1 X | DC Power Supply |
1 X | Power Cable |
1 X | Output Line |
1 X | Instruction Book |
