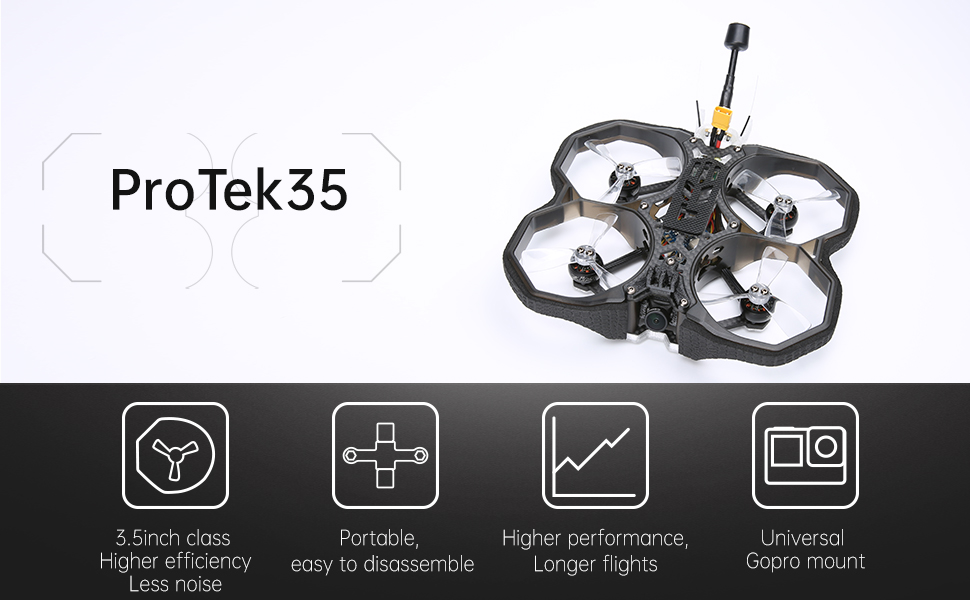

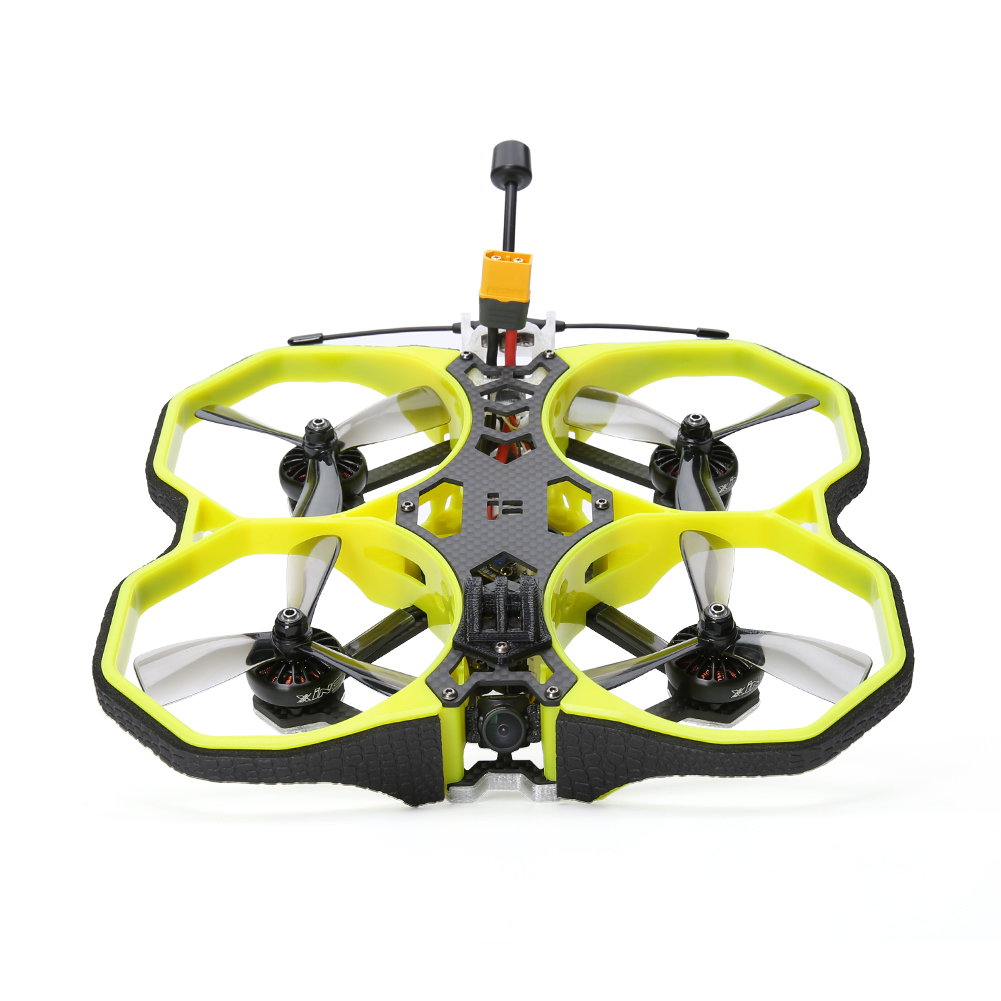

HD 3.5 Inch 4S Cinewhoop Yellow FPV Racing Drone BNF Nebula Nano Digital HD System 2203.5 3600KV Motor Beast AIO F7 45A FC ESC

Note: The camera mount for Gopro show on the photo is not Included. This version comes with Yellow.

After our very popular 3inch Cinematic EVA bumper BumbleB and Green Honet CineWhoop series, we were trying to increase performance and reduce weight for an even better and longer flight experience for a wide variety of use.

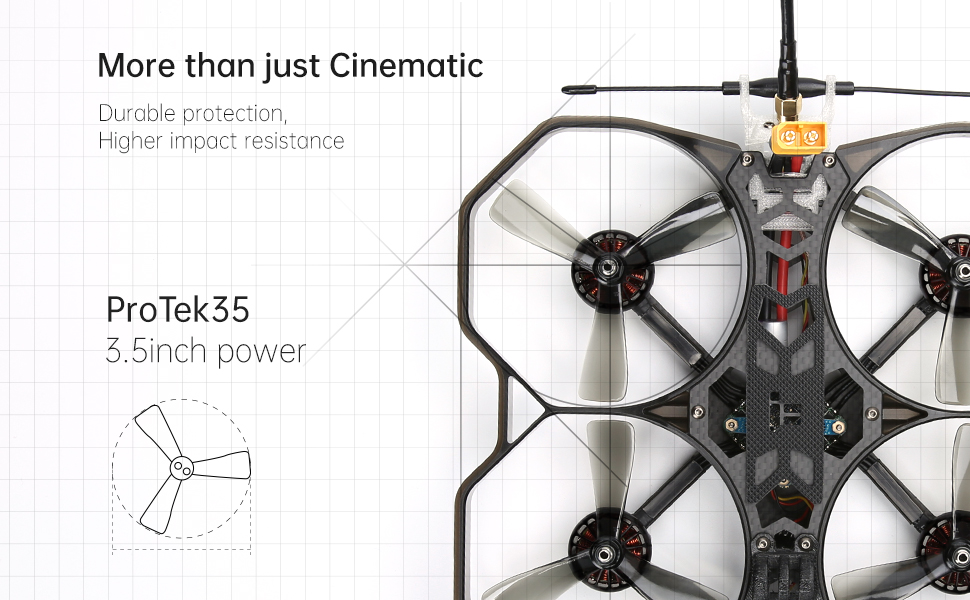

Our all new 3.5inch project is finally ready for all you content creators or those guys who like to wear some protection every now and then. Prop protection is what we're talking about here...

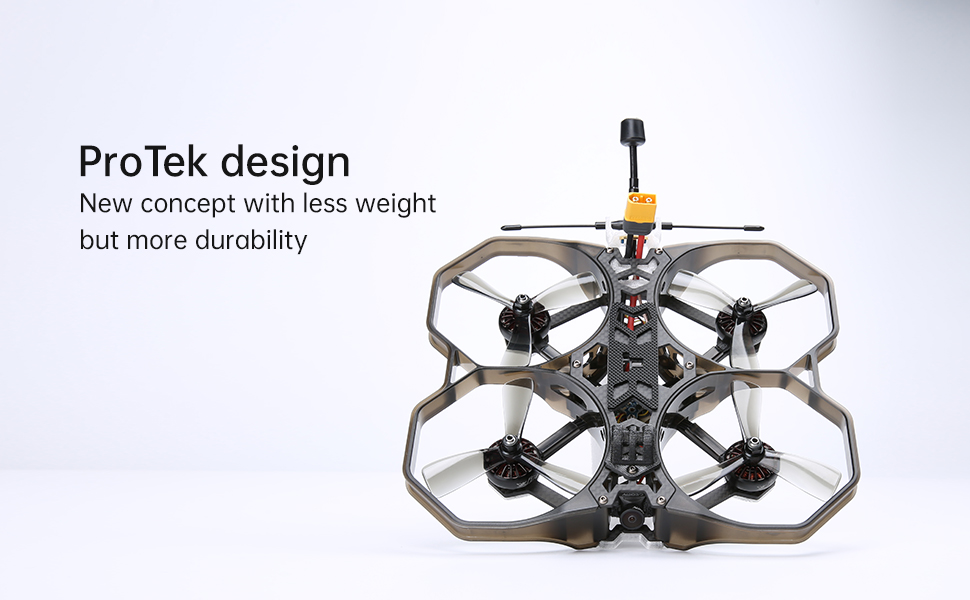

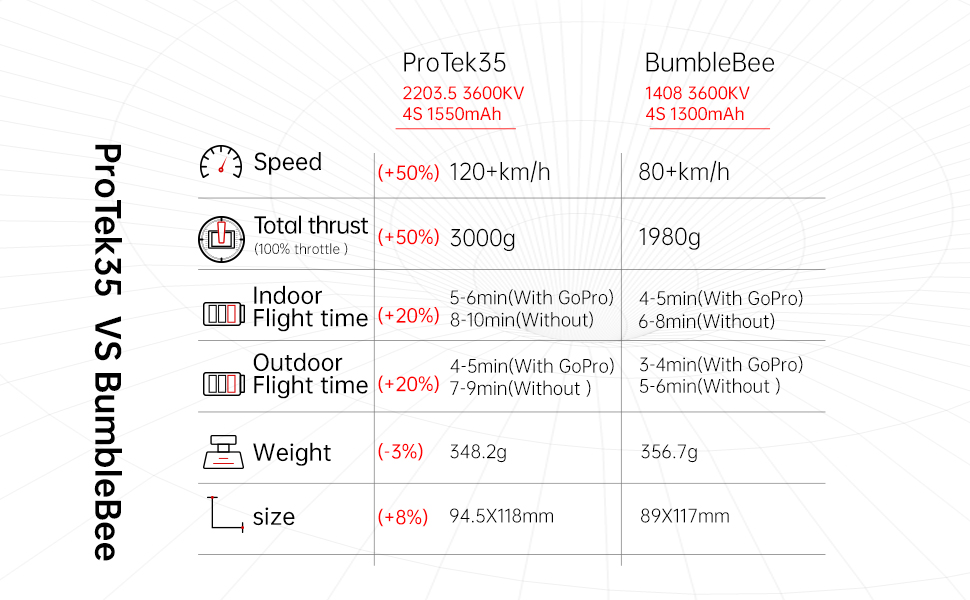

ProTek is not necessarily just a Cinewhoop series but far more. Equipped with our all new 2203.5 motors for more power and less heat. We were able to increase speed and thrust by 50% compared to it's 3inch predecessor which gives a lot more room for a lot more fun. Our GPS measured maximum speed was above 120km/h and a maximum thrust of 750g per motor (3kg in total) would even carry heavier cams than a for Gopro but also do some loaded punch outs or light freestyle moves.

A lot of thought was put into the different assembly options. Our stock BNF will ship in the standard configuration but you can either do a pusher mod (flip the build upside down) or a lite mod (remove the protective plastic for weight optimization).

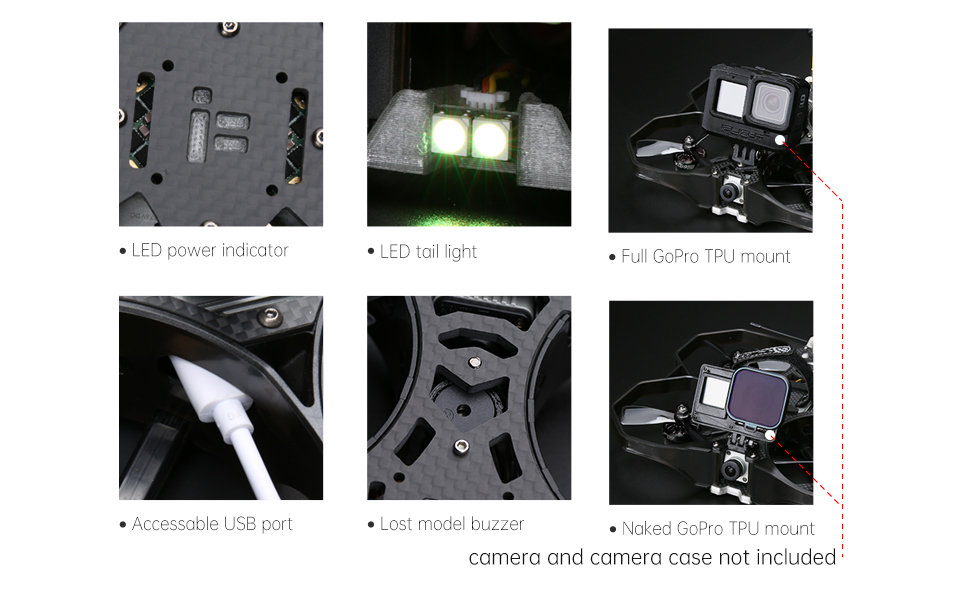

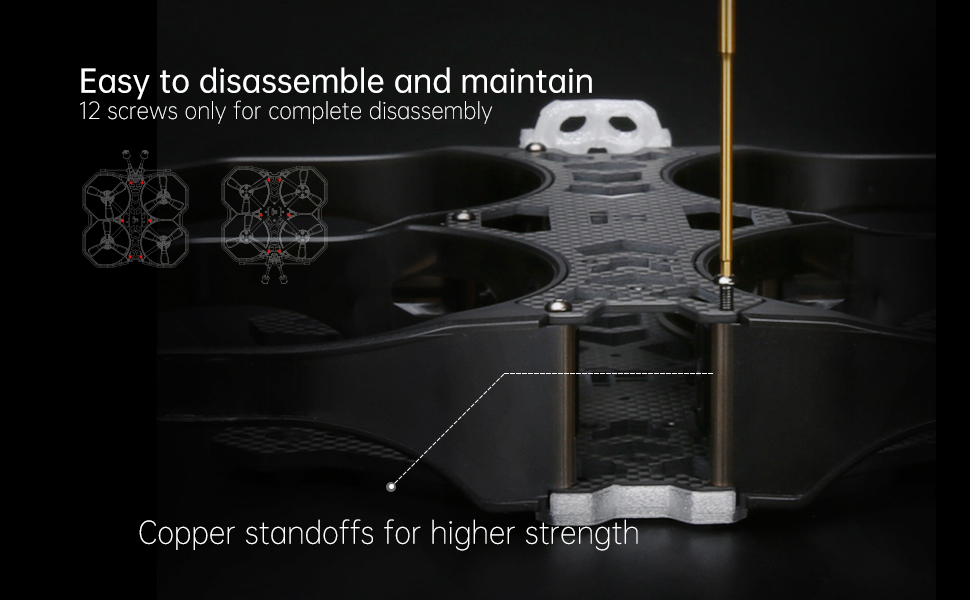

Durable plastic protectors with copper standoffs, portable compact design, easy accessable UBS port without disassembly, LED battery status, lost model buzzer and a universal for GoPro TPU for a full size or naked for GoPro. If you wanna go extra light, get one of our 5V balance plug for GoPro power cables to get rid of the internal battery.

Need a naked for GoPro case or mount? Checkout our new iFlight naked for GoPro Hero8 TPU case to use with your ProTek35.

Features:

- UPGRADED PROP GUARDS V2.0 (Material optimized)

*No Props or frame in view!

*High performance True-AIO Board Beast Whoop F7 AIO 45A to save weight and space

*T700 Quality Carbon (40% more tensile strength compared to common 3K carbon)

*Lightweight one-piece frame design (Less flexibility, more Rigid, more Durable)

*Low Resonance frame construction (Less Jello, more Cinematic footage)

*Nebula Nano Digital HD System

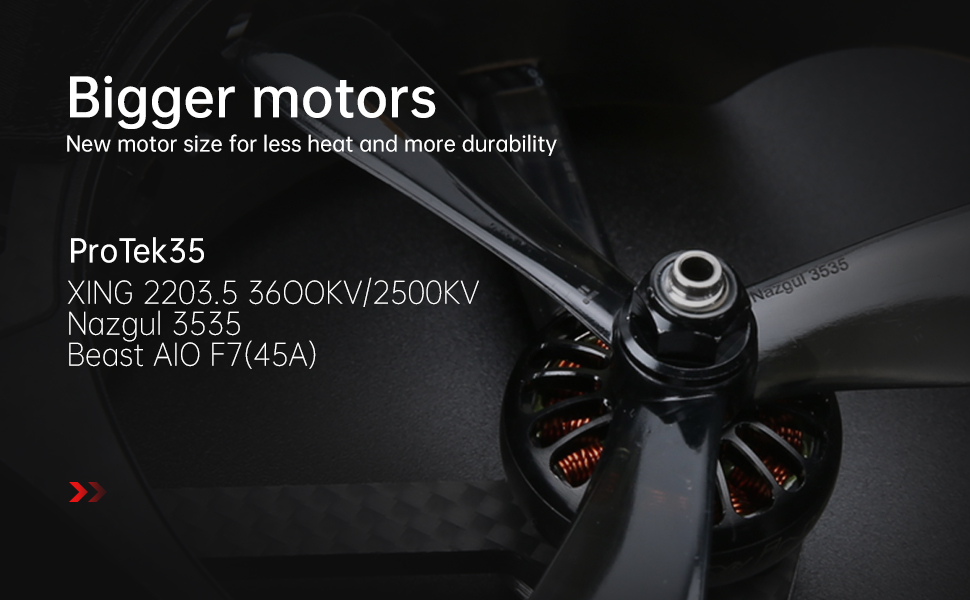

*Butter smooth 2203.5 3600KV (4S)

*Pre-tuned with smooth freestyle settings

PRE-TUNED & PRE-SETUP:

Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!

To restore lost tunes or updates, please check our linked article on "Firmware/Factory Dumps"

Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!

Please check our linked article on "How to disable Angle-Mode, activate Acr0 -Mode"

ProTek35 BNF Specs:

*Board Beast Whoop F7 AIO 45A

*Motor: XING 2203.5 3600KV (4S)

*Wheelbase: 151mm

*Body Size: 118*94.5mmmm

*Bottom plate thickness: 3.5mm

*Top plate thickness: 2mm

*Top and bottom plate spacing: 20mm (aluminum standoff height)

*Propeller size: 3.5 inch

*FC pattern: 25.5*25.5mm / 20*20mmmm

*FPV cam spacing: 20mm

*Weight: 348.3g (without battery)

ProTek35 HD Quad BNF Included Components and Parts

pre-built and tested Quadcopter

1 x ProTek35 Frame

1 x DJI FPV Camera

1 x DJI FPV Air Unit Module

2 x DJI FPV Air Unit Antenna SMA

1 x TPU Bracket for DJI Air Unit Module

1 x TPU Antenna holder for DJI antenna

2 x Nazgul 3535 propeller (Set of 4 - Color May Vary)

1 x iFlight Lipo Strap 15*150mm (Color May Vary)

1 x iFlight Lipo Strap 15*250mm (Color May Vary)

1 x for GoPro TPU bottom stand black (for GoPro Protector not included)

FC // Beast F7 AIO

MCU: BGA-STM32F745

Gyro: MPU6000

UARTs: 5

Blackbox: 8Mb Onboard Flash

BEC output: 5V 2.5A

Barometer: BMP280

Connector: Micro-USB

OSD: AT7456E

FC Firmware：IFLIGHT_F745_AIO

Mounting pattern: 25.5*25.5mm φ3mm

Dimensions: 32.5*32.5mm

Weight: 8.5g

ESC // 45A 2-6S

*Current Sensor: Yes

*Input: 2-6S LIPO

*Current scale: 200

*Constant: 45A / Burst: 50A

*BLHeli: BLHeli-S

*RPM-Filter ready: Yes (JazzMaverick or JESC firmware)

*Telemetry: no

*ESC Firmware: BlheliS G-H-30

*Mounting pattern: 25.5*25.5mm/Φ3mm

*Dimensions: 32.5*32.5mm

Important

The DJI Remote Controller is recommended for beginners since you won't need to set up another receiver, but it is also optional in this BNF drone because it is NOT required in order to use the FPV system. If you don't choose to use the DJI Remote Controller, you can choose a receiver option for your transmitter and then bind to your own radio as usual.
