P1 CO2/PM2.5/PM10/PM1.0 WIFI Carbon Dioxide Detector Air Quality Monitor with 2.8inch TFT Color LED Backlight LCD Built-in 2600MA Lithium Battery
- Stock: In Stock
- Model: ST22010739
- SKU: ST22010739
$90.99
Ex Tax: $90.99
Description:

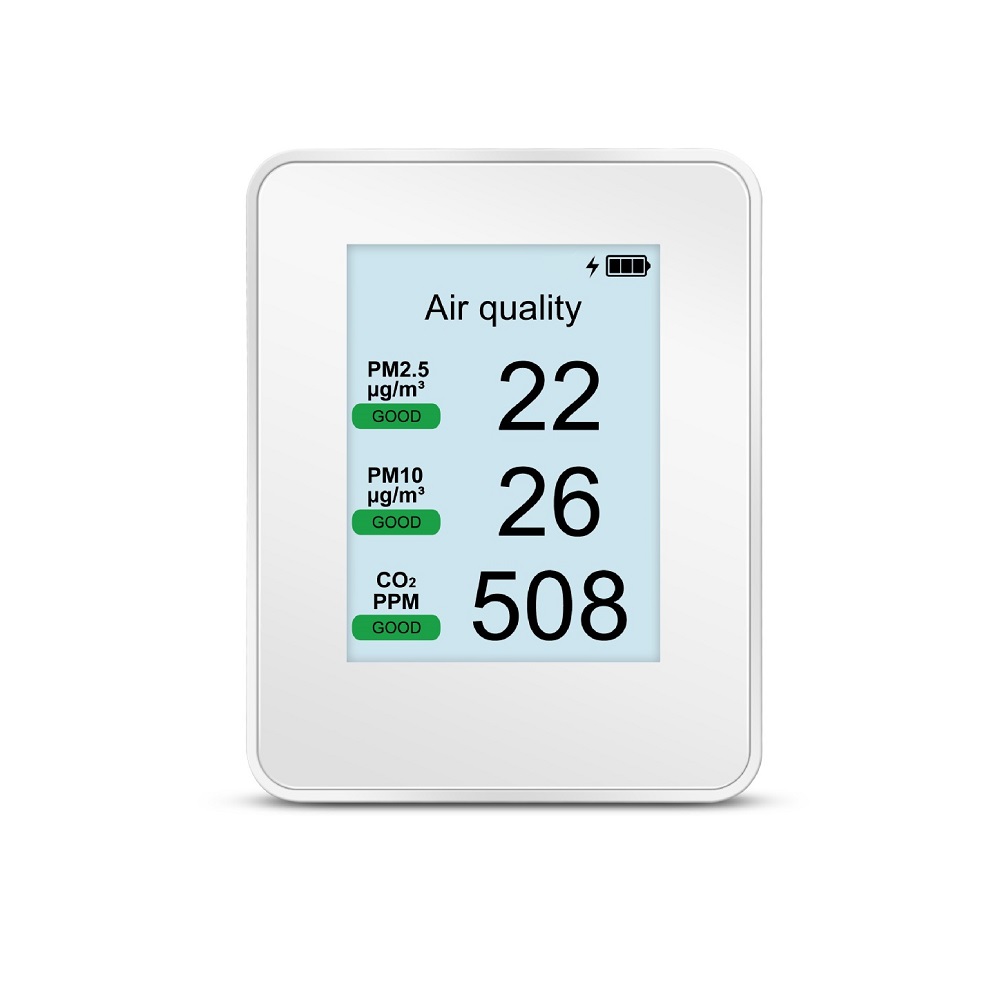

The P1 air quality detector contains a laser dust particle concentration sensor and a carbon dioxide sensor. The user can directly view the current air quality, PM2.5 particulate matter count, carbon dioxide content and other data through the 2.8-inch TFT full-color LCD display.
The laser dust particle concentration sensor is a laser sensor, which uses the principle of laser scattering to achieve precise measurement with zero error alarm rate. It can continuously collect and calculate the number of suspended particles of different particle sizes in the air per unit volume, that is, the particle concentration distribution, and then convert it Become the mass concentration, the minimum resolution particle size is 0.3μm, the main parameters are PM2.5, PM10, PM1.0, the number of particles above 0.3um/0.1L, the number of particles above 0.5um/0.1L, the number of particles above 1.0um /0.1L, the number of particles above 2.5um/0.1L, the number of particles above 5.0um/0.1L, the number of particles above 10um/0.1L.
The carbon dioxide sensor uses an infrared carbon dioxide sensor, which uses the principle of non-dispersive infrared absorption, which can continuously collect and calculate the carbon dioxide concentration in the air per unit volume. It has good selectivity, no oxygen dependence, long life, built-in temperature compensation, and accuracy. High and reliable.
The stable and reliable sensor is closely integrated with the sophisticated circuit design, plus a simple atmosphere.
Features:
The product has a beautiful appearance, a three-dimensional square design, a comfortable grip, flexible buttons, a balanced overall ratio, a simple and intuitive interface, and can be suitable for indoor or outdoor environments such as cars, offices, living rooms, bedrooms, and classrooms;
2.8 inch TFT full color display, resolution 240RGB*320 Pixel
The sensor adopts industrial-grade sensors to ensure accurate detection data;
Laser dust particle concentration sensor:
The measurement range is accurate to 0.3 microns (μm), single response time: <1 second (s), comprehensive response time: ≤10 seconds (s), PM2.5 range: 0~2500ug/m³ (standard value), 1000ug/ Above m³ is subject to actual measurement;
Carbon dioxide sensor:
Accuracy: ±50ppm /±5%, range: 400-9999 PPM, single response time: 2 seconds (s), after power-on response, you can switch between different display interfaces by pressing the button on the top of the product(note: a carbon dioxide detector only has one interface which cannot be switched).
WIFI: 802.11b/g/n
WIFI frequency: 2.412~2.484GHz
Built-in 2600MA lithium battery power supply, with overcharge and overcurrent dual protection circuit, can be used repeatedly, long standby time, up to 6 hours of battery life in summer (test environment temperature 25°C), and 5 hours of battery life in winter (Test environment temperature 5°C);
Screen digital display PM2.5, PM10 data, carbon dioxide concentration, the number of particles, and other functions;
Specification:
Product name: Smart Air Quality Detector
Model: P1
Display mode: 2.8 inch TFT full-color LED backlight LCD screen
PM2.5 measurement range: 0~2500ug/m³ (standard value), above 1000ug/m³ is subject to actual measurement
Carbon dioxide measurement range: 400~9999ppm
Working environment: -9~55 ℃ <90%HR
Lithium battery capacity: 2600mAh
Charging voltage: 5.0±0.5V
Working voltage: 2.9~3.4V
IC current: 2.08~3.26mA
Maximum backlight current: 15mA
Screen size: 43.2mm x 57.6mm
Display resolution: 240(3RGB)x320 Pixel
Dimensions: 90mm x 70mm x 35mm
Host weight: 162g
Accessories: Micro USB charging cable
Packing size: 115mm x 120mm x 71mm
Gross weight: 315g
Product color: white
Instructions for use:
1. Power on and off:
The button on the top of the product is the power switch button. Press it for 1 second to turn it on, and press and hold it for 2 seconds to turn it off.
2. Function use
After turning on the product, you can switch between different display interfaces by pressing the button on the top of the product (note: the model of single carbon dioxide has only one interface and cannot be switched)
3. Product charging
The product has a built-in 2600MA lithium battery, which can be charged through the USB port on the left side of the product
4. Product reset
The round hole above the USB interface on the left side of the product is the reset button, which needs to be operated with a thimble
Distribution network guide:
Device:
Please keep the product turned on and in the distribution network waiting state.
After the device is turned on, press the power button twice in quick succession to enter the distribution network waiting state. You can find the WIFI icon flashing quickly in the upper right corner of the display interface.
Mobile:
1, 1. Download the Tuya Sart APP in the mobile app market and open it.
2.Users can choose to register an account to use the product or to select the trial version (some functions of the trial version are not available).
3.Select "Add device", "Sensing", and then "Sensor (WIFI)". Fill in the name and password of the home wireless network in the appearing interface, and then select "Next" to confirm that the product is in the distribution network waiting state. Next select "Confirm indicator flash mode", and select "Next"; wait for the APP to search the device intelligently until the device is successfully added, and click "Finish" to view the data remotely in real time on the mobile phone.
If you want to cancel the distribution network after the product successfully achieve it, you can press the power button twice in quick succession.
Application scenarios:
(1) Air quality testing of indoor or outdoor environments such as cars, offices, living rooms, bedrooms, classrooms, kitchens, etc.;
(2) Air filter, air purifier, fresh air system and other supporting testing equipment;
(3) Supporting testing equipment for vehicle air-conditioning filters;
(4) Gifts;
Package included:
1 x P1 Air Quality Detector
1 x USB charging cable
1 x English user manual
1 x Certificate
Details Pictures:
