New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations

New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
  • Stock: In Stock
  • Model: ST22011138
  • SKU: ST22011138
$38.99
Ex Tax: $38.99

Available Options

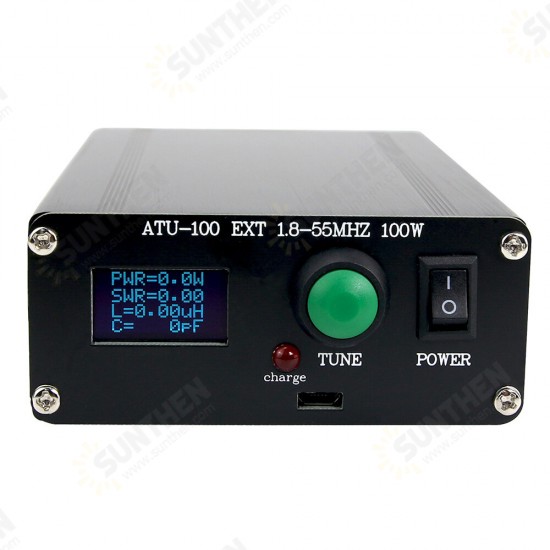

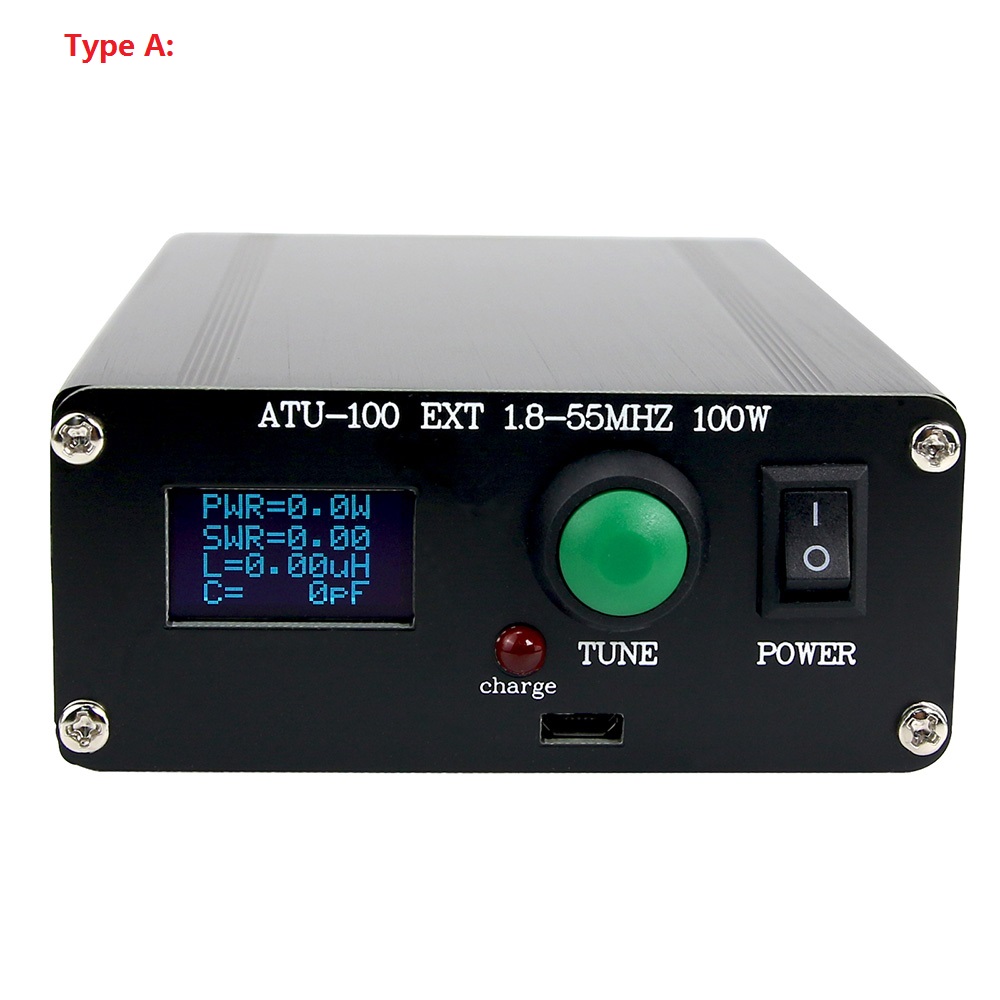

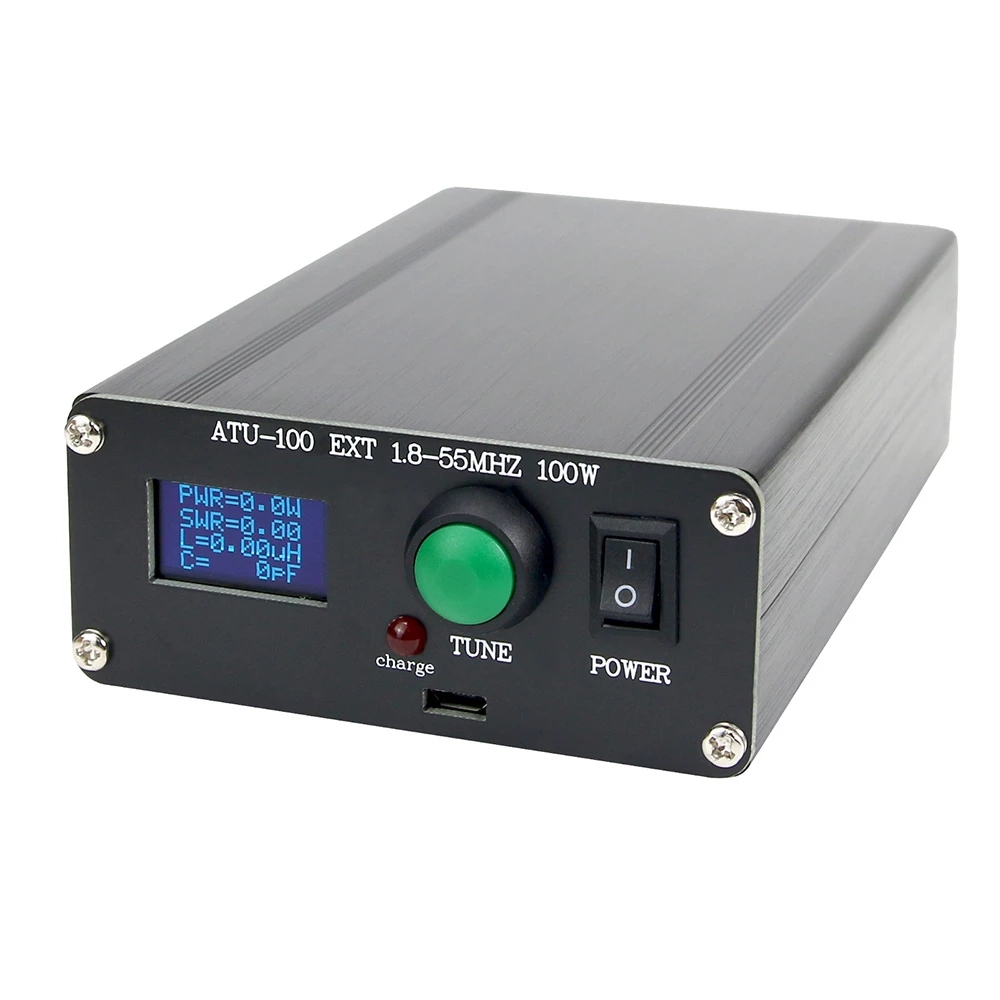

Type A: 1.8-55MHz Automatic Antenna Tuner

Features:
- 0.96-inch OLED display
- Frequency 1.8-55 MHz
- Power supply voltage range: 10-15V DC
​- With Lithium battery
- Maximum current consumption: 300 mA
- Maximum working power: 100W
- Maximum possible measured power: 150W
- 1W: It is necessary to start setting the minimum power
- Minimum possible measured power: 0.1W
- Step for measurement on powers under 10W: 0.1W
- Step for measurement on powers above 10W: 1W
- Power measurement accuracy: 10%
- Specified maximum inductor: 8.4 uH capacity
- The minimum installation step of inductor: 0.05μH
- Maximum installation capacity: 1870 pF capacitor
- Minimum installation step: 10 pF

Package Included:
-1 x Automatic Antenna Tuner with Shell
>>Manual(Contact Us to download)

Note: The product is assembled and with shell.

New-ATU100-Automatic-Antenna-Tuner-100W-18-55MHz18-30MHz-With-Battery-Inside-Assembled-For-5-100W-Sh-1762193-1
New-ATU100-Automatic-Antenna-Tuner-100W-18-55MHz18-30MHz-With-Battery-Inside-Assembled-For-5-100W-Sh-1762193-2New-ATU100-Automatic-Antenna-Tuner-100W-18-55MHz18-30MHz-With-Battery-Inside-Assembled-For-5-100W-Sh-1762193-3
New-ATU100-Automatic-Antenna-Tuner-100W-18-55MHz18-30MHz-With-Battery-Inside-Assembled-For-5-100W-Sh-1762193-4New-ATU100-Automatic-Antenna-Tuner-100W-18-55MHz18-30MHz-With-Battery-Inside-Assembled-For-5-100W-Sh-1762193-5New-ATU100-Automatic-Antenna-Tuner-100W-18-55MHz18-30MHz-With-Battery-Inside-Assembled-For-5-100W-Sh-1762193-6

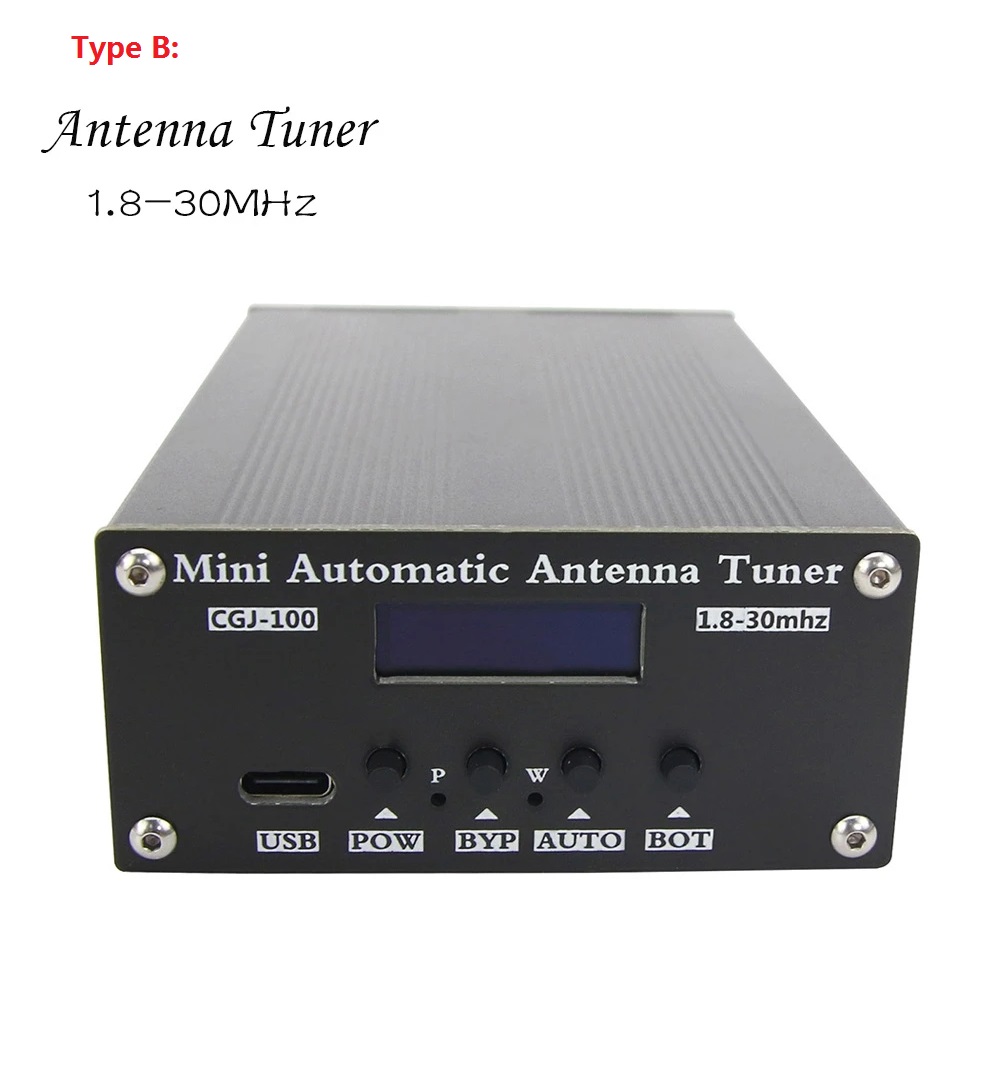

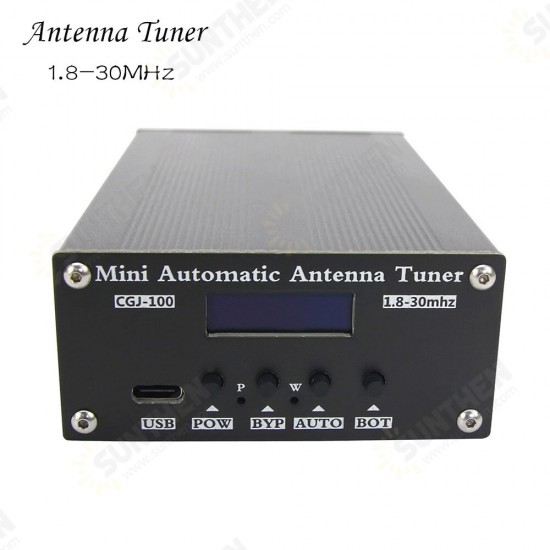

Type B: 1.8-30MHz Mini Automatic Antenna Tuner

Note:

It is assembled and ready to use.
- The device does not consider its own efficiency.
- Supply voltage is 5V standard voltage.
-This Tuner can install battery inside,if you need battery,please choose the one with battery

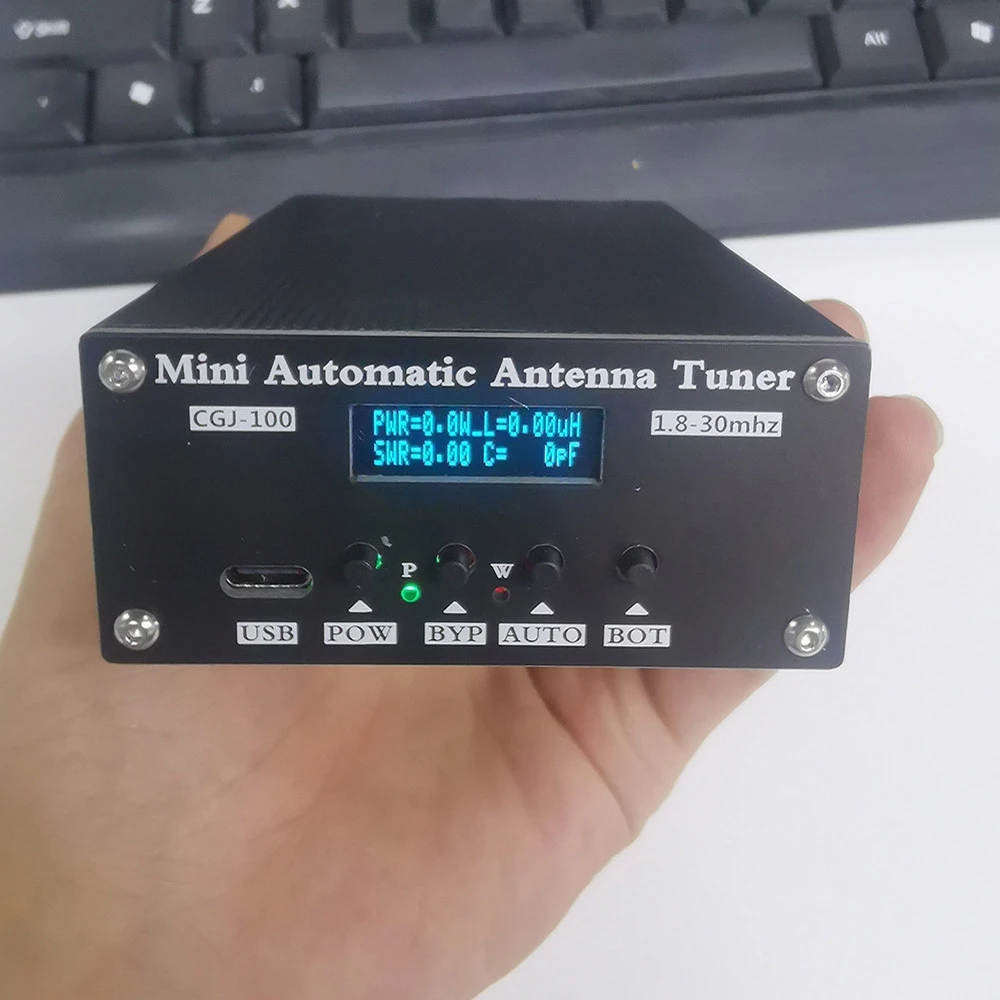

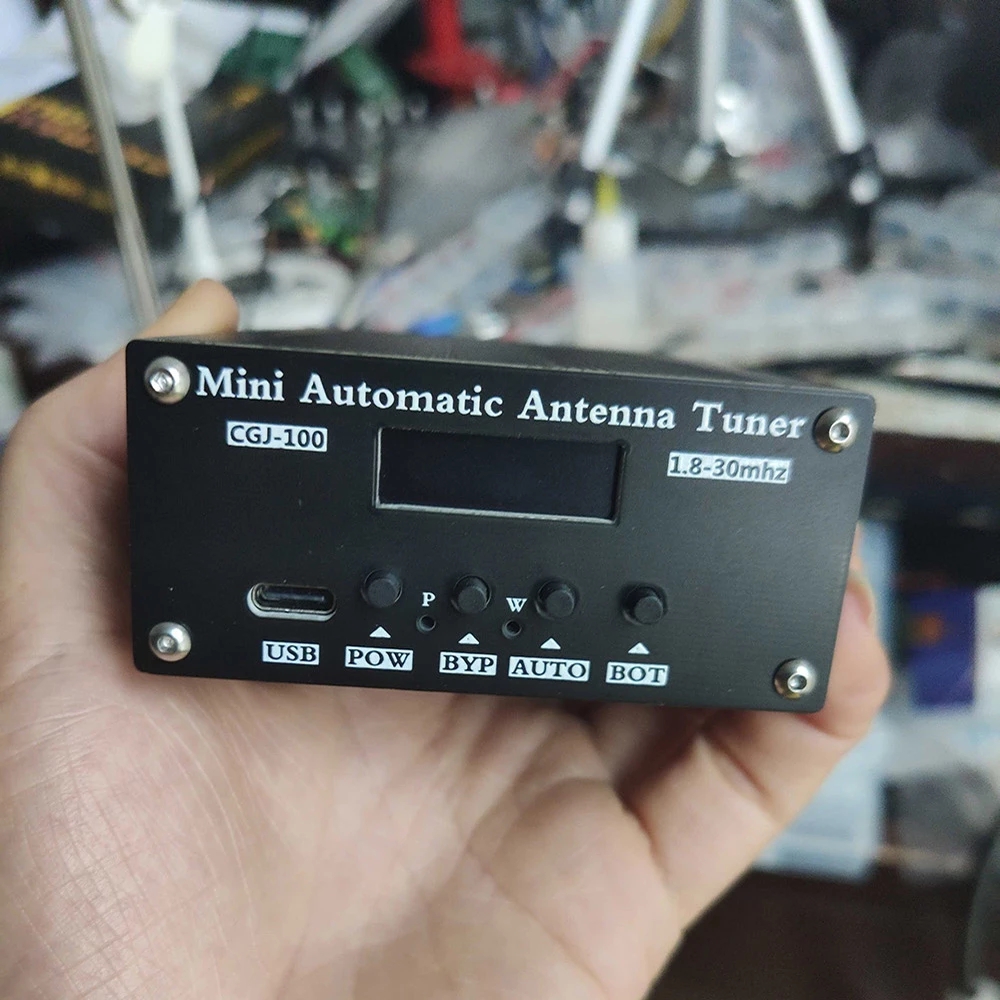

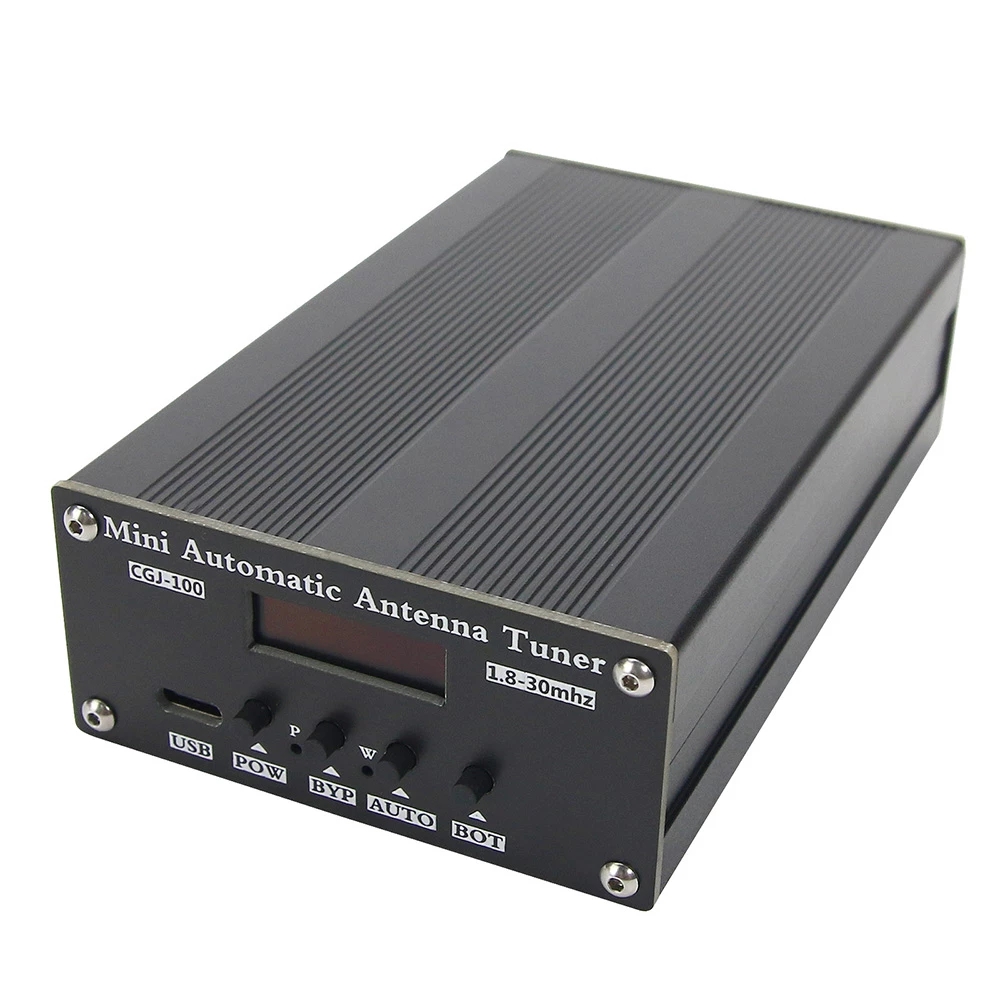

CGJ-100 1.8-30MHz Mini Automatic Antenna Tuner 0.91" OLED Display For 5-100W Shortwave Radio Stations

- CGJ-100: For high-power shortwave radio stations using 5-100W.

Features:
- Mini short-wave automatic antenna tuner.
- TYPE-C charging interface, M connector.
- With a 0.91-inch OLED display.
- This antenna tuner is automatically tuned and does not require any control wires, suitable for most radio stations.
- The device contains a set of 7 capacitors and 7 inductors, which allows it (with the largest configuration) to work effectively in a wide frequency band, overlapping 1.8-30MHz amateur radio HF band.

Specifications:
- Power supply voltage: USB charge and discharge
- Maximum current consumption: 400ma
- Maximum working throughput: 100W
- Maximum possible measurement power: 150W
- Minimum power required to start tuning: 5W
- Minimum possible measurement power: 0.1W
- Measurement steps for power up to 10W: 0.1W
- Measurement steps for power higher than 10W: 1W
- Power measurement accuracy: 10%
- Maximum installation inductance: 8.53uH
- Minimum installation inductance step size: 0.05uH
- Maximum installation capacitance: 1869pF
- Minimum installation capacitance step: 10pF
- 4pcs panel buttons: POW, BYP, AUTO and BOT function
- Display: 0.91" OLED

Package Included:
- 1 x Automatic Antenna Tuner
>>Manual(Contact Us to download)

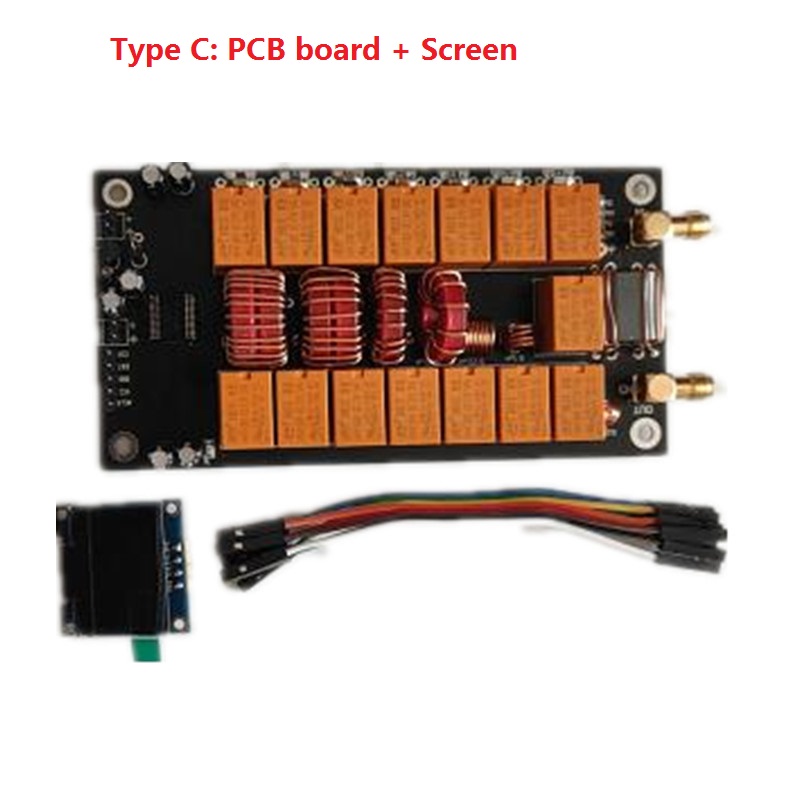

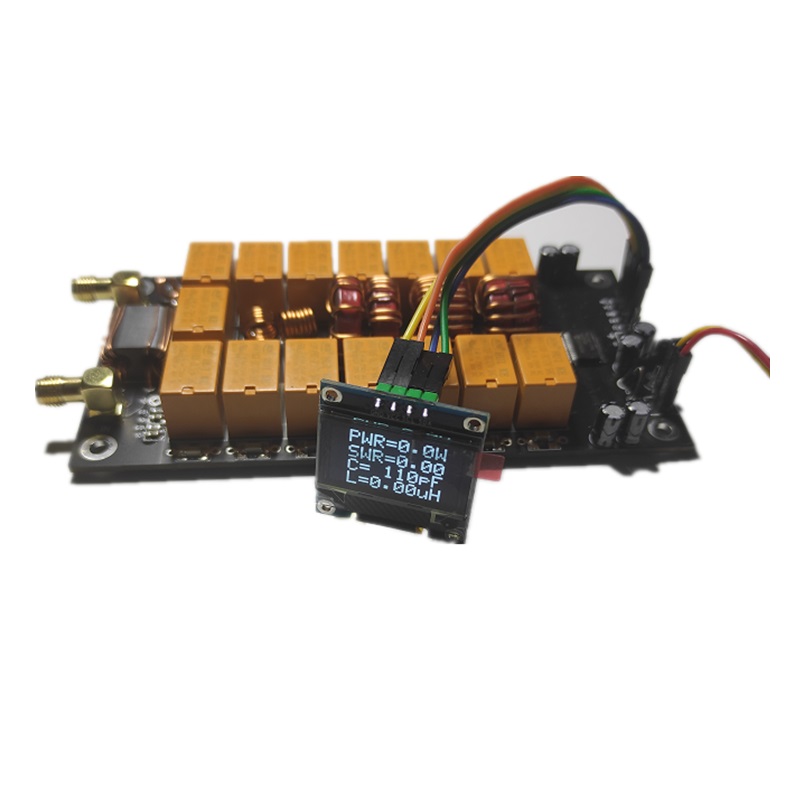

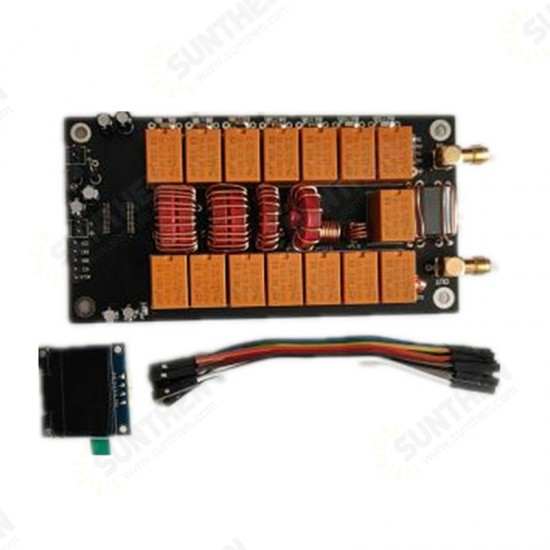

Tyep C: Without shell (PCB Board + Screen)

Specifications:
Power supply range: 10 - 15 VDC
Max current : 450mA
Max working power: 100 watts
Max measured power: 150 watts
Minimum power for tuning start: 1 watt
Recommended maximum power while tuning not above 30 watts. (after tuning you can set 100 watts and work on this power)
Minimum measured power: 0.1 watt
Step for measurement on powers under 10 watts: 0.1 watt
Step for measurement on powers above 10 watts : 1 watt
Power measurement accuracy : 10%
Maximum inductance set: 8.5 uH
Minimal step for setting inductance: 0.1 uH
Maximum installed capacity: 1870 pF
Minimal step for setting capacity: 10 pF

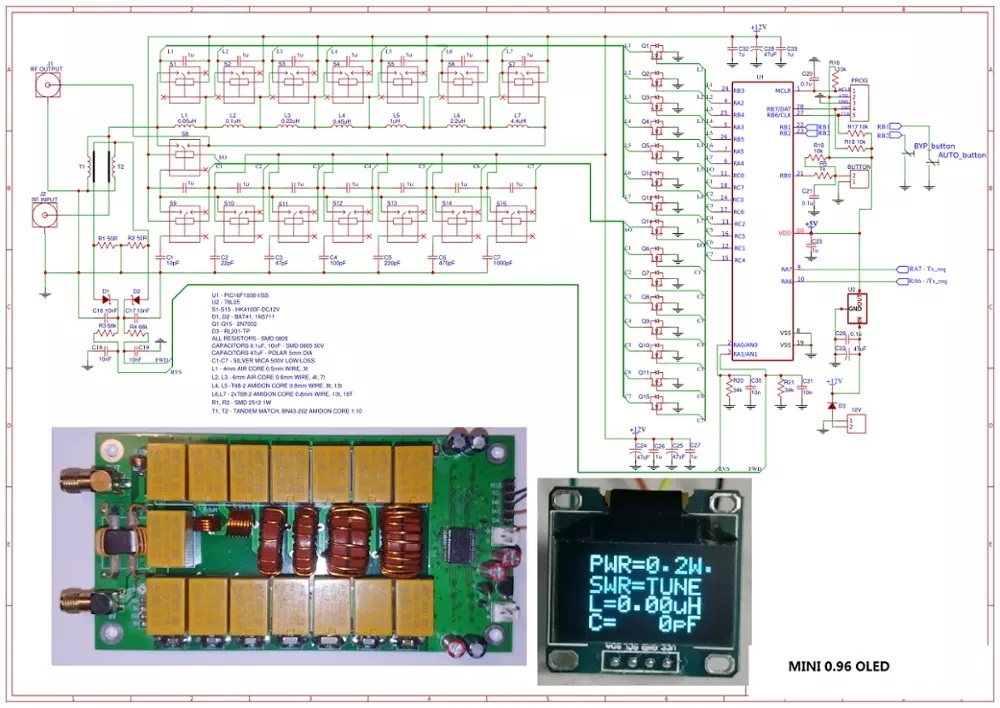

100 Watts tuner, 7x7 (7 capacitors x 7 coils) based on PIC 16F1938.
Dimentsion - 120 mm x 62 mm.

>>Type C Wiring instructions
Package Included:
1 x PCB board
1 x LCD screen
1 x Dupont cable

Note: not included battery

Details picture:


New-ATU100-Automatic-Antenna-Tuner-100W-18-55MHz18-30MHz-With-Battery-Inside-Assembled-For-5-100W-Sh-1762193-7

New-ATU100-Automatic-Antenna-Tuner-100W-18-55MHz18-30MHz-With-Battery-Inside-Assembled-For-5-100W-Sh-1762193-8

New-ATU100-Automatic-Antenna-Tuner-100W-18-55MHz18-30MHz-With-Battery-Inside-Assembled-For-5-100W-Sh-1762193-9

New-ATU100-Automatic-Antenna-Tuner-100W-18-55MHz18-30MHz-With-Battery-Inside-Assembled-For-5-100W-Sh-1762193-10

New-ATU100-Automatic-Antenna-Tuner-100W-18-55MHz18-30MHz-With-Battery-Inside-Assembled-For-5-100W-Sh-1762193-11

New-ATU100-Automatic-Antenna-Tuner-100W-18-55MHz18-30MHz-With-Battery-Inside-Assembled-For-5-100W-Sh-1762193-12

New-ATU100-Automatic-Antenna-Tuner-100W-18-55MHz18-30MHz-With-Battery-Inside-Assembled-For-5-100W-Sh-1762193-13

New-ATU100-Automatic-Antenna-Tuner-100W-18-55MHz18-30MHz-With-Battery-Inside-Assembled-For-5-100W-Sh-1762193-14

New-ATU100-Automatic-Antenna-Tuner-100W-18-55MHz18-30MHz-With-Battery-Inside-Assembled-For-5-100W-Sh-1762193-15
