Charger Charging Base for Xbox Series X S Game Controller with 2Pcs Rechargeable Battery Pack for Xbox One X S Elite Gamepad

Description:

This is a special charging stand device for charging the battery pack of the XBOX1 controller. Two battery packs can be charged at the same time, powered by 5V DC power supply, with LEDs to indicate the charging capacity and the working status of the charging stand. The battery compartment has a protective cover, which can effectively prevent debris from entering the battery charging slot and damaging the charging base. This product is easy to operate and simple

Specification:

Charging stand:

Input voltage: DC-5V/1000mA

No-load current: 2.7mA±0.5mA

Charging current: 500mA (per group)

Instructions:

1. Put the charging stand on a flat place, and use the USB power cord to plug in the 5V power supply to charge the stand.

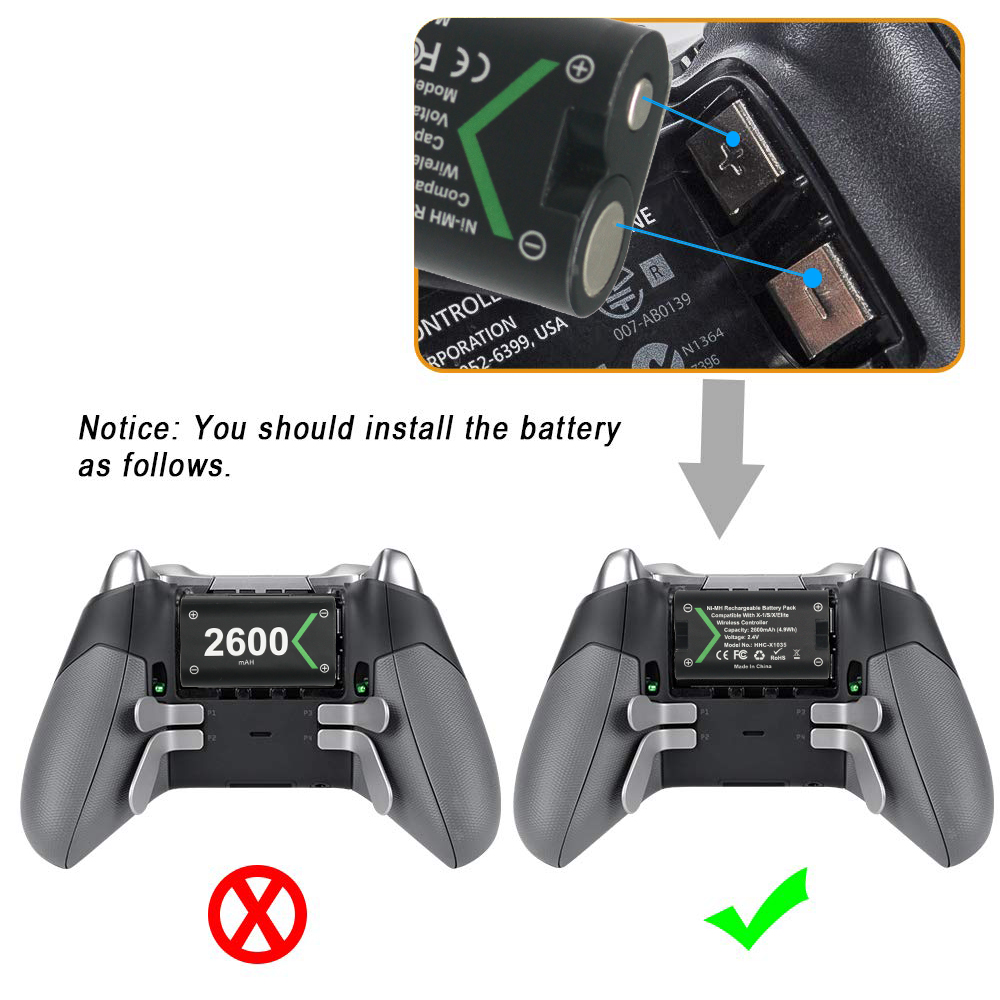

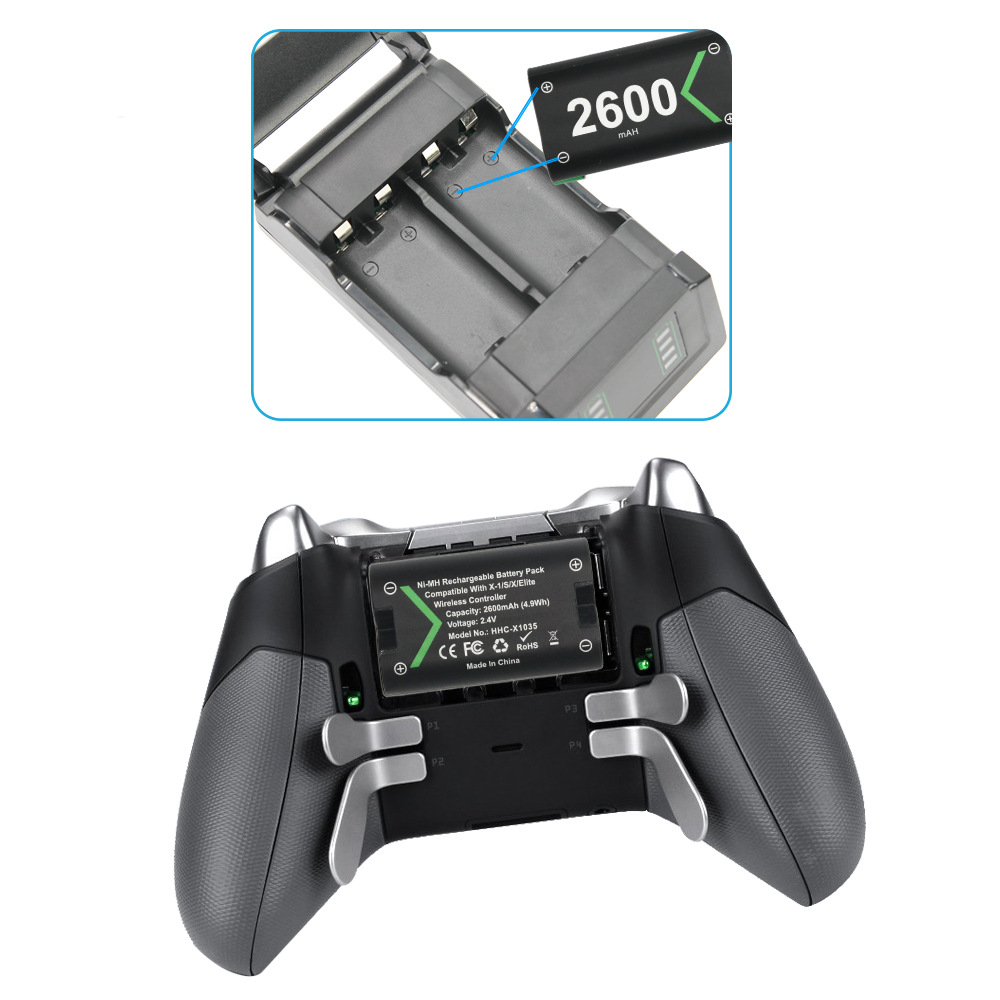

2. Open the protective cover of the charging base, put the battery pack on the charging slot of the charging base according to the polarity of the battery to charge

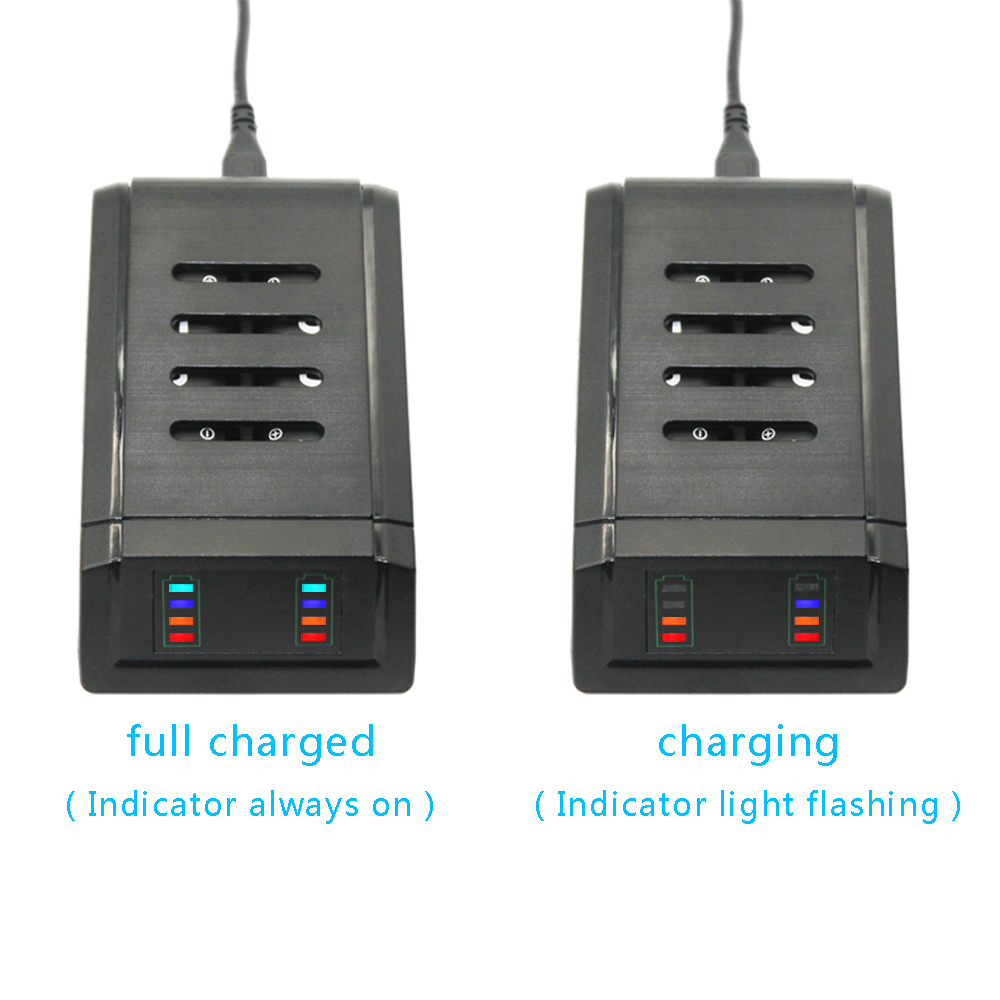

3. LED status:

When the charging stand is powered on, the 4 LEDs will flash once, and the lights will turn off before the battery is connected

The first LED flashes when the voltage is below 25% during charging; when the charge reaches 25% to 50%, the first LED is always on, and the second LED flashes; when the charge reaches 50% to 75%, the first and second LEDs flash. The LED is always on, and the third LED is flashing; when the charge is over 75%, the first, second, and third LEDs are always on, and the fourth LED is flashing; when fully charged, all LEDs are always on

When the output is short-circuited and the battery is faulty, the 4 LEDs will flash quickly, there is no current output, and the charging will stop

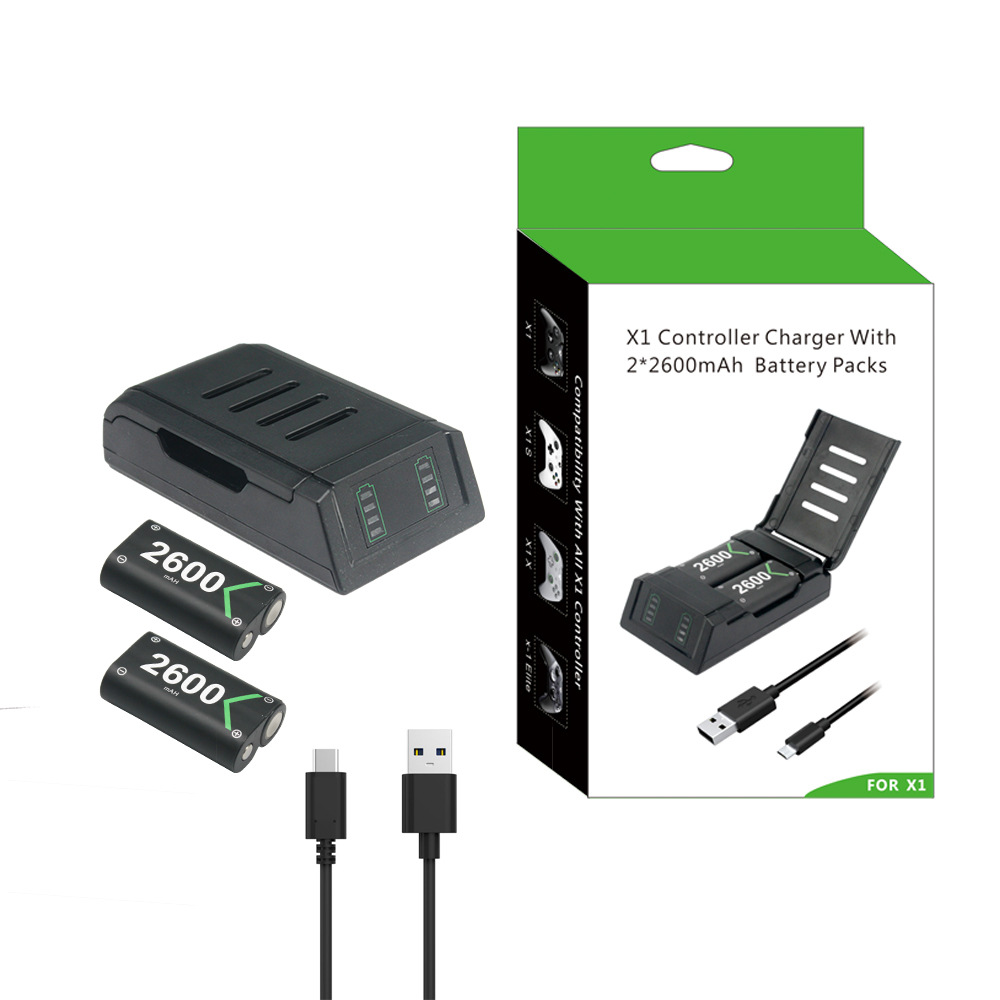

Package Included:

1 x Charger(Other products are not included)

2 x Battery

1 x Charging Cable
