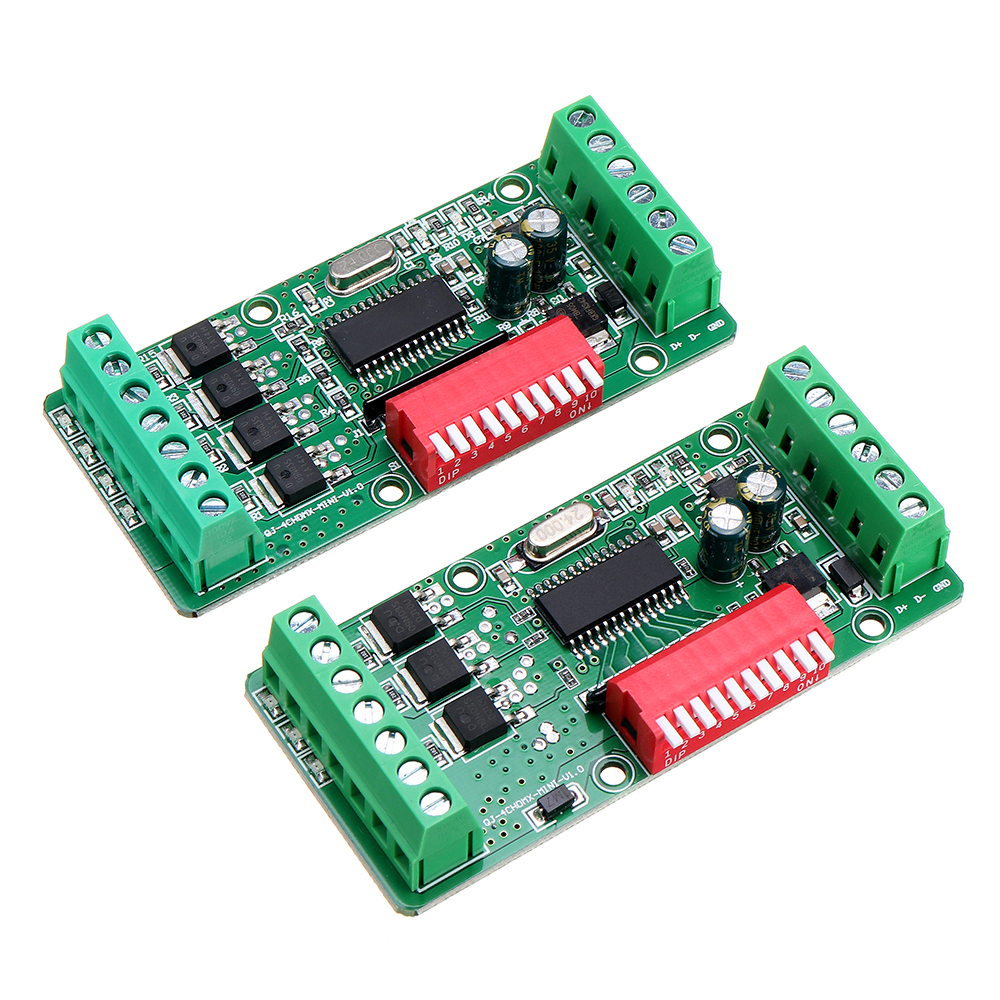

Mini 3 or 4 Channel LED DMX512 Decoder Board with Pull Code Constant Control Light Strip for Stage or LED Advertising Signboards
- Stock: In Stock
- Model: ST230042763
- SKU: ST230042763
$10.99
Ex Tax: $10.99
>>>Manual: Click here to open<<<
Specifications:
Input Power: DC 9-24V
Max Load Current: 4A*3/4CH
Max Power Load:108(9V)-288(24V)
Output Gray Level: 256
Input Signal:DMX512/1990
Output Signal: 3/4 channels constant PWM
Output Connection: Common anode
Application: Sinal,Double,RGBW lamps
Basic Functions:
***There are 3/4 output channels, can connect with single or RGB lamps.
***0~100% dimming output, each channel 256 gray levels.
***International standard DMX512 input protocol, address code set by DIP switches.
***Wide input voltage DC12V-DC24V.
***Each occupied by 3/4 DMX address.
Package Incldued:
1 x 3/4 Channel LED DMX512 Decoder Board
