Metric Whitworth 55/60 Degree Thread Screw Pitch Gauge With 3x Centre Gages
- Stock: In Stock
- Model: ST22011512
- SKU: ST22011512
$15.99
Ex Tax: $15.99
Features:
55° 4-62 UK standard thread gauge model.
Is one kind of a pitch, the pitch multiple stacked up special measuring tools, thread pitch for inspection.
Metric 60° Centres Regulations.
Model is a central angle of 60 degrees and metric thread tooth-shaped corner tooth-shaped angle 55 degrees Inch thread cutting tool angle for testing, special measuring tools knife and angle measurements.
Center angle template is used to detect and set the thread cutting tool can also be used to detect the angle and thread pitch.
Instructions:
1. measure the thread pitch
The thread Pilot Group as a template cards toothed steel thread in the measured workpiece, if not close together, the other for one, until snug.
Then mark on the thread size model is the measured workpiece thread pitch.
2. measuring the tooth-shaped corner
The thread pitch and the measured workpiece thread model on the same thread on top of the test, then check Talia contact, if there is no gap translucent, tooth-shaped angle measured thread is correct; if there is uneven light transmission gap phenomenon, it shows the measured thread tooth shape is not accurate.
Is one kind of a pitch, the pitch multiple stacked up special measuring tools, thread pitch for inspection.
Metric 60° Centres Regulations.
Model is a central angle of 60 degrees and metric thread tooth-shaped corner tooth-shaped angle 55 degrees Inch thread cutting tool angle for testing, special measuring tools knife and angle measurements.
Center angle template is used to detect and set the thread cutting tool can also be used to detect the angle and thread pitch.
Instructions:
1. measure the thread pitch
The thread Pilot Group as a template cards toothed steel thread in the measured workpiece, if not close together, the other for one, until snug.
Then mark on the thread size model is the measured workpiece thread pitch.
2. measuring the tooth-shaped corner
The thread pitch and the measured workpiece thread model on the same thread on top of the test, then check Talia contact, if there is no gap translucent, tooth-shaped angle measured thread is correct; if there is uneven light transmission gap phenomenon, it shows the measured thread tooth shape is not accurate.
Specification:
Product name: Thread gauge
Material: Stainless steel
Color: Silver
Size:Approx. 11x5.5cm/4.33"x2.16"
Quantity: 28pcs
Accuracy: ±0.07mm
Measuring range: 4-62
Product name: Gage
Material: Stainless steel
Color: Silver
Size: Approx. 6x1.9cm/2.36"x0.74"
Measuring range: Metric 60°
Accuracy: ±30 points
Color: Silver
Size:Approx. 11x5.5cm/4.33"x2.16"
Quantity: 28pcs
Accuracy: ±0.07mm
Measuring range: 4-62
Product name: Gage
Material: Stainless steel
Color: Silver
Size: Approx. 6x1.9cm/2.36"x0.74"
Measuring range: Metric 60°
Accuracy: ±30 points
Package includes:
1 x 55° 4-62 UK standard thread gauge
3 x Metric 60° Centres Regulations
3 x Metric 60° Centres Regulations

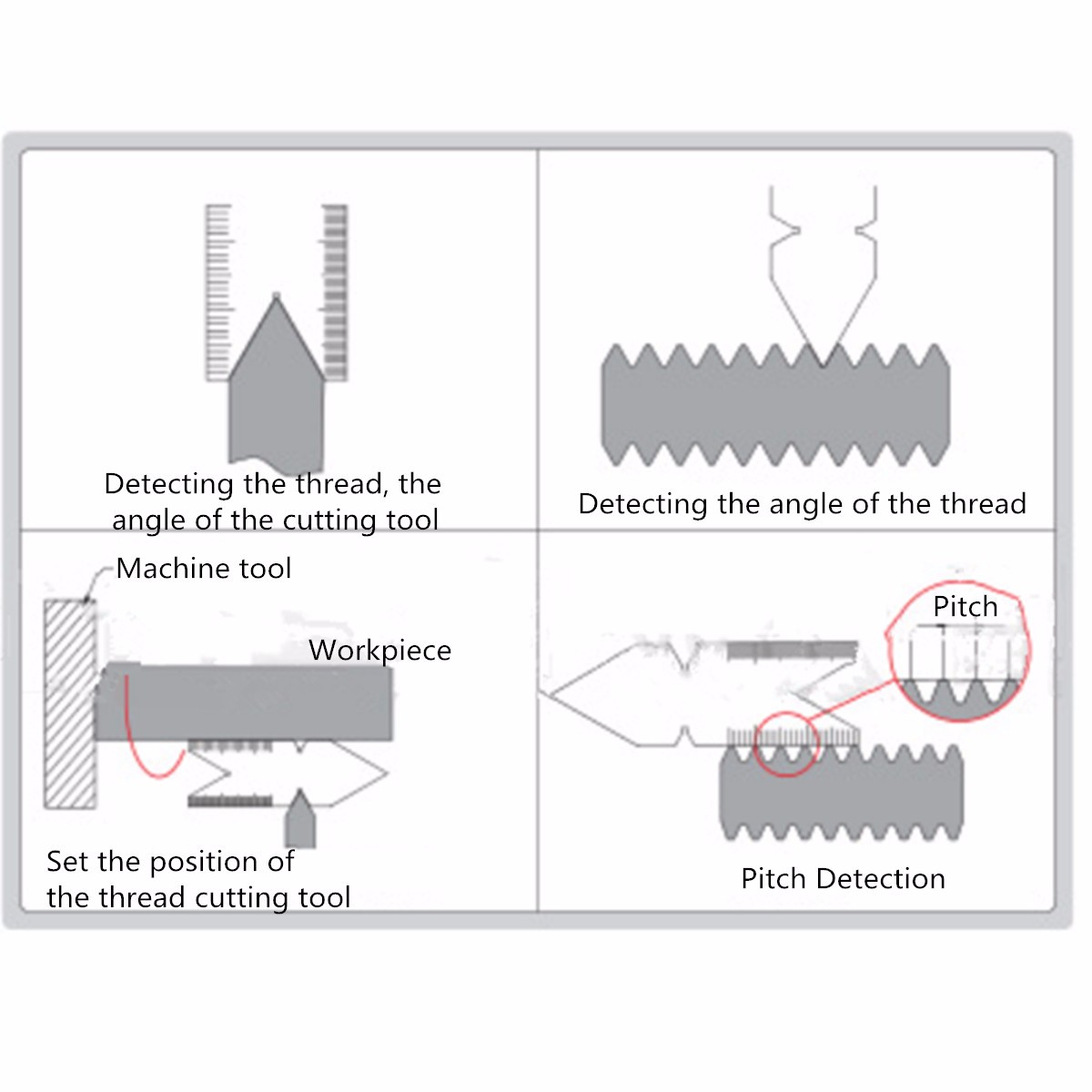

Details pictures:
