- Stock: In Stock
- Model: ST230045087
- SKU: ST230045087

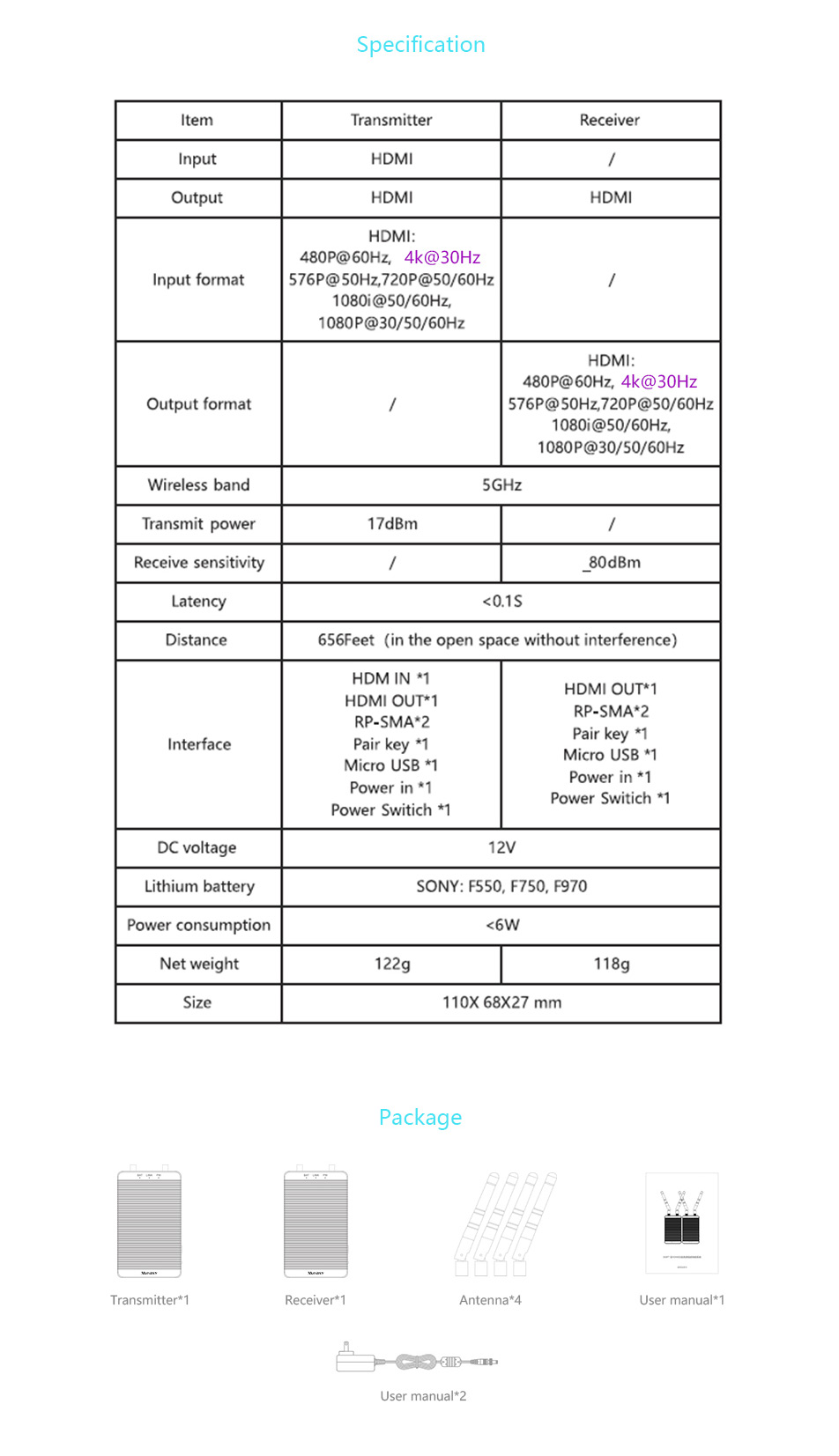

Specifications:
| Item | Transmitter | Receiver |
| Input | HDMI | / |
| Output | HDMI | HDMI |
| Input Format | HDMI: 480P@60Hz, 4k@30Hz, 576P@50H2, 720P@50/60Hz, 1080i@50/60Hz, 1080P@30/50/60Hz | / |
| Output Format | / | HDMI: 480P@60Hz, 4k@30Hz, 576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@30/50/60Hz |
| Wireless Band | 5GHz | |
| Transmit Power | 17dBm | / |
| Receive Sensitivity | / | _80dBm |
| Latency | < 0.1S | |
| Distance | 656 Feet (in the open space without interference) | |

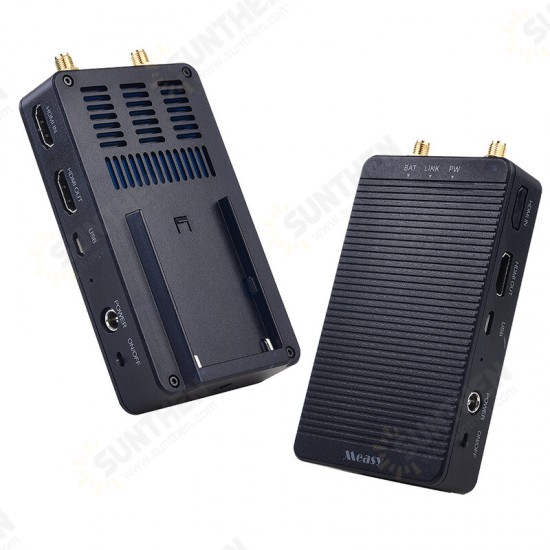

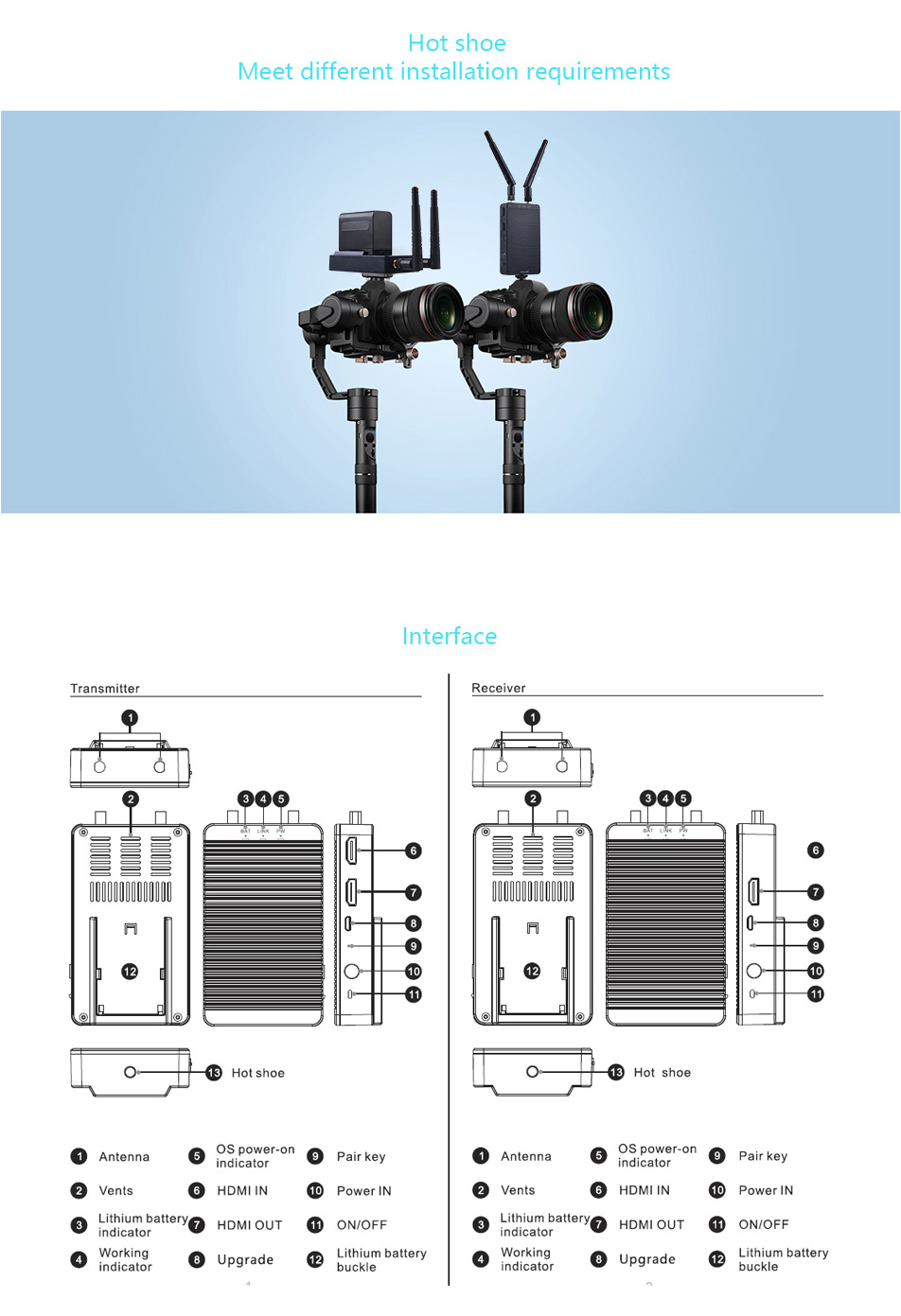

| Interface | HDM IN x 1 RP-SMA x 2 Pair key x 1 Micro USB x 1 Power in x 1 Power Switich x 1 | HDMI OUT x 1 RP-SMA x 2 Pair key x 1 Micro USB x 1 Power in x 1 Power Switich x 1 |
| DC Voltage | 12V | |

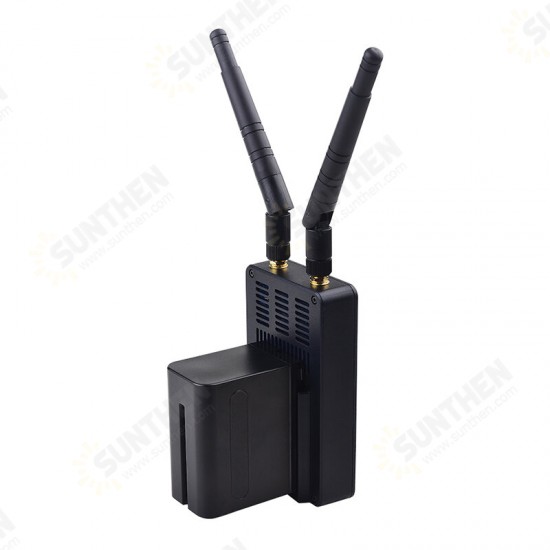

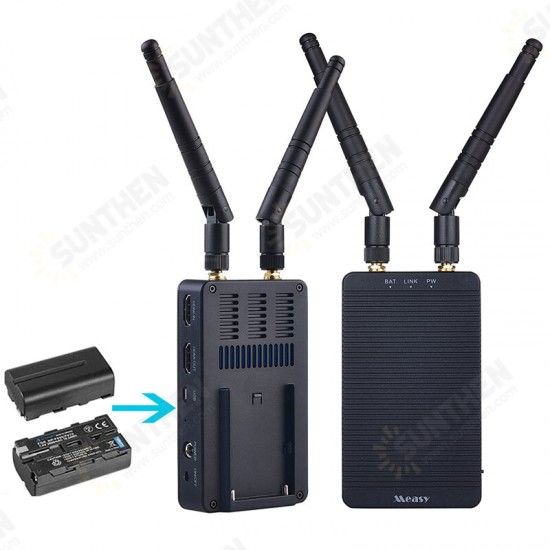

| Lithium Battery | F550, F750, F970 | |
| Power Consumption | < 6W | |
| Net Weight | 122g | 118g |
| Size | 110 x 68 x 27 mm | |
Package Included:

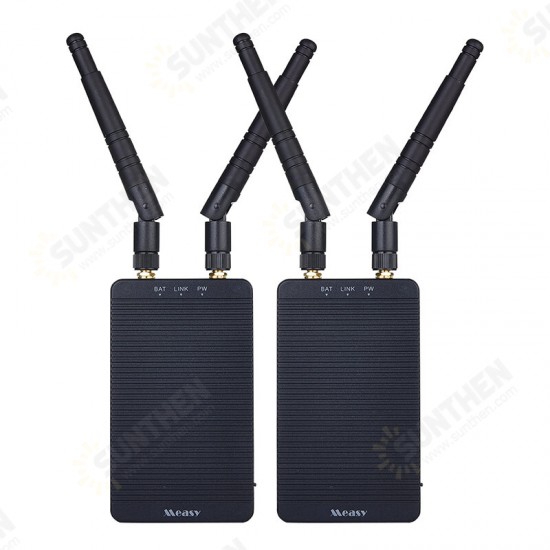

1 x Transmitter
1 x Receiver
1 x Antenna
1 x Power Adapter
1 x User Manual
Features:
Stable and Synchronous Transmission: Adopting the latest 5G wireless transmission technology, wireless HDMI transmitters have strong ability on high-speed data transmission, anti-interference, and signal stabilization.
HDMI 4K 60Hz Without Compression: Applying the latest image decoding and noise reduction technology, the video transmission set delivers broadcast-class HD video and audio with no quality loss.
656ft Sight Transmission Range: Within a transmission distance of 656 feet, the HDMI wireless video transmitter kit reaches the best connection effect. Yet they can still transmit and receive signals in the max distance of 820 visible feet.

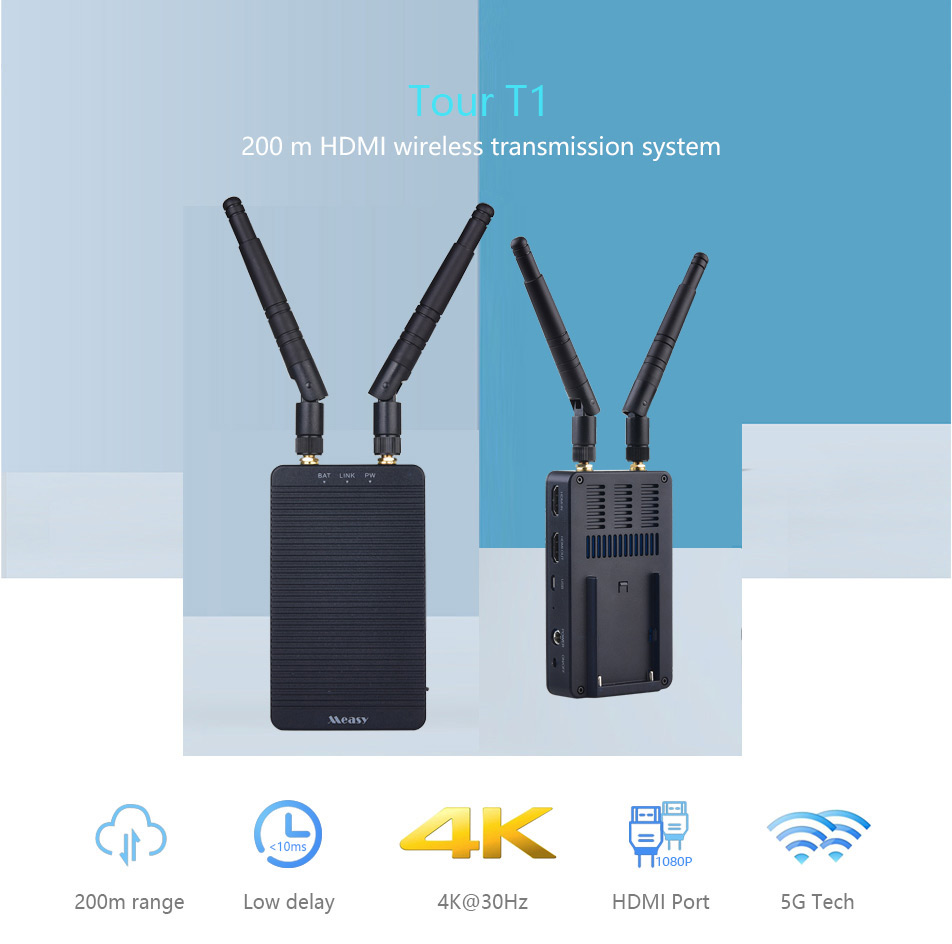

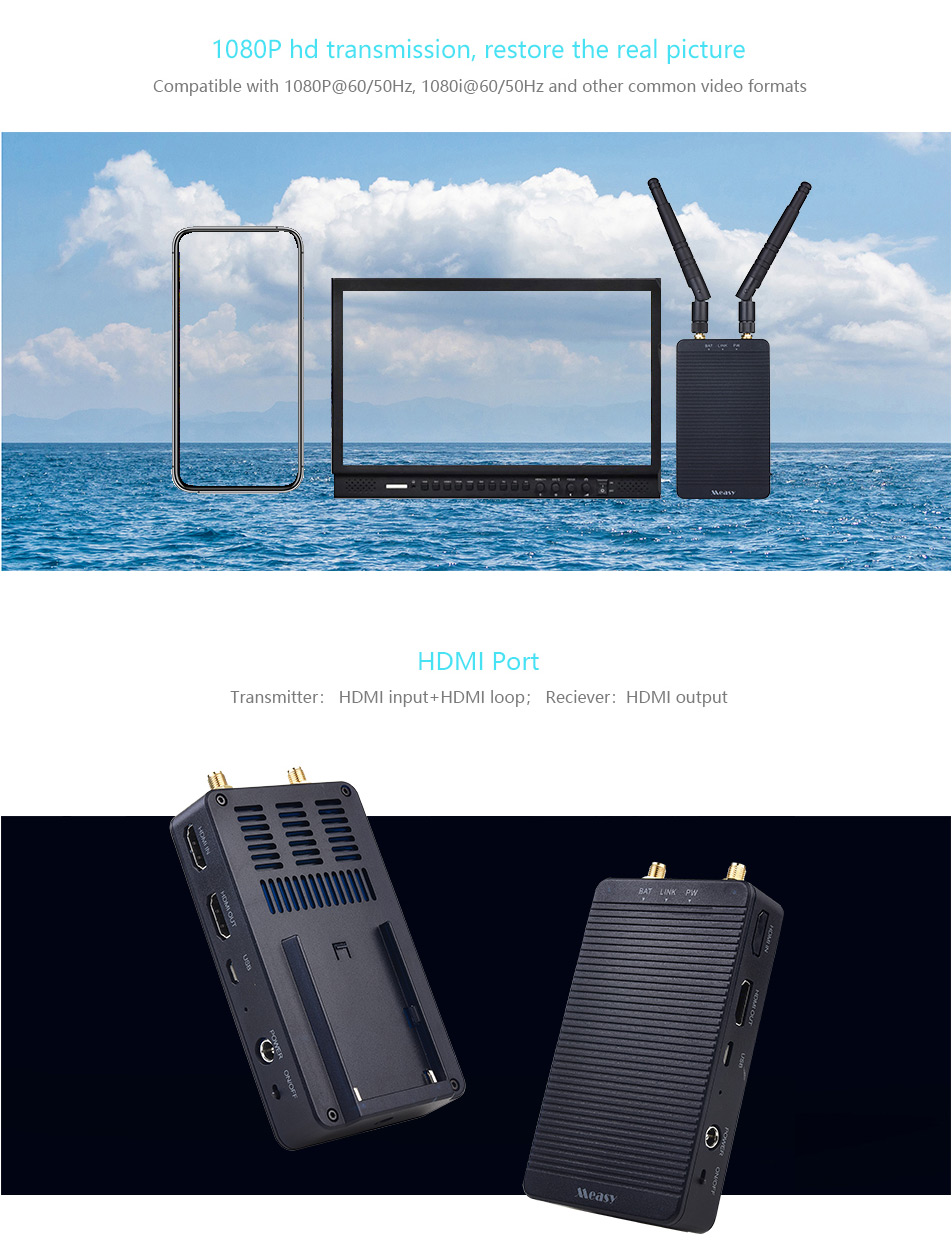

Wide Compatibility: With dual HDMI ports on both transmitter and receiver, the Measy Tour T1 wireless image transmission system can input or output audio and video signals for virtually any kind of DSLR and mirrorless cameras. Working continuously for 5 hours once fully charged.

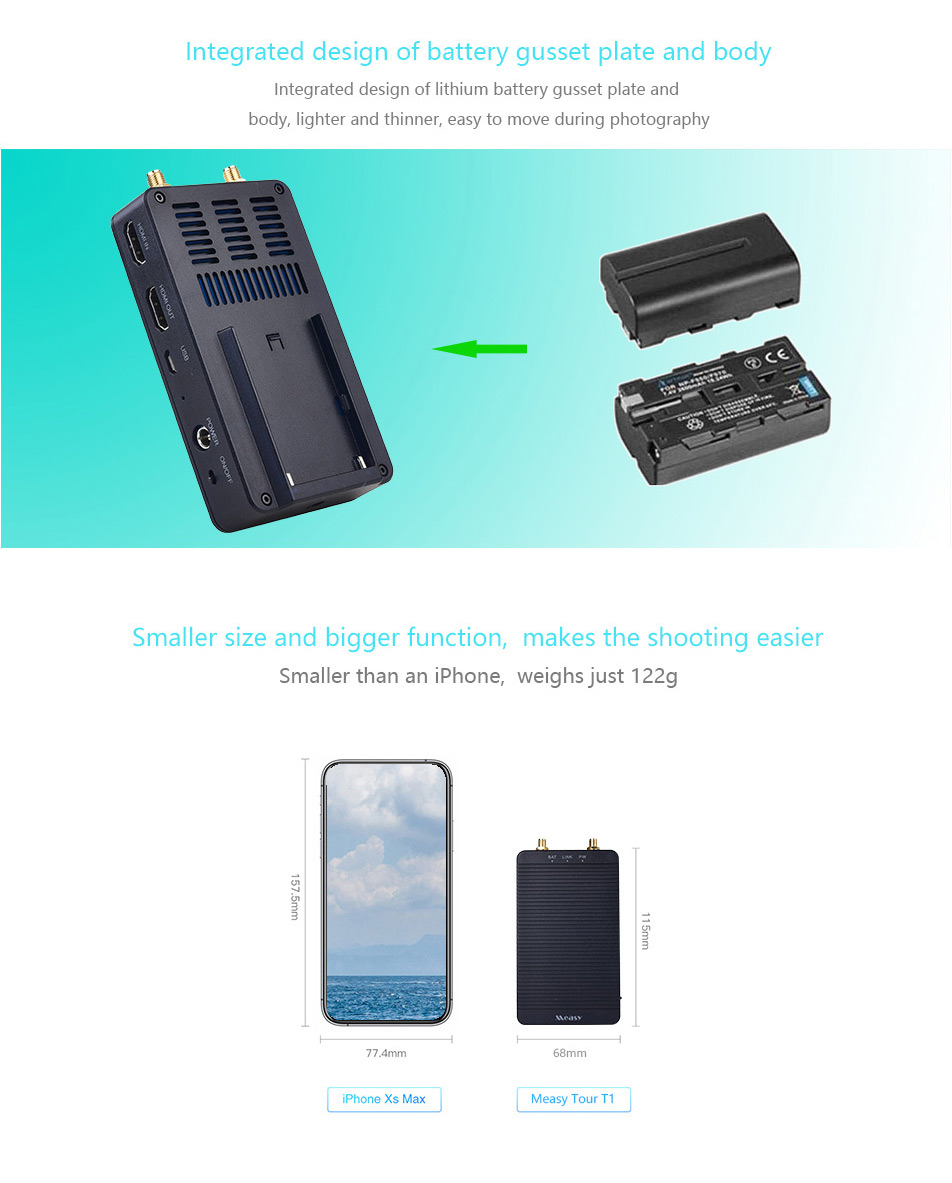

Compact and Lightweight Design: With 240g weight and 1.06-inch thickness, the video transmission kit is very compact and portable for clipping to any other devices without adding to much burden.
