  • Stock: In Stock
  • Model: ST220012881
  • SKU: ST220012881
$11.99
Ex Tax: $11.99
Description:

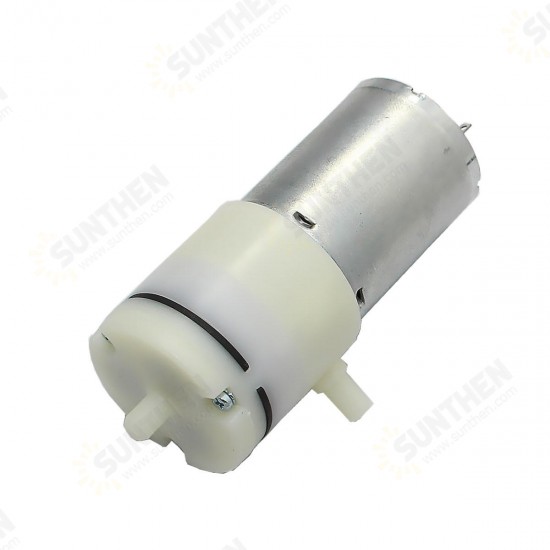

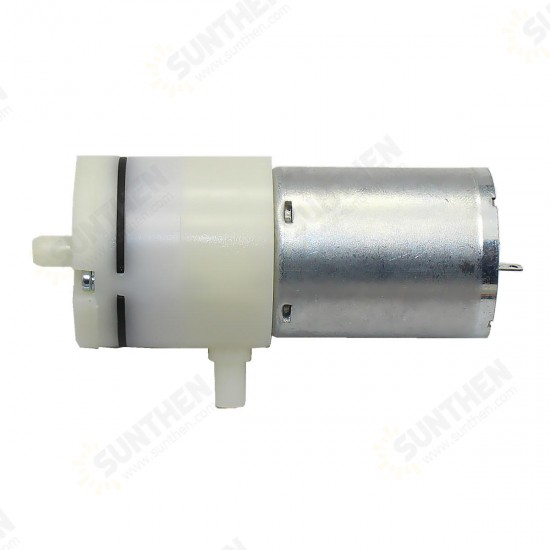

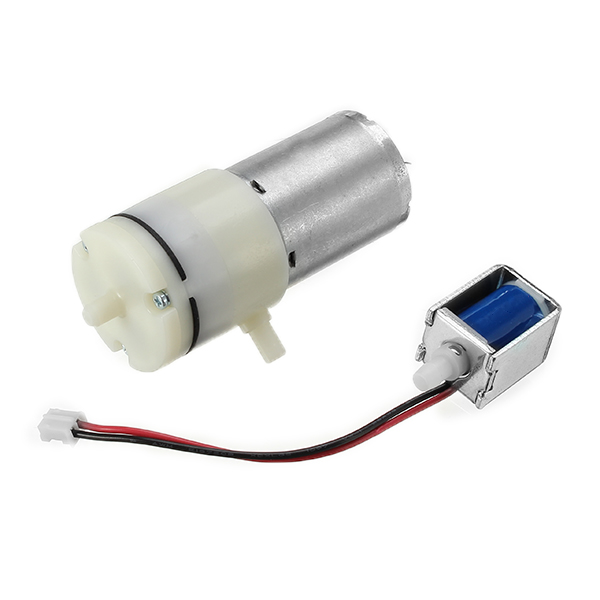

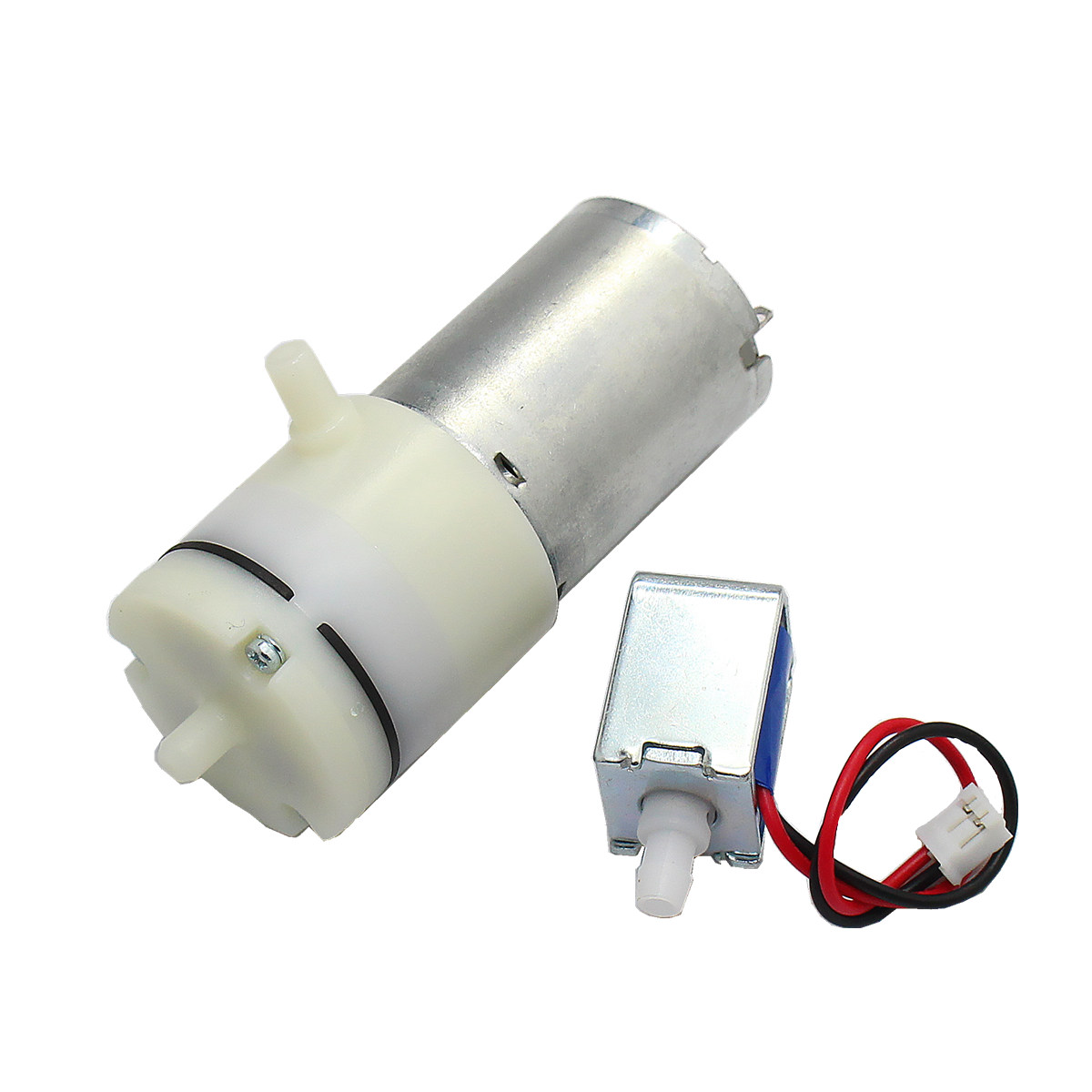

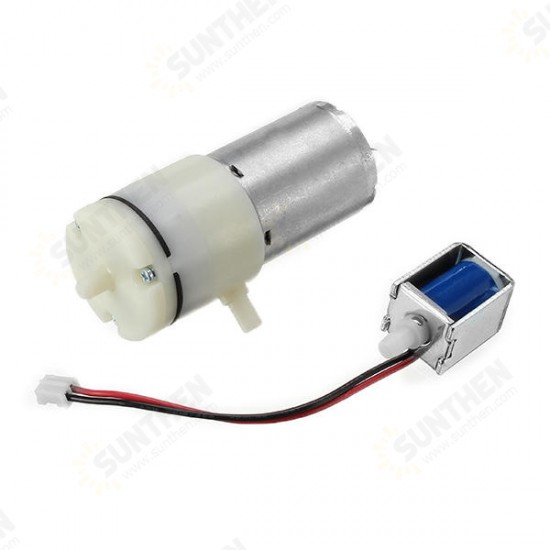

DC 3.7V Vacuum Pump Micro Air Pump with 5V Solenoid Valve

Specification:

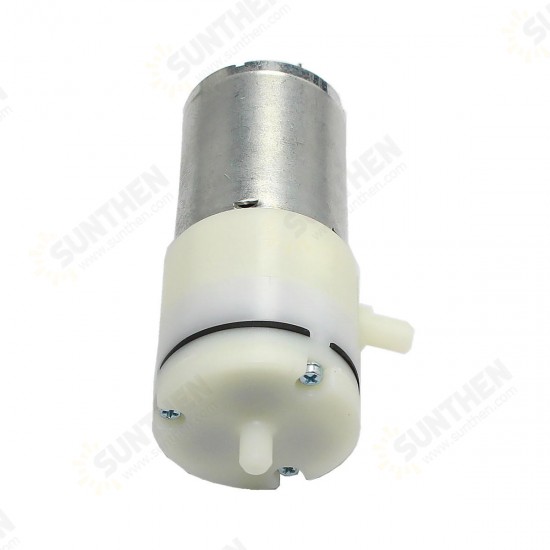

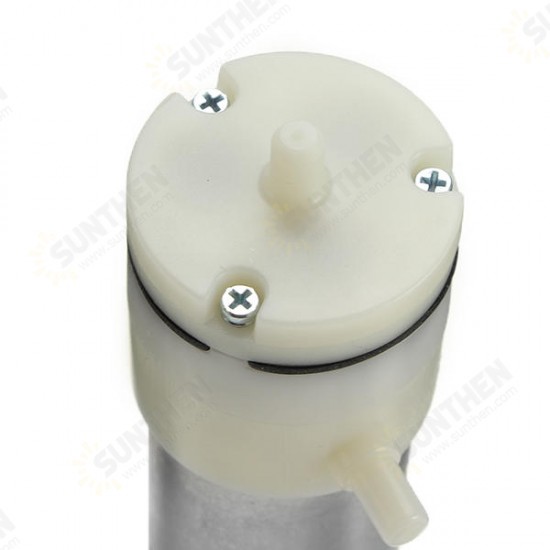

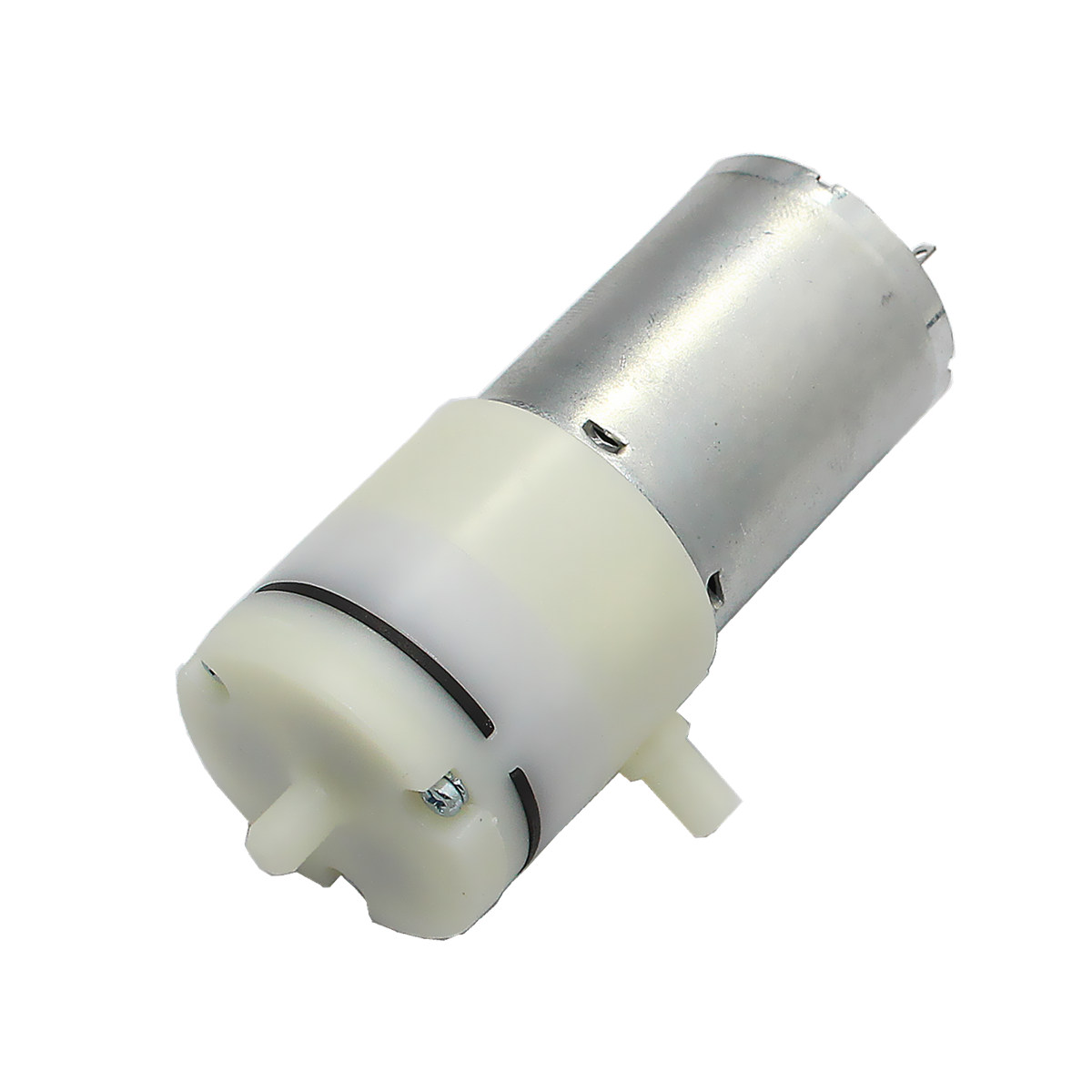

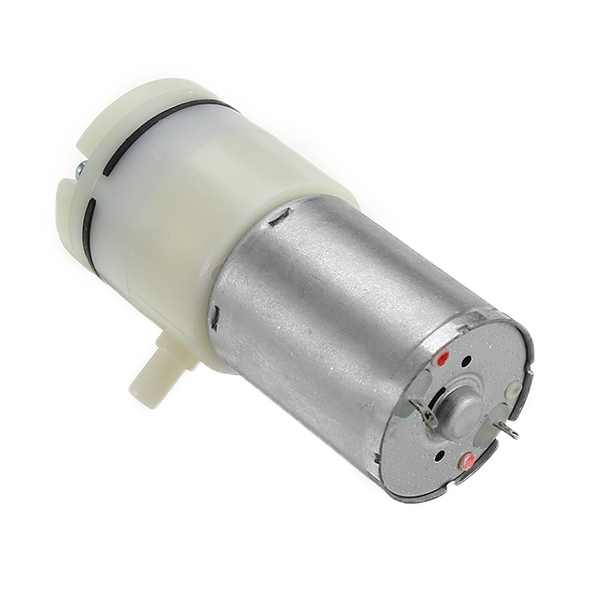

Vacuum Pump
Rated voltage DC 3.7V
Test condition  From 0 to 200mmHg in a 500cc tank
Rated current  < 500mA
Inflation time  < 6s (From 0 to 200mmHg in a 100cc tank)
Air flow 2.0LPM/Min
Pressure > 400mmHg
Vacuum ≤ -375mmHg (-50kpa)
Noise  < 60dB
Life test  > 30000 Times (50s on, 20s off)

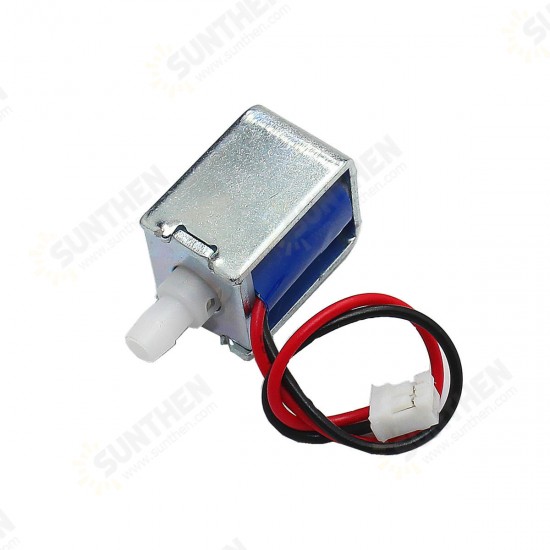

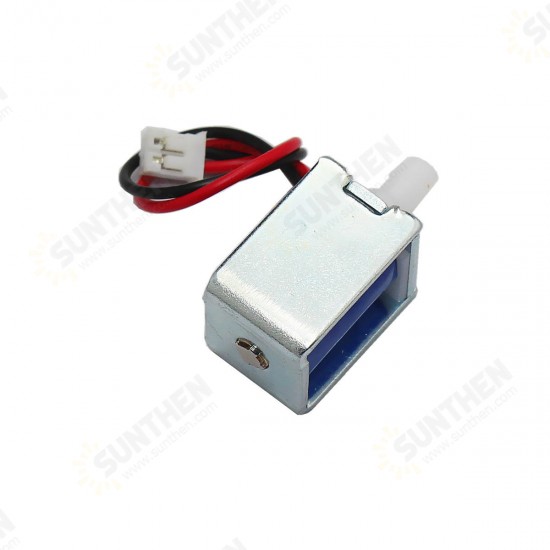

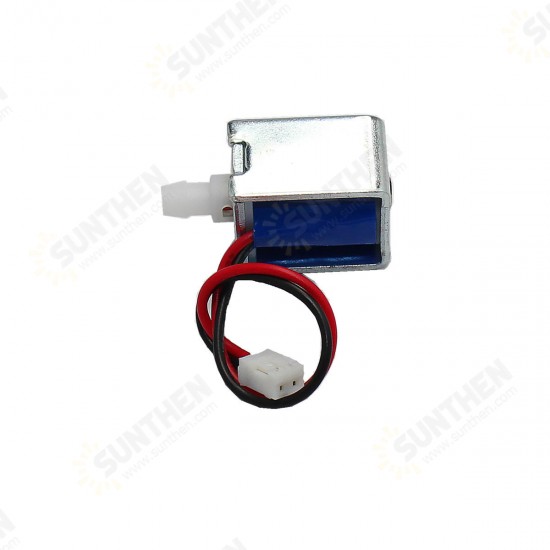

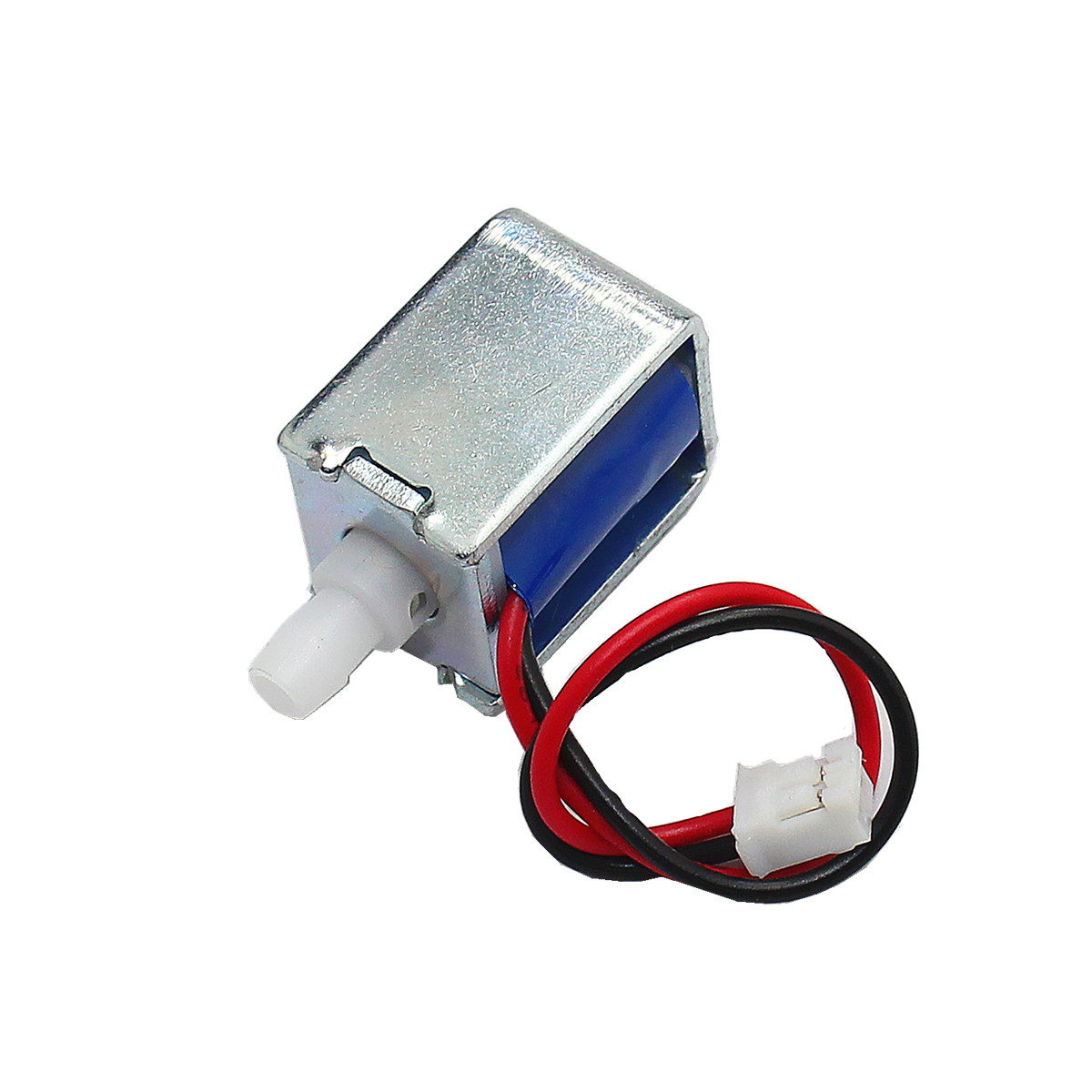

Solenoid Valve
Rated voltage DC 5.0V
Rated current  < 350mA
Output 1.7W
Max Pressure Max -400mmHg
Common Pressure -300mmHg
DC Resistance 15±10%Ω
Leakage ≤ 5.0mmHg/5s (100mmHg in 500cc tank)
Exhaust speed  < 3s (-300mmHg in 100cc tank)

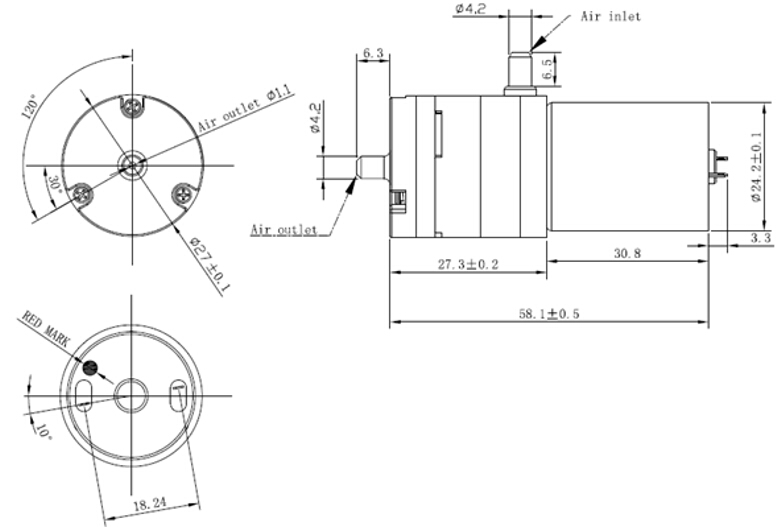

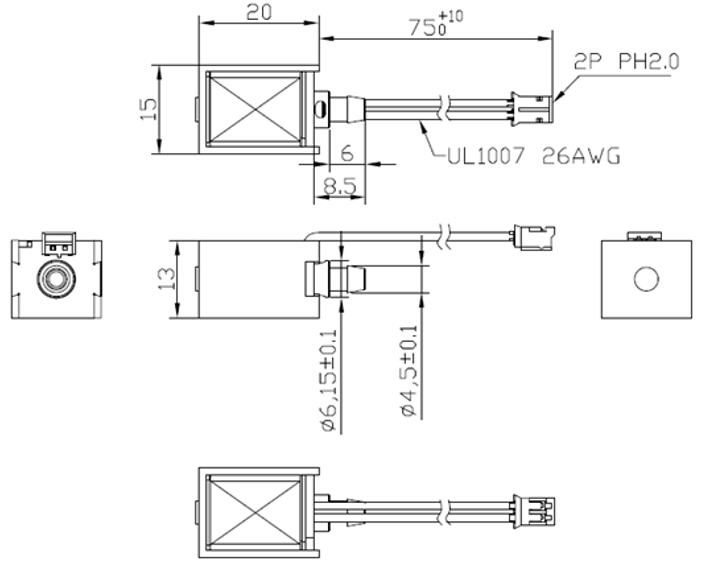

Mechanical drawing:
CHIHAI-MOTOR-DC-37V-Vacuum-Pump-Micro-Air-Pump-with-5V-Solenoid-Valve-1071993-1 CHIHAI-MOTOR-DC-37V-Vacuum-Pump-Micro-Air-Pump-with-5V-Solenoid-Valve-1071993-2 Package Included: 1 x Vacuum Pump
1 x Solenoid Valve

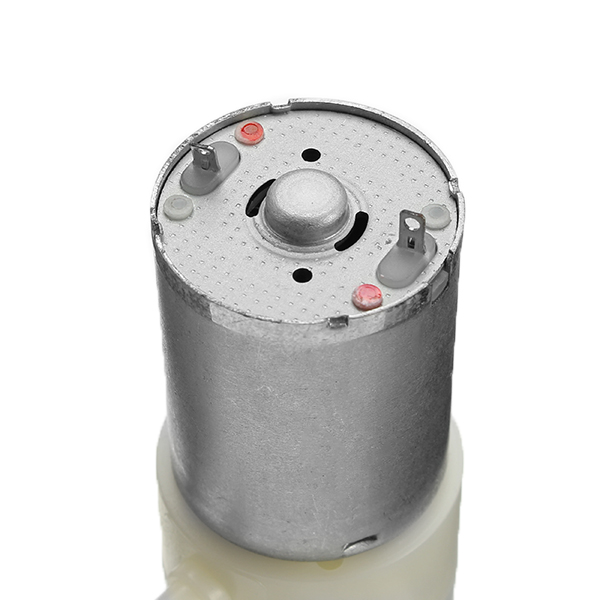

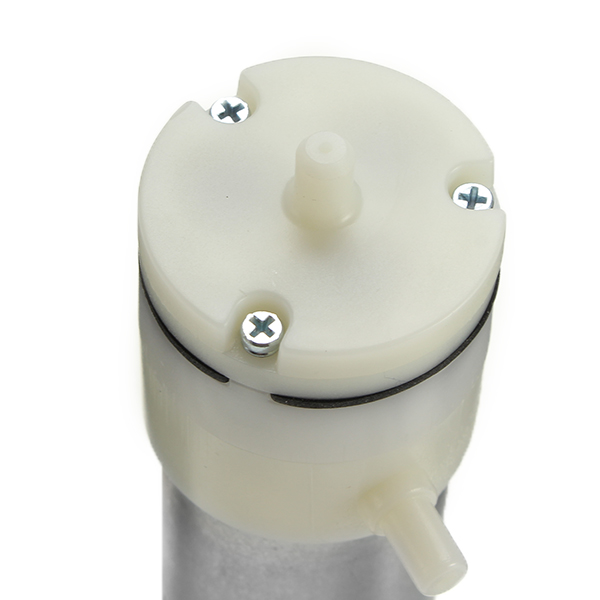

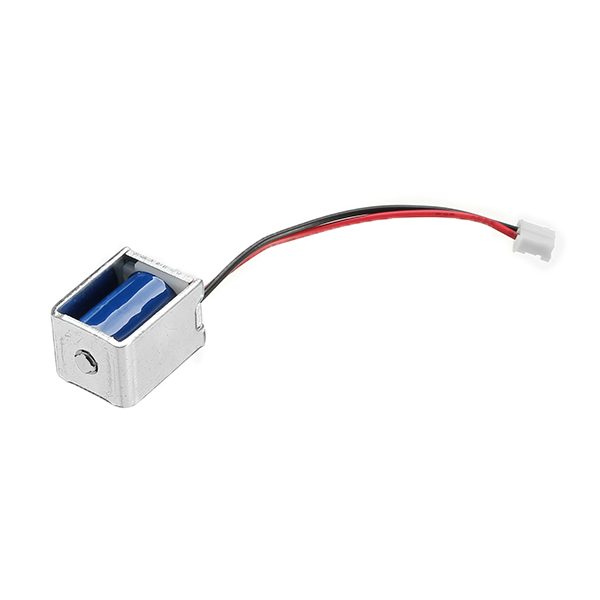

More Details:

CHIHAI-MOTOR-DC-37V-Vacuum-Pump-Micro-Air-Pump-with-5V-Solenoid-Valve-1071993-3

CHIHAI-MOTOR-DC-37V-Vacuum-Pump-Micro-Air-Pump-with-5V-Solenoid-Valve-1071993-4

CHIHAI-MOTOR-DC-37V-Vacuum-Pump-Micro-Air-Pump-with-5V-Solenoid-Valve-1071993-5

CHIHAI-MOTOR-DC-37V-Vacuum-Pump-Micro-Air-Pump-with-5V-Solenoid-Valve-1071993-6 CHIHAI-MOTOR-DC-37V-Vacuum-Pump-Micro-Air-Pump-with-5V-Solenoid-Valve-1071993-7

CHIHAI-MOTOR-DC-37V-Vacuum-Pump-Micro-Air-Pump-with-5V-Solenoid-Valve-1071993-8

CHIHAI-MOTOR-DC-37V-Vacuum-Pump-Micro-Air-Pump-with-5V-Solenoid-Valve-1071993-9

CHIHAI-MOTOR-DC-37V-Vacuum-Pump-Micro-Air-Pump-with-5V-Solenoid-Valve-1071993-10
