ESP32 PoE Ethernet Controller Data Communication Remote Control Module
- Stock: In Stock
- Model: ST230042072
- SKU: ST230042072
$32.93
Ex Tax: $32.93
Description:

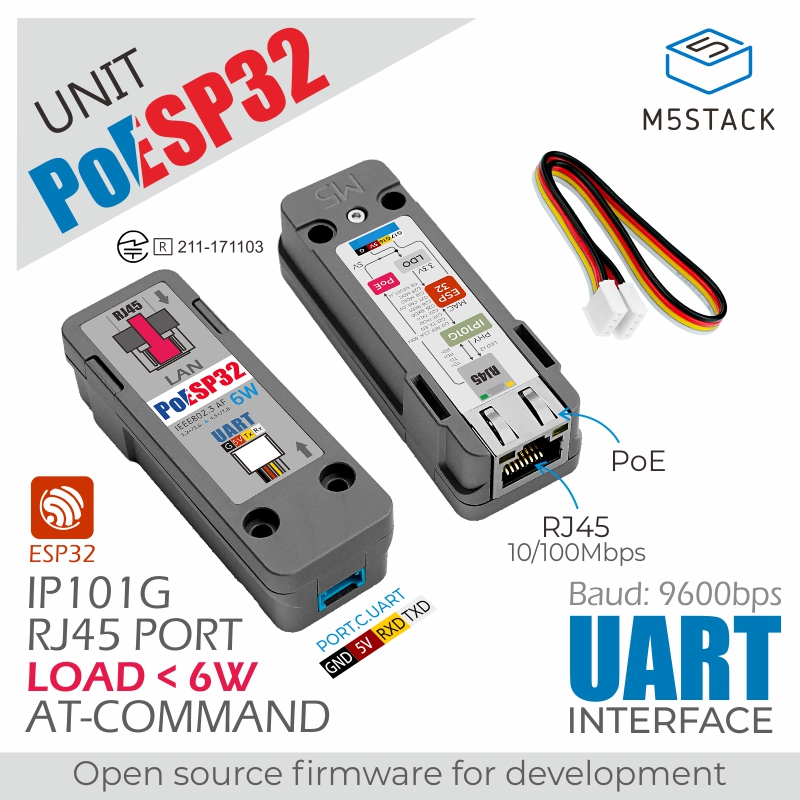

PoESP32 Unit is an ESP32 Ethernet Unit supports PoE (Power Over Ethernet). This module adopts ESP32 as built-in MACs, and IP101G as physical layer transceiver. Default firmware with ESP-AT, supports TCP,MQTT, HTTP protocols. It can connect to server with simple AT commands through serial port, achieving data transmission and remote control functions. This module simplifies wiring and saves labor cost with PoE power supply, and It reserves the alibility for secondary development to meet your requirement.
Product Features:
Embedded ESP32 main controller
PHY solution:
Transceiver model IP101G
IEEE 802.3/802.3u standard
Ethernet Interface:
PoE standard: PoE IEEE802.3 AF / Support maximum load power 6W

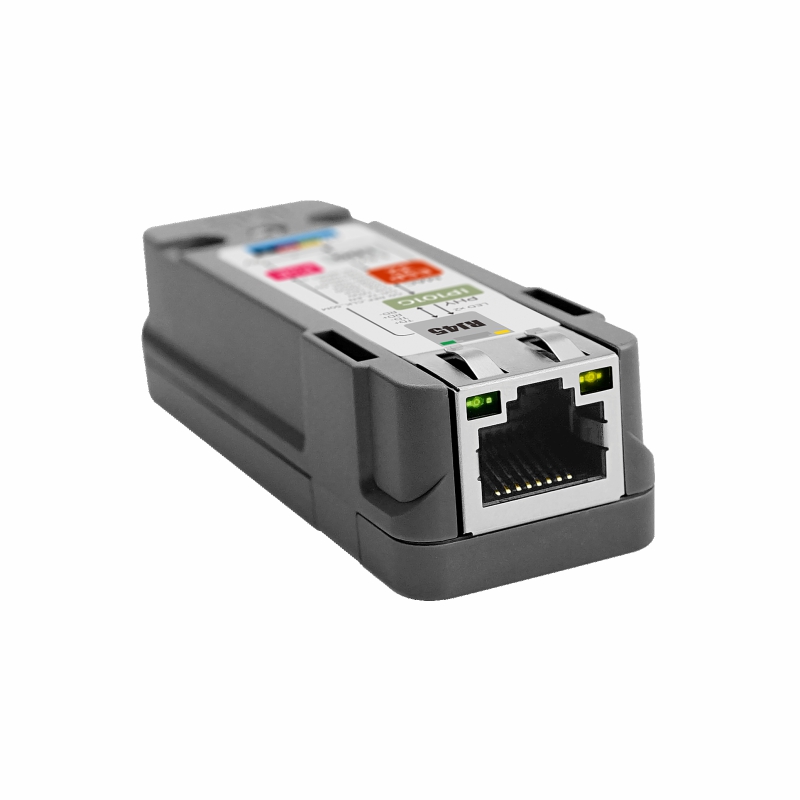

RJ45 network port 10/100Mbps
Communication / download interface:
Default firmware is ESP-AT / Support secondary development to implement TCP Client/HTTP/CoAP and other protocols
Programmable / support secondary development, reserve program download interface
Power supply:

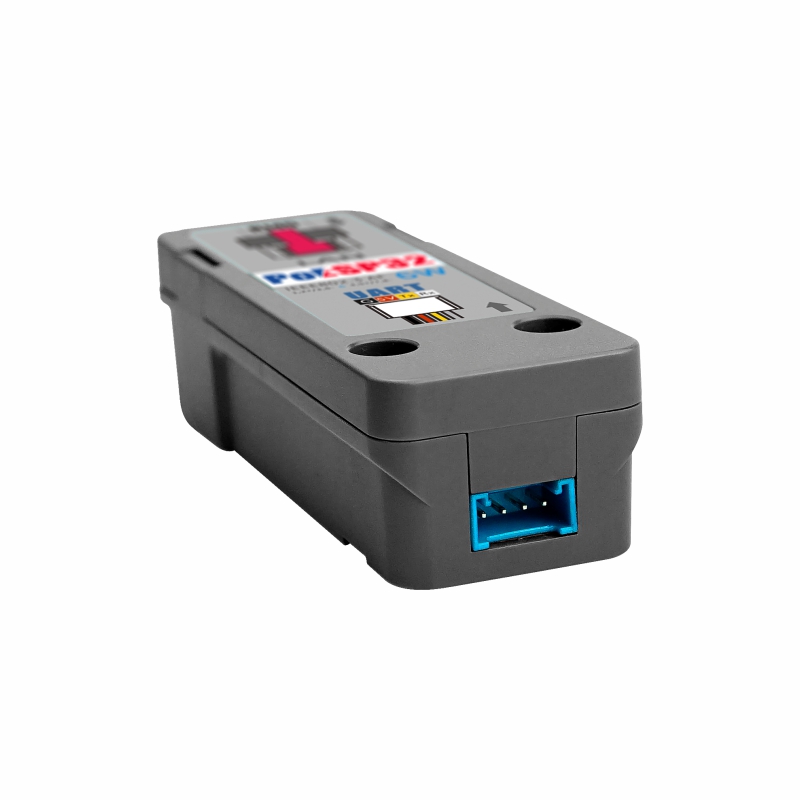

HY2.0-4P interface 5V DC power supply
PoE power supply (PoE IEEE802.3 AF)
Development method:
AT command, UART: 9600bps default
Development Platform: UIFlow(coming soon), Arduin0, ESP-IDF
Specification:
Specifications | Parameters |
ESP32-WROOM-32U/D | 240MHz dual core, 600 DMIPS, 520KB SRAM (without integrated 3D antenna, does not support WiFi&BLE wireless function) |
Flash | 4MB |
PHY | IP101G: IEEE 802.3/802.3u |
PHY Interface Type | RMII |
PoE Specifications | PoE IEEE802.3 AF Specifications / Maximum Power 6W |
Ethernet Interface Specifications | RJ45 10/100Mbps |
Reserved interface | 1x HY2.0-4P interface, 1x program download interface |
Communication interface | UART 9600bps 8N1 AT command control |
Communication level | 3.3V |
Net Weight | 26.2g |
Gross Weight | 32.8g |
Product size | 72 * 26 * 19.2mm |
Packing Size | 75 * 36 * 20.5mm |
Package included:
1 x UNIT PoESP32
1 x HY2.0-4P Cable (20cm)
1 x Instruction manual
Applications:
Ethernet Controller
TCP Client data passthrough
Related Link
Datasheet
ESP32-WROOM-32U/D
IP101G
PinMap
IP101G (ETH_ADDR = 1)
IPG101G (RMII PHY) | ESP32 |
TX_EN | G21 |
TX0 | G19 |
TX1 | G22 |
RX0 | G25 |
RX1 | G26 |
CRS_DV | G27 |
IPG101G (SMI) | ESP32 |
MDC | G23 |
MDIO | G18 |
HY2.0-4P
PoESP32 | RXD | TXD |
M5CORE | G16 | G17 |

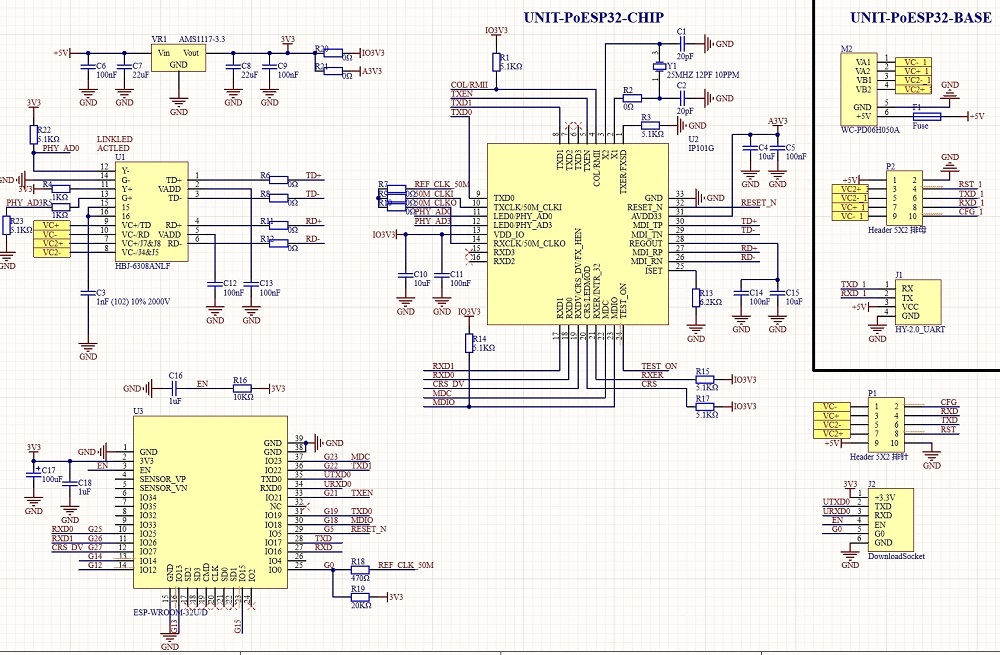

Schematic
Example
Arduin0
TCP Client
PoESP32 with M5Core - TCP Client
PoESP32 with M5Core2 - TCP Client
PoESP32 with M5Atom - TCP Client
PoESP32 with M5SitckC - TCP Client
PoESP32 with M5SitckC Plus - TCP Client
MQTT Client
PoESP32 with M5Core - MQTT Client
PoESP32 with M5Core2 - MQTT Client
PoESP32 with M5Atom - MQTT Client
PoESP32 with M5SitckC - MQTT Client
PoESP32 with M5SitckC Plus - MQTT Client
HTTP Client
PoESP32 with M5Core - MQTT Client
PoESP32 with M5Core2 - MQTT Client
PoESP32 with M5Atom - MQTT Client
PoESP32 with M5SitckC - MQTT Client
PoESP32 with M5SitckC Plus - MQTT Client
Firmware
ESP-AT Github
ESP-AT Documentation
