  • Stock: In Stock
  • Model: ST230051153
  • SKU: ST230051153
$4.19
Ex Tax: $4.19

Available Options

Description:

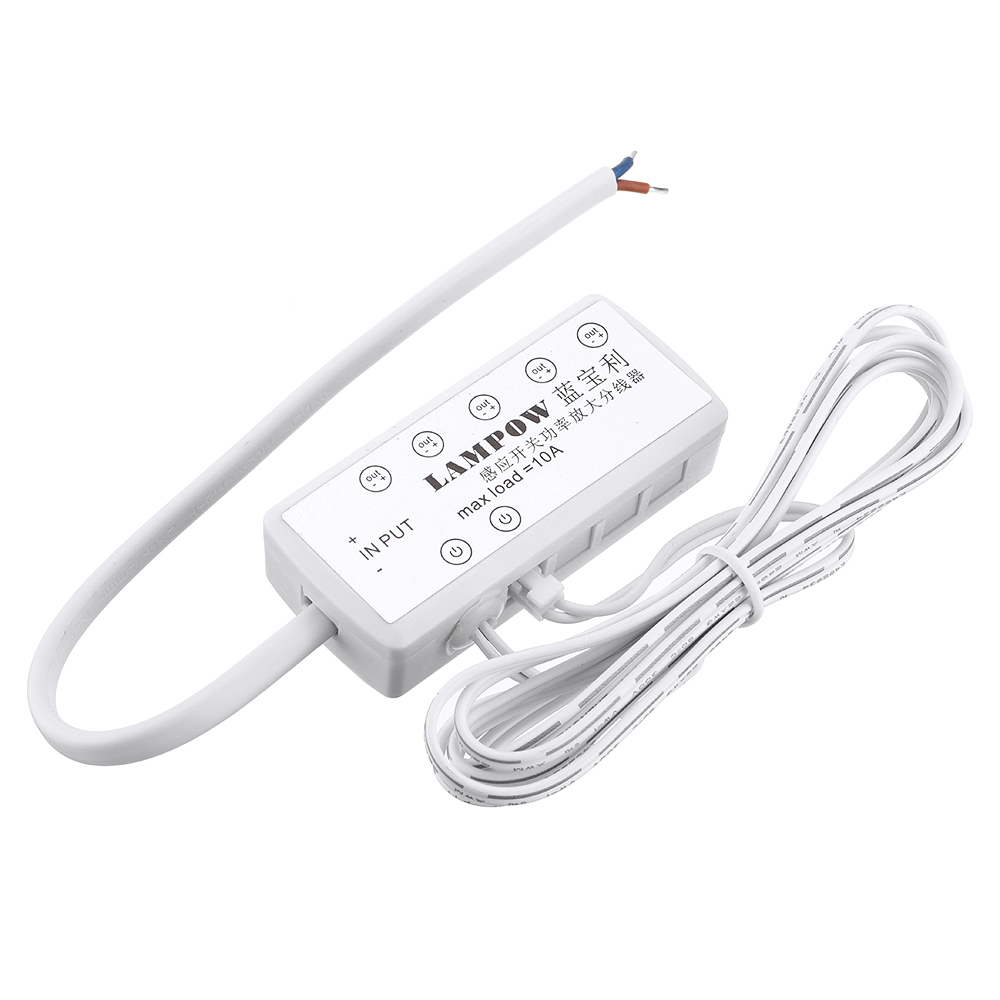

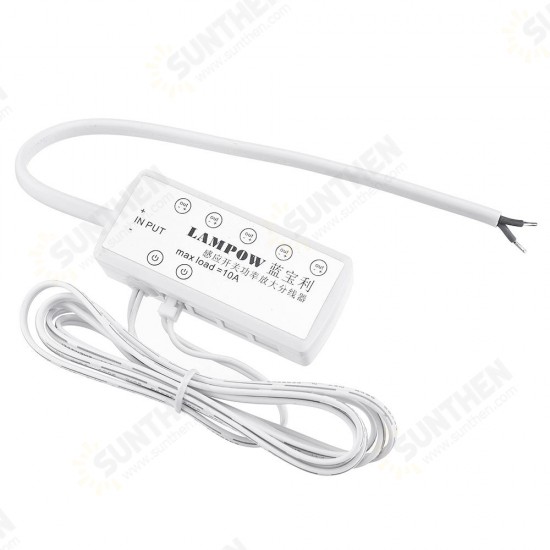

LP-5815 is a DC low-voltage power connection splitter with signal interface. It has the advantages of high stability and small size. It can access various sensor signals (human body, touch, door control, hand scan), It is suitable for any ordinary power supply, solves the hidden installation problem of heavy ordinary power supply, and reduces the complexity of connecting junction boxes. It is very suitable for local lighting applications such as wardrobes and cabinets.
Its characteristic is that it can uniformly amplify the low-power switching power to 120w, which can well realize a combined switchboard lamp with a larger power controlled by an inductive switch.

Feature:

Detection range: rad1us 2.4 ~ 3m, angle 120 ° cone
Working voltage: DC12V, 24V
Switching mode: Multiple switching modes can be selected according to the connected sensor switch
Housing material: ABS plastic white
Load: 12v10A
Size; 71 * 32 * 17mm
Wiring method: Connect the input end of the sensor to the signal female socket, and then connect the signal cable of the amplifier to the female socket of the switch, and the 5 ports on the side of the amplifier can be connected to the light.

Tips:

Do not connect switches of other brands to the power amplifier, so as to avoid short-circuit damage to the amplifier. If you use other brands of sensors to connect the amplifier, the consequences will be borne by the user.

Package included:

1 x LP-5815 DC5-24V Inductive Switch Power Amplification Splitter
