- Stock: In Stock
- Model: ST22001166
- SKU: ST22001166
New upgrade Feature :
1. Integrated injection molding material, beautiful, solid and reliable, reasonable structure, lighter.
2. Adopt aio12a integrated 2-4s flight control system with its own black box.

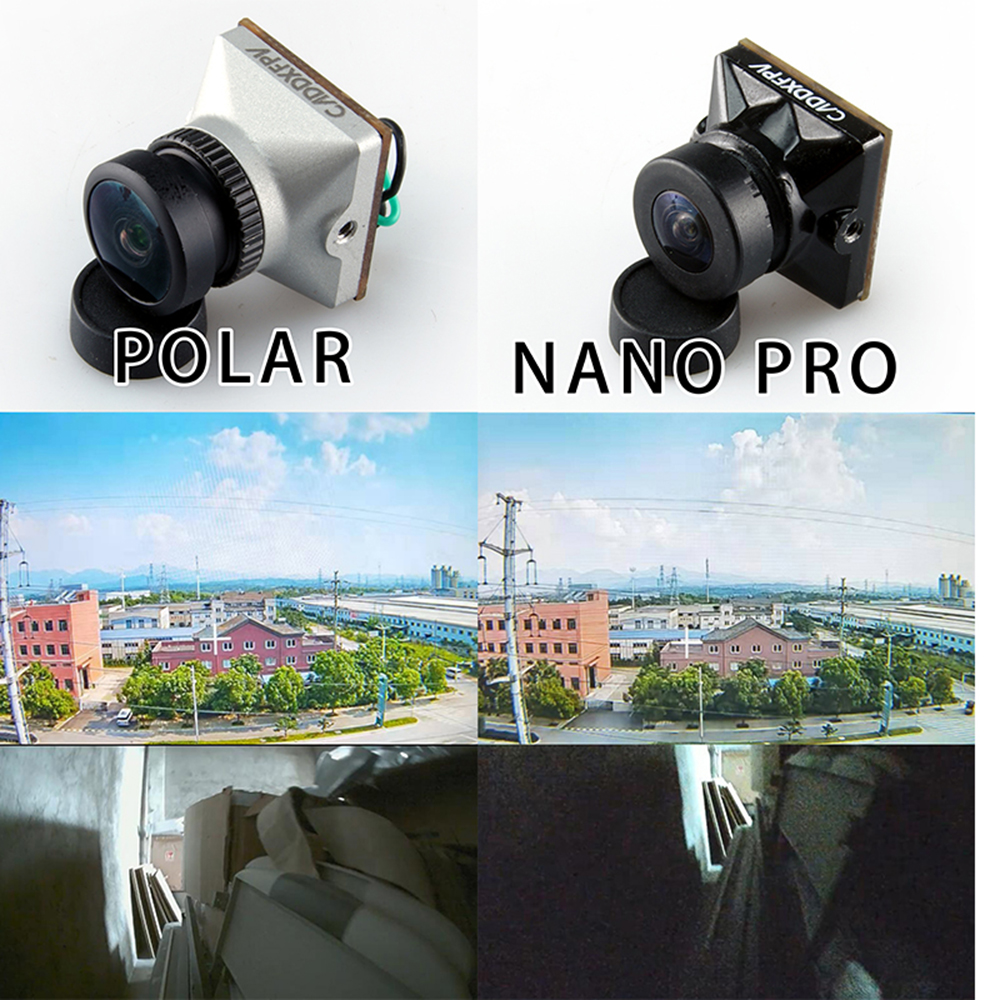

3. Using DJI digital imaging hardware system Vista and Caddx Polar FPV digital camera, you can see more clearly, especially the dark vision ability

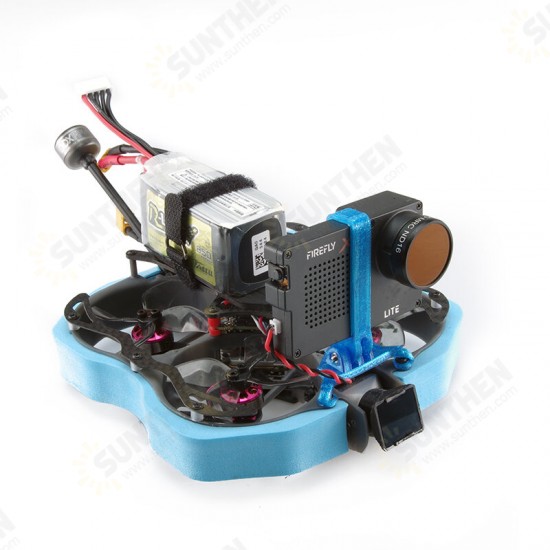

4. Self provided SMO 4K, beta FPV plastic Gopro6、7 , 3D printing Gopro6、7 and Firely x Lite fpv cam
5. It is suitable for more professional indoor aerial photography.
6. The efficiency of 2020 four blade ducted propeller is higher, and the low torque hovering stability of 1204kv5000 motor is better.
7. The revised aerodynamic layout makes the takeoff downforce greater. It's easier to hover in the air.
8. The original invention of the propeller protector can effectively protect the propeller and try not to harm the environment.
Specifications:
Brand Name: GEELANG
Version: HD

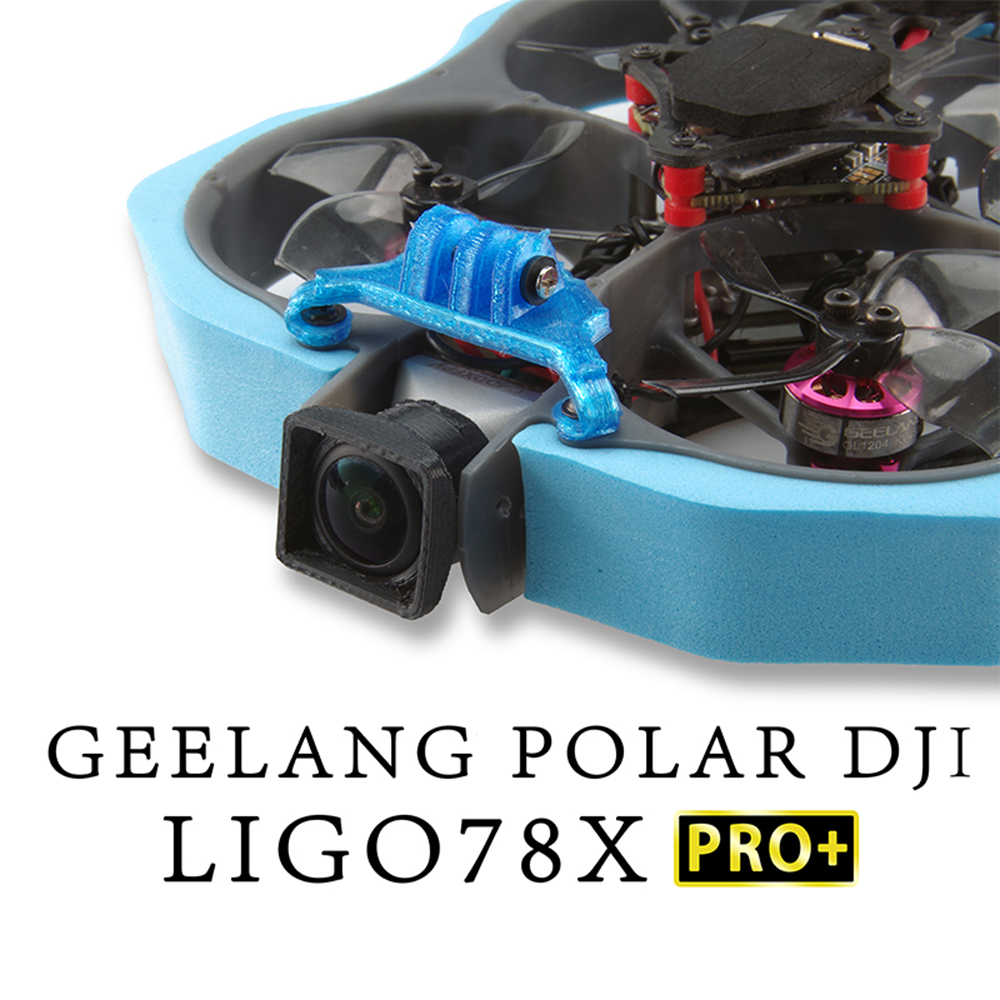

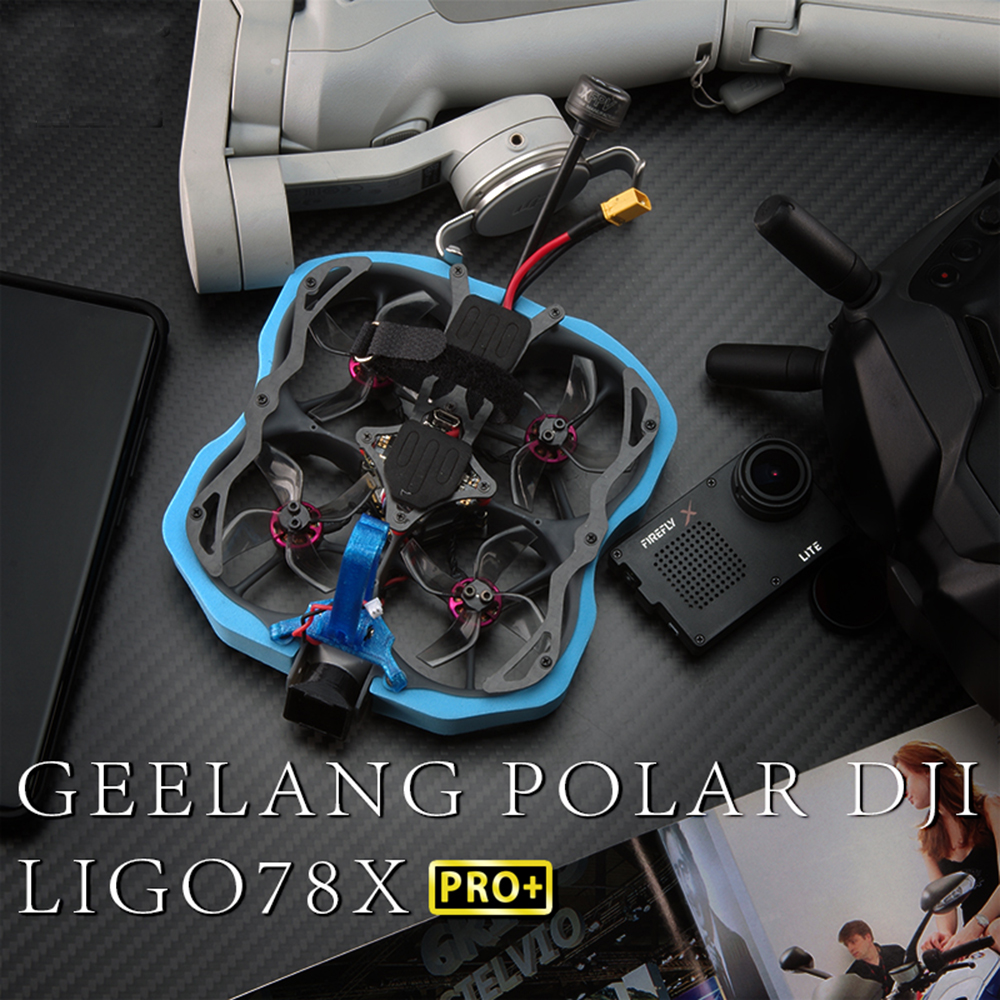

Mode Name: DJI POLAR Digital version LIGO78X PRO+

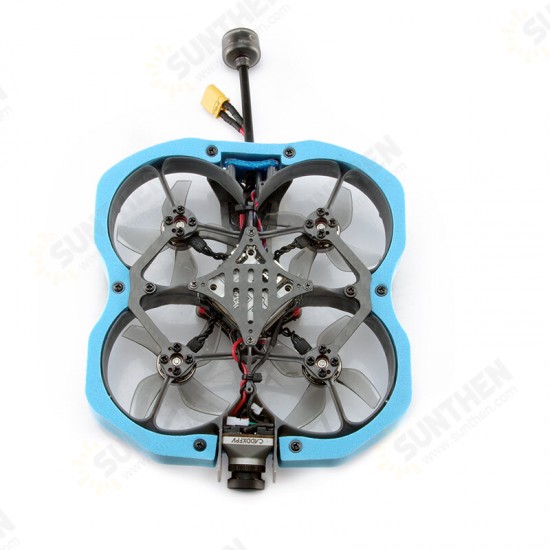

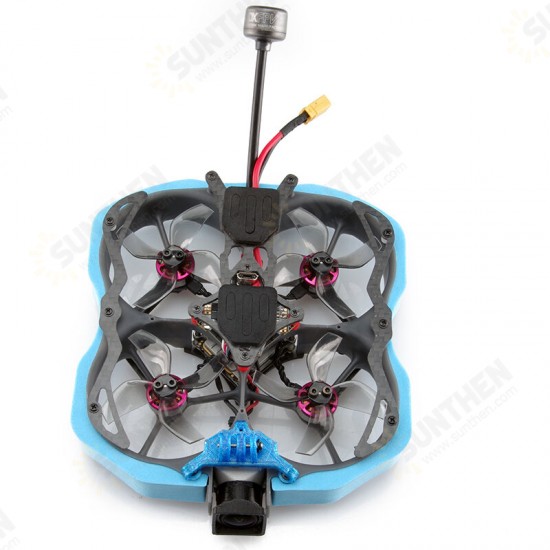

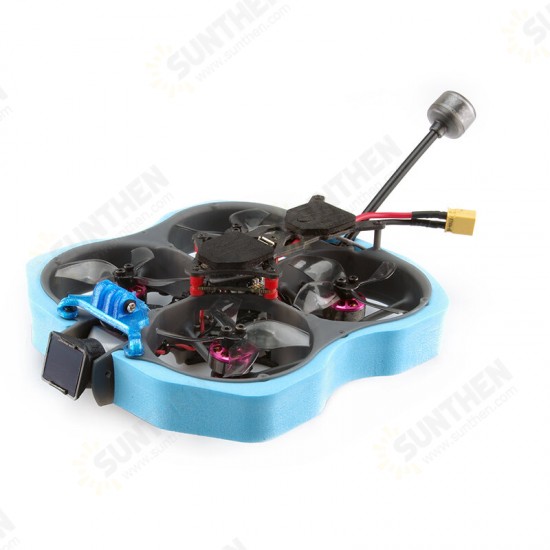

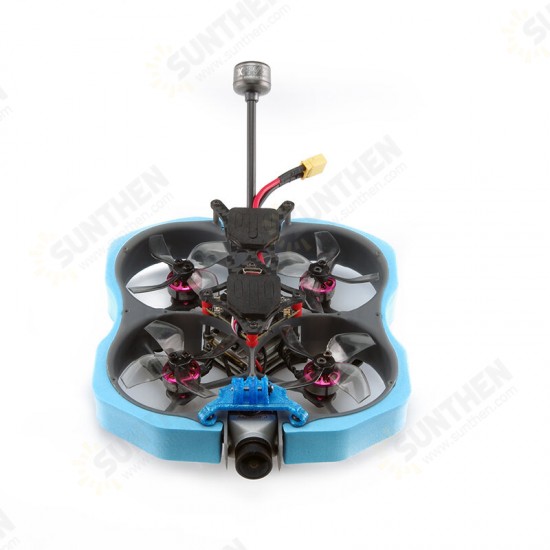

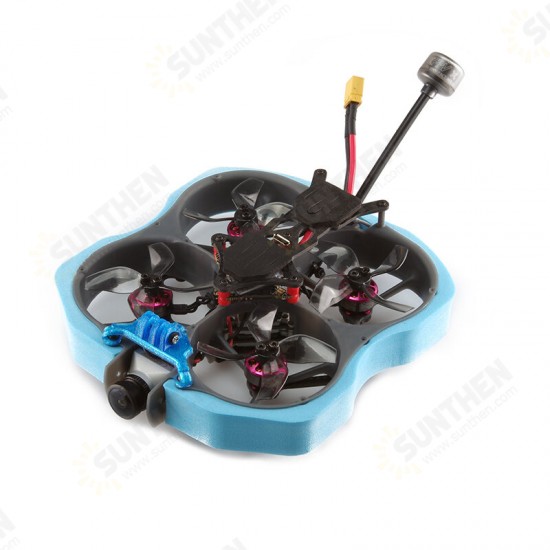

Item Name: 4S 78mm Ducted CineWHOOP drone BNF
Wheelbase: 78mm
size: 119x132x23mm（Camera mount not included）

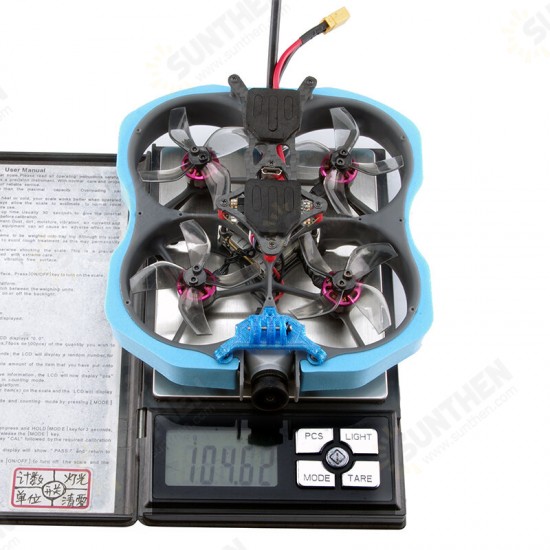

Weight: 104g(Camera mount not included)

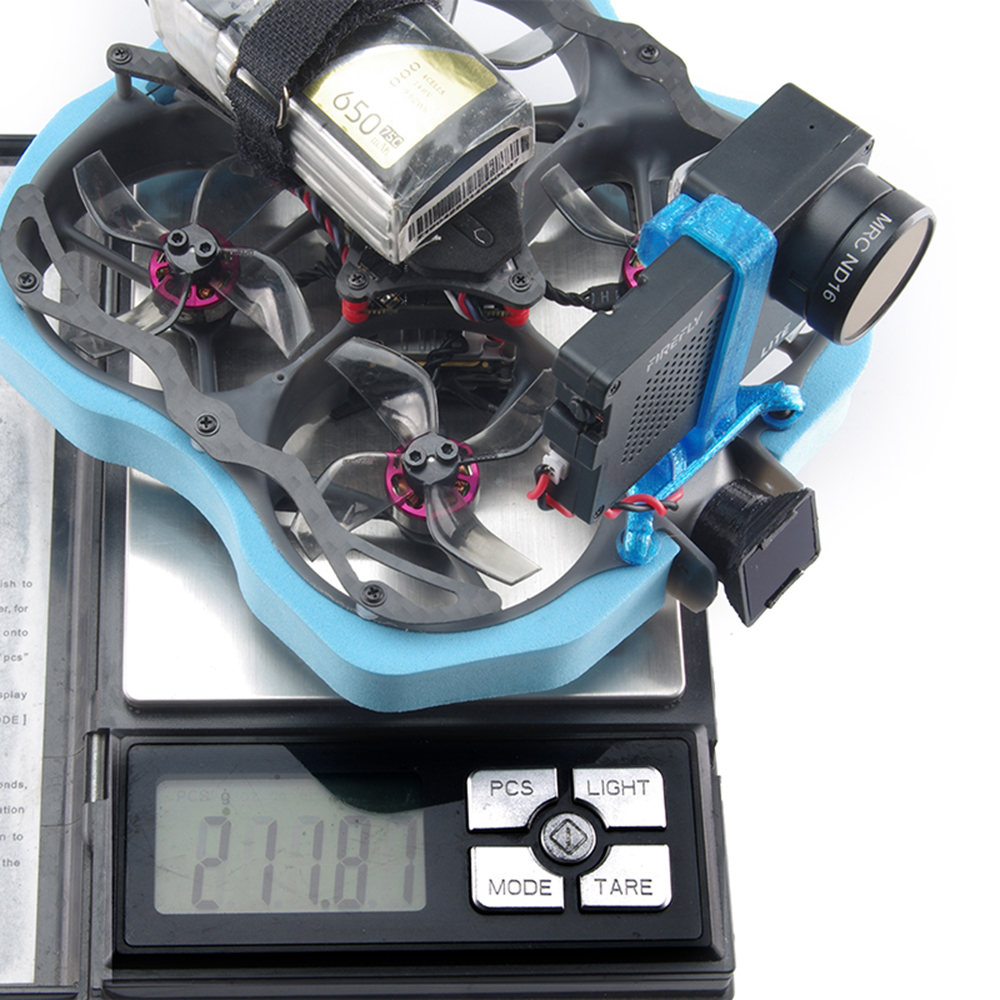

Ultimate full load weight: The maximum take-off weight is 241g, and the 4S 850mAh 90C is installed with the first X Lite FPV cam. Hover normally for 7 minutes, cruise normally.
AIO Flight Controller&ESC Board | Name: Ghf412 FC F411 MCU: STM32F411C (100MHZ) Sensor: MPU-6000 (SPI connection) Shop: 8MB black box onboard Board size: 28.5 * 28.5MM Power supply: 2-4S battery input (DC 7-17V) Built-in 12A (each) Blheli_S 4 in 1 ESC Dshot600 ready Built-in Betaflight OSD (SPI control) Built-in 12V 2A BEC Built-in voltage detection Onboard 4in1 ESC Onboard 4in1 ESC MCU upgraded to EFM8BB21 Factory firmware: G_H_30_REV16_7.HEX Default protocol: DSHOT600 Power input: XT30 |
| Motor | Motor Mode：GL1204 KV5000 Stator specifications：D12 * H4 0.2mm Configu-ration:9N12P Stator Diamter:12mm Stator Length:4mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ16.0mm*15.8mm Magent specifications: N52H Shift specifications: 2mm High strength steel Bearing Specifications: d2*D5*H2.5 MR52zz Japan ISC Custom made WindingSpecifications:180℃ Class Multiple oxygen-free copper Weight(g):5.8g No.of Cells(Lipo)：3S-4S |
| Camera | DJI VISTA POLAR KIT 1/1.8 inchstarlight sensor F1.6&8mega 16：9 0.00003lux 720p/60fps<32MS > 68dB Weight: 9g |
| VTX | DJI VISTA 5.725-5.850GHZ 25MW/200MW/500MW/700MW 7.4-26.4V FCC/SRRC/MIC:<30dbm CE:<14dbm FCC/SRRC4km CE:0.7KM Weight:25g |
| Propeller | Gemfan 2020 Material:PC Weight:0.91g Props Dia:50.3mm Center Thickness:5mm Center Hole Dia:1.5mm 3 holes |
Frsky NON-EU/EU-LBT XM+ receiver Version | SBUS receiver Frsky D8/D16 switchable Compatible Non EU transmitter both D16 mode Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m Operating Voltage Range: 3.7~10V Operating Current: 30mA 5V Operating Range: Full range With RSSI output on board: Analog 0~3.3V Firmware upgrade-able, can be upgrade to EU-LBT with RSSI |
Compatible Flysky receiver Version | IBUS receiver Protocol: AFHDS-2A Channels: 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 300m Failsafe support |
Compatible TBS NANO receiver version | CRSF Protocol , Official TBS transmitter compatible Protocol: CRSF Channels: 8ch Failsafe support Support receiver hardware rssi function No ground interference ( Transmitter and receiver 1 m from the ground): >500m |
PNPDJI receiver version | Support any bus and other protocols, users can install by themselves DJI Vista comes with SBUs RC control signal |
Battery recommended（Not Included） | Species : lipo、lipoHV Capacity:450-750mah Full load use：850mah Voltage:7.8-16.8v Continuous Discharge Rate: 60C Instantaneous discharge rate: 90C Connector: xt30 |

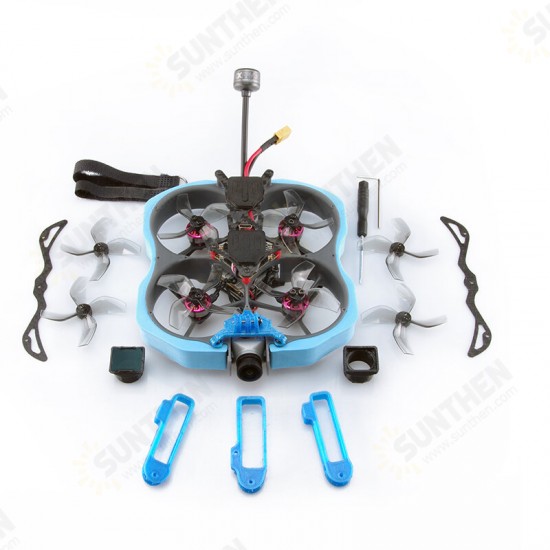

Package Included:
1x 78mm Aurora HD Frame
1x Receiver (Optional)
3x Lightweight Motion Camera Mount
4x GL1204 KV5000 Motor
1x 2020 propeller(4cw+4ccw)
1x DJI VISTA POLAR

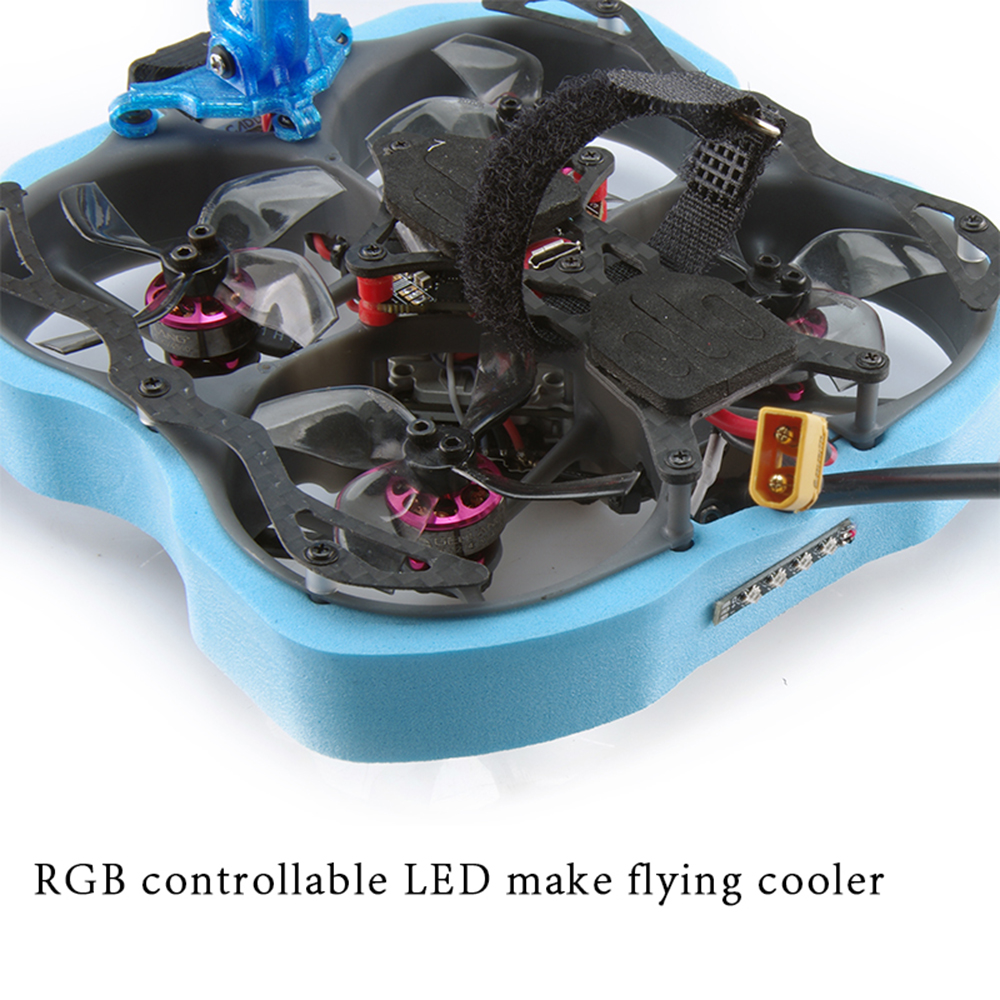

1x RGB LED
1x Screwdriver removal tool
2x Battery magic strap
2x Propeller protector

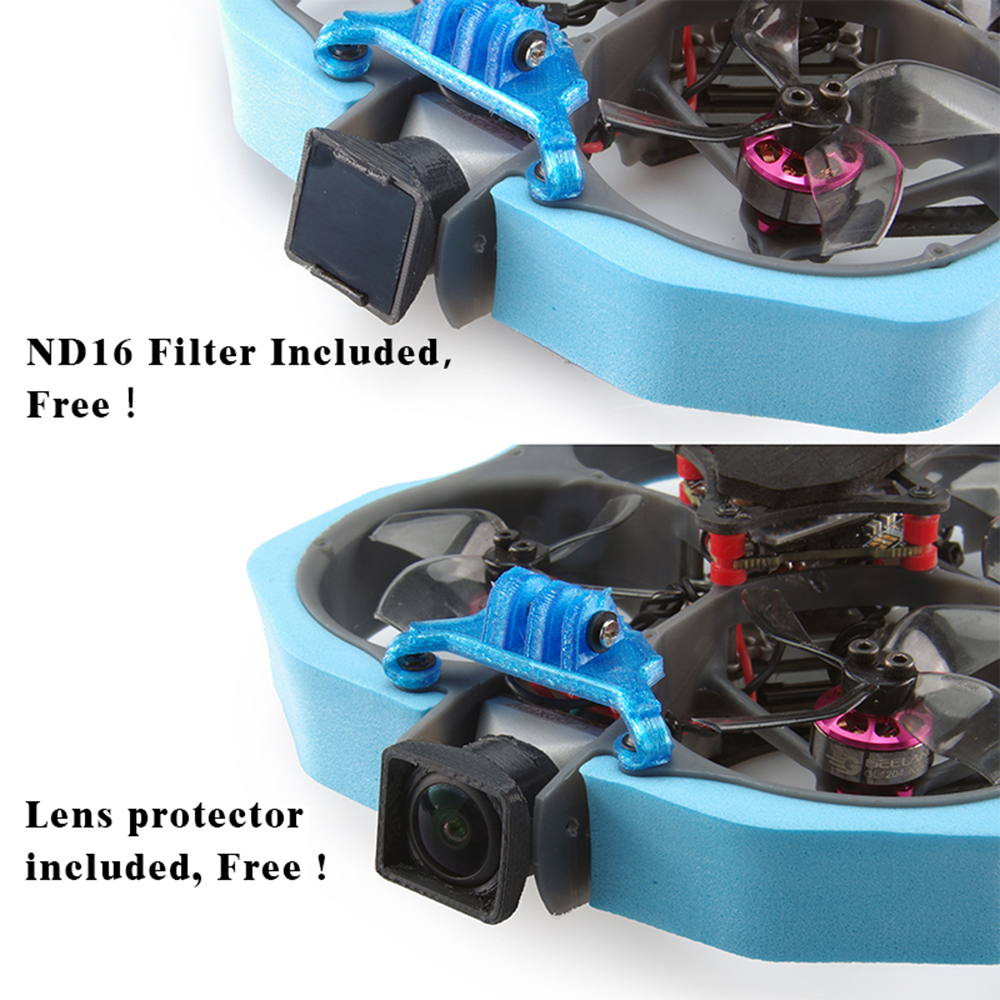

1x POLAR ND16 Filter
1x POLARLens protective cover
1x Bag
