LCD 30A 12V/24V Auto Switch LCD Solar Panel Battery Regulator Charge Controller
- Stock: In Stock
- Model: ST220017533
- SKU: ST220017533
$39.99
Ex Tax: $39.99
Description:

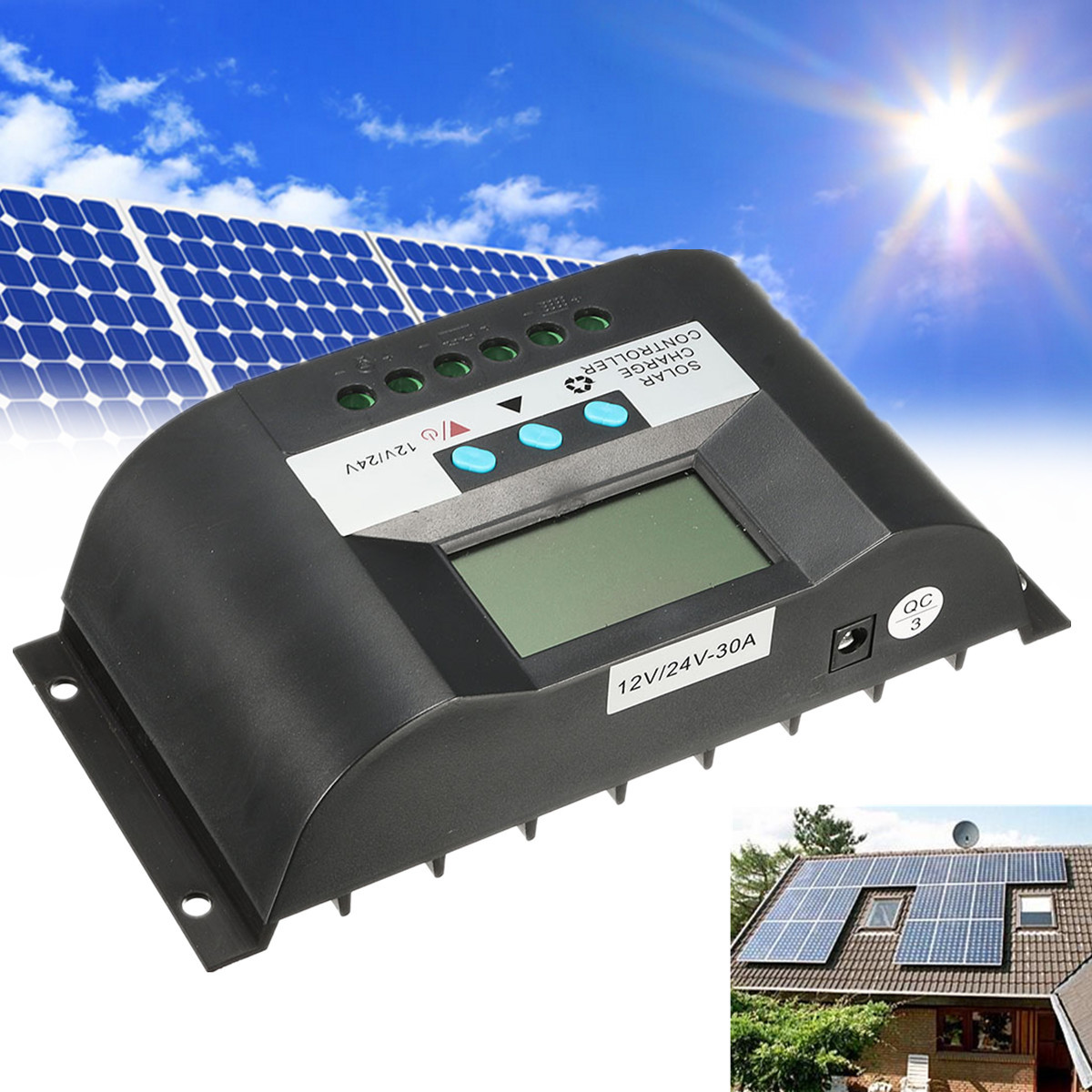

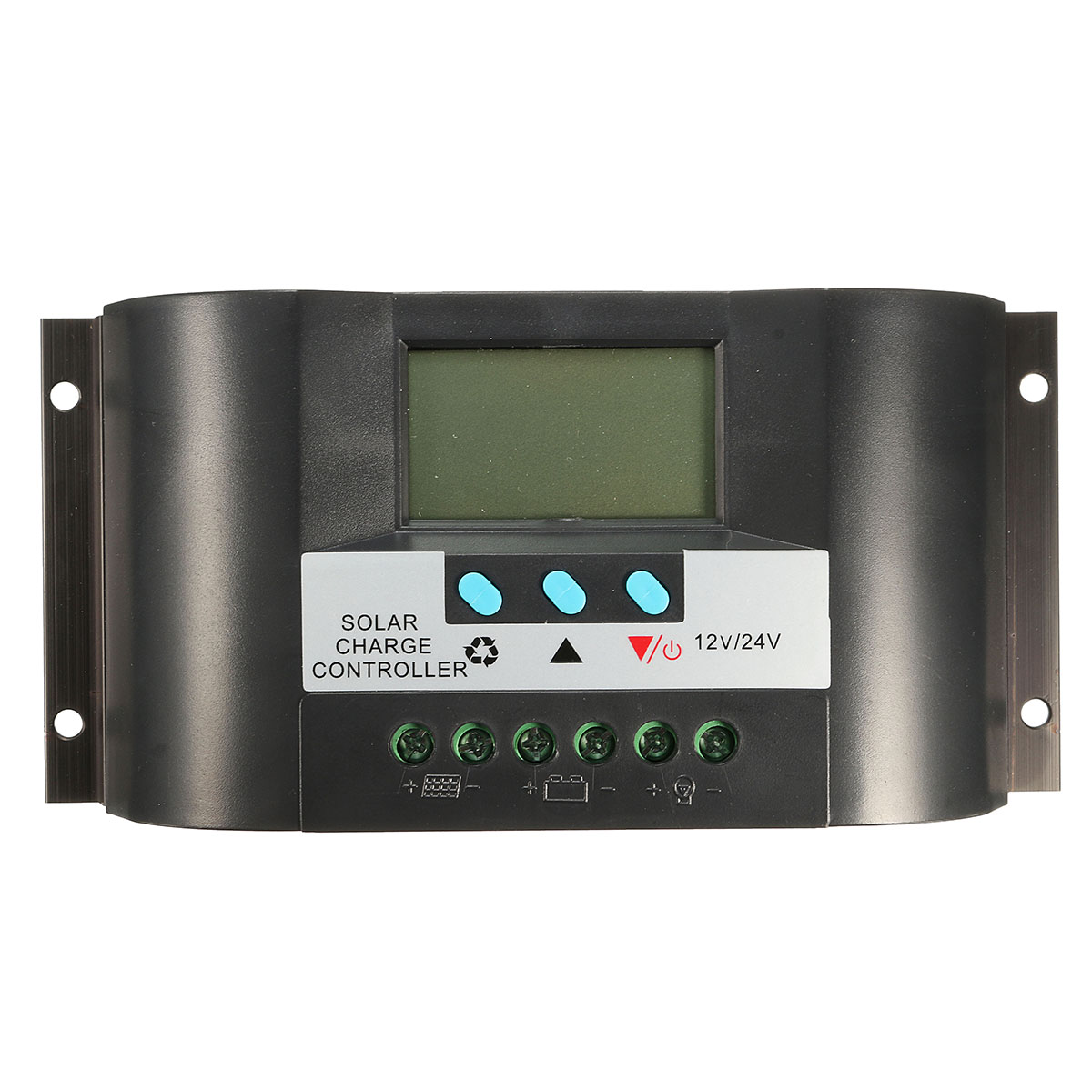

LCD 30A 12V/24V Auto Switch LCD Solar Panel Battery Regulator Charge Controller
Features:
Image of LCD graphic symbol.
Automatic identification system voltage level.
Settable operating mode of load.
Battery low voltage disconnection(LVD).
Battery reverse connection protection.
Simple button operation.
Intelligent PWM charge mode.
Adjustable charge-discharge control parameters.
Short circuit protection.
Battery reverse-discharge protection.
Specifications:
Size: Approx. 18.7 x 9.1 x 4.6cm/ 7.36 x 3.58 x 1.81"
Rated Current: 30A
Rated Voltage: Auto 12V/24V
Open Circuit Voltage of Solar Panel: <50V
Low Voltage Disconnection(LVD): 10.7V/ 21.4V
Float Voltage: 14V/ 28V
Low Voltage Disconnection(LVR): 12.6V/ 25.2V
Np Load: ≤30mA
Loop Voltage Drop: ≤200mV
Temperature Compensation: -4mV/ Cell/ ℃
Installation Cable Area: 6mm²~16mm²
Operating Temperature: -10℃~60℃
Storage Temperature: -30℃~70℃
Humidity Requirements: ≤90%, no condensation
Package Included:
1 x 30A 12V/24V Solar Controller Regulator
1 x English User Manual
