KTO011 KTS011 0-60 Degree Compact Normally Close NC Mechanical Temperature Controller Thermostat
- Stock: In Stock
- Model: ST22011417
- SKU: ST22011417
$13.99
Ex Tax: $13.99
Features:
The shell of our thermostat is made of high-quality plastic material with fine workmanship, environmental-friendly, safe, durable to use.
Its temperature controlling range is from 0° to 60°, perfect for using to control heater, filter fan, cooling equipment and other signal device in your home, market and so on.

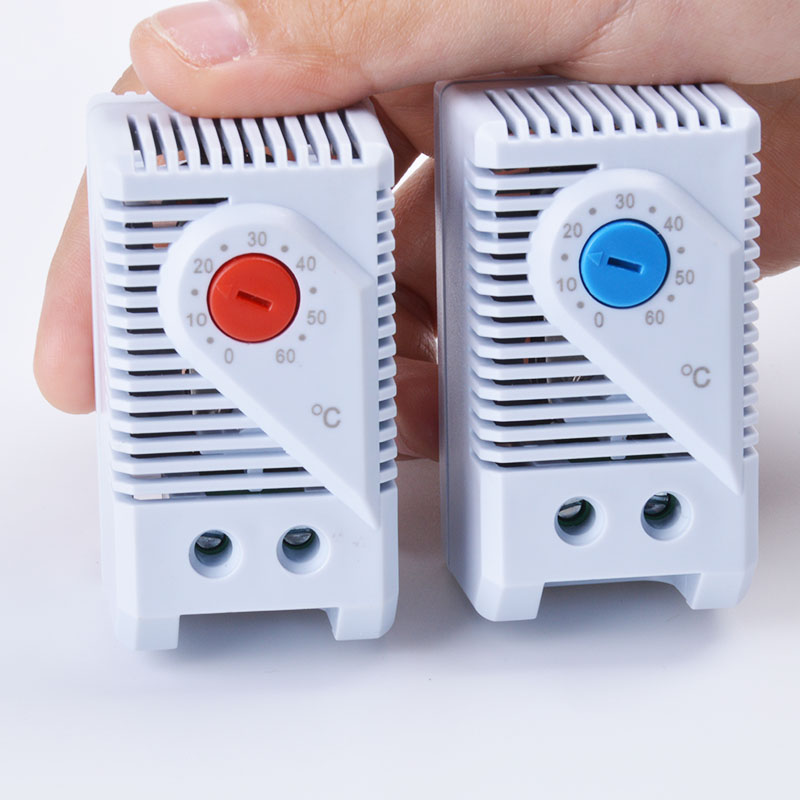

It has a large data scale and an adjustable button is for easy and convenient to adjust the controlling temperature, and the button color(red/blue) of thermostat could be choose for you.

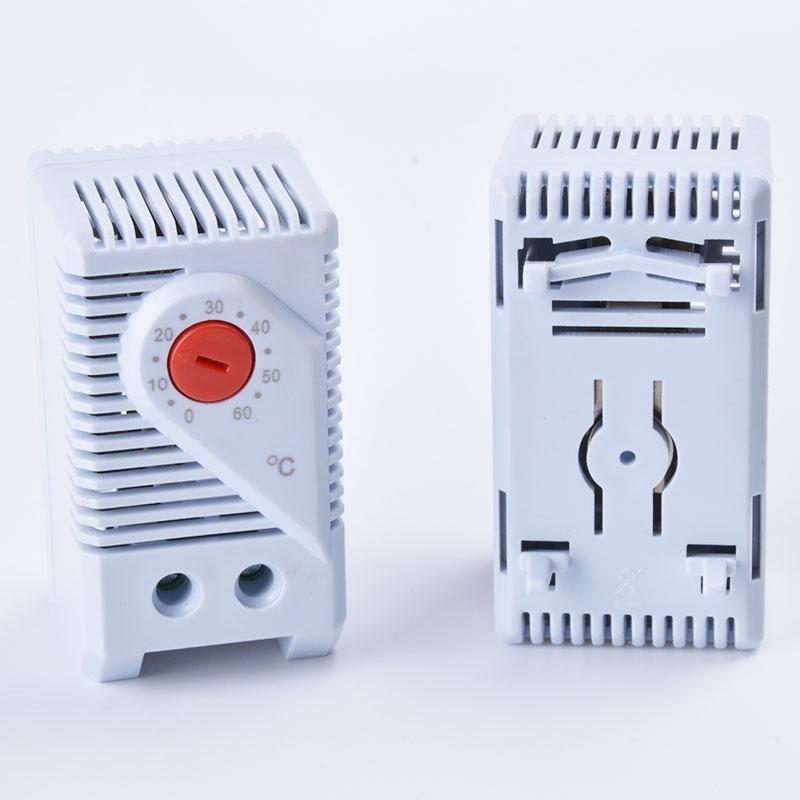

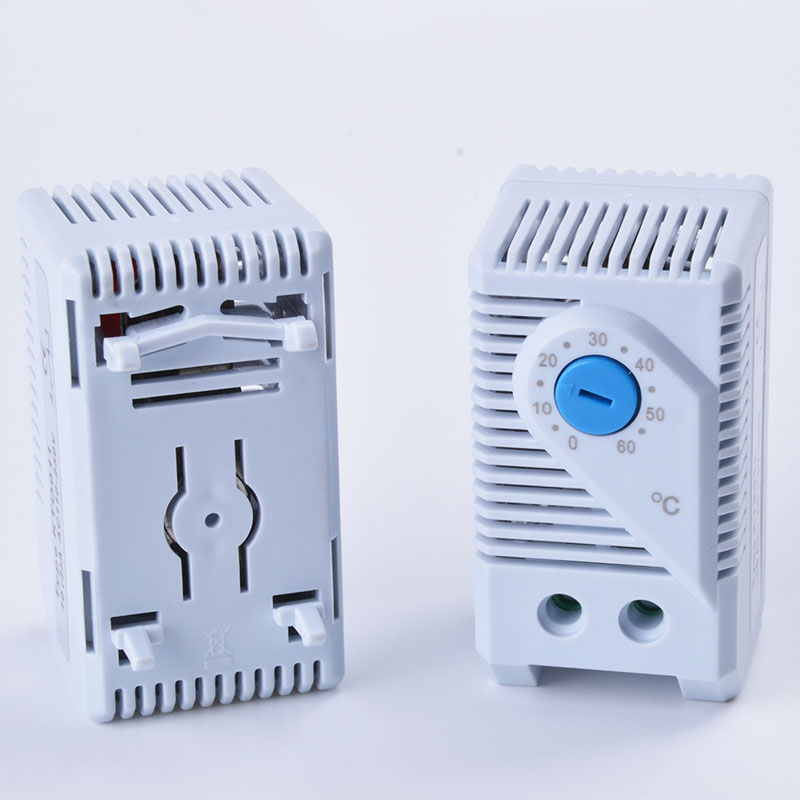

Adopting standard rail clip design, 4 feet holders, easy to install and disassemble.

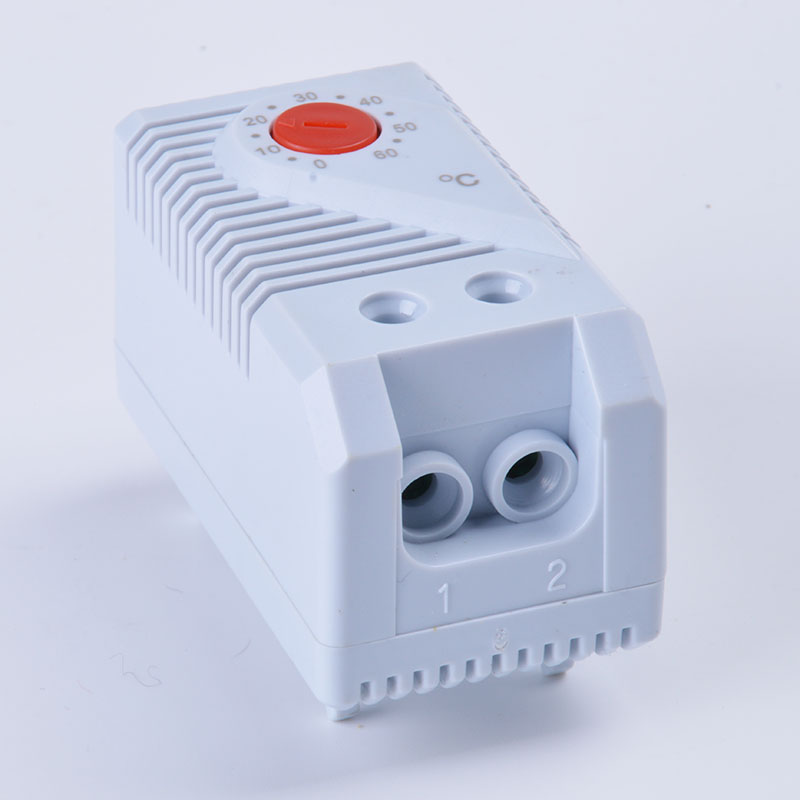

Circuit interfaces in the bottom of thermostat can make wire connection become more sturdy and safer.

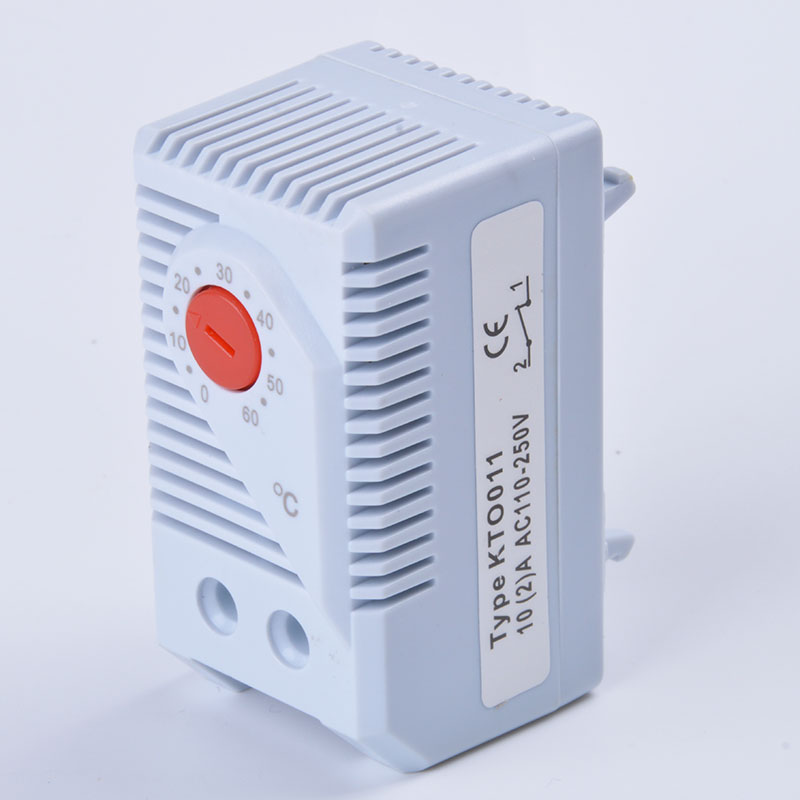

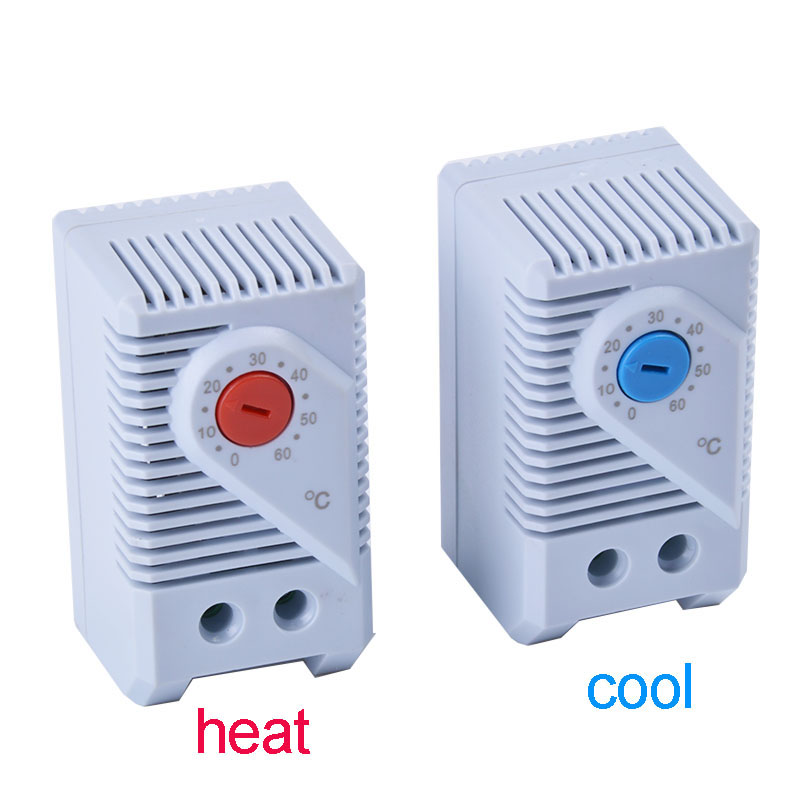

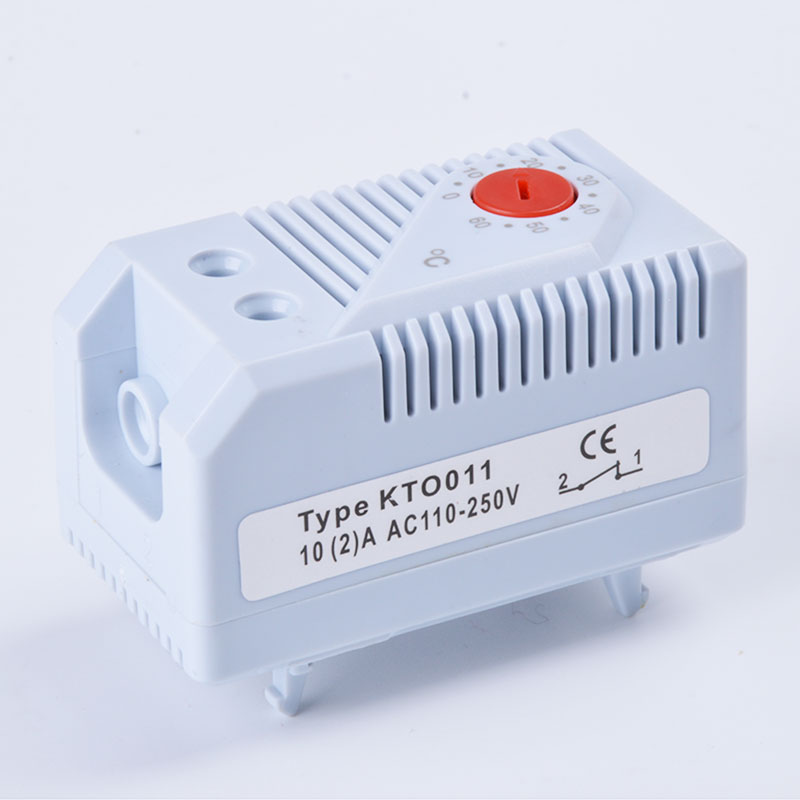

KTO 011: heat Thermostat (normally closed); contact breaker for regulating heaters.
KTS 011: cool Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.
Specification:
Specification:
Switch temperature difference | 7K (± 4K tolerance) |
Sensor element | thermostatic bimetal |
Contact type | snap-action contact |
Service life | > 100,000 cycles |
Max. Switching capacity | 250VAC, 10 (2) A |
120VAC, 15 (2) A | |
DC 30W | |
Connection | 2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm⊃2; stranded wire (with wire end ferrule) 1.5mm⊃2; |
Mounting | clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series) |
Casing | plastic according to UL94 V-0, light grey |
Dimensions | 60 x 33 x 43mm |
Weight | approx. 40g |
Fitting position | variable |
Operating / Storage temperature | -45 to +80°C (-49 to +176°F) |
Operating / Storage humidity | max. 90 % RH (non-condensing) |
Protection type | IP20 |
Package includes:
1 X Temperature Controller

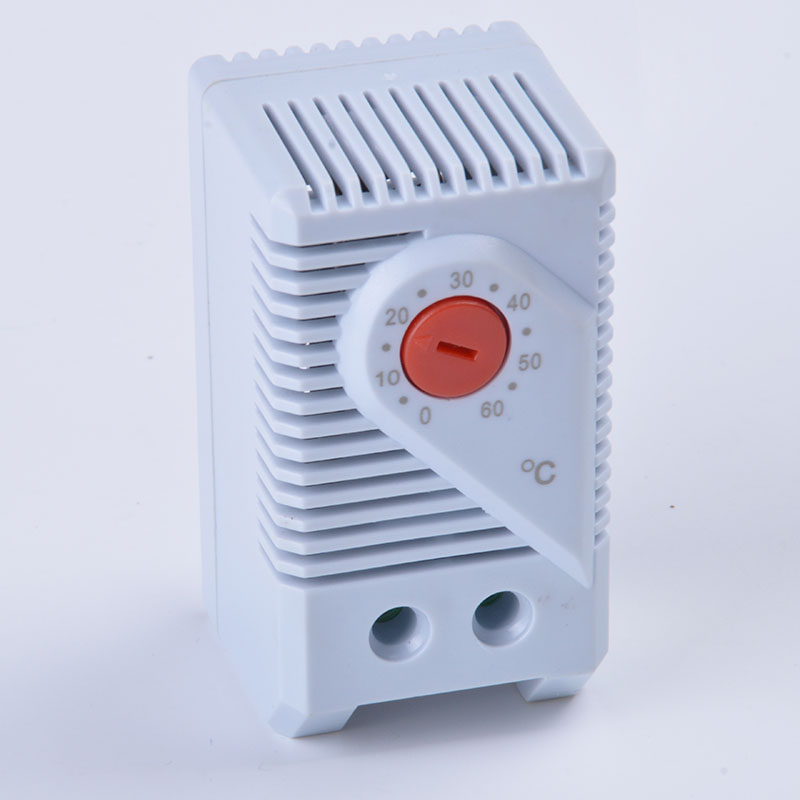

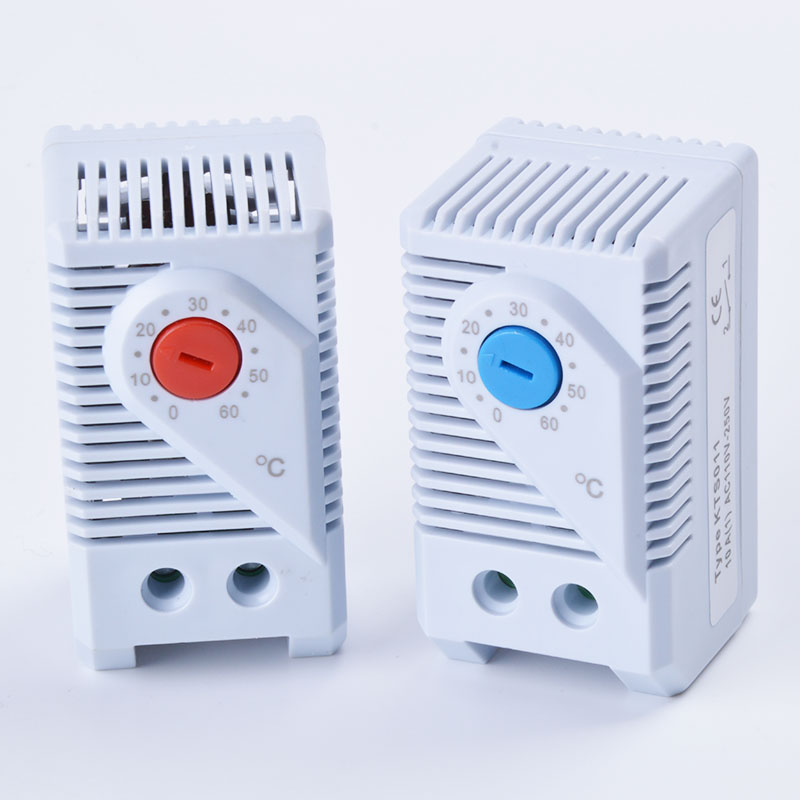

Details pictures:
