50CM Extension Cord U.FL IPX to RP-SMA Female Connector Antenna RF Pigtail Cable Wire Jumper for PCI WiFi Card RP-SMA Jack to IPX RG178

50CM Extension Cord U.FL IPX to RP-SMA Female Connector Antenna RF Pigtail Cable Wire Jumper for PCI WiFi Card RP-SMA Jack to IPX RG178
50CM Extension Cord U.FL IPX to RP-SMA Female Connector Antenna RF Pigtail Cable Wire Jumper for PCI WiFi Card RP-SMA Jack to IPX RG178
50CM Extension Cord U.FL IPX to RP-SMA Female Connector Antenna RF Pigtail Cable Wire Jumper for PCI WiFi Card RP-SMA Jack to IPX RG178
50CM Extension Cord U.FL IPX to RP-SMA Female Connector Antenna RF Pigtail Cable Wire Jumper for PCI WiFi Card RP-SMA Jack to IPX RG178
50CM Extension Cord U.FL IPX to RP-SMA Female Connector Antenna RF Pigtail Cable Wire Jumper for PCI WiFi Card RP-SMA Jack to IPX RG178
50CM Extension Cord U.FL IPX to RP-SMA Female Connector Antenna RF Pigtail Cable Wire Jumper for PCI WiFi Card RP-SMA Jack to IPX RG178
50CM Extension Cord U.FL IPX to RP-SMA Female Connector Antenna RF Pigtail Cable Wire Jumper for PCI WiFi Card RP-SMA Jack to IPX RG178
50CM Extension Cord U.FL IPX to RP-SMA Female Connector Antenna RF Pigtail Cable Wire Jumper for PCI WiFi Card RP-SMA Jack to IPX RG178
50CM Extension Cord U.FL IPX to RP-SMA Female Connector Antenna RF Pigtail Cable Wire Jumper for PCI WiFi Card RP-SMA Jack to IPX RG178
50CM Extension Cord U.FL IPX to RP-SMA Female Connector Antenna RF Pigtail Cable Wire Jumper for PCI WiFi Card RP-SMA Jack to IPX RG178
50CM Extension Cord U.FL IPX to RP-SMA Female Connector Antenna RF Pigtail Cable Wire Jumper for PCI WiFi Card RP-SMA Jack to IPX RG178
50CM Extension Cord U.FL IPX to RP-SMA Female Connector Antenna RF Pigtail Cable Wire Jumper for PCI WiFi Card RP-SMA Jack to IPX RG178
50CM Extension Cord U.FL IPX to RP-SMA Female Connector Antenna RF Pigtail Cable Wire Jumper for PCI WiFi Card RP-SMA Jack to IPX RG178
50CM Extension Cord U.FL IPX to RP-SMA Female Connector Antenna RF Pigtail Cable Wire Jumper for PCI WiFi Card RP-SMA Jack to IPX RG178
50CM Extension Cord U.FL IPX to RP-SMA Female Connector Antenna RF Pigtail Cable Wire Jumper for PCI WiFi Card RP-SMA Jack to IPX RG178
50CM Extension Cord U.FL IPX to RP-SMA Female Connector Antenna RF Pigtail Cable Wire Jumper for PCI WiFi Card RP-SMA Jack to IPX RG178
50CM Extension Cord U.FL IPX to RP-SMA Female Connector Antenna RF Pigtail Cable Wire Jumper for PCI WiFi Card RP-SMA Jack to IPX RG178
  • Stock: In Stock
  • Model: ST22012013
  • SKU: ST22012013
$7.99
Ex Tax: $7.99
Features:
Name: IPEX to RP SMA Jumper Wire
Family: Coaxial, RF pigtail cable
Connector A: U.FL IPX
Connector B: RP-SMA Female (Inner Pin)
Cable Type: RG178 cable
Cable Length:50cm
Color: Gold Connector
Applications: Wifi router, Commercial-Grade Wireless, phone wireless, AP
Compatible with: WiFi USB Adapter; Wireless Network Router Hotspot; WiFi Signal Booster Repeater; WiFi Range Extender; Wireless Mini PCI Express PCIE Network Card; IP Security Camera; Yagi Antenna;
Compatible with: Wireless Video Surveillance, Security IP Camera, NVR Recorder;
Connector: Reverse Polarity SMA Female 50 Ohm Bulkhead Mount Connector; Connector: Mini PCI U.FL IPX Connector; Cable: RG178 Coaxial Cable

Specification:

Part Number: IPEX -SMA female RG178 cable

Specification

Impendence

50 ohm

Connector 1

RP SMA Female straight

Connector 2

IPX/U.FL Connector

Cable type

RG178

Cable length

You Choose

Frequency range

DC/6GHz

Voltage withstand

1000V maximum

Jacket spark voltage

3000Vrms

Operating Temperature

45 °C-85 °C

Durability

≥500 cycles

Waterproof Rate

Waterproof Rate



Package included:
1 x IPEX -SMA female RG178 cable

Details Pictures:

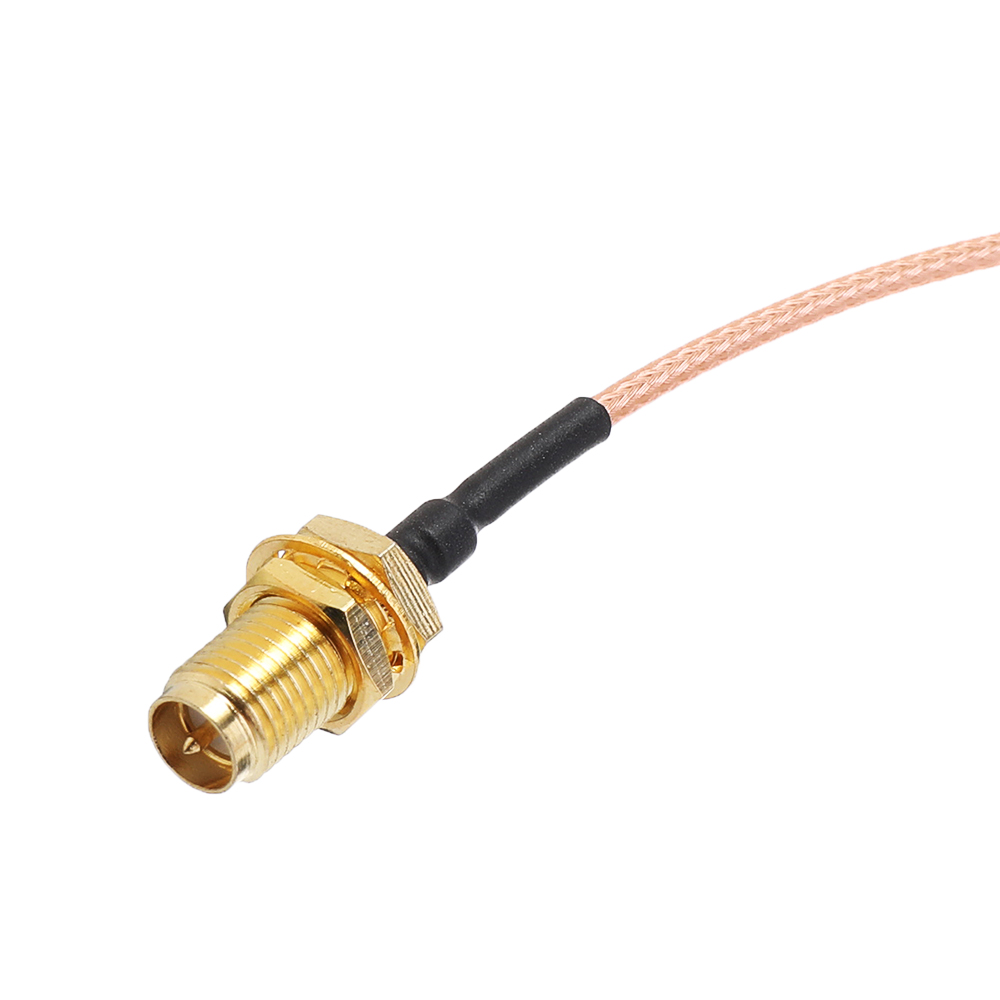

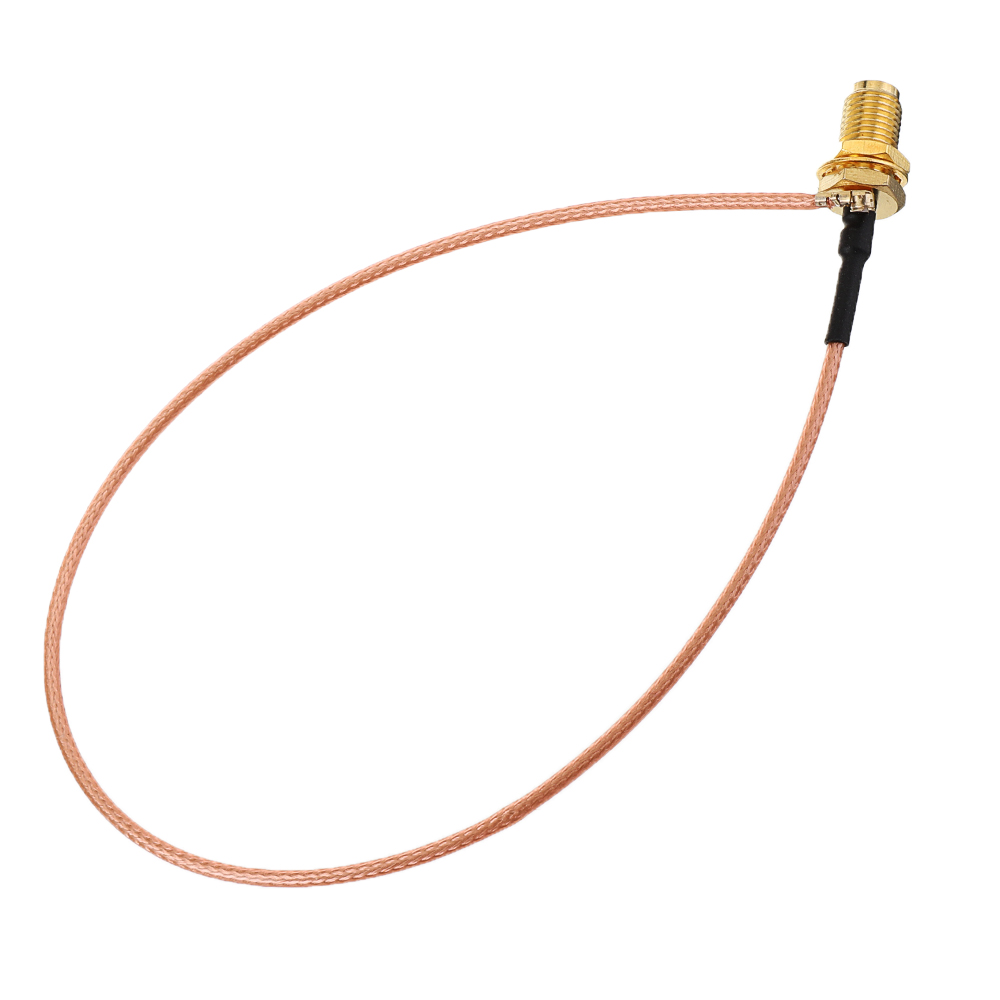

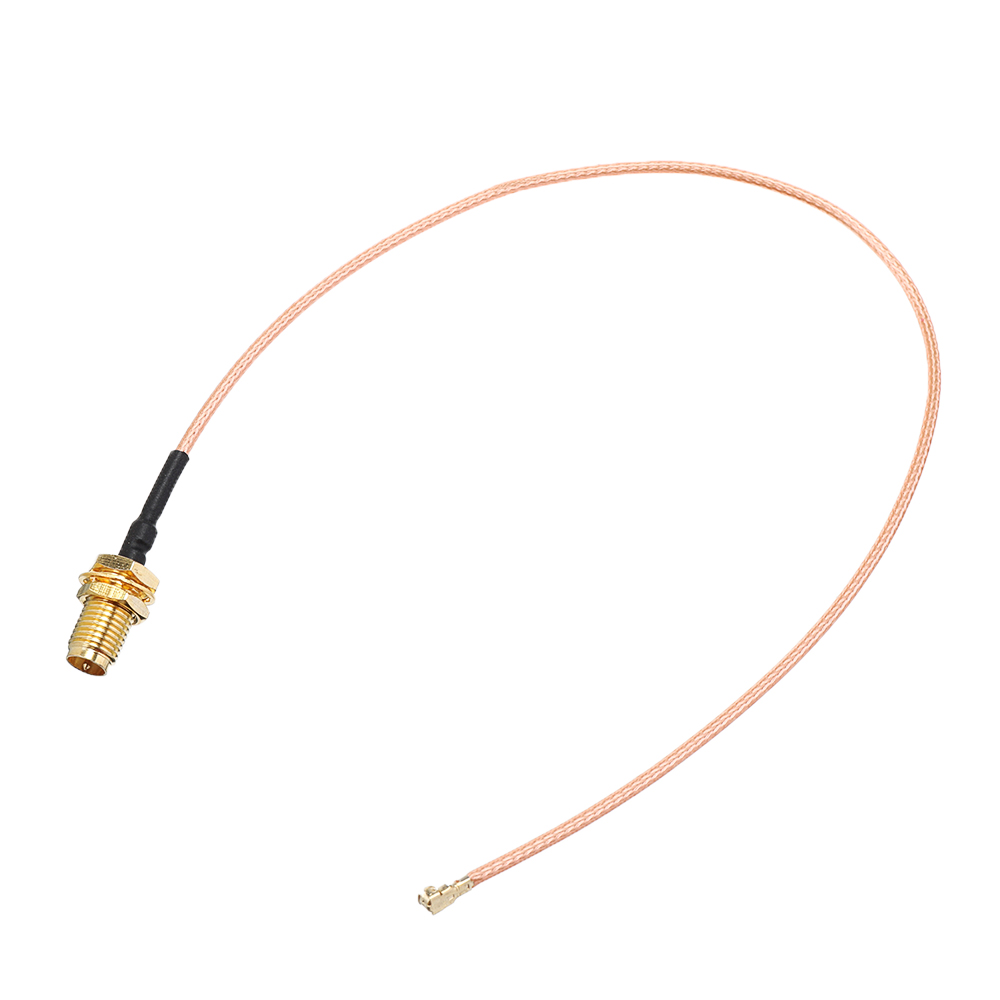

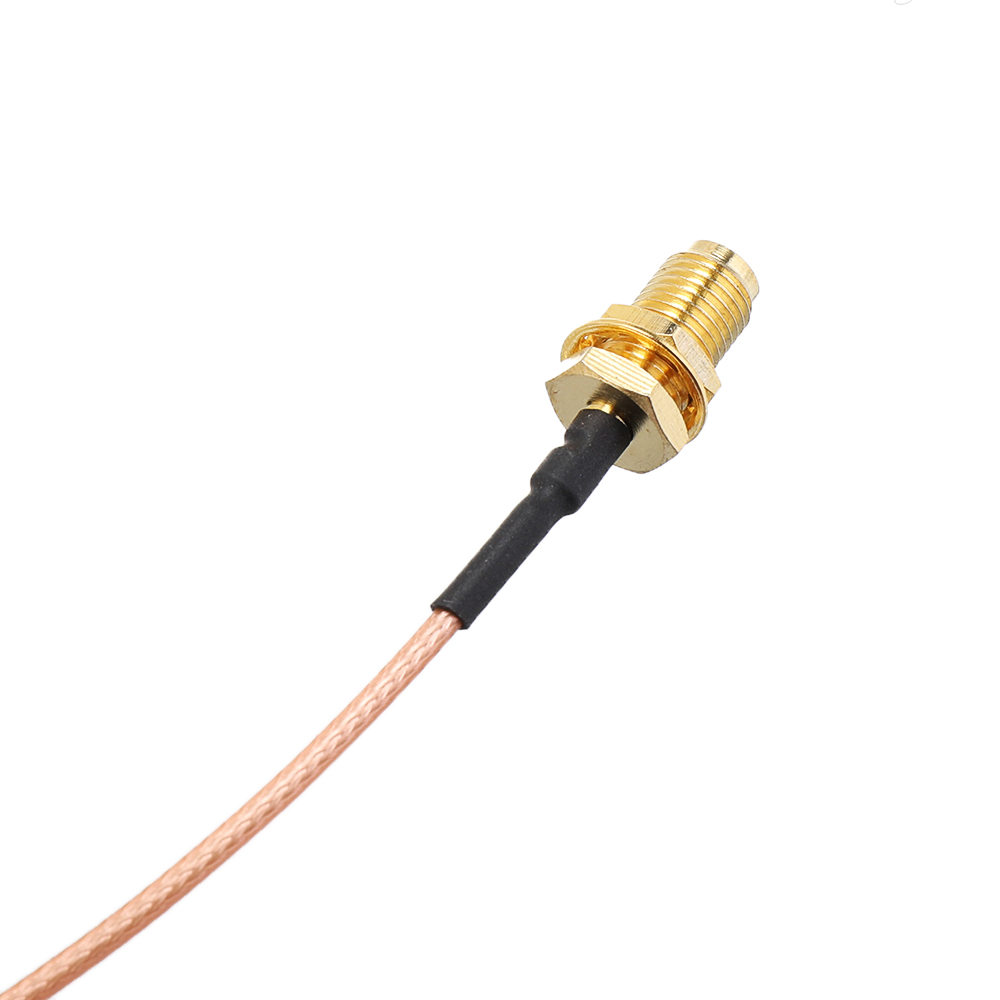

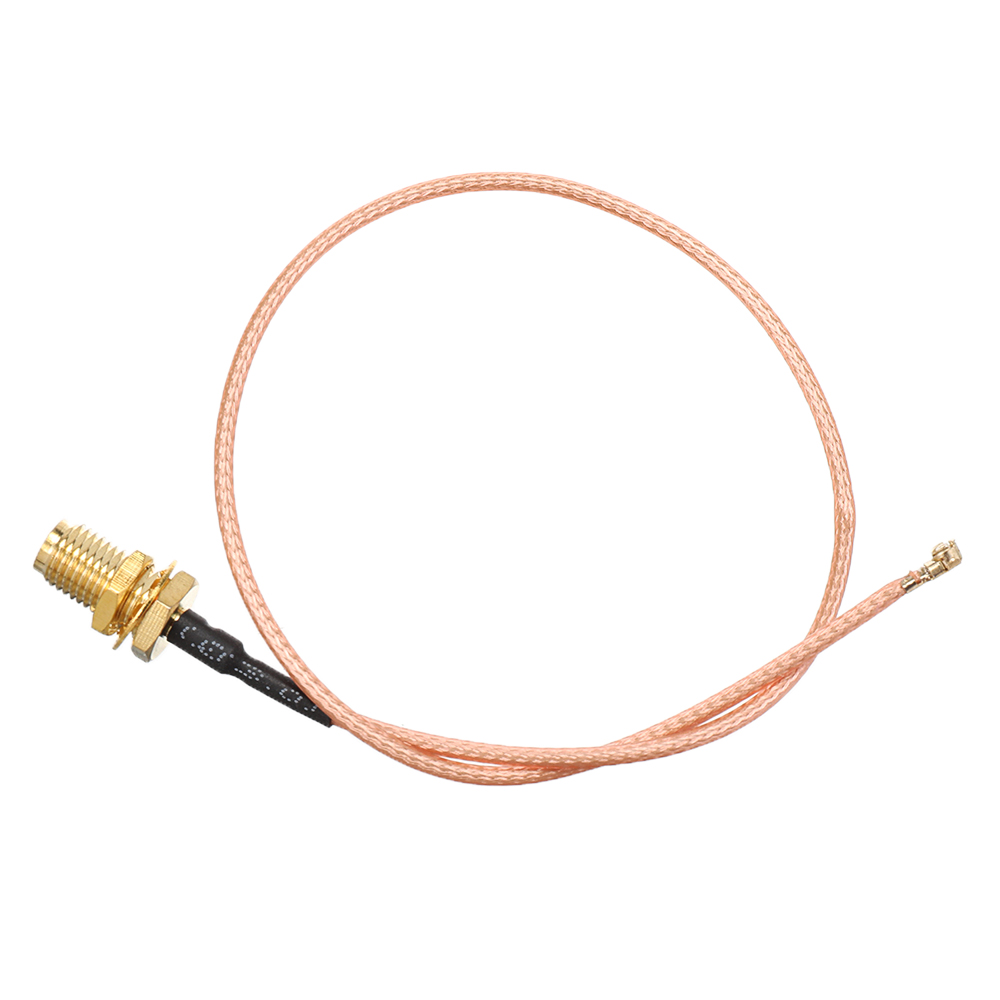

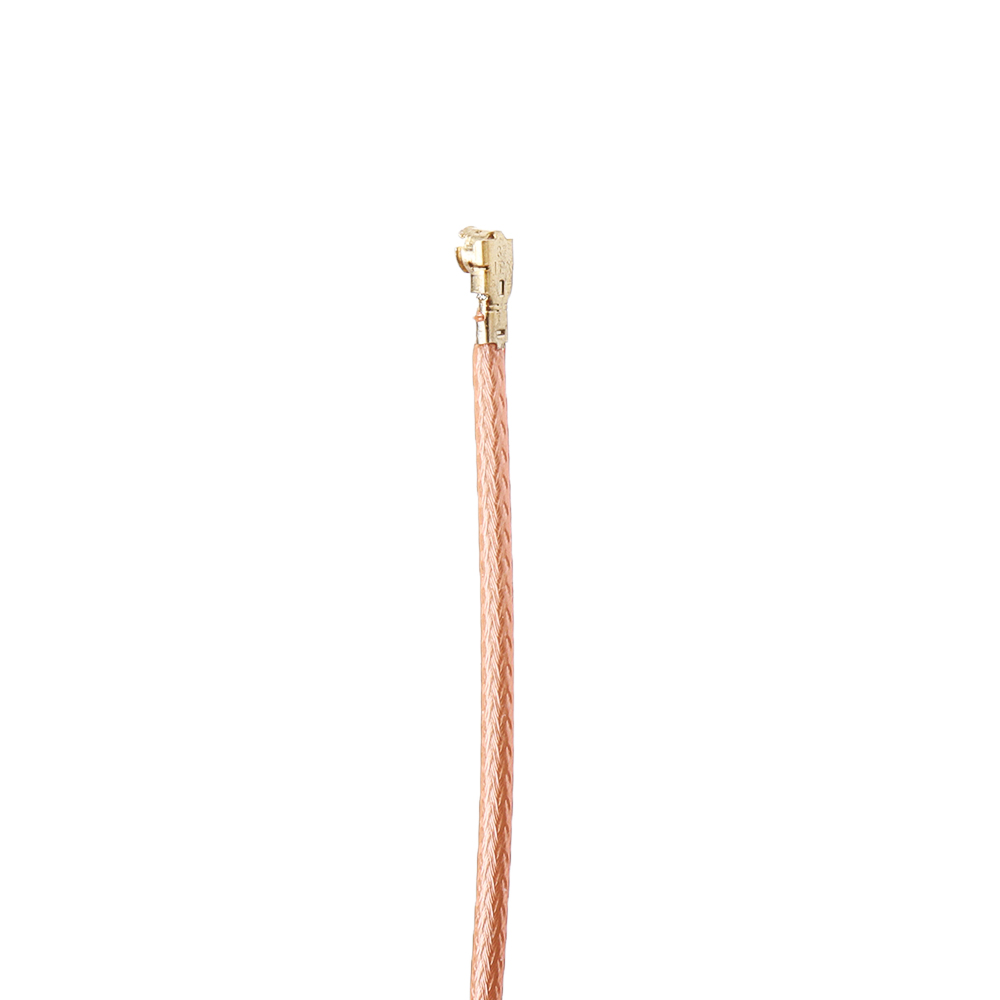

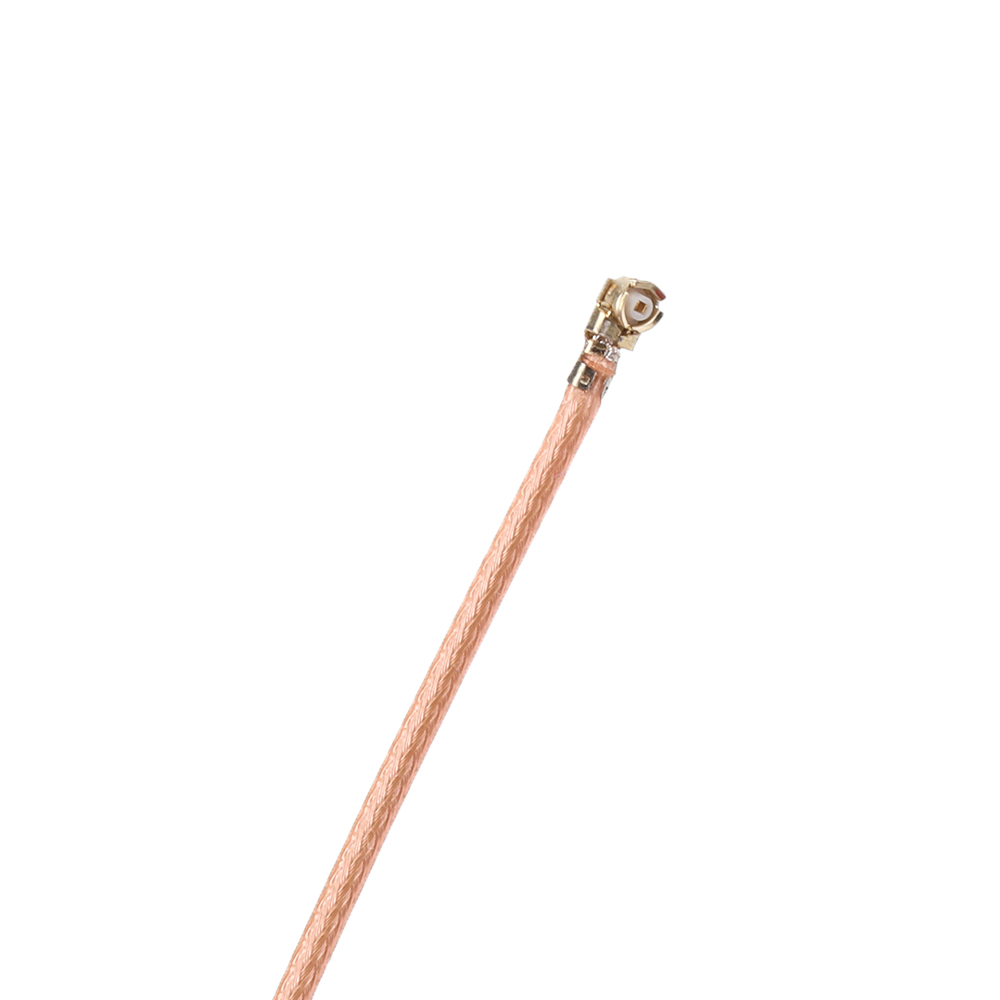

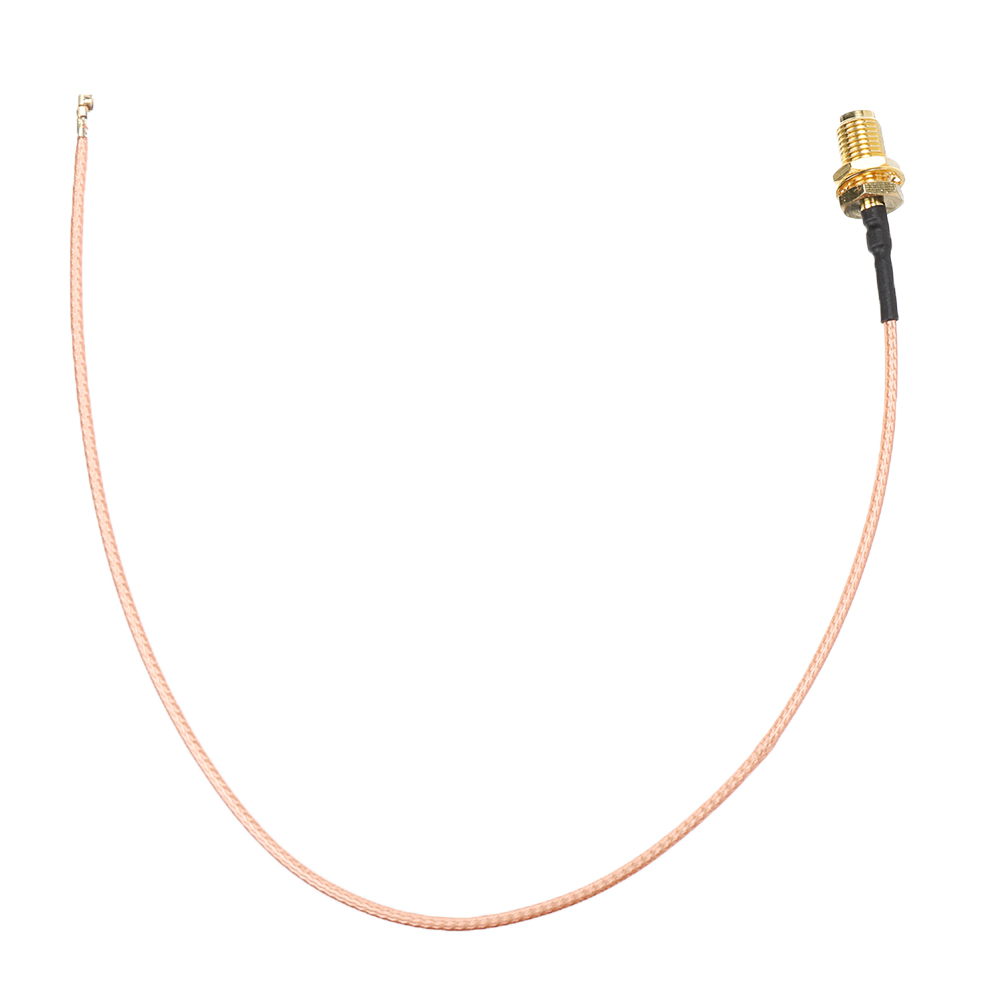

50CM-Extension-Cord-UFL-IPX-to-RP-SMA-Female-Connector-Antenna-RF-Pigtail-Cable-Wire-Jumper-for-PCI--1628454-1


50CM-Extension-Cord-UFL-IPX-to-RP-SMA-Female-Connector-Antenna-RF-Pigtail-Cable-Wire-Jumper-for-PCI--1628454-2


50CM-Extension-Cord-UFL-IPX-to-RP-SMA-Female-Connector-Antenna-RF-Pigtail-Cable-Wire-Jumper-for-PCI--1628454-3


50CM-Extension-Cord-UFL-IPX-to-RP-SMA-Female-Connector-Antenna-RF-Pigtail-Cable-Wire-Jumper-for-PCI--1628454-4


50CM-Extension-Cord-UFL-IPX-to-RP-SMA-Female-Connector-Antenna-RF-Pigtail-Cable-Wire-Jumper-for-PCI--1628454-5


50CM-Extension-Cord-UFL-IPX-to-RP-SMA-Female-Connector-Antenna-RF-Pigtail-Cable-Wire-Jumper-for-PCI--1628454-6


50CM-Extension-Cord-UFL-IPX-to-RP-SMA-Female-Connector-Antenna-RF-Pigtail-Cable-Wire-Jumper-for-PCI--1628454-7


50CM-Extension-Cord-UFL-IPX-to-RP-SMA-Female-Connector-Antenna-RF-Pigtail-Cable-Wire-Jumper-for-PCI--1628454-8
